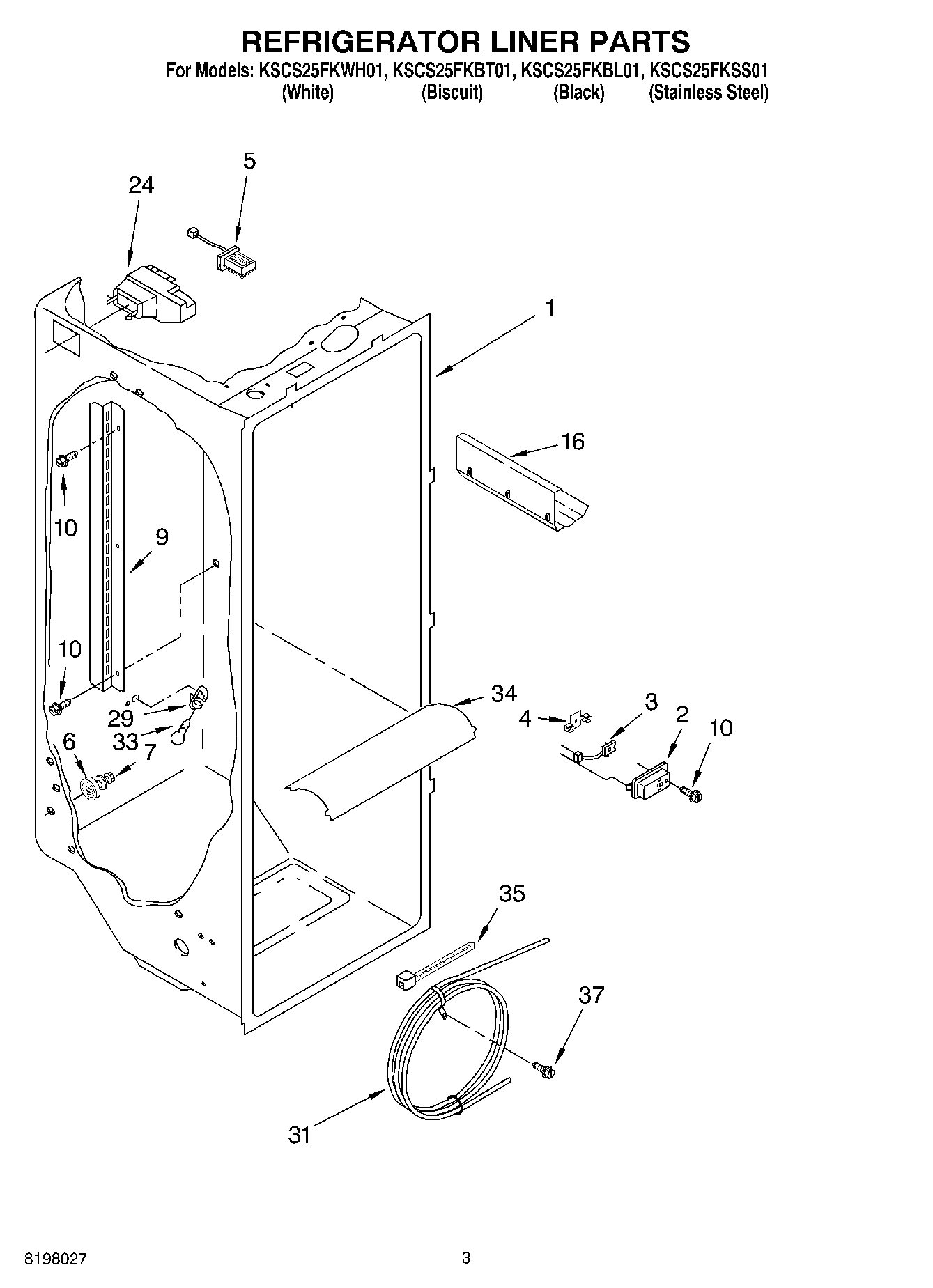

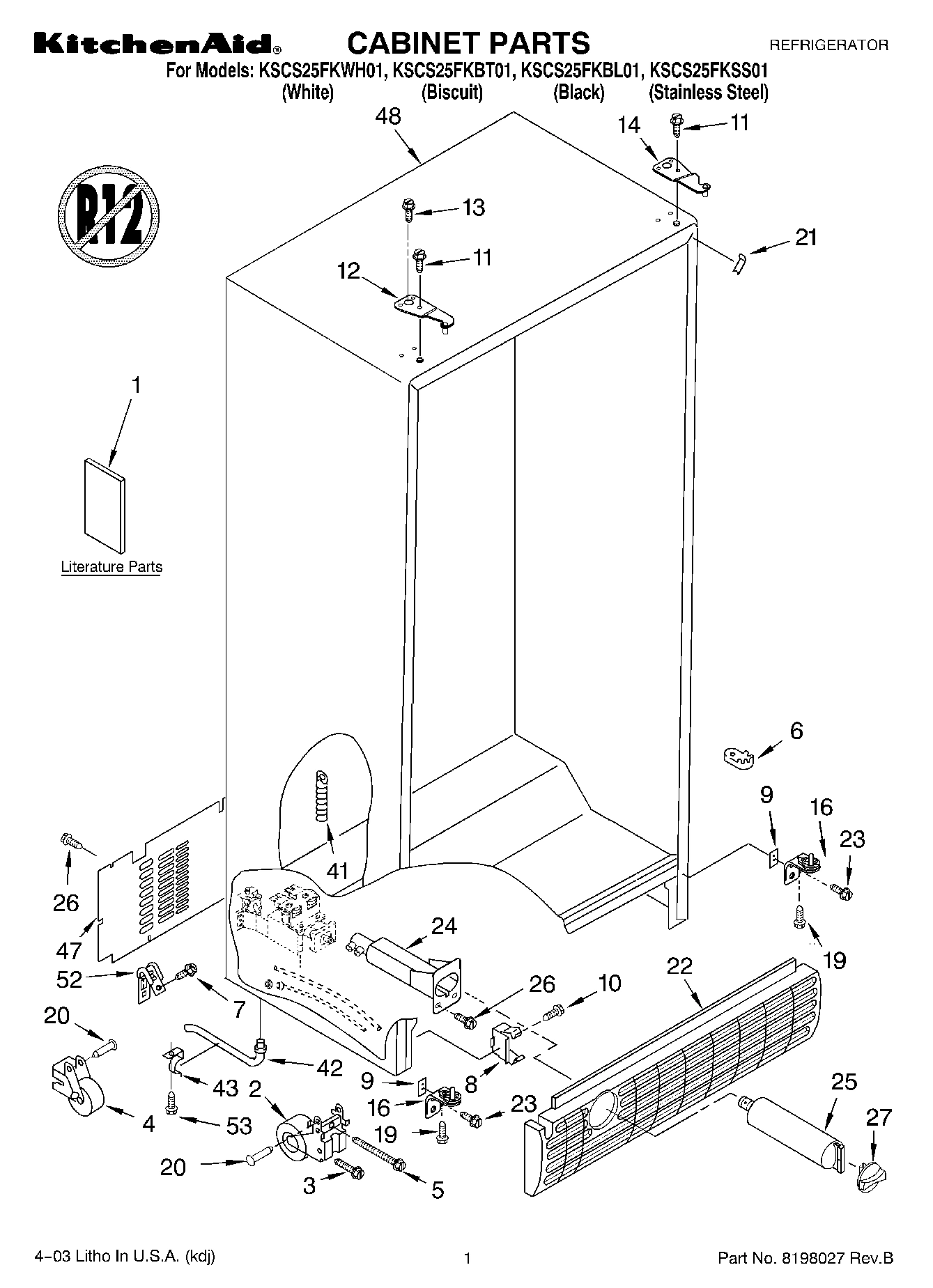

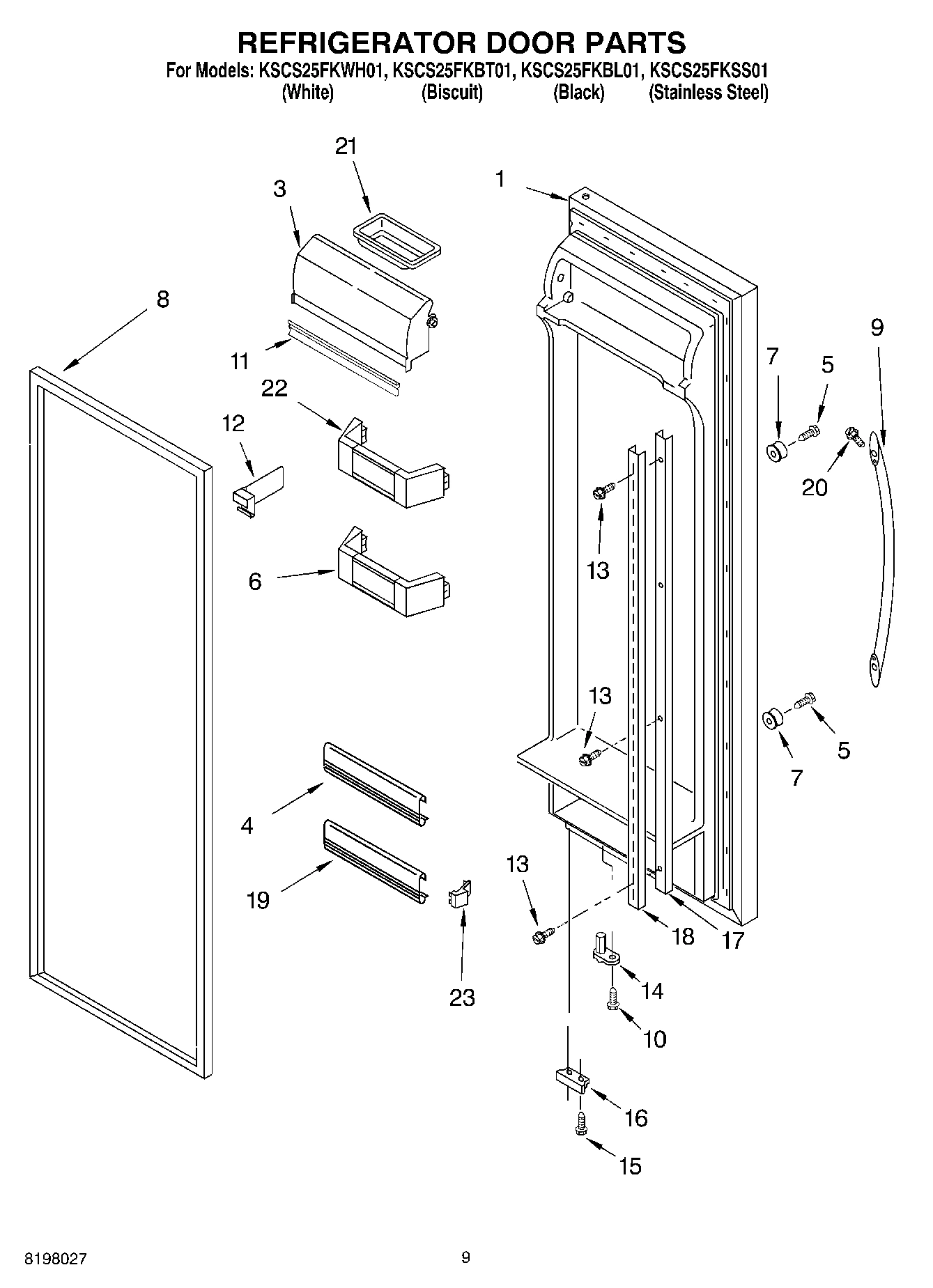

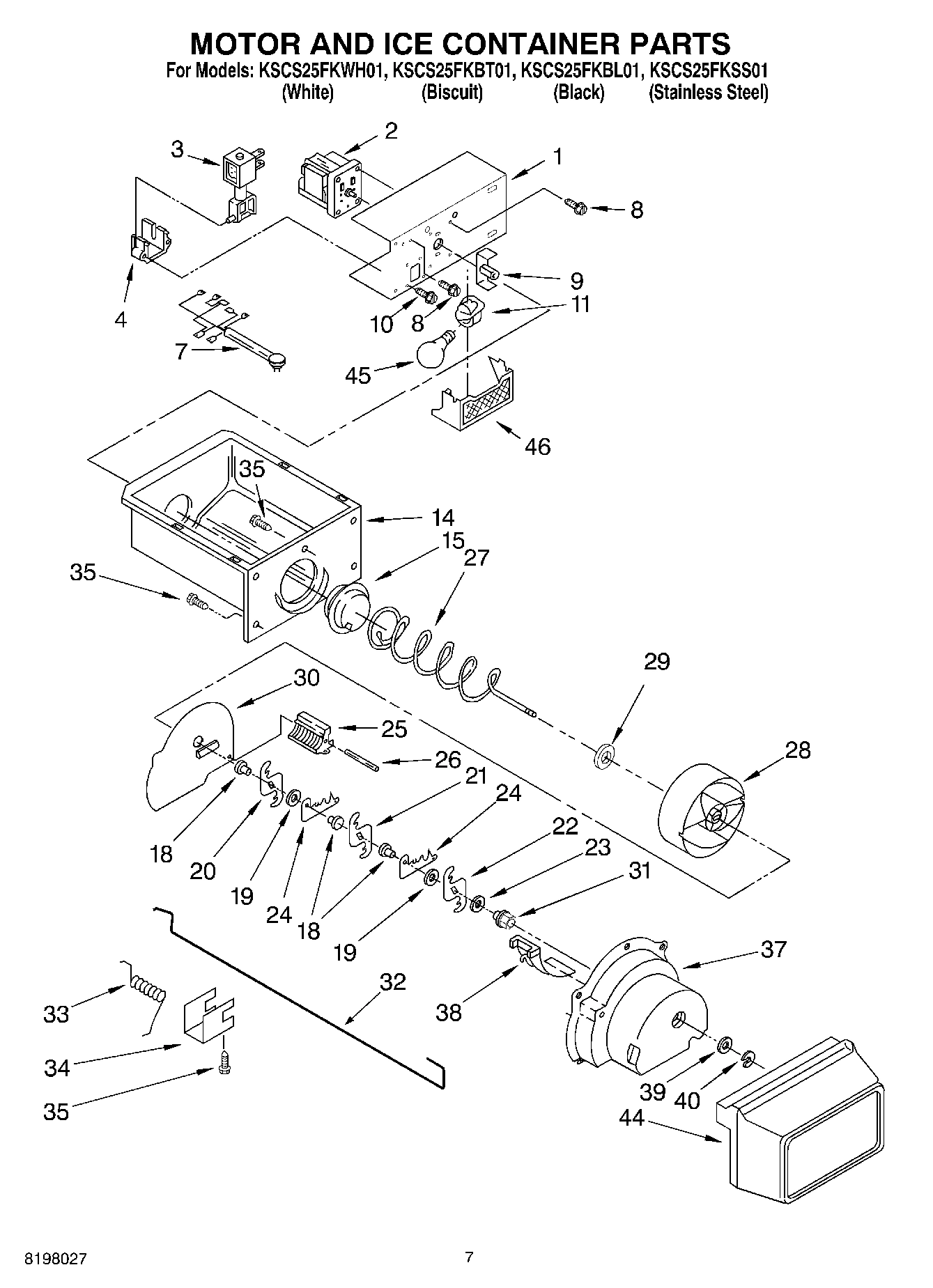

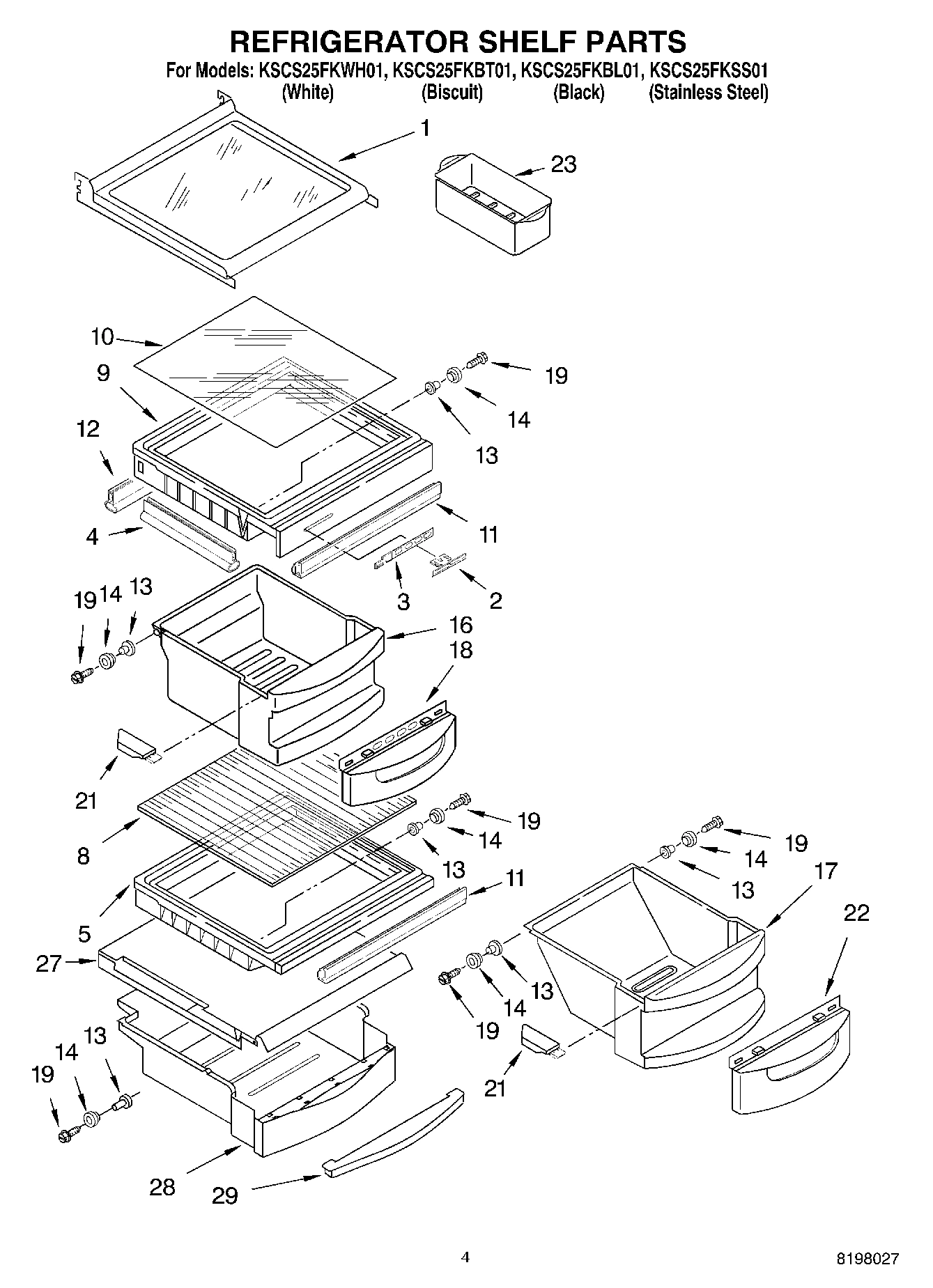

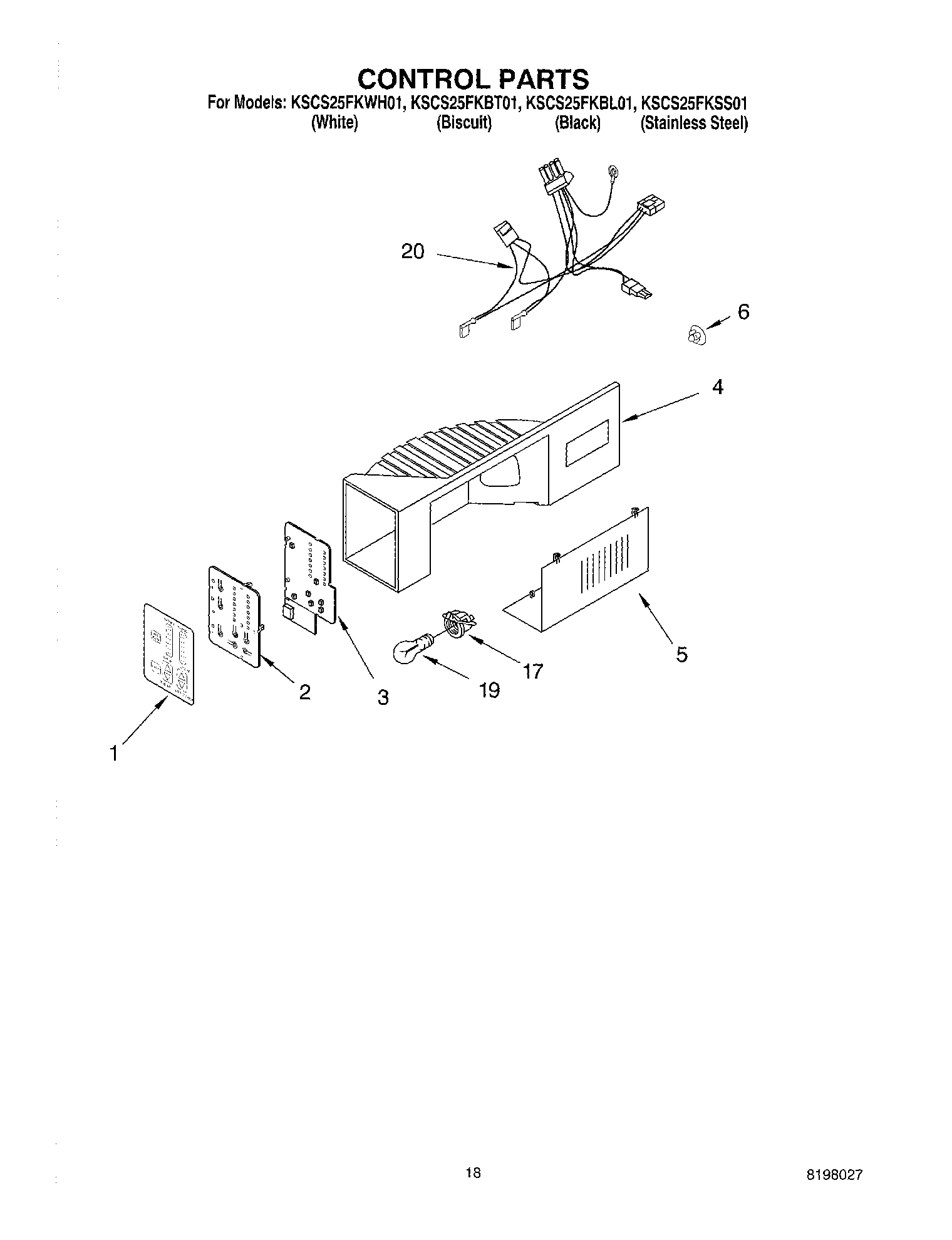

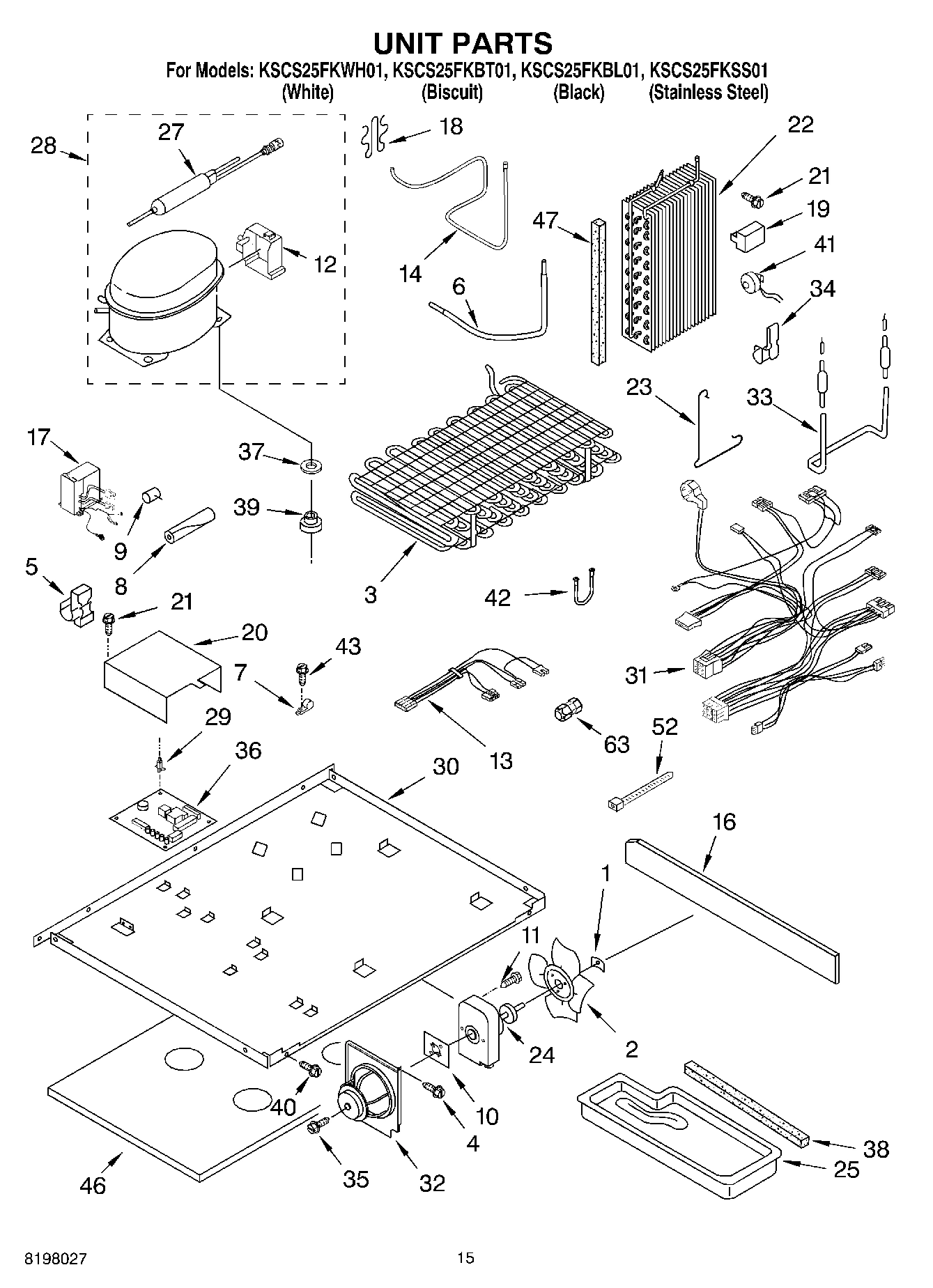

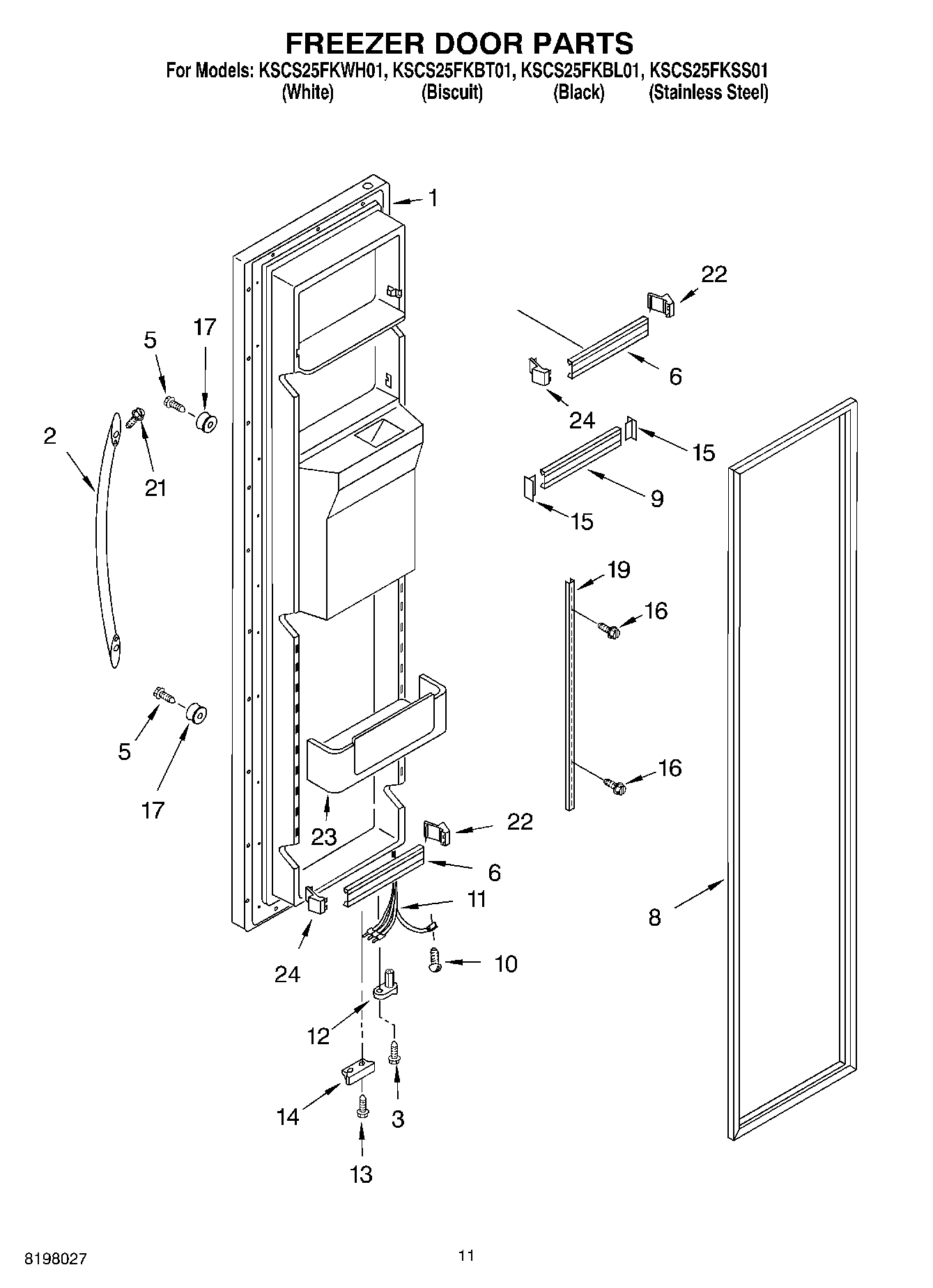

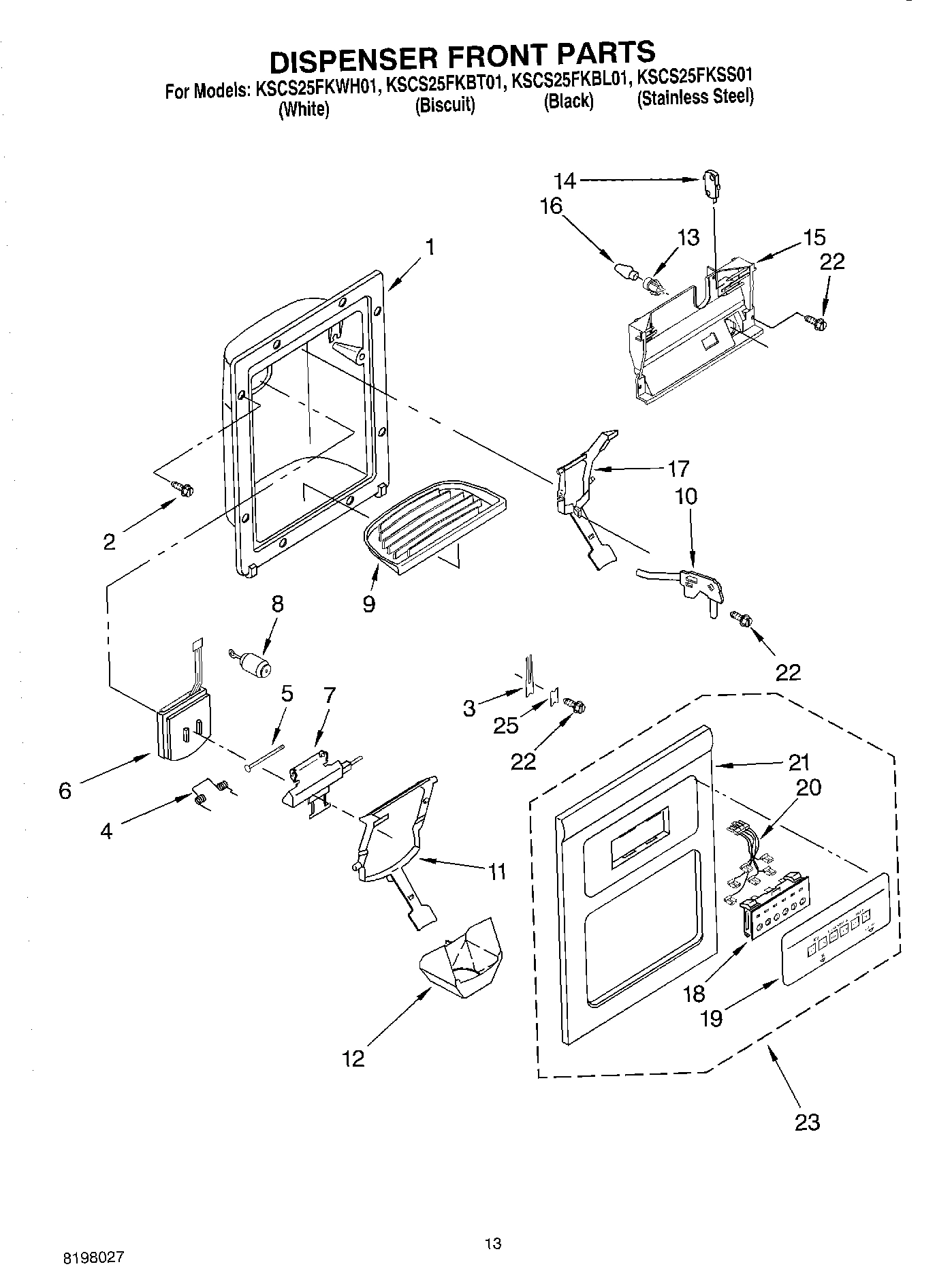

Model Whirlpool KSCS25FKBL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

LITERATURE PARTS WPL ARI90991A2 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $32.96

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI90993A1 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2214447 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2221544 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2260953 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI90994A7 Contact Us For Availability

1

Overlay WPL 2203081 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Clip, Thermistor WPL 2209204 Contact Us For Availability

2

Front Roller (2) WPL 2203007 Contact Us For Availability

2

Retainer, Circuit Board WPL 2221538 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Condenser Assembly WPL 2205983 Contact Us For Availability

3

Air Scoop WPL 2210746 Contact Us For Availability

3

Bolt WPL 3400512 Contact Us For Availability

3

Door, Ice Compartment WPL 2199860 Contact Us For Availability

3

Circuit Board, Interface WPL 2214765 Contact Us For Availability

4

Trim, Door Shelf WPL 2256010 Contact Us For Availability

4

Block, Fan Scroll WPL 2208184 Contact Us For Availability

4

Roller (Rear) (2) WPL 2203008 Contact Us For Availability

4

Control Box WPL 2199717 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Eyelet, Roller WPL 2174478 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

5

Air Duct Freezer WPL 2199931 Contact Us For Availability

5

Bolt WPL 3400511 Contact Us For Availability

5

Light Lens WPL 2203108 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

WP2257017 Whirlpool Refrigerator Cantilever B Backorder WPL WP2257017 $72.36

6

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

6

Tube, Condenser to Heat Loop WPL 2214366 Contact Us For Availability

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

8201589 Whirlpool Refrigerator Evaporator Mot In Stock WPL 8201589 $146.85

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

Stud, Handle WPL 2203690 Contact Us For Availability

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Glass, Cover WPL 2203038 Contact Us For Availability

8

Clip WPL 2209558 Contact Us For Availability

8

Door Gasket, Magnetic (Mist Beige) WPL 2221305 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 2221310 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $39.03

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Handle (Black) WPL 2188635B Contact Us For Availability

9

Handle (Stainless Steel) WPL 2188635S Contact Us For Availability

9

Handle (Biscuit) WPL 2188635T Contact Us For Availability

9

Handle (White) WPL 2188635W Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

9

Trim, Basket WPL 2199867 Contact Us For Availability

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $49.98

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

Bracket, Insert WPL 2210750 Contact Us For Availability

Screw WPL 3400515 Contact Us For Availability

Basket (2) WPL 2199863 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

3400108 Whirlpool Refrigerator Screw Backorder WPL 3400108 $9.59

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

Basket, Shallow WPL 2199892 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

2307007AP Whirlpool Refrigerator Hinge Backorder WPL 2307007AP $52.83

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $44.38

2307007T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007T $45.27

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Divider, Bin WPL 2195497 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2214359 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Tube, Water Inlet WPL 2203024 Contact Us For Availability

Unit, Harness WPL 2187390 Contact Us For Availability

2307008AP Whirlpool Refrigerator Hinge Backorder WPL 2307008AP $53.91

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $15.96

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $44.38

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Tube Suction WPL 2214365 Contact Us For Availability

Wiring Cover WPL 2203111 Contact Us For Availability

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

15

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

15

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $127.47

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2210774 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2214451 Contact Us For Availability

Extension, Air Baffle WPL 2203020 Contact Us For Availability

Gasket WPL 2210780 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $226.28

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability

Cover, Evaporator WPL 2203122 Contact Us For Availability

Slide, Basket (Left Side (2)) WPL 2208197 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2208198 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Ladder, Shelf (2) WPL 1113949 Contact Us For Availability

Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Block, Evaporator WPL 2208183 Contact Us For Availability

Evaporator, Cover Rail (Right) WPL 2199922 Contact Us For Availability

Evaporator, Cover Rail (Left) WPL 2199923 Contact Us For Availability

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Control Box Harness WPL 2214376 Contact Us For Availability

Screw WPL 98654 Contact Us For Availability

Housing, Control Board WPL 2257354 Contact Us For Availability

Butter, Dish WPL 2165792 Contact Us For Availability

Filler, Wrapper (Black) WPL 2203067B Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2203067T Contact Us For Availability

Filler, Wrapper (White) WPL 2203067W Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Black) WPL 2199904B Contact Us For Availability

Window, Meat Pan WPL 2174076 Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

Bin, Door (3) WPL 2199983 Contact Us For Availability

Grille (Biscuit) WPL 2199904T Contact Us For Availability

Grille (White) WPL 2199904W Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2209533 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $165.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $108.46

Air Diffuser Assembly WPL 2214367 Contact Us For Availability

Light Lens WPL 2199965 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $19.18

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

28

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

28

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $319.55

28

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Handle, Beverage WPL 2203029 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

30

Unit Mounting Plate WPL 2210728 Contact Us For Availability

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

Harness, Main Control WPL 2187427 Contact Us For Availability

Shelf WPL 2199861 Contact Us For Availability

32

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

32

Fan, Motor Bracket WPL 2208157 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $63.40

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

36

Board, Control WPL 2221536 Contact Us For Availability

37

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

37

Washer WPL 680975 Contact Us For Availability

38

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

41

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

42

Tube, Heat Loop WPL 2199806 Contact Us For Availability

42

Extension Tube WPL 2199954 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

46

Insulation, Mounting Plate WPL 2214509 Contact Us For Availability

47

Side Support WPL 2203160 Contact Us For Availability

47

Cover, Unit WPL 2214385 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI90992A7 Contact Us For Availability

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI90999A5 Contact Us For Availability

and Optional Parts Not Included WPL ARI91000A7 Contact Us For Availability

REFRIGERANT CHARGE 6.25 oz. (R-134A) WPL ARI91001A1 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
