Model Whirlpool KSCS22QFWH01 – Common Parts & Diagrams
03 - CONTROL
05 - MOTOR AND ICE CONTAINER

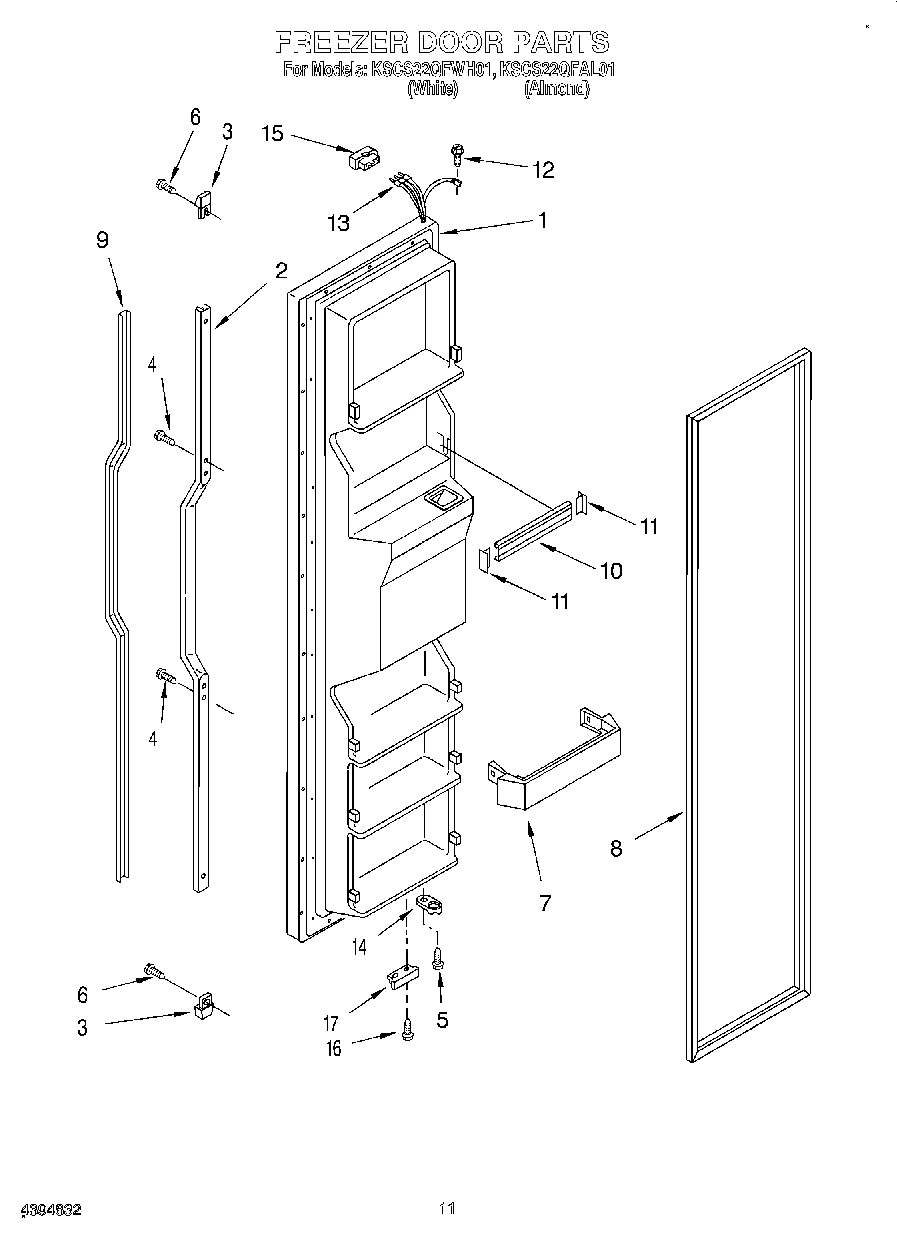

07 - FREEZER DOOR

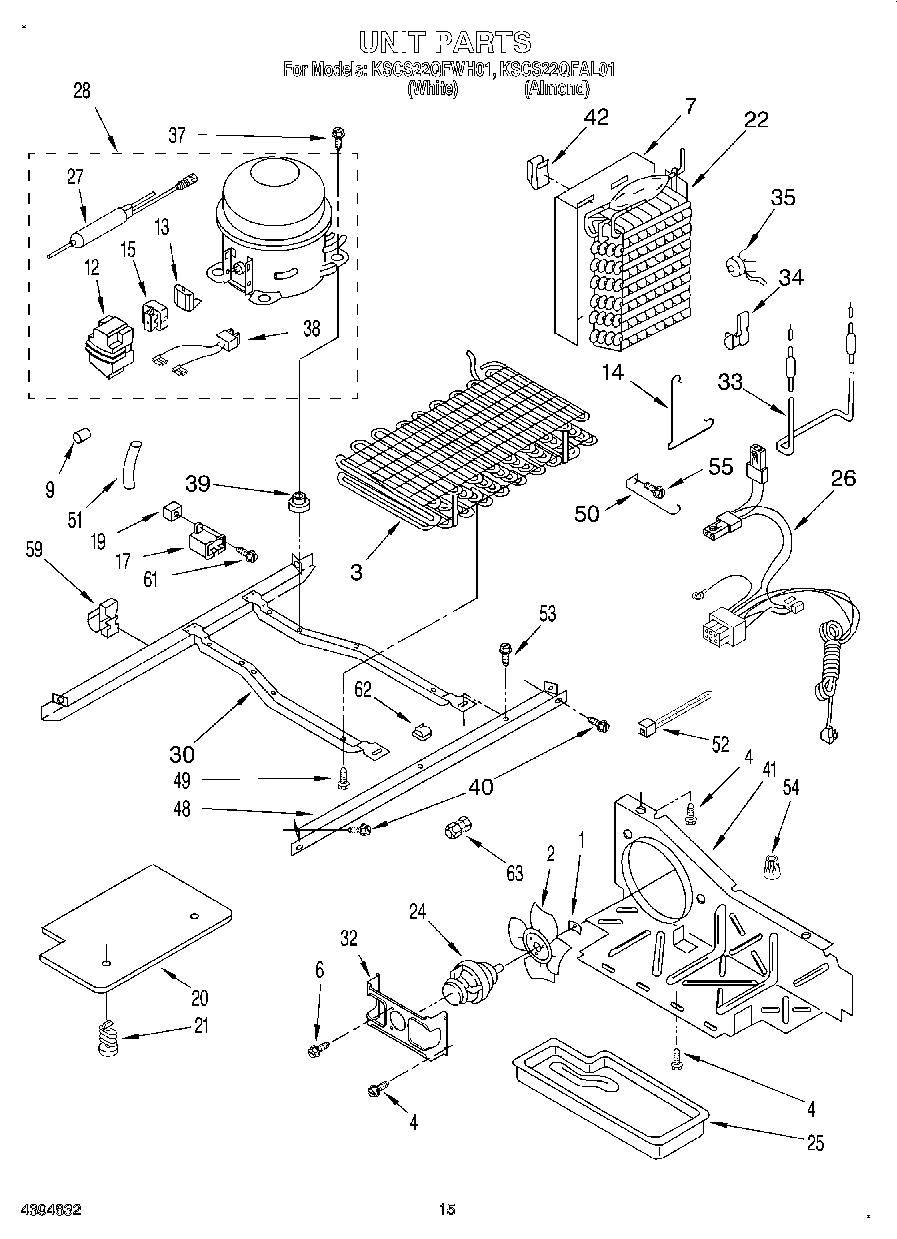

09 - UNIT

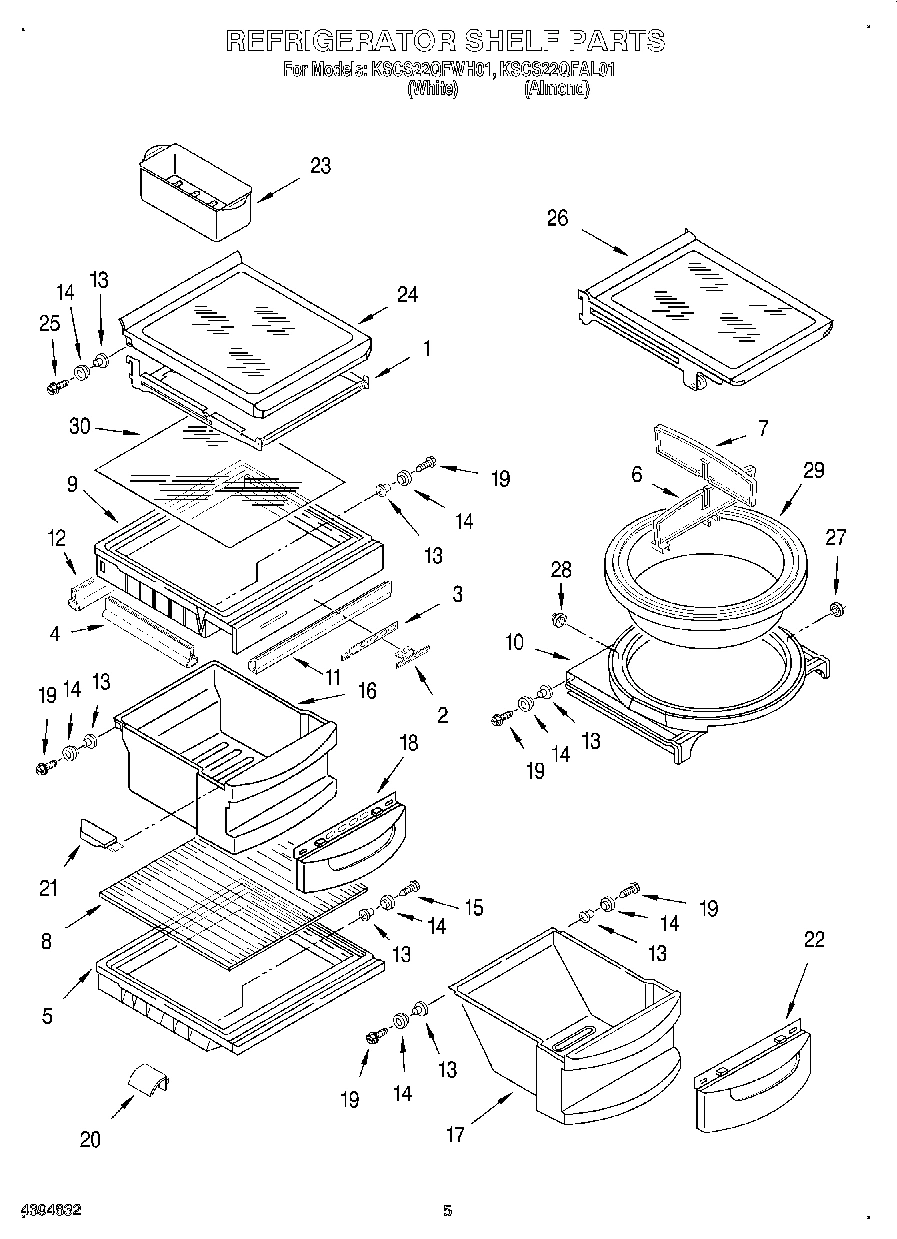

04 - REFRIGERATOR SHELF
11 - AIR FLOW

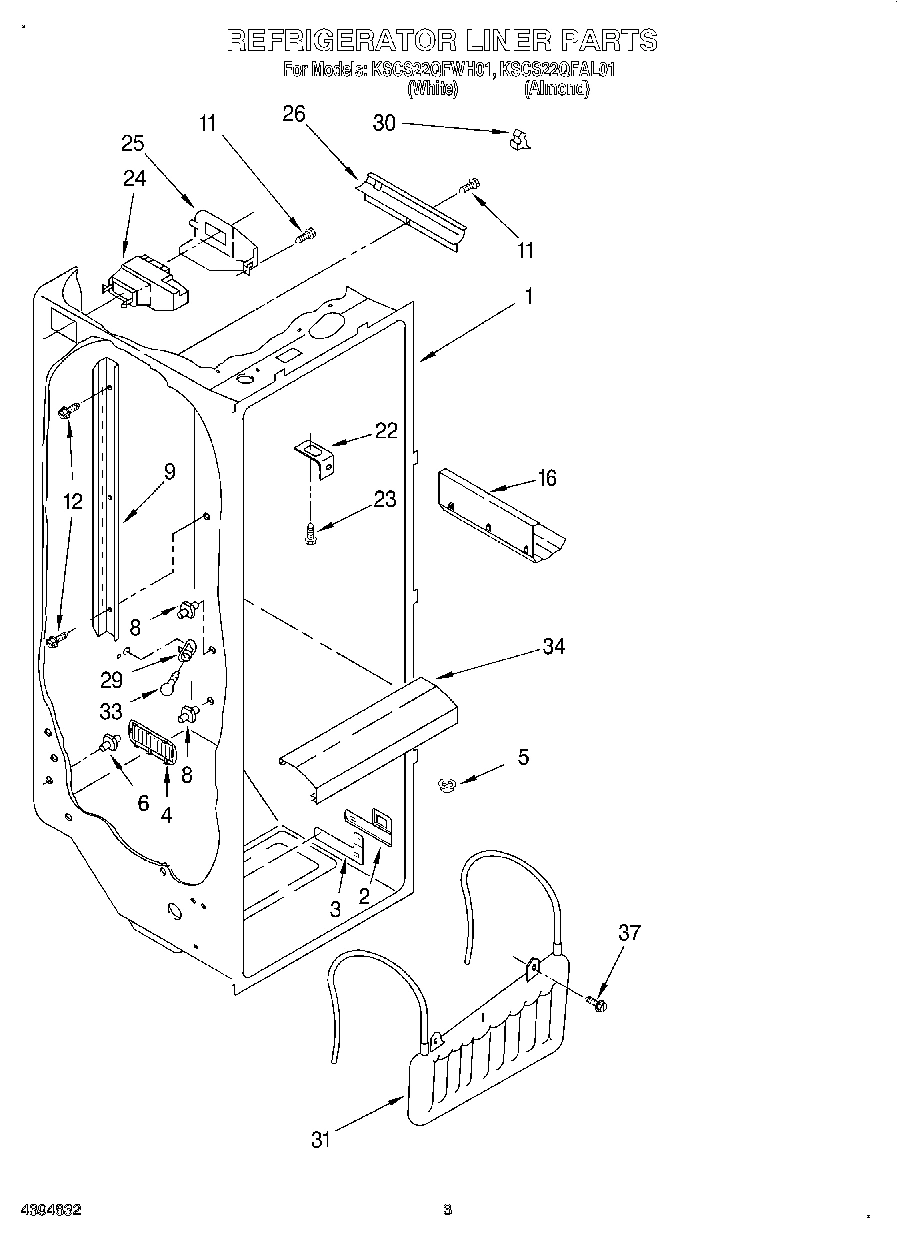

02 - REFRIGERATOR LINER

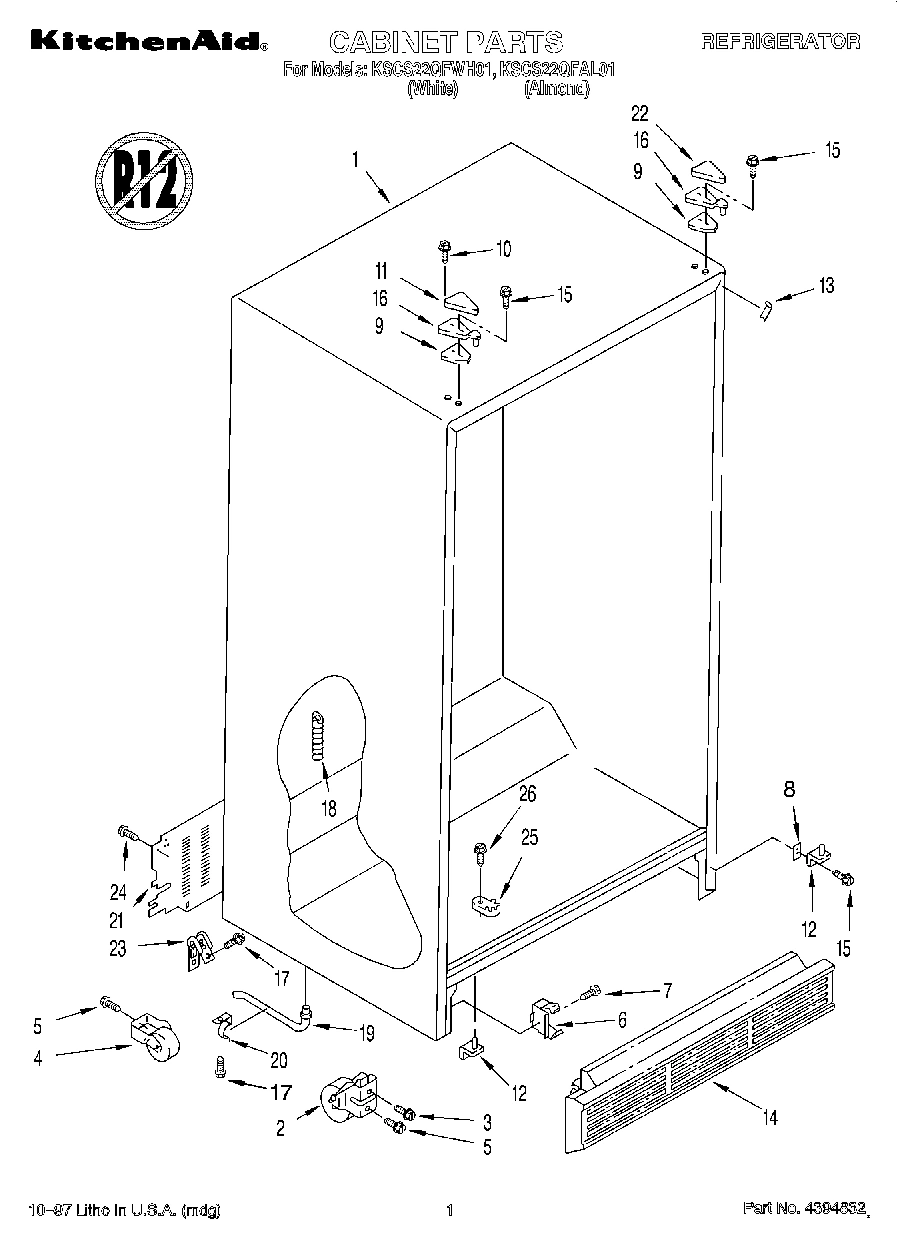

01 - CABINET

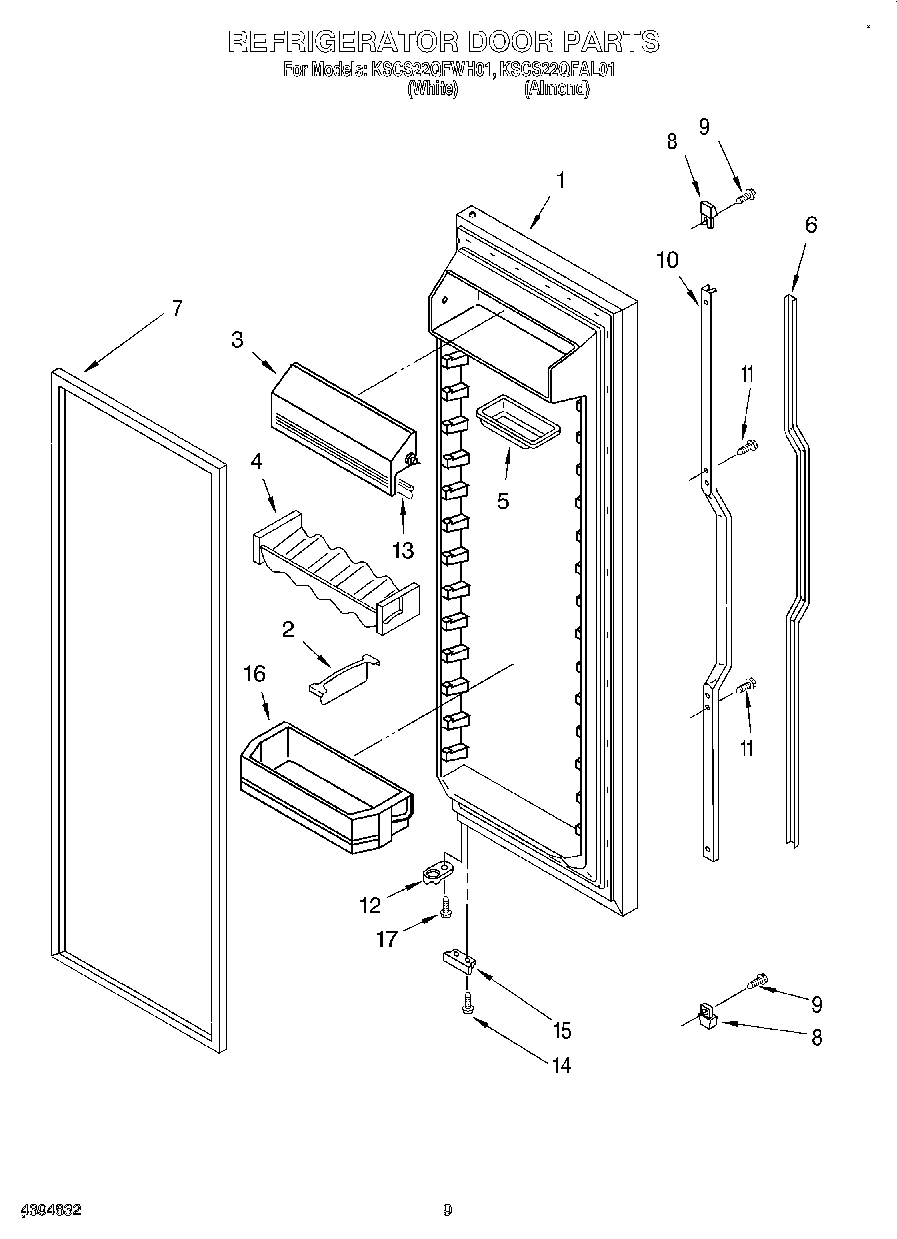

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT

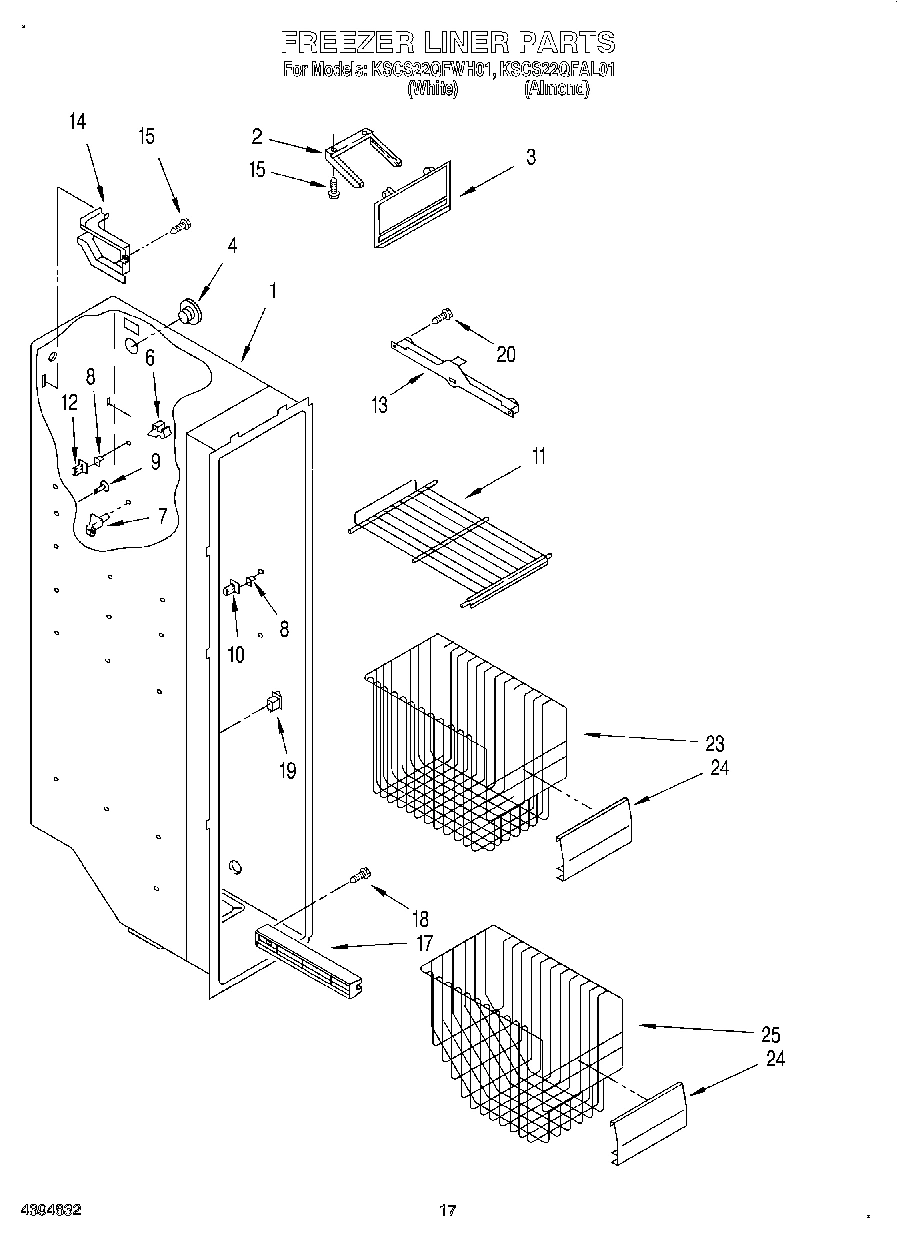

10 - FREEZER LINER
12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool KSCS22QFWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186479 WPL LIT2186479 Contact Us For Availability
WPL LIT2198138 WPL LIT2198138 Contact Us For Availability
WPL LIT2198378 WPL LIT2198378 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI90264A6 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194200N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194200W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI90266A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI90268A7 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Load Lock WPL 2195497 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Insert, Handle (White) WPL 2173830 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173831 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2194776N Contact Us For Availability
10
Retainer, Insert (White) WPL 2194776W Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180260 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Grille (White) WPL 2155477 Contact Us For Availability
14
Grille (Almond) WPL 2155478 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Bracket, Door Stop WPL 2195950 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180269 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180365 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180366 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI90267A5 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180393 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180394 Contact Us For Availability
23
Basket, Upper WPL 2181761 Contact Us For Availability
24
Front, Basket WPL 2171768 Contact Us For Availability
25
Basket, Lower WPL 2181762 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT. WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
