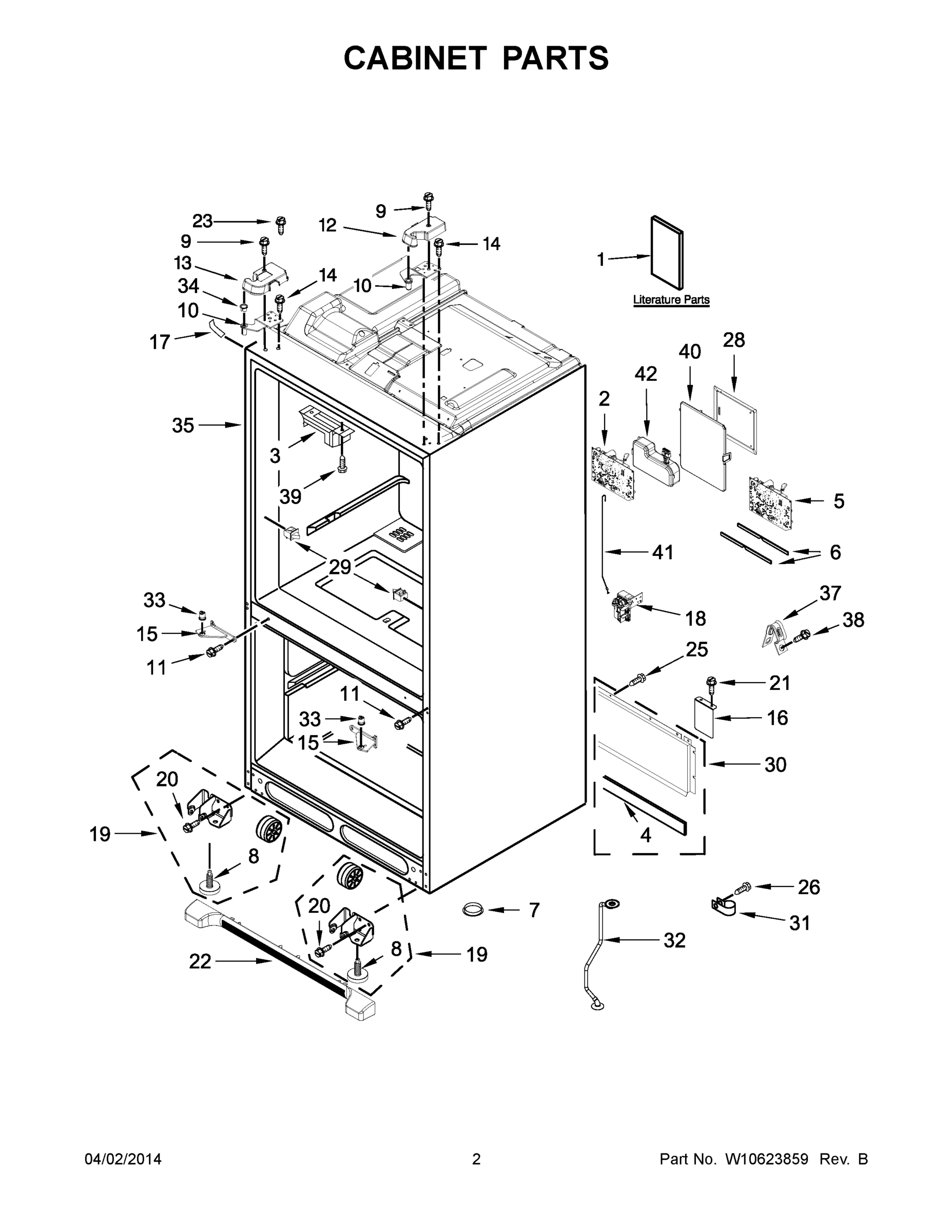

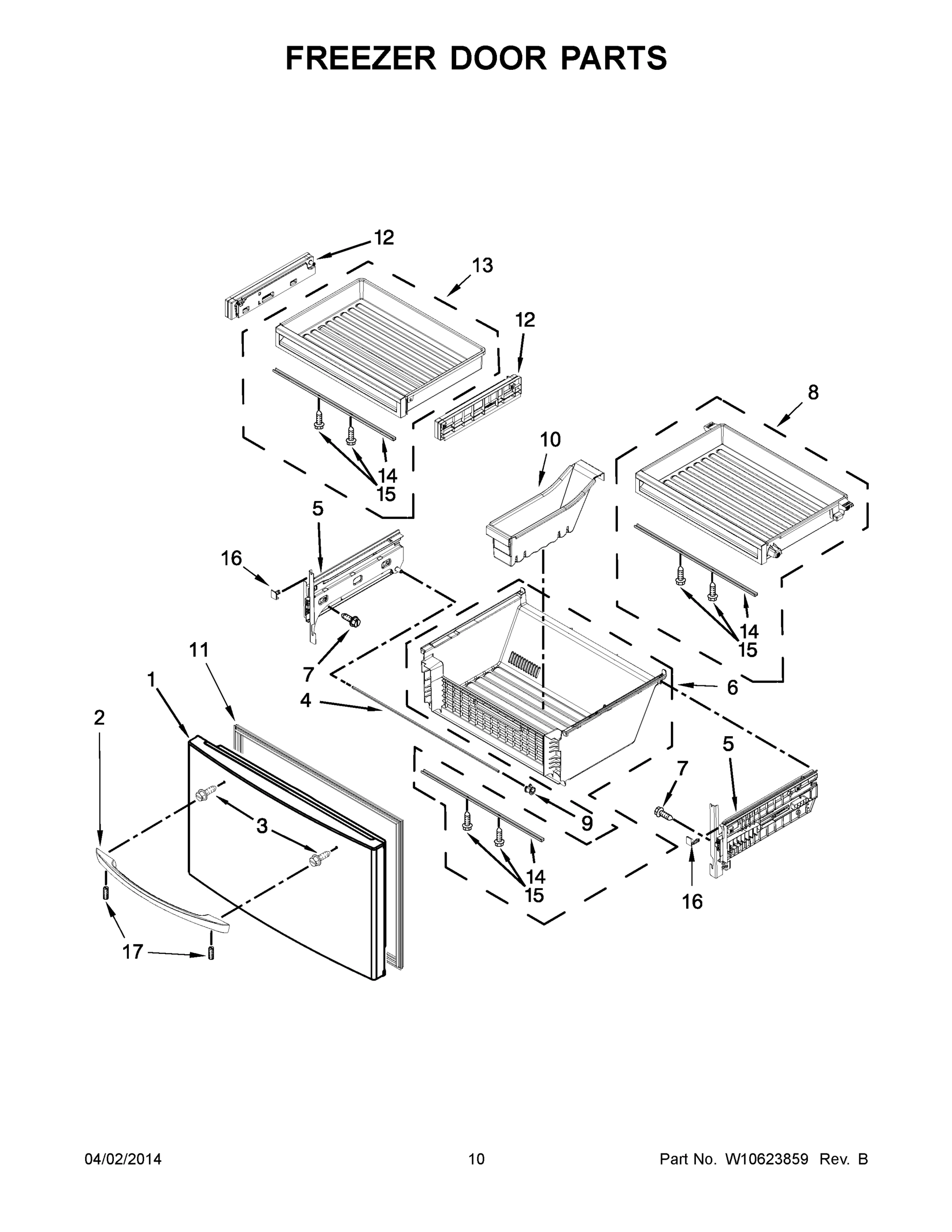

Model Whirlpool KFIV29PCMS01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

1

FRONT, PANTRY WPL W10564306 Contact Us For Availability

2

WPW10453401 Whirlpool Refrigerator Electronic In Stock WPL WPW10453401 $117.57

2

PLATE, ICE CHUTE WPL W10572235 Contact Us For Availability

3

W10562833 Whirlpool Refrigerator Pivot Block Backorder WPL W10562833 $26.06

3

W10564564 Whirlpool Refrigerator Support Backorder WPL W10564564 $34.95

3

W10570074 Whirlpool Refrigerator Plate In Stock WPL W10570074 $57.67

3

W11686799 Whirlpool Refrigerator Water Tube In Stock WPL W11686799 $61.80

3

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

3

WPW10464016 Whirlpool Refrigerator Screw Backorder WPL WPW10464016 $4.65

3

WPW10486346 Whirlpool Refrigerator Shield Backorder WPL WPW10486346 $83.66

4

W10505487 Whirlpool Refrigerator Gasket Backorder WPL W10505487 $9.92

4

W10847834 Whirlpool Clip Backorder WPL W10847834 $6.24

4

W11399564 Whirlpool Refrigerator Ice Door Backorder WPL W11399564 $159.95

4

W11690163 Whirlpool Refrigerator Evaporator C In Stock WPL W11690163 $82.54

4

WPW10346924 Whirlpool Refrigerator Pad In Stock WPL WPW10346924 $128.93

4

WPW10503522 Whirlpool Refrigerator Shaft Backorder WPL WPW10503522 $33.49

5

W10836794 Whirlpool Refrigerator Separator Backorder WPL W10836794 $77.38

5

W10857643 Whirlpool Refrigerator Door Closer In Stock WPL W10857643 $34.73

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $11.69

5

WPW10248799 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10248799 $110.64

5

WPW10341329 Whirlpool Refrigerator Water Valv In Stock WPL WPW10341329 $49.20

5

WPW10372267 Whirlpool Refrigerator Closer Backorder WPL WPW10372267 $4.72

6

W10342618 Whirlpool Refrigerator Heater Backorder WPL W10342618 $31.90

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $12.92

6

W10594052 Whirlpool Refrigerator Freezer Bin Backorder WPL W10594052 $137.77

6

W11194438 Whirlpool Water Filter Housing In Stock WPL W11194438 $81.02

7

W10811115 Whirlpool Refrigerator Cover Backorder WPL W10811115 $41.14

7

W11670534 Whirlpool Refrigerator Switch Backorder WPL W11670534 $8.20

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7

WPW10606117 Whirlpool Refrigerator Ice Door In Stock WPL WPW10606117 $73.90

8

W10402269 Whirlpool Refrigerator Insert Backorder WPL W10402269 $37.06

8

W10754145 Whirlpool Refrigerator Cover Backorder WPL W10754145 $40.77

8

W11129522 Whirlpool Ice Bucket Assembly In Stock WPL W11129522 $178.20

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

8

WPW10557401 Whirlpool Refrigerator Handle Backorder WPL WPW10557401 $166.88

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $50.71

9

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $9.28

9

WPW10564297 Whirlpool Refrigerator Front Pan In Stock WPL WPW10564297 $108.20

W10562514 Whirlpool Refrigerator Filter Cover Backorder WPL W10562514 $36.45

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $10.76

W11592404 Whirlpool Refrigerator Door Hinge Backorder WPL W11592404 $8.55

W11592405 Whirlpool Door Hinge Backorder WPL W11592405 $10.07

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $67.69

WPW10363507 Whirlpool Refrigerator Shroud Backorder WPL WPW10363507 $28.09

WPW10400887 Whirlpool Drip Tray Backorder WPL WPW10400887 $45.49

11

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $3.33

11

WPW10427988 Whirlpool Refrigerator Nameplate Backorder WPL WPW10427988 $37.15

11

WPW10542708 Whirlpool Refrigerator Grille Backorder WPL WPW10542708 $42.47

W10591235 Whirlpool Refrigerator Divider Backorder WPL W10591235 $33.49

W11131390 Whirlpool Refrigerator Bracket Backorder WPL W11131390 $59.55

W11161915 Whirlpool Refrigerator Bracket Backorder WPL W11161915 $58.92

WPW10407158 Whirlpool Refrigerator Cover Asse Backorder WPL WPW10407158 $14.05

13

W10640341 Whirlpool Refrigerator Door Shelf B Backorder WPL W10640341 $113.49

13

ASSEMBLY, UPPER PAN WPL W10564677 Contact Us For Availability

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $8.36

W11677723 Whirlpool Support Backorder WPL W11677723 $58.97

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

WPW10447153 Whirlpool Refrigerator Frame Shel Backorder WPL WPW10447153 $143.24

WPW10554299 Whirlpool Refrigerator Heater In Stock WPL WPW10554299 $47.34

15

W10561180 Whirlpool Refrigerator Frame Backorder WPL W10561180 $66.37

15

W10878115 Whirlpool Refrigerator Door Hinge Backorder WPL W10878115 $28.64

15

W11240748 Whirlpool Refrigerator Door Hinge Backorder WPL W11240748 $27.89

W10585150 Whirlpool Refrigerator Stop Pan Backorder WPL W10585150 $30.49

W10585151 Whirlpool Refrigerator Stop Pan Backorder WPL W10585151 $30.43

W11625019 Whirlpool Refrigerator Gasket Backorder WPL W11625019 $28.80

CONDENSER In Stock WPL W11760073 $68.62

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $60.96

W10562834 Whirlpool Refrigerator Clip Backorder WPL W10562834 $5.67

W10859100 Whirlpool Refrigerator Crisper Pan Backorder WPL W10859100 $80.04

W11661208 Whirlpool Cover Assembly Backorder WPL W11661208 $10.76

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

FOAMED, ICEBOX ASSEMBLY WPL W10564049 Contact Us For Availability

W10584634 Whirlpool Refrigerator Plate Backorder WPL W10584634 $46.50

W10584635 Whirlpool Refrigerator Plate Backorder WPL W10584635 $46.50

W10865826 Whirlpool Refrigerator Water Inlet In Stock WPL W10865826 $39.10

W10898445-includeCORE Whirlpool W10898445 Ref Backorder WPL W10898445-includeCORE $199.02

WPW10469927 Whirlpool Refrigerator Housing Backorder WPL WPW10469927 $88.29

TRAY, DRIP WPL W10342573 Contact Us For Availability

W10499289 Whirlpool Refrigerator Slide Backorder WPL W10499289 $125.05

W10563326 Whirlpool Refrigerator Cover Backorder WPL W10563326 $9.85

W11457241 Whirlpool Burner Drip Bowl In Stock WPL W11457241 $51.31

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $42.21

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $49.66

SLIDE, PANTRY (RIGHT HAND) WPL W10499294 Contact Us For Availability

20

W10432697 Whirlpool Refrigerator Insulation Backorder WPL W10432697 $8.45

20

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

W10563309 Whirlpool Refrigerator Cover Backorder WPL W10563309 $14.53

W10846539 Whirlpool Fan Motor In Stock WPL W10846539 $123.12

W11329364 Whirlpool Refrigerator Plate Backorder WPL W11329364 $33.98

W11329579 Whirlpool Refrigerator Plate Backorder WPL W11329579 $33.16

WPW10364560 Whirlpool Refrigerator Solenoid In Stock WPL WPW10364560 $102.36

W10562802 Whirlpool Refrigerator Plate In Stock WPL W10562802 $57.99

W10563328 Whirlpool Refrigerator Slide Backorder WPL W10563328 $91.55

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WPW10637671 Whirlpool Refrigerator Front Gril In Stock WPL WPW10637671 $57.68

23

W10870822 Whirlpool Refrigerator Electronic C In Stock WPL W10870822 $132.75

23

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

24

W11189618 Whirlpool Refrigerator Wire Harness In Stock WPL W11189618 $54.46

24

W11504381 Whirlpool Refrigerator Retainer Backorder WPL W11504381 $5.73

25

W10567563 Whirlpool Refrigerator Gasket Backorder WPL W10567563 $30.12

25

W11233912 Whirlpool Refrigerator Slide In Stock WPL W11233912 $107.81

25

W11741469 Whirlpool Heater Backorder WPL W11741469 $61.90

26

W11684620 Whirlpool Vent Backorder WPL W11684620 $12.77

27

WPW10236512 Whirlpool Refrigerator Support Backorder WPL WPW10236512 $45.70

27

WPW10248856 Whirlpool Refrigerator Cantilever Backorder WPL WPW10248856 $46.54

28

WPW10280983 Whirlpool Refrigerator Insulation In Stock WPL WPW10280983 $30.98

W10563323 Whirlpool Refrigerator Flipper Backorder WPL W10563323 $52.32

W11289496 Whirlpool Refrigerator Switch In Stock WPL W11289496 $14.97

WPW10389152 Whirlpool Support In Stock WPL WPW10389152 $9.13

WPW10406719 Whirlpool Refrigerator Shroud Backorder WPL WPW10406719 $26.19

W11482027 Whirlpool Refrigerator Back Cover Backorder WPL W11482027 $42.90

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WPW10626970 Whirlpool Refrigerator Tube Backorder WPL WPW10626970 $72.83

WPW10635024 Whirlpool Refrigerator Adapter Backorder WPL WPW10635024 $33.27

31

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $49.50

31

W10389154 Whirlpool Refrigerator Retainer Backorder WPL W10389154 $9.48

32

W10394073 Whirlpool Refrigerator Water Tube Backorder WPL W10394073 $44.19

32

TUBE, DRAIN WPL W10503562 Contact Us For Availability

32

SUPPORT, DAMPER WPL W10389149 Contact Us For Availability

W10491355 Whirlpool Refrigerator Air Gasket Backorder WPL W10491355 $9.24

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

WPW10248595 Whirlpool Damper Control Assembly In Stock WPL WPW10248595 $92.63

WPW10608793-includeCORE Whirlpool WPW10608793 Backorder WPL WPW10608793-includeCORE $200.67

COUPLER, DOOR WPL W10505294 Contact Us For Availability

W10212137 Whirlpool Refrigerator Grommet Backorder WPL W10212137 $7.78

W10610324 Whirlpool Refrigerator Wire Harness Backorder WPL W10610324 $49.01

W11190819 Whirlpool Refrigerator Cover Backorder WPL W11190819 $10.76

W11715935 Whirlpool Dampener Backorder WPL W11715935 $7.61

35

W11211387 Whirlpool Refrigerator Evaporator C In Stock WPL W11211387 $92.06

35

W11452196 Whirlpool Refrigerator Evaporator M In Stock WPL W11452196 $79.22

36

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

36

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $4.52

37

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $10.58

37

PLATE, PANTRY FRONT WPL W10562479 Contact Us For Availability

38

W11683242 Whirlpool Refrigerator LED Light Mo In Stock WPL W11683242 $169.76

39

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

39

WPW10392172 Whirlpool Refrigerator Gasket Backorder WPL WPW10392172 $9.70

40

W10277839 Whirlpool Refrigerator Cover Backorder WPL W10277839 $31.81

41

W11209890 Whirlpool Refrigerator Water Tube Backorder WPL W11209890 $42.91

42

WPW10306786 Whirlpool Refrigerator Inverter B In Stock WPL WPW10306786 $168.74

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W10578603 Whirlpool Refrigerator Wire Harness Backorder WPL W10578603 $56.85

W10859326 Whirlpool Refrigerator Wire Harness Backorder WPL W10859326 $44.73

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WPW10277799 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10277799 $29.17

MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
