Model Whirlpool KBRS22KTBL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $78.49

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

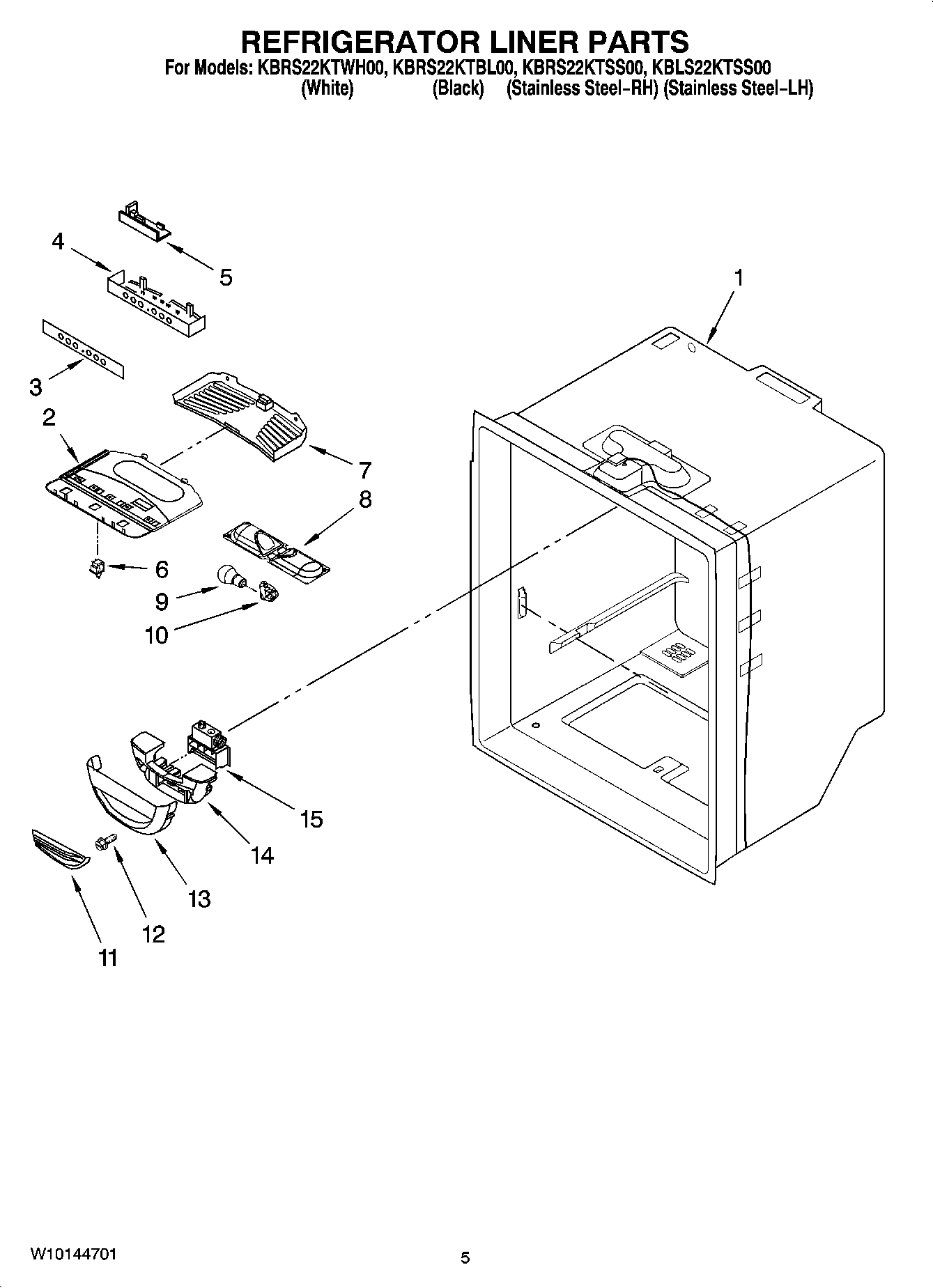

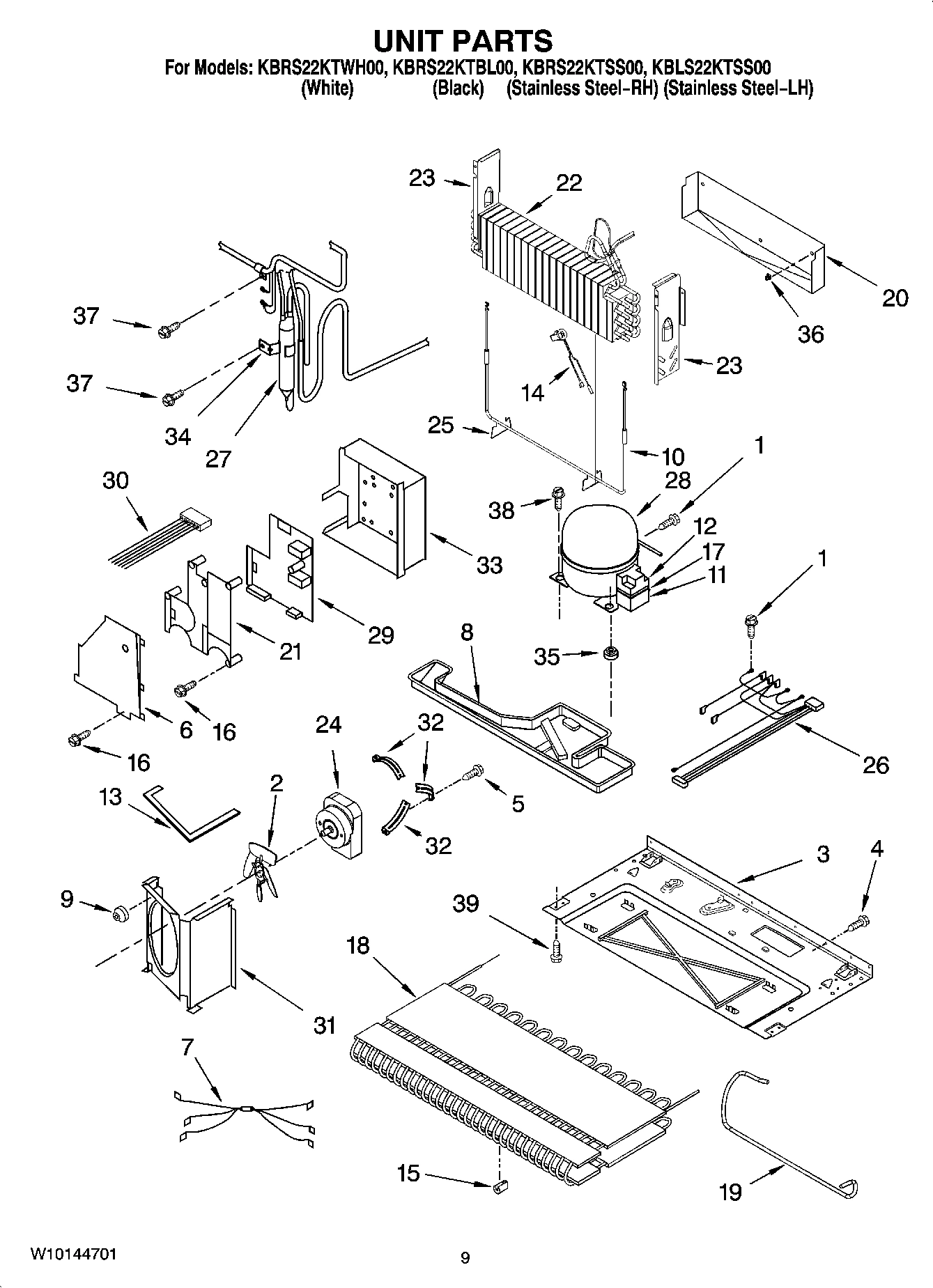

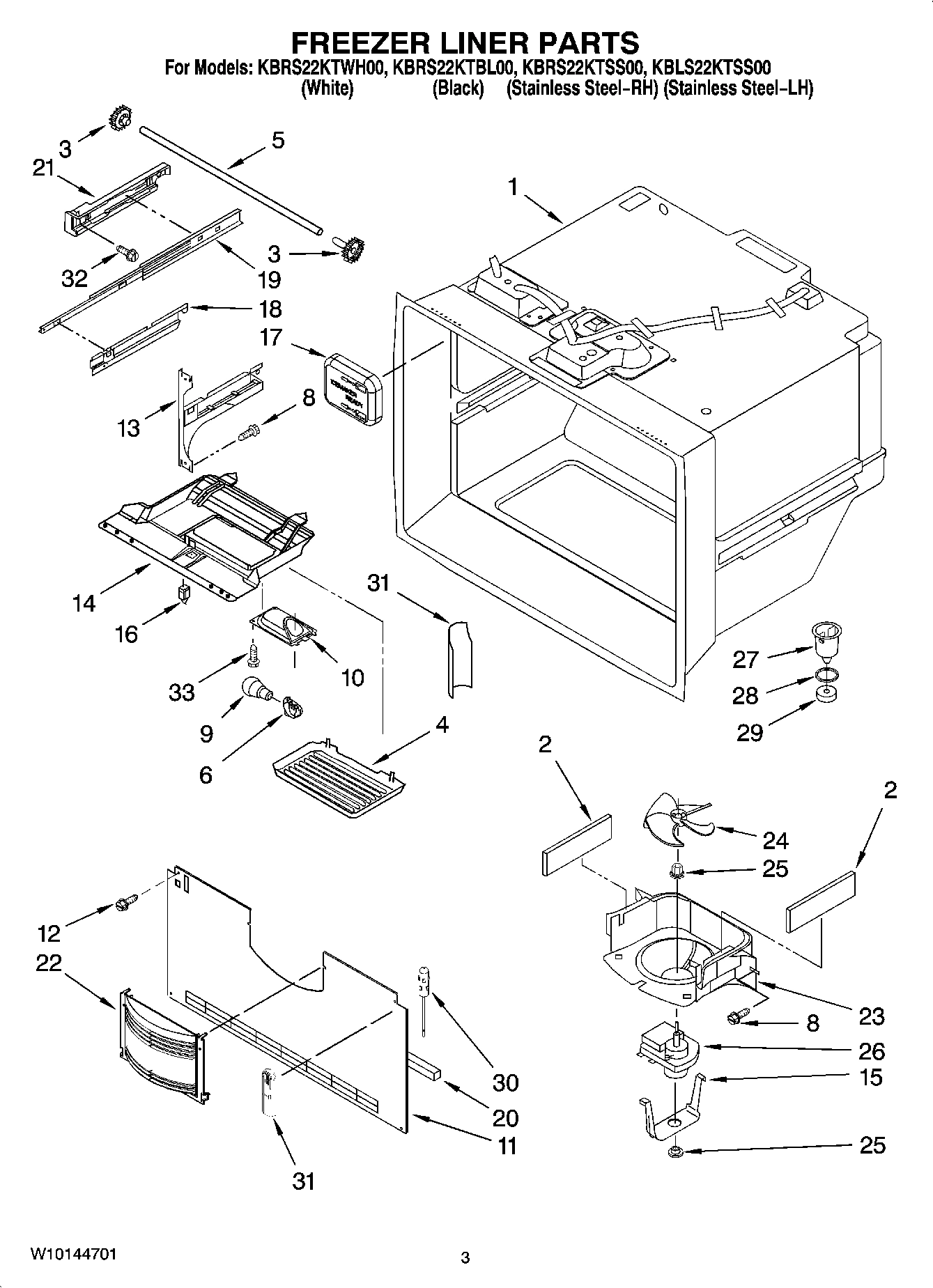

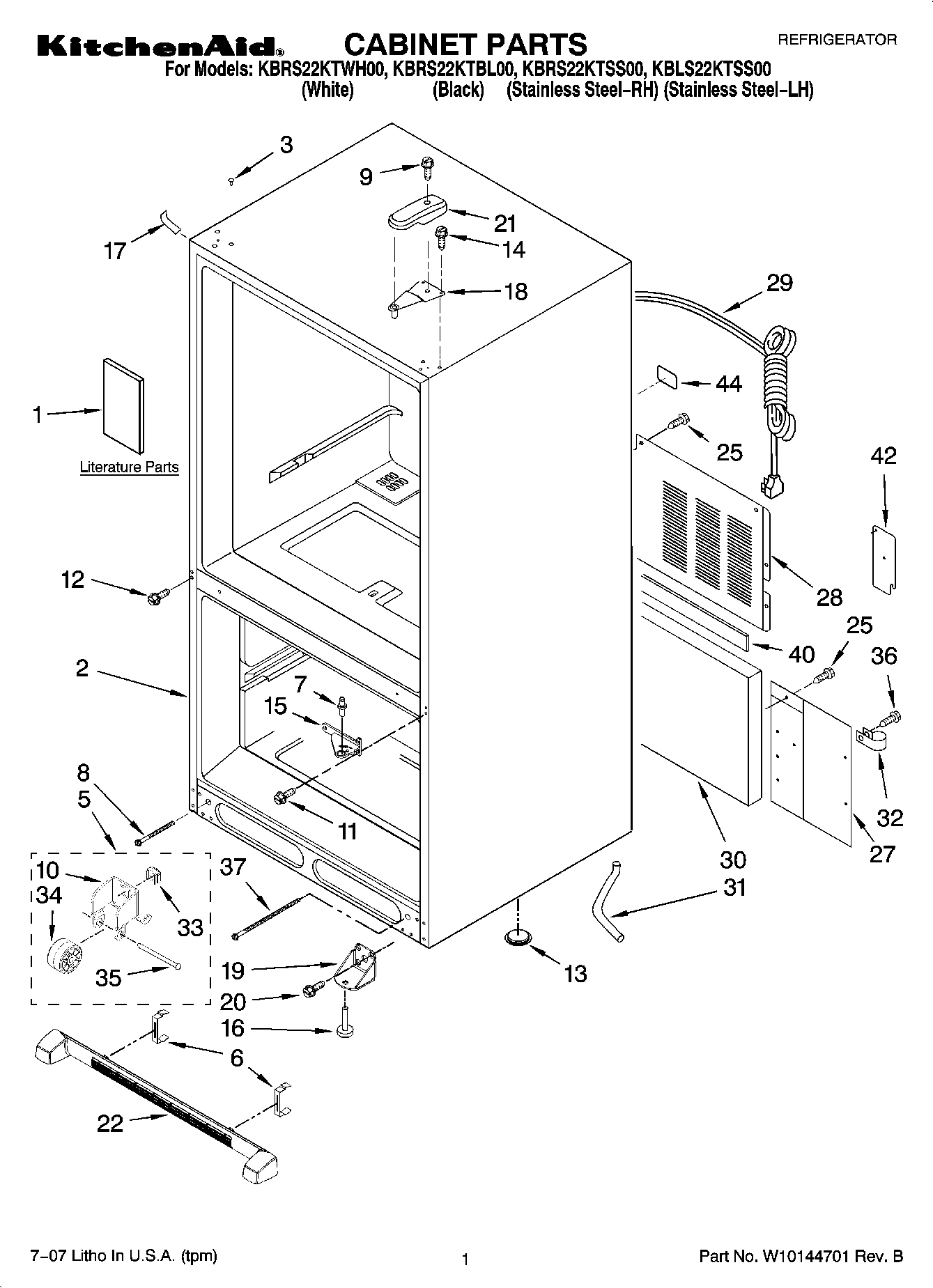

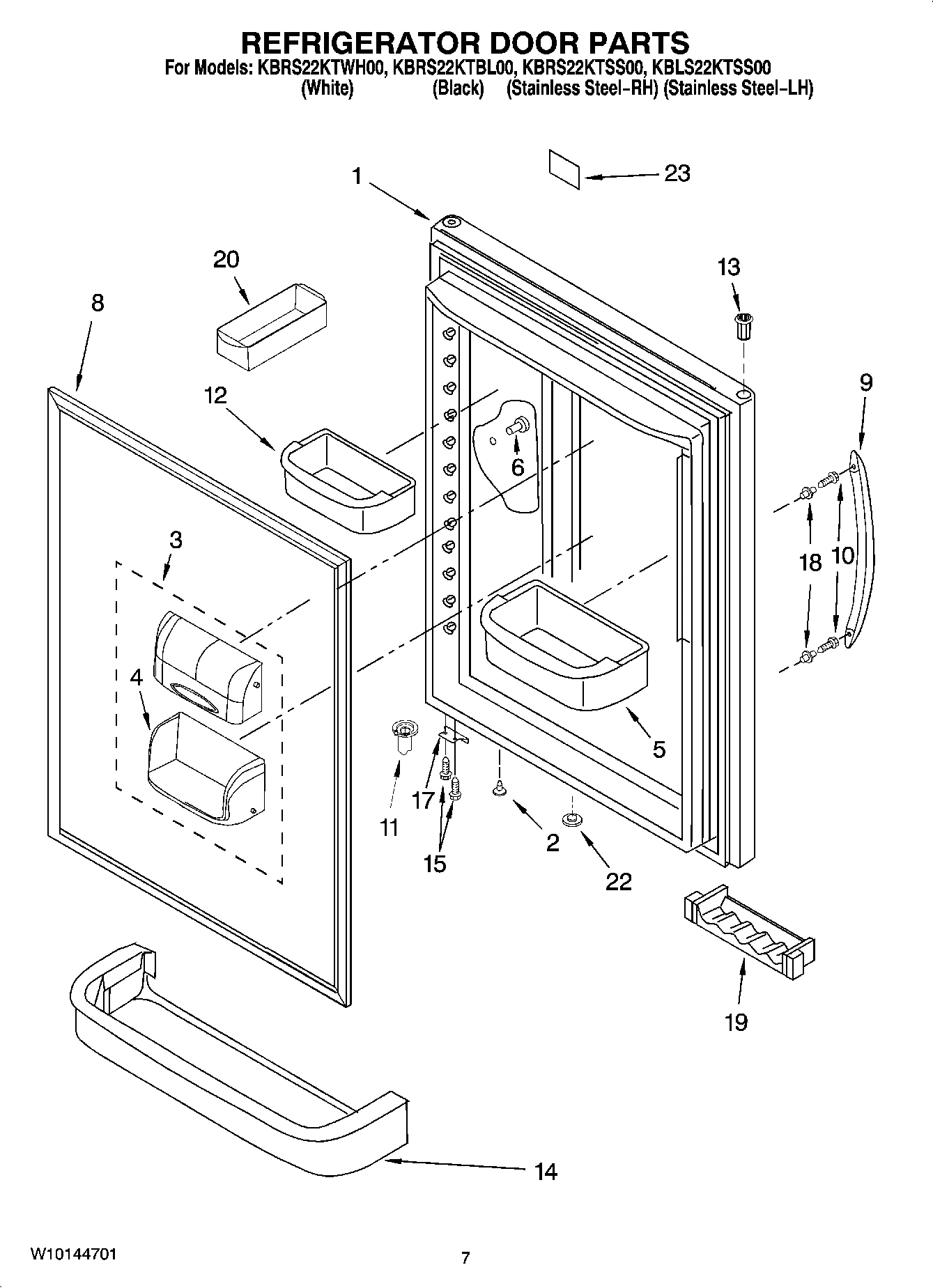

1

12658533BQ Whirlpool Refrigerator FIP Door Backorder WPL 12658533BQ $458.96

1

Liner (Not A Seviceable Part) WPL ARI80138A1 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (White) WPL 67004777 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Stainless WPL W10136949 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Stainless WPL W10136950 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI80140A1 Contact Us For Availability

1

Tech Sheet WPL 67006616 Contact Us For Availability

1

Energy Tag WPL W10123818 Contact Us For Availability

1

Owners Manual WPL W10136388 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

Bracket, Control and Lights WPL Y67003896 Contact Us For Availability

2

Cabinet (Not A Servicable Part) WPL ARI80137A1 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

3

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.59

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $55.71

3

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $3.70

3

Overlay WPL 67005628 Contact Us For Availability

3

Base WPL 67005744 Contact Us For Availability

4

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

4

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $119.64

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $131.01

4

Cover, Light WPL 67003905 Contact Us For Availability

4

Housing, Electronic Control WPL 67005444 Contact Us For Availability

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $39.80

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

WPW10371195 Whirlpool Refrigerator Cantilever Backorder WPL WPW10371195 $48.00

5

Roller Assembly WPL 67002227 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $4.52

6

Cover, Box WPL 67005421 Contact Us For Availability

6

Clip, Grille WPL 12627302 Contact Us For Availability

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $38.12

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

Harness, Evap Heater WPL 67005679 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

W10443313 Whirlpool Door Gasket In Stock WPL W10443313 $127.09

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $141.28

8

Drain Pan WPL 67004713 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

9

Handle, Door (Stainless Steel) WPL 2319727S Contact Us For Availability

9

Handle, Door (Black) WPL 2319727B Contact Us For Availability

9

Handle, Door (White) WPL 2319727W Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $31.38

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.40

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $78.46

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.52

Housing, Frz. Light WPL 67001035 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.52

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $109.42

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.52

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $3.33

Capacitor (See Item 12) WPL ARI80142A1 Contact Us For Availability

12

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

12

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.38

12

Bin, Shelf (1) (Small) WPL 67005724 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

Bracket, Door (Left) WPL 67004012 Contact Us For Availability

Bracket, Door (Right) WPL 67004013 Contact Us For Availability

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $51.55

Backorder WPL W11750607 $19.22

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $3.33

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $36.55

Trim, Door Shelf WPL 67001748 Contact Us For Availability

67005644 Whirlpool Refrigerator Wire Harness Backorder WPL 67005644 $33.38

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

W11689473 Whirlpool Door Hinge In Stock WPL W11689473 $26.41

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $49.87

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.70

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $93.06

Harness, Damper Control WPL 8208197 Contact Us For Availability

Following Parts Not Illustrated WPL ARI80141A1 Contact Us For Availability

16

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.68

16

SCREW WPL 67006550 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

Clip, Capacitor WPL 67007052 Contact Us For Availability

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $138.54

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

Stud, Handle WPL 67004790 Contact Us For Availability

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $45.48

Slide, Drawer (2) WPL 67006607 Contact Us For Availability

Tube, Discharge WPL 67004262 Contact Us For Availability

Bracket, Foot WPL 67007174 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $6.81

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.10

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

WPW10292802 Whirlpool Refrigerator Drip Tray In Stock WPL WPW10292802 $69.65

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

Bracket, Slide (Left) WPL 67004864 Contact Us For Availability

Bracket, Slide (Right) WPL 67004865 Contact Us For Availability

Spacer, HV Box WPL 67005719 Contact Us For Availability

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $194.96

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $40.86

WPW10534161 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534161 $50.05

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $39.08

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

Shroud, Evap.Fan WPL 67002777 Contact Us For Availability

Nameplate (Grey) WPL W10046610 Contact Us For Availability

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

24

Motor, Fan WPL 67004432 Contact Us For Availability

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.33

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

25

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $44.47

26

Harness, Unit WPL 13060201 Contact Us For Availability

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

27

Cover, Water Valve WPL 67001097 Contact Us For Availability

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

28

Cover, Unit WPL 12575101ED Contact Us For Availability

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.52

29

Control Board WPL 12782027 Contact Us For Availability

29

Power Cord WPL W10137695 Contact Us For Availability

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $23.46

30

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

30

Harness, HV Board WPL 67005938 Contact Us For Availability

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

31

Shroud WPL 12575305 Contact Us For Availability

31

Tube, Drain WPL 67001066 Contact Us For Availability

32

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $30.89

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $28.09

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $9.59

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Following Parts Not Illustrated WPL ARI80139A5 Contact Us For Availability

Box, Control WPL 67005718 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

34

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $3.04

35

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.52

35

Pin WPL M1205302 Contact Us For Availability

36

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $27.52

36

Clip, Evaporator WPL 10623002 Contact Us For Availability

37

Bolt, Adjusting (Rear) WPL 10093320 Contact Us For Availability

38

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Screw WPL 67006573 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI80143A1 Contact Us For Availability

REFRIGERANT CHARGE 5.00 Ozs. (R-134A) WPL ARI80144A4 Contact Us For Availability

40

Gasket WPL B5759649 Contact Us For Availability

42

Plate, Cover WPL 8170921 Contact Us For Availability

44

Label, Water Line WPL 67005064 Contact Us For Availability
