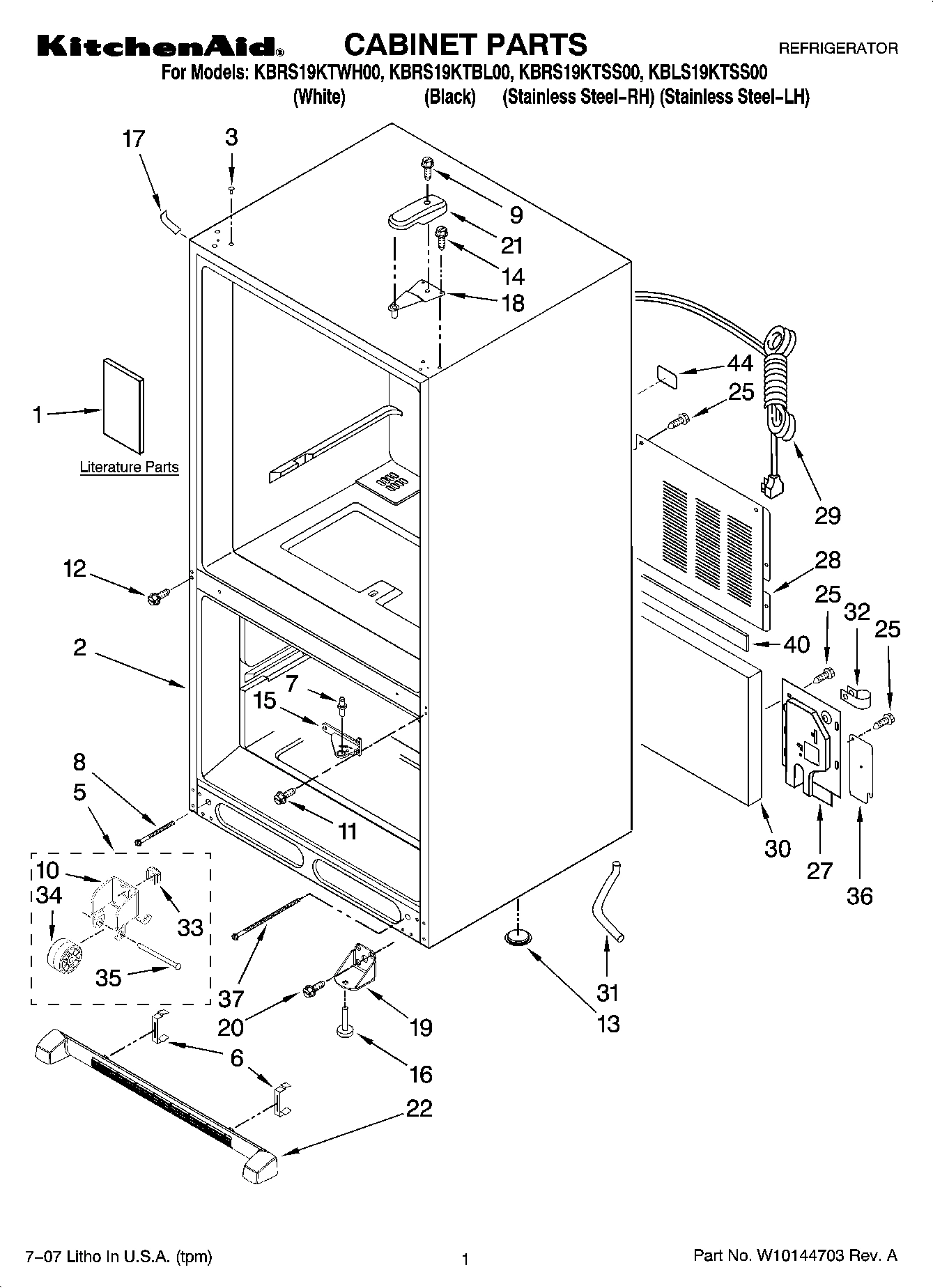

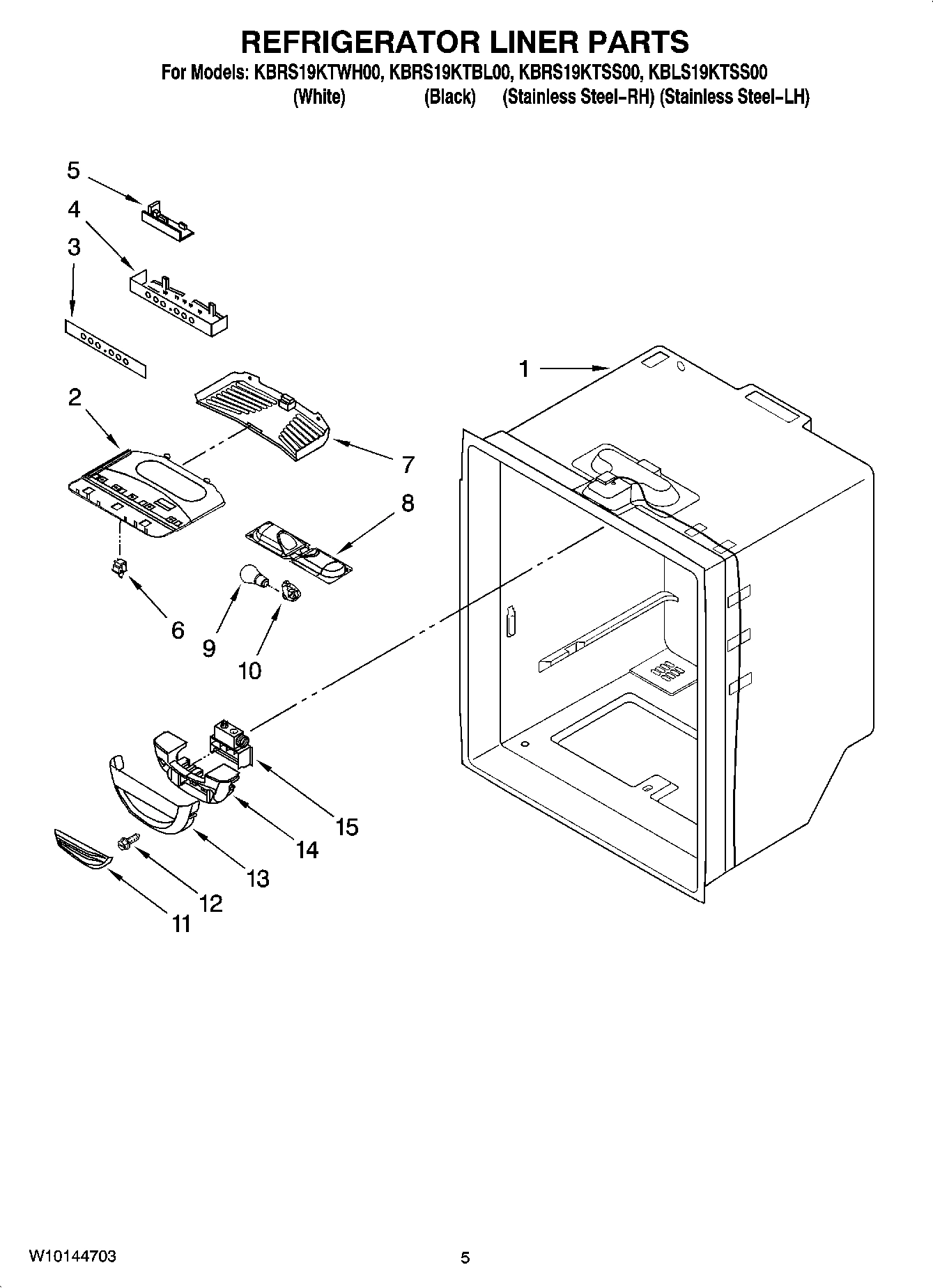

Model Whirlpool KBRS19KTSS00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4396418 Whirlpool Ice Maker Backorder WPL 4396418 $192.72

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $68.02

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, S.Steel WPL 4396920 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 qt.) (Black (Uncut)) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Important: The spray paint is not to be used WPL ARI153790A Contact Us For Availability

Miscellaneous WPL ARI153791A Contact Us For Availability

TORX SCREW WRENCH WPL ARI153792A Contact Us For Availability

FIELD INSTALLABLE ICE MAKER WPL ARI153793A Contact Us For Availability

ACCESSORIES WPL ARI153794A Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI153783A Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Stainless WPL 13023811S Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Stainless WPL 13023812S Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Black) WPL W10138312 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (White) WPL W10138326 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Stainless Steel WPL W10135748 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Black) WPL W10138322 Contact Us For Availability

1

Freezer Door (w/ Insulation) (White) WPL W10138336 Contact Us For Availability

1

Ladder, Side WPL 67001302 Contact Us For Availability

2

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $33.18

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $122.50

2

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

2

Handle, Door (Black) WPL W10119643 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.59

3

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $28.16

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $53.64

3

Base WPL 67006914 Contact Us For Availability

4

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

4

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

4

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $201.19

4

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $134.76

4

Cover, Light WPL 67003905 Contact Us For Availability

5

W10802329 Whirlpool Refrigerator Shaft Backorder WPL W10802329 $41.45

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $41.23

5

Shelf, Fixed (2) WPL 67001149 Contact Us For Availability

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

6

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.70

6

Shelf, Glide (2) WPL 67001151 Contact Us For Availability

7

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

7

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

7

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $113.33

7

Harness, Evap Heater WPL 12870501 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $43.32

8

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $123.39

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $133.29

8

Drain Pan WPL 67004713 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $39.36

9

Stud, Handle WPL 67004790 Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

67006806 Whirlpool Refrigerator Black High To Backorder WPL 67006806 $9.59

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $71.21

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

Housing, Frz. Light WPL 67001035 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $27.82

WPW10308414 Whirlpool Refrigerator Evaporator Backorder WPL WPW10308414 $95.59

Capacitor (See Item 12) WPL ARI153787A Contact Us For Availability

Rack, Ice WPL 12646501 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

WP10972101 Whirlpool Refrigerator Spacer Backorder WPL WP10972101 $4.65

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $26.21

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

WPW10351081 Whirlpool Refrigerator Cantilever Backorder WPL WPW10351081 $44.03

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $34.46

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

Bracket, Door (Left) WPL 67004012 Contact Us For Availability

Bracket, Door (Right) WPL 67004013 Contact Us For Availability

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $49.10

Backorder WPL W11750607 $18.30

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $34.02

Trim, Door Shelf WPL 67002505 Contact Us For Availability

Trim, Crisper WPL 67003884 Contact Us For Availability

Backorder WPL 67002569 $82.32

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

W11619328 Whirlpool Wire Harness In Stock WPL W11619328 $46.83

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.70

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

Harness, Damper Control WPL 8208197 Contact Us For Availability

Following Parts Not Illustrated WPL ARI153786A Contact Us For Availability

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

16

Basket, Freezer (Upper) WPL 67004985 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.51

Clip, Capacitor WPL 67007052 Contact Us For Availability

67006133 Whirlpool Refrigerator 30" Condenser Backorder WPL 67006133 $120.04

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

Divider, Upper Basket WPL 67004127 Contact Us For Availability

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $43.32

Tube, Discharge WPL 67004203 Contact Us For Availability

Slide, Drawer (2) WPL 67006607 Contact Us For Availability

Screw WPL 67006608 Contact Us For Availability

A3189394 Whirlpool Refrigerator Gasket Backorder WPL A3189394 $10.76

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W10503182 Whirlpool Refrigerator Freezer Bask Backorder WPL W10503182 $120.52

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $55.37

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

Bracket, Slide (Left) WPL 67004864 Contact Us For Availability

Bracket, Slide (Right) WPL 67004865 Contact Us For Availability

Divider, Lower Basket WPL 67006644 Contact Us For Availability

22

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

22

EVAPORATOR WPL 12002051 Contact Us For Availability

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $75.48

Shroud, Evap.Fan WPL 67002777 Contact Us For Availability

Nameplate (Grey) WPL W10046610 Contact Us For Availability

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

24

Motor, Fan WPL 67004432 Contact Us For Availability

24

Gasket, Pantry WPL 67002005 Contact Us For Availability

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

25

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

26

13060302 Whirlpool Refrigerator Wire Harness Backorder WPL 13060302 $125.92

26

W10656984 Whirlpool Refrigerator Shelf Trim Backorder WPL W10656984 $27.82

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

27

67002002 Whirlpool Refrigerator Pantry Slide Backorder WPL 67002002 $9.81

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $383.49

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

28

Rod, Temperature Control WPL 67002003 Contact Us For Availability

29

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $42.33

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

30

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

30

W10328331 Whirlpool Refrigerator Utility Pan Backorder WPL W10328331 $72.40

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.70

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

Shroud WPL 12575305 Contact Us For Availability

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

32

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $29.43

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $26.75

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $9.59

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $4.32

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Following Parts Not Illustrated WPL ARI153784A Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

34

Divider, Pantry WPL 67001923 Contact Us For Availability

35

67003493 Whirlpool Refrigerator Compressor Gr Backorder WPL 67003493 $10.76

35

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $82.10

36

Clip, Evaporator WPL 10623002 Contact Us For Availability

38

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

39

Screw WPL 67006573 Contact Us For Availability

40

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $10.76

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI153788A Contact Us For Availability

REFRIGERANT CHARGE 5.00 Ozs. (R-134A) WPL ARI153789A Contact Us For Availability
