Model Whirlpool KBRA20ELSS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Container Assembly WPL 4343700 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI79286A7 WPL ARI79286A7 Contact Us For Availability

WPL ARI79287A5 WPL ARI79287A5 Contact Us For Availability

WPL ARI79288A3 WPL ARI79288A3 Contact Us For Availability

WPL ARI79289A7 WPL ARI79289A7 Contact Us For Availability

WPL ARI79290A9 WPL ARI79290A9 Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

WP67002332 Whirlpool Refrigerator Glass Pan Backorder WPL WP67002332 $115.52

1

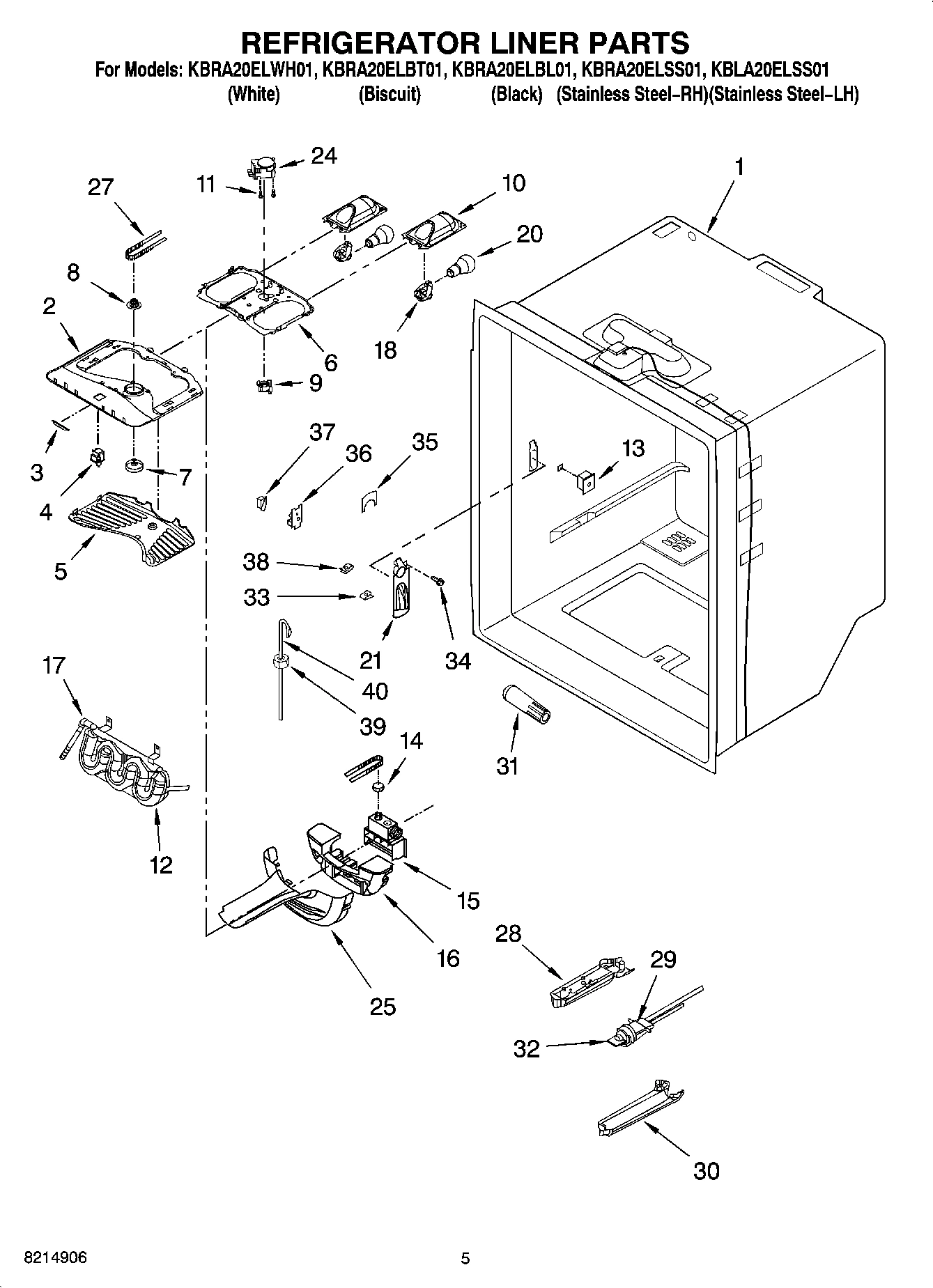

Liner (Not A Seviceable Part) WPL ARI79279A5 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI79280A7 Contact Us For Availability

1

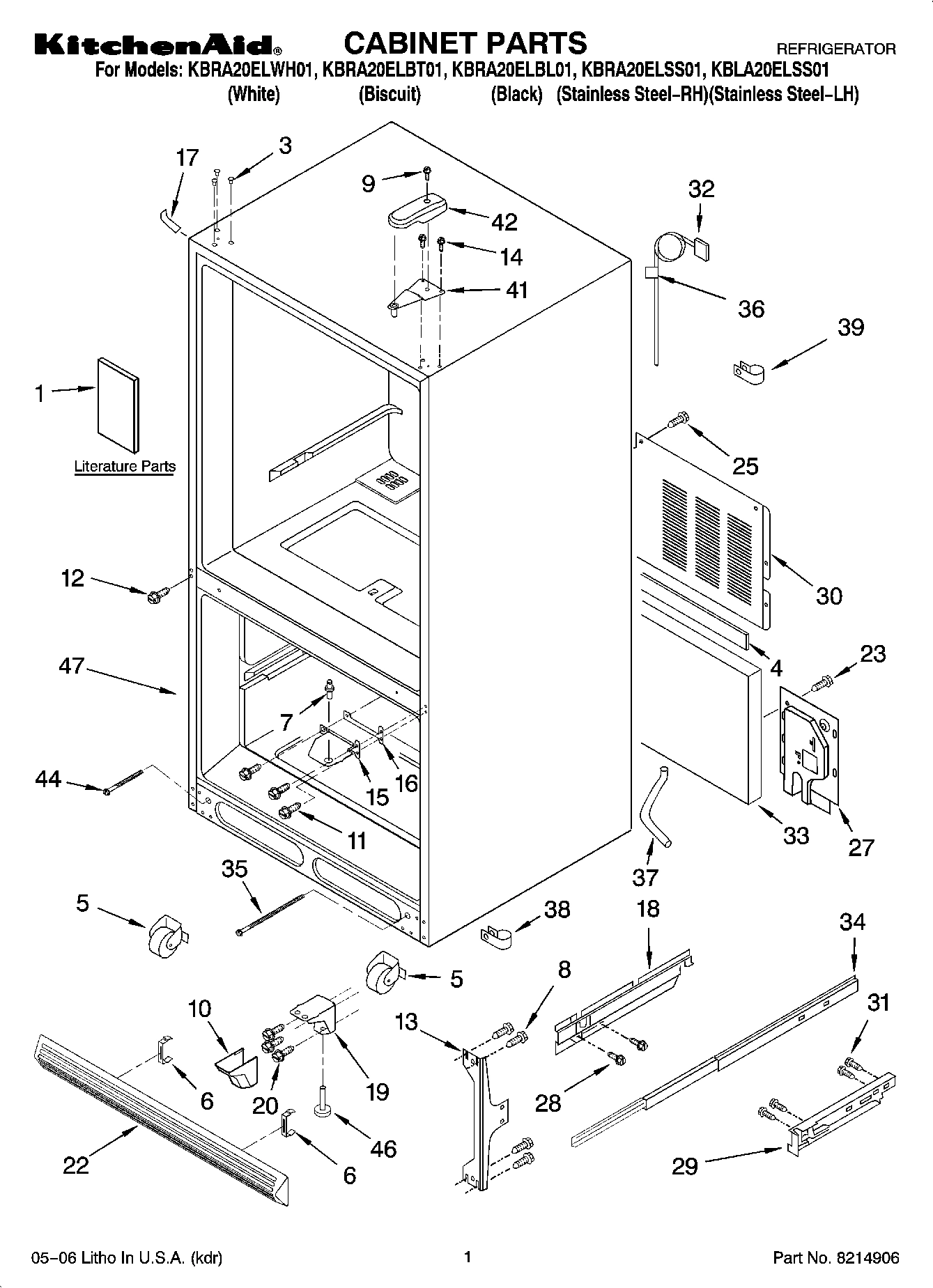

Use & Care Guide WPL 8170954 Contact Us For Availability

1

Tech Sheet WPL 8171102 Contact Us For Availability

1

Guide, Energy WPL 8171103 Contact Us For Availability

1

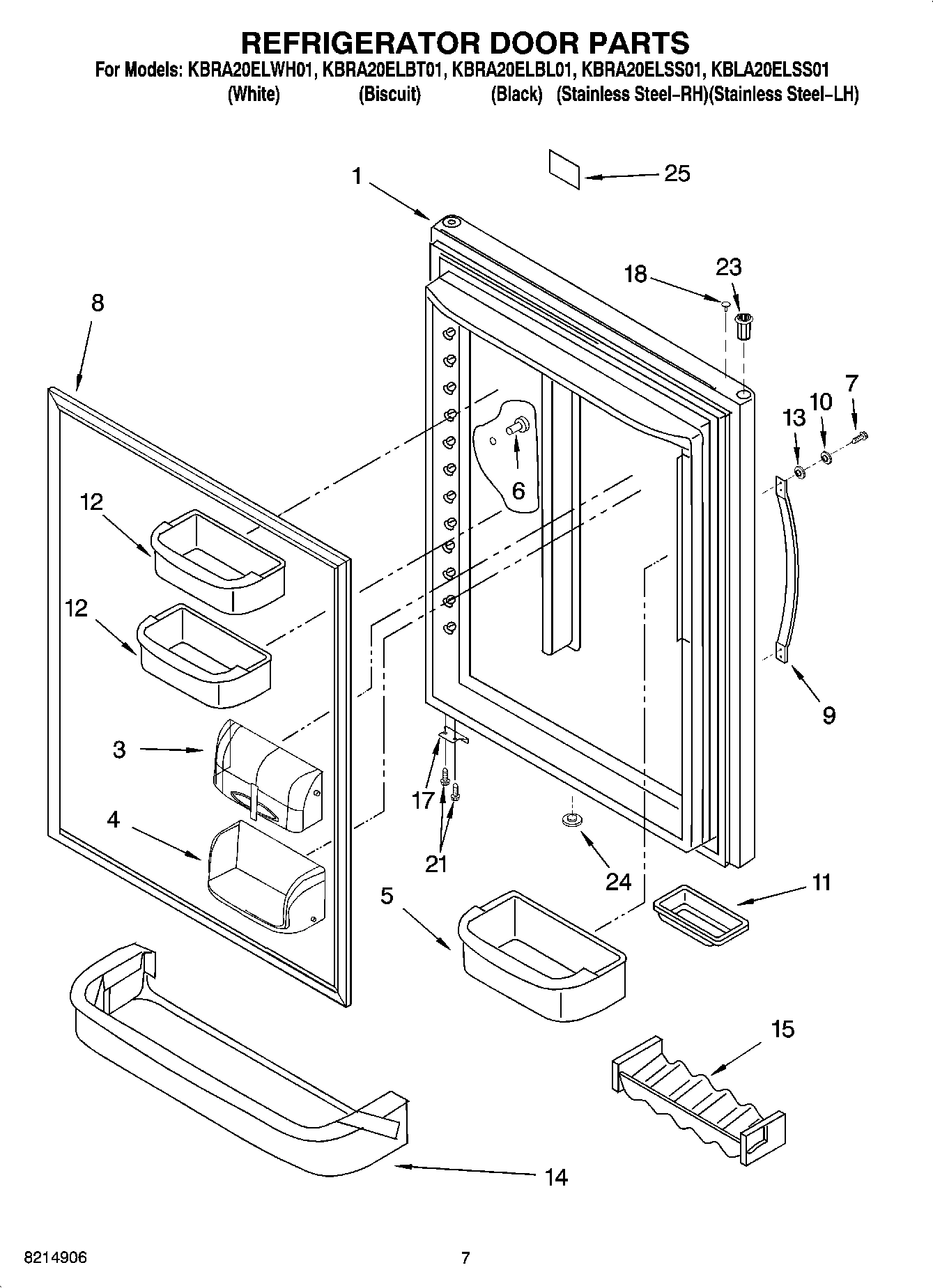

Refrigerator Door (Includes Insulation) (Stai WPL 8170966 Contact Us For Availability

1

Refrigerator Door (Includes Insulation) (Stai WPL 8170969 Contact Us For Availability

1

Refrigerator Door (Includes Insulation) (Blac WPL 8170971 Contact Us For Availability

1

Refrigerator Door (Includes Insulation) (Whit WPL 8171008 Contact Us For Availability

1

Refrigerator Door (Includes Insulation) (Bisc WPL 8171010 Contact Us For Availability

1

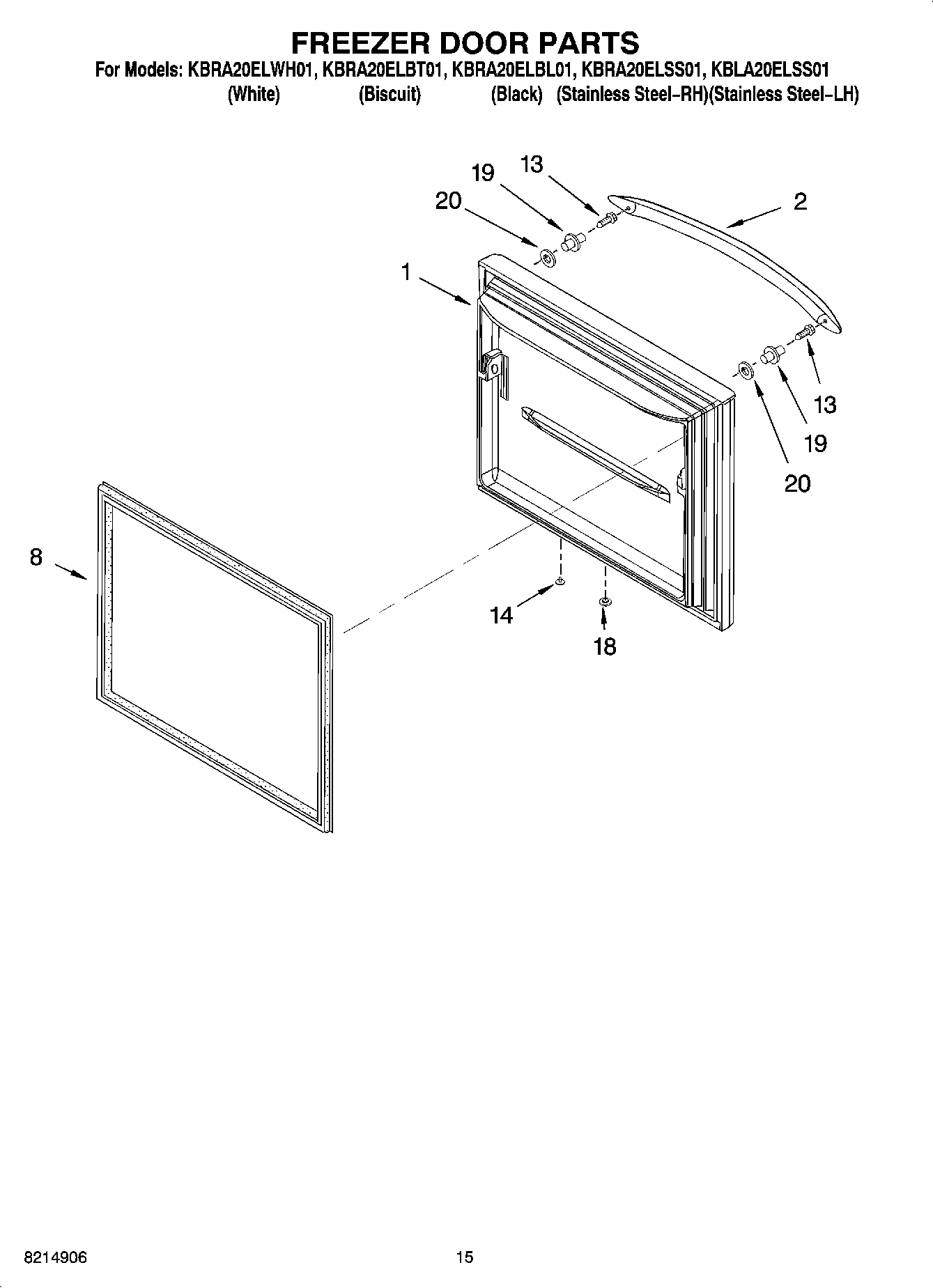

Freezer Door (Includes Insulation) (Stainless WPL 8170968 Contact Us For Availability

1

Freezer Door (Includes Insulation) (Black) WPL 8171022 Contact Us For Availability

1

Freezer Door (Includes Insulation) (Biscuit) WPL 8171023 Contact Us For Availability

1

Freezer Door (Includes Insulation) (White) WPL 8171024 Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $53.27

2

Housing, Ref. Light WPL 8171026 Contact Us For Availability

2

Handle (Black) WPL 8171014 Contact Us For Availability

2

Handle (Biscuit) WPL 8171015 Contact Us For Availability

2

Handle (White) WPL 8171016 Contact Us For Availability

2

Handle (Stainless) WPL 8170961 Contact Us For Availability

2

Rack, Wine WPL 8170799 Contact Us For Availability

3

W10709784 Whirlpool Refrigerator Handle Plug Backorder WPL W10709784 $10.23

3

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

3

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $41.82

3

OVERLAY WPL 8171027 Contact Us For Availability

3

Base WPL 8171087 Contact Us For Availability

4

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

4

WP67006010 Whirlpool Refrigerator Shelf Trim Backorder WPL WP67006010 $87.59

4

Cover, Control WPL 8170847 Contact Us For Availability

4

GASKET WPL 8170924 Contact Us For Availability

4

Screw WPL 4344167 Contact Us For Availability

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $42.82

5

Cover, Ref. Light WPL 8170832 Contact Us For Availability

5

Roller Assembly WPL 8170886 Contact Us For Availability

5

Shelf Bin (Medium) WPL 8170751 Contact Us For Availability

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

6

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.70

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

6

WP67002085 Whirlpool Refrigerator Housing Backorder WPL WP67002085 $53.53

6

Clip, Grille WPL 8170869 Contact Us For Availability

7

12002311 Whirlpool Refrigerator Center Hinge Backorder WPL 12002311 $3.70

7

WP67003417 Whirlpool Refrigerator Front Seal Backorder WPL WP67003417 $3.70

7

Knob, Damper WPL 8170835 Contact Us For Availability

7

Harness, Evap. Heater WPL 8170903 Contact Us For Availability

8

67001033 Whirlpool Refrigerator Knob Gear Backorder WPL 67001033 $14.13

8

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $128.87

8

W10443317 Whirlpool Refrigerator FIP Gasket Backorder WPL W10443317 $128.68

8

W10849442 Whirlpool Refrigerator FIP Gasket In Stock WPL W10849442 $124.88

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

8

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

8

Drain Pan WPL 8171089 Contact Us For Availability

8

Door Gasket, Magnetic (White) WPL 8171025 Contact Us For Availability

9

67001034 Whirlpool Refrigerator Tensioner Bel Backorder WPL 67001034 $4.78

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

9

Screw WPL 4343715 Contact Us For Availability

9

Door Handle (Stainless) WPL 8170778 Contact Us For Availability

9

Grommet (3) WPL 8170908 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $52.78

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $68.67

Housing, Frz. Light WPL 8170852 Contact Us For Availability

Housing, Light WPL 8170838 Contact Us For Availability

Hinge Cover, Bottom (Black) WPL 8171002 Contact Us For Availability

Hinge Cover, Bottom (Biscuit) WPL 8171003 Contact Us For Availability

Hinge Cover, Bottom (White) WPL 8171004 Contact Us For Availability

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

Cover, Evaporator WPL 8171082 Contact Us For Availability

Screw (2) WPL 4344395 Contact Us For Availability

Dish, Butter WPL 4344296 Contact Us For Availability

Clip WPL 8170724 Contact Us For Availability

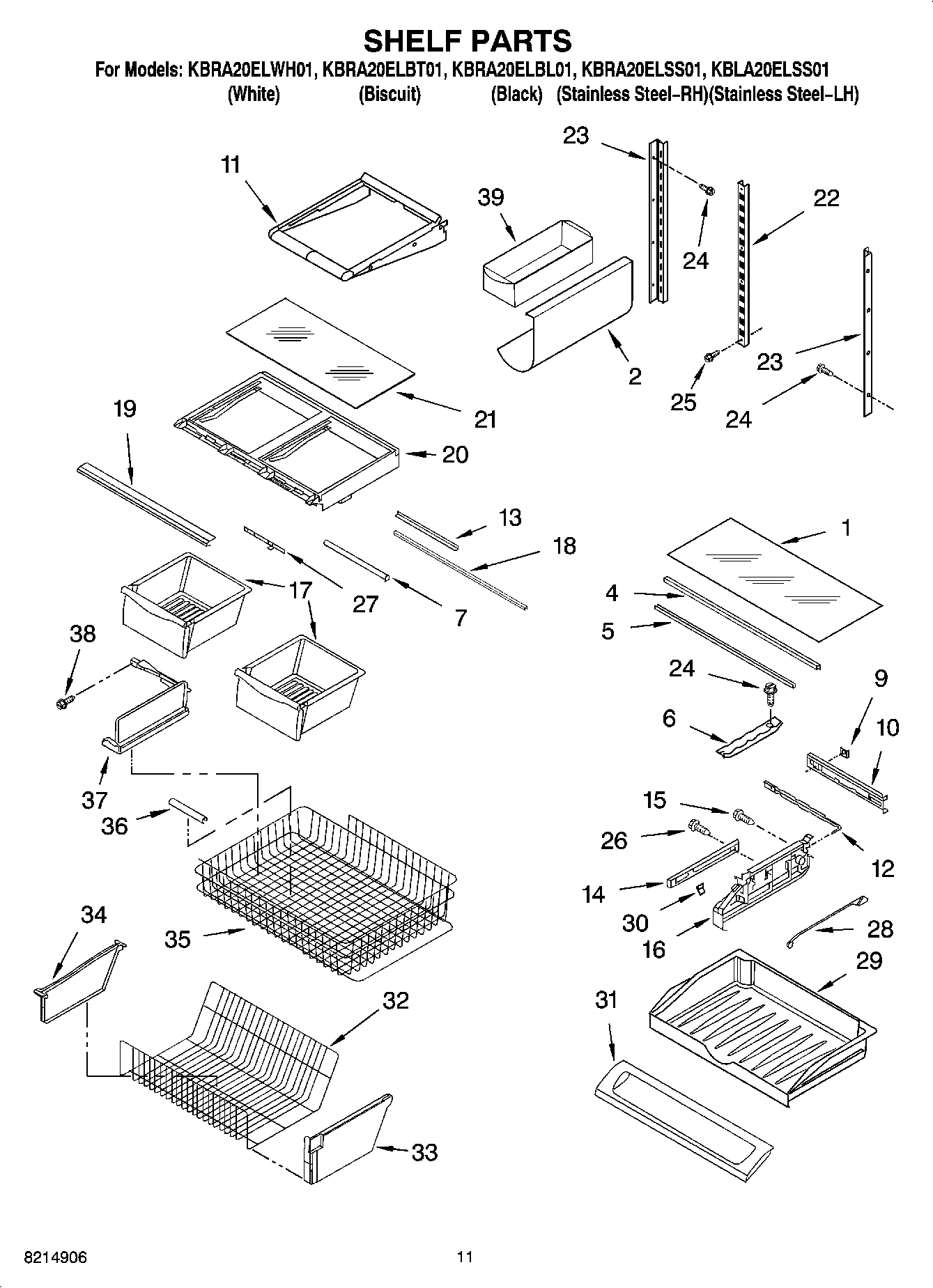

Shelf Assembly WPL 8171043 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $57.63

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $26.96

Shelf Bin (2) (Large) WPL 8171019 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

WP67002513 Whirlpool Refrigerator Rear Crispe Backorder WPL WP67002513 $4.14

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

Grommet, Screw WPL 8170888 Contact Us For Availability

Bracket, Door (2) WPL 8171074 Contact Us For Availability

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

12001937 Whirlpool Refrigerator 42-Degree Def In Stock WPL 12001937 $50.86

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

WP12476002 Whirlpool Refrigerator Module Backorder WPL WP12476002 $61.94

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $108.35

Gear, Damper WPL 8170841 Contact Us For Availability

Door Shelf WPL 8171012 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

WP12607103WD Whirlpool Refrigerator Center Hi Backorder WPL WP12607103WD $57.16

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $47.49

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $43.32

Clip, Evap. Motor WPL 8170895 Contact Us For Availability

Control, Damper WPL 8170845 Contact Us For Availability

Screw WPL 4344523 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $28.22

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $30.91

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $2.51

WPM0274062 Whirlpool Refrigerator Shim In Stock WPL WPM0274062 $12.94

Insulation, Damper WPL 8170846 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $33.62

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $9.90

WP67002659 Whirlpool Crisper Pan In Stock WPL WP67002659 $85.81

Cover, Corner (Biscuit) WPL 8170859 Contact Us For Availability

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $43.13

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $153.47

Bracket, Slide (2) (Left) WPL 8171078 Contact Us For Availability

Bracket, Slide (2) (Right) WPL 8171079 Contact Us For Availability

Plug, Button (Black) WPL 4343926 Contact Us For Availability

Plug, Button (White) WPL 8170953 Contact Us For Availability

Hinge Bottom (Black) WPL 8171066 Contact Us For Availability

Hinge Bottom (White) WPL 8171067 Contact Us For Availability

WASHER WPL 8171021 Contact Us For Availability

Trim, Crisper WPL 8171048 Contact Us For Availability

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

WP67006185 Whirlpool Refrigerator Crisper Fra In Stock WPL WP67006185 $104.17

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.70

Stud, Handle WPL 8171017 Contact Us For Availability

Tray, Drip WPL 8171081 Contact Us For Availability

21

WP67006655 Whirlpool Refrigerator Crisper Gla Backorder WPL WP67006655 $113.39

21

Dispenser WPL 8171034 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $185.26

WP67002224 Whirlpool Refrigerator Grille Asse Backorder WPL WP67002224 $42.80

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

Grille Assembly (Includes Clips) (White) WPL 8170866 Contact Us For Availability

Grille Assembly (Includes Clips) (Biscuit) WPL 8170868 Contact Us For Availability

Ladder, Center WPL 8171068 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

Bushing (Black) WPL 4344361 Contact Us For Availability

Bushing (White) WPL 4344362 Contact Us For Availability

Dam (Left Side) WPL 8171154 Contact Us For Availability

Dam (Right Side) WPL 8171155 Contact Us For Availability

Ladder, Side WPL 8171069 Contact Us For Availability

24

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

24

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

24

WP67001036 Whirlpool Refrigerator Defrost Tim In Stock WPL WP67001036 $92.40

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

Shroud, Evap.Fan WPL 8171153 Contact Us For Availability

Cover, Control WPL 8171028 Contact Us For Availability

Nameplate (Black) WPL 8170732 Contact Us For Availability

Nameplate (Bisquit) WPL 8170733 Contact Us For Availability

Nameplate (White) WPL 8170734 Contact Us For Availability

Screw WPL 8170578 Contact Us For Availability

26

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

26

Harness, Unit WPL 8171092 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

Belt, Damper WPL 8171029 Contact Us For Availability

Cover, Water Valve WPL 8171094 Contact Us For Availability

67003794 Whirlpool Refrigerator Temperature C Backorder WPL 67003794 $8.09

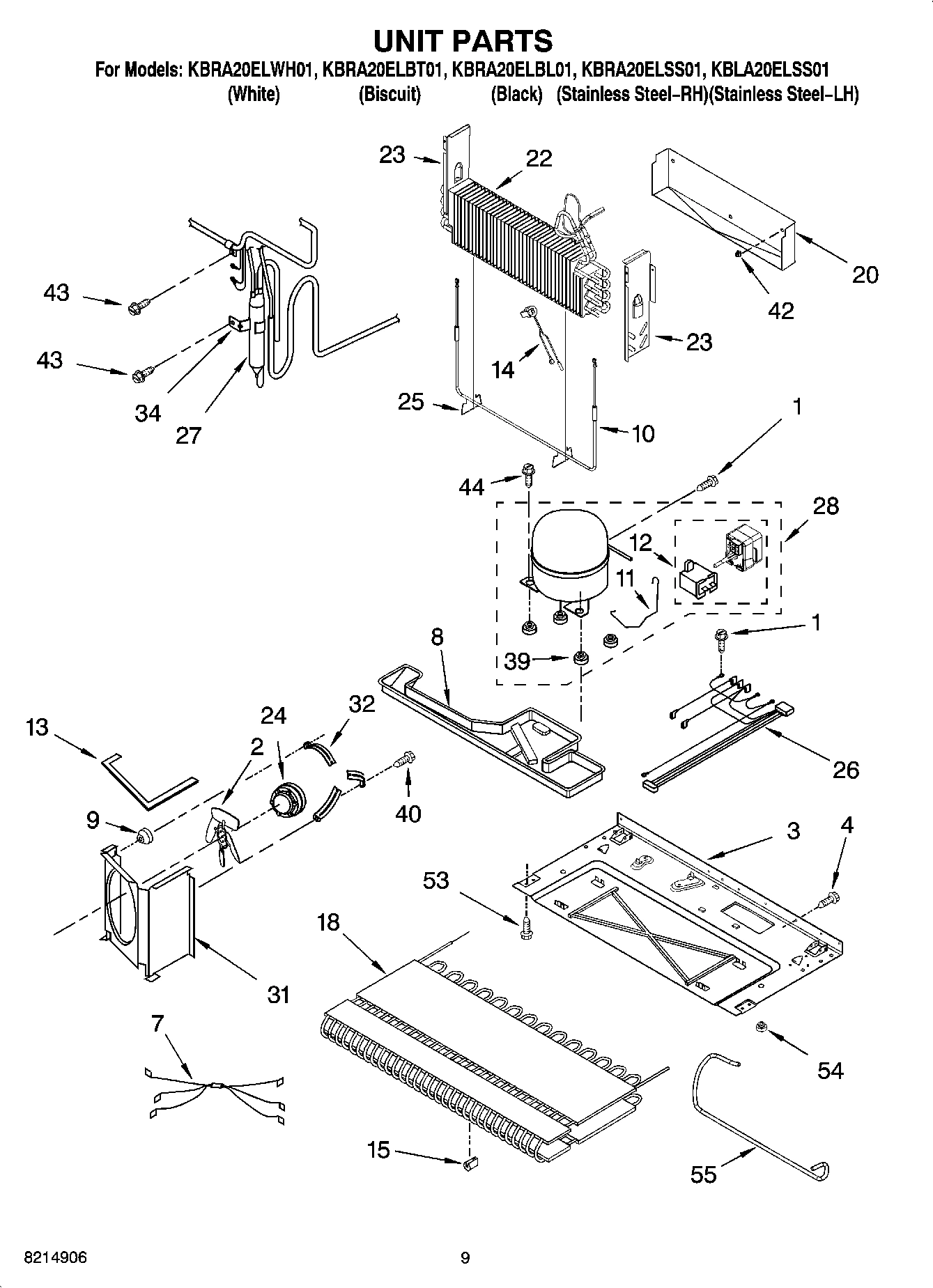

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $6.31

Screw WPL 4343861 Contact Us For Availability

W11490183 Whirlpool Refrigerator Utility Pan Backorder WPL W11490183 $72.82

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

Housing, Water Filter Assembly WPL 8171031 Contact Us For Availability

Track, Door (Left) WPL 8171076 Contact Us For Availability

Track, Door (Right) WPL 8171077 Contact Us For Availability

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.14

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $44.58

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

Cover, Unit WPL 8171093 Contact Us For Availability

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $55.44

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

WP67005930 Whirlpool Refrigerator Pantry Draw In Stock WPL WP67005930 $46.10

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

SHROUD WPL 8171088 Contact Us For Availability

WP12544002 Whirlpool Refrigerator Inlet Valve In Stock WPL WP12544002 $129.90

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $17.57

Head, Filter Bypass WPL 8171042 Contact Us For Availability

Bracket, Fan Motor WPL 8170907 Contact Us For Availability

Basket, Freezer Lower WPL 8170815 Contact Us For Availability

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Endcap, Basket (Left) WPL 8170816 Contact Us For Availability

Endcap, Basket (Right) WPL 8170820 Contact Us For Availability

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $82.10

Slide, Drawer (2) WPL 8171075 Contact Us For Availability

Clip, Drier WPL 8170901 Contact Us For Availability

Divider, Lower Basket WPL 8171080 Contact Us For Availability

35

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $12.55

35

Bolt, Adjusting (Rear) WPL 8170967 Contact Us For Availability

35

Basket, Freezer Upper WPL 8171070 Contact Us For Availability

36

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $29.61

36

Clip, Cord WPL 8171100 Contact Us For Availability

36

Handle, Freezer Basket WPL 8171071 Contact Us For Availability

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $27.82

Knob, Control WPL 8170851 Contact Us For Availability

Tube, Drain WPL 8170861 Contact Us For Availability

Divider, Upper Basket WPL 8171072 Contact Us For Availability

38

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

38

Clip, Front WPL 4343952 Contact Us For Availability

38

Screw WPL 8171073 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

Cover, Frz. Control WPL 8170849 Contact Us For Availability

Grommet (4) WPL 4343845 Contact Us For Availability

40

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

40

Screw WPL 4344562 Contact Us For Availability

41

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.18

41

WP67003000 Whirlpool Refrigerator Control In Stock WPL WP67003000 $111.07

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $27.74

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

Cover, Hinge (Biscuit) WPL 8170976 Contact Us For Availability

Clip, Evaporator WPL 4344219 Contact Us For Availability

43

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

44

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

44

Screw WPL 4343847 Contact Us For Availability

46

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.08

47

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

47

Cabi WPL ARI79278A9 Contact Us For Availability

48

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

49

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

53

Screw WPL 4344292 Contact Us For Availability

54

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tube, Discharge WPL 8171090 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated WPL ARI79281A3 Contact Us For Availability

and Optional Parts Not Included WPL ARI79282A7 Contact Us For Availability

REFRIGERANT CHARGE 5.0 Ozs. (R-134A) WPL ARI79283A8 Contact Us For Availability

4396418 Whirlpool Ice Maker Backorder WPL 4396418 $192.72

W11033771 Whirlpool Refrigerator Coupling Backorder WPL W11033771 $13.21

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Plug, Button WPL 4344316 Contact Us For Availability

Plug, Hole WPL 4344549 Contact Us For Availability

Following Parts Not Illustrated WPL ARI79284A2 Contact Us For Availability

Note: The Following Parts Are Components of A WPL ARI79285A9 Contact Us For Availability
