Model Whirlpool KBFS25ETWH01 REFRIGERATOR – Common Parts & Diagrams

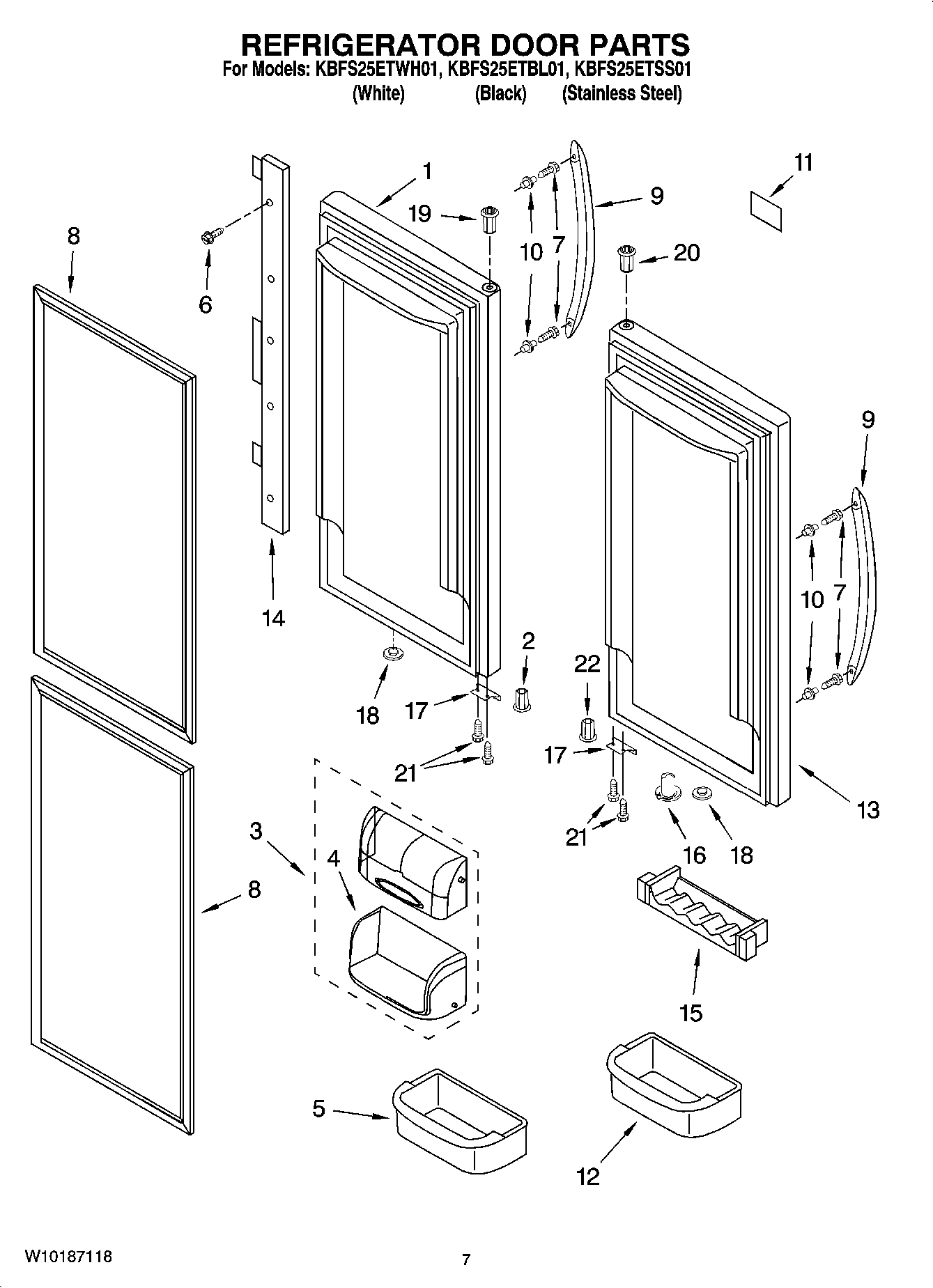

04 - REFRIGERATOR DOOR PARTS

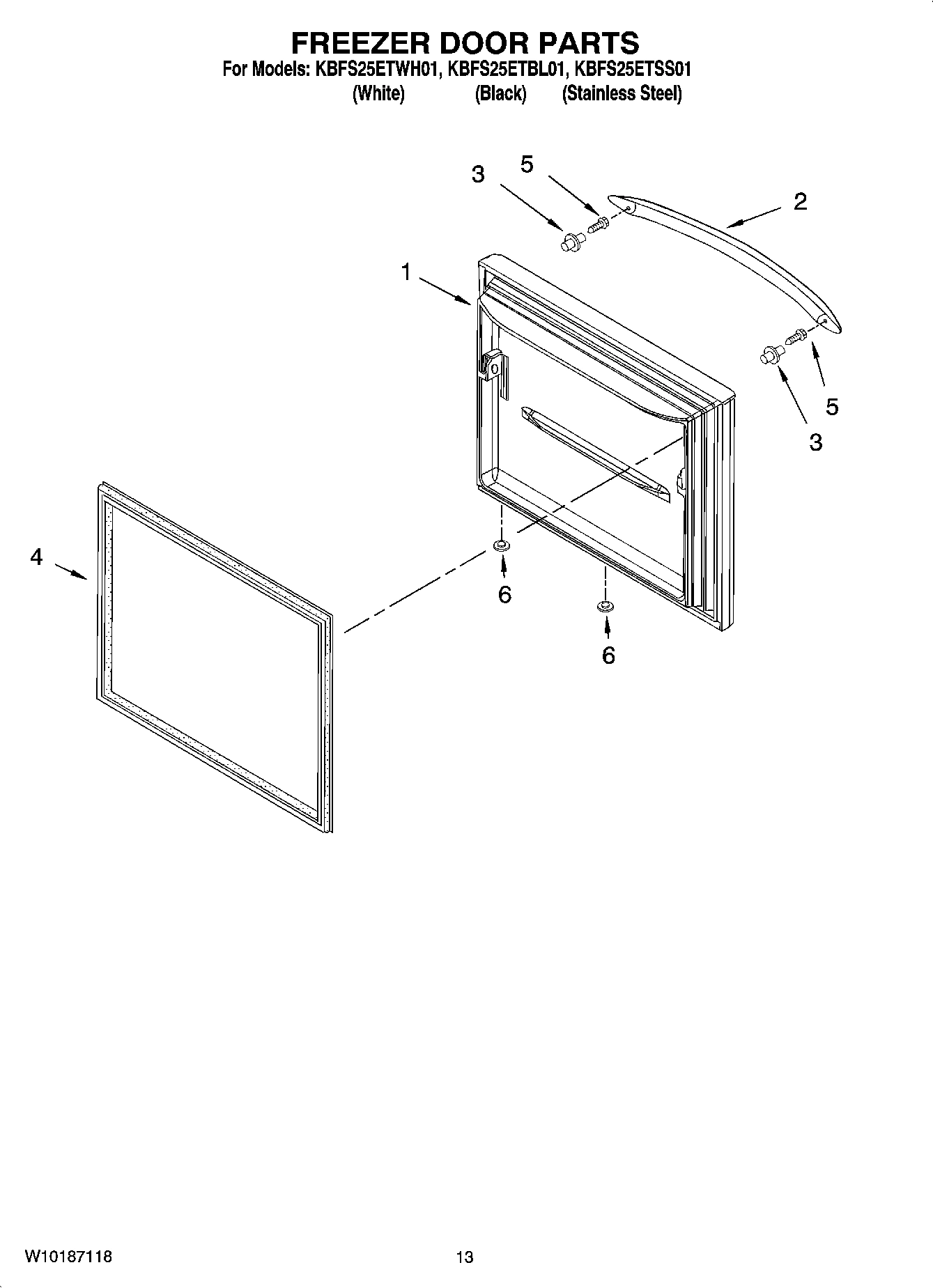

07 - FREEZER DOOR PARTS
02 - FREEZER LINER PARTS
05 - UNIT PARTS
06 - SHELF PARTS
01 - CABINET PARTS
03 - REFRIGERATOR LINER PARTS
08 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool KBFS25ETWH01 REFRIGERATOR
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
WPL D7824706Q WPL D7824706Q Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
WPL 876370 WPL 876370 Contact Us For Availability
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
Kit, Terminal Connector WPL 833938 Contact Us For Availability
Primer White (13 Oz. Spray Can) WPL 350942 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
Harness, Controls (Refrigerator) (Includes 1 WPL 67005417 Contact Us For Availability
Following Parts Not Illustrated WPL ARI78349A7 Contact Us For Availability
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
WPL ARI78355A3 WPL ARI78355A3 Contact Us For Availability
WPL ARI78356A3 WPL ARI78356A3 Contact Us For Availability
WPL ARI78357A3 WPL ARI78357A3 Contact Us For Availability
WPL ARI78358A7 WPL ARI78358A7 Contact Us For Availability
WPL ARI78359A1 WPL ARI78359A1 Contact Us For Availability
WPL ARI78360A7 WPL ARI78360A7 Contact Us For Availability
1
Tech Sheet WPL 67006616 Contact Us For Availability
1
Owners Manual WPL W10137643 Contact Us For Availability
1
Tag, Energy WPL W10138143 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI78348A6 Contact Us For Availability
1
Mold & Heater Assembly (Not Available Order D WPL ARI78352A5 Contact Us For Availability
2
Bushing, Door (Bottom Left) (White) WPL 67002722 Contact Us For Availability
2
Bracket, Control and Lights WPL 67004078 Contact Us For Availability
3
Gear (2) (Includes RT & LT) WPL 12002497 Contact Us For Availability
3
Overlay WPL 67005949 Contact Us For Availability
3
Screw WPL 67006608 Contact Us For Availability
4
Gasket WPL B5759649 Contact Us For Availability
4
Housing, Electronic Control WPL W10185585 Contact Us For Availability
5
Roller Assembly WPL 67006118 Contact Us For Availability
6
Clip, Grille WPL 12627302 Contact Us For Availability
7
Plug, Bottom WPL A3076901 Contact Us For Availability
8
Divider, Upper Basket WPL 67004127 Contact Us For Availability
8
Thermostat (Not Available Order D7824706Q) WPL ARI78353A7 Contact Us For Availability
9
Door Handle (Stainless) WPL 2319727S Contact Us For Availability
9
Door Handle (Black) WPL 2319727B Contact Us For Availability
9
Gasket, Pantry WPL 67002329 Contact Us For Availability
11
Insert, Damper Cover WPL 67003900 Contact Us For Availability
11
Nameplate (Grey) WPL W10046610 Contact Us For Availability
11
Shelf, Glide (2) WPL 67005691 Contact Us For Availability
12
Pin, Roller WPL M1205302 Contact Us For Availability
13
Cover, Left Hinge (Black) WPL 12684201B Contact Us For Availability
13
Cover, Left Hinge (White) WPL 12684201W Contact Us For Availability
15
Hinge, Center (2) (White (RT)) WPL 67006379 Contact Us For Availability
15
Hinge, Center (2) (Black (LT)) WPL 67006442 Contact Us For Availability
17
Stop, Door (White) WPL 12968202W Contact Us For Availability
17
Pan, Crisper (2) WPL 67005929 Contact Us For Availability
17
Cover, Corner (White) WPL 67003484 Contact Us For Availability
17
Cover, Corner (Black) WPL 67003485 Contact Us For Availability
19
Trim, Crisper WPL 67005692 Contact Us For Availability
19
Bracket, Foot WPL 67007174 Contact Us For Availability
19
Module Assembly (Not Available Order D7824706 WPL ARI78354A3 Contact Us For Availability
20
Screw (8) WPL 67006564 Contact Us For Availability
20
Bushing, Door (Upper Right) (Black) WPL 67004978 Contact Us For Availability
20
Dispenser WPL W10158503 Contact Us For Availability
21
Shim, Hinge WPL 12579702 Contact Us For Availability
22
Ladder, Center WPL 67001073 Contact Us For Availability
23
Ladder, Side WPL 67002489 Contact Us For Availability
23
Cover, Right Hinge (Black) WPL 12684202B Contact Us For Availability
23
Cover, Right Hinge (White) WPL 12684202W Contact Us For Availability
24
Nut, Speed WPL M0286708 Contact Us For Availability
25
GROMMET WPL W10121318 Contact Us For Availability
26
Plug, Filter Bypass WPL 12664501 Contact Us For Availability
27
Cover, Water Valve WPL 67004098 Contact Us For Availability
30
THERMISTOR WPL 12002355 Contact Us For Availability
30
Cover, Unit WPL 12575101ED Contact Us For Availability
32
Cabinet, (Not A Serviceable Part) WPL ARI78345A7 Contact Us For Availability
32
Clip, Water Tube WPL 67002816 Contact Us For Availability
33
Insulation, Sound WPL 67003796 Contact Us For Availability
33
Divider, Lower Basket WPL 67006644 Contact Us For Availability
34
Basket, Freezer (Upper) WPL 67004987 Contact Us For Availability
35
Shelf, Fixed (2) WPL 67005690 Contact Us For Availability
36
Tube, Drain WPL W10164397 Contact Us For Availability
37
Clip, Drain Tube WPL 67001067 Contact Us For Availability
41
Grommet (2) WPL 67005680 Contact Us For Availability
44
Axle, Roller WPL 67006434 Contact Us For Availability
× ![]()
