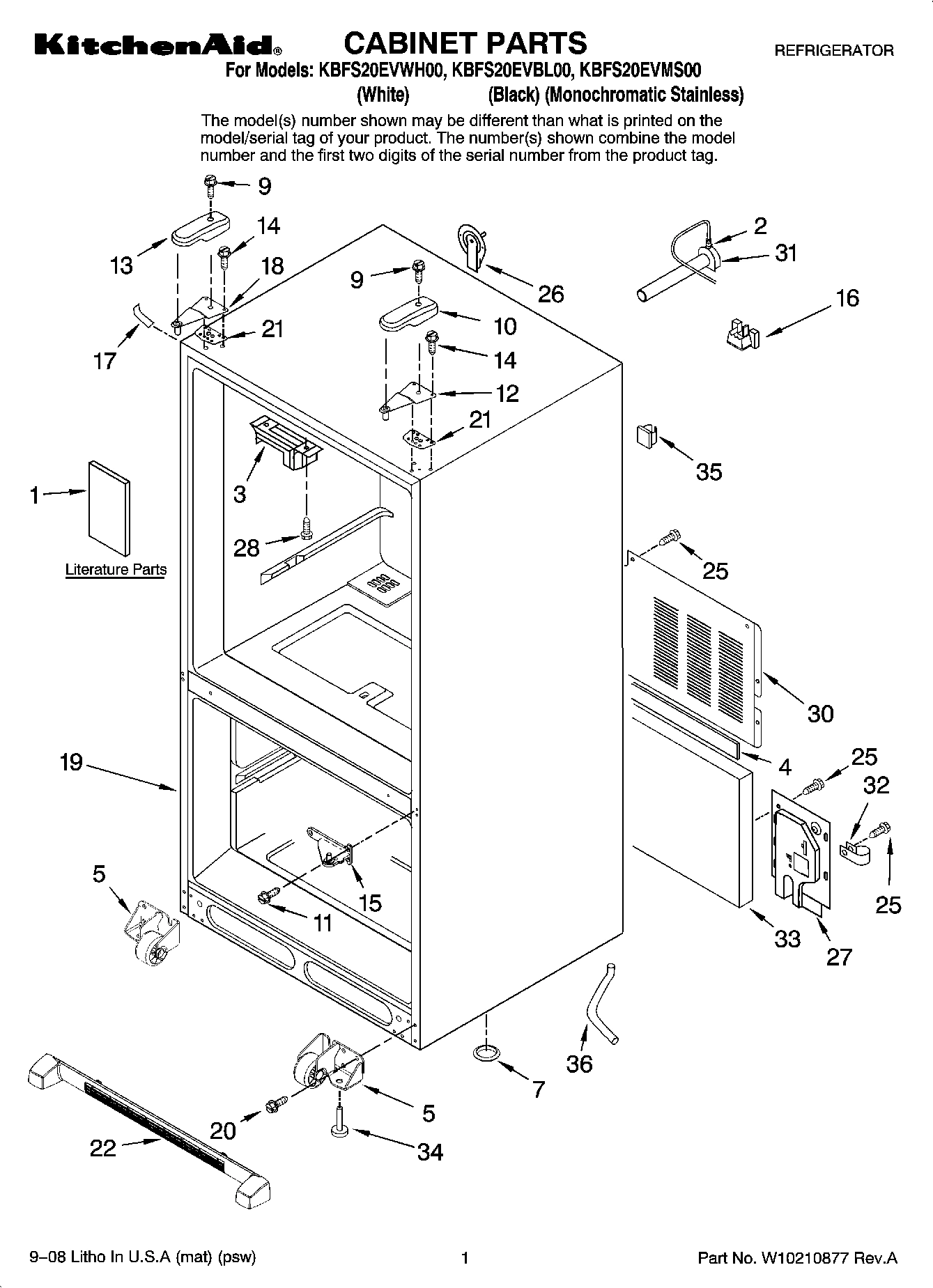

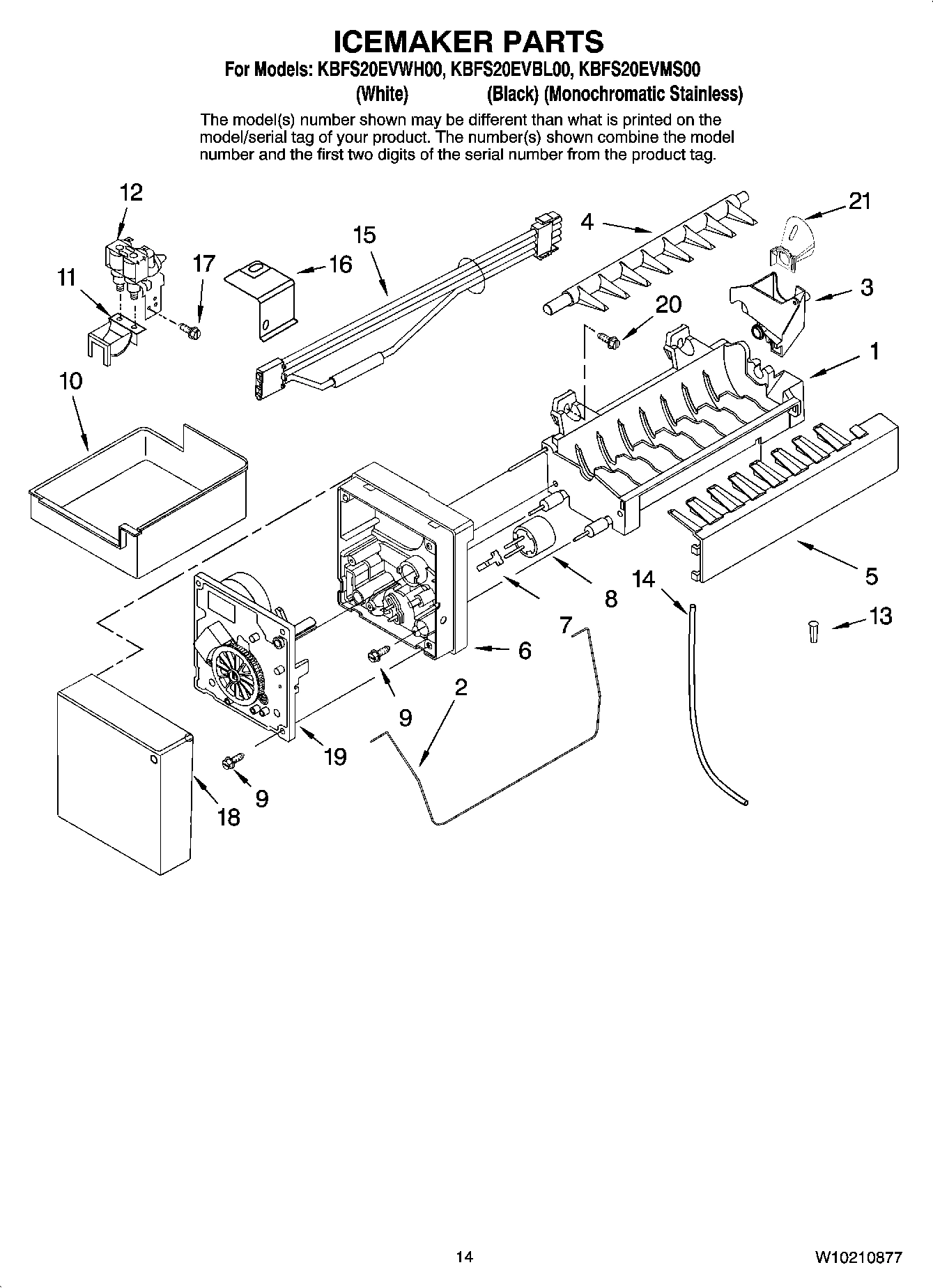

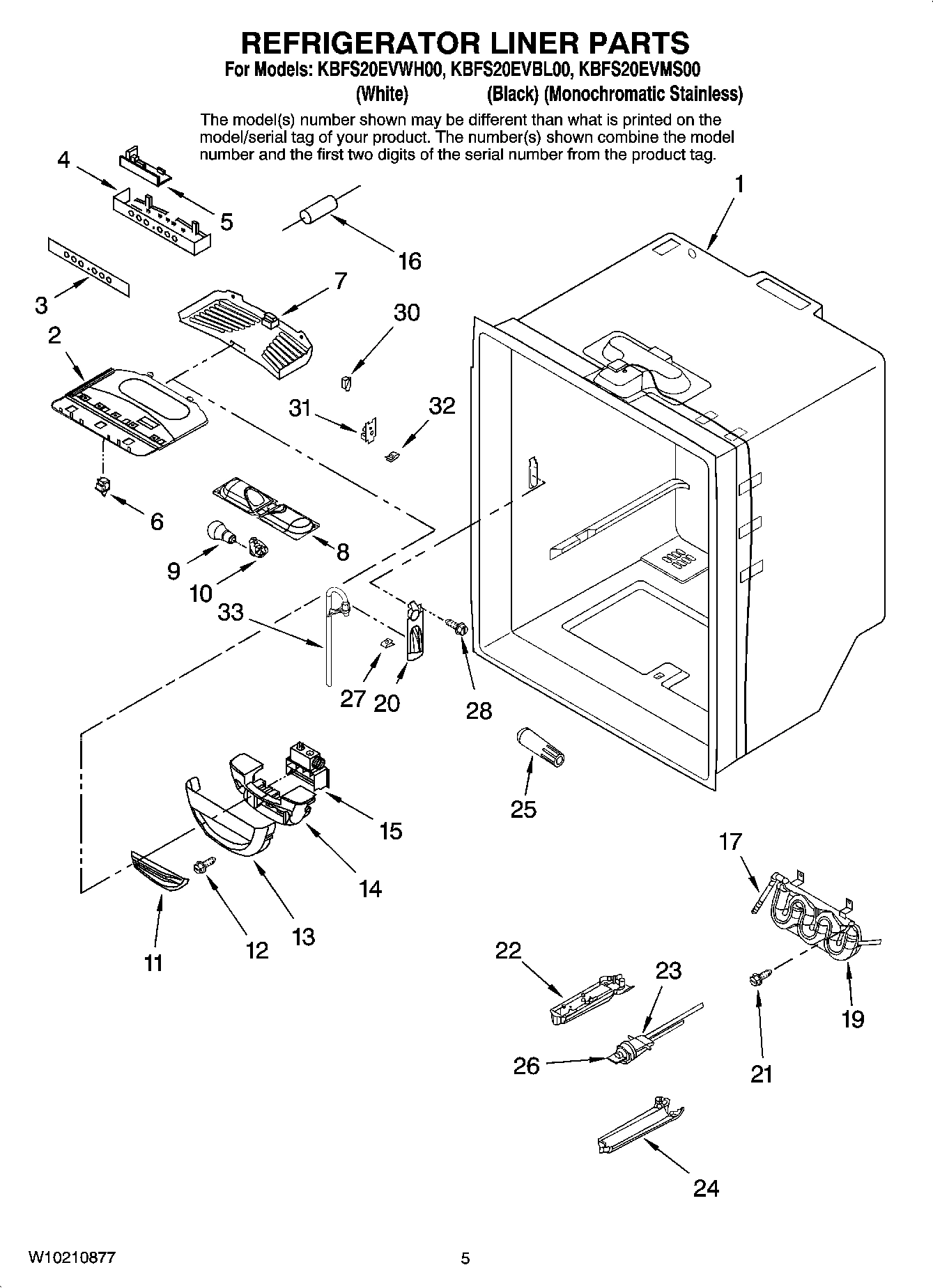

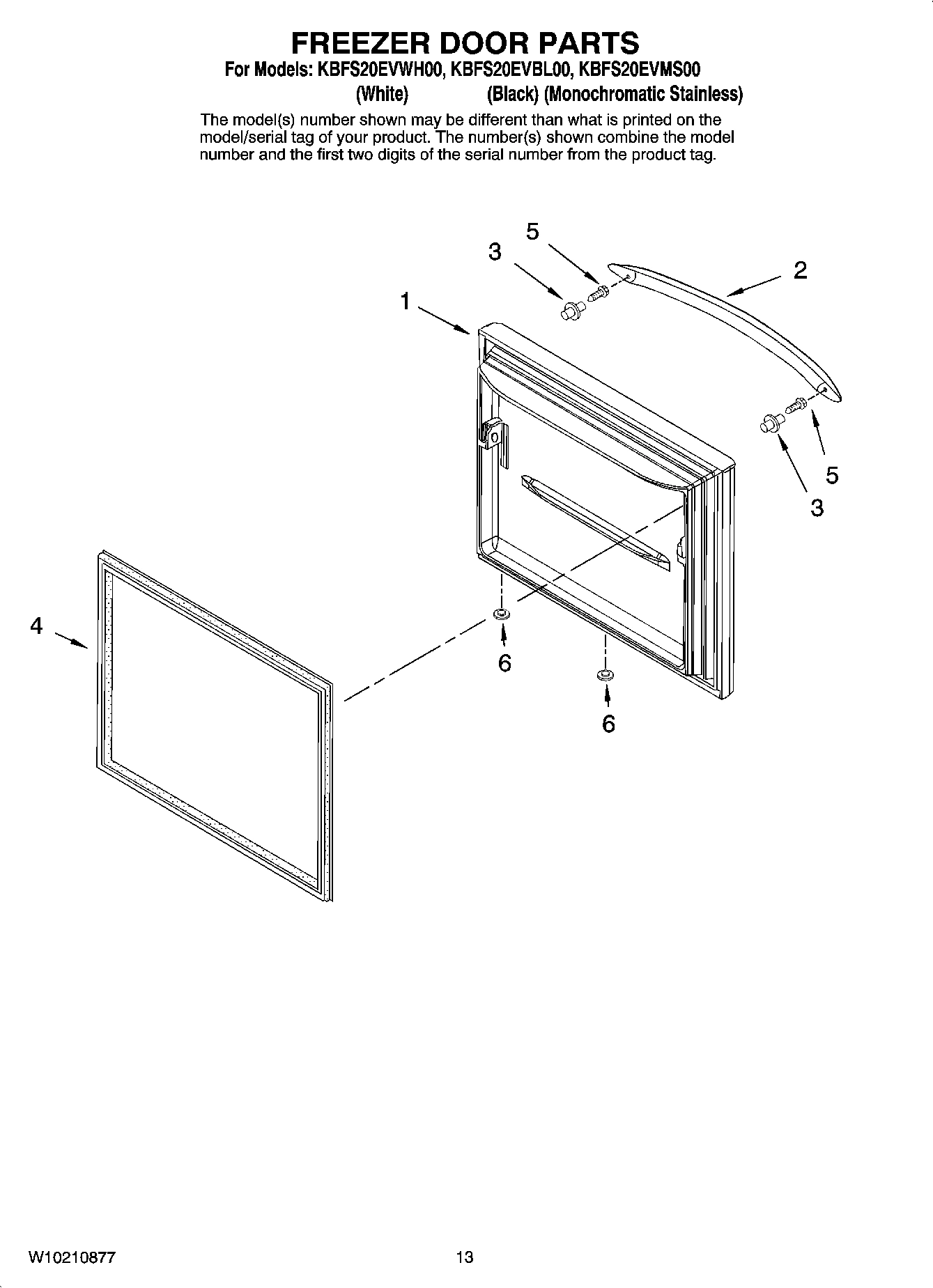

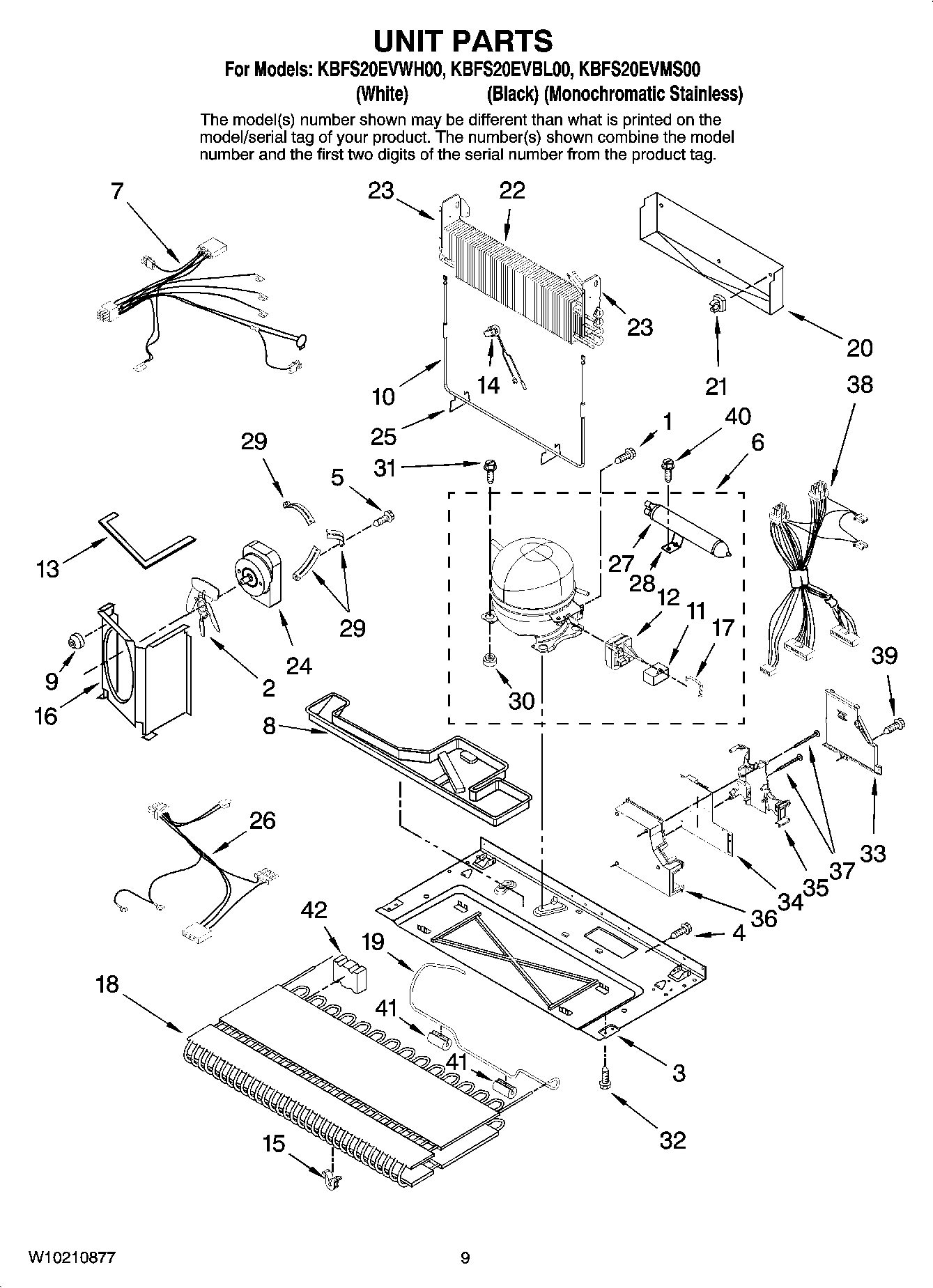

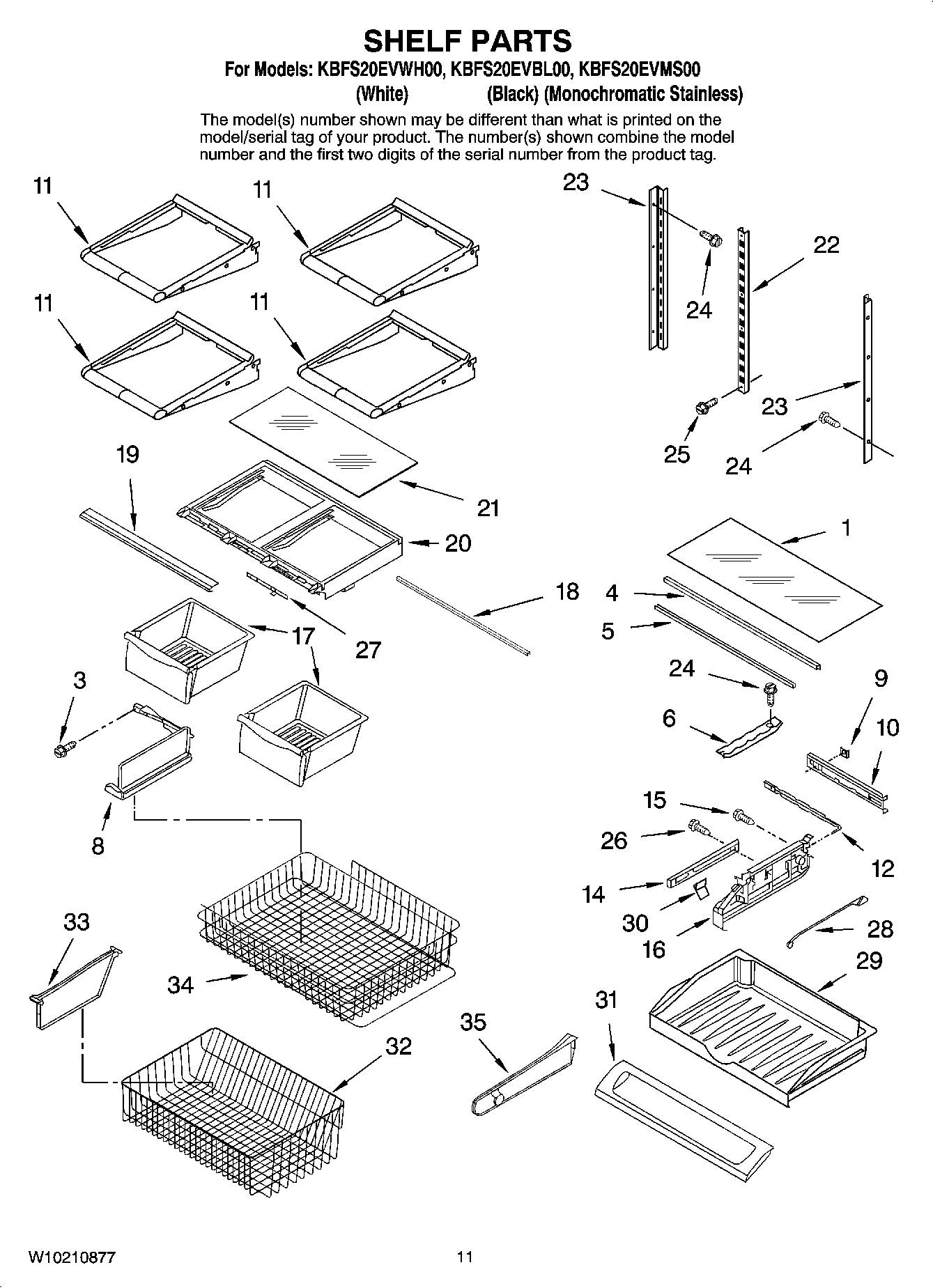

Model Whirlpool KBFS20EVWH00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

67005417 Whirlpool Refrigerator Harness F Backorder WPL 67005417 $42.38

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI153493A WPL ARI153493A Contact Us For Availability

WPL ARI153494A WPL ARI153494A Contact Us For Availability

WPL ARI153495A WPL ARI153495A Contact Us For Availability

WPL ARI153496A WPL ARI153496A Contact Us For Availability

Following Parts Not Illustrated WPL ARI153487A Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI153488A Contact Us For Availability

REFRIGERANT CHARGE 5.0 Ozs. (R-134A) WPL ARI153489A Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

WP67002332 Whirlpool Refrigerator Glass Pan Backorder WPL WP67002332 $121.31

1

Mold & Heater Assembly (Not Available Order D WPL ARI153490A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI153486A Contact Us For Availability

1

Door, Freezer (Black) WPL 13092233BQ Contact Us For Availability

1

Door, Freezer (White) WPL 13092233WQ Contact Us For Availability

1

Door, Freezer (Stainless) WPL 13092234SQ Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $33.86

2

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $122.50

2

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

2

Bracket, Control and Lights WPL 67004078 Contact Us For Availability

2

Handle, Door (Black) WPL W10119643 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

3

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $17.39

3

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.82

3

Overlay WPL W10175936 Contact Us For Availability

3

Basepan WPL 67005889 Contact Us For Availability

3

Screw WPL 67006608 Contact Us For Availability

4

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $129.24

4

W10443319 Whirlpool Door Gasket In Stock WPL W10443319 $192.65

4

W10443320 Whirlpool Gray Outer Gasket In Stock WPL W10443320 $82.71

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

4

WP67006010 Whirlpool Refrigerator Shelf Trim Backorder WPL WP67006010 $91.97

4

Module, Control WPL W10185585 Contact Us For Availability

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $44.96

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

Board, Control WPL WPW10207861 No Longer Available

6

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

6

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

6

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

7

67006901 Whirlpool Refrigerator Screw Backorder WPL 67006901 $2.51

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $38.12

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

7

Harness, Evap Heater WPL W10171661 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $116.56

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $160.93

8

Thermostat (Not Available Order D7824706Q) WPL ARI153491A Contact Us For Availability

8

Divider, Upper Basket WPL W10171557 Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

9

Grommet (3) WPL 61004743 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $54.81

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.40

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $86.21

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $72.92

Cover, Right Hinge (Apollo Grey) WPL 12629801AP Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.52

WP12463911 Whirlpool Refrigerator Glass Shelf Backorder WPL WP12463911 $125.72

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

12626910ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626910ED $40.88

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.38

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $28.31

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $120.06

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $41.28

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

13

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

13

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

Backorder WPL W11750607 $19.22

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.39

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $32.98

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $114.56

12655103ED Whirlpool Door Hinge Backorder WPL 12655103ED $29.13

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $93.06

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $43.13

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $45.67

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $33.27

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $30.25

Shroud, Condenser WPL 12575309 Contact Us For Availability

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

W11401472 Whirlpool Refrigerator Door Stop Backorder WPL W11401472 $10.76

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.72

WPW10143396 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10143396 $148.61

Clip, Capacitor WPL 2255199 Contact Us For Availability

12626911ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626911ED $30.25

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $45.29

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $153.47

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

67002722 Whirlpool Refrigerator White Door Bu Backorder WPL 67002722 $10.76

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $61.32

Bushing, Door Upper Left (Apollo Grey) WPL 12699301AP Contact Us For Availability

Cabinet, (Not A Serviceable Part) WPL ARI153483A Contact Us For Availability

Module Assembly (Not Available Order D7824706 WPL ARI153492A Contact Us For Availability

Tube, Discharge WPL W10134293 Contact Us For Availability

Trim, Crisper WPL 67005675 Contact Us For Availability

10961006AP Whirlpool Refrigerator Hinge Bushi Backorder WPL 10961006AP $5.71

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $3.33

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $30.85

WP67006185 Whirlpool Refrigerator Crisper Fra In Stock WPL WP67006185 $108.37

Dispenser WPL 12706909SP Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

WP67006655 Whirlpool Refrigerator Crisper Gla Backorder WPL WP67006655 $119.87

Shim, Hinge WPL 12579702 Contact Us For Availability

Clip, Evaporator WPL 10623002 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $201.99

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $29.57

W10853652 Whirlpool Refrigerator Hinge Bushin Backorder WPL W10853652 $4.36

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $7.45

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $40.86

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $62.25

Grille Assembly (Includes Clips) (Black) WPL W10131134 Contact Us For Availability

Grille Assembly (Includes Clips) (White) WPL W10131133 Contact Us For Availability

WP67006524 Whirlpool Refrigerator Housing In Stock WPL WP67006524 $82.77

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $35.83

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

Ladder, L/R Side WPL 67002489 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.33

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $56.24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

Motor, Fan WPL 67004432 Contact Us For Availability

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $56.07

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

W11690160 Whirlpool Grommet Backorder WPL W11690160 $3.22

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

WPL W10046610 WPL W10046610 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

Plug, Filter Bypass WPL 12664501 Contact Us For Availability

Harness, Unit with Power Cord WPL 13060202 Contact Us For Availability

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $5.11

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.52

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

Cover, Water Valve WPL 12751509 Contact Us For Availability

28

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

28

67003794 Whirlpool Refrigerator Temperature C Backorder WPL 67003794 $8.09

28

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.51

29

W11490183 Whirlpool Refrigerator Utility Pan Backorder WPL W11490183 $76.45

29

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $30.89

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $23.46

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.14

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $29.21

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.52

Cover, Unit WPL 67006102 Contact Us For Availability

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $31.09

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $44.76

WP67005930 Whirlpool Refrigerator Pantry Draw In Stock WPL WP67005930 $49.23

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

W10503185 Whirlpool Refrigerator Cutlery Bask Backorder WPL W10503185 $57.94

Clip, Drain Tube WPL W10157973 Contact Us For Availability

Screw WPL 67006573 Contact Us For Availability

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

W10150061 Whirlpool Refrigerator Divider Backorder WPL W10150061 $30.25

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

Cover, HV WPL 67005421 Contact Us For Availability

34

W10348245 Whirlpool Refrigerator Freezer Bask Backorder WPL W10348245 $117.12

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

34

Board, HV WPL W10205114 Contact Us For Availability

35

WP67002321 Whirlpool Refrigerator Divider Pan Backorder WPL WP67002321 $16.54

35

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

35

Spacer, HV WPL 67005418 Contact Us For Availability

36

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $8.73

36

Box, HV WPL 67004969 Contact Us For Availability

37

SCREW WPL 67006550 Contact Us For Availability

38

Harness, HV WPL 12972902 Contact Us For Availability

39

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

40

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $27.52

41

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

42

Block, Condenser WPL 67005491 Contact Us For Availability

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $78.49
