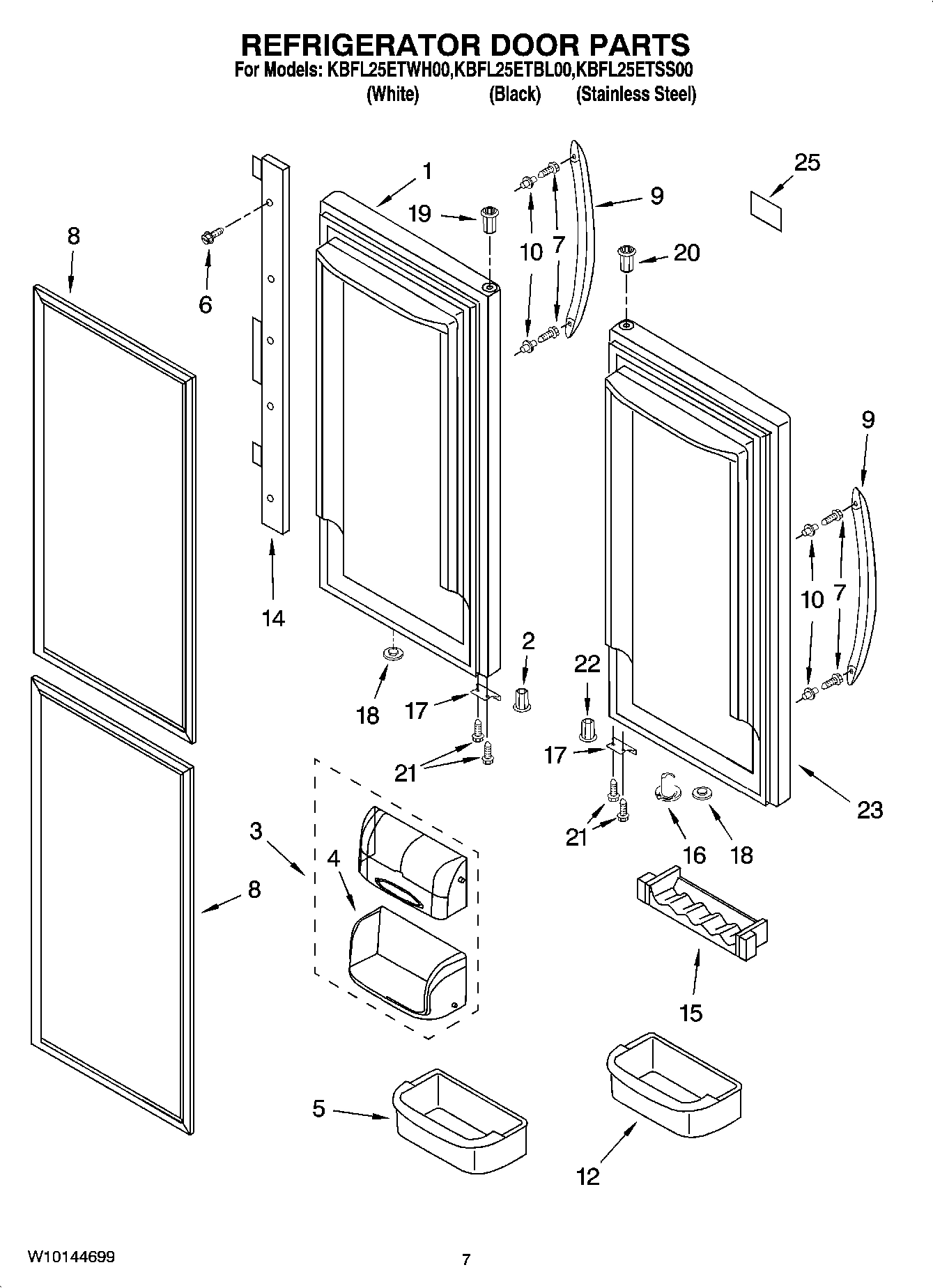

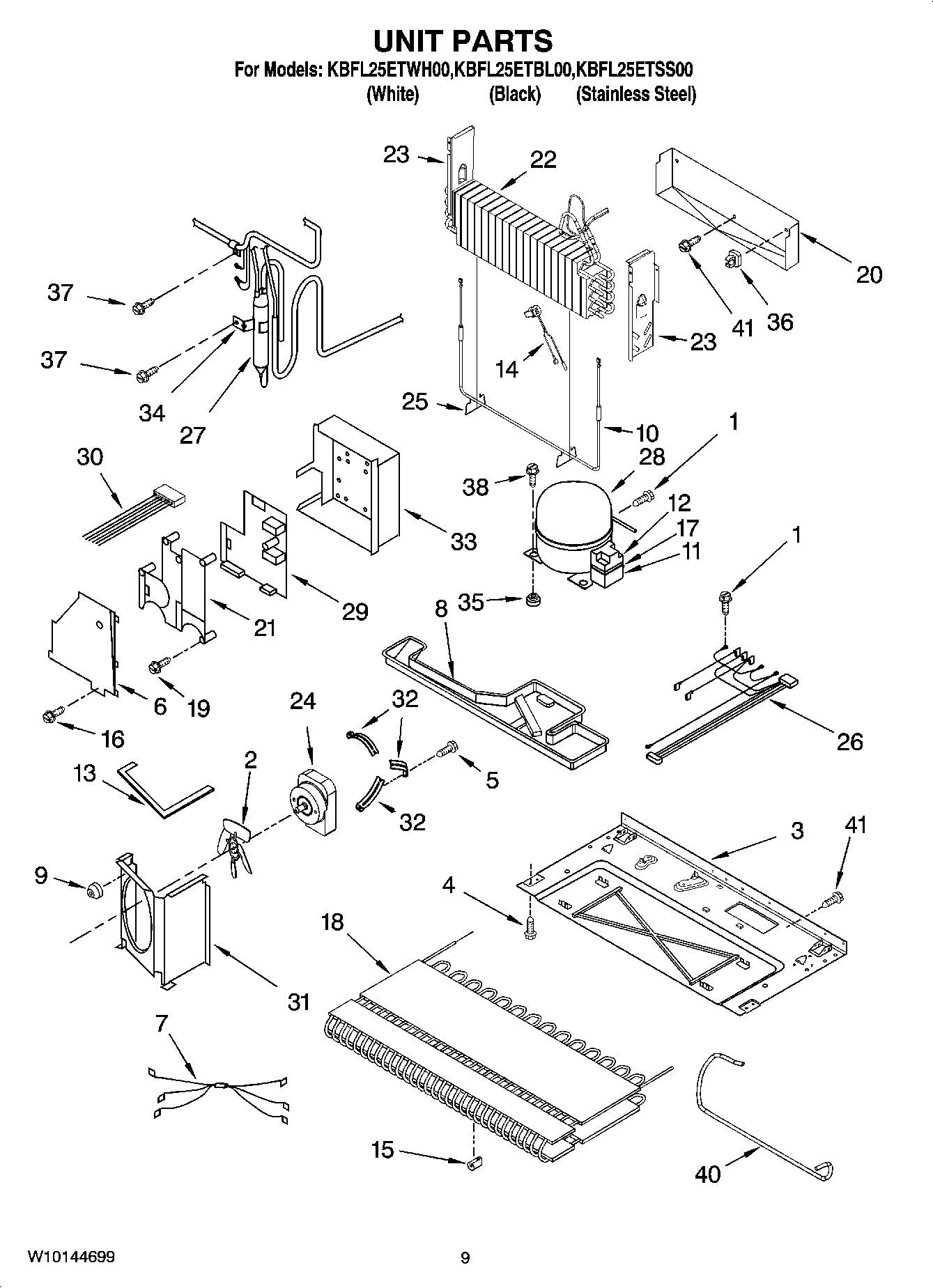

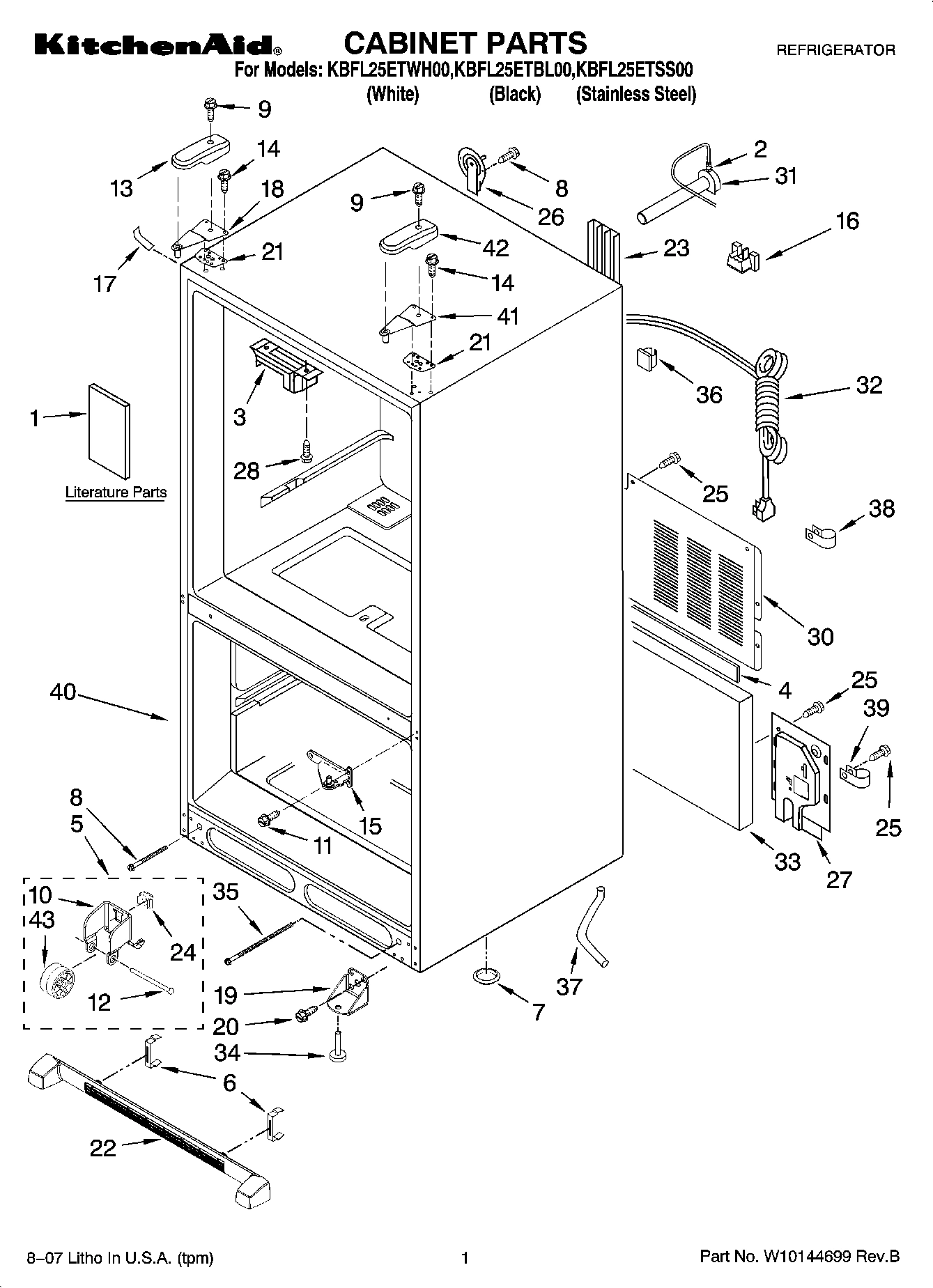

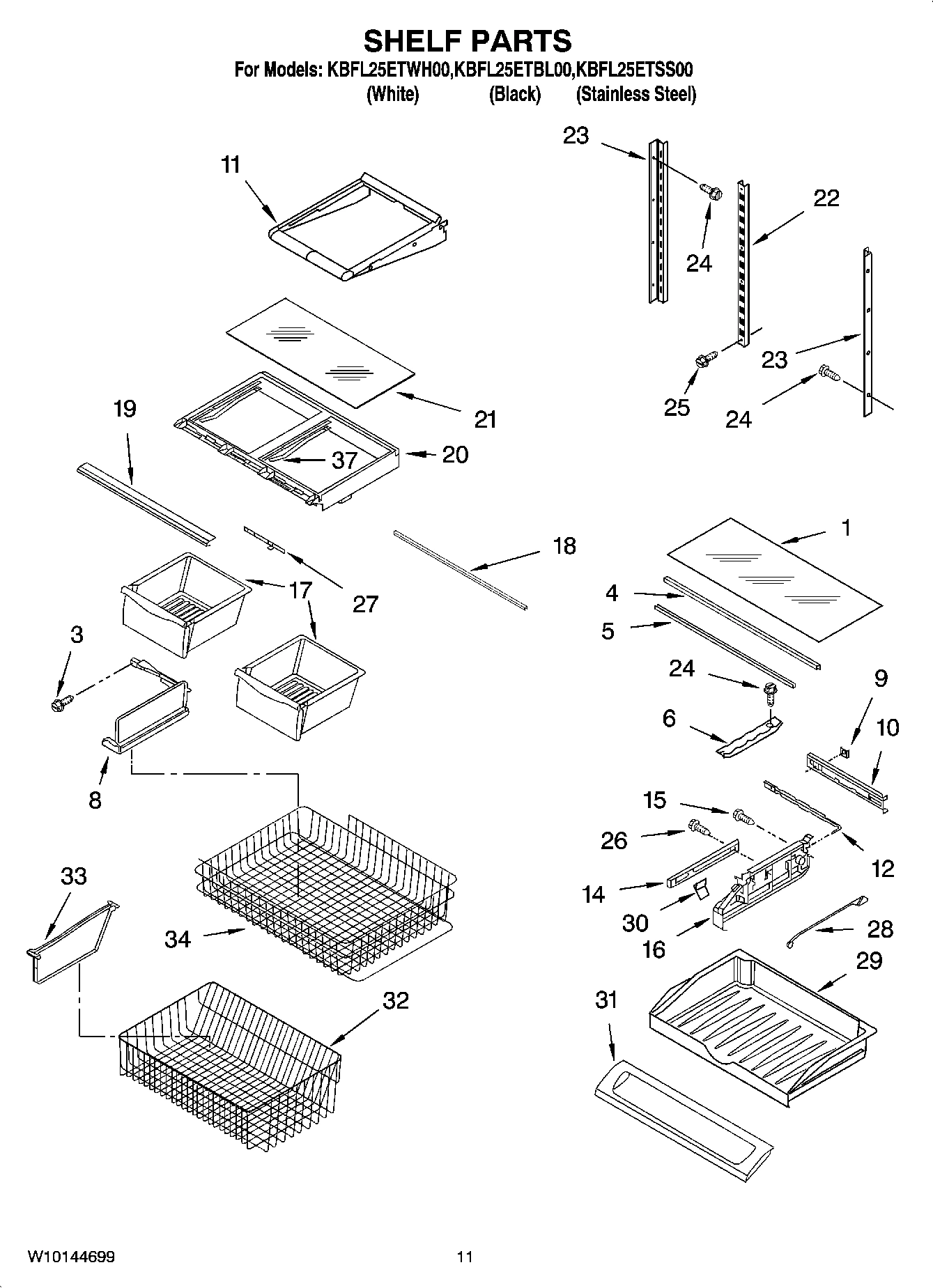

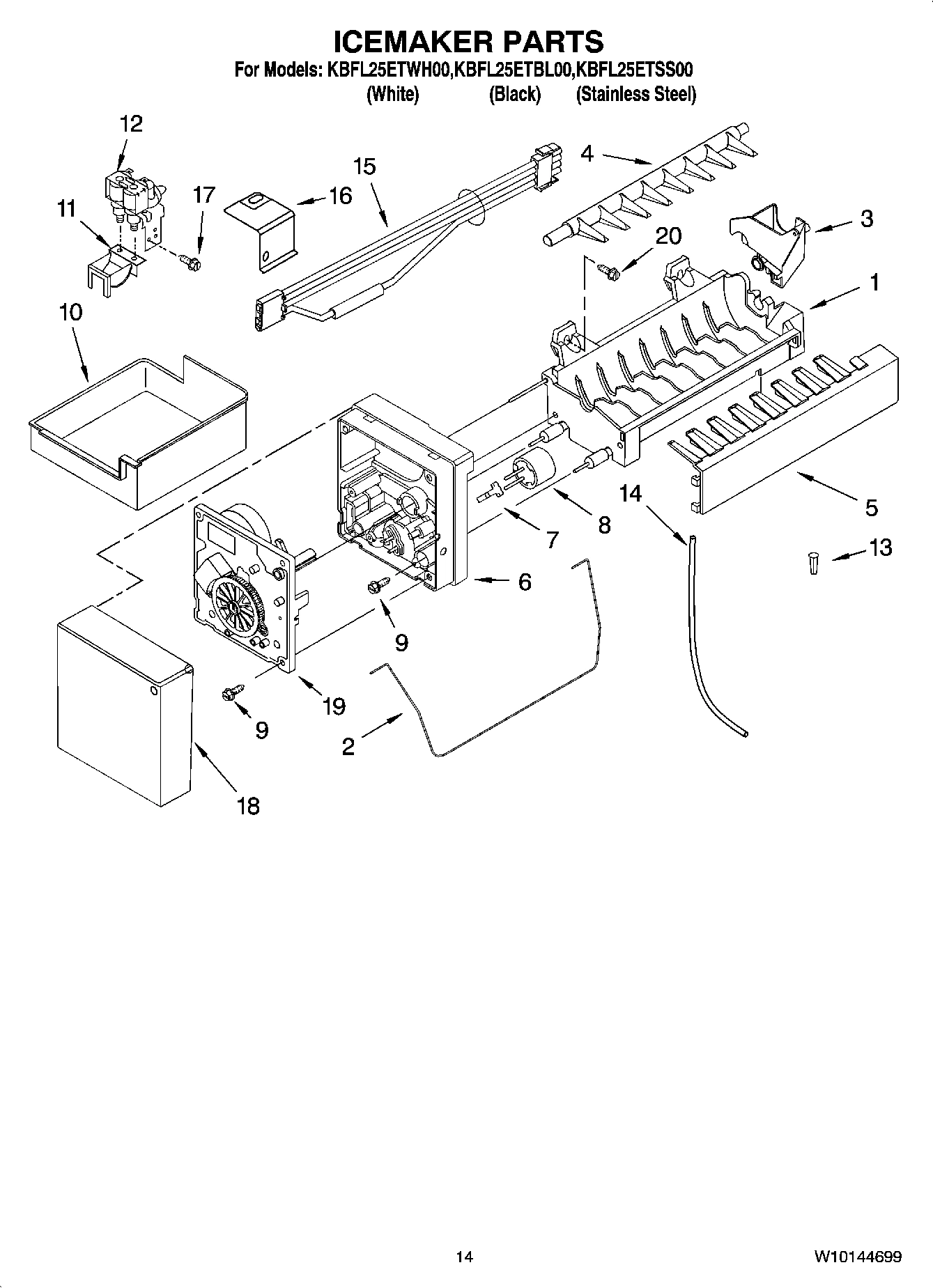

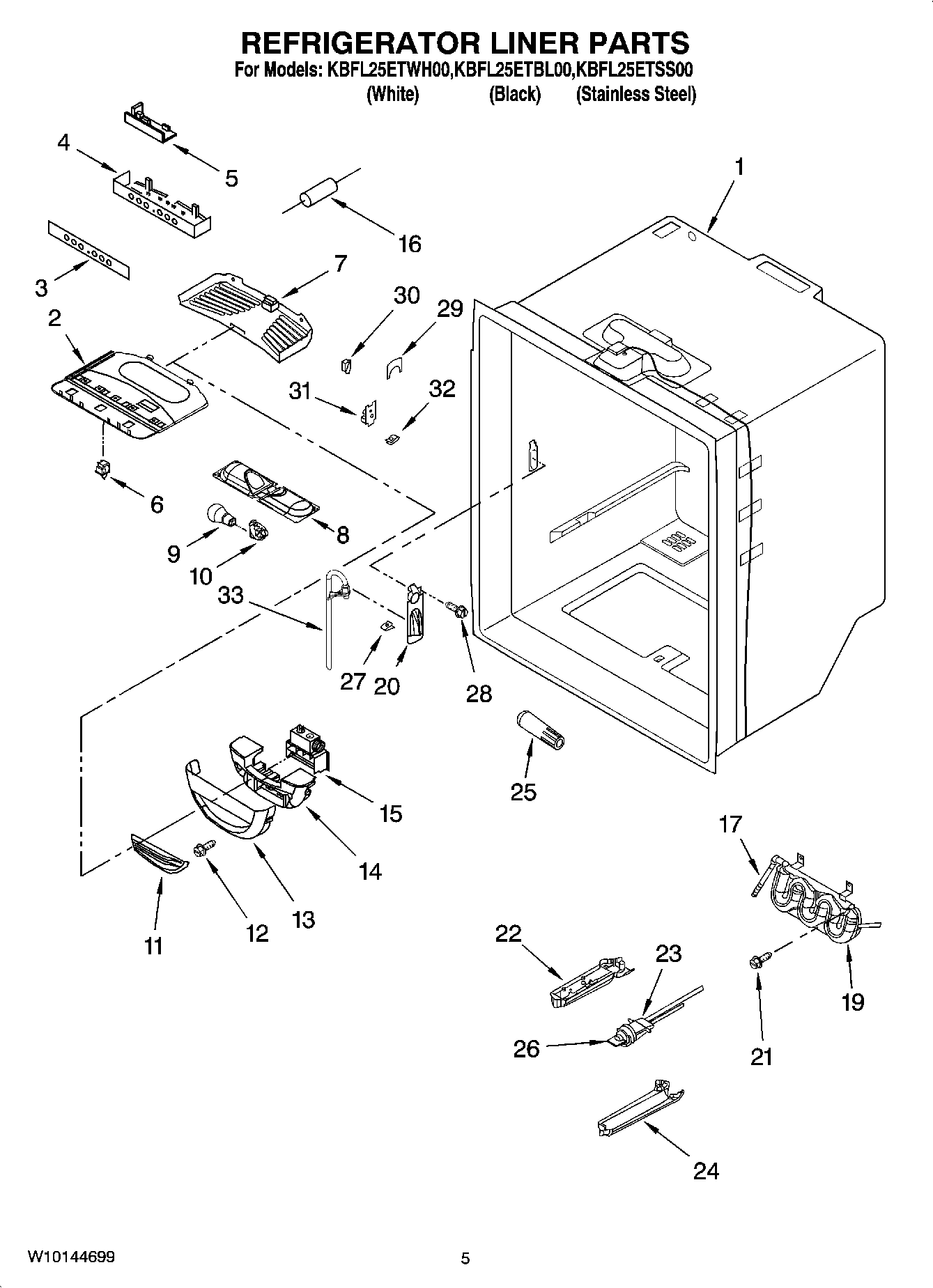

Model Whirlpool KBFL25ETBL00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $78.49

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI78131A6 Contact Us For Availability

REFRIGERANT CHARGE 5.0 Ozs. (R-134A) WPL ARI78132A4 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI78136A7 WPL ARI78136A7 Contact Us For Availability

WPL ARI78137A5 WPL ARI78137A5 Contact Us For Availability

WPL ARI78138A7 WPL ARI78138A7 Contact Us For Availability

WPL ARI78139A8 WPL ARI78139A8 Contact Us For Availability

WPL ARI78140A5 WPL ARI78140A5 Contact Us For Availability

WPL ARI78141A6 WPL ARI78141A6 Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

Tech Sheet WPL 67006616 Contact Us For Availability

1

Owners Manual WPL W10136989 Contact Us For Availability

1

Tag, Energy WPL W10138254 Contact Us For Availability

1

Mold & Heater Assembly (Not Available Order D WPL ARI78133A4 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI78128A8 Contact Us For Availability

1

Glass, Pantry WPL 67002761 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $33.86

2

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

2

Bracket, Control and Lights WPL 67004078 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

3

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

3

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $4.70

3

Overlay WPL 67005949 Contact Us For Availability

3

Base WPL 67005889 Contact Us For Availability

3

Screw WPL 67006608 Contact Us For Availability

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

4

WP67006010 Whirlpool Refrigerator Shelf Trim Backorder WPL WP67006010 $91.97

4

Screw WPL 67006573 Contact Us For Availability

4

Gasket WPL B5759649 Contact Us For Availability

4

Housing, Electronic Control WPL 67005444 Contact Us For Availability

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $44.96

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

Electronic Control WPL WPW10207861 No Longer Available

5

Roller Assembly WPL 67006118 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

6

Cover, HV Box WPL 67005421 Contact Us For Availability

6

Clip, Grille WPL 12627302 Contact Us For Availability

7

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $38.12

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

7

Harness, Evap Heater WPL 67005679 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $160.93

8

Thermostat (Not Available Order D7824706Q) WPL ARI78134A5 Contact Us For Availability

8

Divider, Upper Basket WPL 67004127 Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

9

Door Handle (Stainless) WPL 2319727S Contact Us For Availability

9

Door Handle (Black) WPL 2319727B Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $31.38

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $54.81

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.40

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $86.21

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $72.92

Stud, Handle WPL 67004790 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.52

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $3.33

Capacitor (See Item 12) WPL ARI78130A6 Contact Us For Availability

Shelf, Fixed (4) WPL 67005690 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.38

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $28.31

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $120.06

Pin, Roller WPL M1205302 Contact Us For Availability

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

Cover, Left Hinge (Black) WPL 12684201B Contact Us For Availability

Cover, Left Hinge (White) WPL 12684201W Contact Us For Availability

Backorder WPL W11750607 $19.22

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $3.33

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $36.55

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.39

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $114.56

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

67006442 Whirlpool Refrigerator Center Hinge Backorder WPL 67006442 $51.88

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $41.43

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $49.19

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.70

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $93.06

Hinge, Center (2) (White (RT)) WPL 67006379 Contact Us For Availability

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $18.54

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.68

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $30.25

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.72

Pan, Crisper (2) WPL 67005929 Contact Us For Availability

Strap WPL 67007052 Contact Us For Availability

WP12566607ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566607ED $30.91

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $45.27

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $153.47

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

67002722 Whirlpool Refrigerator White Door Bu Backorder WPL 67002722 $10.76

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $61.32

SCREW WPL 67006550 Contact Us For Availability

Bracket, Foot WPL 67007174 Contact Us For Availability

Module Assembly (Not Available Order D7824706 WPL ARI78135A9 Contact Us For Availability

Trim, Crisper WPL 67005692 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $3.33

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $30.85

WP67003854 Whirlpool Shelf Frame In Stock WPL WP67003854 $156.87

Dispenser WPL 67002979 Contact Us For Availability

21

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $131.97

21

Spacer WPL 67005719 Contact Us For Availability

21

Shim, Hinge WPL 12579702 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $201.99

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $29.57

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $7.45

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $69.64

WPW10534154 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534154 $57.79

WP67006524 Whirlpool Refrigerator Housing In Stock WPL WP67006524 $82.77

Shroud, Evap.Fan WPL 67002777 Contact Us For Availability

Door, Right (White) WPL 13024005W Contact Us For Availability

Door, Right (Stainless Steel) WPL W10137008 Contact Us For Availability

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

Track, Waterline WPL 67004102 Contact Us For Availability

Ladder, Side WPL 67002489 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.33

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $28.09

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $56.24

Motor, Fan WPL 67004432 Contact Us For Availability

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

Nameplate (Grey) WPL W10046610 Contact Us For Availability

Filter, Water WPL 67006469 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

Harness, Unit WPL 13060201 Contact Us For Availability

Plug, Filter Bypass WPL 12664501 Contact Us For Availability

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $5.11

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.52

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

Cover, Water Valve WPL 67004098 Contact Us For Availability

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

28

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

28

WP67003795 Whirlpool Refrigerator Temperature In Stock WPL WP67003795 $3.70

29

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.38

29

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $96.55

29

Control Board WPL 12782027 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $23.46

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.14

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $29.21

Harness, Wiring WPL 12972902 Contact Us For Availability

Cover, Unit WPL 12575101ED Contact Us For Availability

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $31.09

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $44.76

WP67005930 Whirlpool Refrigerator Pantry Draw In Stock WPL WP67005930 $49.23

Shroud WPL 12575305 Contact Us For Availability

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $30.89

WPW10503184 Whirlpool Refrigerator Freezer Ba In Stock WPL WPW10503184 $132.11

Power Cord WPL W10137695 Contact Us For Availability

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

67005417 Whirlpool Refrigerator Harness F Backorder WPL 67005417 $42.38

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

Box, Control WPL 67005718 Contact Us For Availability

Harness, Damper Control WPL 8208197 Contact Us For Availability

Following Parts Not Illustrated WPL ARI78129A6 Contact Us For Availability

Divider, Lower Basket WPL 67006644 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

34

67004987 Whirlpool Refrigerator Upper Basket Backorder WPL 67004987 $185.15

34

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

35

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.52

35

Bolt, Adjusting (Rear) WPL 67006612 Contact Us For Availability

36

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

36

Clip, Evaporator WPL 10623002 Contact Us For Availability

37

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $27.52

37

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $12.19

37

Tube, Drain WPL 67001066 Contact Us For Availability

38

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

38

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

39

Clamp, Cord WPL M0104102 Contact Us For Availability

40

WP12866903 Whirlpool Refrigerator Discharge T Backorder WPL WP12866903 $75.40

40

Cabinet, (Not A Serviceable Part) WPL ARI78125A8 Contact Us For Availability

41

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

42

Cover, Right Hinge (Black) WPL 12684202B Contact Us For Availability

42

Cover, Right Hinge (White) WPL 12684202W Contact Us For Availability

43

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $3.04
