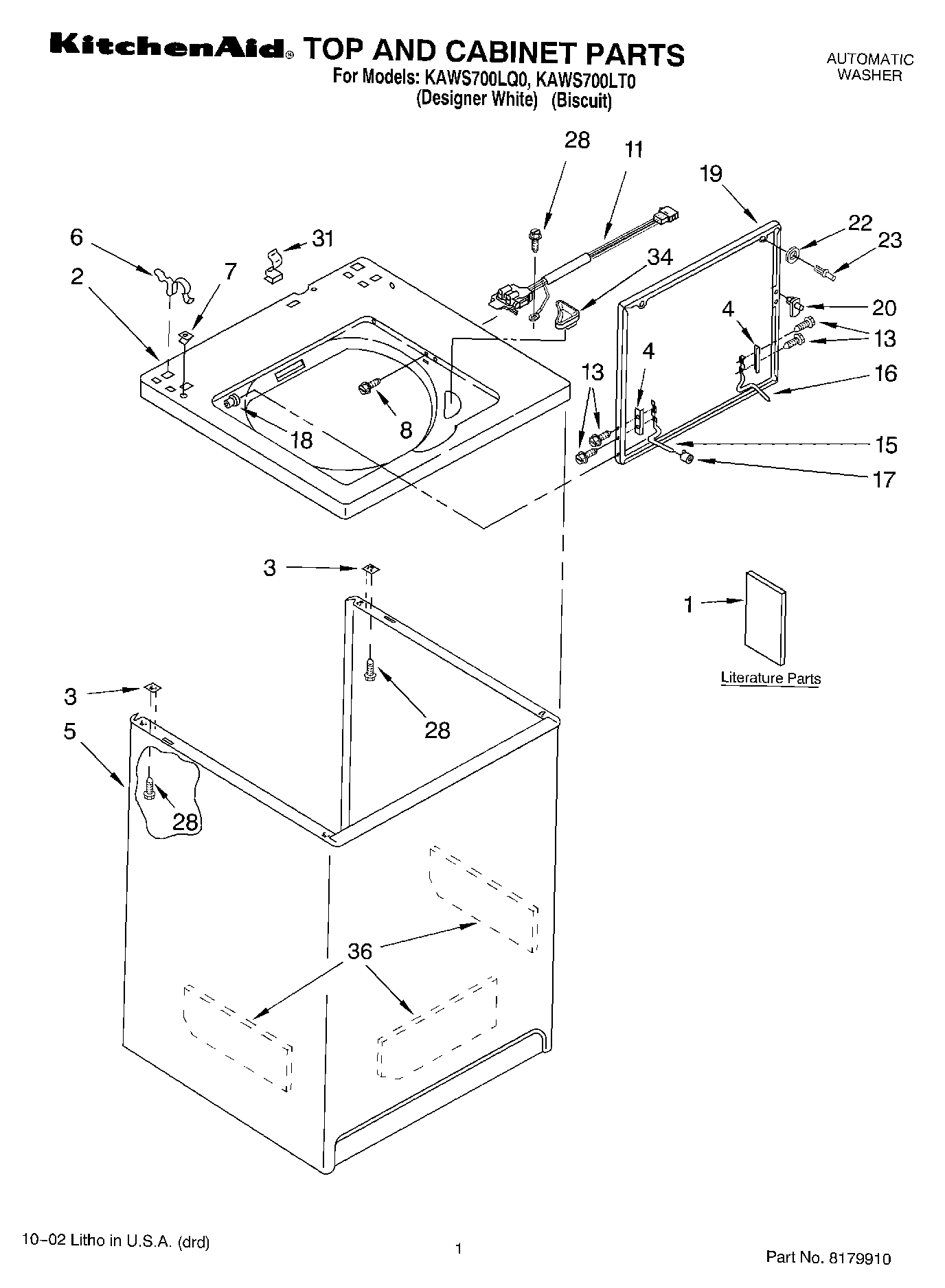

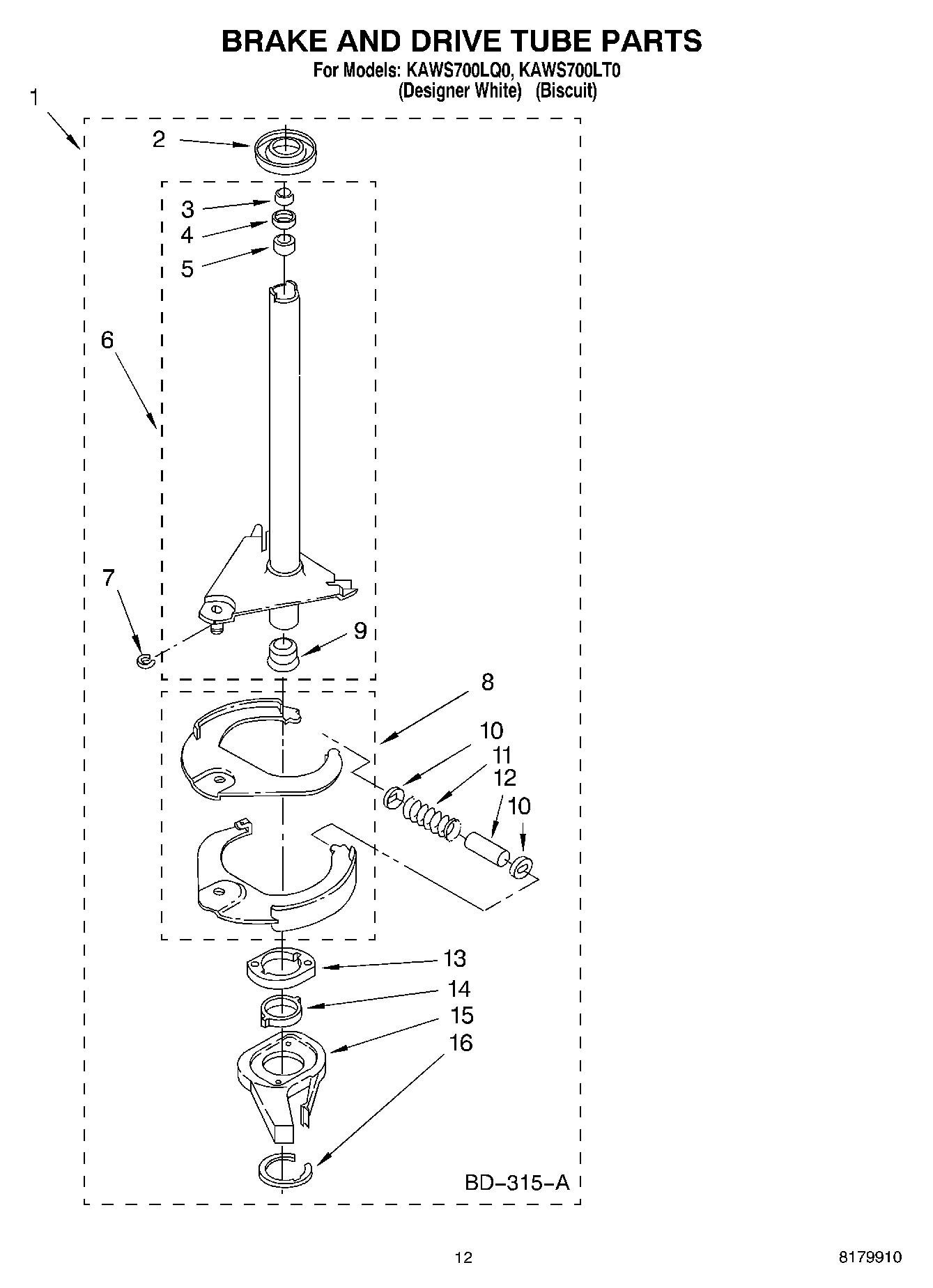

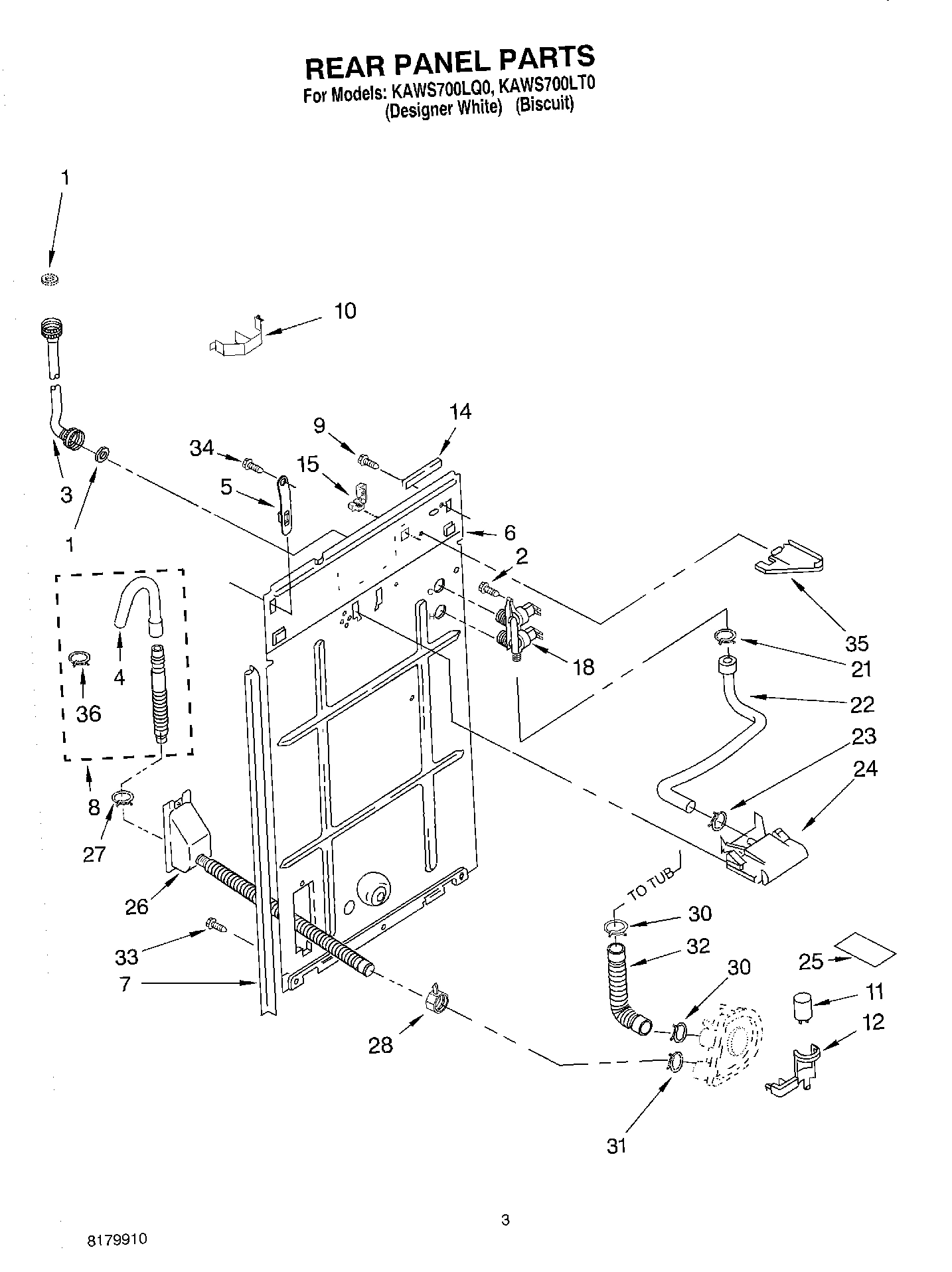

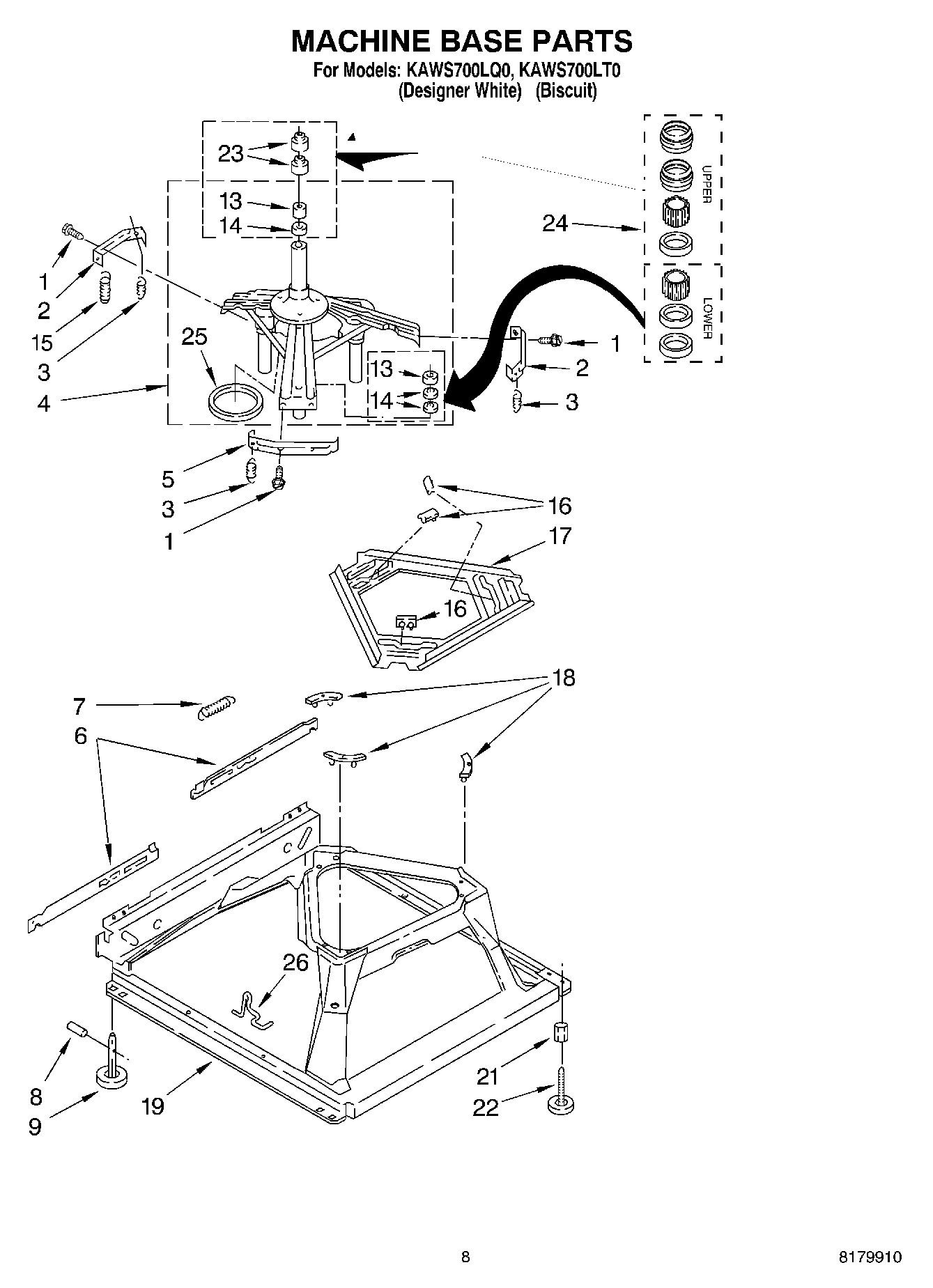

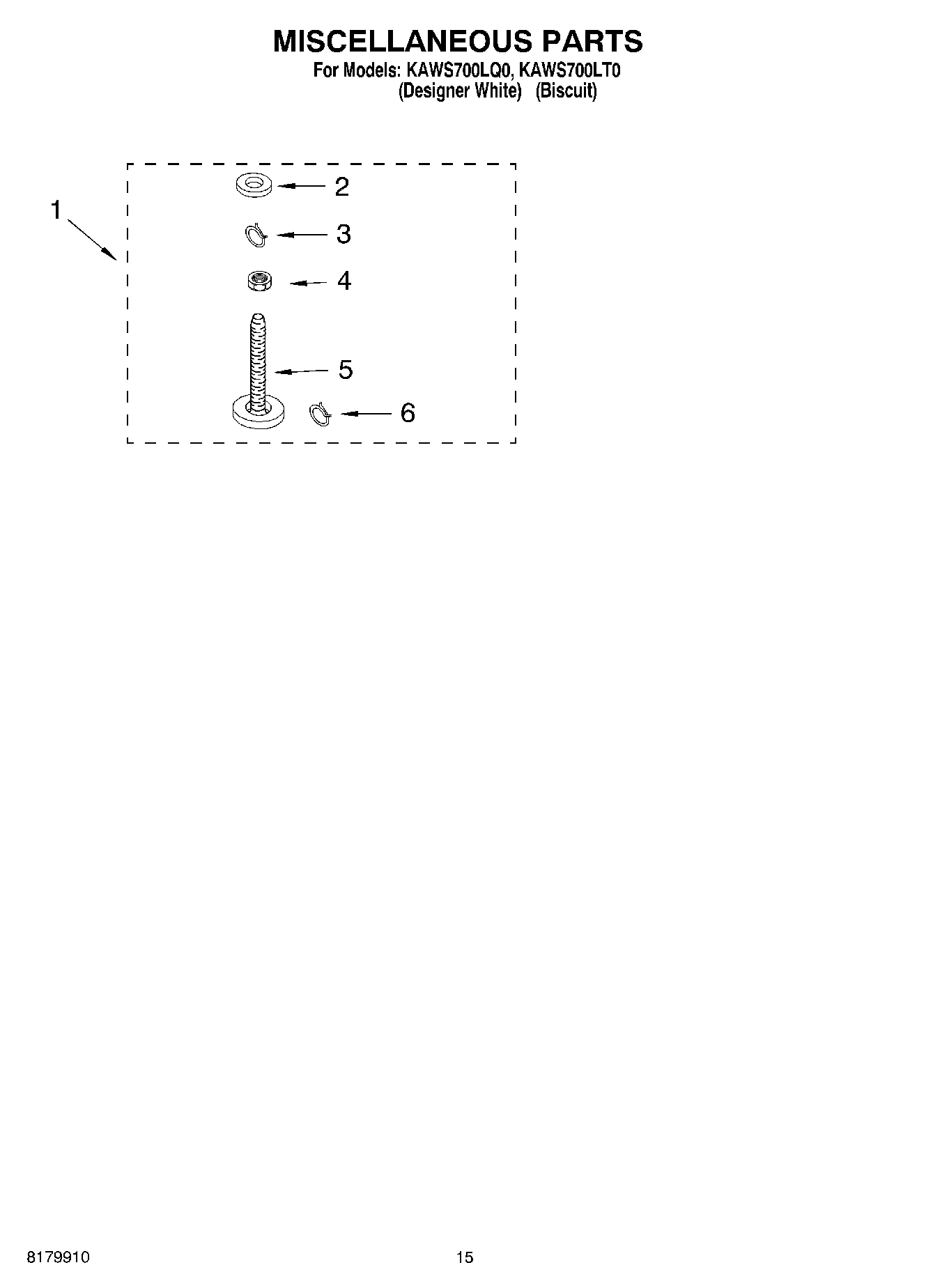

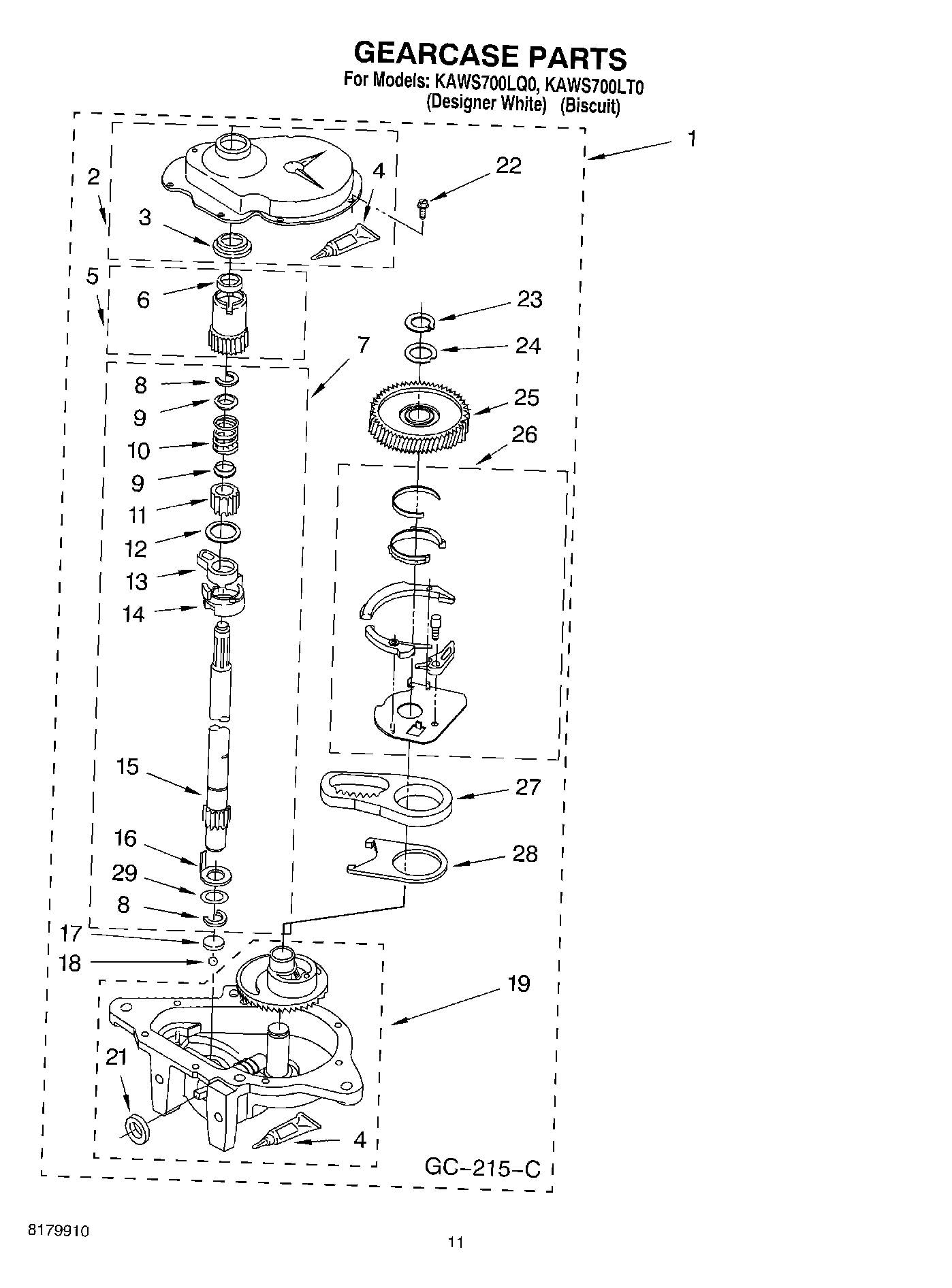

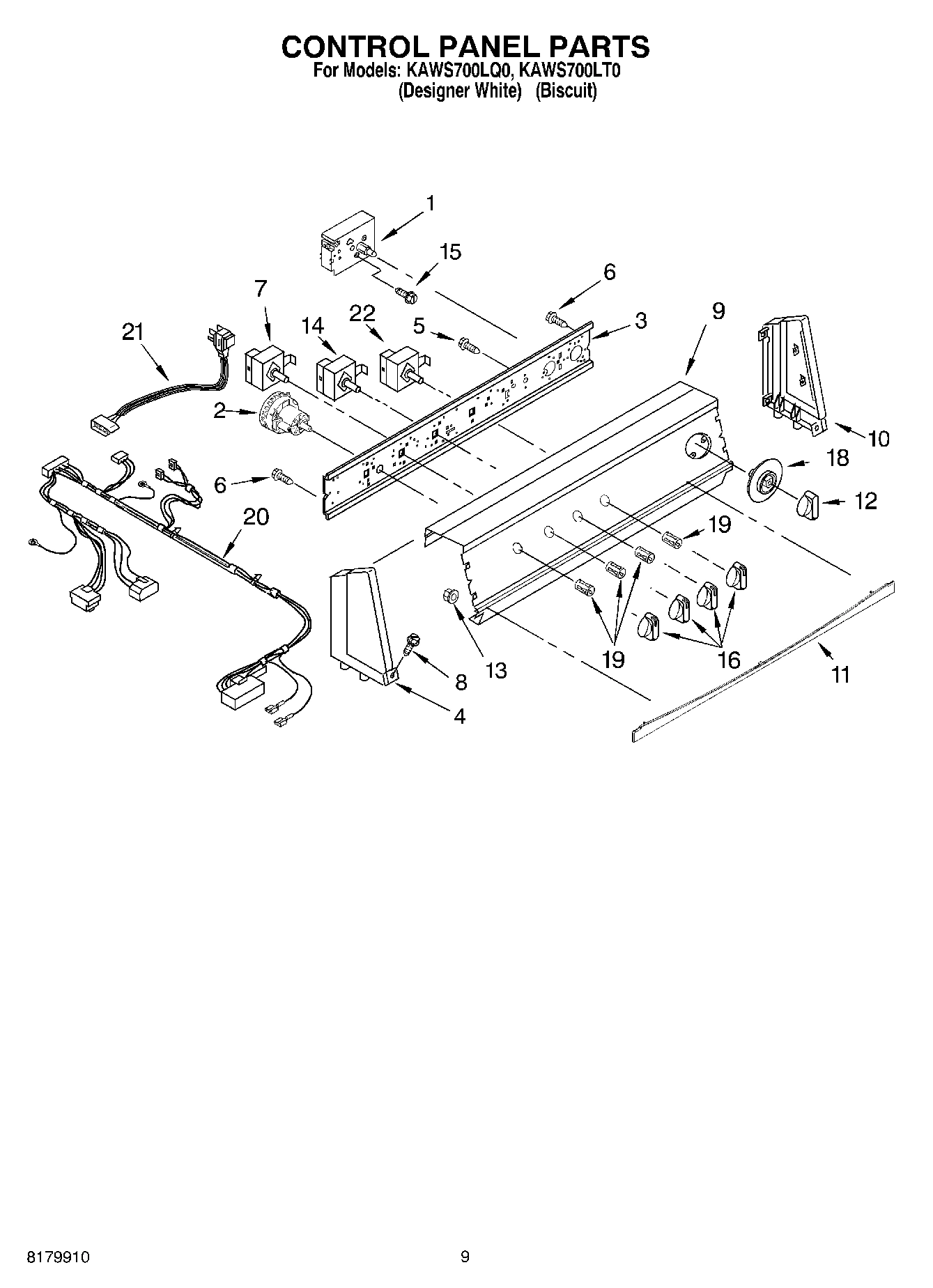

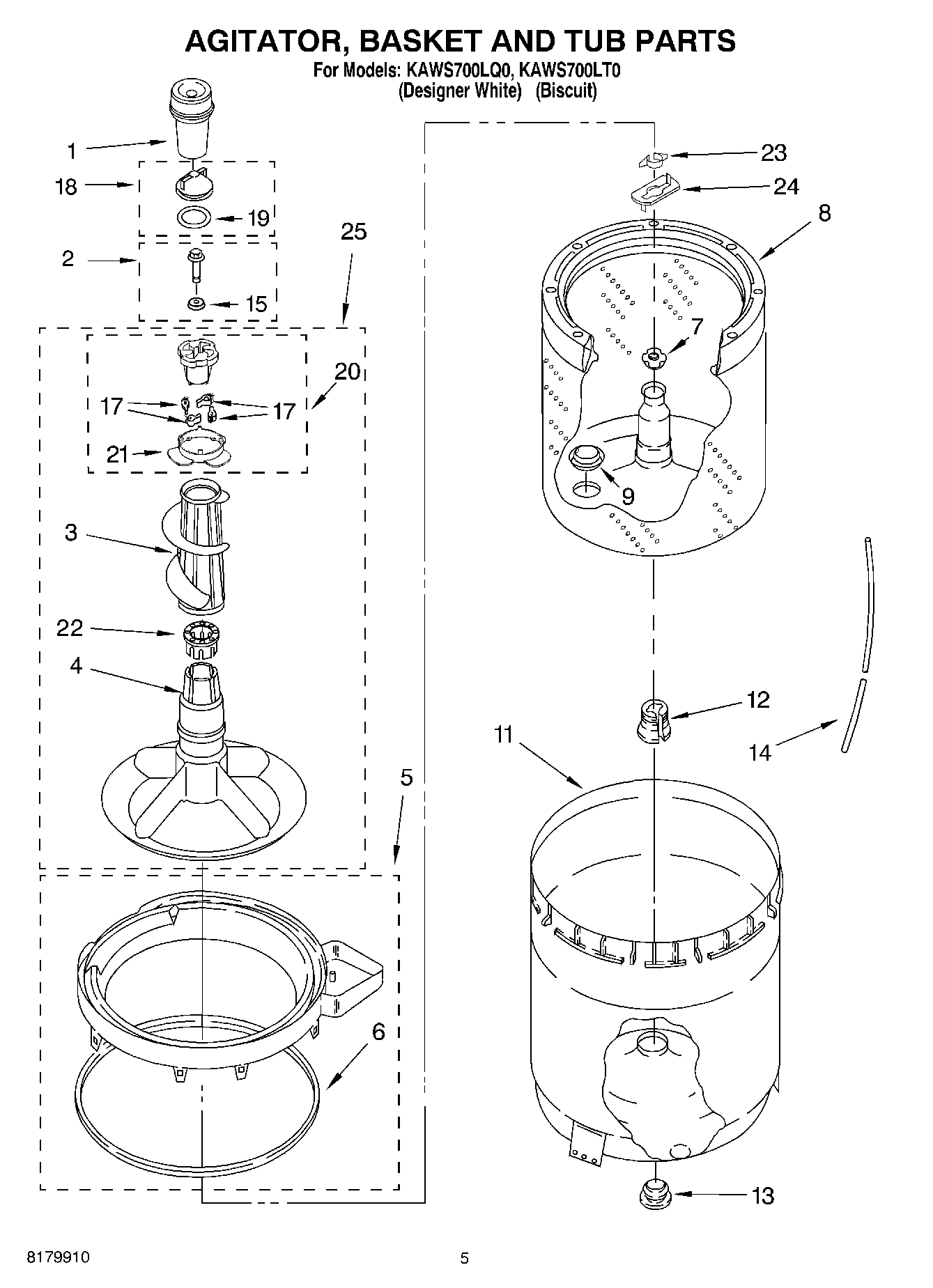

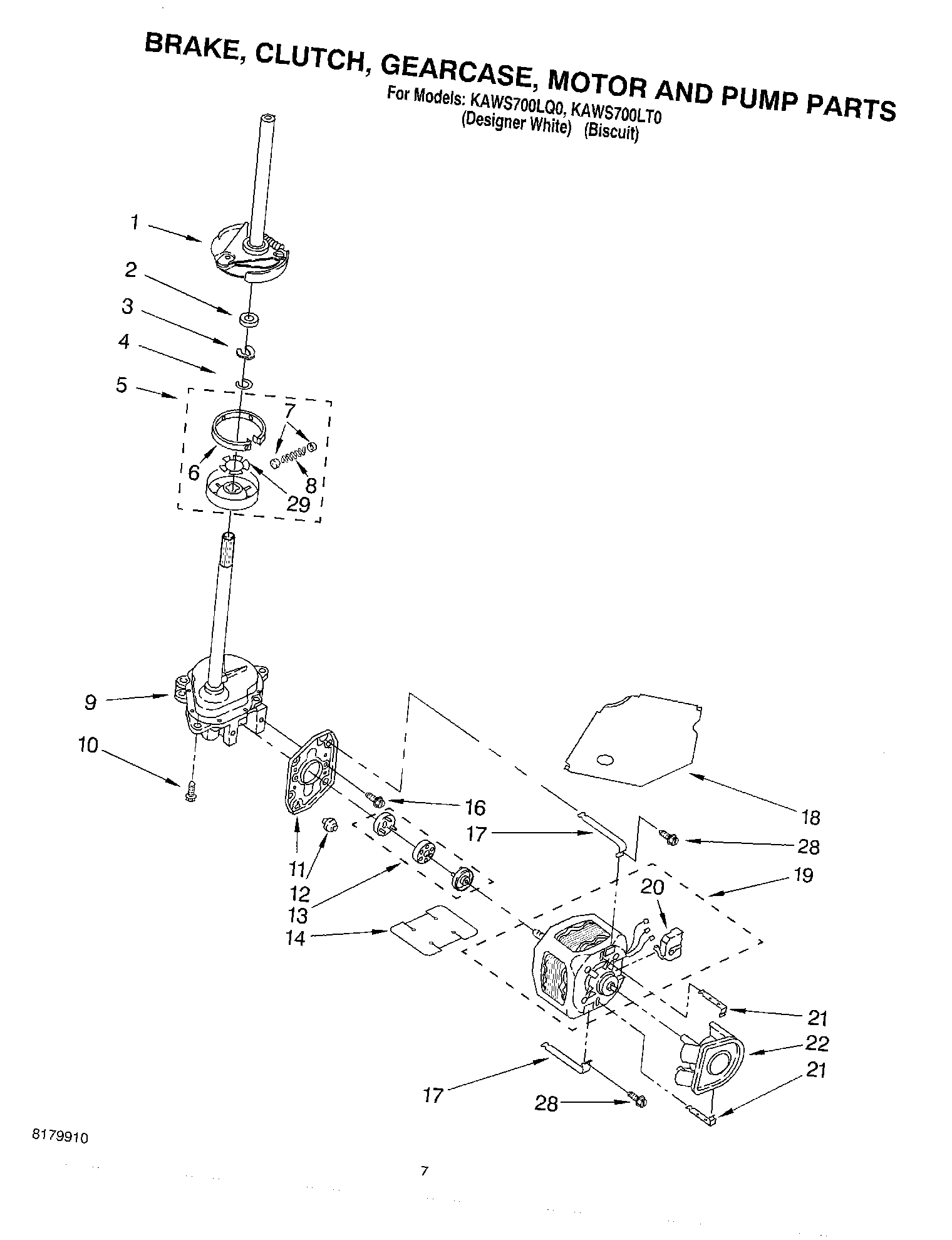

Model Whirlpool KAWS700LT0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Timer, Control (60 Hz.) (Motor Not Serviced) WPL 3954848 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

W10337780 Whirlpool Pressure Switch In Stock WPL W10337780 $45.48

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

Clothes Mover WPL 3950581 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

4

Agitator WPL 3950580 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 8274353 Contact Us For Availability

4

Cap, End (L.H.) (Biscuit) WPL 8274355 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $80.47

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Switch, Water Temperature WPL 661614 Contact Us For Availability

8

W10389328 Whirlpool Basket Backorder WPL W10389328 $199.90

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $14.59

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Console, Panel (Includes Illus. 11 & 13) (Whi WPL 3956118 Contact Us For Availability

9

Console, Panel (Includes Illus. 11 & 13) (Bis WPL 3956119 Contact Us For Availability

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Cap End (R.H.) (White) WPL 8274349 Contact Us For Availability

Cap End (R.H.) (Biscuit) WPL 8274351 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $132.68

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

Spacer, Console (White) WPL 8536941 Contact Us For Availability

Spacer, Console (Biscuit) WPL 8536942 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Knob, Timer (White) WPL 8536918 Contact Us For Availability

Knob, Timer (Biscuit) WPL 8536919 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

13

Nut (2) WPL 8533828 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $57.12

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $45.52

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

Knob, Control (Includes No.19) (White) WPL 8536924 Contact Us For Availability

Knob, Control (Includes No.19) (Biscuit) WPL 8536925 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.83

Dial, Timer (White) WPL 8536927 Contact Us For Availability

Dial, Timer (Biscuit) WPL 8536928 Contact Us For Availability

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

Motor, Main Drive WPL 8529936 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Harness, Wire WPL 3956129 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.06

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $62.32

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.53

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Agitator (Complete) WPL 3950579 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

26

Assembly, Drain Hose WPL 8317941 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

28

Clamp, Hose WPL 3976395 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

34

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

34

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

36

Sound-Damper (Cabinet) WPL 3976348 Contact Us For Availability
