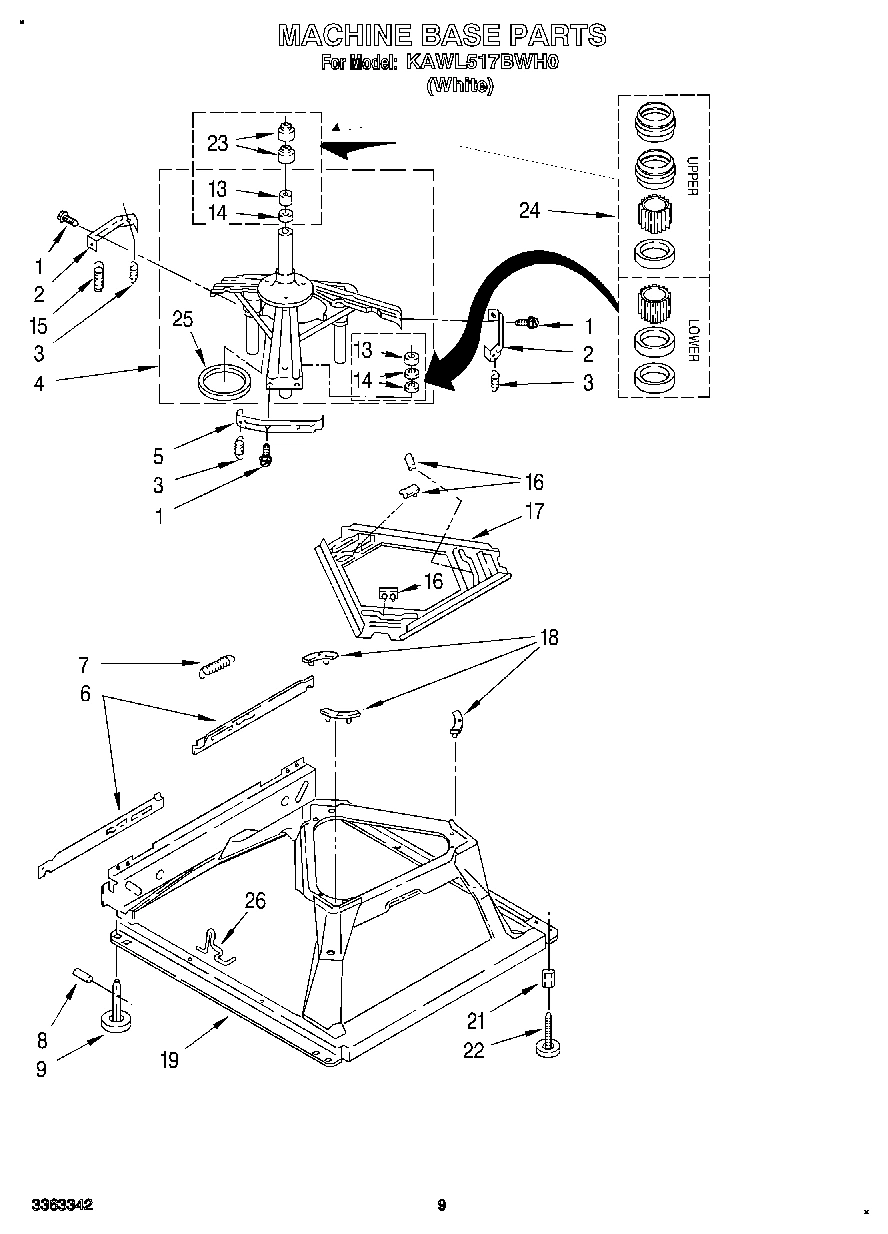

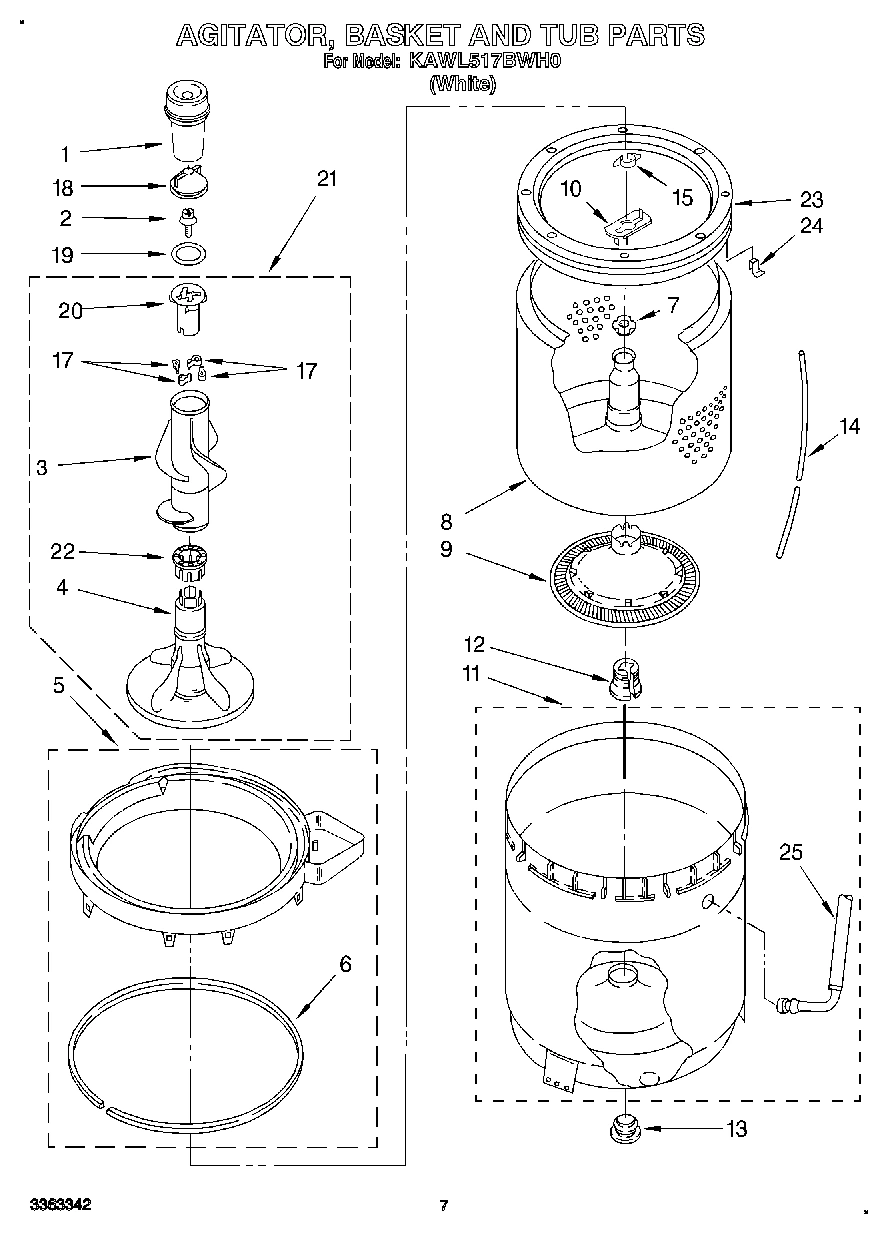

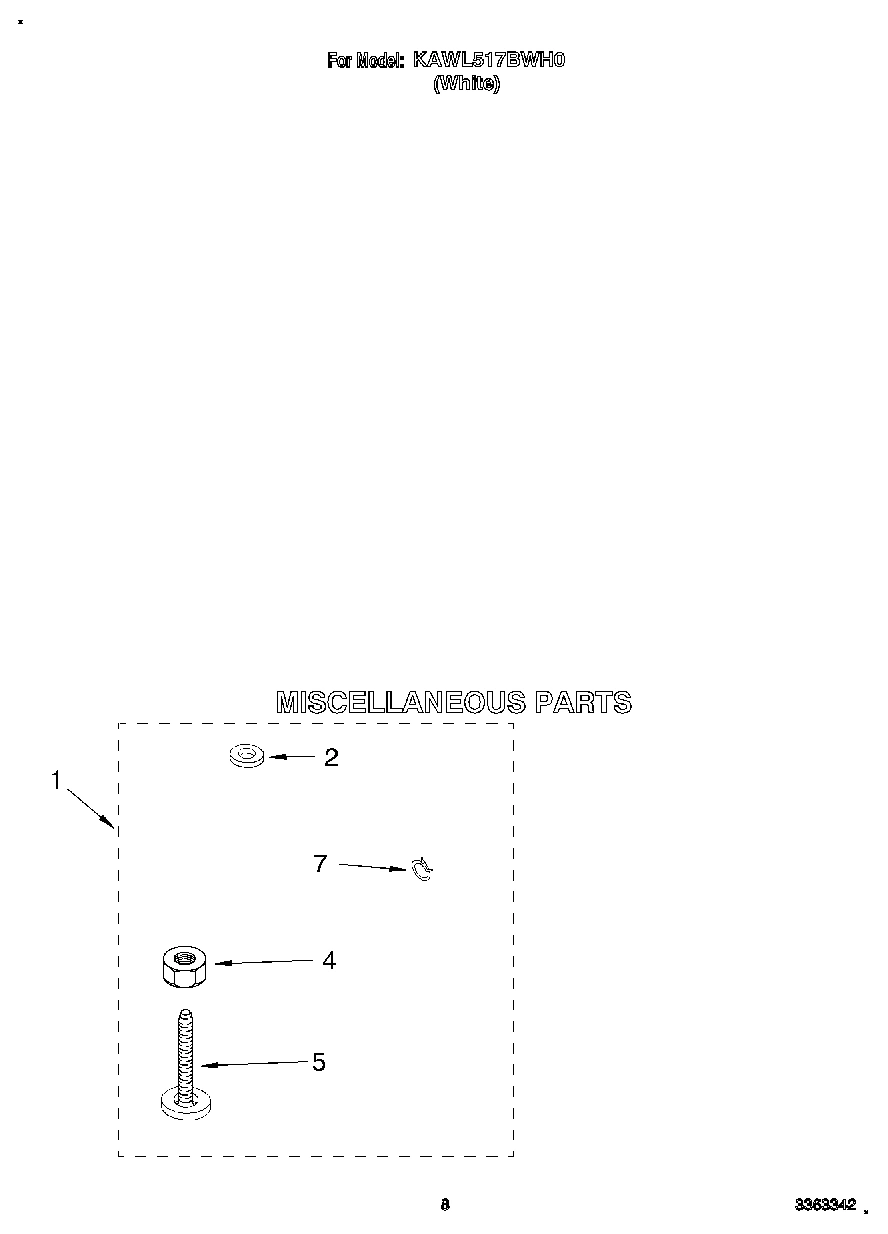

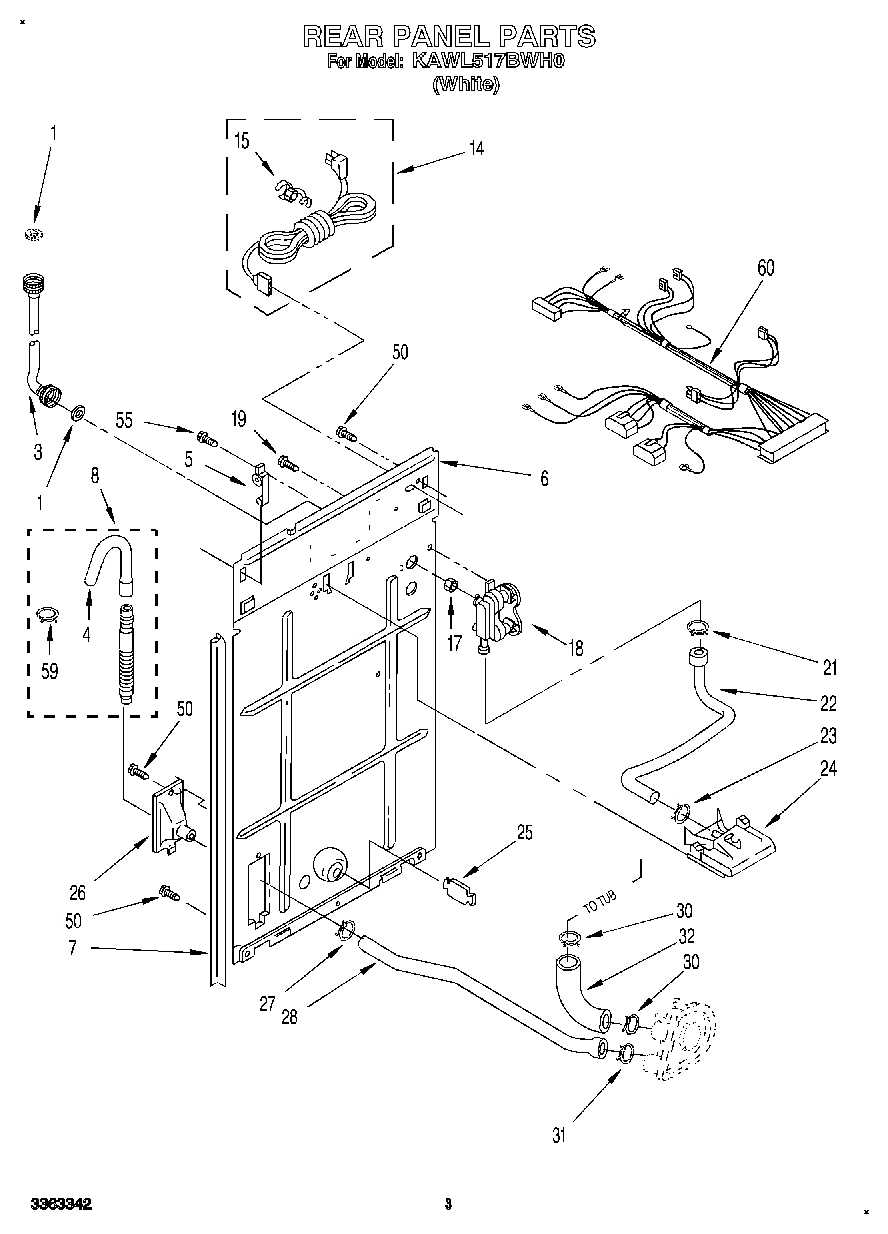

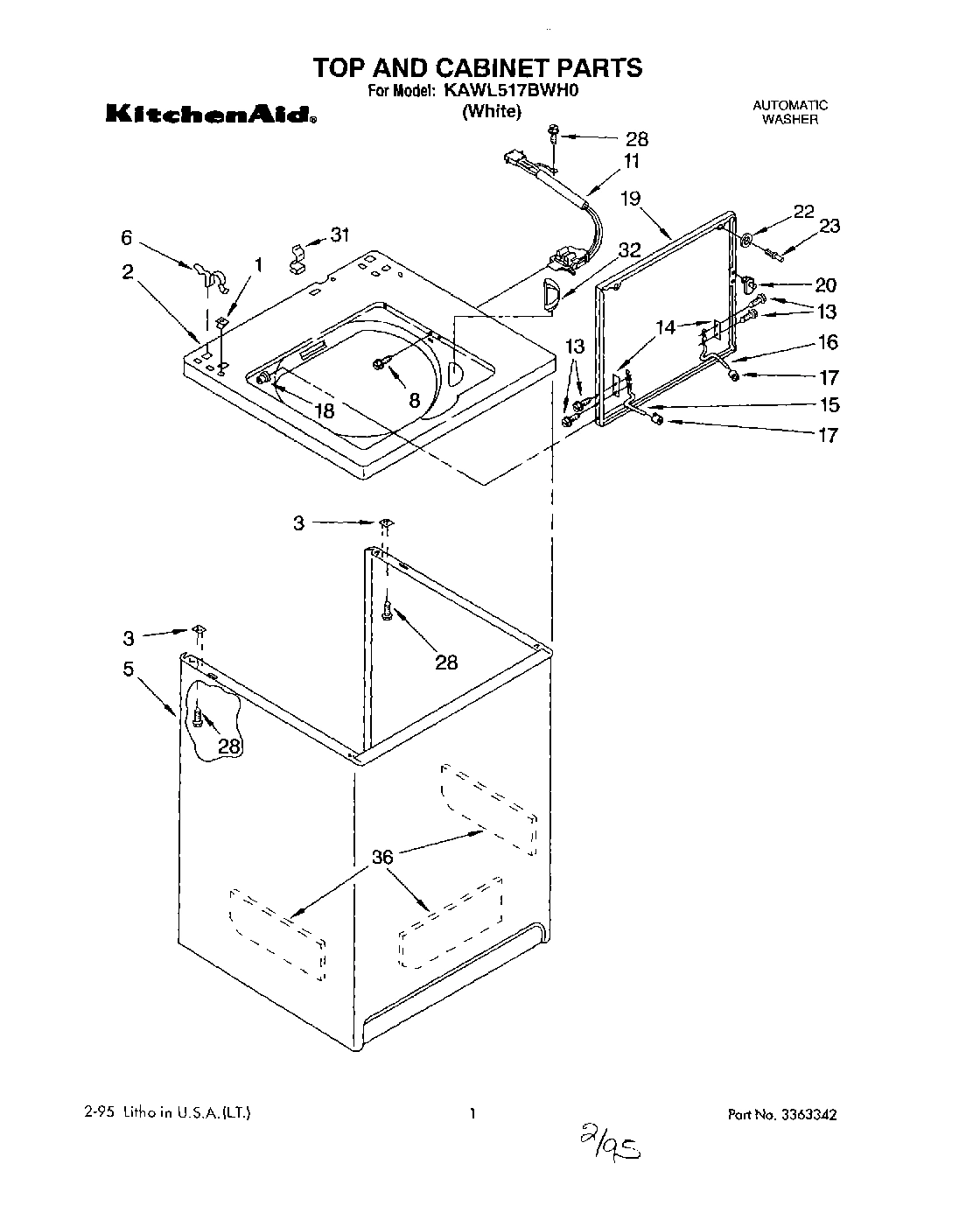

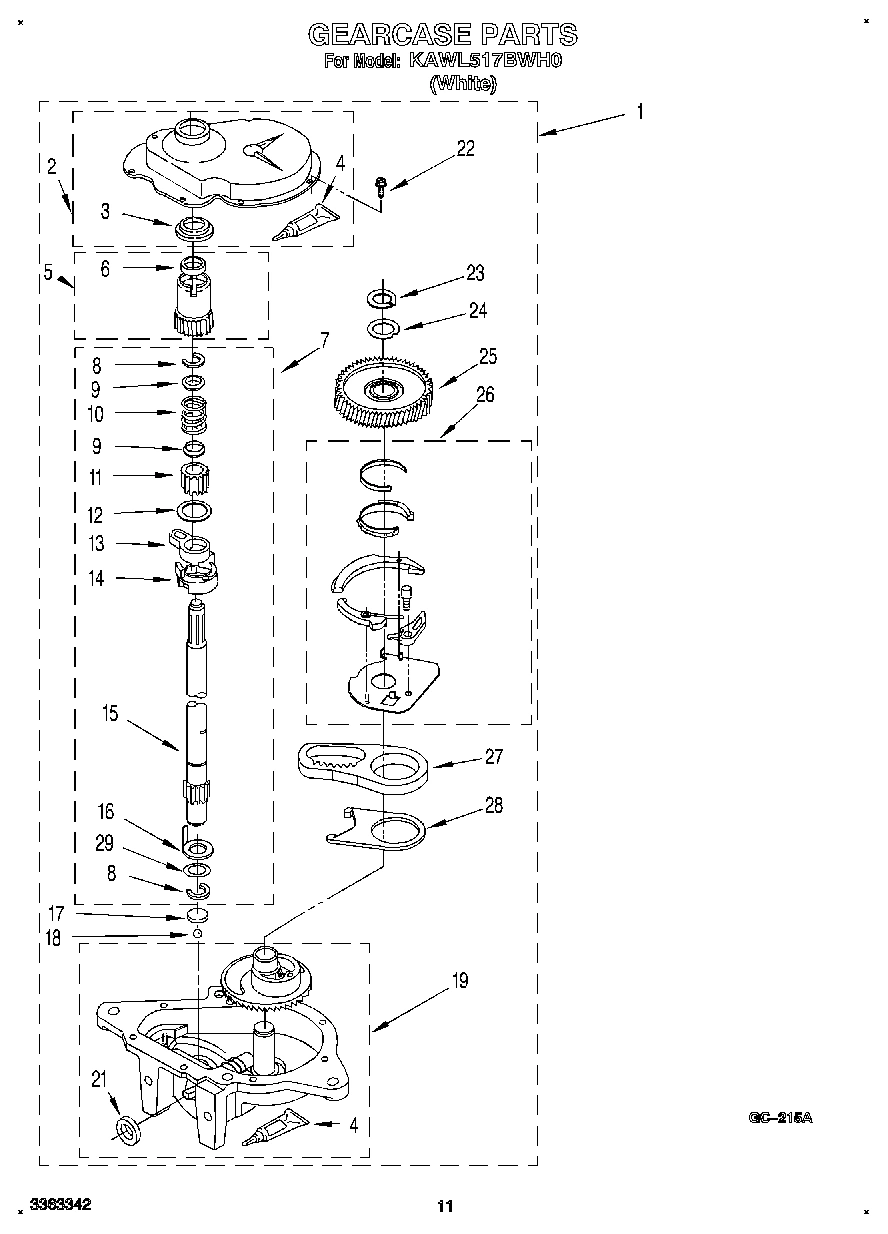

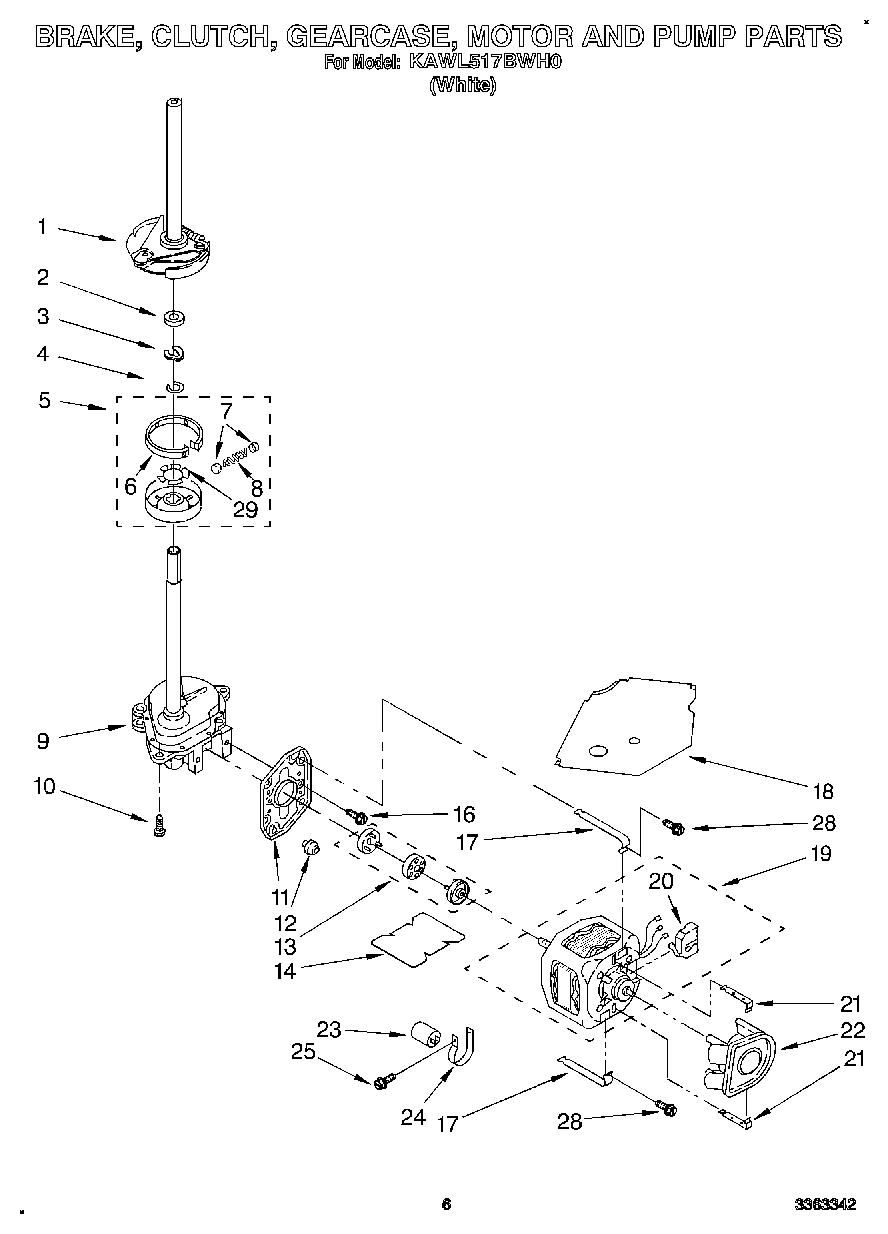

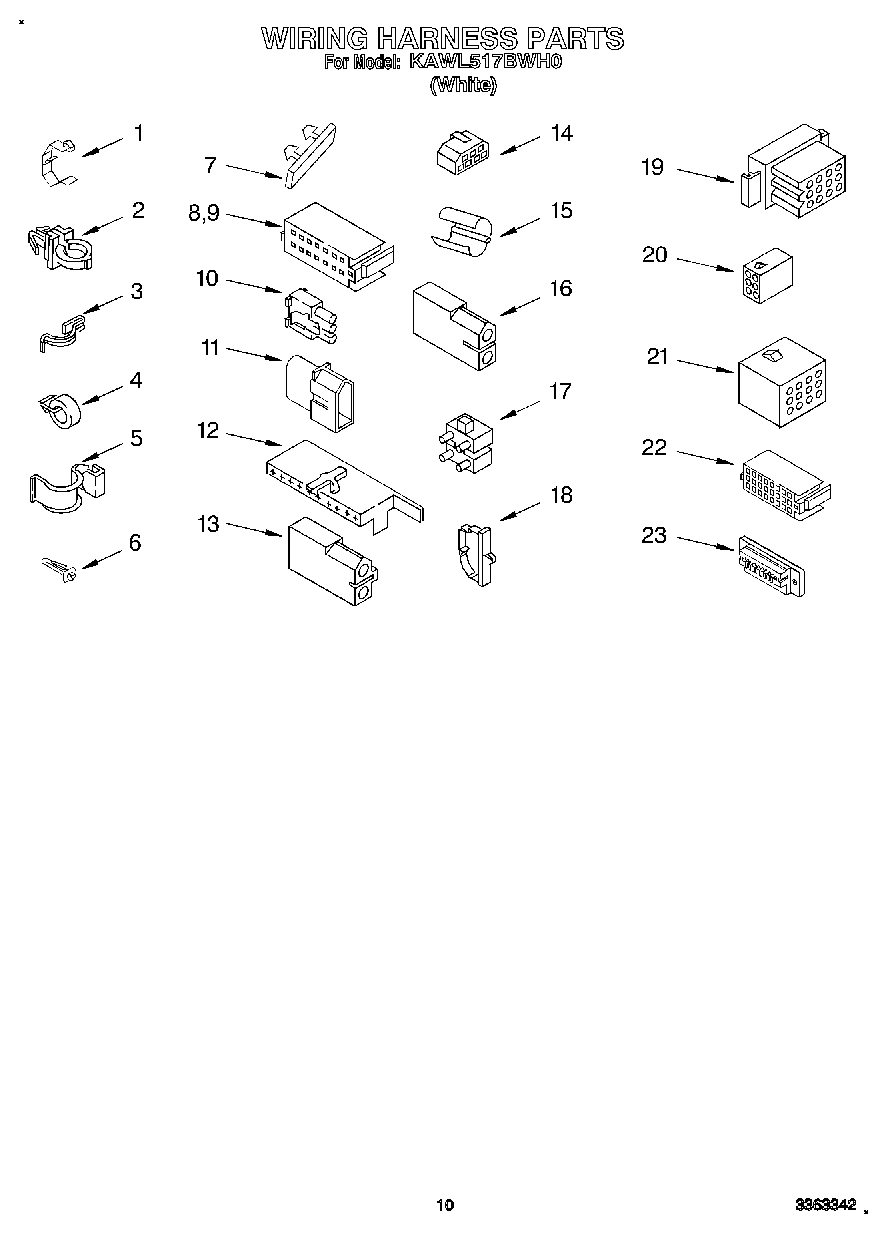

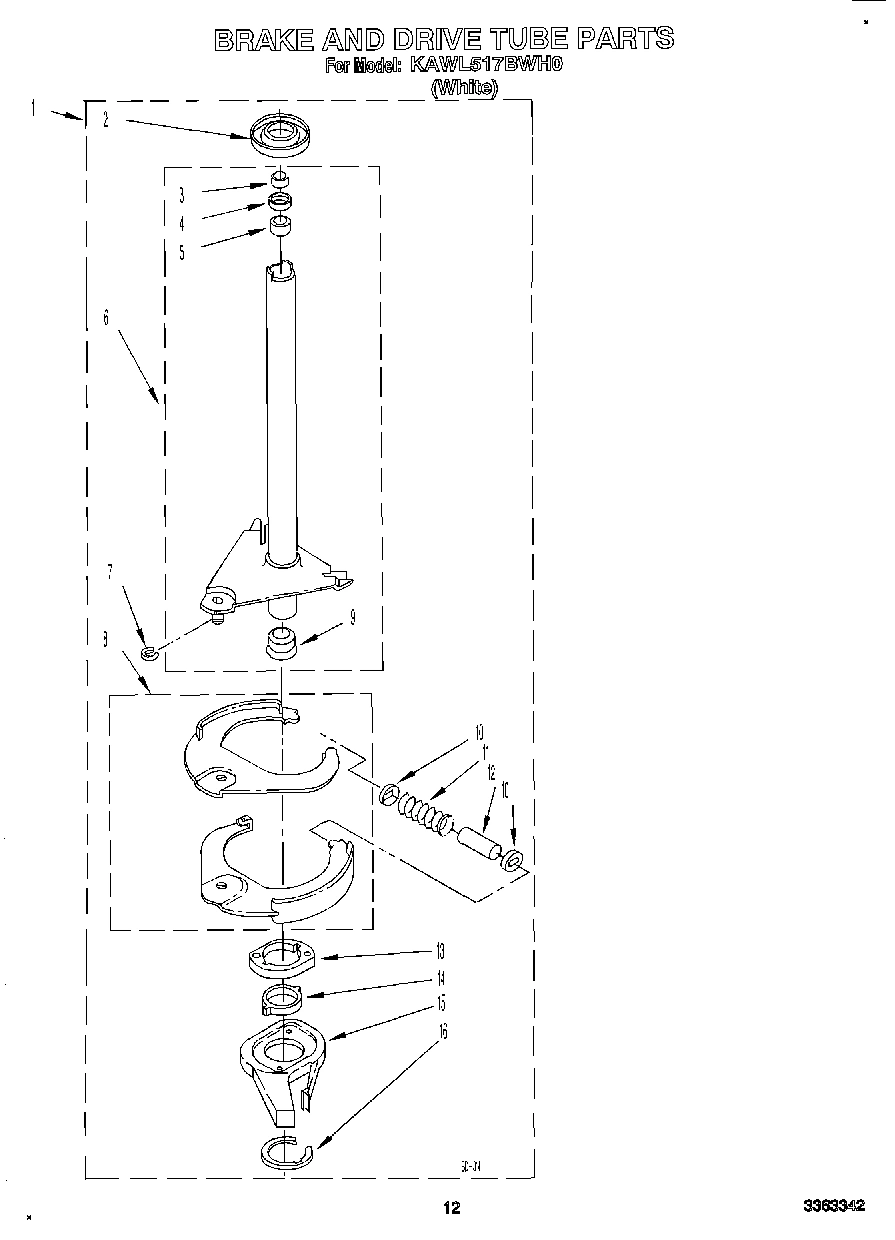

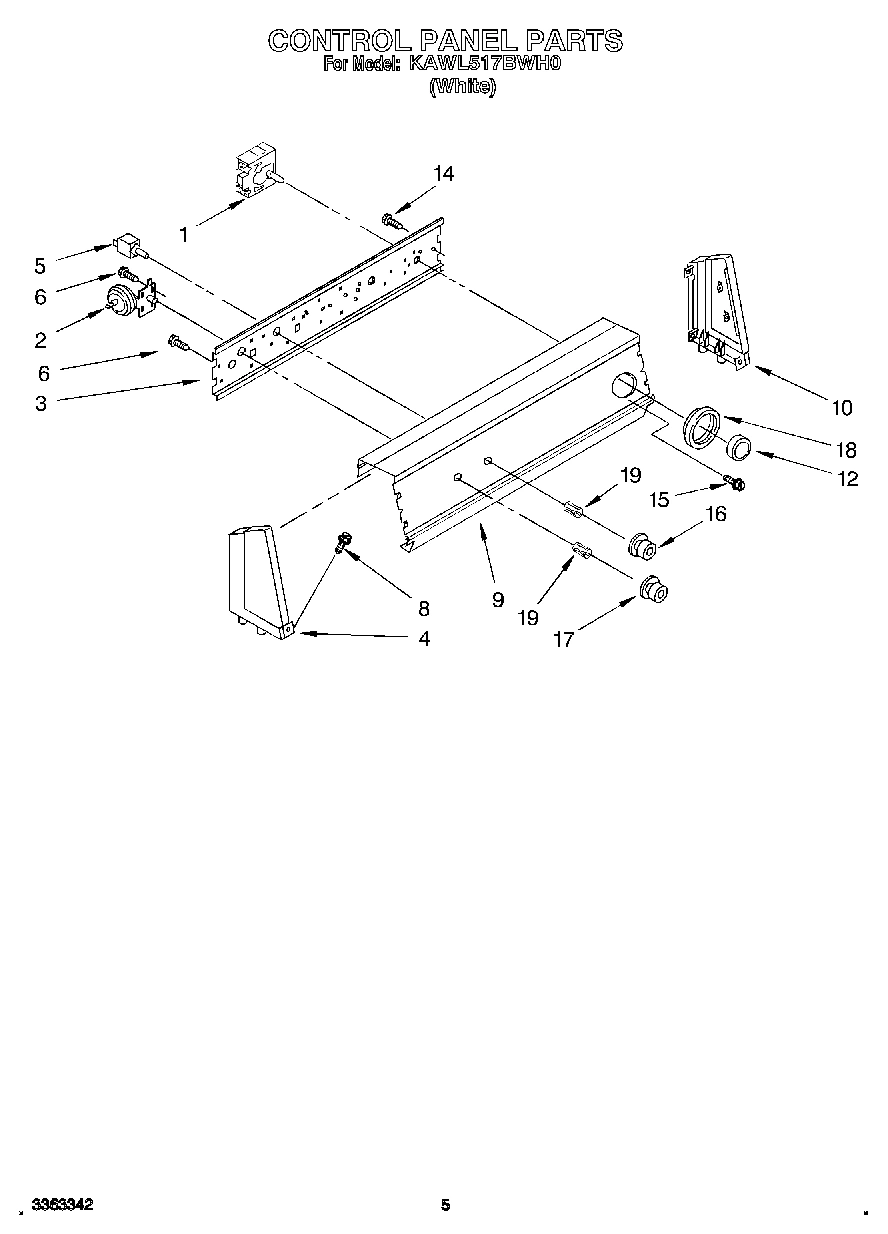

Model Whirlpool KAWL517BWH0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Sheet, Installation Instructions WPL LIT3358952 Contact Us For Availability

Wiring Diagram WPL LIT3360723 Contact Us For Availability

Guide, Use and Care WPL LIT3362075 Contact Us For Availability

Energy Guide WPL LIT3362785 Contact Us For Availability

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Timer, Control 60 Hz. (Motor Not A Service Pa WPL 3362622 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Switch, Water Level WPL 3356466 Contact Us For Availability

2

Top (White) WPL 3362476 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

4

Cap, End (L.H.) WPL 3360570 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Tub Ring WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

(Alt.) WPL 334711 Contact Us For Availability

5

(Alt.) WPL 334835 Contact Us For Availability

5

Switch, Water Temperature WPL 661538 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

Console, Panel WPL 3361984 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Spring, Agitator WPL 62676 Contact Us For Availability

Cap, End (R.H.) WPL 3360567 Contact Us For Availability

11

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $23.68

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Knob, Timer WPL 3349234 Contact Us For Availability

13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 3360514 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

16

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Knob, Water Level Switch WPL 3363437 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

18

Dial, Timer WPL 3363039 Contact Us For Availability

19

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

19

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

19

Lid (White) WPL 3362324 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

22

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

22

Bumper, Lid WPL 3360787 Contact Us For Availability

23

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

23

Connector, ETC (Use Term. 340795) WPL 3349494 Contact Us For Availability

23

Ring, Retaining WPL 95082 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $35.35

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

28

Hose, Pump To Drain Connector WPL 3359816 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

36

Sound Damper WPL 3349654 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

59

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

60

Harness, Wiring (For Detail See Wiring Harnes WPL 3362560 Contact Us For Availability
