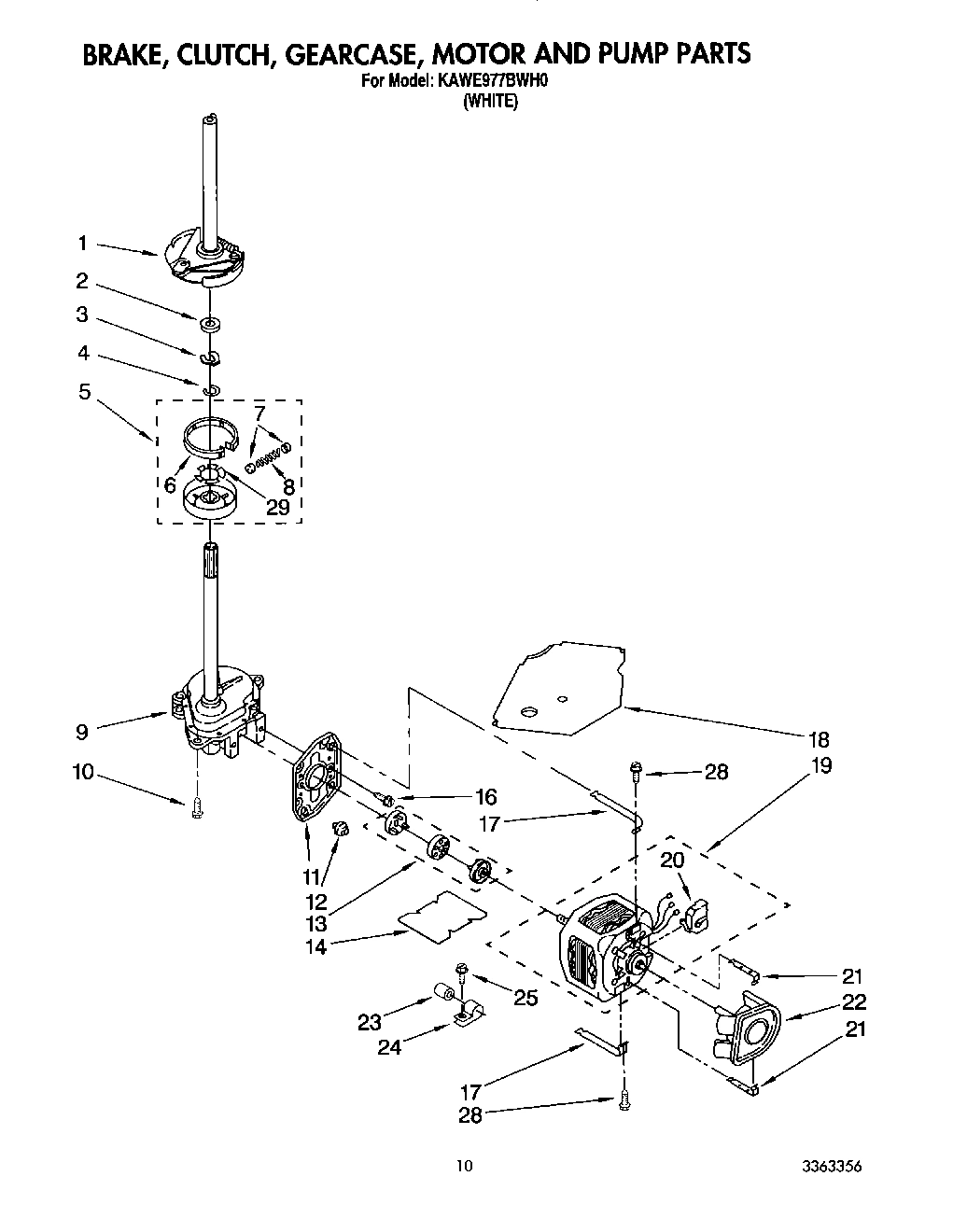

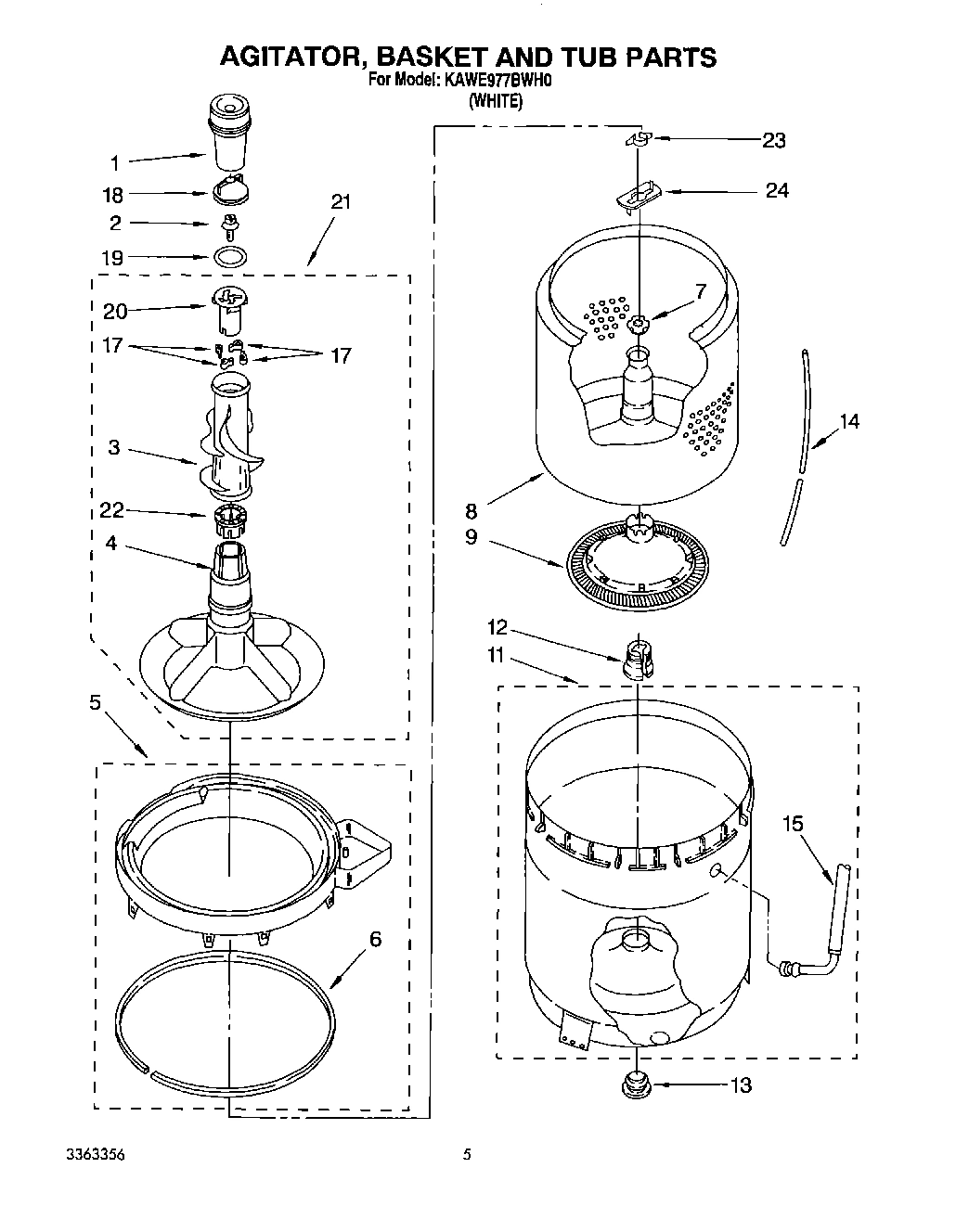

Model Whirlpool KAWE977BWH0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Sheet, Installation Instructions WPL LIT3358953 Contact Us For Availability

Wiring Diagram WPL LIT3361732 Contact Us For Availability

Guide, Use and Care WPL LIT3362077 Contact Us For Availability

Ener WPL LIT3362791 Contact Us For Availability

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

Reservoir, and Chute, Detergent WPL 3348814 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Gearcase (Complete) WPL 3363360 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Clip, Hose WPL 3362262 Contact Us For Availability

2

Clip, Harness WPL 388498 Contact Us For Availability

2

Top (For White Model) WPL 3361954 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

Hose-Det. Disp. WPL 3362060 Contact Us For Availability

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

Hose, Detergent WPL 64168 Contact Us For Availability

4

Cover, Hose (Disconnect) WPL 64172 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

Connector, 3 Port WPL 3348818 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Spacer-Cabinet (Top) WPL 388252 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

9

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Bezel-Detergent Dispenser (For White Model) WPL 3362046 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Bracket-Inlet Hose WPL 64219 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

11

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $23.68

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Insert, Liquid Detergent WPL 3350127 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Reservoir, Liquid Detergent WPL 3350126 Contact Us For Availability

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 3360514 Contact Us For Availability

Diverter, Liquid Detergent WPL 387691 Contact Us For Availability

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Connector (2-Way) (Suds Valve) (Use Term. 946 WPL 717252 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

18

Valve, Water Mixing WPL 3362048 Contact Us For Availability

18

Clip, Harness WPL 3352944 Contact Us For Availability

3363395 Whirlpool Gearcase Backorder WPL 3363395 $242.05

Motor, Main Drive WPL 3350418 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Lid (For White Model) WPL 3362326 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Hose, Vacuum Break WPL 3362057 Contact Us For Availability

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

Bumper, Lid (1) WPL 3360787 Contact Us For Availability

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

Ring, Retaining WPL 3362552 Contact Us For Availability

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

Connector, Relay (Use Term. 308569 Or 338664) WPL 60687 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Control, ETC WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $33.23

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

Coil, Dispenser & Mixing Valve WPL 389252 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

33

Retainer Cross-Over WPL 64162 Contact Us For Availability

36

Sound-Damper (Cabinet) WPL 3349654 Contact Us For Availability

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

Sheild, Suds WPL 3348424 Contact Us For Availability

59

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

60

Harness, Wiring (For Detail See Wiring Harnes WPL 3361731 Contact Us For Availability
