Model Whirlpool KAWE770BAL0 AUTOMATIC WASHER – Common Parts & Diagrams

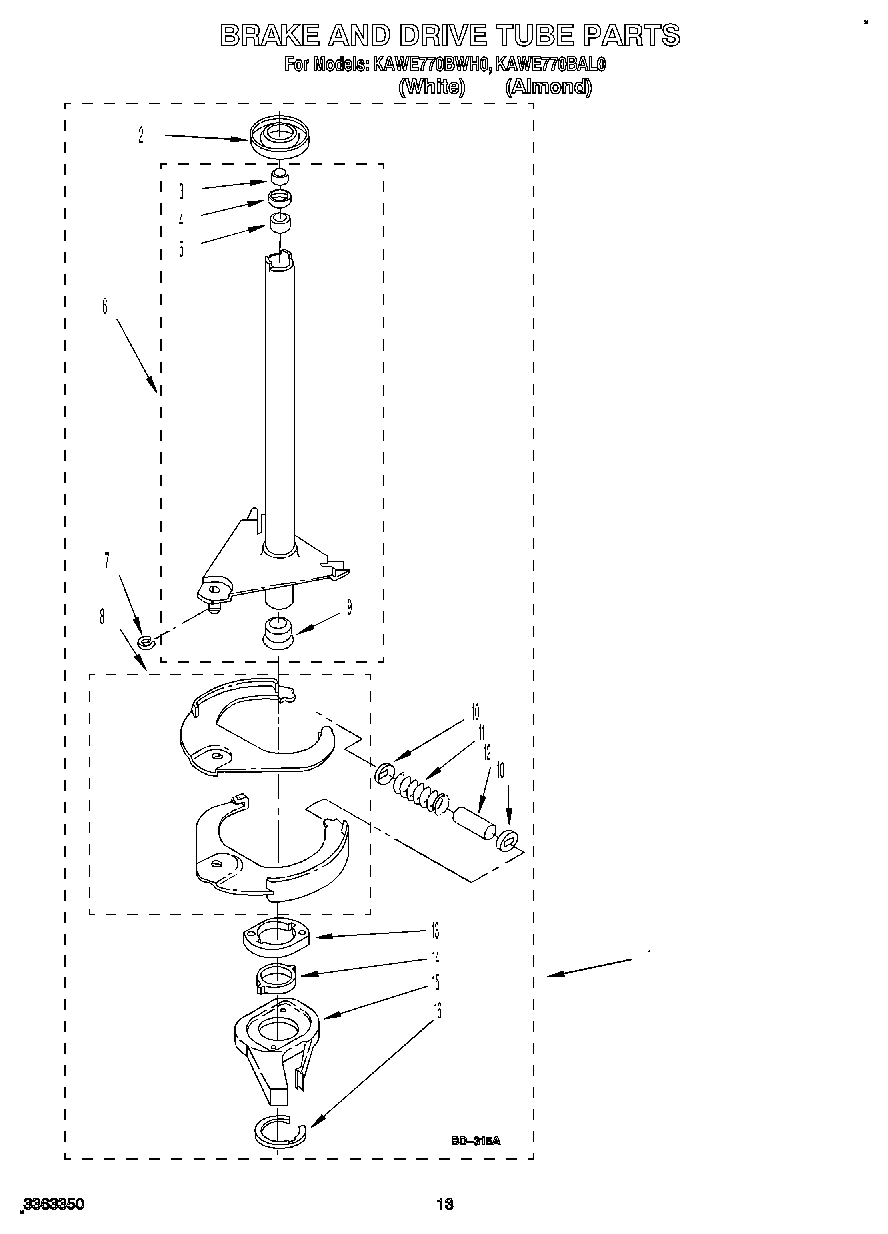

10 - BRAKE AND DRIVE TUBE

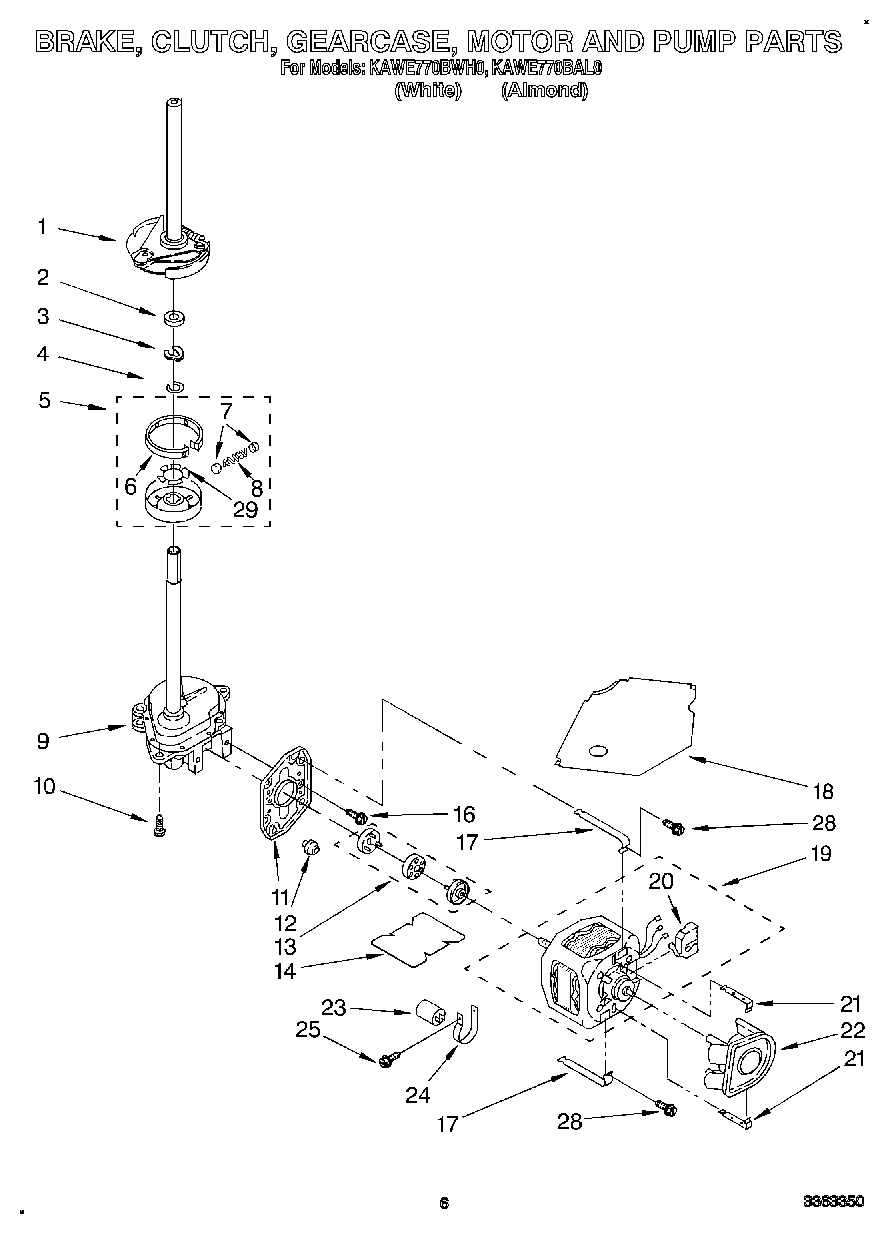

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

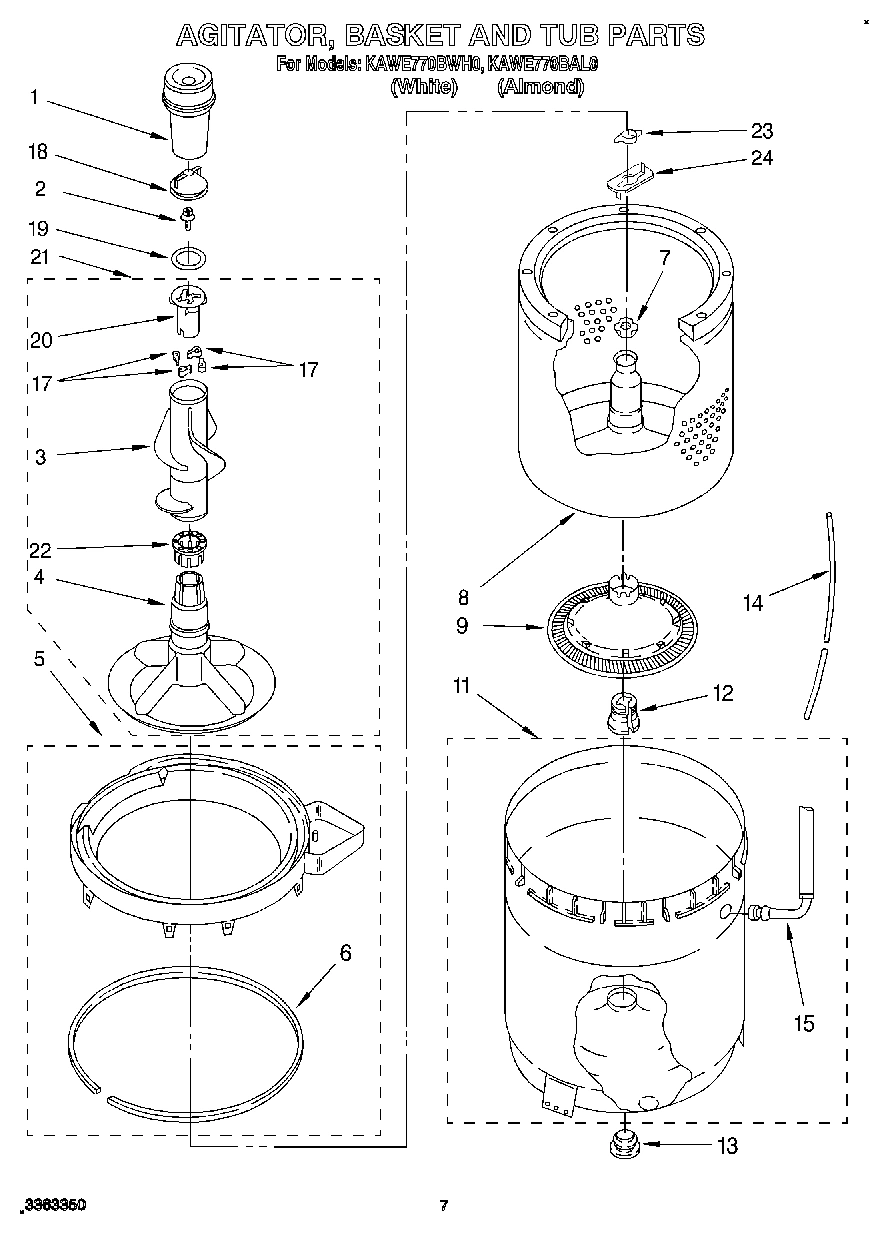

05 - AGITATOR, BASKET, AND TUB

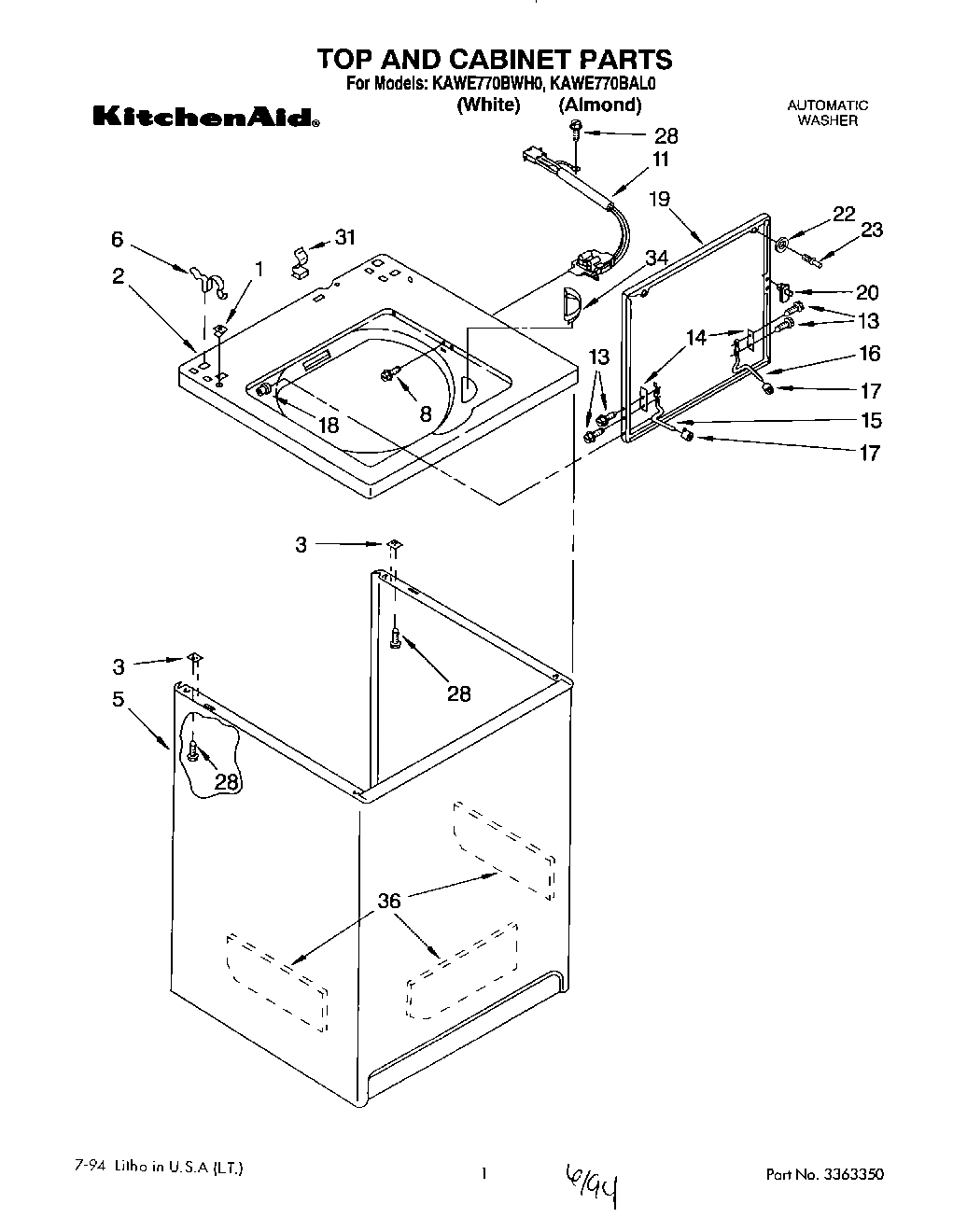

01 - TOP AND CABINET, LIT/OPTIONAL

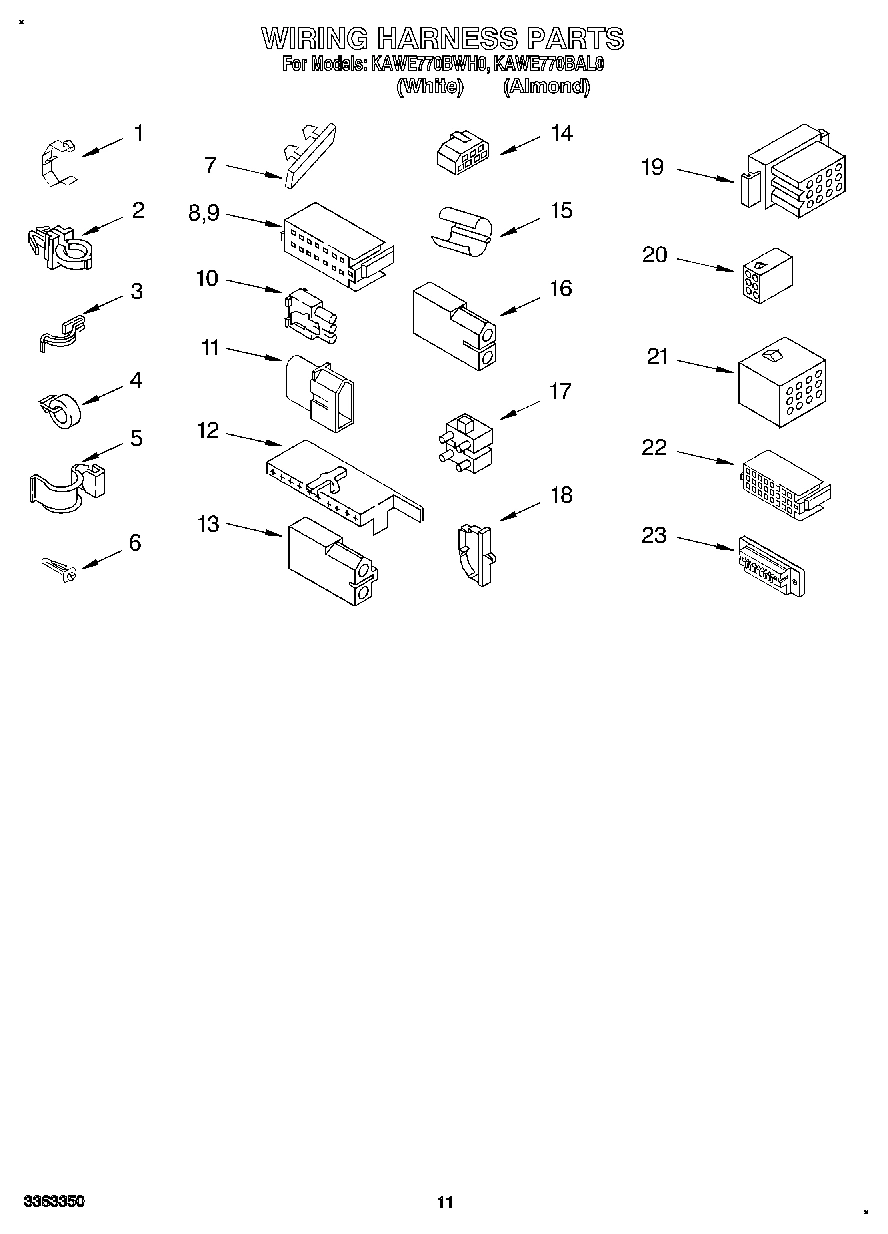

08 - WIRING HARNESS

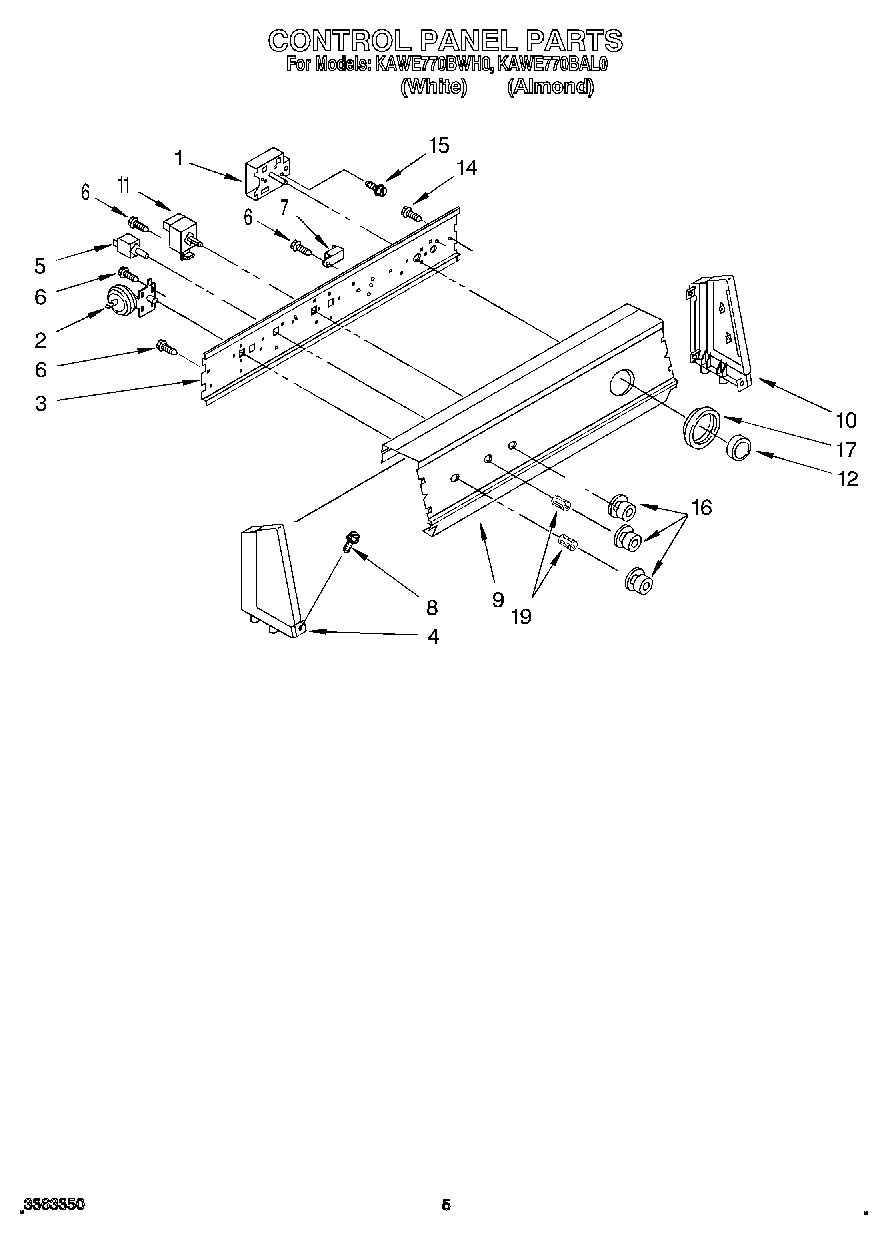

03 - CONTROL PANEL

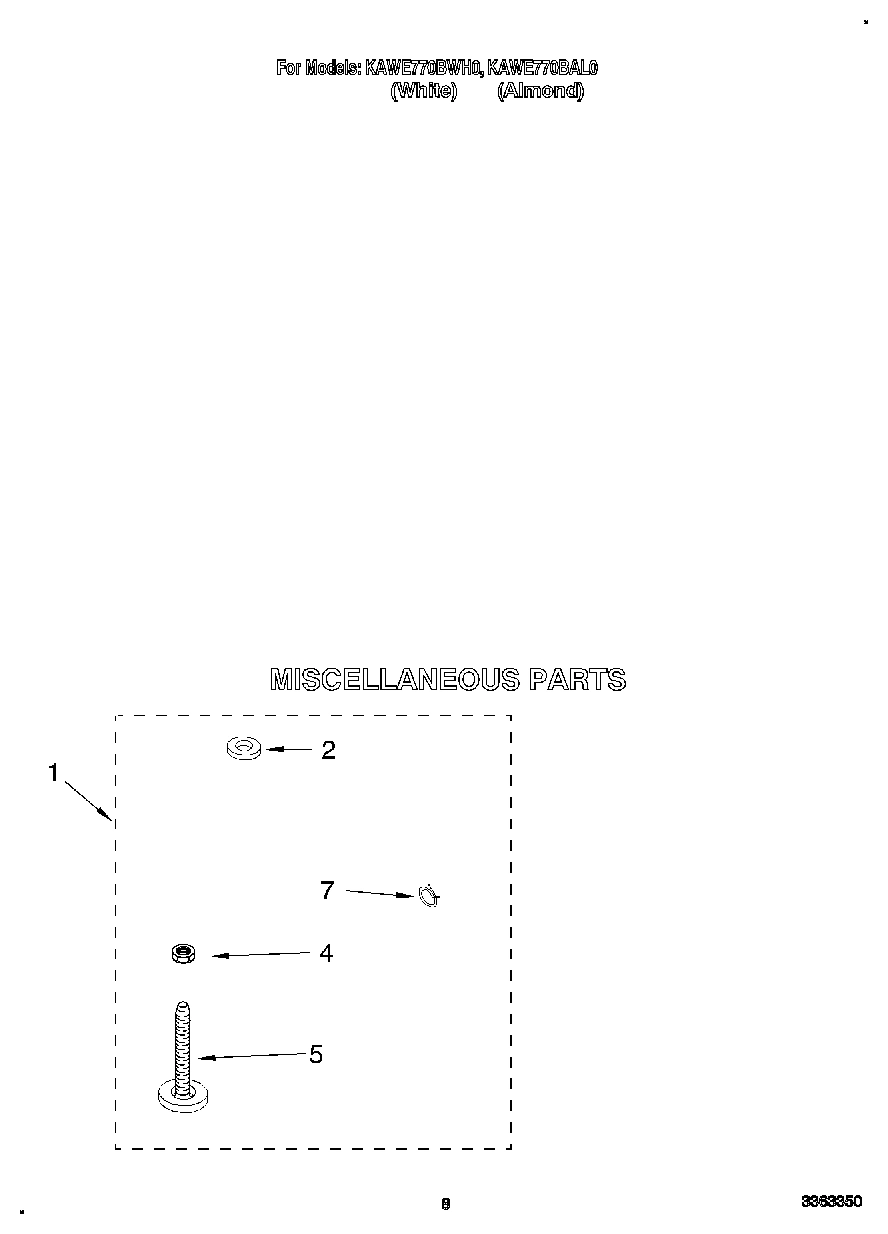

06 - MISCELLANEOUS

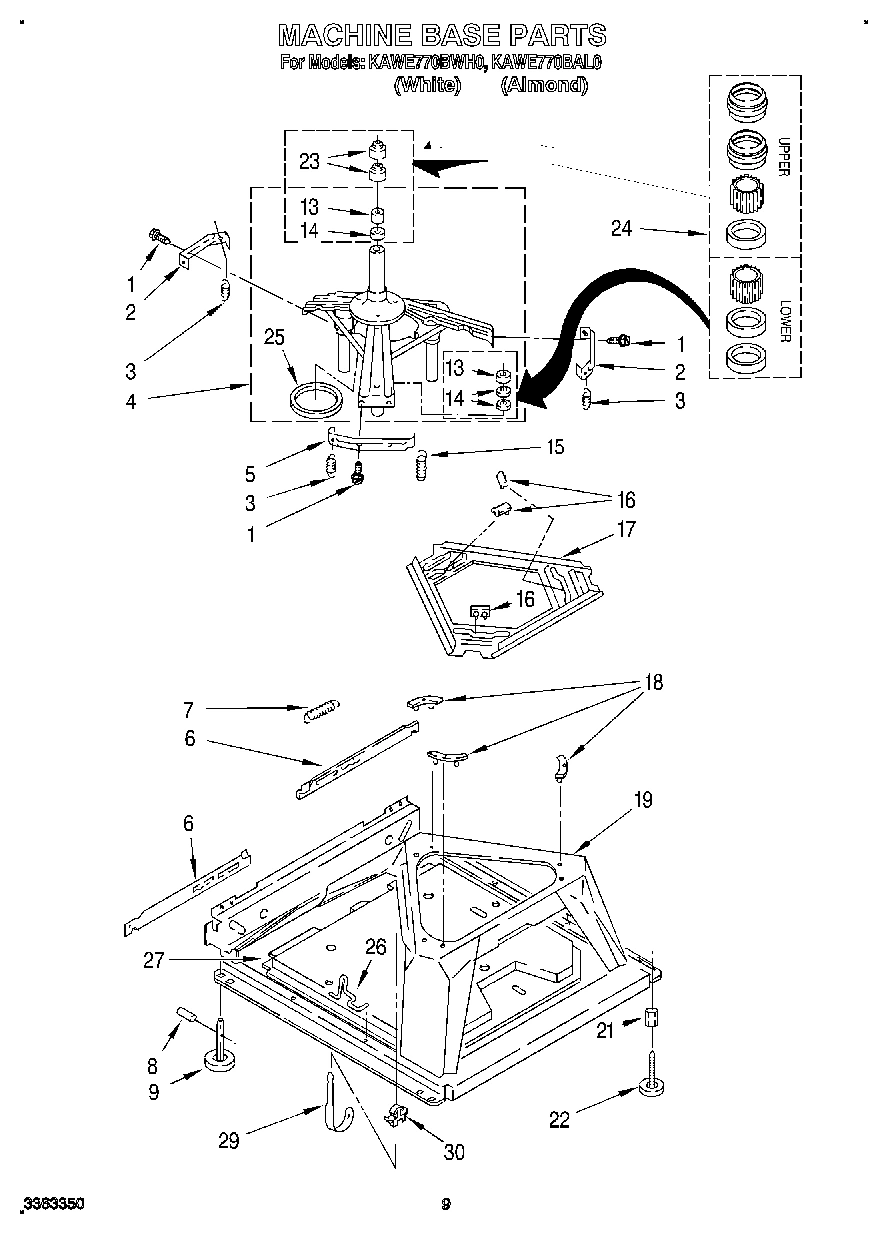

07 - MACHINE BASE

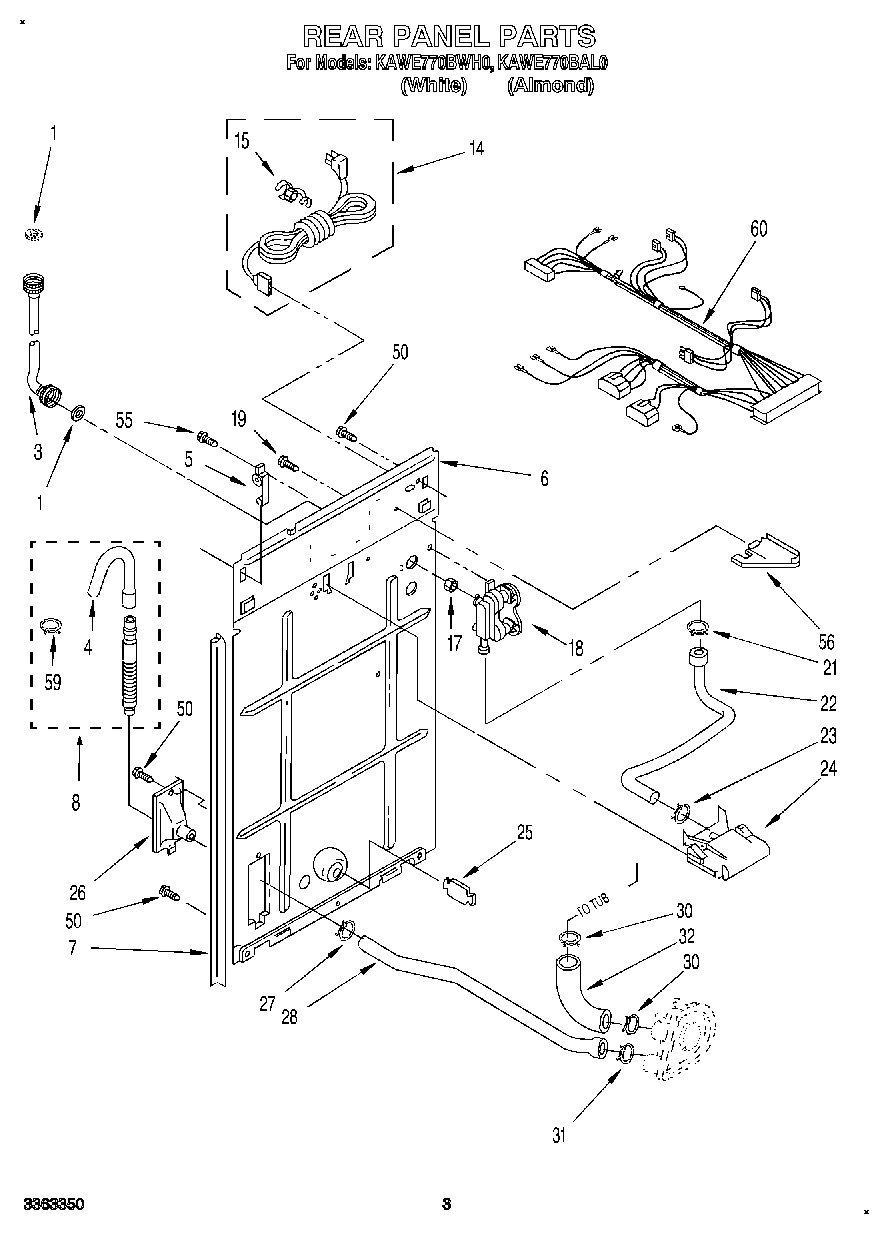

02 - REAR PANEL

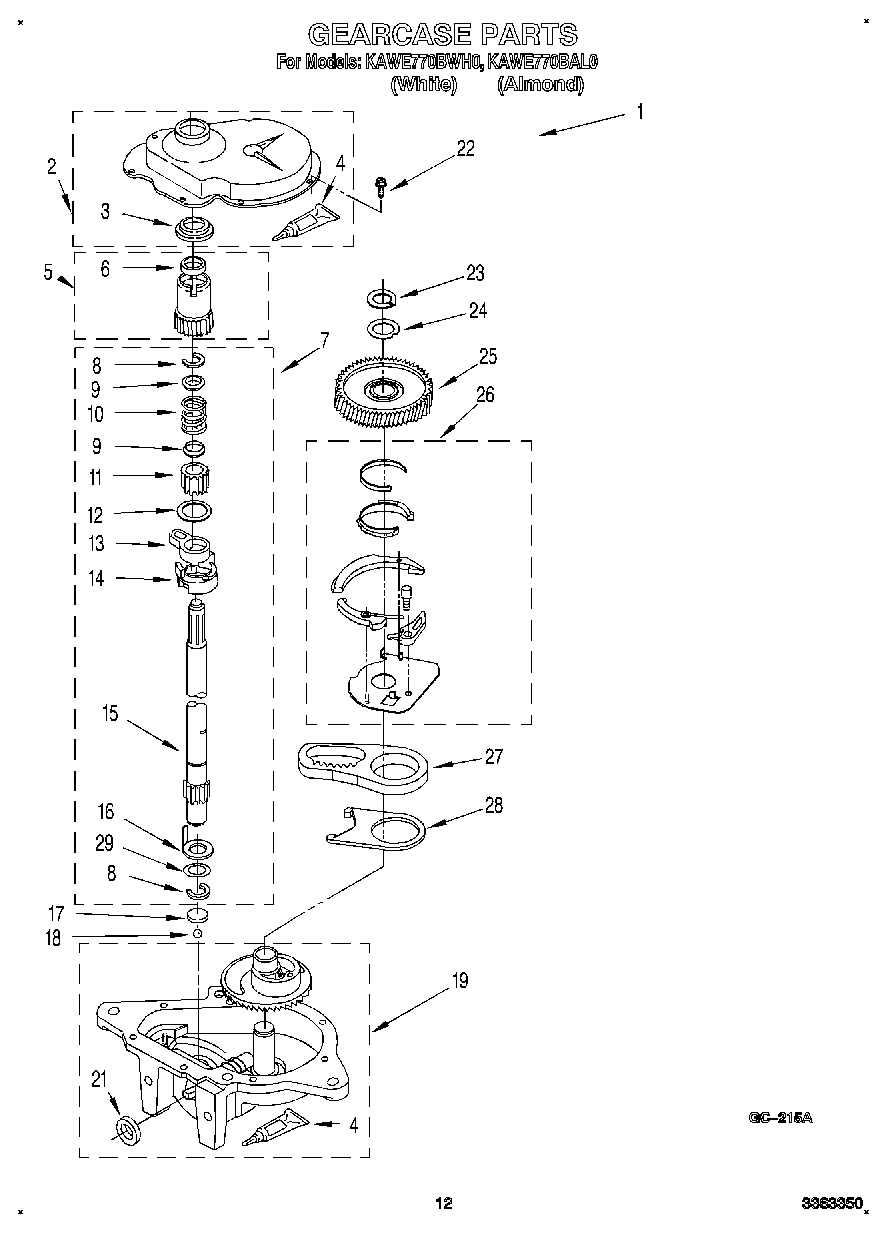

09 - GEARCASE
Common parts from model Whirlpool KAWE770BAL0 AUTOMATIC WASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
Siphon Break Kit WPL 285320 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
OIL WPL 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 3359460 Contact Us For Availability
2
Top (For White Model) WPL 3362476 Contact Us For Availability
2
Top (For Almond Model) WPL 3362477 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
2
Switch, Water Level WPL 3362134 Contact Us For Availability
4
Cap, End (L.H.) (For White & Almond Model) WPL 3360571 Contact Us For Availability
4
Support & Brake, Tub WPL 3362087 Contact Us For Availability
5
Hinge, Console (2) WPL 387402 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (For Almond Model) WPL 388392 Contact Us For Availability
5
Switch, Water Temperature WPL 661536 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability
8
Screw, 8-18 (2) WPL 64211 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
9
Retainer, Spring (2) WPL 62677 Contact Us For Availability
9
Console, Panel (For White & Almond Model) WPL 3361993 Contact Us For Availability
10
Cap, End (R.H.) (For White & Almond Models) WPL 3360568 Contact Us For Availability
10
Spring, Agitator WPL 62676 Contact Us For Availability
11
Plug, Terminal (3-Way) (Power Cord) (Use Term WPL 353424 Contact Us For Availability
11
Switch, Rotary WPL 3361224 Contact Us For Availability
12
Knob, Timer WPL 3349233 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
13
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
14
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
14
Cord, Power WPL 3360514 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
15
Strain Relief, Power Cord WPL 63848 Contact Us For Availability
16
Connector (2-Way) (Suds Valve) (Use Term. 946 WPL 717252 Contact Us For Availability
16
Knob, Control (3) WPL 3363041 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
17
Dial, Timer (For White & Almond Models) WPL 3363039 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Motor, Main Drive WPL 3350418 Contact Us For Availability
19
Lid (For White Model) WPL 3362324 Contact Us For Availability
19
Lid (For Almond Model) WPL 3362325 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3360004 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Bumper, Lid (1) WPL 3360787 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Connector, ETC (Use Term. 340795) WPL 3349494 Contact Us For Availability
23
Ring, Retaining WPL 95082 Contact Us For Availability
24
Centerpost Bearing Kit (Includes Illus. 13, 1 WPL 285203 Contact Us For Availability
24
Clamp, Capacitor WPL 357030 Contact Us For Availability
24
Washer Kit, Thrust WPL 285292 Contact Us For Availability
27
Sound Absorber WPL 3356558 Contact Us For Availability
28
Hose, Pump To Drain Connector WPL 3359816 Contact Us For Availability
29
Hanger, Drain Hose WPL 3350281 Contact Us For Availability
30
Clip (Drain Hose) WPL 3350282 Contact Us For Availability
36
Sound-Damper (Cabinet) WPL 3349654 Contact Us For Availability
56
Sheild, Suds WPL 3348424 Contact Us For Availability
60
Harness, Wiring (For Detail See Wiring Harnes WPL 3362568 Contact Us For Availability
× ![]()
