Model Whirlpool KAWE570BWH1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

WP3946455 Whirlpool Timer Backorder WPL WP3946455 $220.65

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Switch, Water Level WPL 3362135 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

Cap, End (L.H.) (For White Model) WPL 3360571 Contact Us For Availability

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

(Alt.) WPL 3347117 Contact Us For Availability

5

(Alt.) WPL 3348352 Contact Us For Availability

5

Switch, Water Temperature WPL 661538 Contact Us For Availability

6

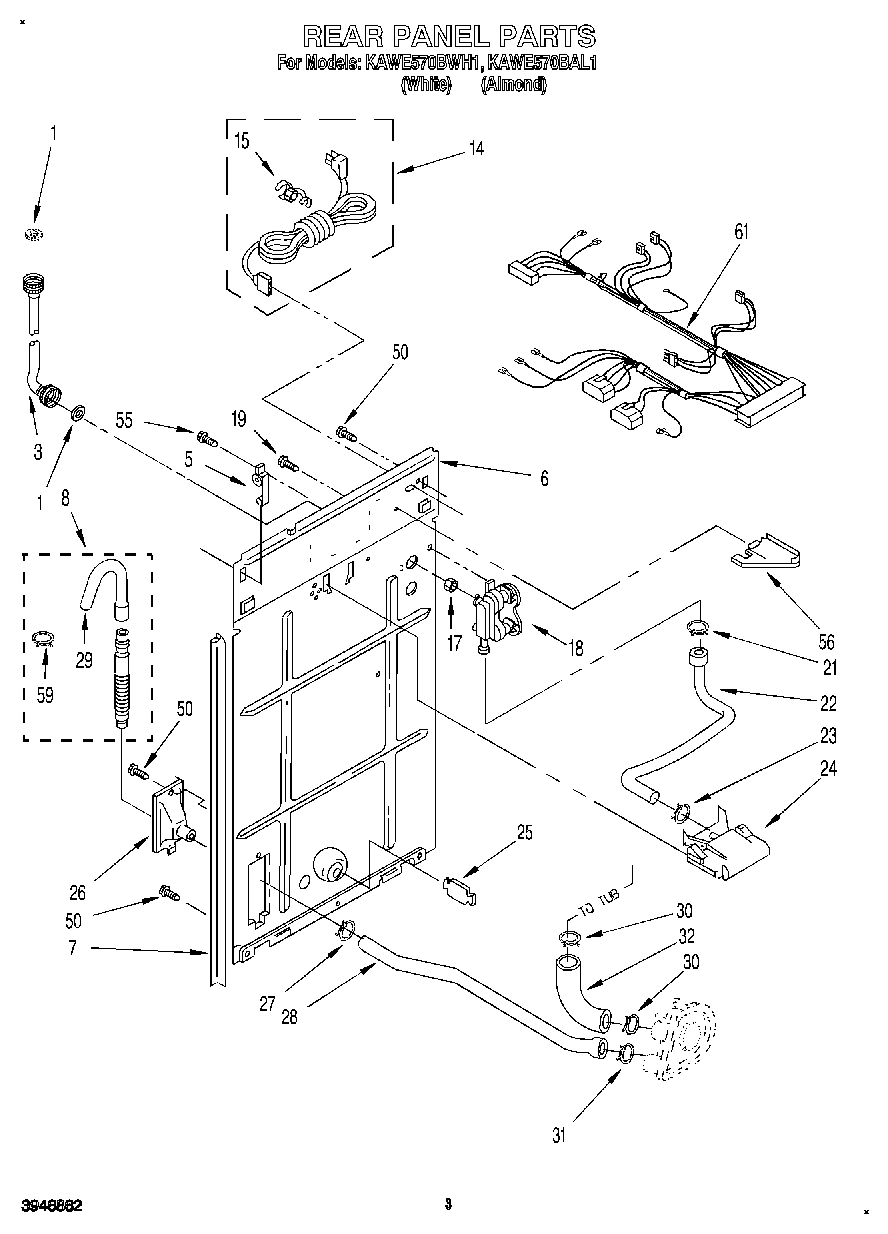

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $78.79

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

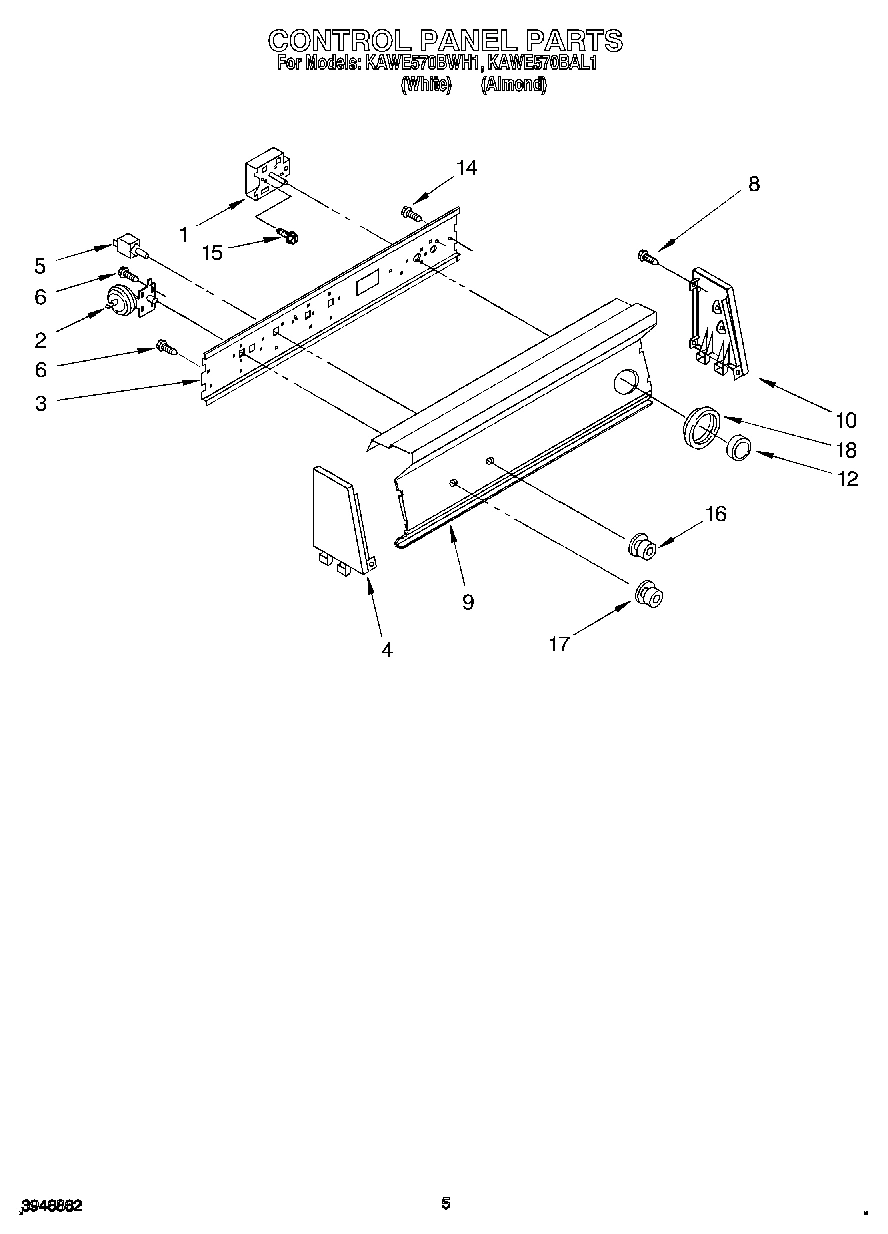

Console, Panel (For White Model) WPL 3361988 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Cap, End (R.H.) (For White Model) WPL 3360568 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Knob, Timer (For White Model) WPL 3349233 Contact Us For Availability

13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 3360514 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

Knob (Water Level) WPL 3363041 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

Clip, Harness WPL 3352944 Contact Us For Availability

Dial, Timer (For White Model) WPL 3946426 Contact Us For Availability

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

19

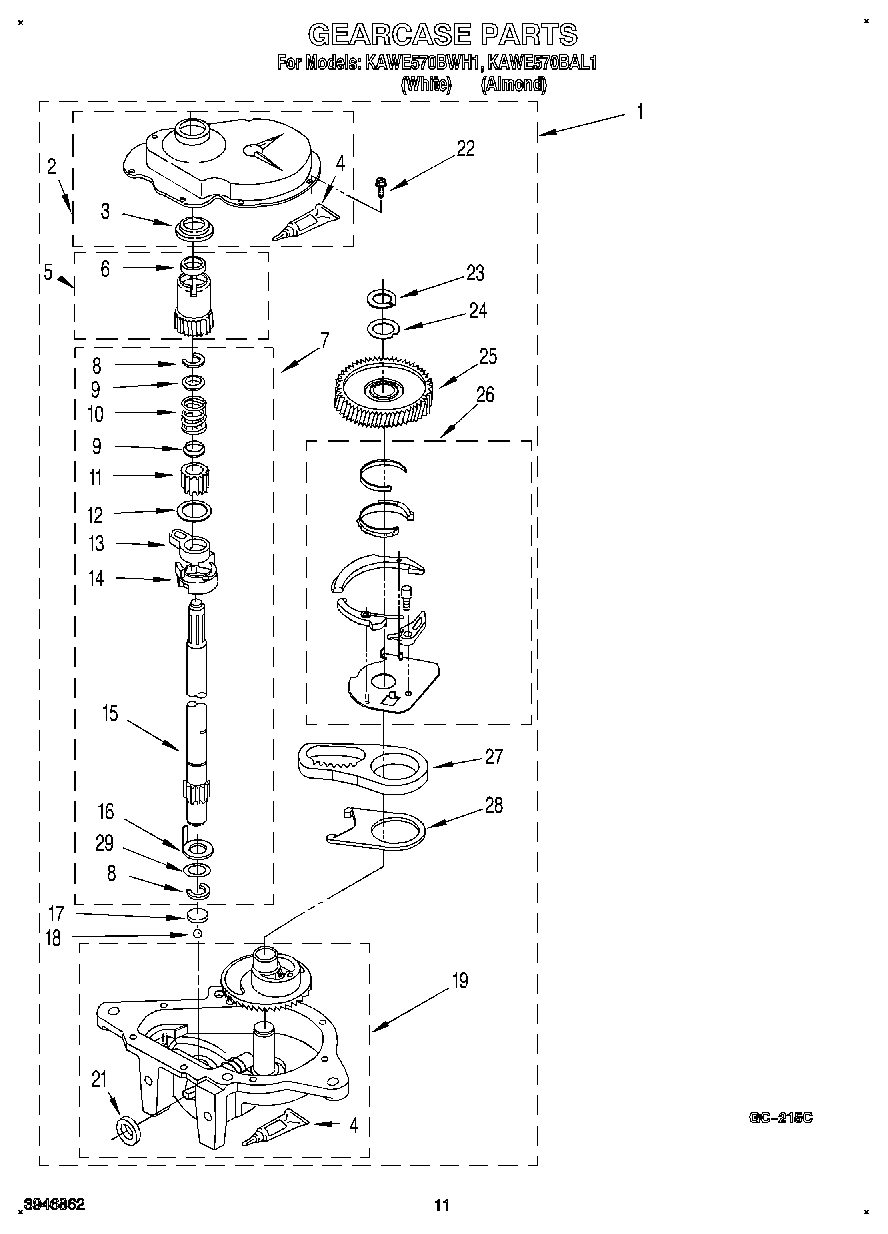

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.22

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Connector, Etc WPL 3349494 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

Connector, Relay (Use Term. 308569 Or 338664) WPL 60687 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Control, ETC WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

Hose, Pump To Drain Connector WPL 3359816 Contact Us For Availability

29

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

34

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

Sheild, Suds WPL 3348424 Contact Us For Availability

59

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

61

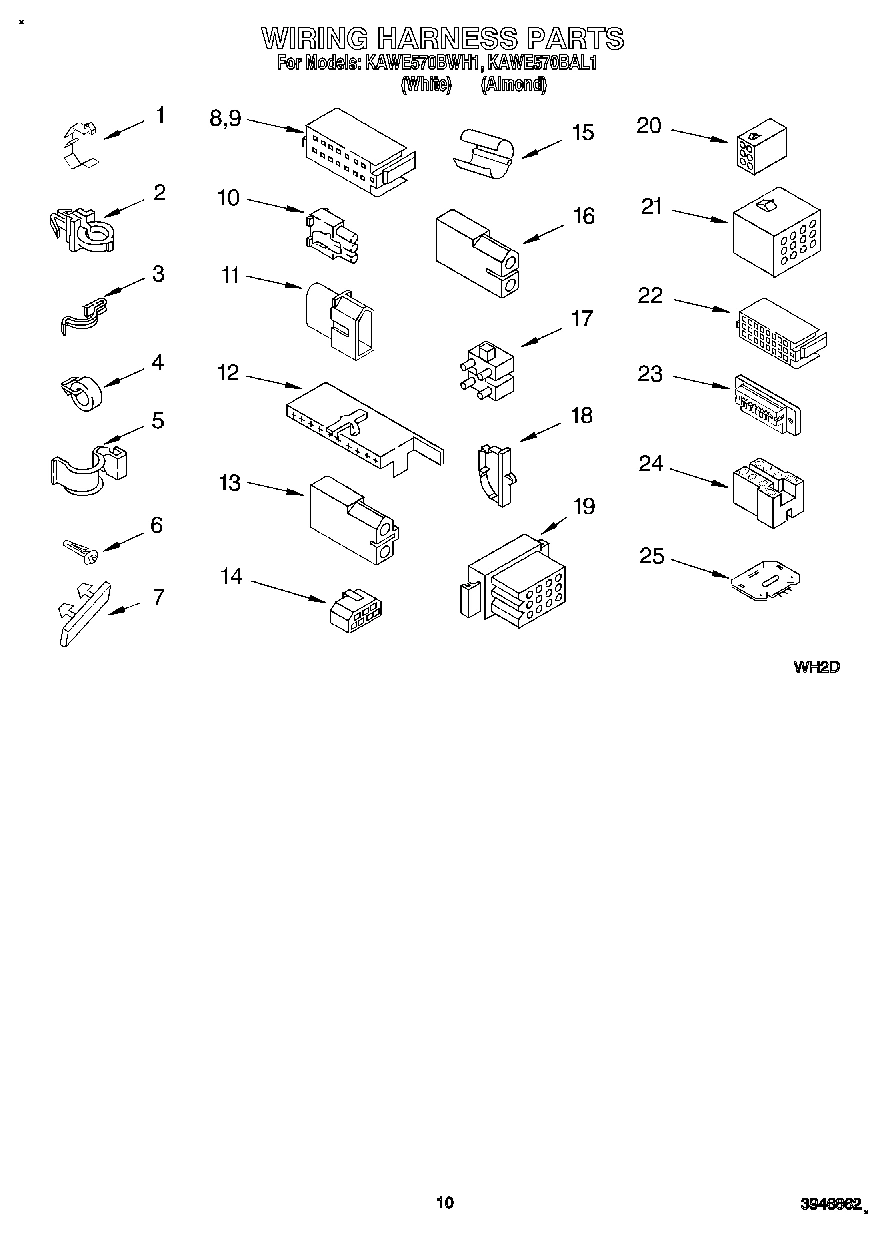

Harness, Wiring (For Detail See Wiring Harnes WPL 3362562 Contact Us For Availability
