Model Whirlpool KAWE564WWH1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

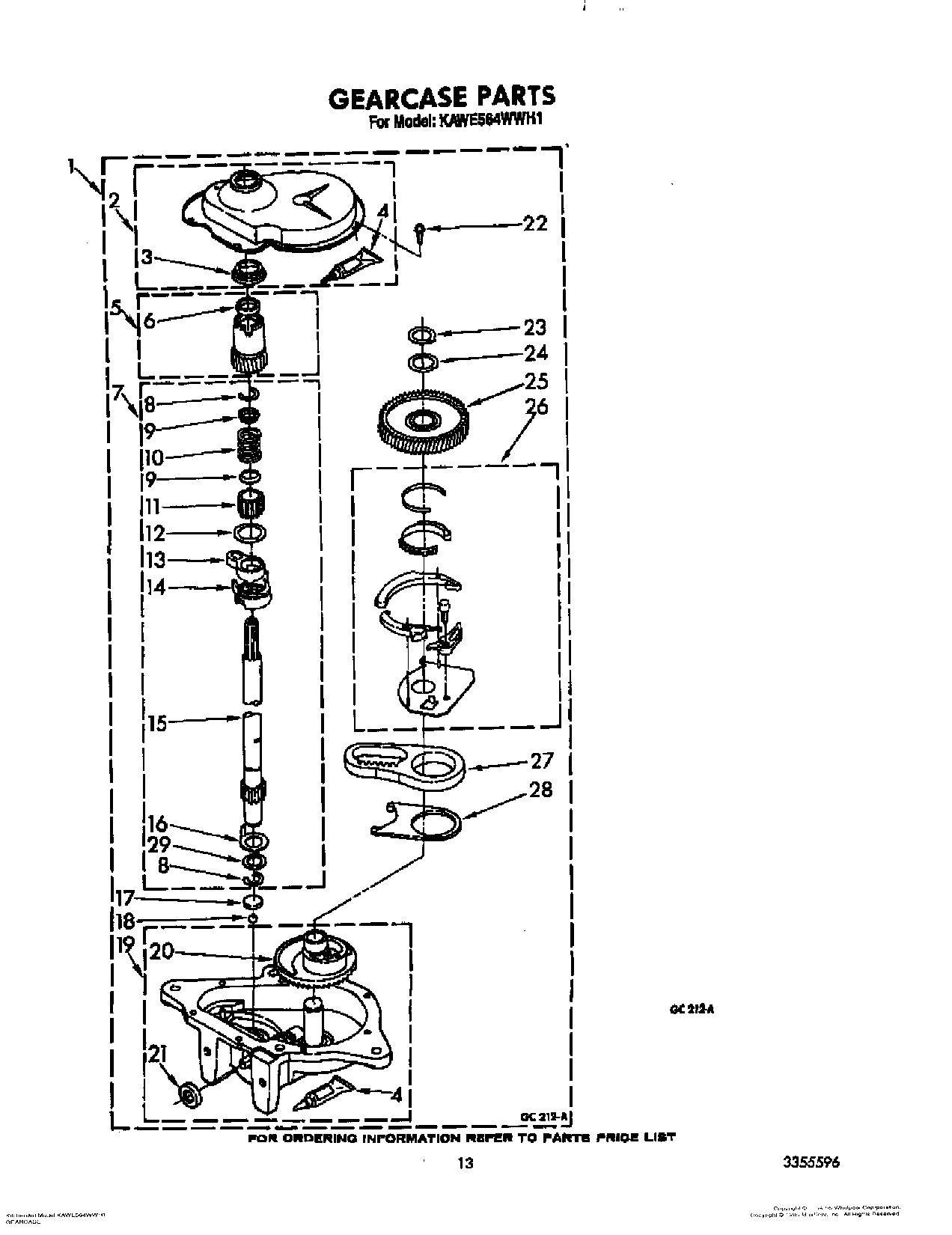

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

1

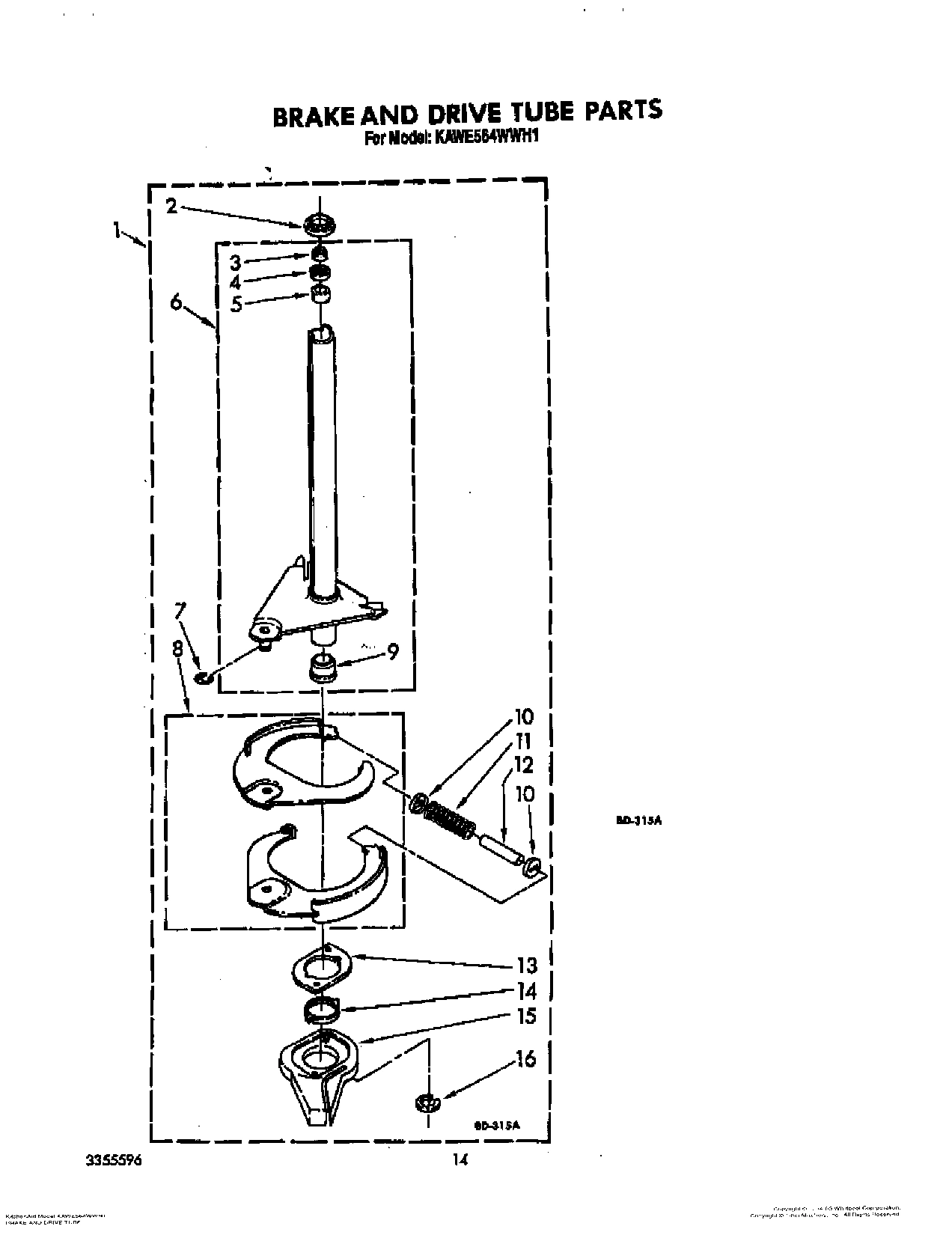

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

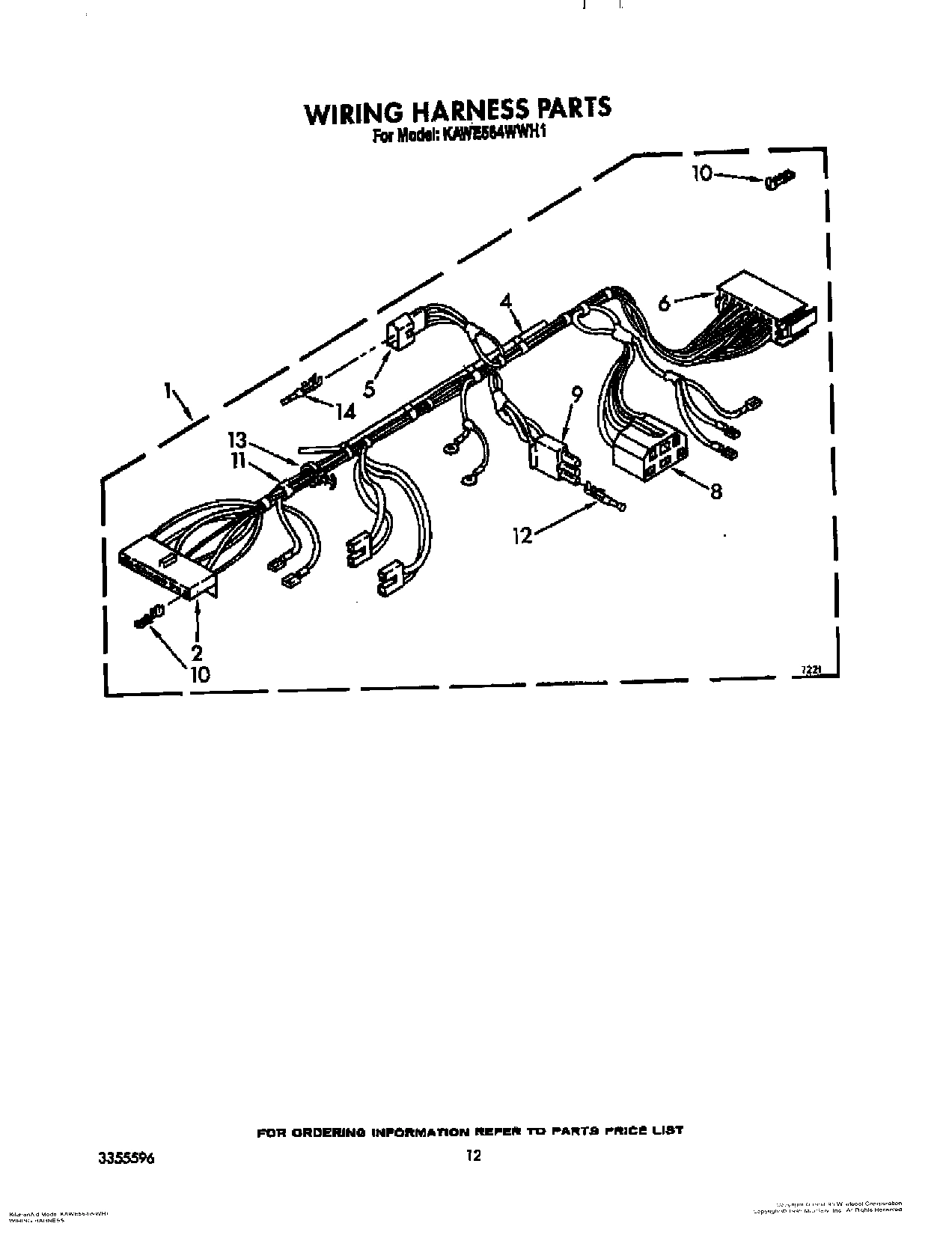

Wiring Harness & Pressure Switch Hose WPL 3351378 Contact Us For Availability

1

Timer, Control 60Hz. (Motor Not Serviced) WPL 3355825 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Switch, Water Level WPL 3350762 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

Bracket, Control WPL 3349232 Contact Us For Availability

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

4

Cap, End (L.H.) WPL 3354640 Contact Us For Availability

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

5

353424 Whirlpool Connector Backorder WPL 353424 $10.76

5

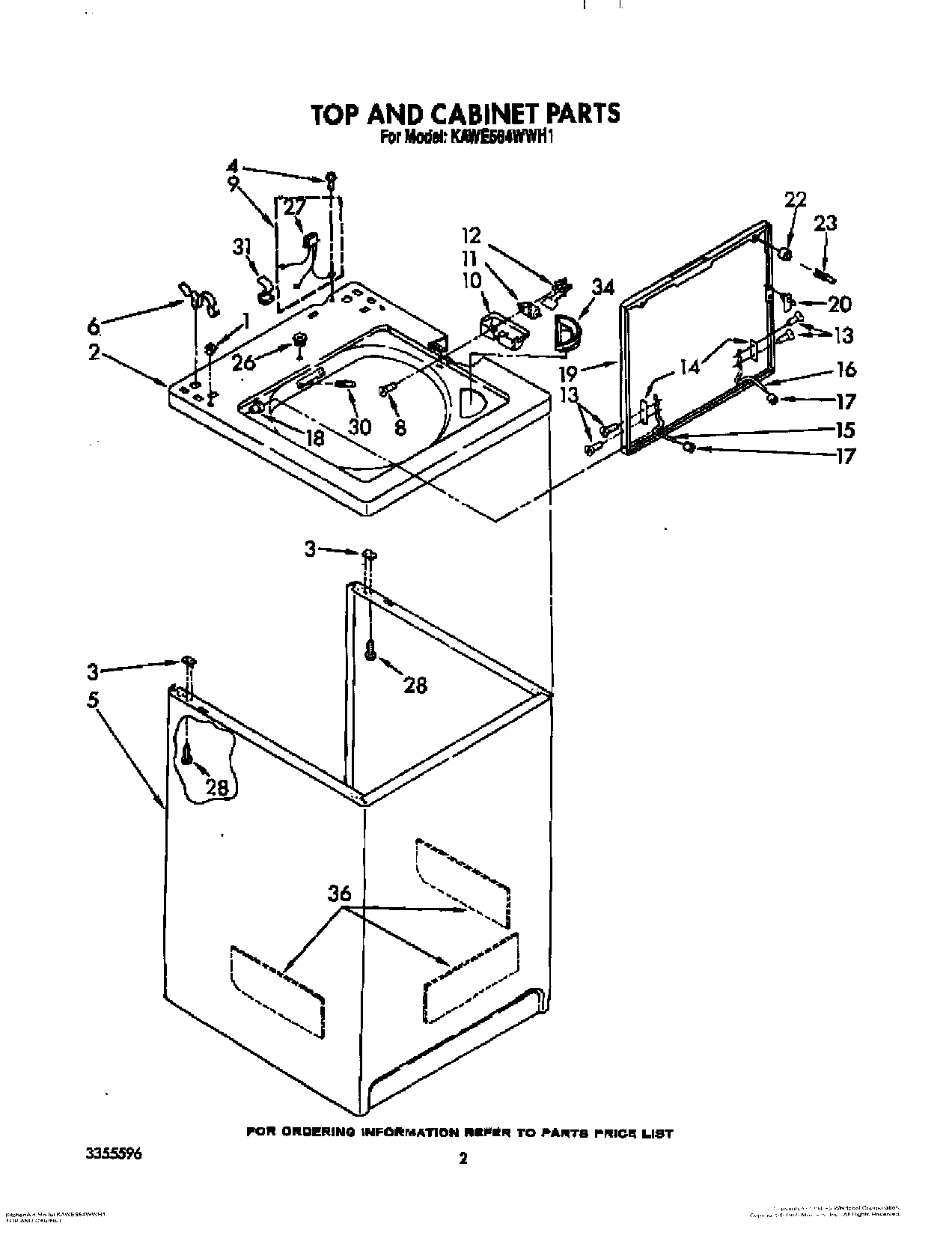

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 388392 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Switch, Water Temperature (Alt.) WPL 3347117 Contact Us For Availability

5

Switch, Water Temperature (Alt.) WPL 3348352 Contact Us For Availability

5

Switch, Water Temperature WPL 661538 Contact Us For Availability

6

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

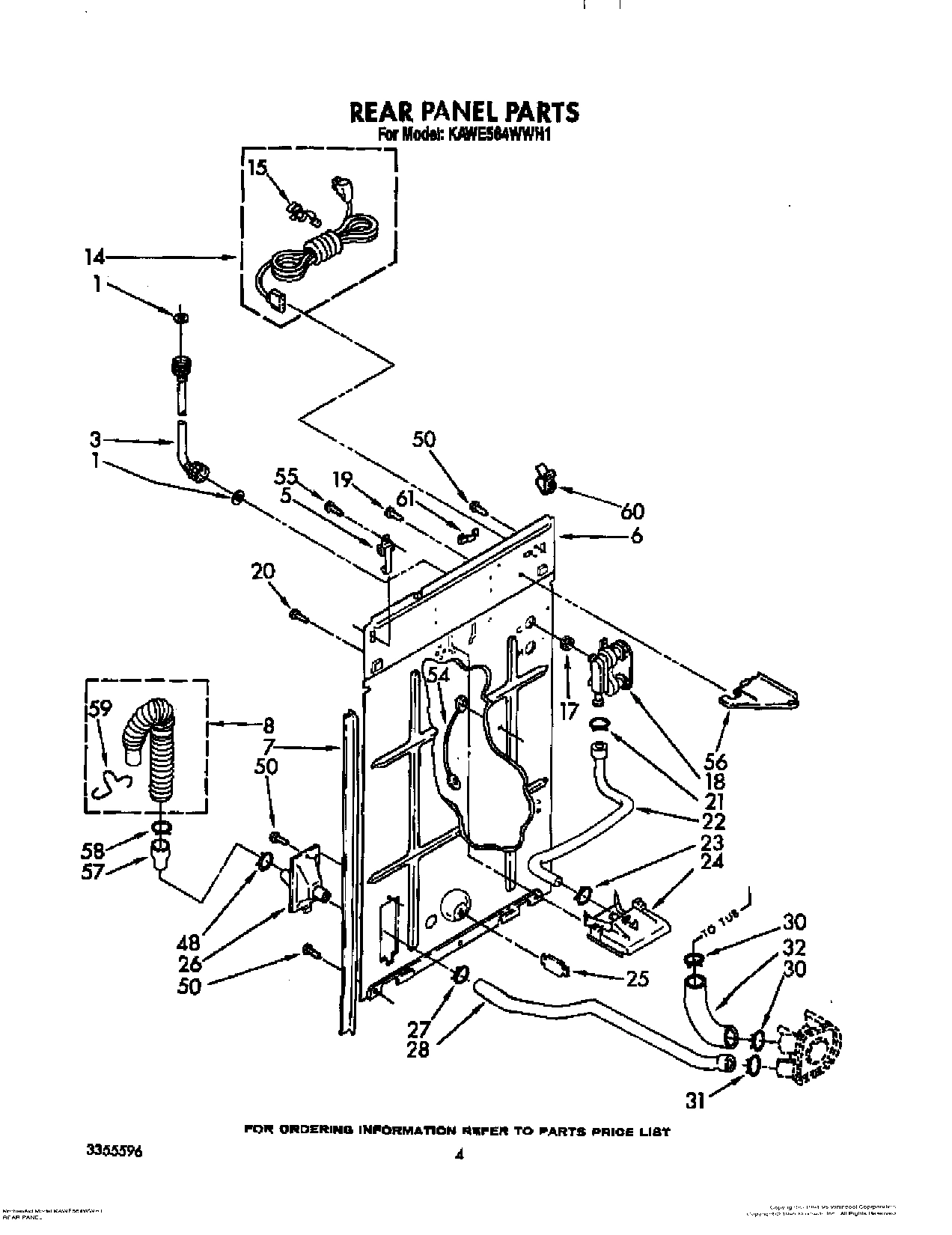

Panel, Rear WPL 3348430 Contact Us For Availability

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

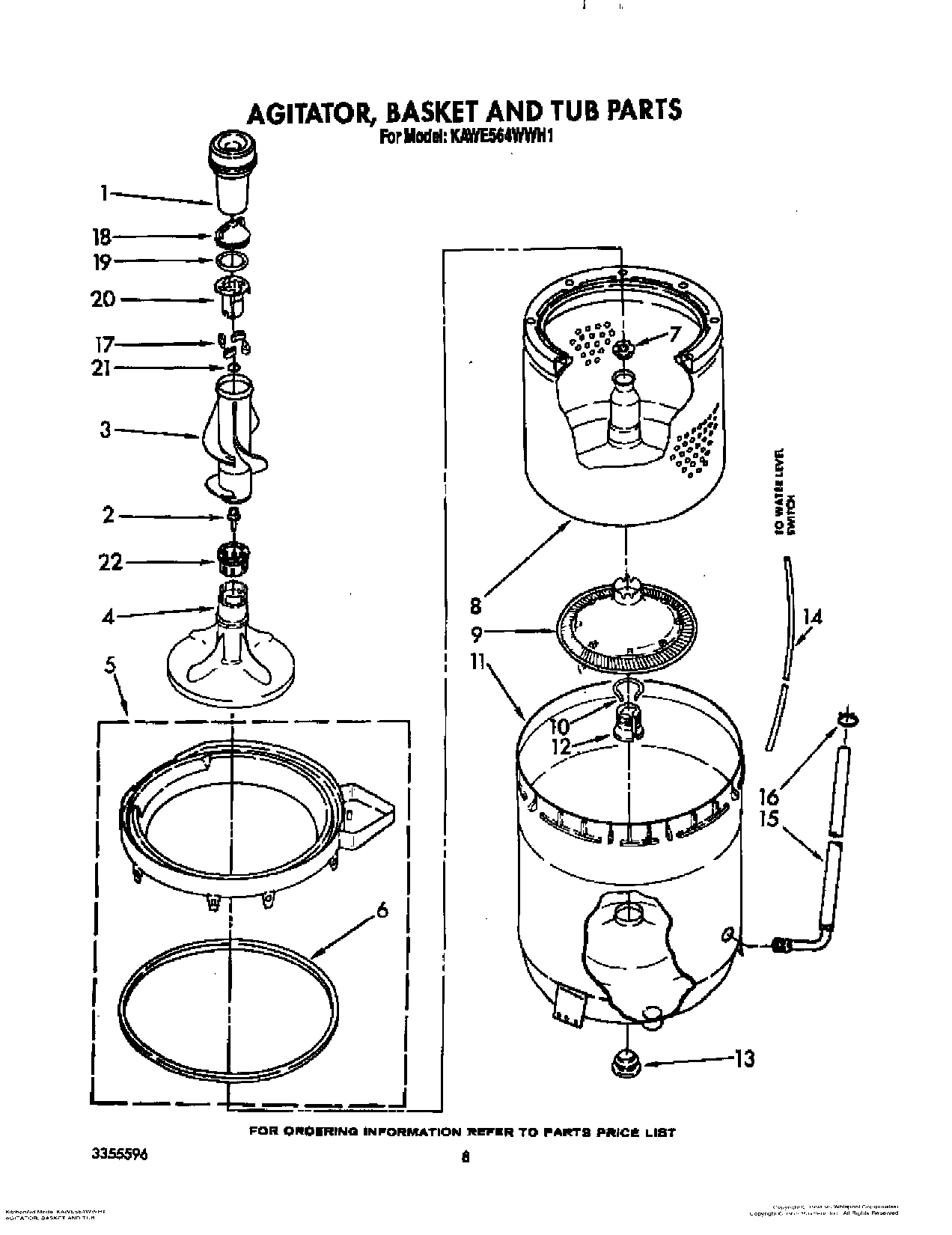

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

8

Connector, Temp. Switch WPL 3347243 Contact Us For Availability

8

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

9

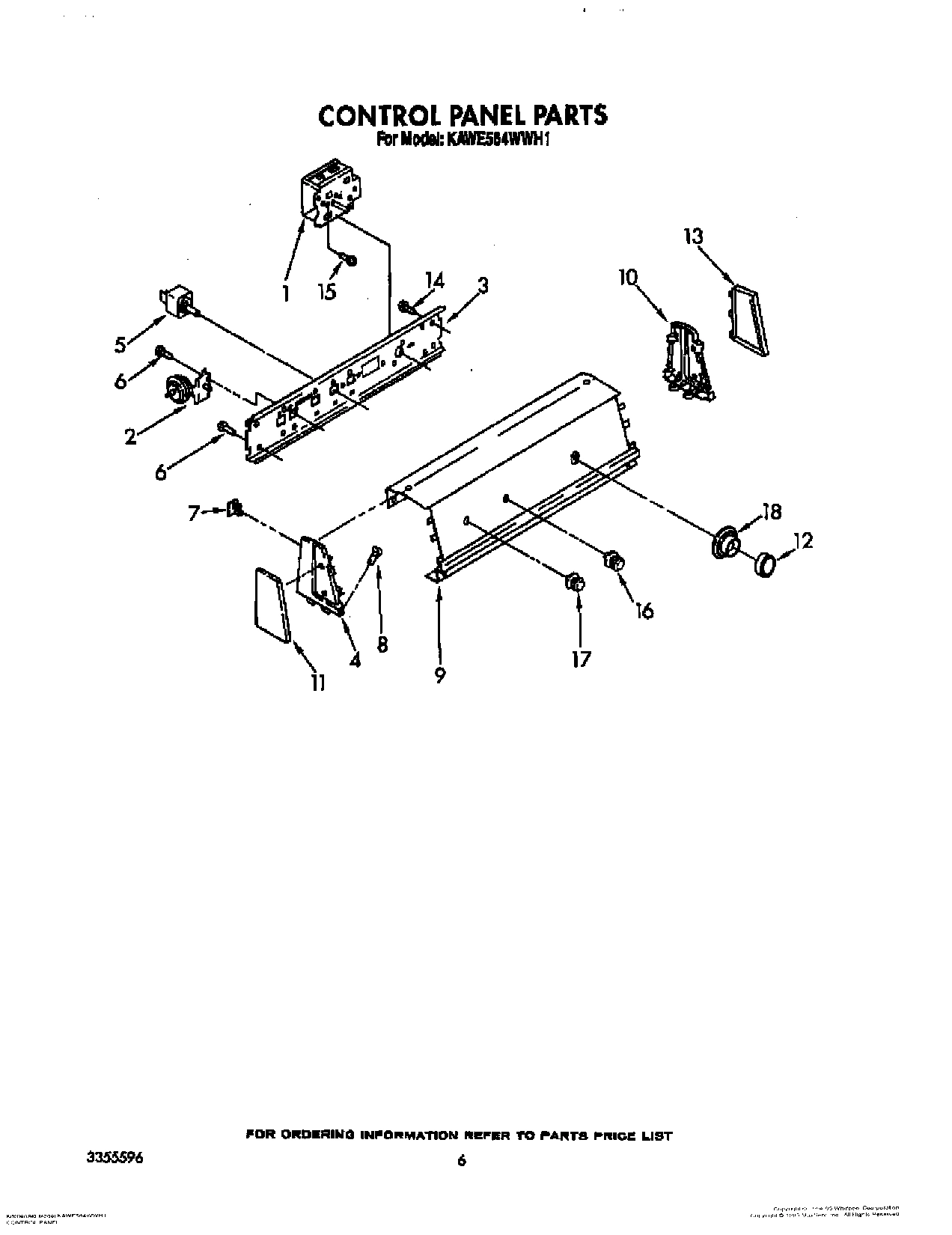

Console, Panel WPL 3353416 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Terminal, Female WPL 352088 Contact Us For Availability

Lock, Filter WPL 62942 Contact Us For Availability

Cap, End (R.H.) WPL 3354646 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

Protector, Harness WPL 63523 Contact Us For Availability

Spring, Brake WPL 387806 Contact Us For Availability

Trim, Endcap (L.H.) WPL 3353685 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Knob, Timer WPL 3349233 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Clip, Harness WPL 62749 Contact Us For Availability

Trim, Endcap (R.H.) WPL 3353678 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 62734 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

Shaft, Agitator WPL 389231 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Knob, Water Level WPL 3354668 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Dial, Timer WPL 3349244 Contact Us For Availability

Lid (White) WPL 3350788 Contact Us For Availability

Lid (Almond) WPL 3350789 Contact Us For Availability

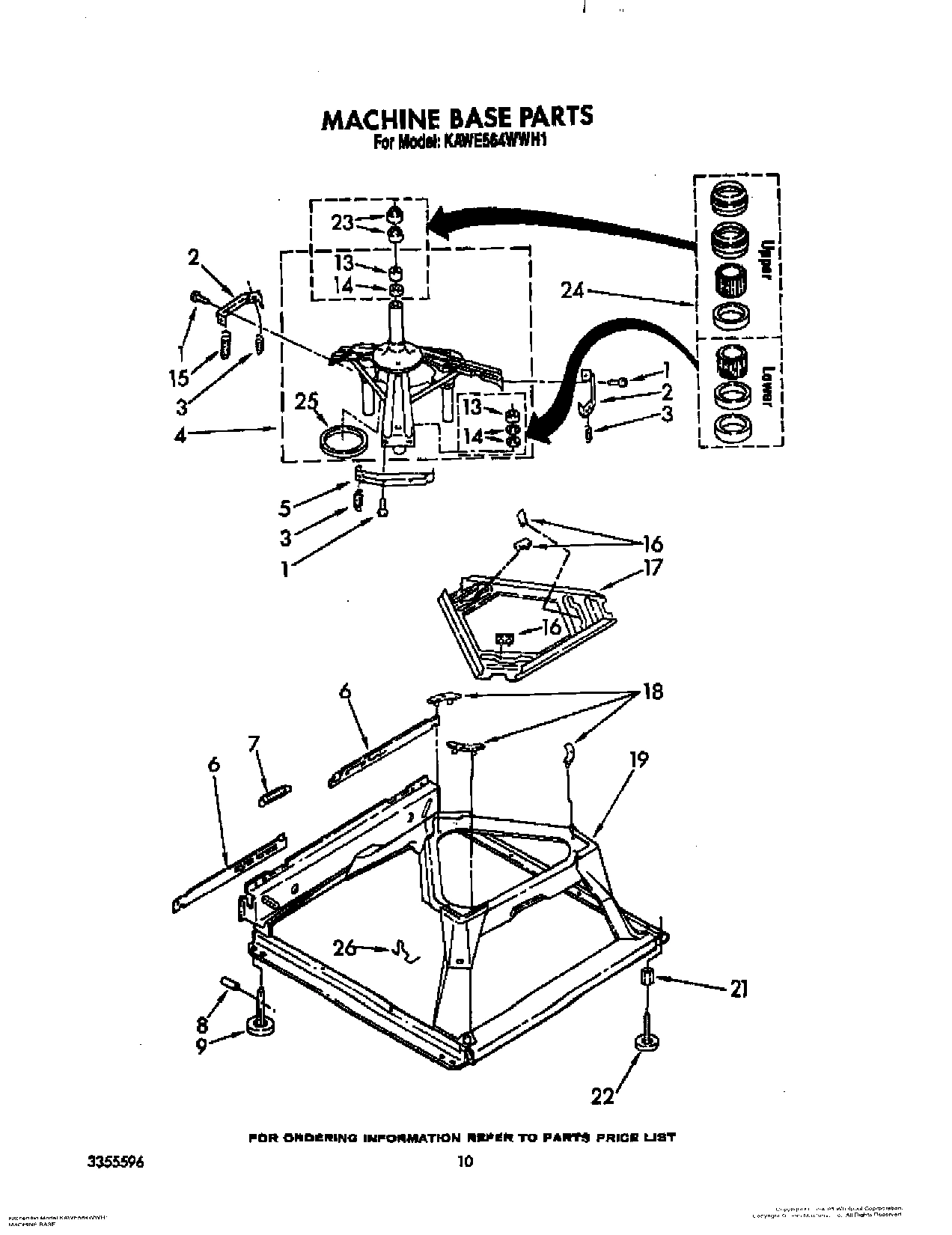

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3352259 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

20

Gear, Main Drive WPL 62528 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

Seal, Agitator WPL 357574 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

BUMPER WPL 356908 Contact Us For Availability

23

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

23

Ring, Retaining WPL 95082 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

Hose, Pump To Drain Connector WPL 3352515 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

34

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

36

Sound-Damper (Cabinet) WPL 3349654 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

54

Wire, Ground WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

Sheild, Suds WPL 3348424 Contact Us For Availability

57

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

58

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

59

Retainer, Wire WPL 3350222 Contact Us For Availability

60

Clip, Harness WPL 62732 Contact Us For Availability

61

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21
