Model Alliance JSGJEAGW303EW01 Dryer – Common Parts & Diagrams

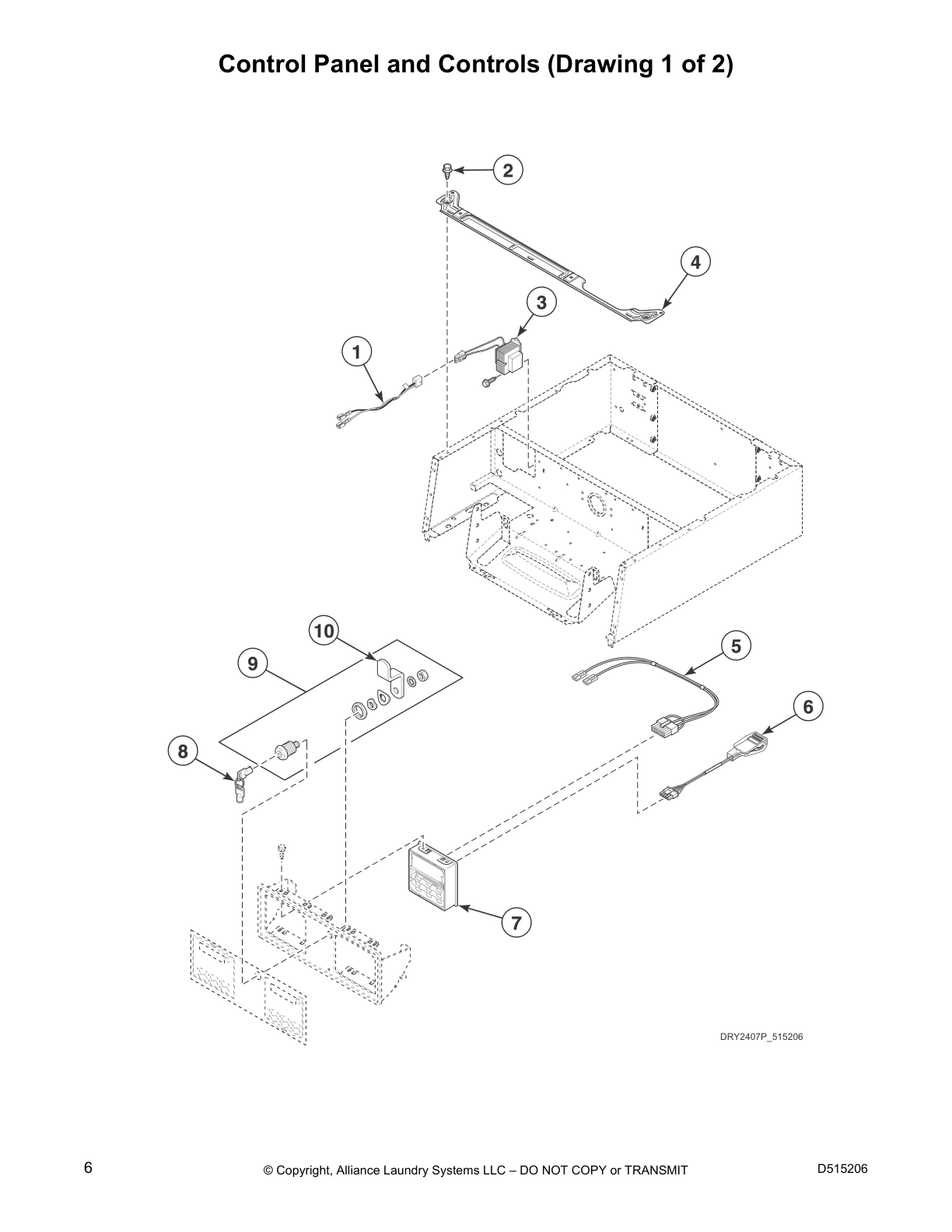

Control Panel and Controls (Drawing 1 of 2)

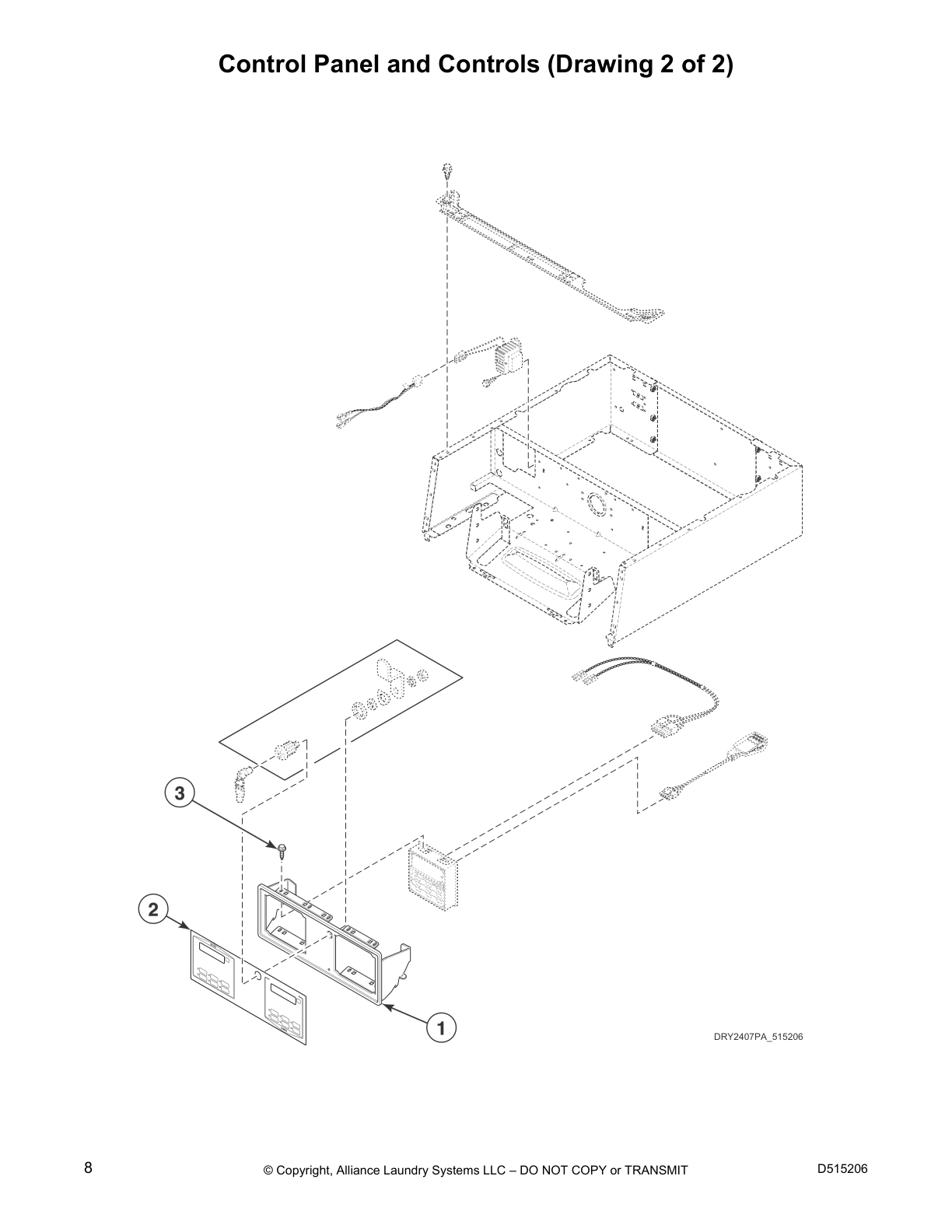

Control Panel and Controls (Drawing 2 of 2)
Network Board Assembly
Control Cabinet Controls - Coin Drop Models
Control Cabinet - Card Reader Ready and Non-Vend Models
Loading Door with Window (Drawing 1 of 2)
Loading Door with Window (Drawing 2 of 2)
Loading Door With Window - Through Serial Nos. Beginning 1707
Loading Door With Window - Starting Serial Nos. Beginning 1707
Loading Door without Window
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt (Drawing 1 of 2)
Motor, Exhaust Fan and Belt (Drawing 2 of 2)
Blower Housing
Front Bulkhead, Felt Seal and Cylinder
Air Duct
Lint Filter
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly - Gas Models
Gas Valve, Igniter and Gas Conversion Kits (Drawing 1 of 2)
Gas Valve, Igniter and Gas Conversion Kits (Drawing 2 of 2)
Gas Valve Through Serial No. 1908000001
Gas Valve Starting Serial No. 1908000001
Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base
Contactor and Transformer
Ignition Control Module
Cabinet Top
Power Cord
Junction Box
Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Gas Models
Wire Harnesses and Wires - Electric Models
Common parts from model Alliance JSGJEAGW303EW01 Dryer
× ![]()
