Model GE JGBS86SP1SS Gas Range Or Dual Fuel – Common Parts & Diagrams

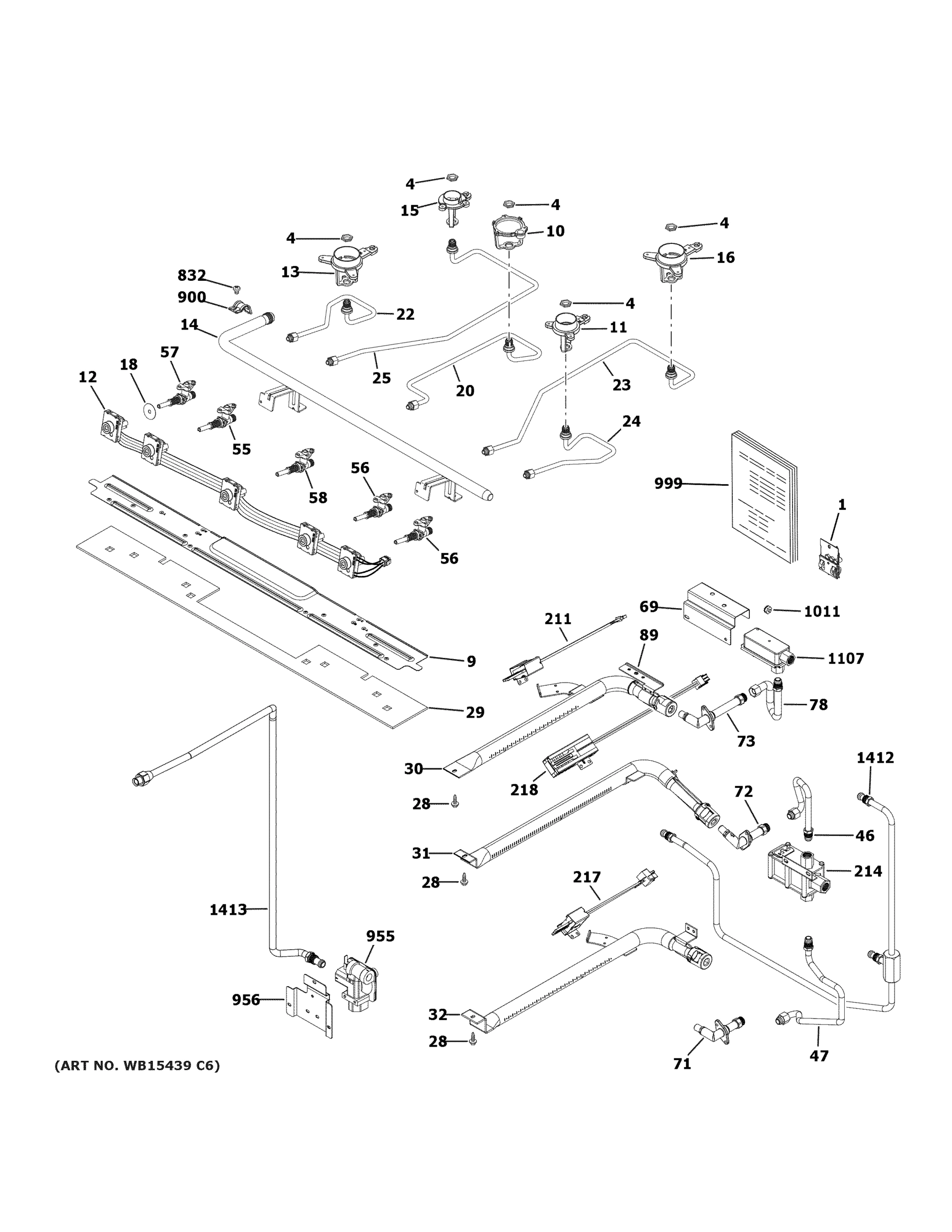

GAS & BURNER PARTS

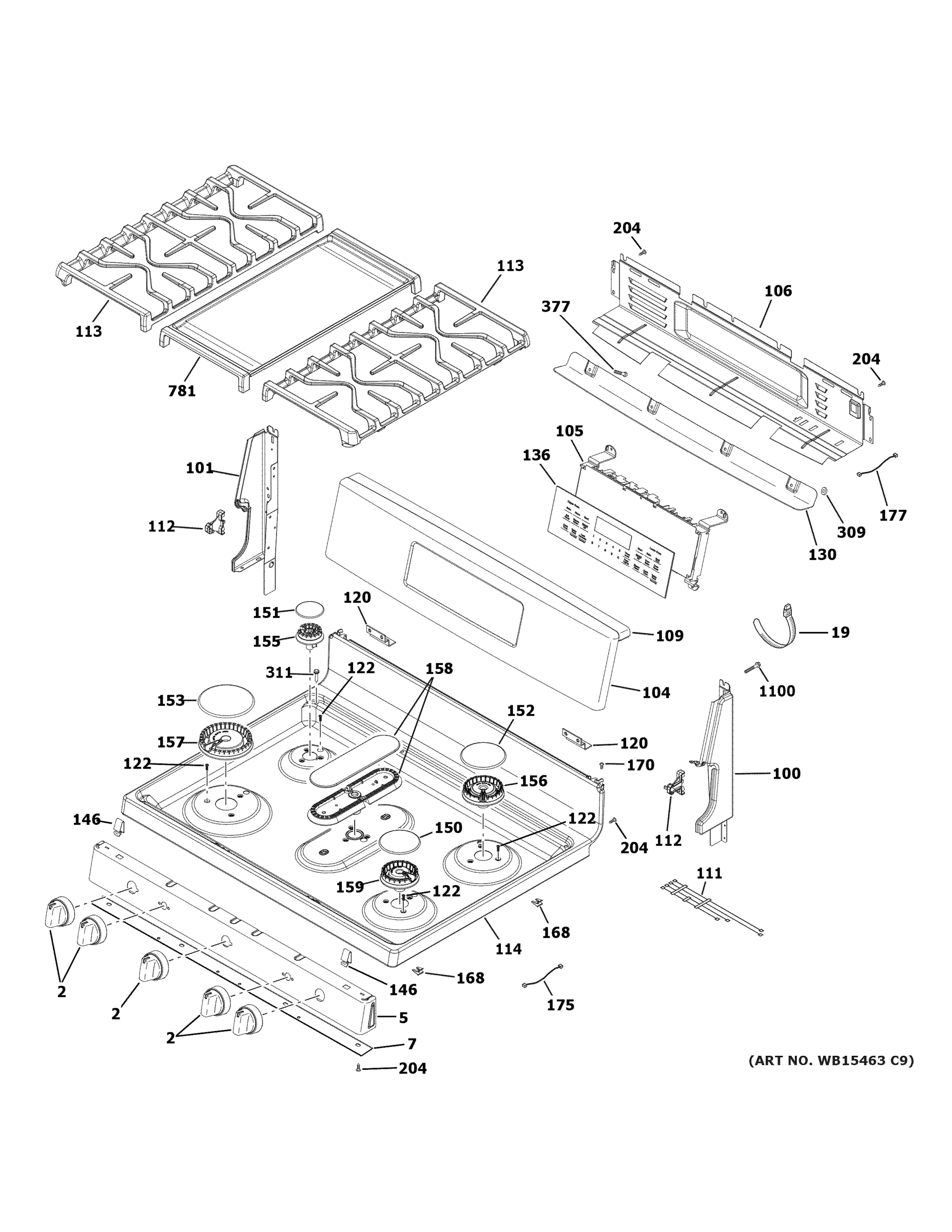

CONTROL PANEL & COOKTOP
BODY PARTS
UPPER OVEN
LOWER OVEN
UPPER DOOR
LOWER DOOR
CONVECTION FAN
Common parts from model GE JGBS86SP1SS Gas Range Or Dual Fuel
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
10
CKT BRACKET SMALL GEN WB02K10360 Contact Us For Availability
11
INJET, MEDIUM V2 GEN WB02X24727 Contact Us For Availability
12
HARNESS SWITCH GEN WB18X27596 Contact Us For Availability
13
INJET, XL V2 GEN WB02X24725 Contact Us For Availability
14
MANIFOLD PIPE GEN WB28X24765 Contact Us For Availability
15
INJET, SMALL V2 GEN WB02X24728 Contact Us For Availability
16
INJET, LARGE V2 GEN WB02X24726 Contact Us For Availability
20
ORIFICE HOLDER CENTRAL GEN WB28X24762 Contact Us For Availability
22
ORIFICE HOLDER LF GEN WB28X26621 Contact Us For Availability
23
ORIFICE HOLDER LF GEN WB28X24764 Contact Us For Availability
24
ORIFICE HOLDER LR GEN WB28X24766 Contact Us For Availability
25
ORIFICE HOLDER RR GEN WB28X24763 Contact Us For Availability
30
BURNER BAKE GEN WB16X28249 Contact Us For Availability
31
BURNER BROIL GEN WB16X28251 Contact Us For Availability
32
BURNER BAKE GEN WB16X28670 Contact Us For Availability
35
SPACER BASE FRONT GEN WB16X20448 Contact Us For Availability
39
BRACKET HANDLE GEN WB02X20520 Contact Us For Availability
43
SENSOR ASM GEN WB24X25557 Contact Us For Availability
44
COVER SHUTTER GEN WB34X20526 Contact Us For Availability
46
TUBE VALVE SAFETY GEN WB28X28164 Contact Us For Availability
47
TUBE LOWER BAKE SUPPLY GEN WB28X28152 Contact Us For Availability
55
VALVE BURNER 270 GEN WB21X20261 Contact Us For Availability
56
VALVE BURNER 270 GEN WB21X20260 Contact Us For Availability
57
VALVE BURNER 270 GEN WB21X20262 Contact Us For Availability
58
VALVE BURNER 270 GEN WB21X20394 Contact Us For Availability
71
ELBOW 90 ASM GEN WB28X20451 Contact Us For Availability
72
ELBOW 90 ASM GEN WB28X28696 Contact Us For Availability
73
ELBOW 90 ASM GEN WB28X28695 Contact Us For Availability
78
TUBE UPPER BAKE SUPPLY GEN WB28X28163 Contact Us For Availability
90
FRAME FRONT BUMPER GEN WB02X28738 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
93
FRAME FRONT BUMPER GEN WB02X28737 Contact Us For Availability
100
END SUPPORT DD RH GEN WB07X29143 Contact Us For Availability
101
END SUPPORT DD LH GEN WB07X29144 Contact Us For Availability
106
COVER BACK UPPER GEN WB34X24915 Contact Us For Availability
109
TOP COMPLEMENT BACKGUARD DD GEN WB34X29145 Contact Us For Availability
110
IGNITION MODULE GEN WB13X24741 Contact Us For Availability
111
ELECTRODES & HARNESS H.V. GEN WB18X26985 Contact Us For Availability
112
HINGE RANGE TOP GEN WB14K10003 Contact Us For Availability
113
GRATE ASM GEN WB31X24736 Contact Us For Availability
114
RANGETOP & BRKT ASM GEN WB62X24822 Contact Us For Availability
122
CKT SCREW GEN WB01X24735 Contact Us For Availability
130
BACKGUARD EYEBROW GEN WB34X25717 Contact Us For Availability
143
SENSOR ASM GEN WB24X25056 Contact Us For Availability
146
CLIP RANGETOP GEN WB02X26569 Contact Us For Availability
150
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
151
ASM. CAP, BURNER SMALL V2 GEN WB16X28654 Contact Us For Availability
152
ASM BURNER CAP (12000) GEN WB29K10024 Contact Us For Availability
153
CAP BURNER ASM (15K) GEN WB28K10222 Contact Us For Availability
155
BURNER, SMALL V2 GEN WB16X24721 Contact Us For Availability
156
BURNER, LARGE V2 GEN WB16X24723 Contact Us For Availability
157
BURNER, XL V2 GEN WB16X24722 Contact Us For Availability
158
OVAL BURNER ASM GEN WB16K10076 Contact Us For Availability
159
BURNER, MEDIUM V2 GEN WB16X24724 Contact Us For Availability
168
CLIP, IGNITER V2 GEN WB02X24976 Contact Us For Availability
175
HARNESS GROUND GEN WB18X24748 Contact Us For Availability
200
OVEN RACK GEN WB48X20249 Contact Us For Availability
203
LINE CORD GEN WB18X28855 Contact Us For Availability
204
SCR 8-18 AB X 5/16S GEN WB01X26995 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
209
PANEL SIDE GEN WB56X29670 Contact Us For Availability
210
BOTTOM OVEN GEN WB34X24912 Contact Us For Availability
211
IGNITER GLOWBAR GEN WB13X25633 Contact Us For Availability
214
SAFETY VALVE DUAL GEN WB21X28835 Contact Us For Availability
215
GASKET OVEN LOWER CAVITY GEN WB32X29538 Contact Us For Availability
216
GASKET OVEN GEN WB32K10047 Contact Us For Availability
217
IGNITER GLOWBAR GEN WB28X28781 Contact Us For Availability
218
IGNITER GLOWBAR GEN WB28X28780 Contact Us For Availability
222
HINGE DOOR GEN WB10X26766 Contact Us For Availability
233
PLUNGER SWITCH GEN WB24X27550 Contact Us For Availability
238
SPACER BASE REAR GEN WB16X20449 Contact Us For Availability
242
SUPPORT BASE RT GEN WB63X25481 Contact Us For Availability
243
SUPPORT BASE LT GEN WB63X25480 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
248
DEFLECTOR GEN WB34X29028 Contact Us For Availability
265
RECEIVER HINGE RH GEN WB10X29635 Contact Us For Availability
266
RECEIVER HINGE LH GEN WB10X29636 Contact Us For Availability
277
GASKET OVEN LIGHT GEN WB32K10044 Contact Us For Availability
292
CONVECTION ELEMENT GEN WB44X10051 Contact Us For Availability
311
BUMPER GEN WB02X24790 Contact Us For Availability
314
GLASS PANEL DOOR ASM GEN WB56X24968 Contact Us For Availability
315
LINER DOOR WELD ASSEMBLY GEN WB56X24931 Contact Us For Availability
316
LINER DOOR ASSEMBLY GEN WB34X28839 Contact Us For Availability
321
CRYSTAL WINDOW GEN WB57K10156 Contact Us For Availability
332
INSULATION DOOR GEN WB34X21727 Contact Us For Availability
333
INSULATION DOOR GEN WB34X21726 Contact Us For Availability
334
INSULATION DOOR GEN WB34X21728 Contact Us For Availability
338
CRYSTAL WINDOW GEN WB57K10155 Contact Us For Availability
360
GASKET DRAWER ASM GEN WB35X25645 Contact Us For Availability
365
STAINLESS STEEL HANDLE GEN WB15X35050 Contact Us For Availability
400
FRAME WINDOW ASSY GEN WB34X28741 Contact Us For Availability
601
TOP COVER ASM. DD GEN WB56X29146 Contact Us For Availability
659
CORD FIBER GLASS GEN WB35X21685 Contact Us For Availability
720
FAN COVER GEN WB34X28701 Contact Us For Availability
723
FAN INSULATION GEN WB35K10013 Contact Us For Availability
724
FAN SUPPORT GEN WB02K10034 Contact Us For Availability
726
FAN MOTOR CONVECT GEN WB26X28953 Contact Us For Availability
729
NUT GEN WB02T10017 Contact Us For Availability
832
SCREW THERMOSTAT GEN WB01K10080 Contact Us For Availability
900
BRACKET VALVE GEN WB02K10297 Contact Us For Availability
955
PRESSURE REGULATOR GEN WB19K10077 Contact Us For Availability
963
SCR 10-16 AB TRW20 1/2 GEN WB01K10116 Contact Us For Availability
1107
SAFETY VALVE SINGLE GEN WB21X28836 Contact Us For Availability
1150
PANEL SIDE FOIL GEN WB35X26892 Contact Us For Availability
1412
TUBE OVEN SUPPLY GEN WB28X28159 Contact Us For Availability
2000
BADGE ASM GEN WB02X29479 Contact Us For Availability
× ![]()
