Model Maytag JFD2589KES2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

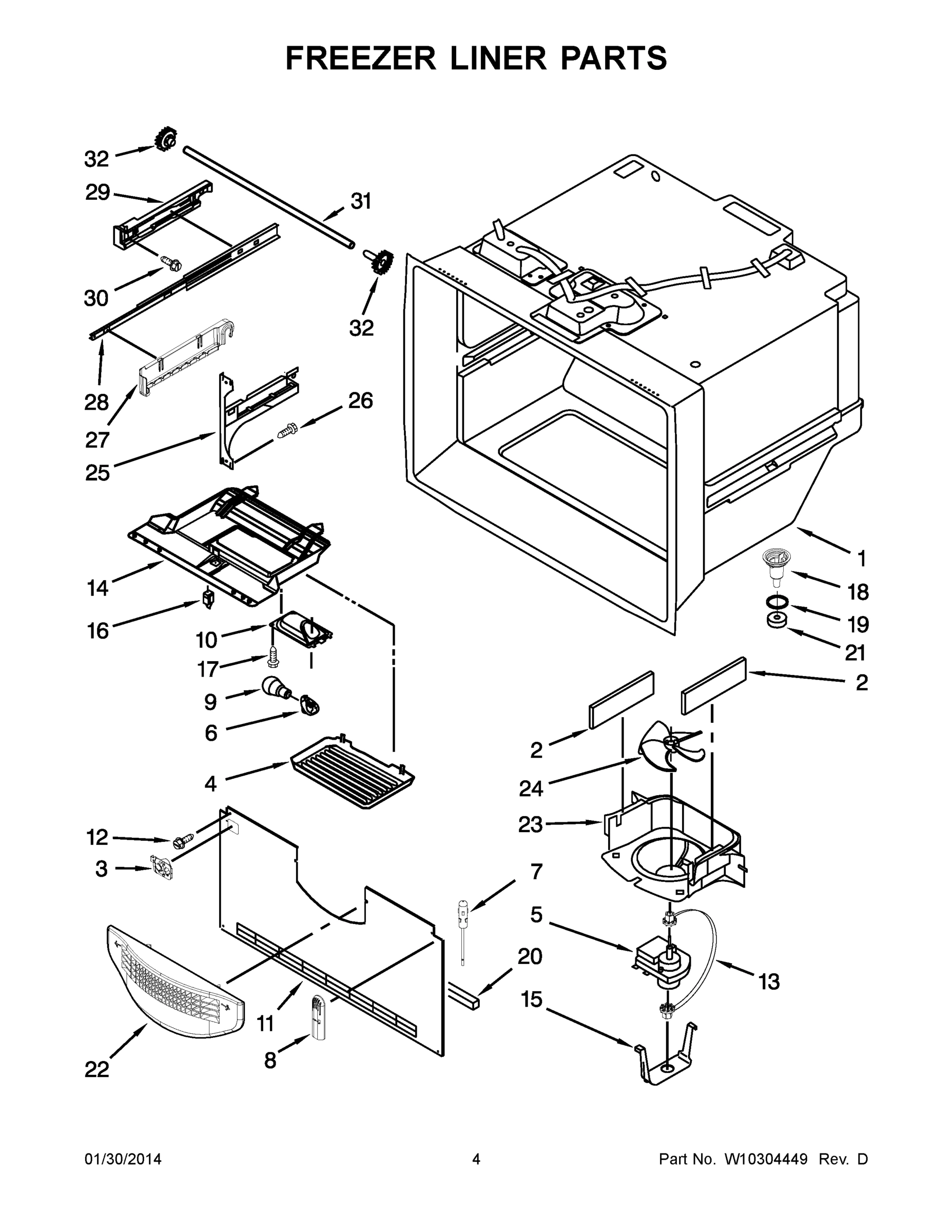

03 - FREEZER LINER PARTS

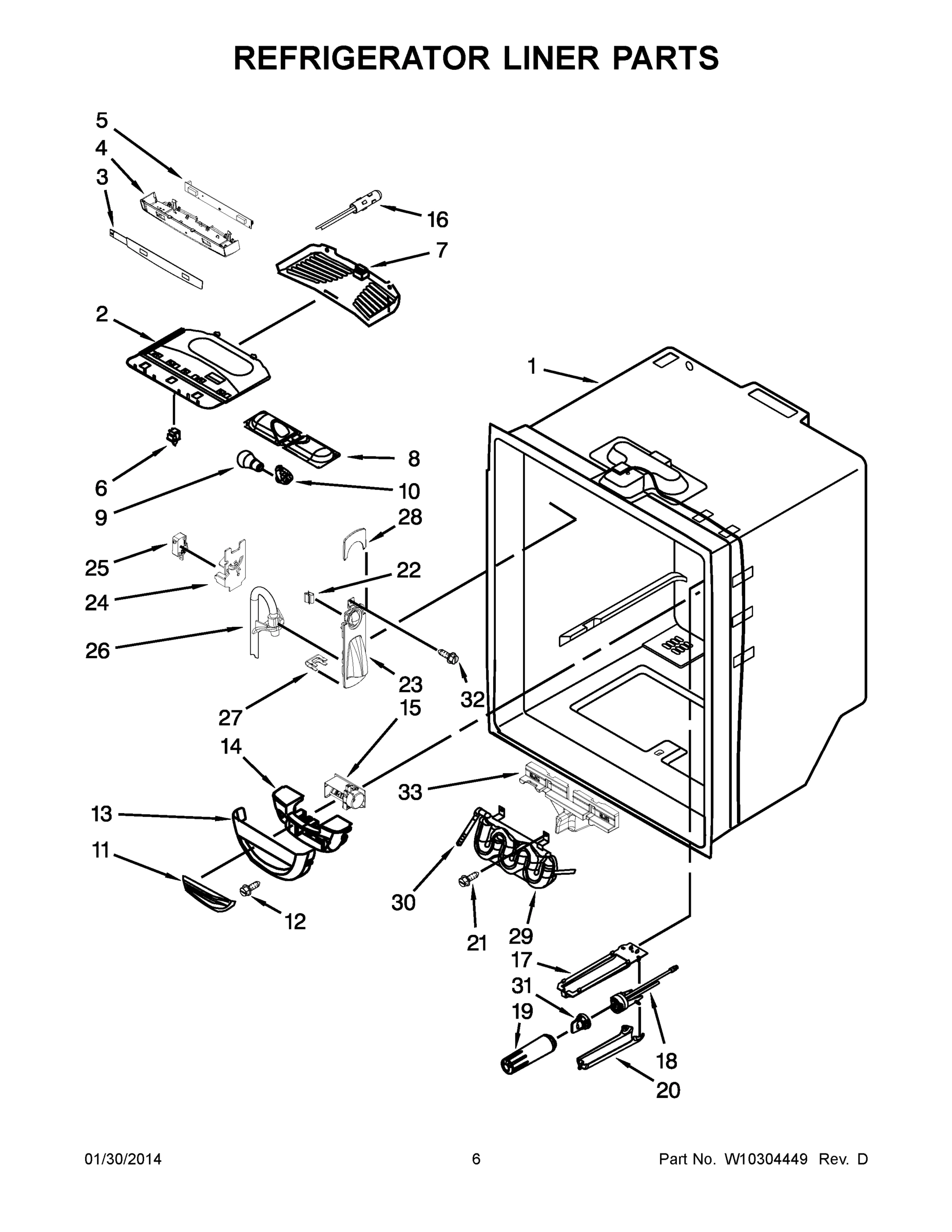

04 - REFRIGERATOR LINER PARTS

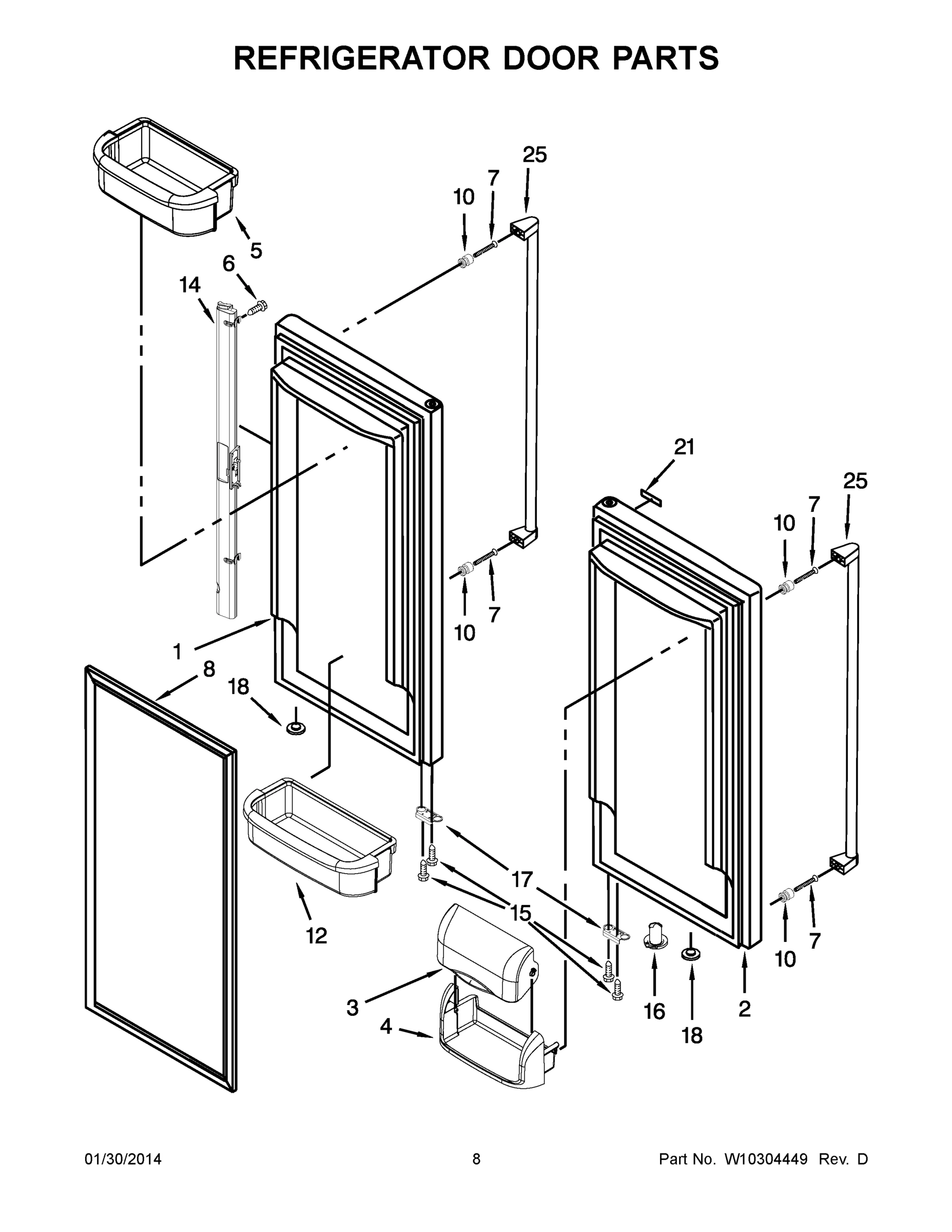

05 - REFRIGERATOR DOOR PARTS

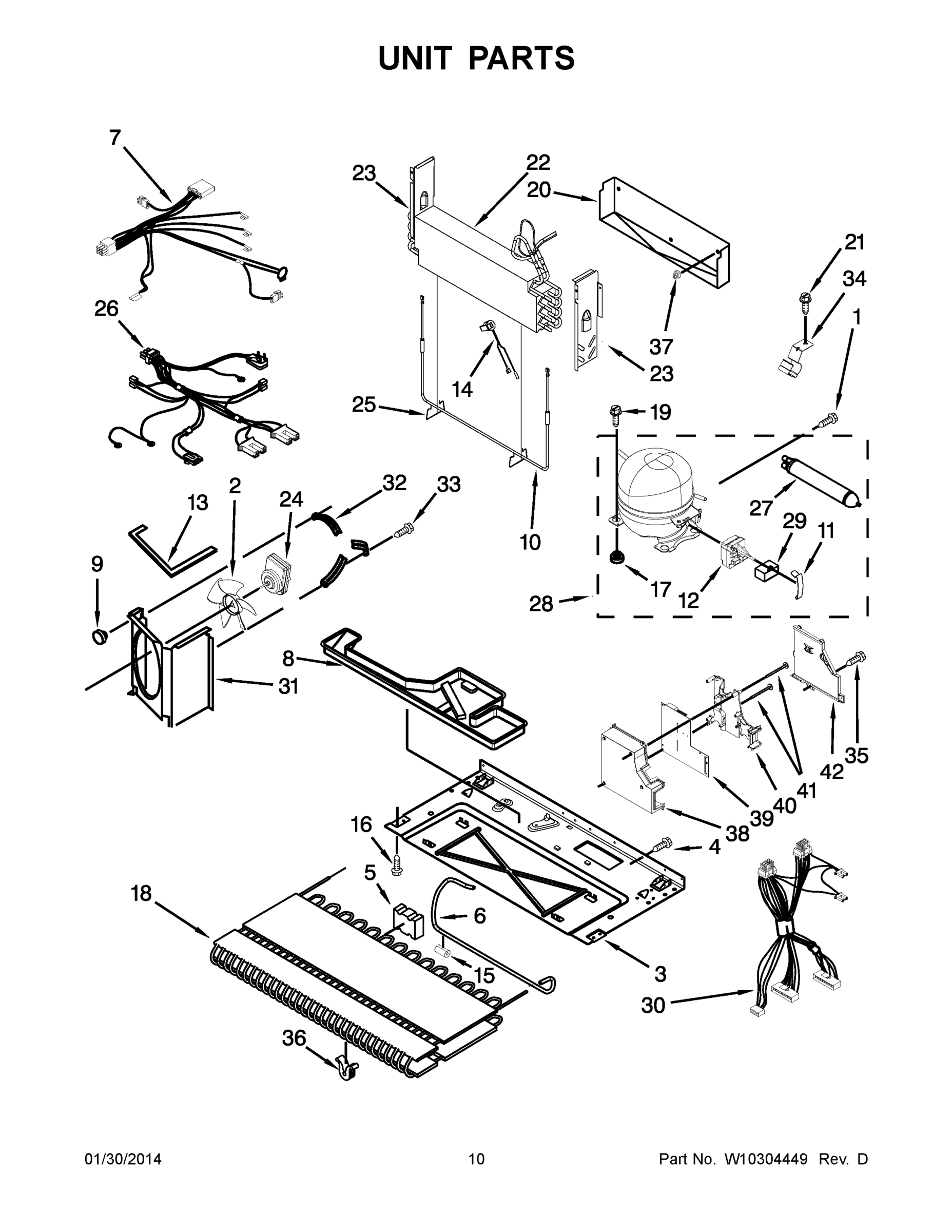

06 - UNIT PARTS

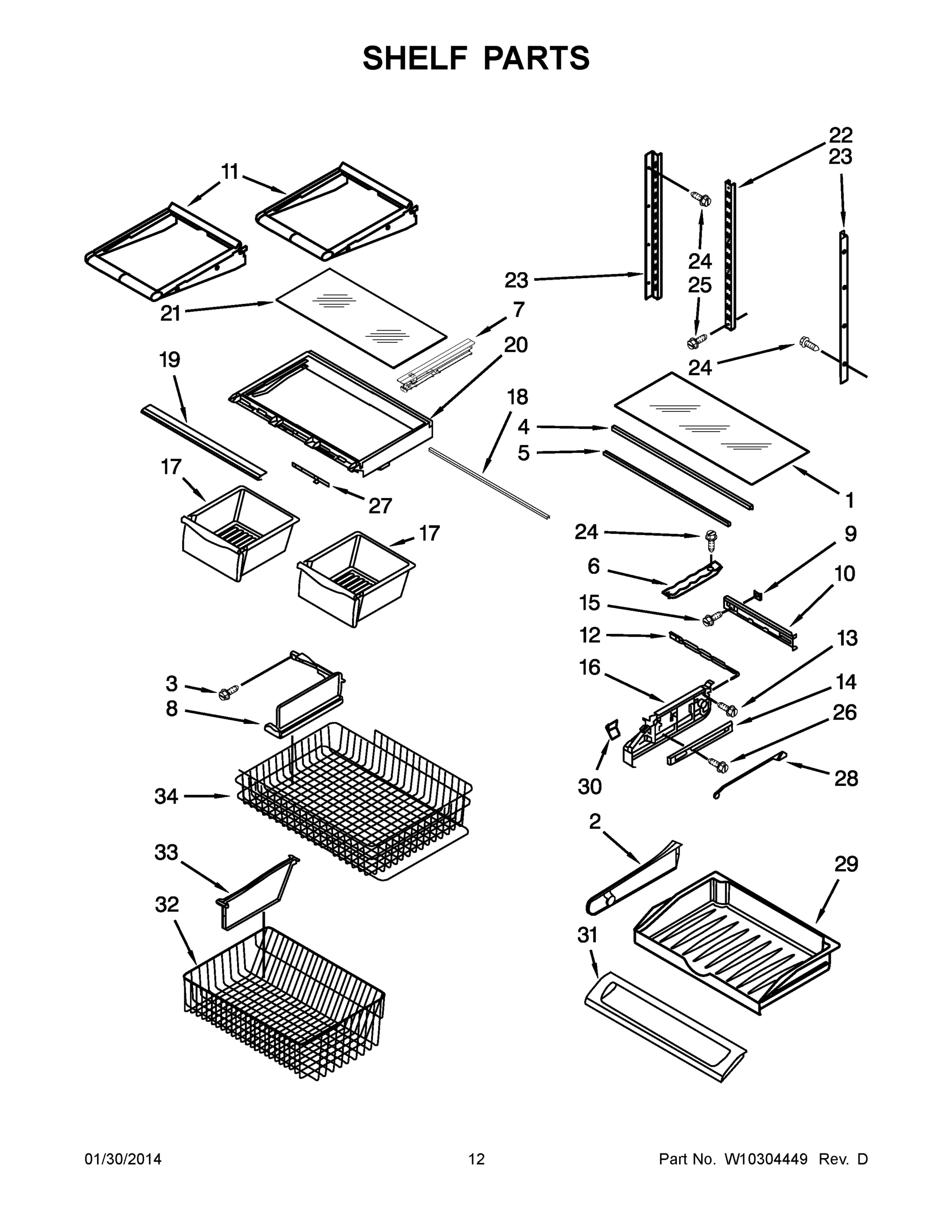

07 - SHELF PARTS

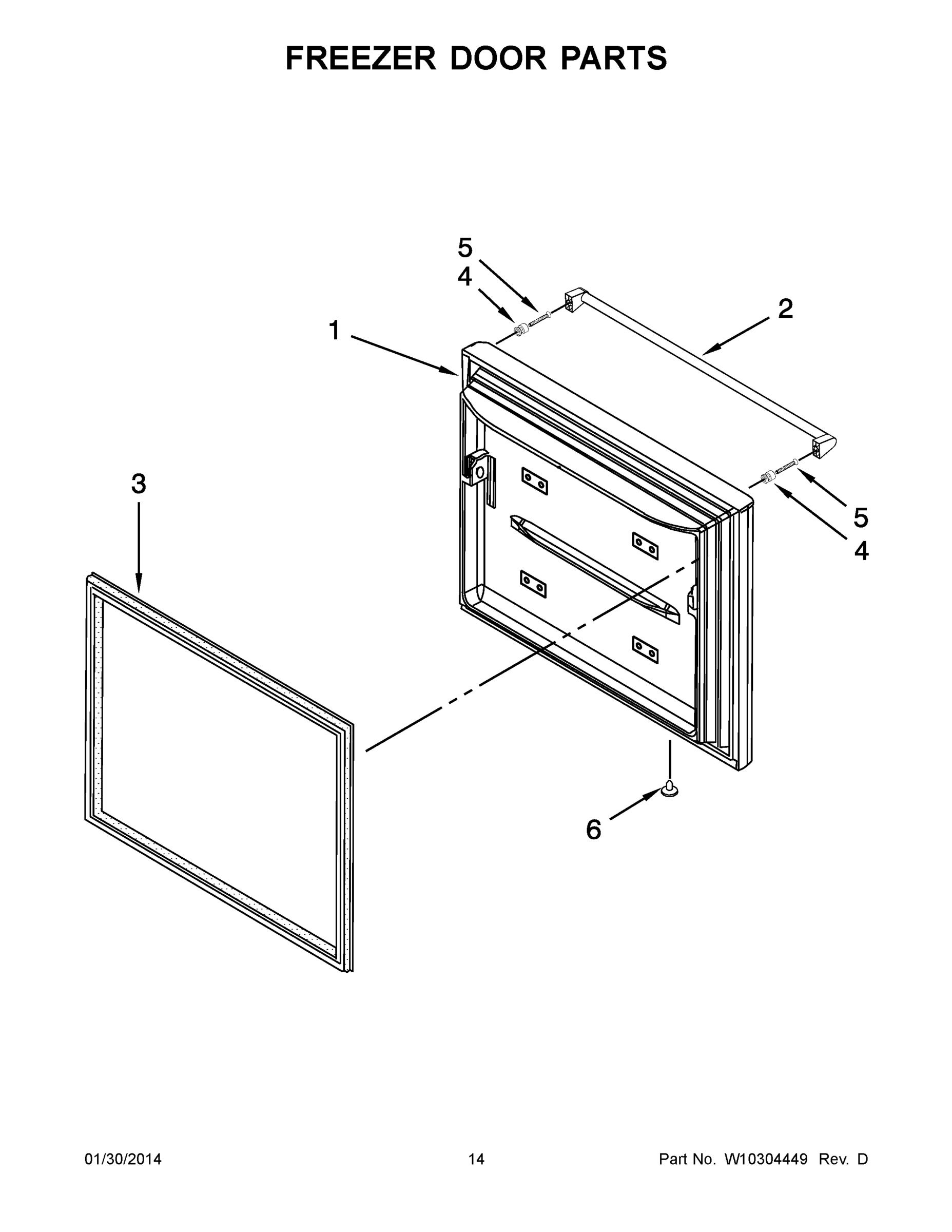

08 - FREEZER DOOR PARTS

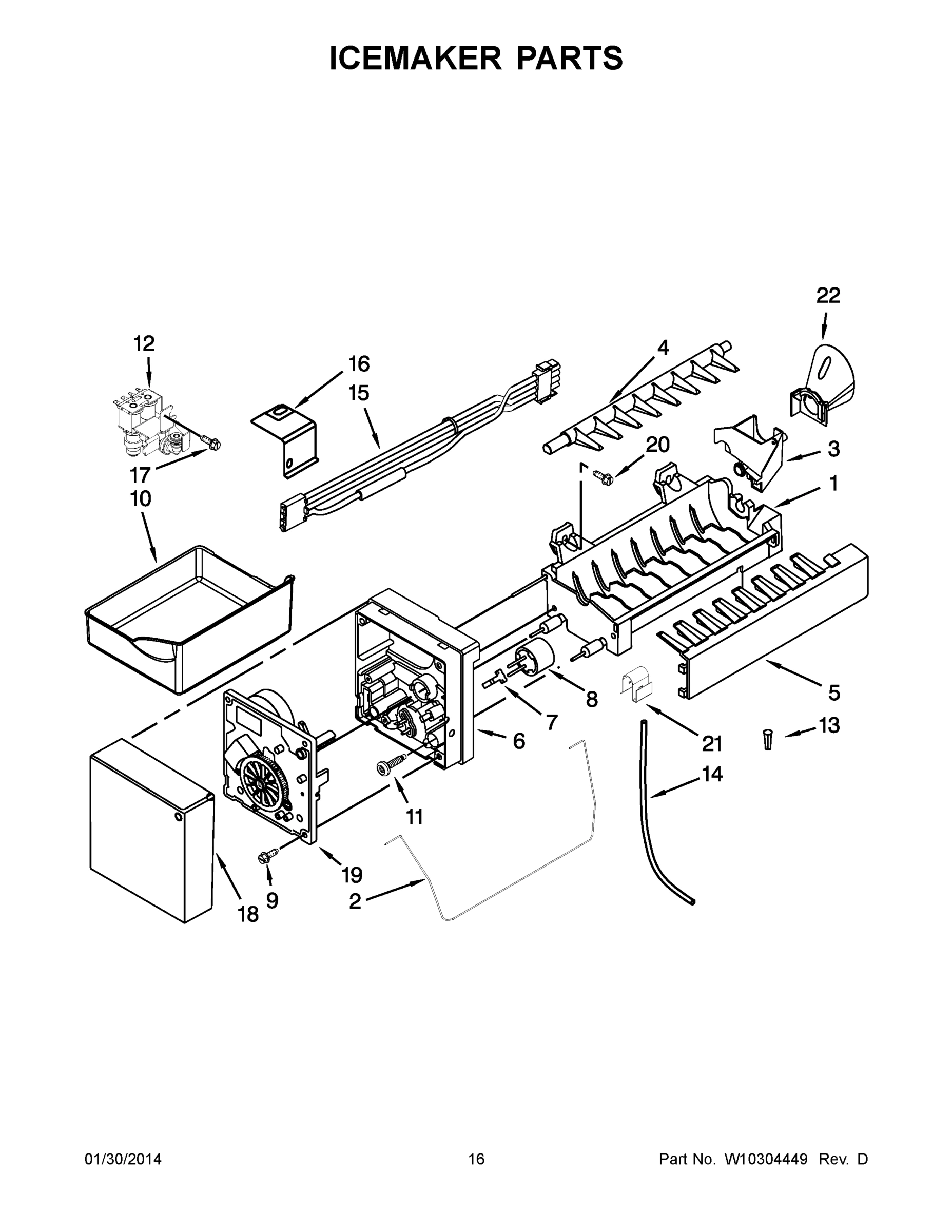

09 - ICEMAKER PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JFD2589KES2 REFRIGERATOR
1
MAY 67002761 MAY 67002761 Contact Us For Availability
1
DOOR, LEFT (STAINLESS (JFD2589KES12)) MAY 13024033SQ Contact Us For Availability
1
DOOR, LEFT (STAINLESS (JFD2589KEP12)) MAY 13024038SQ Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
1
DOOR, FREEZER STAINLESS MAY 13092213SQ Contact Us For Availability
1
ASSEMBLY, MOLD AND HEATER MAY W10122527 Contact Us For Availability
2
MAY 67004078 MAY 67004078 Contact Us For Availability
2
DOOR, RIGHT (STAINLESS (JFD2589KES12)) MAY 13024031SQ Contact Us For Availability
2
DOOR, RIGHT (STAINLESS (JFD2589KEP12)) MAY 13024037SQ Contact Us For Availability
2
BLADE, CONDENSER FAN MAY W10162928 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS (JFD2589KES12)) MAY 12850909 Contact Us For Availability
3
PAN, BASE MAY 67005889 Contact Us For Availability
3
MAY 67006608 MAY 67006608 Contact Us For Availability
3
MAY W10131754 MAY W10131754 Contact Us For Availability
3
CUP, WATER FILL MAY 628515 Contact Us For Availability
4
MAY 67006109 MAY 67006109 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
5
CONTROL, ELECTRONIC (UTAH) MAY 67005397 Contact Us For Availability
5
SCREW, HANDLE MAY W10133608 Contact Us For Availability
5
MAY 67005491 MAY 67005491 Contact Us For Availability
5
STRIPPER, ICE MAY 2182124 Contact Us For Availability
6
MAY C3680310 MAY C3680310 Contact Us For Availability
6
MAY 67006786 MAY 67006786 Contact Us For Availability
6
MAY 67004700 MAY 67004700 Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
7
HARNESS, EVAPORATOR HEATER MAY W10119857 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
8
Gasket, Door (Black) MAY 12723206B Contact Us For Availability
8
DIVIDER, BASKET (UPPER) MAY 67004127 Contact Us For Availability
8
THERMOSTAT MAY 627985 Contact Us For Availability
9
GROMMET, BRACKET MAY 61004743 Contact Us For Availability
9
MAY 489464 MAY 489464 Contact Us For Availability
10
Housing, Freezer Light MAY 67001035 Contact Us For Availability
10
MAY Y12570701 MAY Y12570701 Contact Us For Availability
10
MAY 67005625 MAY 67005625 Contact Us For Availability
11
MAY 67007052 MAY 67007052 Contact Us For Availability
11
SHELF, GLIDE MAY 12654609 Contact Us For Availability
11
MAY 8533917 MAY 8533917 Contact Us For Availability
12
MAY 67006602 MAY 67006602 Contact Us For Availability
12
Slide, Pantry MAY 67003793 Contact Us For Availability
13
MAY 67006415 MAY 67006415 Contact Us For Availability
13
MAY A3223101 MAY A3223101 Contact Us For Availability
14
INSULATION, DAMPER CONTROL MAY 67006604 Contact Us For Availability
14
BI-METAL, DEFROST MAY W10165425 Contact Us For Availability
14
GLIDE, DRAWER MAY 67007026 Contact Us For Availability
14
MAY 67003729 MAY 67003729 Contact Us For Availability
15
Control, Damper MAY W10127429 Contact Us For Availability
15
HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability
16
MAY 67006573 MAY 67006573 Contact Us For Availability
16
ENDCAP, PANTRY (RIGHT HAND) MAY 12656014 Contact Us For Availability
16
MAY 2256086 MAY 2256086 Contact Us For Availability
17
MAY 67006662 MAY 67006662 Contact Us For Availability
19
MAY W10336197 MAY W10336197 Contact Us For Availability
19
Screw MAY 67006432 Contact Us For Availability
19
Trim, Crisper MAY 12530643 Contact Us For Availability
19
ASSEMBLY, MODULE AND MOTOR MAY 626678 Contact Us For Availability
20
MAY 67002490 MAY 67002490 Contact Us For Availability
20
MAY 489276 MAY 489276 Contact Us For Availability
21
SCREW MAY 67006737 Contact Us For Availability
21
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
22
MAY B8390302 MAY B8390302 Contact Us For Availability
22
MAY 67005603 MAY 67005603 Contact Us For Availability
23
COVER MAY W10158503 Contact Us For Availability
23
DAM (LEFT HAND) MAY 67001083 Contact Us For Availability
23
DAM (RIGHT HAND) MAY 67001084 Contact Us For Availability
24
MAY 67006400 MAY 67006400 Contact Us For Availability
24
MOTOR, CONDENSER MAY 67004432 Contact Us For Availability
25
HANDLE, DOOR (STAINLESS (JFD2589KES12)) MAY 12850910 Contact Us For Availability
26
MAY 67003728 MAY 67003728 Contact Us For Availability
26
MAY 13060201 MAY 13060201 Contact Us For Availability
27
Drier MAY 2317845 Contact Us For Availability
27
MAY 67005864 MAY 67005864 Contact Us For Availability
28
COMPRESSOR KIT MAY 67005565 Contact Us For Availability
29
MAY W10153959 MAY W10153959 Contact Us For Availability
29
CAPACITOR WITH OVERLOAD RELAY MAY 67005562 Contact Us For Availability
31
MAY 12664501 MAY 12664501 Contact Us For Availability
31
Shroud, Condenser MAY W10158508 Contact Us For Availability
32
BRACKET, EVAPORATOR MOTOR MAY 67004953 Contact Us For Availability
33
MAY W10117358 MAY W10117358 Contact Us For Availability
33
MAY 67006644 MAY 67006644 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
SCREW MAY 67006615 Contact Us For Availability
36
MAY 67001066 MAY 67001066 Contact Us For Availability
36
MAY W10137529 MAY W10137529 Contact Us For Availability
37
MAY 10623002 MAY 10623002 Contact Us For Availability
38
MAY 67004969 MAY 67004969 Contact Us For Availability
39
BOARD, HV CONTROL MAY W10173398 Contact Us For Availability
40
MAY 67005418 MAY 67005418 Contact Us For Availability
41
SCREW MAY 67006550 Contact Us For Availability
42
MAY 67005421 MAY 67005421 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
HARNESS, FREEZER LIGHTS MAY 67006095 Contact Us For Availability
NI
HARNESS, REFRIGERATOR CONTROLS MAY 67005417 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MISCELLANEOUS, BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3`` MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24 MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
