Model Whirlpool JDTS3924SM0 – Common Parts & Diagrams

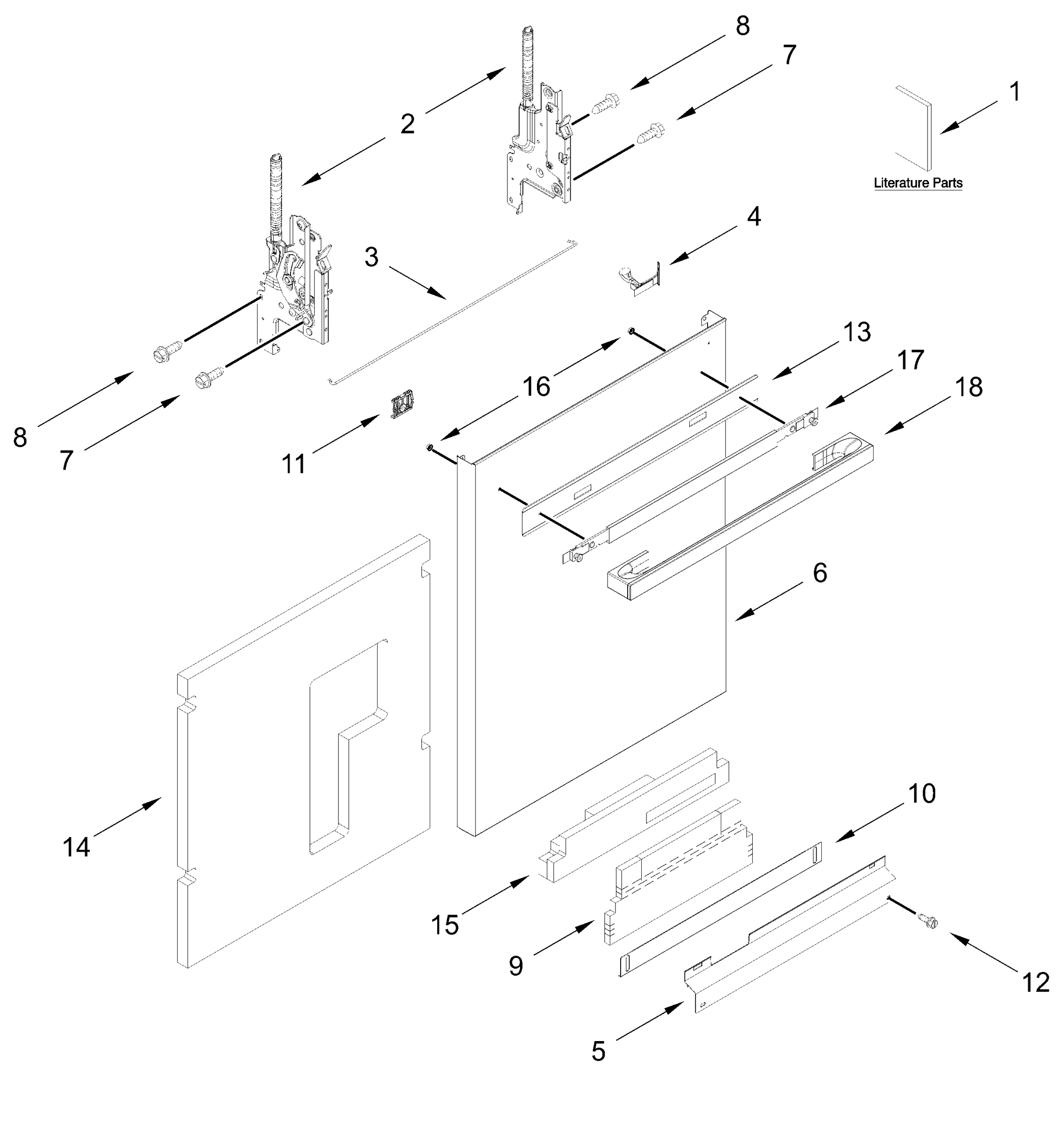

DOOR AND PANEL PARTS

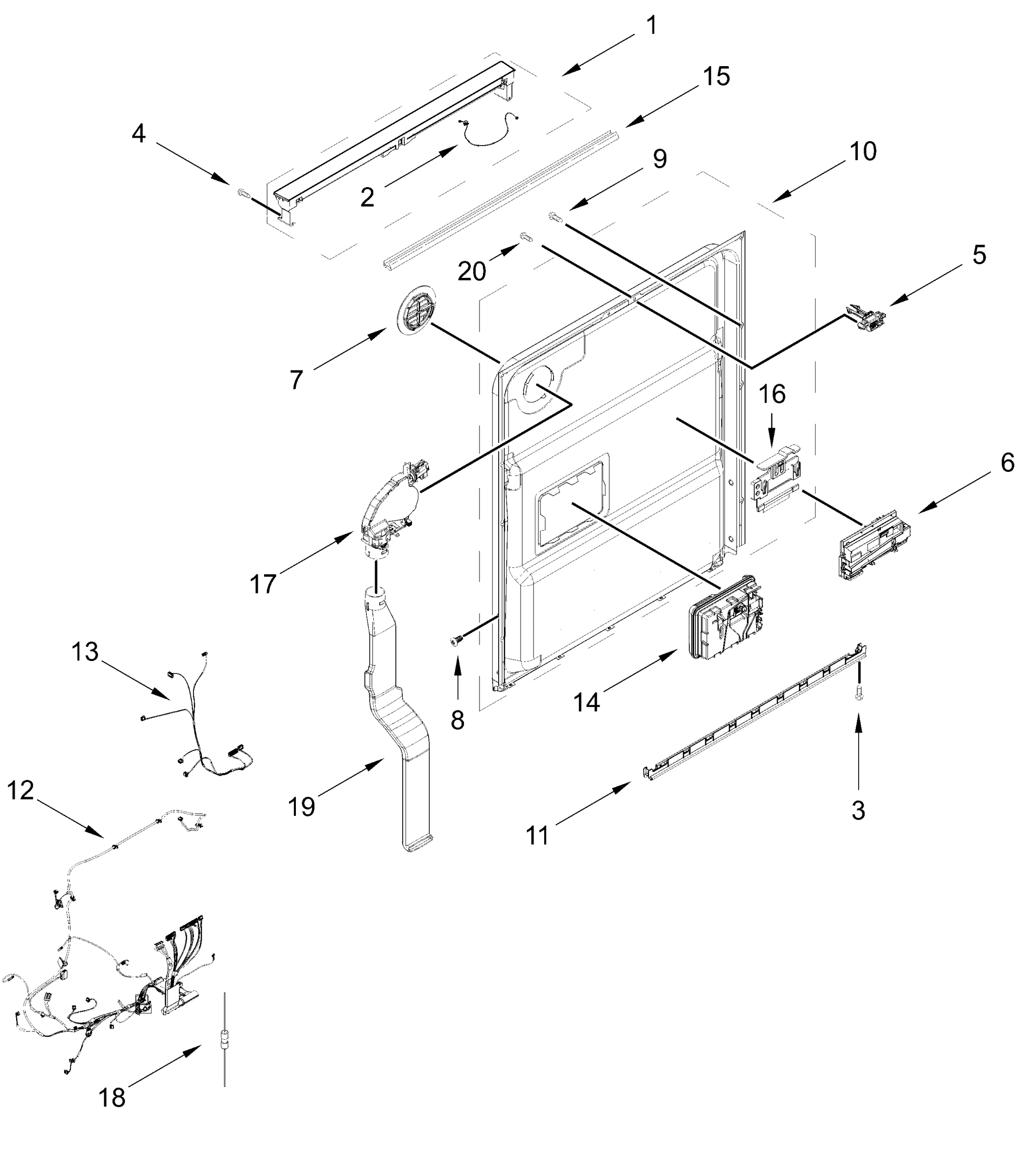

CONTROL PANEL AND INNER DOOR PARTS
TUB AND FRAME PARTS
PUMP, WASHARM AND MOTOR PARTS
UPPER WASH AND RINSE PARTS
UPPER RACK AND TRACK PARTS
LOWER RACK PARTS
THIRD LEVEL RACK AND TRACK PARTS
OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool JDTS3924SM0
Side Mount Kit WPL 8212560 Contact Us For Availability
Power Cord Kit (Included Cord & Misc. Hardwar WPL 4317824 Contact Us For Availability
Moisture Barrier Kit WPL 4396277 Contact Us For Availability
Floor Mount Kit WPL 8171477 Contact Us For Availability
Drain Hose Extension (12ft) WPL W10712310 Contact Us For Availability
Rack Adjuster (Right) WPL W11180153 Contact Us For Availability
Track, Assembly (Right) WPL W11212734 Contact Us For Availability
1
Console Cap (Black) WPL W11723006 Contact Us For Availability
1
Dishrack, Upper WPL W10847873 Contact Us For Availability
2
Base, Terminal Box WPL W11226744 Contact Us For Availability
2
Wheel & Transport Assembly WPL W11133746 Contact Us For Availability
2
Rack, Third Level WPL W11733959 Contact Us For Availability
3
Gasket, Tub WPL W11683627 Contact Us For Availability
3
Diffuser, Inlet WPL W10891543 Contact Us For Availability
3
Silverware Basket Assembly WPL W11740269 Contact Us For Availability
4
Drain Vent Assembly WPL W11050773 Contact Us For Availability
4
Retainer, Sliding Tine Row WPL W11409979 Contact Us For Availability
5
Lid, Silverware Basket WPL W11713830 Contact Us For Availability
6
Control, Electronic WPL W11722676 Contact Us For Availability
6
Tine Row, Sliding WPL W11505860 Contact Us For Availability
7
Bezel, Vent WPL W11713860 Contact Us For Availability
7
Seal, Cabinet WPL W11753995 Contact Us For Availability
7
Handle, Dishrack WPL W11268684 Contact Us For Availability
7
Tine Row, Fold Down WPL W11189985 Contact Us For Availability
8
Positioner WPL W11179755 Contact Us For Availability
8
Screw WPL W11714324 Contact Us For Availability
9
Funnel, Overfill Protection WPL W11025986 Contact Us For Availability
9
Diverter Valve Motor (Not Serviced) WPL W11036111 Contact Us For Availability
10
Inner Door Assembly WPL W11749163 Contact Us For Availability
10
Funnel Extension WPL W11025988 Contact Us For Availability
10
Handle, Dishrack Rear WPL W11373129 Contact Us For Availability
10
Leveler, Adjuster Arm WPL W11180178 Contact Us For Availability
11
Barrel Nut, Front Panel WPL W10692757 Contact Us For Availability
11
Isolator, Rear Motor WPL W11036660 Contact Us For Availability
11
Button, Adjuster Arm WPL W11180176 Contact Us For Availability
13
Screw WPL W11170270 Contact Us For Availability
14
Clip, Stemware WPL W11373133 Contact Us For Availability
16
Hanger, Control WPL W11088985 Contact Us For Availability
17
Bracket, Rear Motor WPL W11497568 Contact Us For Availability
18
Fuse, In-line WPL W11397505 Contact Us For Availability
19
Duct, Vent WPL W11038734 Contact Us For Availability
21
Bracket, Thermostat WPL W11163419 Contact Us For Availability
23
Insulation, U-Wrap WPL W10919865 Contact Us For Availability
24
Miscellaneous Parts Bag (Contains 2 Screws, 2 WPL W11770373 Contact Us For Availability
25
Sound Insulation, Bottom WPL W11393126 Contact Us For Availability
31
System, Door Opening WPL W11725055 Contact Us For Availability
32
Screw WPL W11716258 Contact Us For Availability
33
Guide, Door Opening System WPL W11697506 Contact Us For Availability
× ![]()
