Model Maytag JDB8700AWS2 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
01 - DOOR PANEL PARTS
02 - CONTROL PANEL AND LATCH PARTS

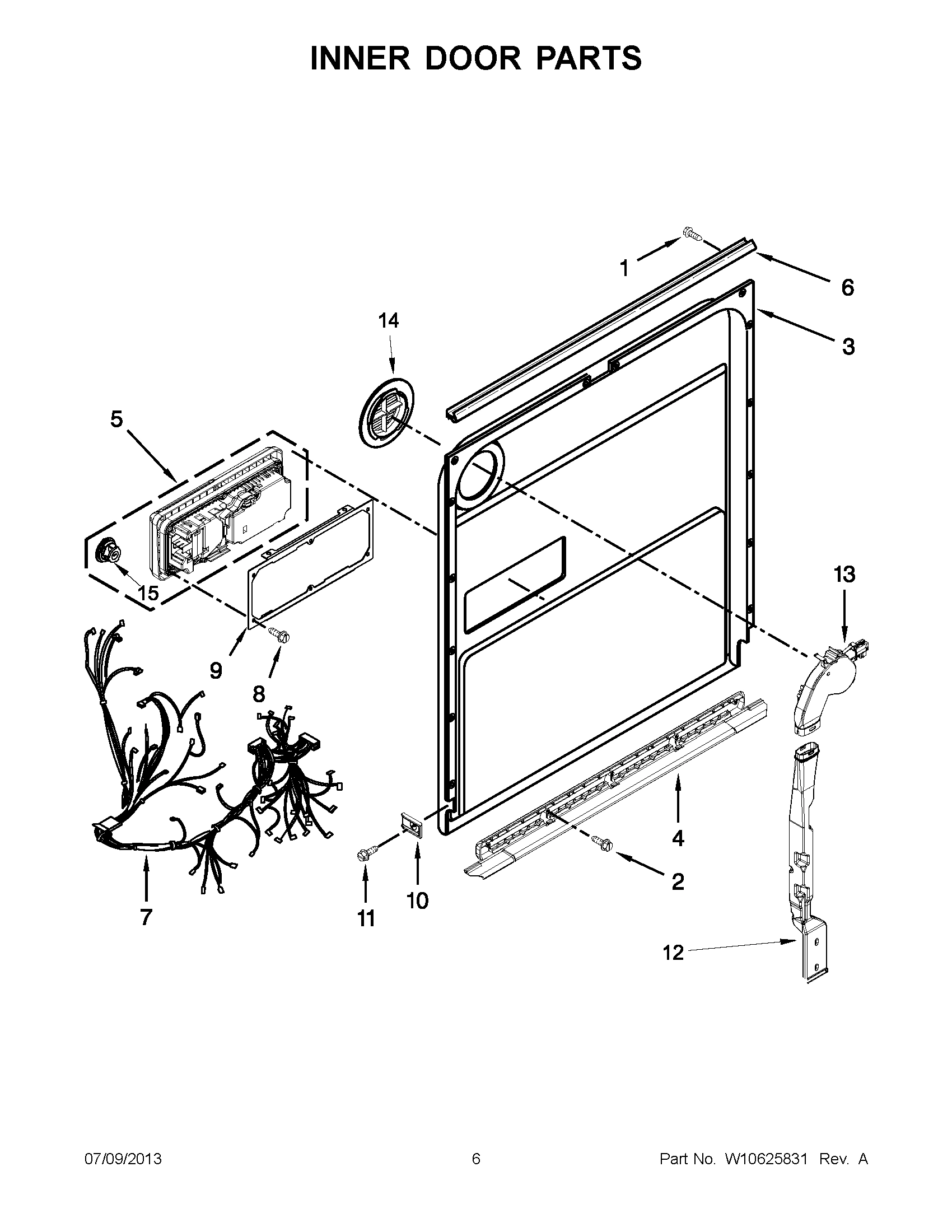

03 - INNER DOOR PARTS

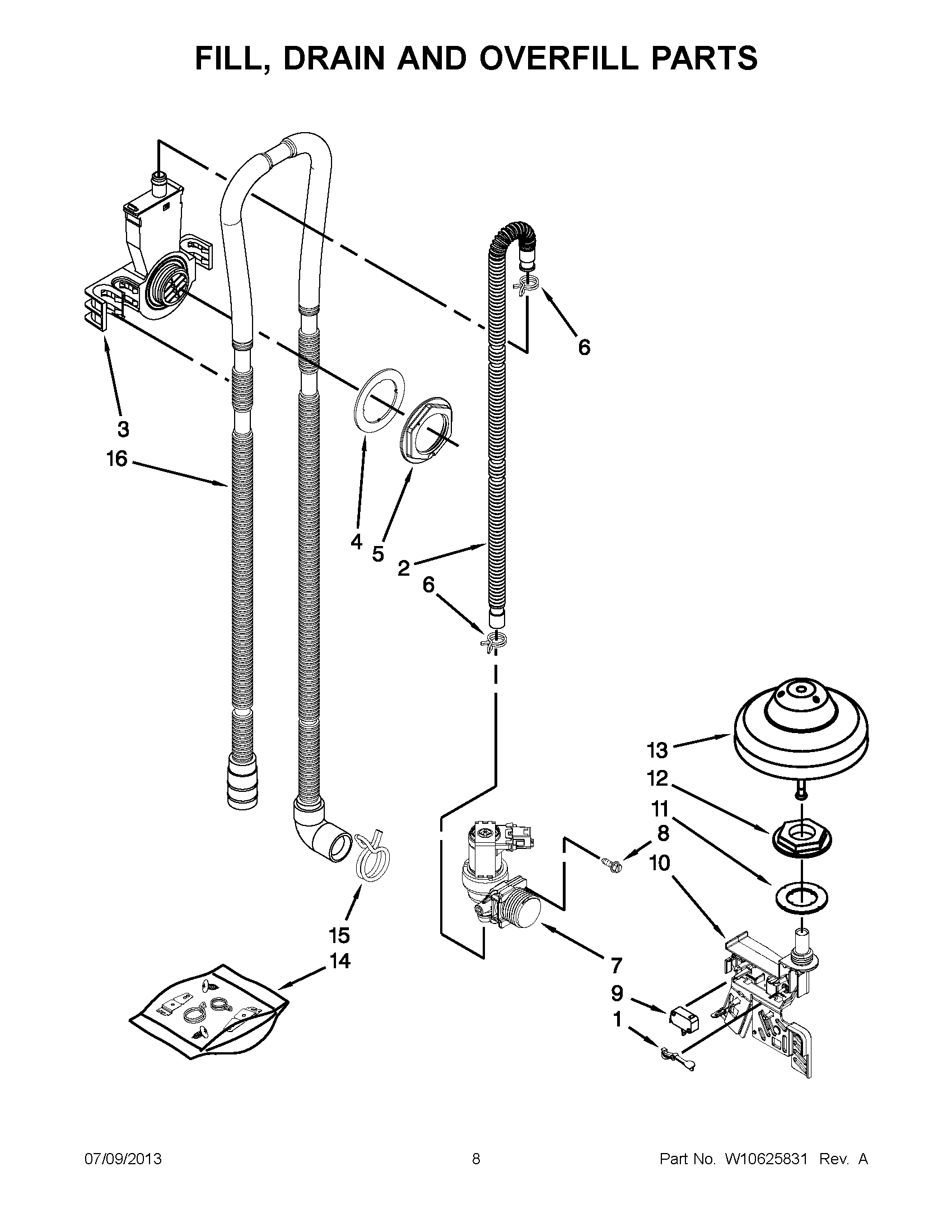

04 - FILL, DRAIN AND OVERFILL PARTS

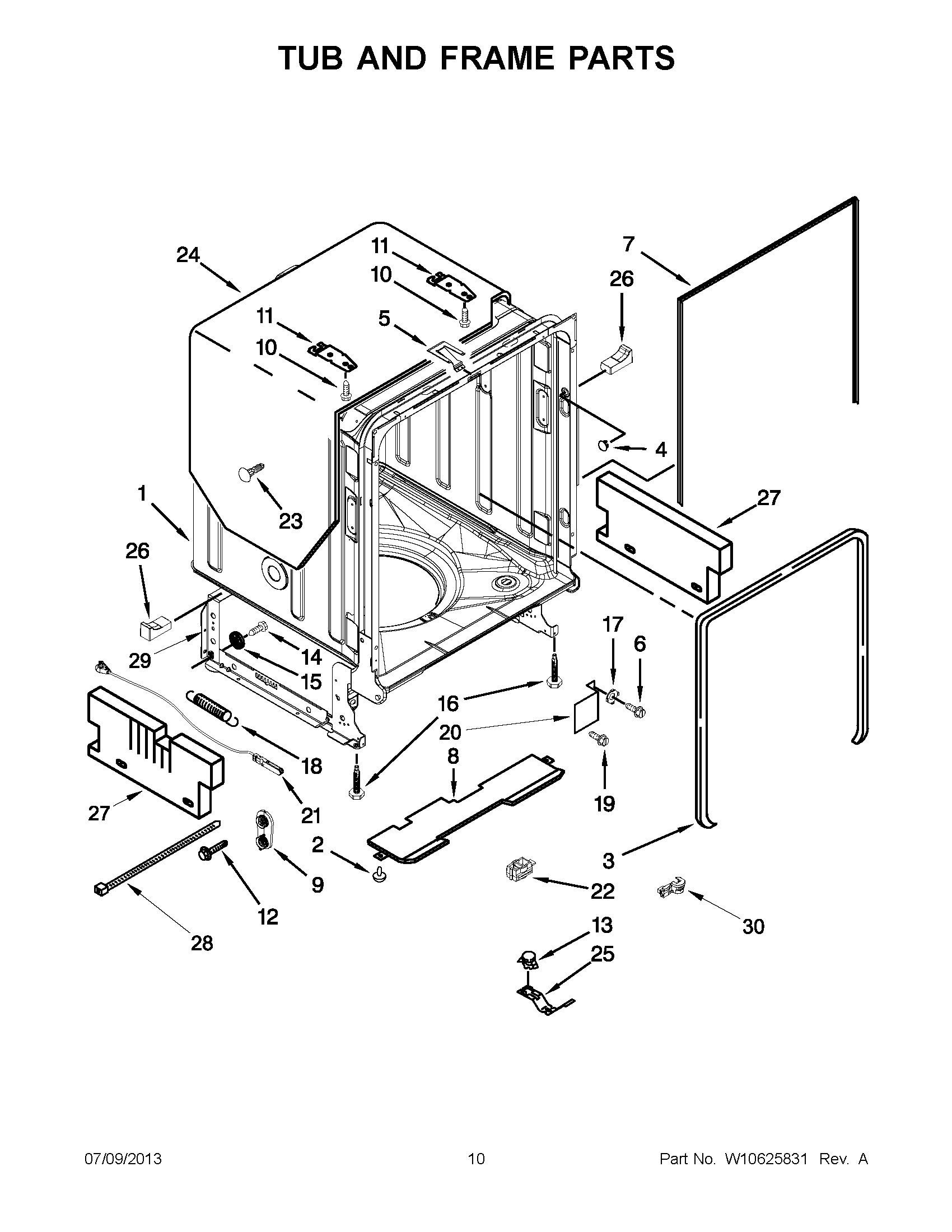

05 - TUB AND FRAME PARTS

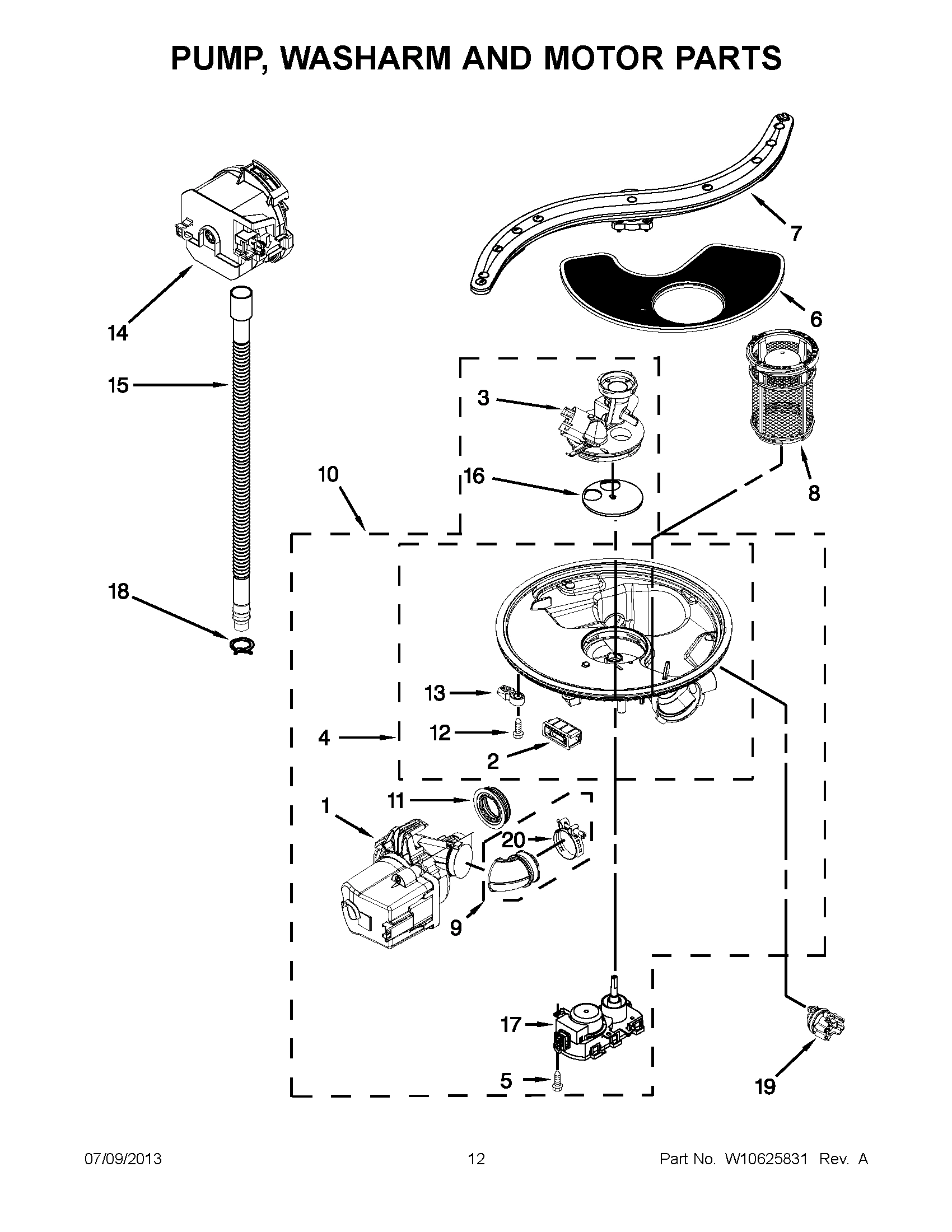

06 - PUMP, WASHARM AND MOTOR PARTS

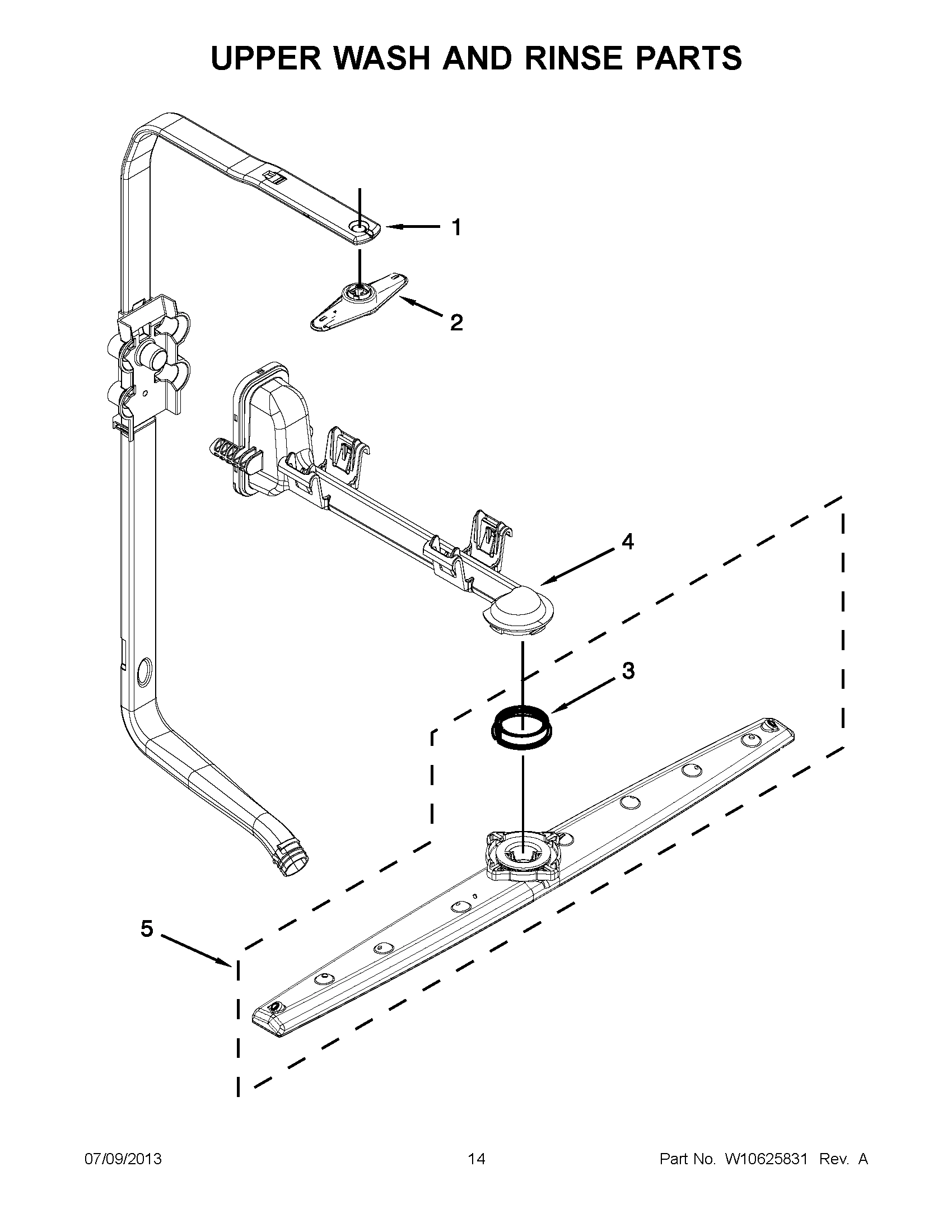

07 - UPPER WASH AND RINSE PARTS

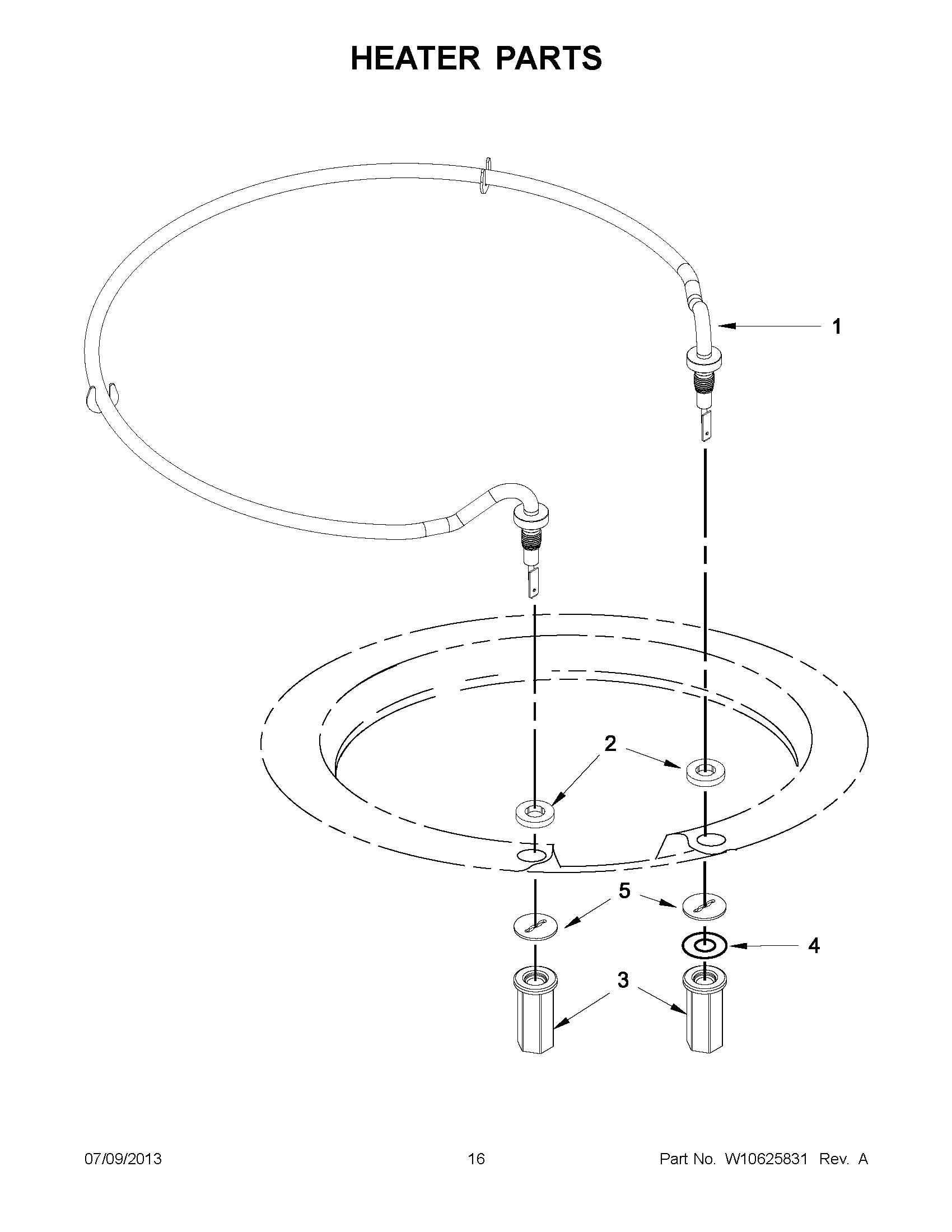

08 - HEATER PARTS

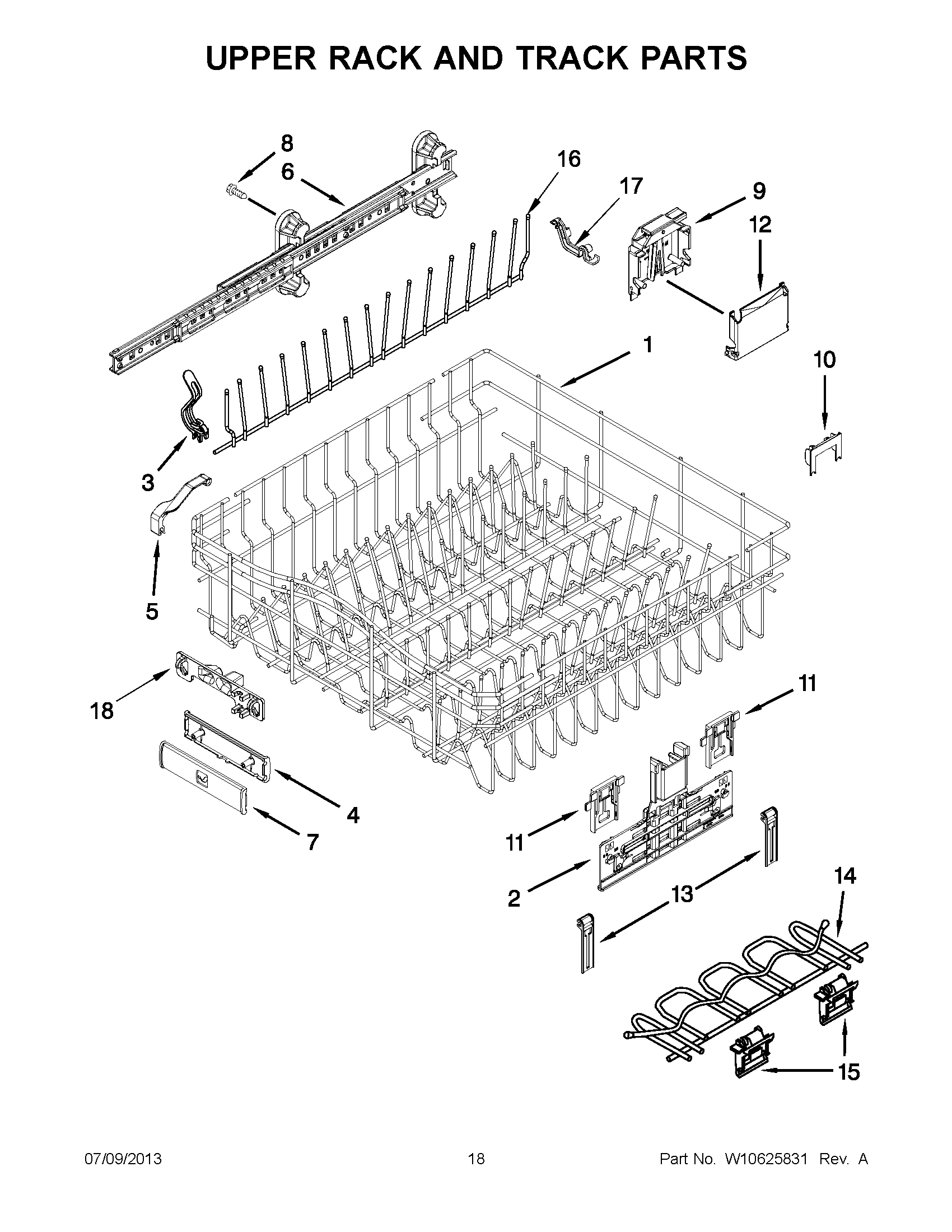

09 - UPPER RACK AND TRACK PARTS

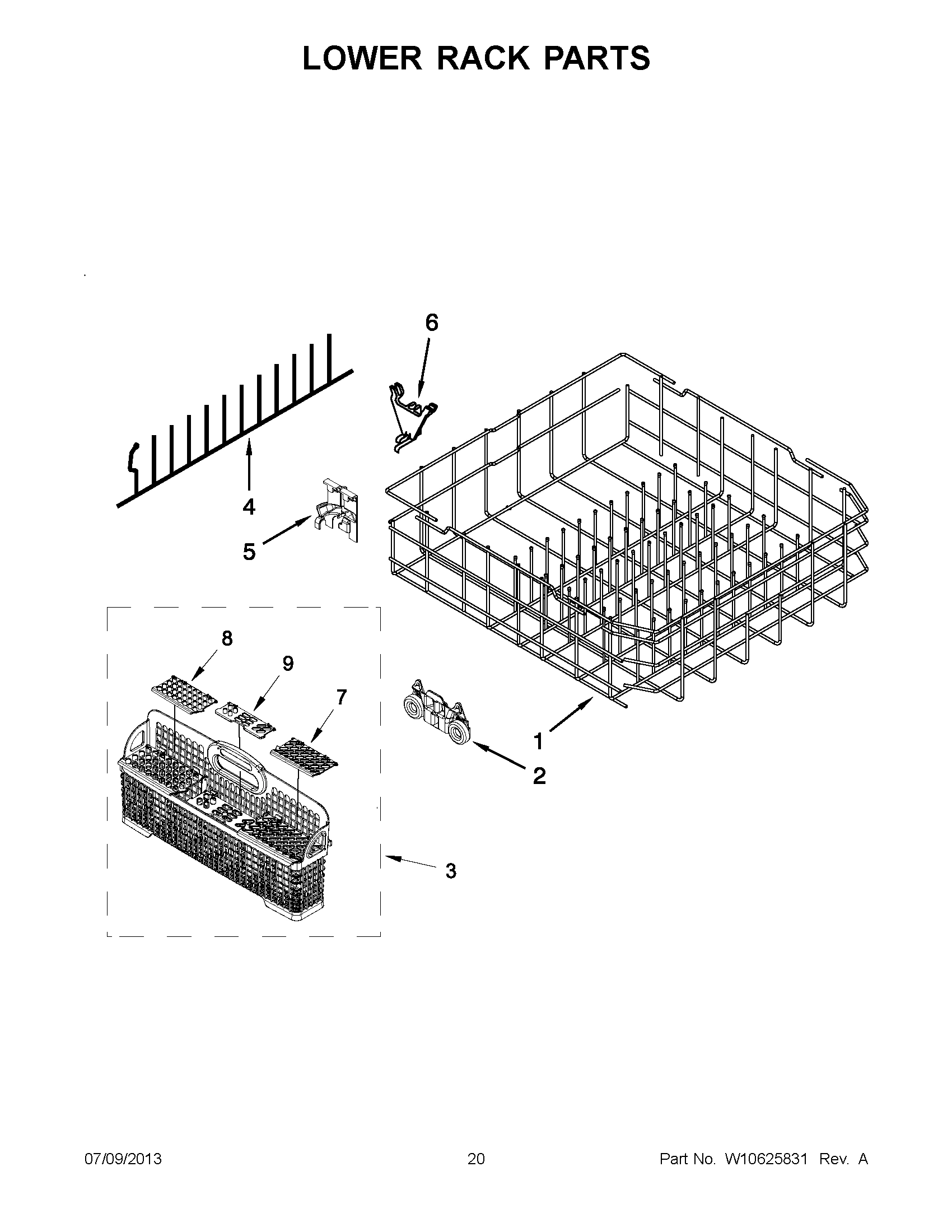

10 - LOWER RACK PARTS

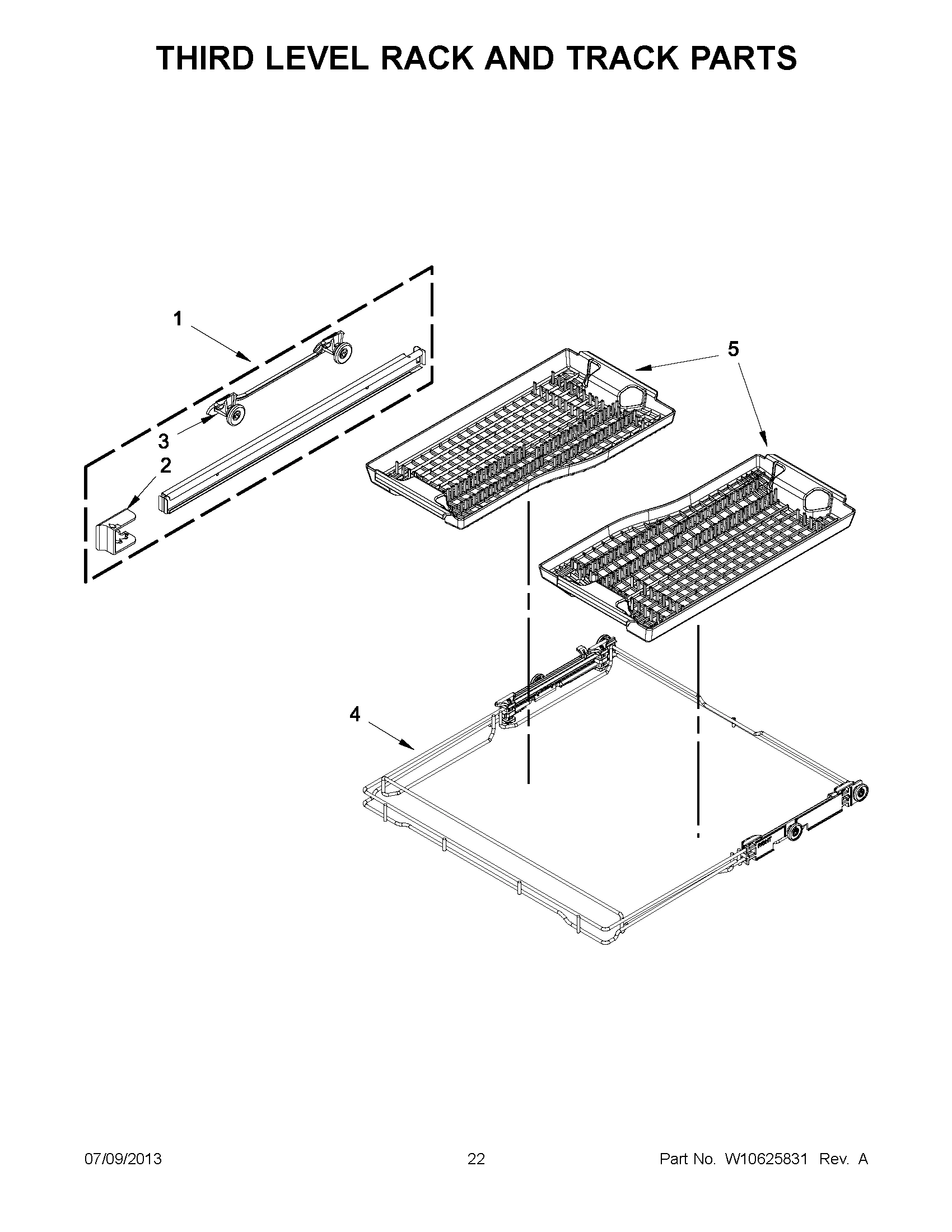

11 - THIRD LEVEL RACK AND TRACK PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDB8700AWS2 UNDERCOUNTER DISHWASHER
1
MAY W10455257 MAY W10455257 Contact Us For Availability
1
MAY W10455258 MAY W10455258 Contact Us For Availability
1
MAY W10490712 MAY W10490712 Contact Us For Availability
1
MAY W10501738 MAY W10501738 Contact Us For Availability
1
MAY W10596235 MAY W10596235 Contact Us For Availability
1
CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS MAY W10418327 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
MAY W10511186 MAY W10511186 Contact Us For Availability
1
MAY W10314568 MAY W10314568 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEM 2) MAY W10340745 Contact Us For Availability
1
HEATER ELEMENT ASSEMBLY (INCLUDES ITEM 2) MAY W10329322 Contact Us For Availability
1
MAY W10194861 MAY W10194861 Contact Us For Availability
1
MAY W10525649 MAY W10525649 Contact Us For Availability
1
MAY W10195238 MAY W10195238 Contact Us For Availability
1
MAY W10195240 MAY W10195240 Contact Us For Availability
2
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
CLIP, CONTROL MAY W10195237 Contact Us For Availability
2
MAY 8281217 MAY 8281217 Contact Us For Availability
2
HOSE MAY 8531412 Contact Us For Availability
2
RETAINER, PUSH IN MAY 3400924 Contact Us For Availability
2
MAY W10195086 MAY W10195086 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
WASHER, RUBBER MAY 717273 Contact Us For Availability
2
MAY W10306646 MAY W10306646 Contact Us For Availability
2
MAY W10195416 MAY W10195416 Contact Us For Availability
2
MAY 8564852 MAY 8564852 Contact Us For Availability
3
MAY W10321447 MAY W10321447 Contact Us For Availability
3
MAY W10528492 MAY W10528492 Contact Us For Availability
3
MAY W10467367 MAY W10467367 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
GASKET, TUB MAY W10300924 Contact Us For Availability
3
MAY W10455271 MAY W10455271 Contact Us For Availability
3
MAY W10195329 MAY W10195329 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
CLIP, NO FLIP MAY 8539101 Contact Us For Availability
3
BASKET, SIVERWARE MAY W10588211 Contact Us For Availability
3
MAY 8564899 MAY 8564899 Contact Us For Availability
4
MAY W10316572 MAY W10316572 Contact Us For Availability
4
SCREW MAY W10348409 Contact Us For Availability
4
MAY W10497235 MAY W10497235 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10082838 MAY W10082838 Contact Us For Availability
4
SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11) MAY W10455268 Contact Us For Availability
4
MAY W10340542 MAY W10340542 Contact Us For Availability
4
NUT, SPEED MAY 3400931 Contact Us For Availability
4
MAY W10587968 MAY W10587968 Contact Us For Availability
4
TINEROW MAY W10056351 Contact Us For Availability
4
MAY W10409522 MAY W10409522 Contact Us For Availability
5
TOE PANEL (BLACK) MAY 8558252 Contact Us For Availability
5
MAY W10550100 MAY W10550100 Contact Us For Availability
5
DISPENSER ASSEMBLY MAY W10409521 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
MAY W10300779 MAY W10300779 Contact Us For Availability
5
MAY 9741232 MAY 9741232 Contact Us For Availability
5
MAY W10448645 MAY W10448645 Contact Us For Availability
5
SHIELD, HEATER PROBE MAY W10343251 Contact Us For Availability
5
CLIP, DISPENSER GUARD MAY W10267076 Contact Us For Availability
5
MAY W10175279 MAY W10175279 Contact Us For Availability
5
BASKET MAY W10418356 Contact Us For Availability
6
PANEL, FRONT (STAINLESS) MAY W10409495 Contact Us For Availability
6
MAY W10481092 MAY W10481092 Contact Us For Availability
6
MAY W10195007 MAY W10195007 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
6
MAY W10195360 MAY W10195360 Contact Us For Availability
6
TRACK ASSEMBLY (RIGHT HAND) MAY W10462358 Contact Us For Availability
6
TRACK ASSEMBLY (LEFT HAND) MAY W10462359 Contact Us For Availability
6
MAY W10078227 MAY W10078227 Contact Us For Availability
7
SCREW, SET MAY W10276608 Contact Us For Availability
7
MAY W10462395 MAY W10462395 Contact Us For Availability
7
MAY W10380183 MAY W10380183 Contact Us For Availability
7
MAY W10316814 MAY W10316814 Contact Us For Availability
7
SEAL, CABINET MAY W10179427 Contact Us For Availability
7
MAY W10333330 MAY W10333330 Contact Us For Availability
7
MAY W10587967 MAY W10587967 Contact Us For Availability
7
MAY 8519663 MAY 8519663 Contact Us For Availability
8
SCREW (BLACK) MAY 302868 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
LIGHT, STATUS MAY W10195836 Contact Us For Availability
8
MAY W10309090 MAY W10309090 Contact Us For Availability
8
MAY W10177098 MAY W10177098 Contact Us For Availability
8
MAY W10195367 MAY W10195367 Contact Us For Availability
8
MAY W10465374 MAY W10465374 Contact Us For Availability
8
MAY 8519695 MAY 8519695 Contact Us For Availability
9
HANDLE ASSEMBLY (STAINLESS) MAY W10409496 Contact Us For Availability
9
MAY W10462393 MAY W10462393 Contact Us For Availability
9
MAY W10462232 MAY W10462232 Contact Us For Availability
9
MAY W10195039 MAY W10195039 Contact Us For Availability
9
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
9
MAY W10445975 MAY W10445975 Contact Us For Availability
9
HOUSING ADJUSTER (LEFT HAND) MAY W10588164 Contact Us For Availability
9
HOUSING ADJUSTER (RIGHT HAND) MAY W10588165 Contact Us For Availability
9
LID, BASKET (CENTER) MAY 8519662 Contact Us For Availability
10
MAY 8564951 MAY 8564951 Contact Us For Availability
10
MAY W10195837 MAY W10195837 Contact Us For Availability
10
HOUSING, OVERFILL (ALSO ORDER ITEM 11) MAY W10195035 Contact Us For Availability
10
MAY 3367670 MAY 3367670 Contact Us For Availability
10
MAY W10455260 MAY W10455260 Contact Us For Availability
10
MAY W10250160 MAY W10250160 Contact Us For Availability
11
LIGHT, PIPE MAY W10319007 Contact Us For Availability
11
SCREW MAY 3400071 Contact Us For Availability
11
MAY 8531743 MAY 8531743 Contact Us For Availability
11
MAY 8269145 MAY 8269145 Contact Us For Availability
11
MAY W10538166 MAY W10538166 Contact Us For Availability
11
POSITIONER, ADJUSTER MAY W10195840 Contact Us For Availability
12
INSULATION, TOE PANEL MAY W10385107 Contact Us For Availability
12
DUCT, VENT MAY W10195028 Contact Us For Availability
12
MAY W10195038 MAY W10195038 Contact Us For Availability
12
SCREW MAY 3400074 Contact Us For Availability
12
MAY W10348407 MAY W10348407 Contact Us For Availability
12
MAY W10250162 MAY W10250162 Contact Us For Availability
13
INSULATION, FRONT PANEL MAY W10315897 Contact Us For Availability
13
MAY W10469574 MAY W10469574 Contact Us For Availability
13
MAY W10195036 MAY W10195036 Contact Us For Availability
13
MAY W10339563 MAY W10339563 Contact Us For Availability
13
MAY W10372113 MAY W10372113 Contact Us For Availability
13
MAY W10195839 MAY W10195839 Contact Us For Availability
14
BRACKET, CONTROL PANEL MAY W10194911 Contact Us For Availability
14
MAY W10195032 MAY W10195032 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
14
MAY W10348411 MAY W10348411 Contact Us For Availability
14
MAY W10531320 MAY W10531320 Contact Us For Availability
14
MAY W10208697 MAY W10208697 Contact Us For Availability
15
MAY W10524919 MAY W10524919 Contact Us For Availability
15
MAY 370445 MAY 370445 Contact Us For Availability
15
WHEEL, LEG MAY 8268977 Contact Us For Availability
15
MAY 8269144 MAY 8269144 Contact Us For Availability
15
MAY 8562026 MAY 8562026 Contact Us For Availability
16
MAY W10214168 MAY W10214168 Contact Us For Availability
16
MAY W10481093 MAY W10481093 Contact Us For Availability
16
MAY W10304228 MAY W10304228 Contact Us For Availability
16
MAY W10476221 MAY W10476221 Contact Us For Availability
16
MAY W10194862 MAY W10194862 Contact Us For Availability
17
MAY W10350437 MAY W10350437 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
17
MAY W10476222 MAY W10476222 Contact Us For Availability
17
MAY W10082853 MAY W10082853 Contact Us For Availability
18
MAY W10195777 MAY W10195777 Contact Us For Availability
18
MAY 8270020 MAY 8270020 Contact Us For Availability
18
MAY 8269146 MAY 8269146 Contact Us For Availability
18
POSITIONER, DUAL DISHRACK MAY 8539102 Contact Us For Availability
19
MAY 8269016 MAY 8269016 Contact Us For Availability
19
MAY 3400892 MAY 3400892 Contact Us For Availability
19
INDICATOR, OPTICAL WASH MAY W10134017 Contact Us For Availability
20
MAY 8268991 MAY 8268991 Contact Us For Availability
20
CLAMP, HOSE MAY W10169167 Contact Us For Availability
21
CABLE, DOOR MAY W10158291 Contact Us For Availability
22
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
23
RETAINER MAY 304666 Contact Us For Availability
24
SHIELD, TUB SOUND MAY 8573239 Contact Us For Availability
25
MAY W10300703 MAY W10300703 Contact Us For Availability
26
SPACER, TUB/BRACE (LEFT HAND) MAY W10195630 Contact Us For Availability
26
SPACER, TUB/BRACE (RIGHT HAND) MAY W10195631 Contact Us For Availability
27
MAY W10275523 MAY W10275523 Contact Us For Availability
28
MAY 8539404 MAY 8539404 Contact Us For Availability
29
MAY W10398392 MAY W10398392 Contact Us For Availability
30
MAY W10337661 MAY W10337661 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (WHITE) MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (GREY) MAY 4396840 Contact Us For Availability
NI
ACCESSORIES, VINYL TOUCH-UP (4OZ SILVER ATLAN MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR (SILVER ATLANTIS) MAY 4396854 Contact Us For Availability
NI
ACCESSORIES, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
ACCESSORIES, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ACCESSORIES, CUSTOM PANEL & TRIM KIT (BLACK) MAY 8212489 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
ACCESSORIES, ARCHITECT II HANDLES (BLACK) MAY W10195735A Contact Us For Availability
NI
ACCESSORIES, ARCHITECT II HANDLES (WHITE) MAY W10195736A Contact Us For Availability
NI
ACCESSORIES, ARCHITECT II HANDLES (BISCUIT/BI MAY W10195737A Contact Us For Availability
NI
MAY W10195738A MAY W10195738A Contact Us For Availability
× ![]()
