Model GE JB860BJ7TS – Common Parts & Diagrams

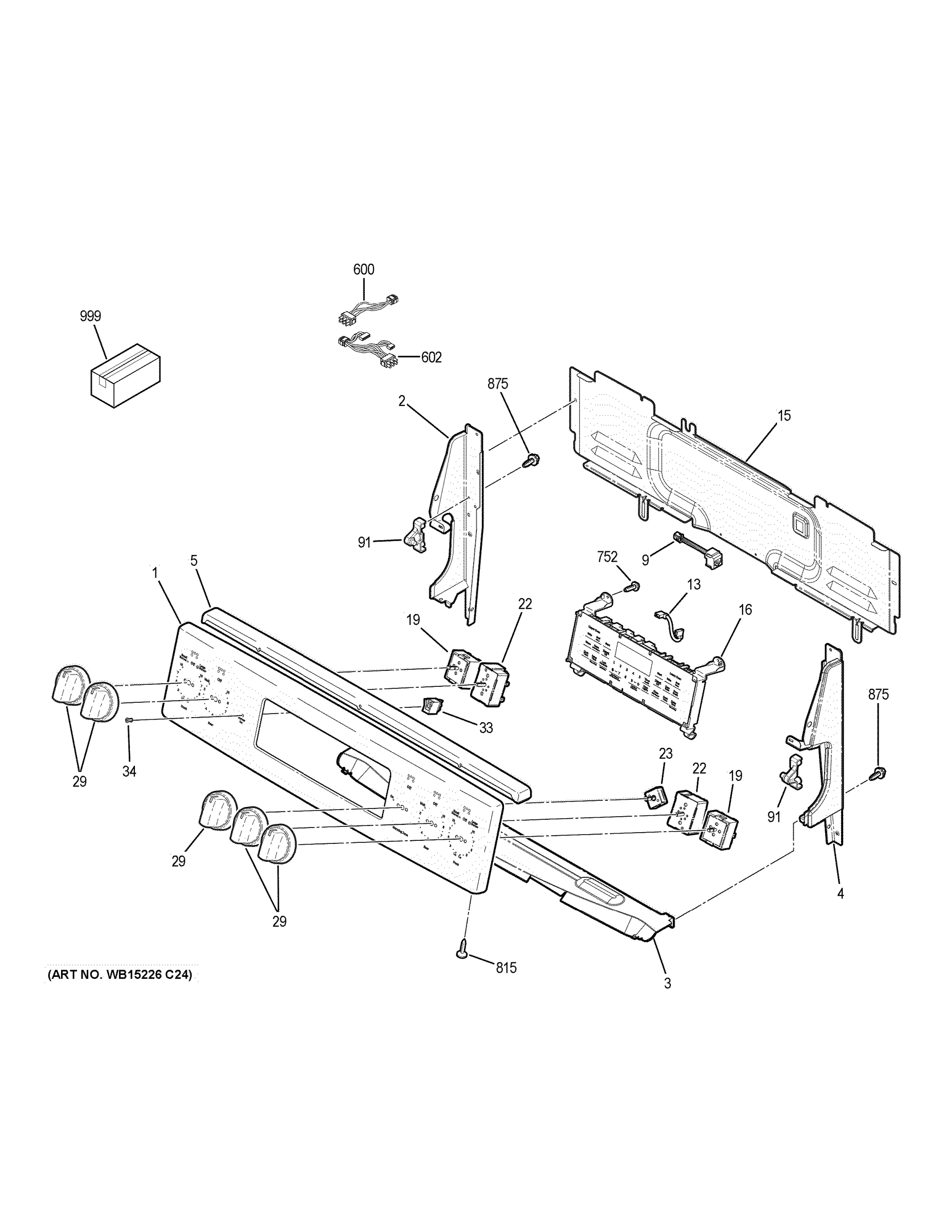

CONTROL PANEL

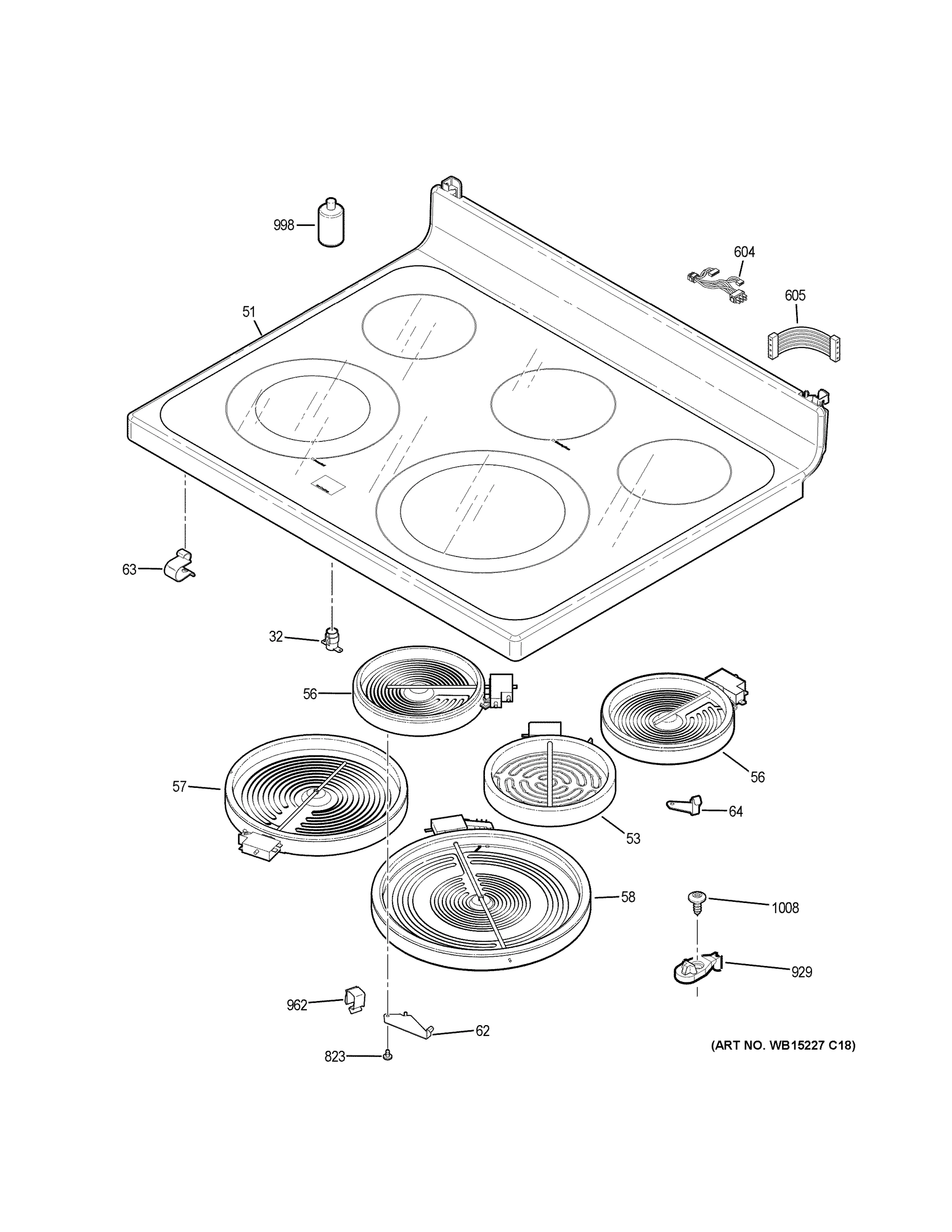

COOKTOP

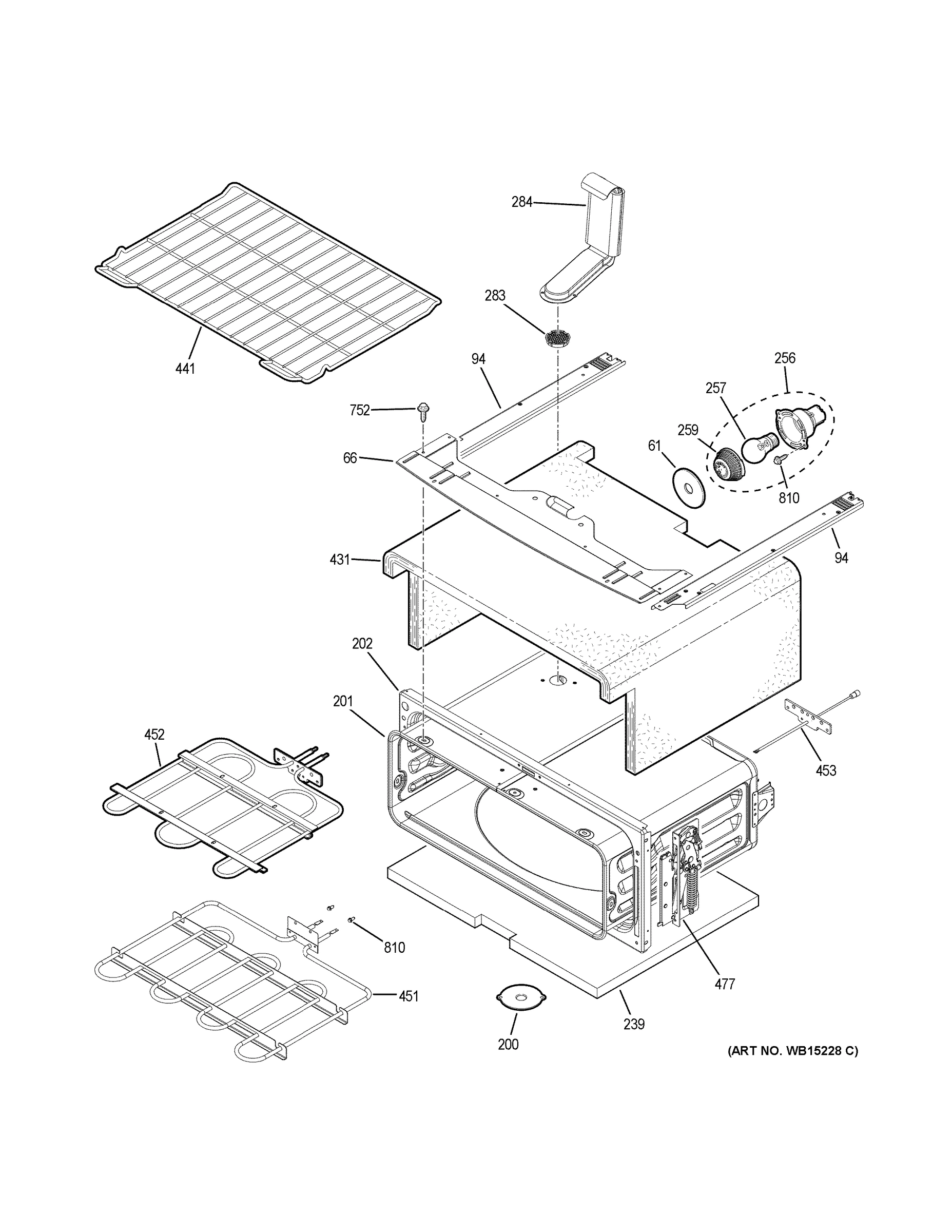

UPPER OVEN

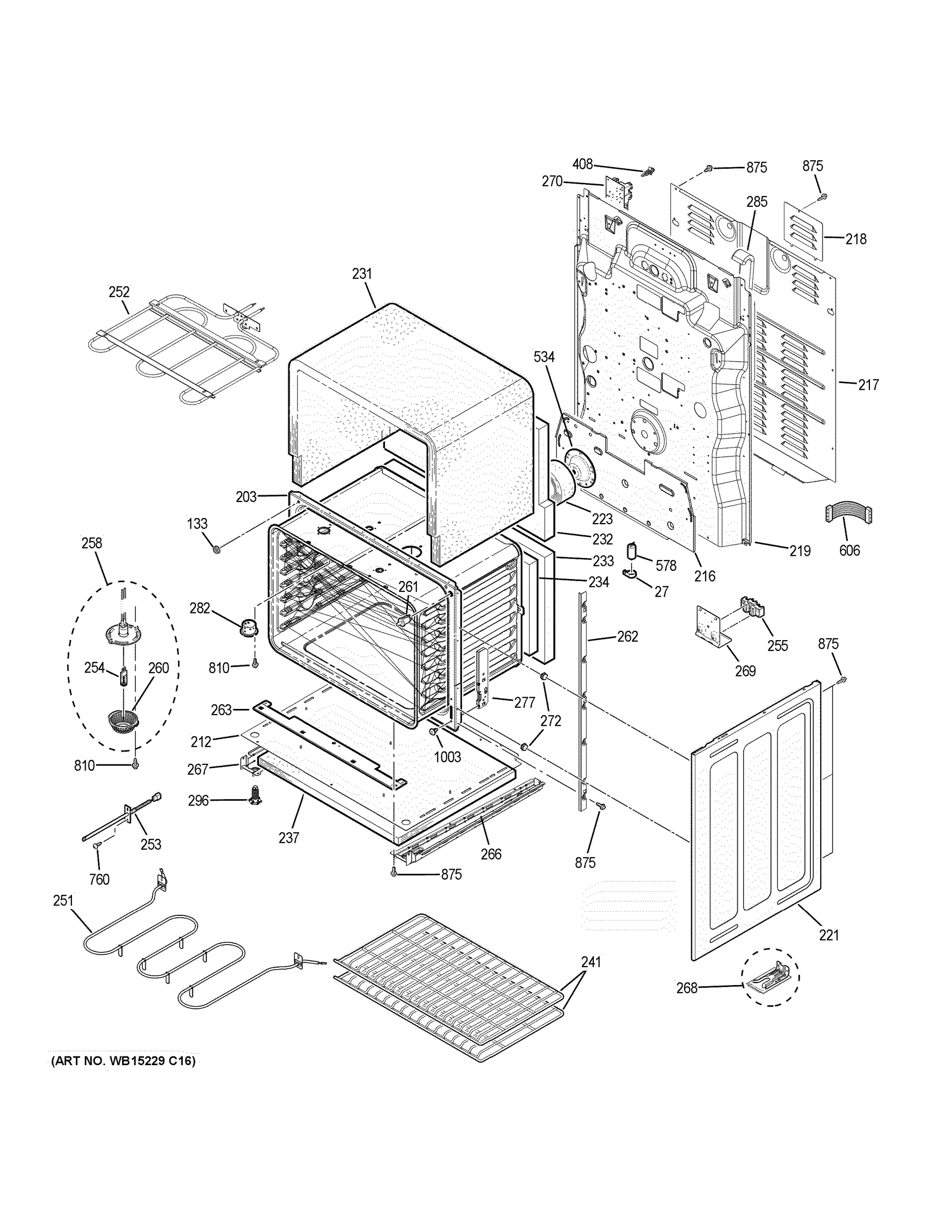

LOWER OVEN

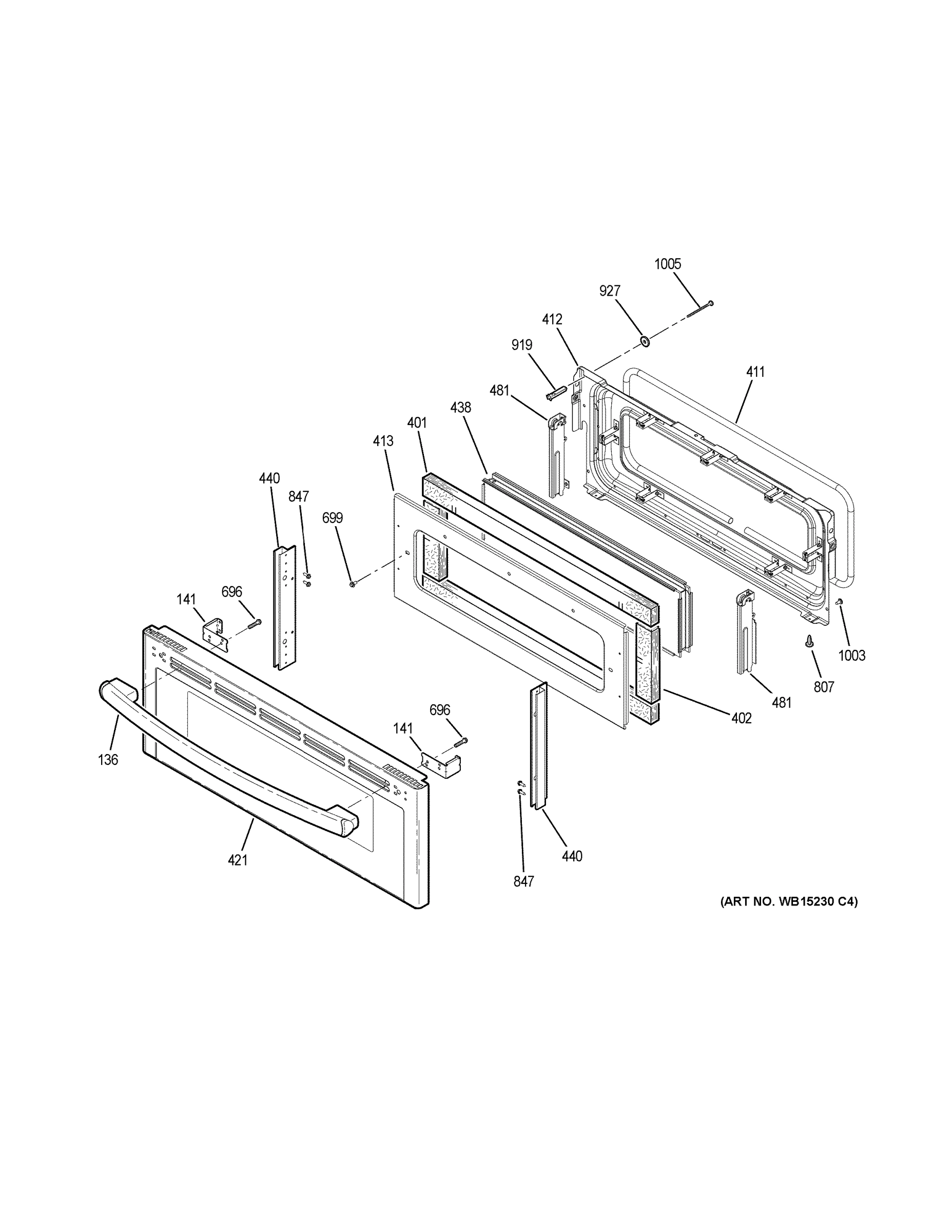

UPPER DOOR

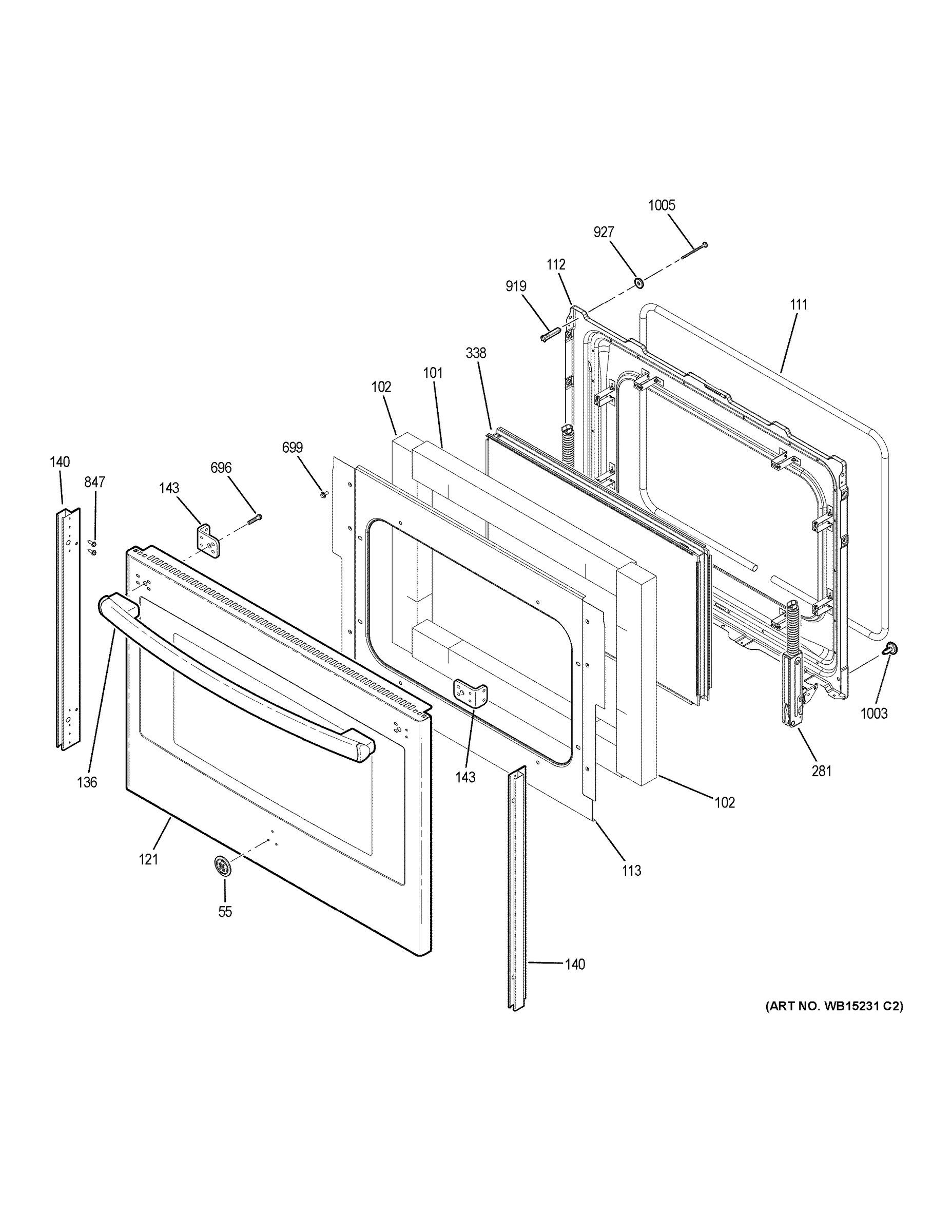

LOWER DOOR

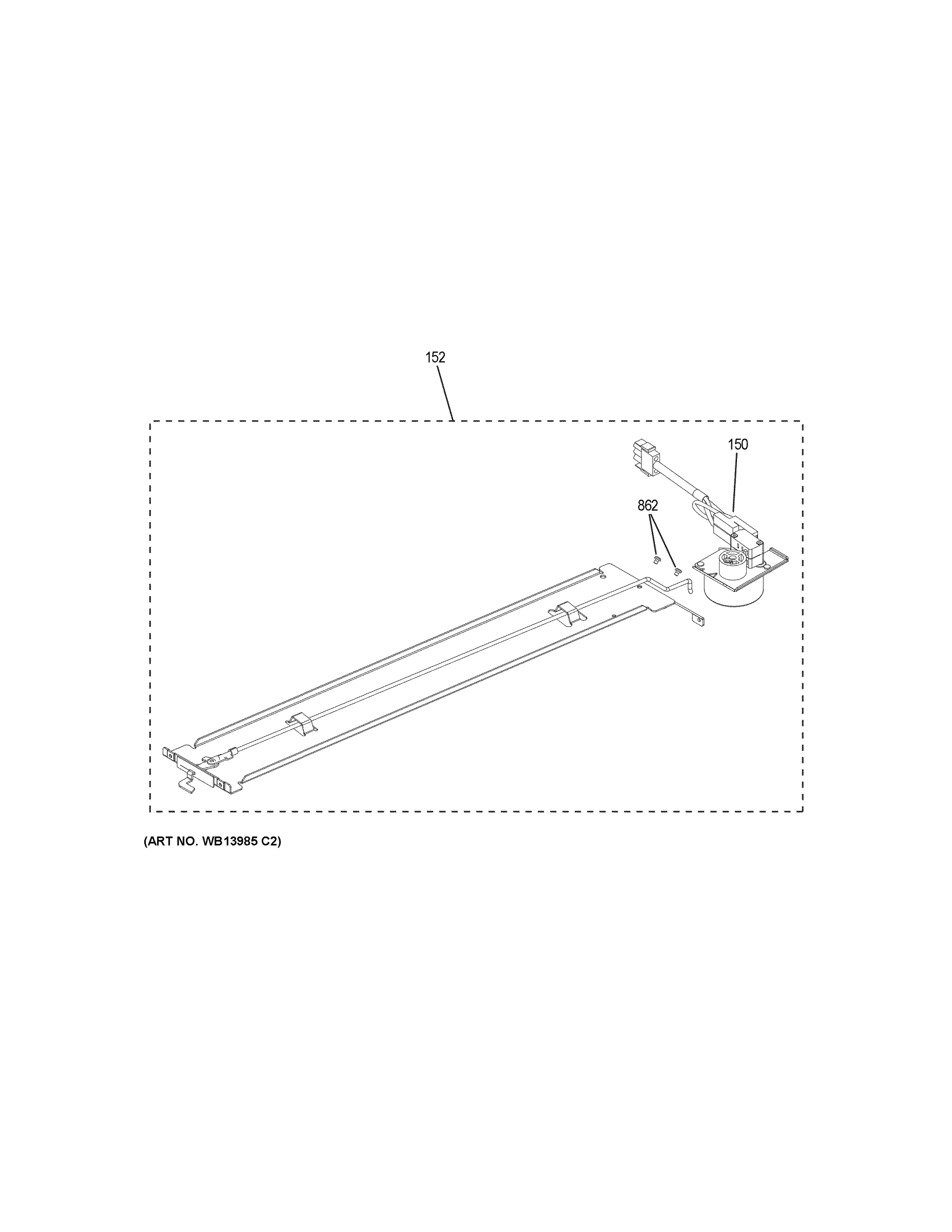

DOOR LOCK

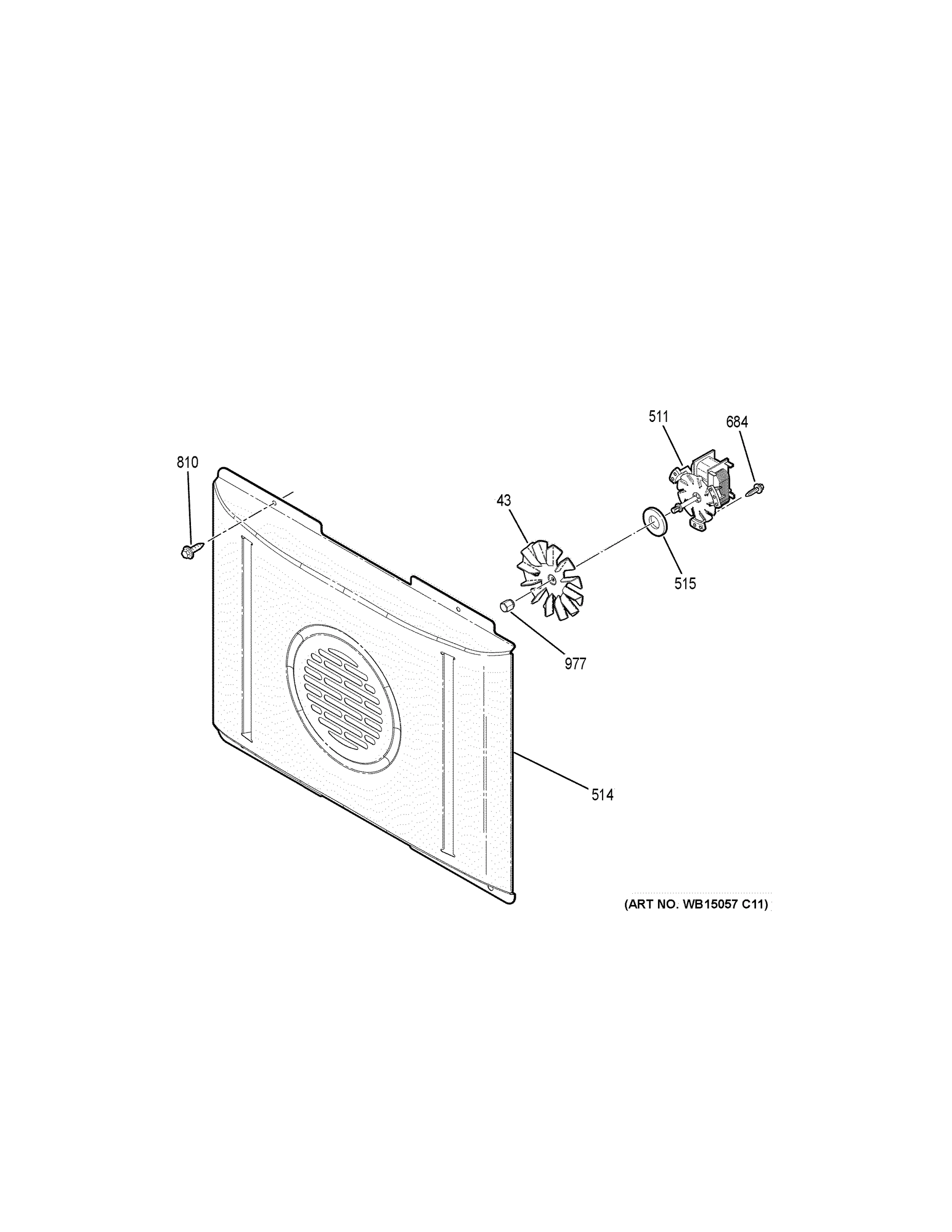

CONVECTION FAN
Common parts from model GE JB860BJ7TS
1
CONTROL PANEL TRIM ASM TS GEN WB07X30072 Contact Us For Availability
2
END PLATE LH DG GEN WB07X29534 Contact Us For Availability
3
BACKGUARD SHIELD HEAT GEN WB34X28565 Contact Us For Availability
4
END PLATE RH DG GEN WB07X29535 Contact Us For Availability
5
TOP TRIM ASM GEN WB07X28582 Contact Us For Availability
13
JUMPER GEN WB18X30704 Contact Us For Availability
23
SWITCH ROTARY GEN WB24X25302 Contact Us For Availability
29
KNOB ASM TS GEN WB03X29165 Contact Us For Availability
32
LIGHT INDICATOR GEN WB27T10668 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB25X20005 Contact Us For Availability
34
LENS GEN WB25T10103 Contact Us For Availability
43
HUB BLADE ASM GEN WB02X26501 Contact Us For Availability
51
RANGETOP GLASS ASM (GY) GEN WB62X25972 Contact Us For Availability
53
ELEMENT RADIANT 6 WARMER GEN WB30X20871 Contact Us For Availability
55
BADGE ASM GEN WB02X29637 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 9" DUAL GEN WB30X24111 Contact Us For Availability
58
ELEMENT HALIANT 12 IN GEN WB30T10130 Contact Us For Availability
61
GASKET OVEN LIGHT GEN WB04T10021 Contact Us For Availability
62
BRACKET RADIANT ELEMENT GEN WB02X20940 Contact Us For Availability
64
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
91
PIN RANGETOP HINGE GEN WB10T10116 Contact Us For Availability
111
GASKET OVN DR GEN WB04T10076 Contact Us For Availability
112
LINER OVEN DR ASM GEN WB63X20852 Contact Us For Availability
113
RETAINER INSLN OVN DR GEN WB02T10371 Contact Us For Availability
133
DOOR BUMPER GEN WB01T10022 Contact Us For Availability
136
HANDLE AND END CAP ASM GEN WB15X29162 Contact Us For Availability
140
FRAME DOOR SIDE GEN WB56X21397 Contact Us For Availability
143
BRACKET DOOR HANDLE (BK) GEN WB34X25638 Contact Us For Availability
150
LATCH ASM GEN WB10X25238 Contact Us For Availability
218
COVER TERMINAL BLOCK GEN WB02T10564 Contact Us For Availability
221
SIDE PANEL DG GEN WB63X28679 Contact Us For Availability
231
INSULATION WRAPPER GEN WB35T10170 Contact Us For Availability
237
HIDDEN BAKE INSULATION GEN WB35T10022 Contact Us For Availability
241
RACK OVEN GEN WB48T10076 Contact Us For Availability
254
LAMP HALOGEN G9 GEN WB08T10045 Contact Us For Availability
255
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
258
LAMP HALOGEN ASM GEN WB25X24909 Contact Us For Availability
259
OVEN BULB LENS GEN WB25T10002 Contact Us For Availability
260
OV LAMP LENS GEN WB25T10013 Contact Us For Availability
261
SWITCH SPDT HIGH AMP GEN WB24T10147 Contact Us For Availability
266
BASE RAIL GEN WB02T10353 Contact Us For Availability
267
BASE RAIL GEN WB02T10352 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
BRACKET STRAIN RELIEF GEN WB02T10542 Contact Us For Availability
270
BOARD RELAY DAUGHTER GEN WB27X25594 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
411
GASKET OVN DOOR GEN WB04T10077 Contact Us For Availability
438
WINDOW PACK ASM UPR GEN WB56T10244 Contact Us For Availability
441
RACK OVEN GEN WB48T10072 Contact Us For Availability
453
SENSOR ASM GEN WB23T10015 Contact Us For Availability
477
HINGE ASM (RT) GEN WB10T10104 Contact Us For Availability
477
HINGE ASM (LT) GEN WB10T10105 Contact Us For Availability
481
RECEIVER HINGE UPR (RT) GEN WB10T10100 Contact Us For Availability
481
RECEIVER HINGE UPR ( LT) GEN WB10T10101 Contact Us For Availability
511
MOTOR CONVX GEN WB26X26500 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
696
SCR 10-32 TR3 PNT 1.41 S GEN WB01T10137 Contact Us For Availability
919
SPACER DOOR GEN WB02X25272 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
962
CLIP CABLE GEN WB02X25982 Contact Us For Availability
1003
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1005
SCR 8-18 AB TRT20NBS 5/8 GEN WB01X21650 Contact Us For Availability
× ![]()
