Model GE JB850SF1SS Electric Range – Common Parts & Diagrams
CONTROL PANEL
COOKTOP

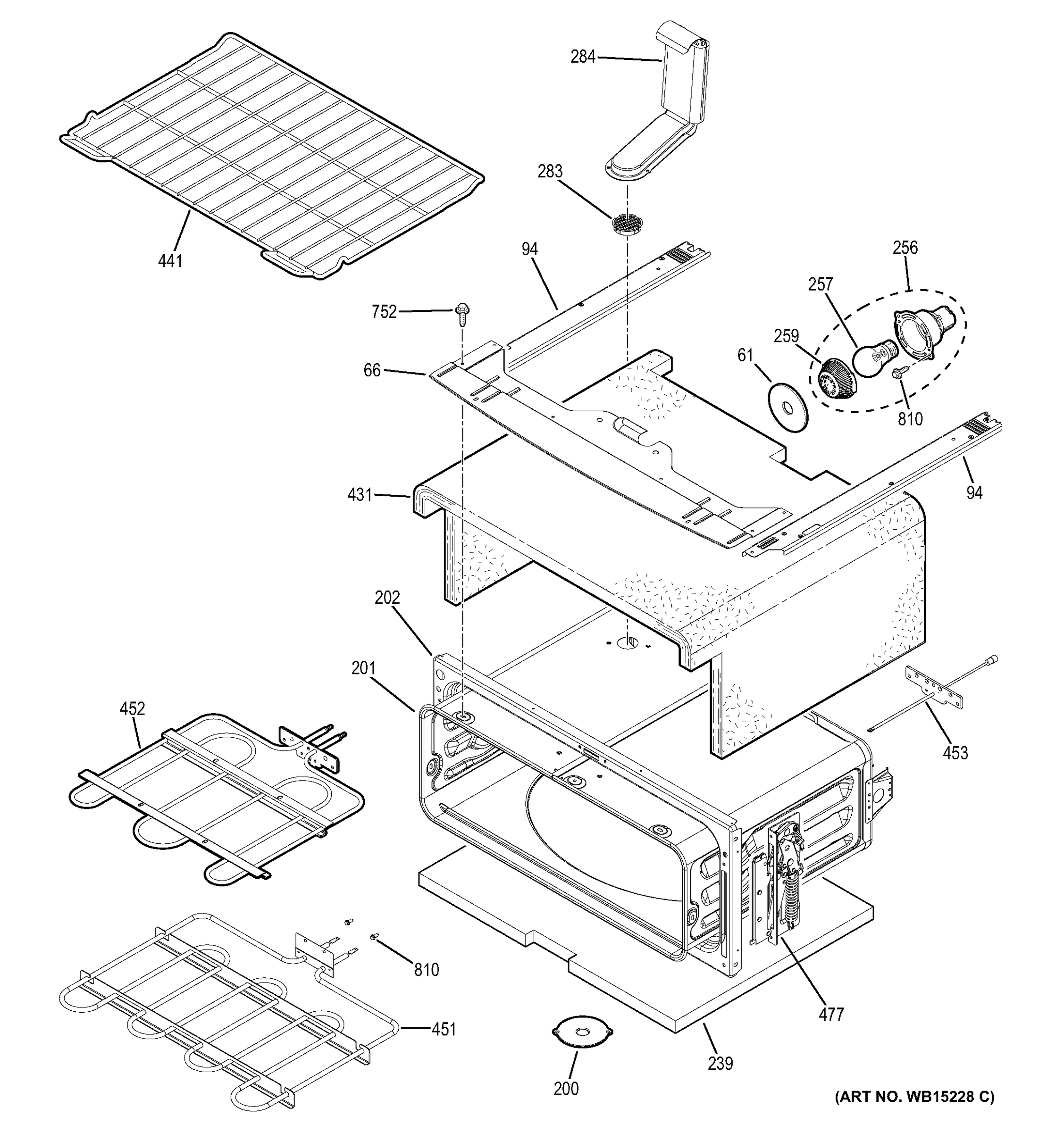

UPPER OVEN

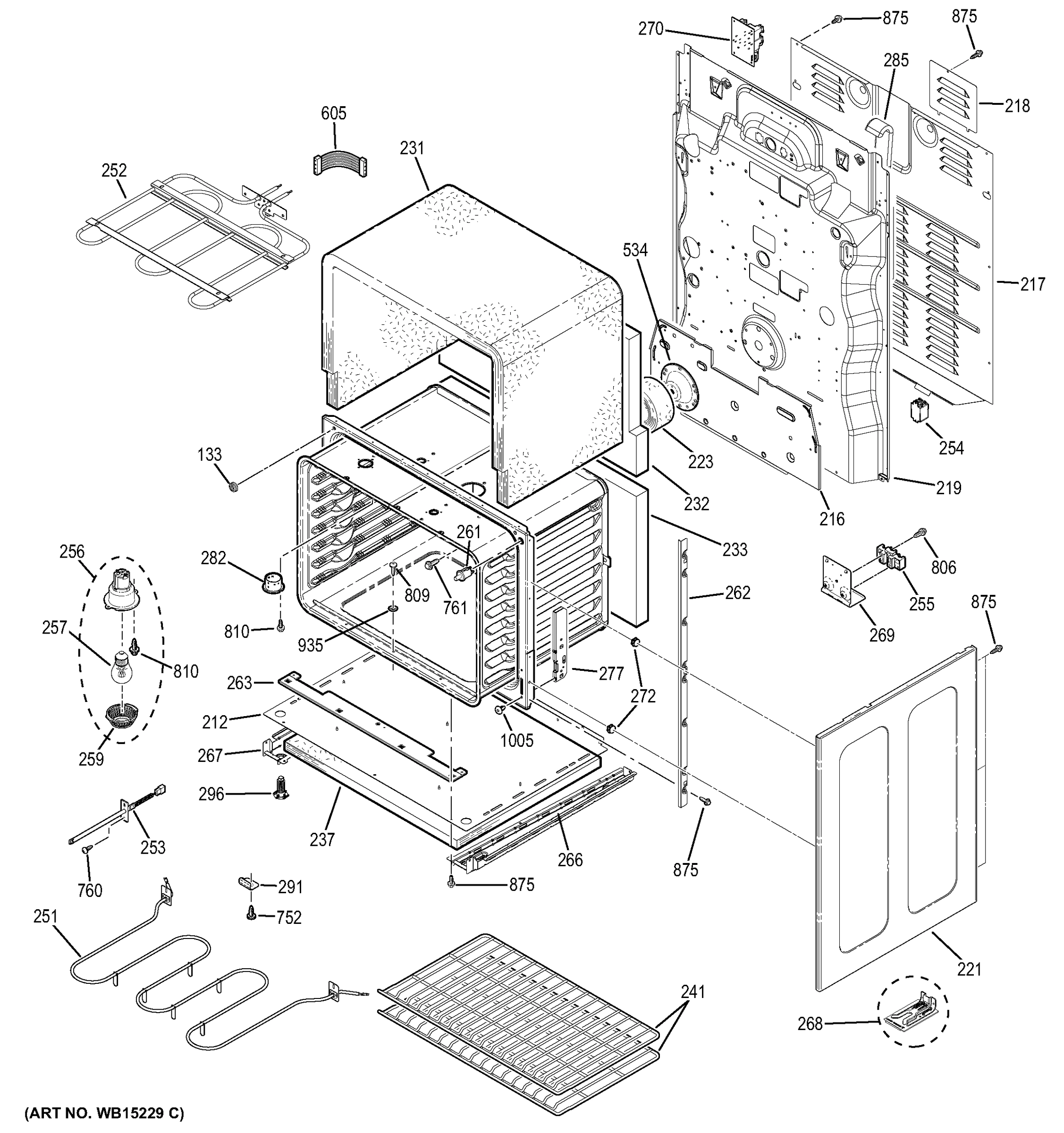

LOWER OVEN
UPPER DOOR
LOWER DOOR

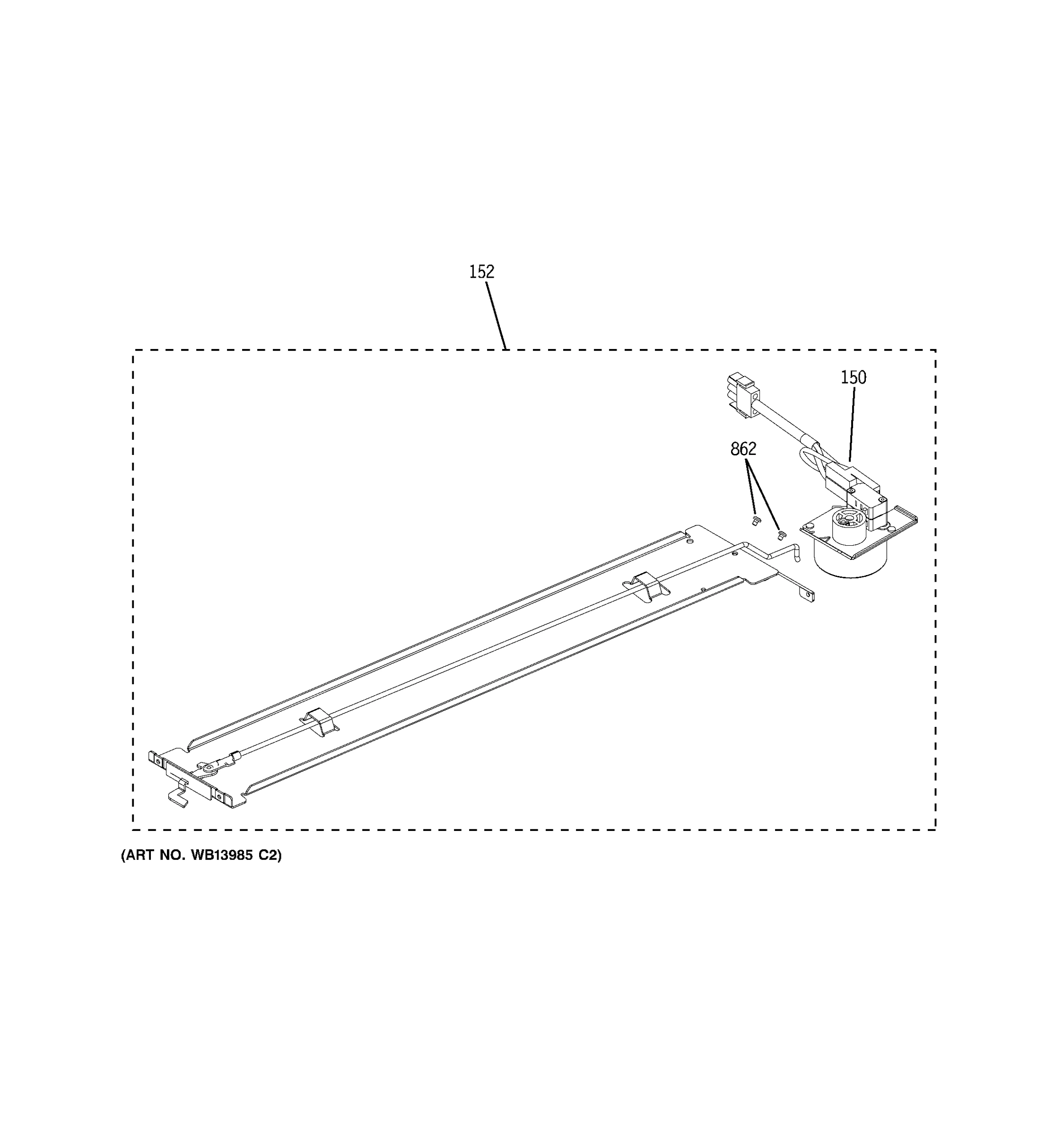

DOOR LOCK
Common parts from model GE JB850SF1SS Electric Range
18
FACEPLATE GRAPHICS (DG) GEN WB27X20023 Contact Us For Availability
19
SWITCH INFINITE CONTROL GEN WB24T10153 Contact Us For Availability
28
KNOB ASM GEN WB03T10336 Contact Us For Availability
29
KNOB ASM GEN WB03T10337 Contact Us For Availability
32
LIGHT INDICATOR GEN WB27T10668 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB25X20005 Contact Us For Availability
34
LENS GEN WB25T10103 Contact Us For Availability
53
ELEMENT RADIANT 6 WARMER GEN WB30X20871 Contact Us For Availability
55
BADGE GE GEN WB02T10589 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 9 DUAL GEN WB30T10133 Contact Us For Availability
58
ELEMENT HALIANT 12 IN GEN WB30T10130 Contact Us For Availability
61
GASKET OVEN LIGHT GEN WB04T10021 Contact Us For Availability
64
BRACKET RADIANT ELEMENT GEN WB02X20940 Contact Us For Availability
91
PIN RANGETOP HINGE GEN WB10T10116 Contact Us For Availability
102
INSULATION OVEN DR SDE GEN WB35K10025 Contact Us For Availability
111
GASKET OVN DR GEN WB04T10076 Contact Us For Availability
112
LINER OVEN DR ASM GEN WB63X20852 Contact Us For Availability
113
RETAINER INSLN OVN DR GEN WB02T10371 Contact Us For Availability
121
PANEL ASM BONDED LWR(SS) GEN WB56X20026 Contact Us For Availability
133
DOOR BUMPER GEN WB01T10022 Contact Us For Availability
140
FRAME DOOR SIDE GEN WB56X21397 Contact Us For Availability
150
LATCH ASM GEN WB14T10088 Contact Us For Availability
218
COVER TERMINAL BLOCK GEN WB02T10564 Contact Us For Availability
231
INSULATION WRAPPER GEN WB35T10170 Contact Us For Availability
237
HIDDEN BAKE INSULATION GEN WB35T10022 Contact Us For Availability
241
RACK OVEN GEN WB48T10076 Contact Us For Availability
254
RELAY GEN WB18T10352 Contact Us For Availability
255
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
259
OVEN BULB LENS GEN WB25T10002 Contact Us For Availability
261
SWITCH SPDT HIGH AMP GEN WB24T10160 Contact Us For Availability
266
BASE RAIL GEN WB02T10353 Contact Us For Availability
267
BASE RAIL GEN WB02T10352 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
270
BOARD RELAY DAUGHTER ASM GEN WB27T11330 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
RECEIVER HINGE GEN WB10T10083 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
411
GASKET OVN DOOR GEN WB04T10077 Contact Us For Availability
421
PANEL ASM BONDED UPR(SS) GEN WB56X20150 Contact Us For Availability
438
WINDOW PACK ASM UPR GEN WB56T10244 Contact Us For Availability
441
RACK OVEN GEN WB48T10072 Contact Us For Availability
453
SENSOR ASM GEN WB23T10015 Contact Us For Availability
477
HINGE ASM (RT) GEN WB10T10104 Contact Us For Availability
477
HINGE ASM (LT) GEN WB10T10105 Contact Us For Availability
481
RECEIVER HINGE UPR (RT) GEN WB10T10100 Contact Us For Availability
481
RECEIVER HINGE UPR ( LT) GEN WB10T10101 Contact Us For Availability
600
HARNESS WIRE MAINTOP GEN WB18X20008 Contact Us For Availability
696
SCREW 10-16 X 1.000 HWH GEN WB01T10066 Contact Us For Availability
847
SCREW-PKG 12 GEN WZ4X245D Contact Us For Availability
876
SCREW-PKG 12 GEN WB1X500D Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
