Model Huebsch HWFT63*N1102 Washer – Common Parts & Diagrams

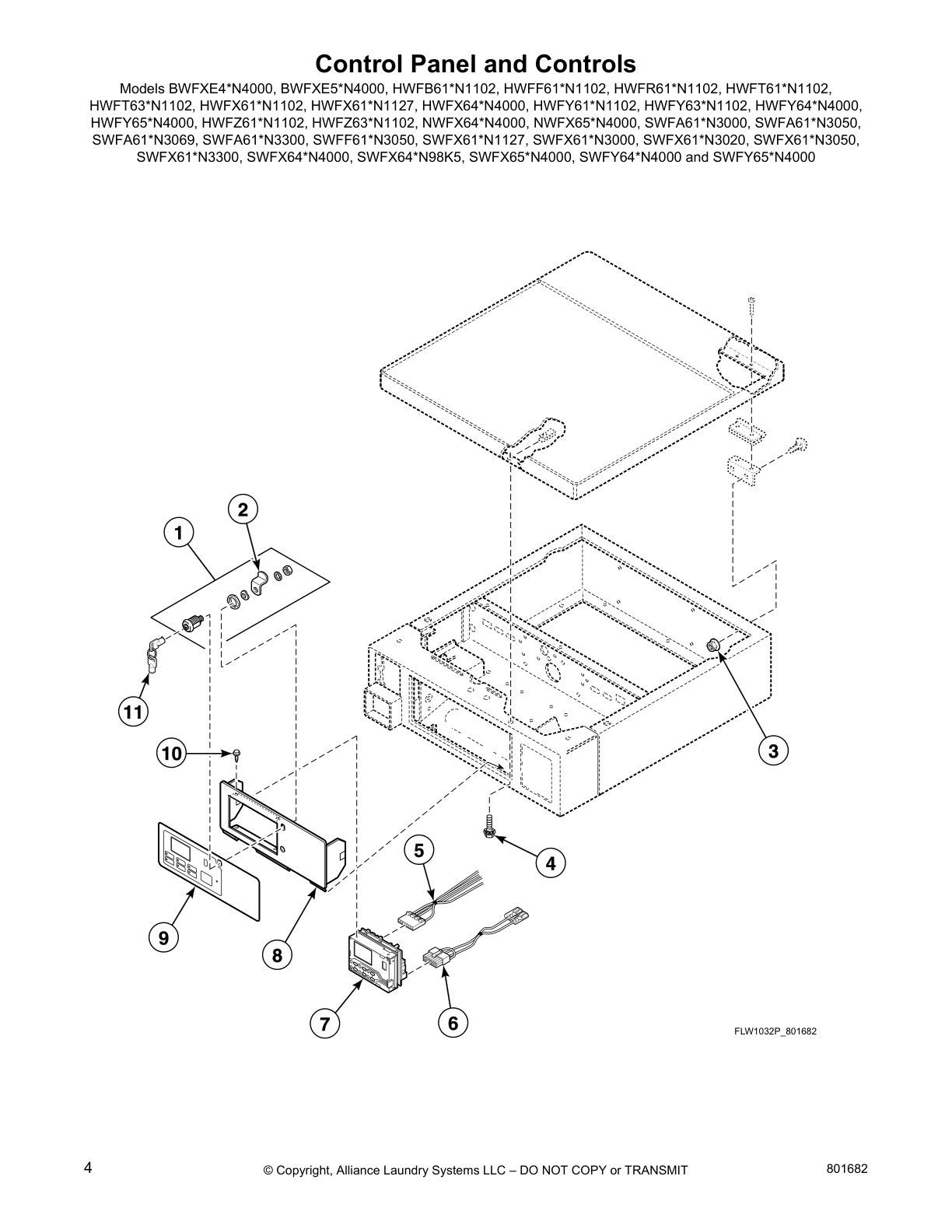

Control Panel and Controls

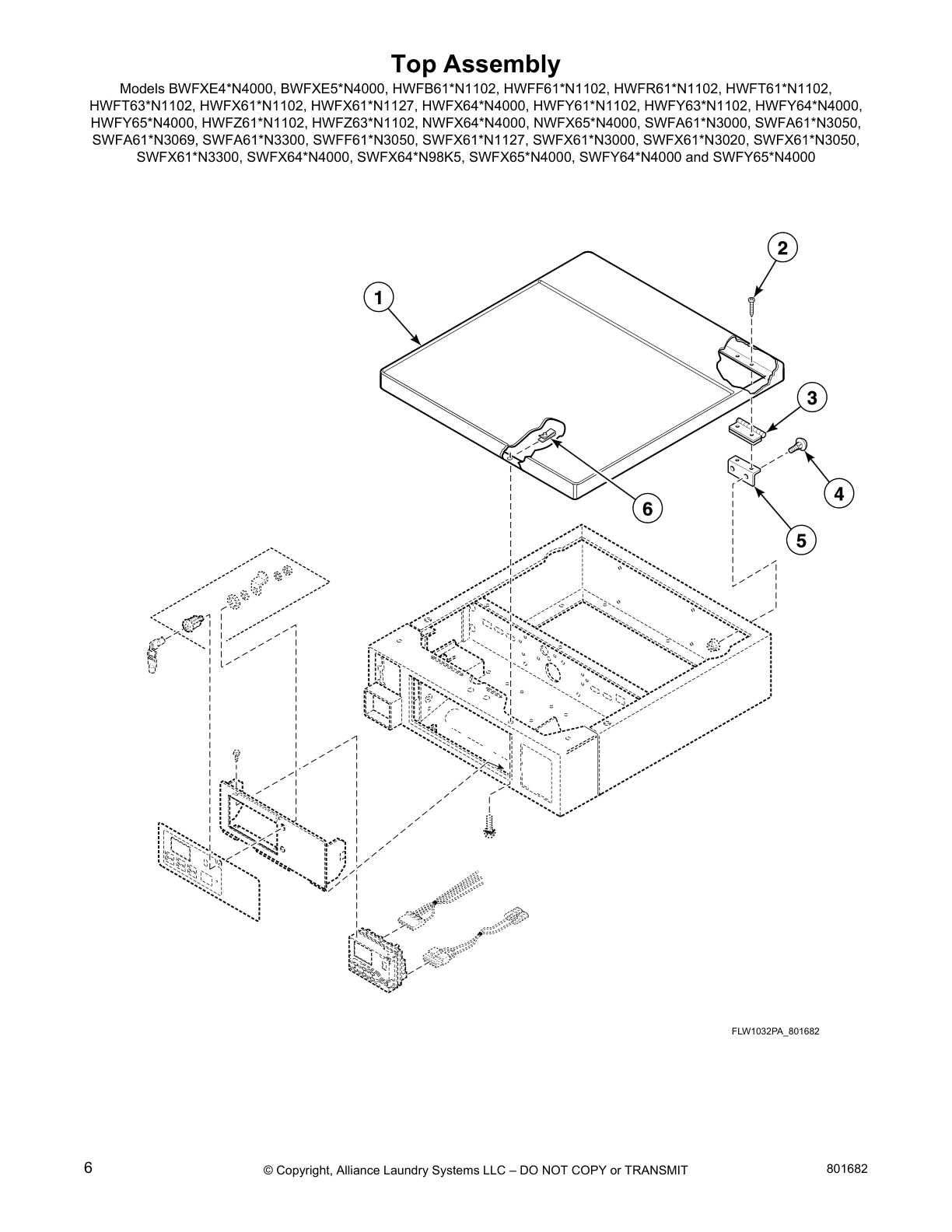

Top Assembly
Control Cabinet Controls
Control Cabinet and Controls
Electrical Access Panel, Filters and Terminal Block
Wrapper Assembly and Coin Drop
Electronic Coin Drop
Wrapper Assembly and Card Reader
Coin Drop, Meter Case, Service Door and Cabinet Top
Meter Case, Service Door and Cabinet Top
Control Panel, Control Hood and Controls (Drawing 1 of 3)
Control Hood Security Kit
Control Panel, Control Hood and Controls (Drawing 2 of 3)
Control Panel, Control Hood and Controls (Drawing 3 of 3)
Front Panel, Door Assembly and Door Seal (Drawing 1 of 2)
Front Panel, Door Assembly and Door Seal (Drawing 2 of 2)
Dispenser Assembly
Mixing Valve, Inlet Hose and Dispenser Hose
Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt
Drain Hoses and Valve
Hoses and Pump
Base, Side Panels and Rear Panel
Junction Box
Shipping Materials
Wire Ties, Harness Clips and Lead-In Cord
Special Tools
Labels
Wire Harnesses and Wires
Common parts from model Huebsch HWFT63*N1102 Washer
3
SPQ 800211 SPQ 800211 Contact Us For Availability
4
SPQ 801928WP SPQ 801928WP Contact Us For Availability
6
SPQ 800436WP SPQ 800436WP Contact Us For Availability
7
Shipping Materials Kit SPQ 728P3 Contact Us For Availability
11
Key SPQ 54612 No Longer Available
13
Dispenser Assembly SPQ 801476P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
17
Door Seal Clamp SPQ 800438 Contact Us For Availability
19
Harness Strap SPQ 800232P Contact Us For Availability
19
Clamp Ring SPQ 800312 Contact Us For Availability
NI
Coin Identification Paper SPQ 70294106 Contact Us For Availability
× ![]()
