Model Huebsch HFNBYASG115CW01 Washer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 2)
Control Panel and Controls (Drawing 2 of 2)

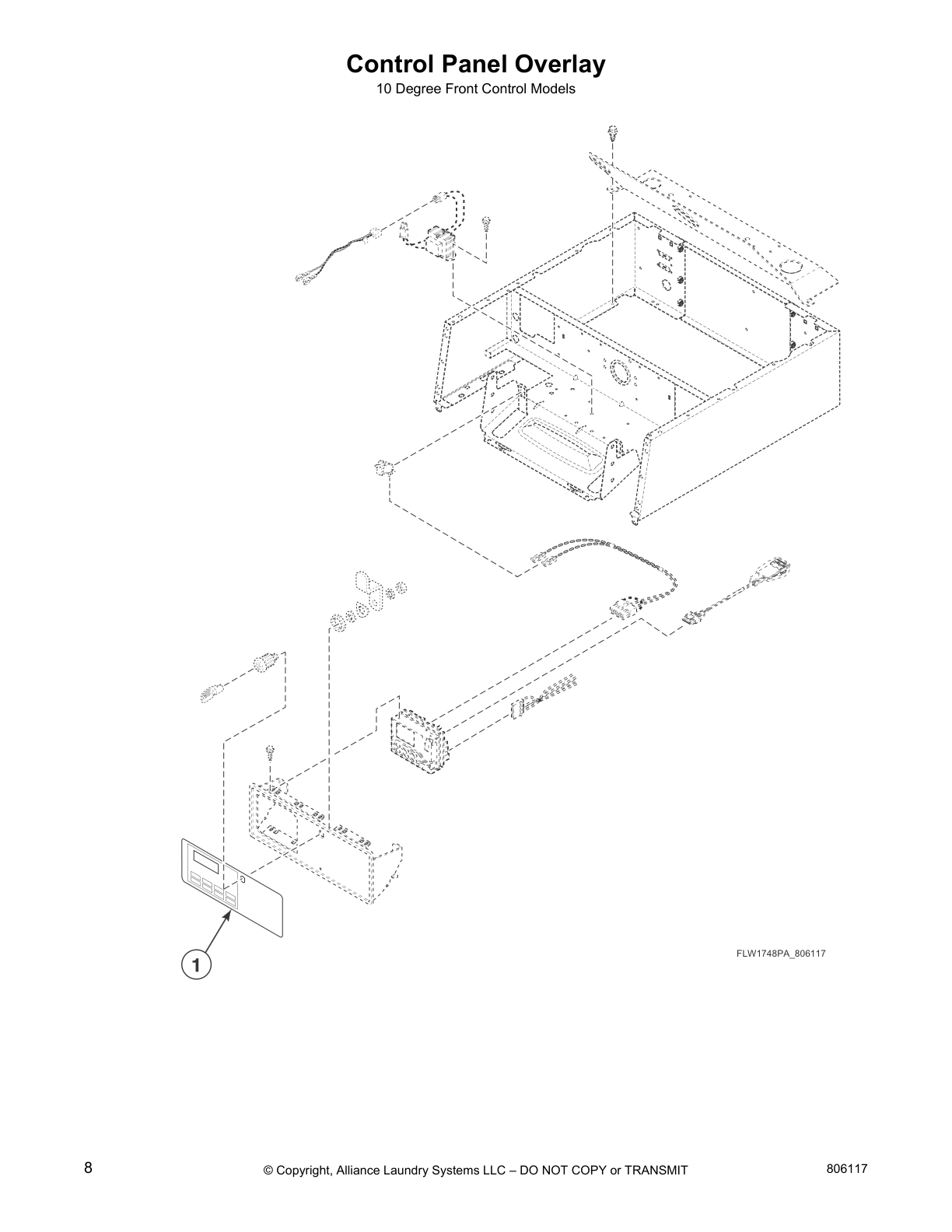

Control Panel Overlay
Top Assembly

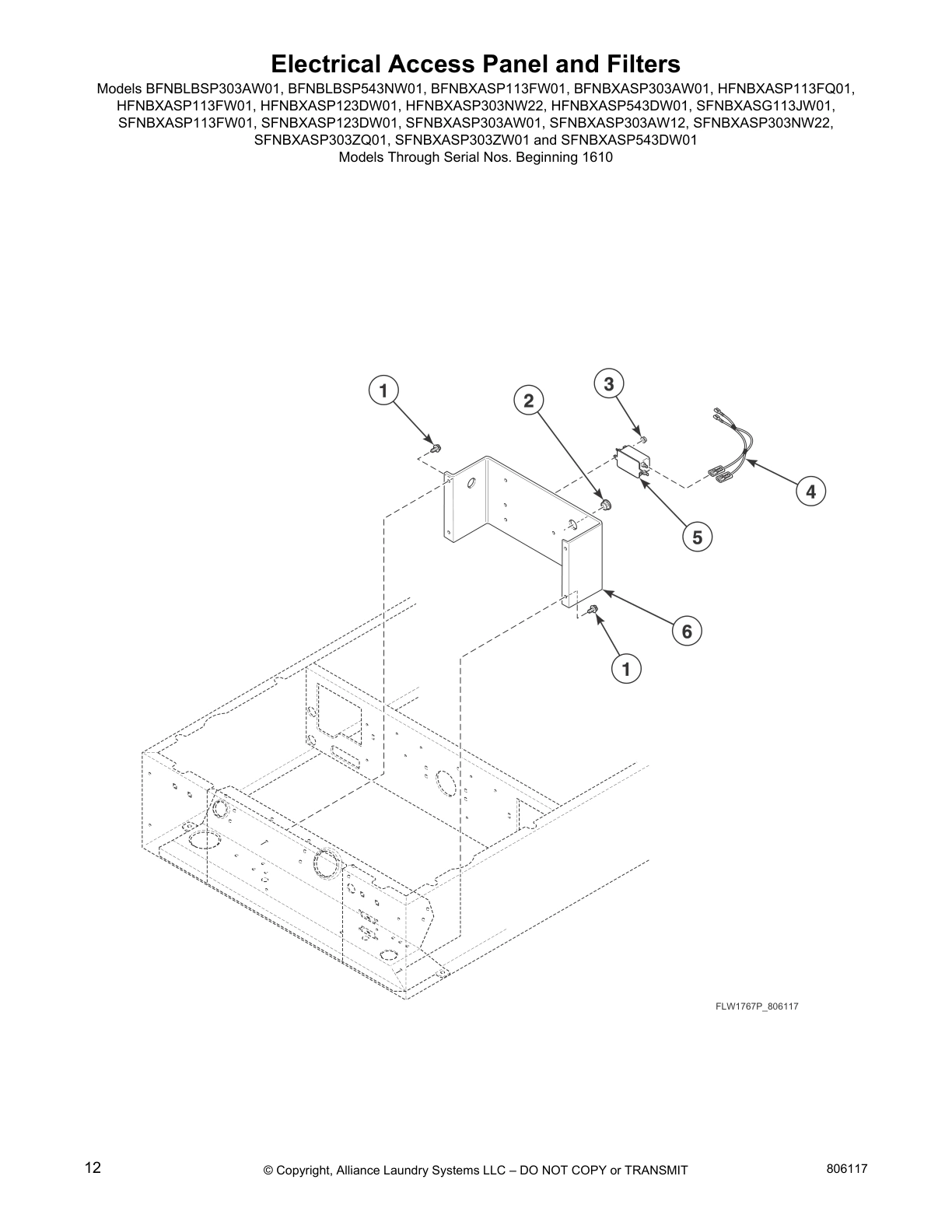

Electrical Access Panel and Filters

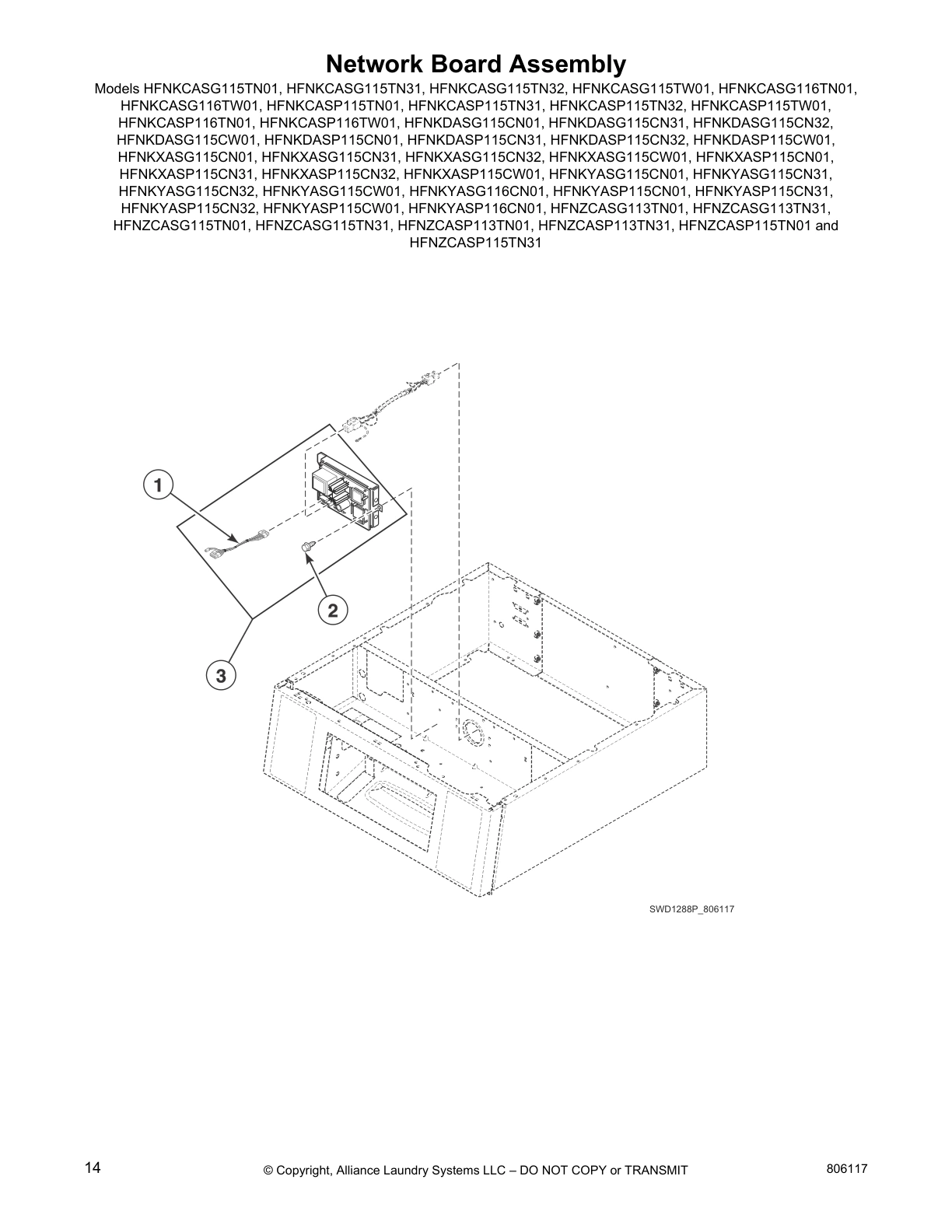

Network Board Assembly

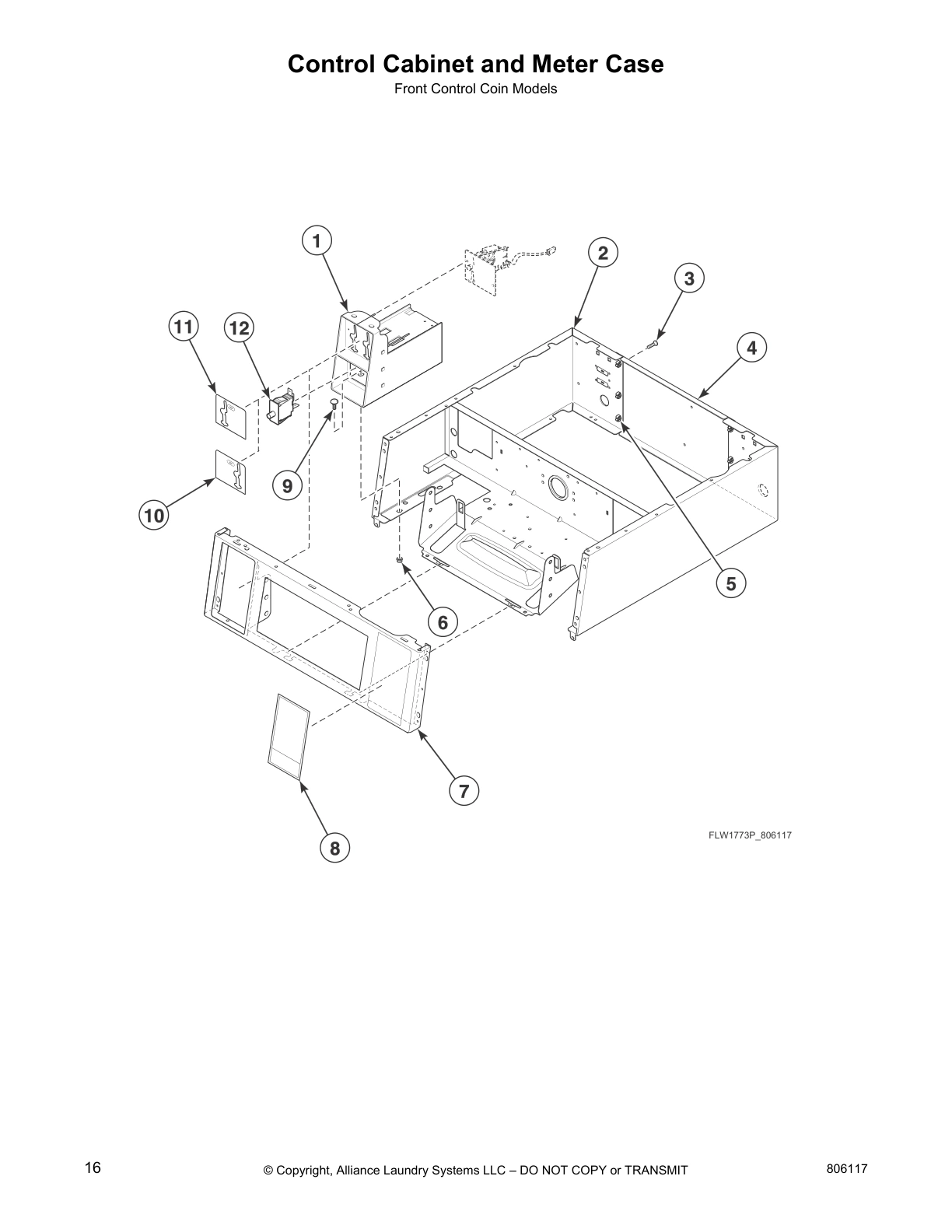

Control Cabinet and Meter Case

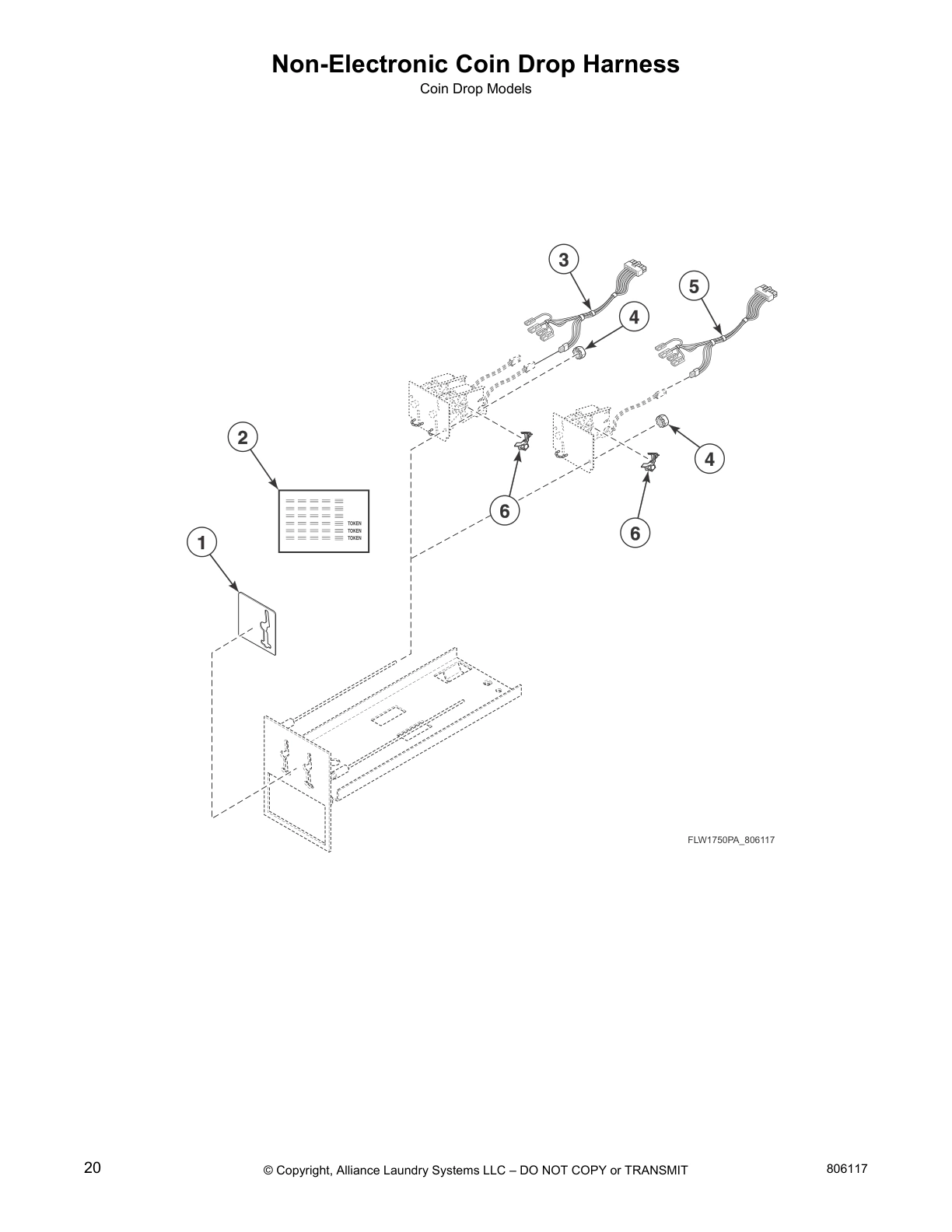

Non-Electronic Coin Drop Harness

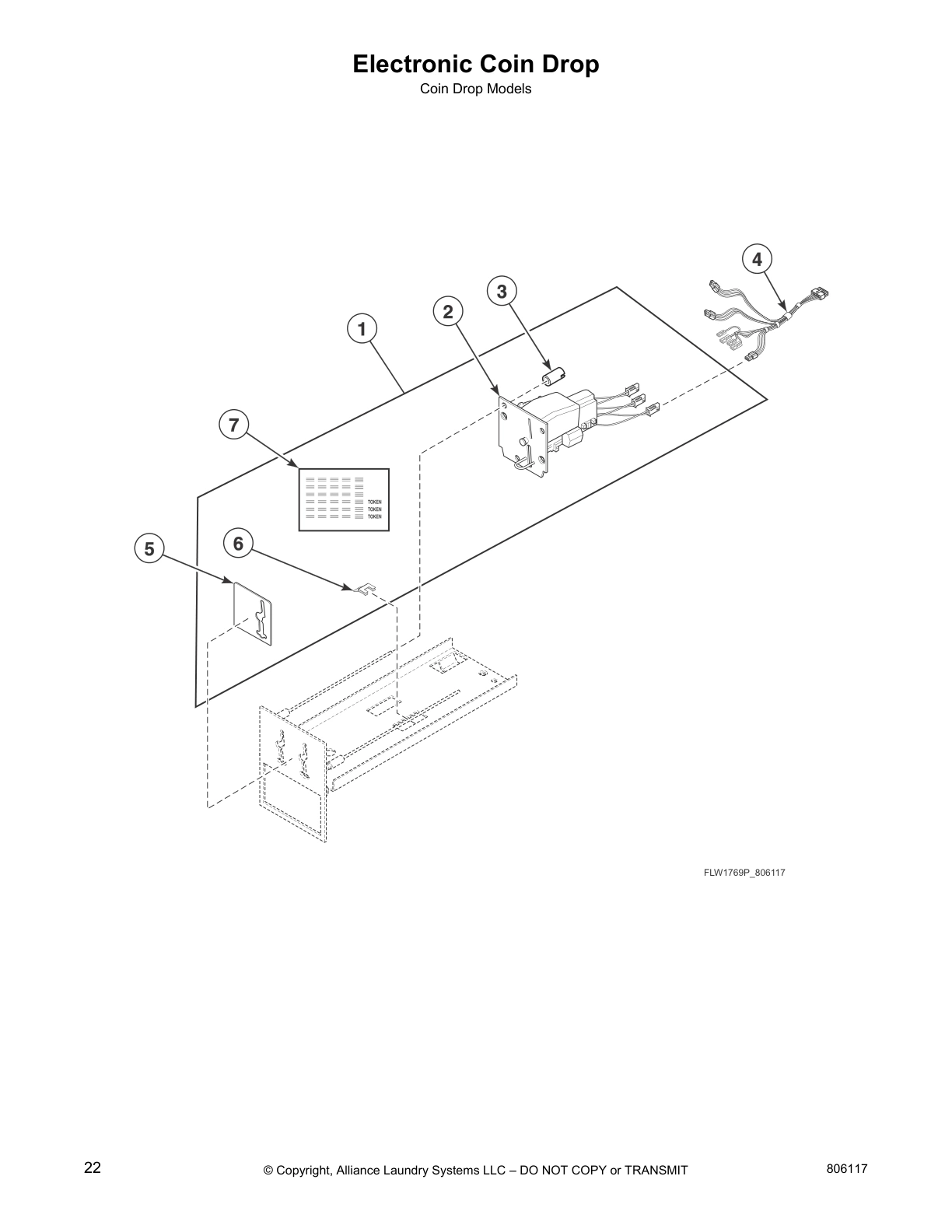

Electronic Coin Drop

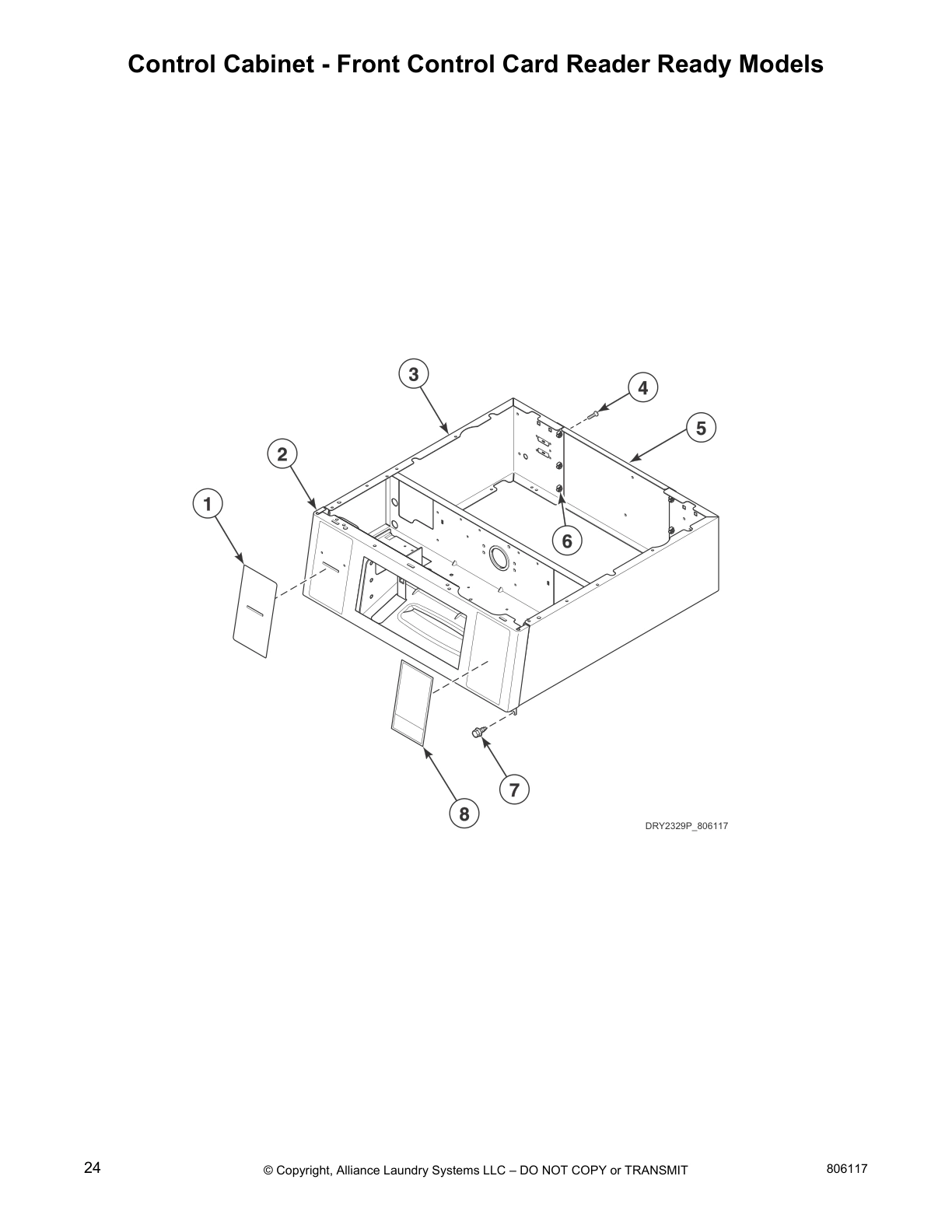

Control Cabinet - Front Control Card Reader Ready Models

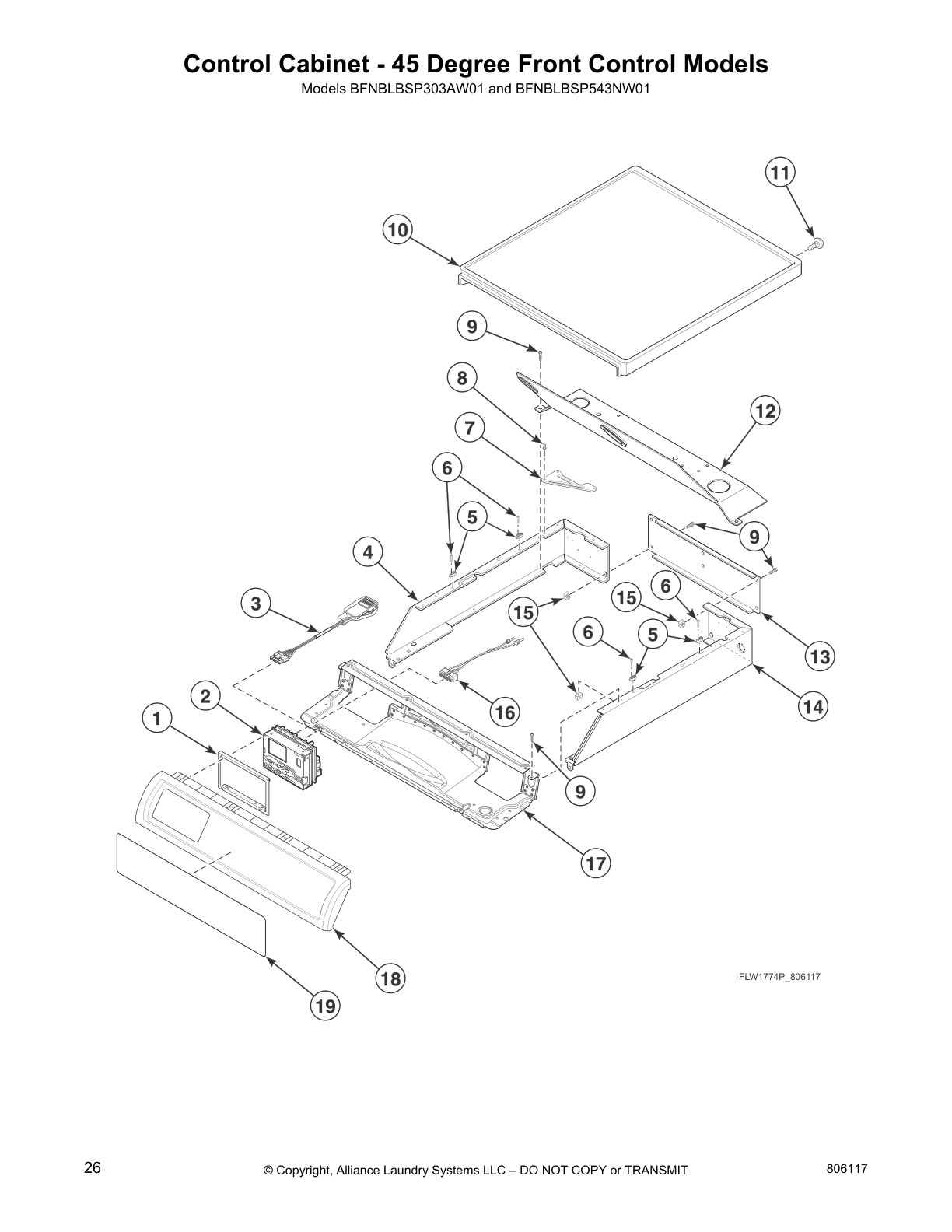

Control Cabinet - 45 Degree Front Control Models

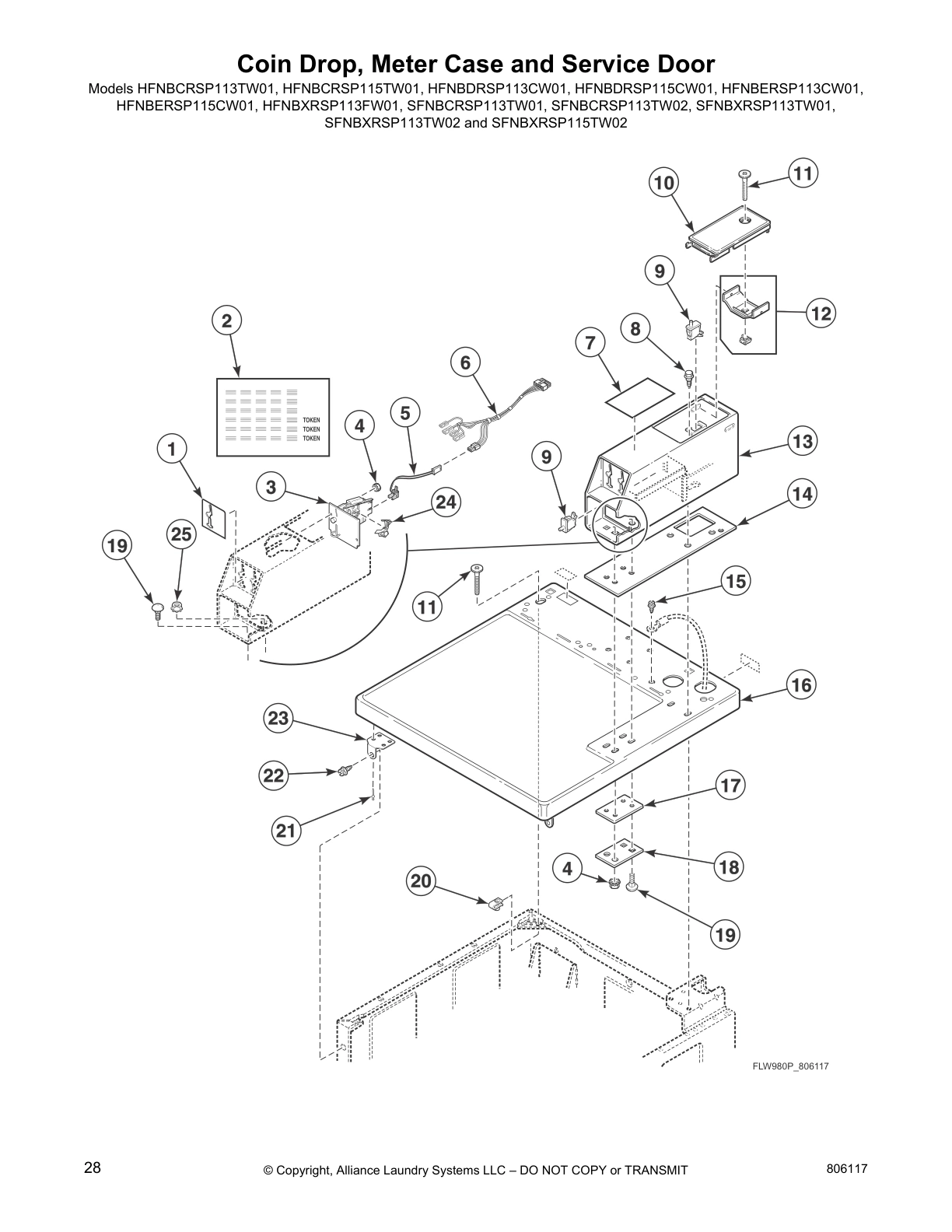

Coin Drop, Meter Case and Service Door

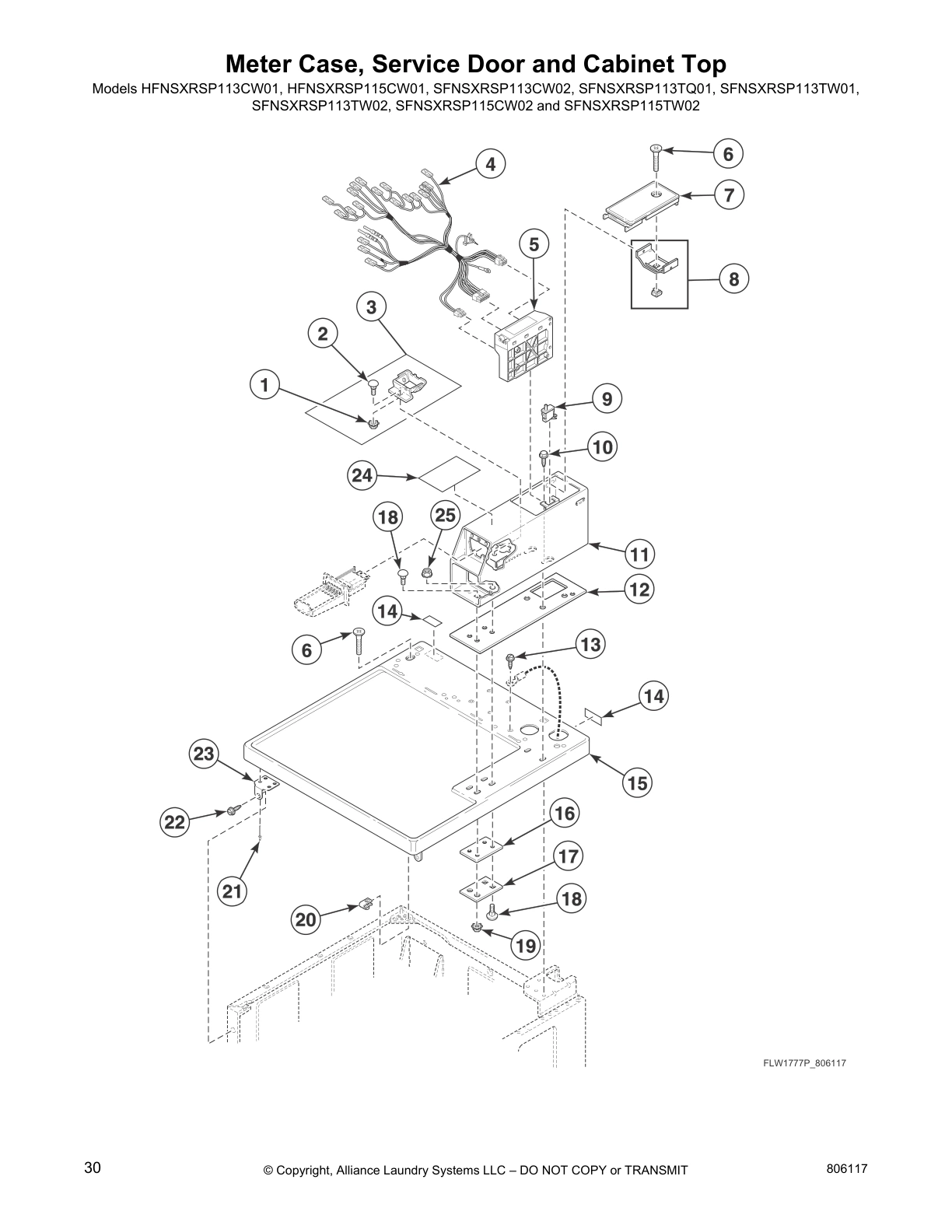

Meter Case, Service Door and Cabinet Top

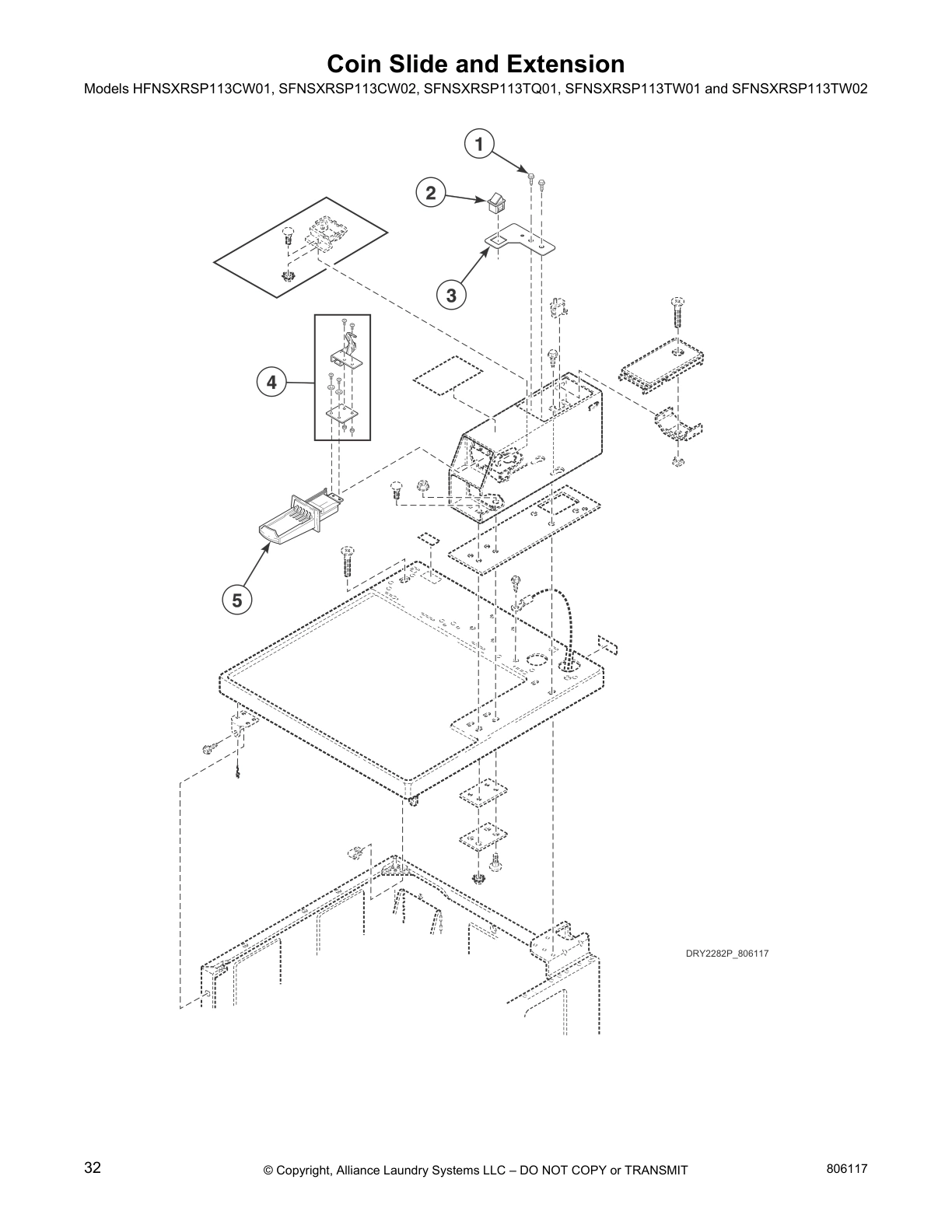

Coin Slide and Extension

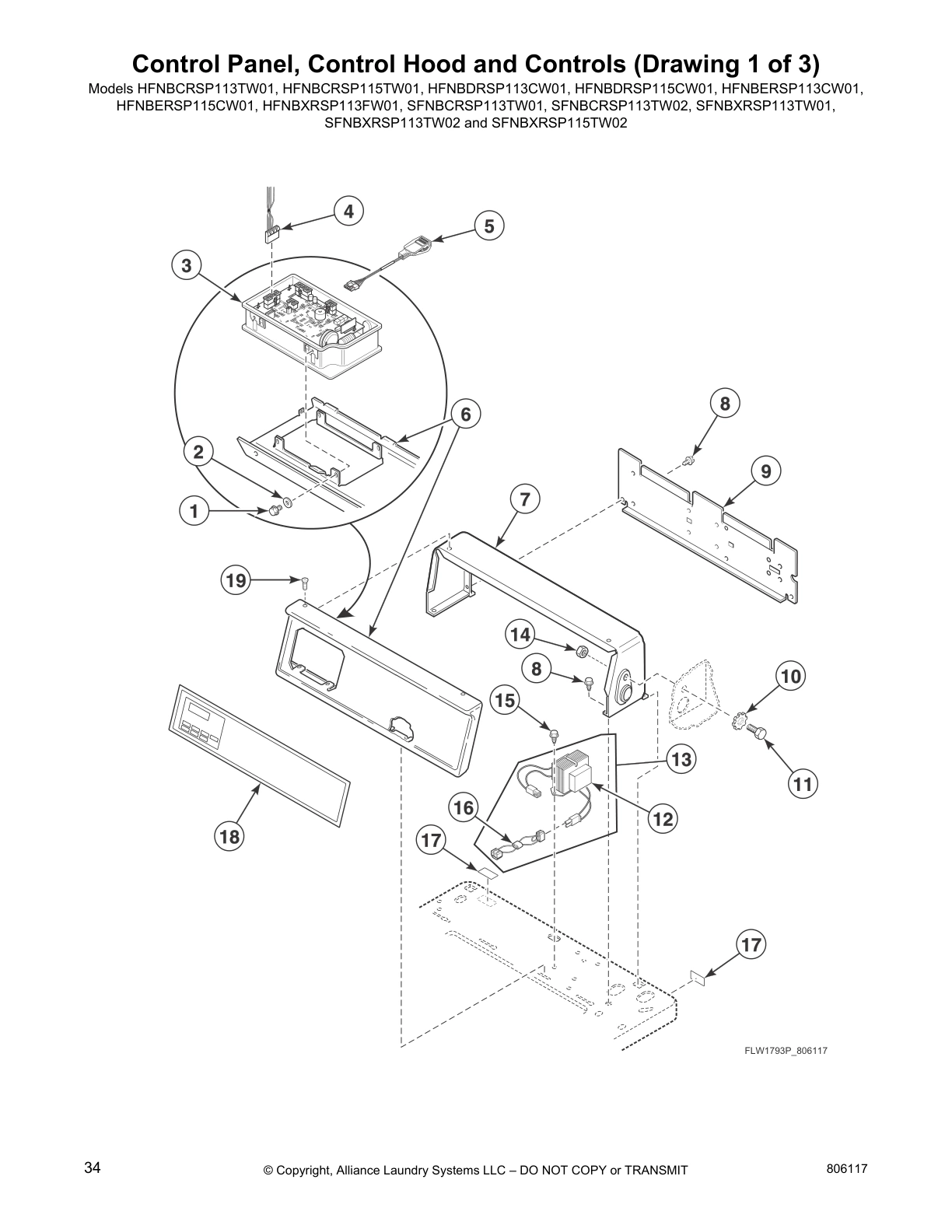

Control Panel, Control Hood and Controls (Drawing 1 of 3)

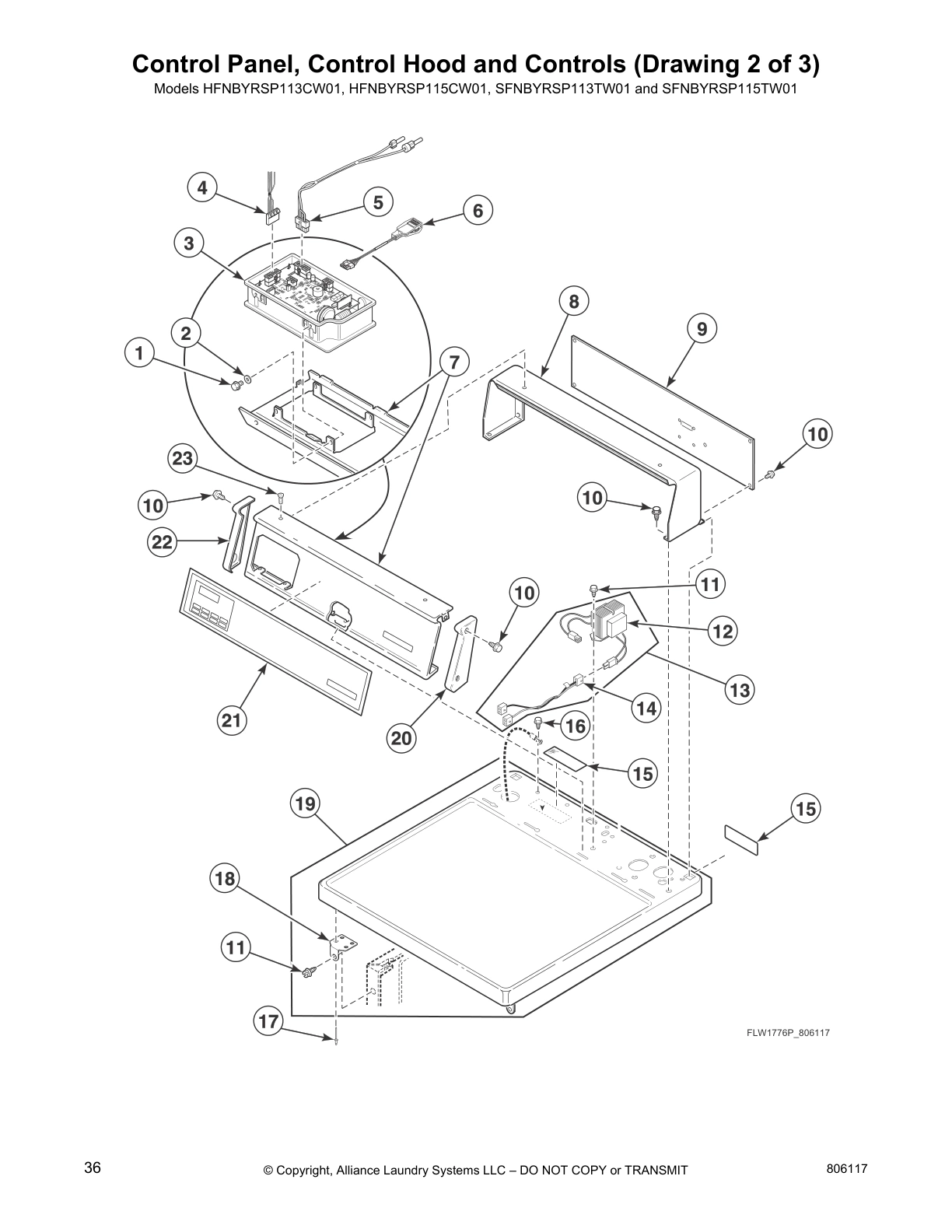

Control Panel, Control Hood and Controls (Drawing 2 of 3)

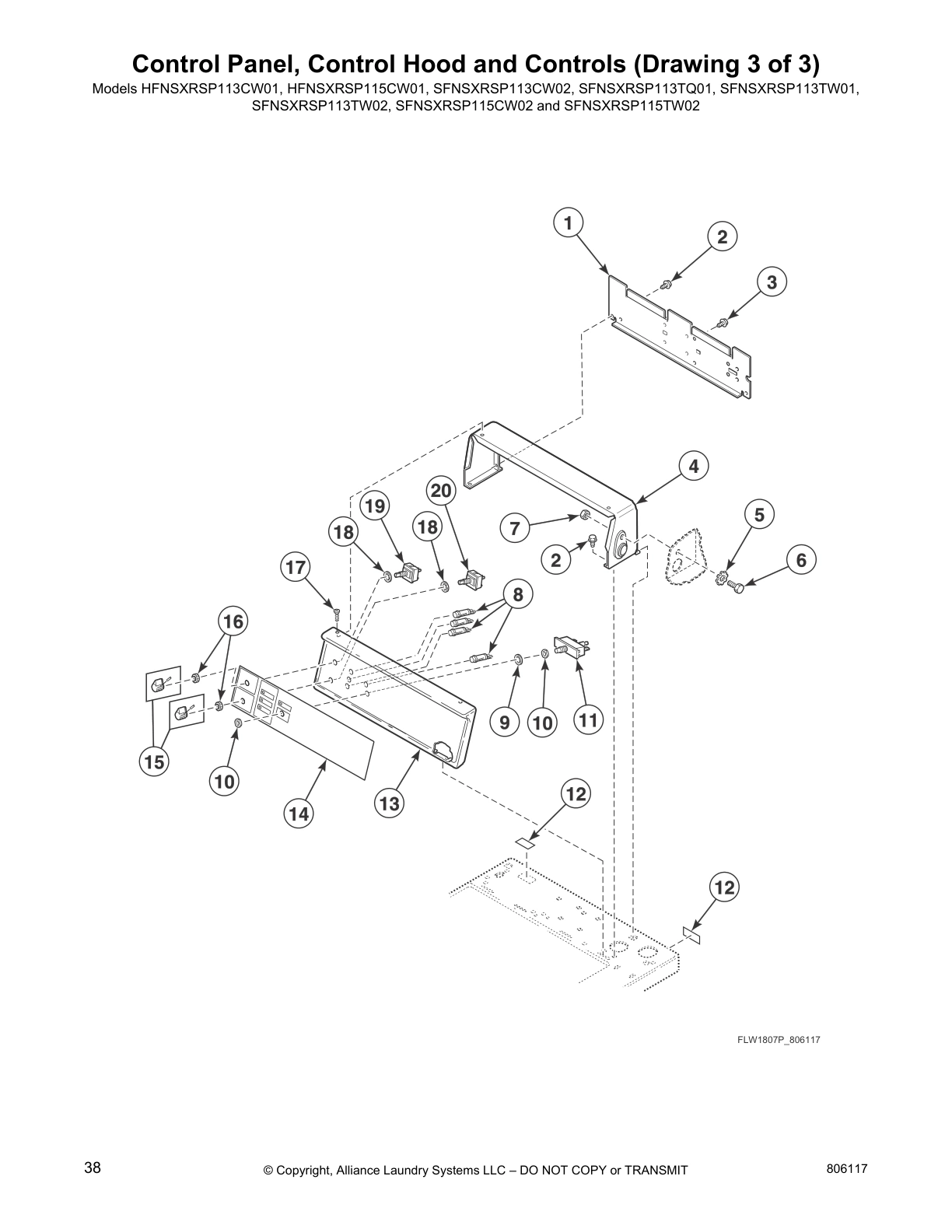

Control Panel, Control Hood and Controls (Drawing 3 of 3)
Front Panel, Door Assembly and Door Seal

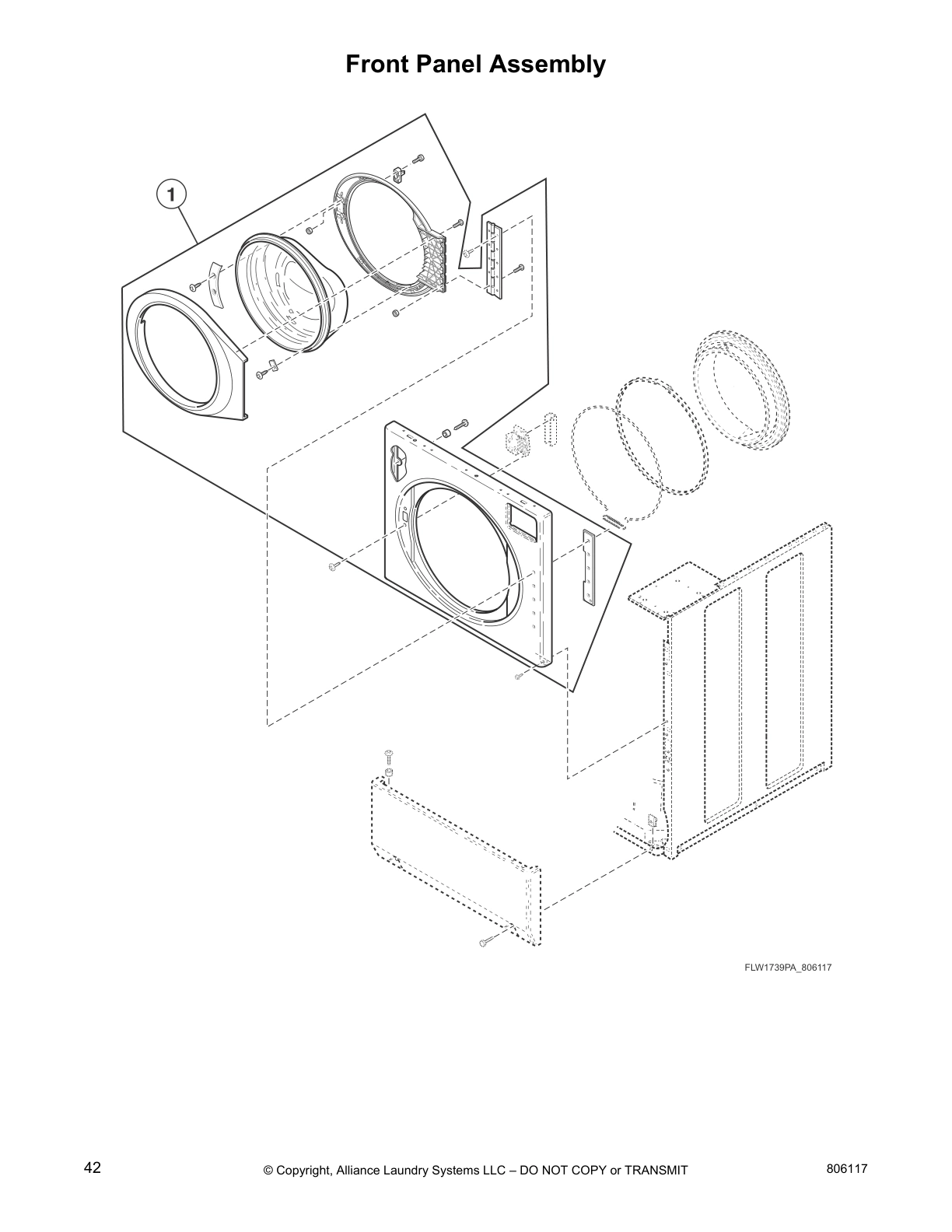

Front Panel Assembly
Dispenser Assembly

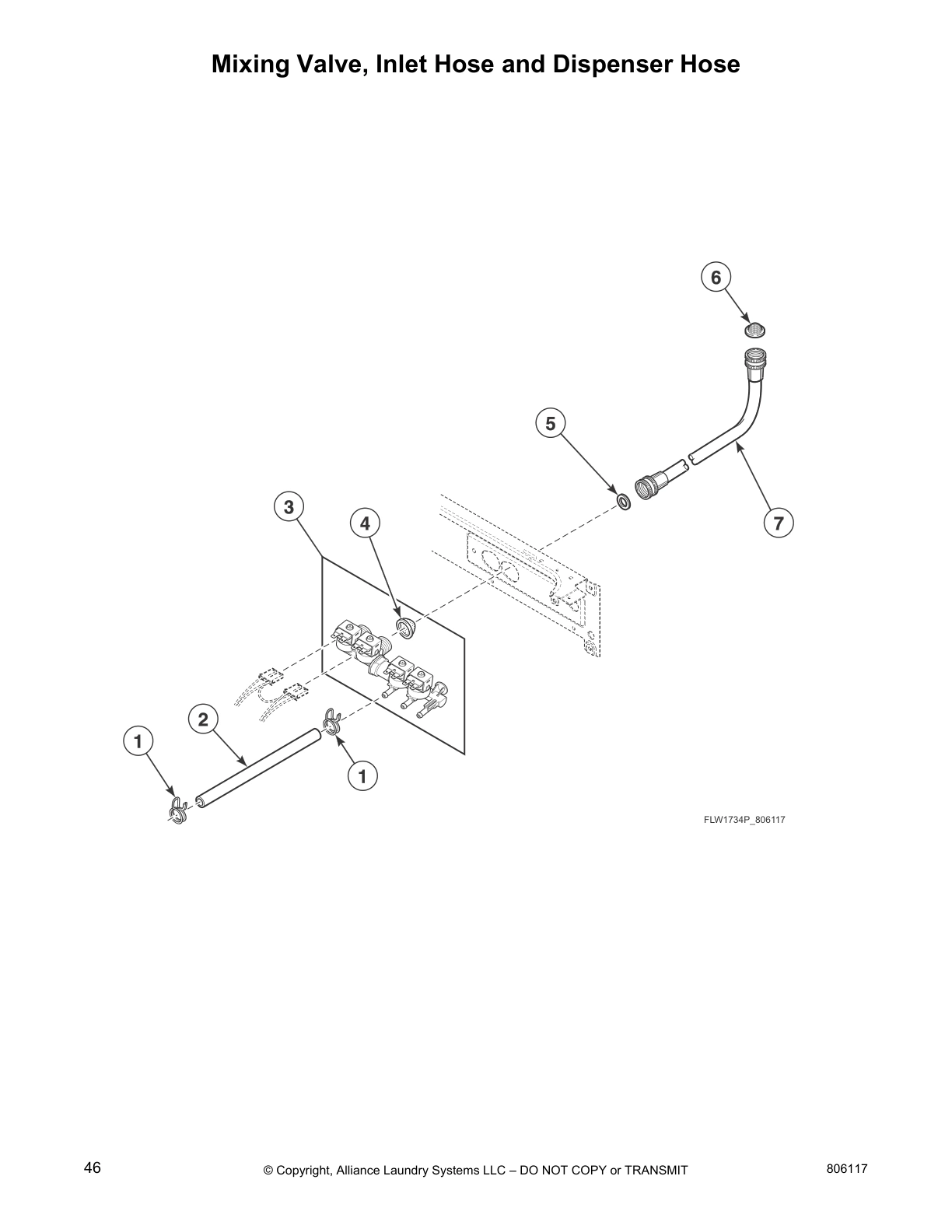

Mixing Valve, Inlet Hose and Dispenser Hose

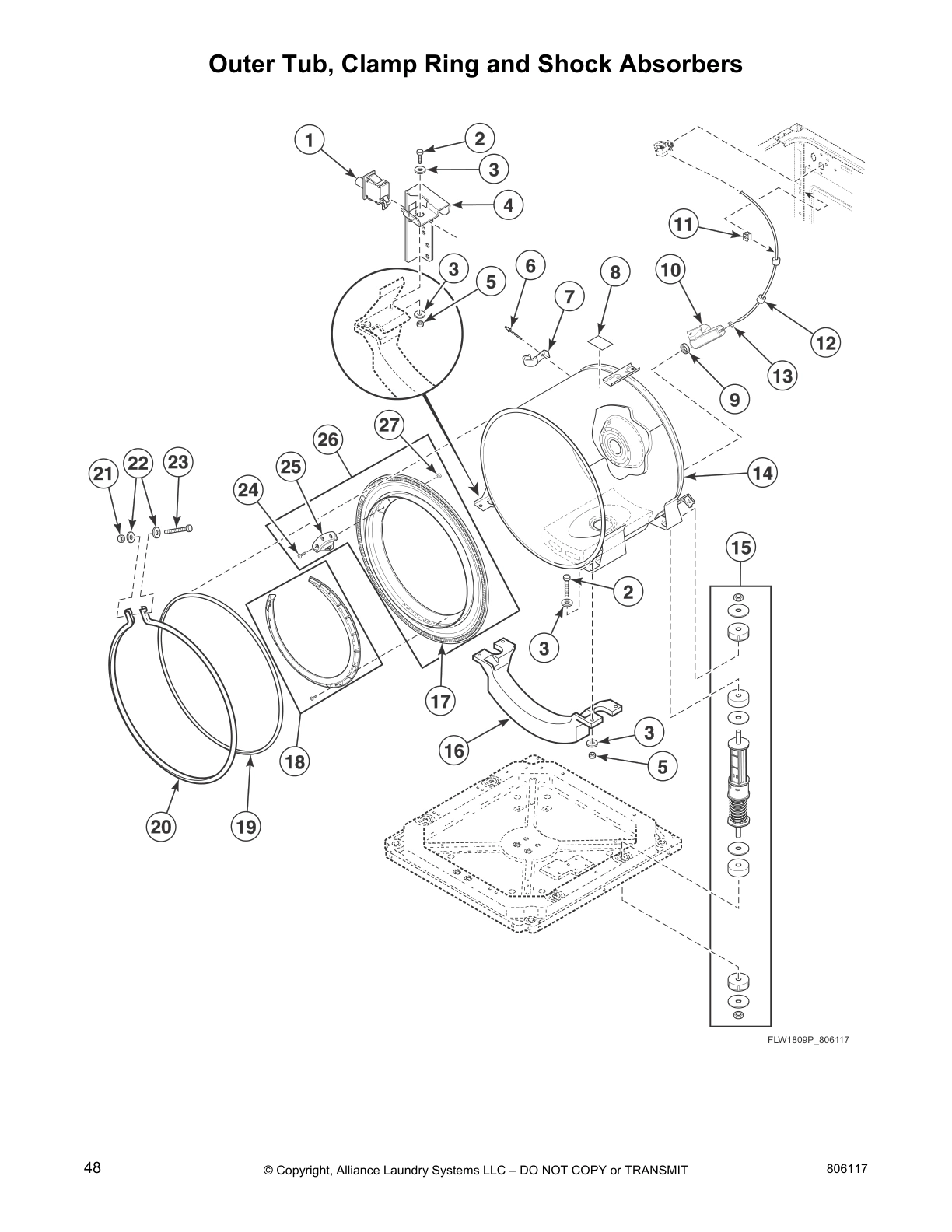

Outer Tub, Clamp Ring and Shock Absorbers

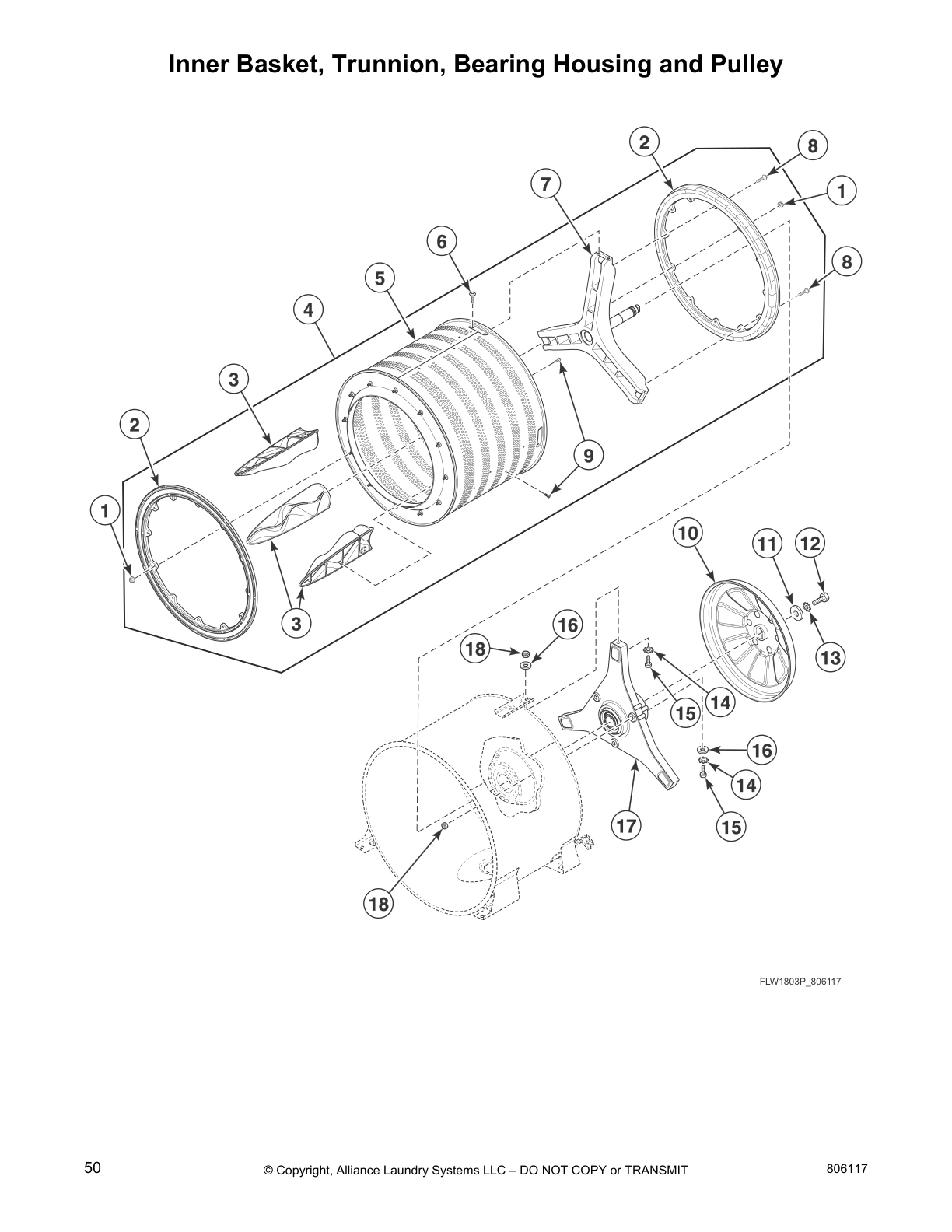

Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

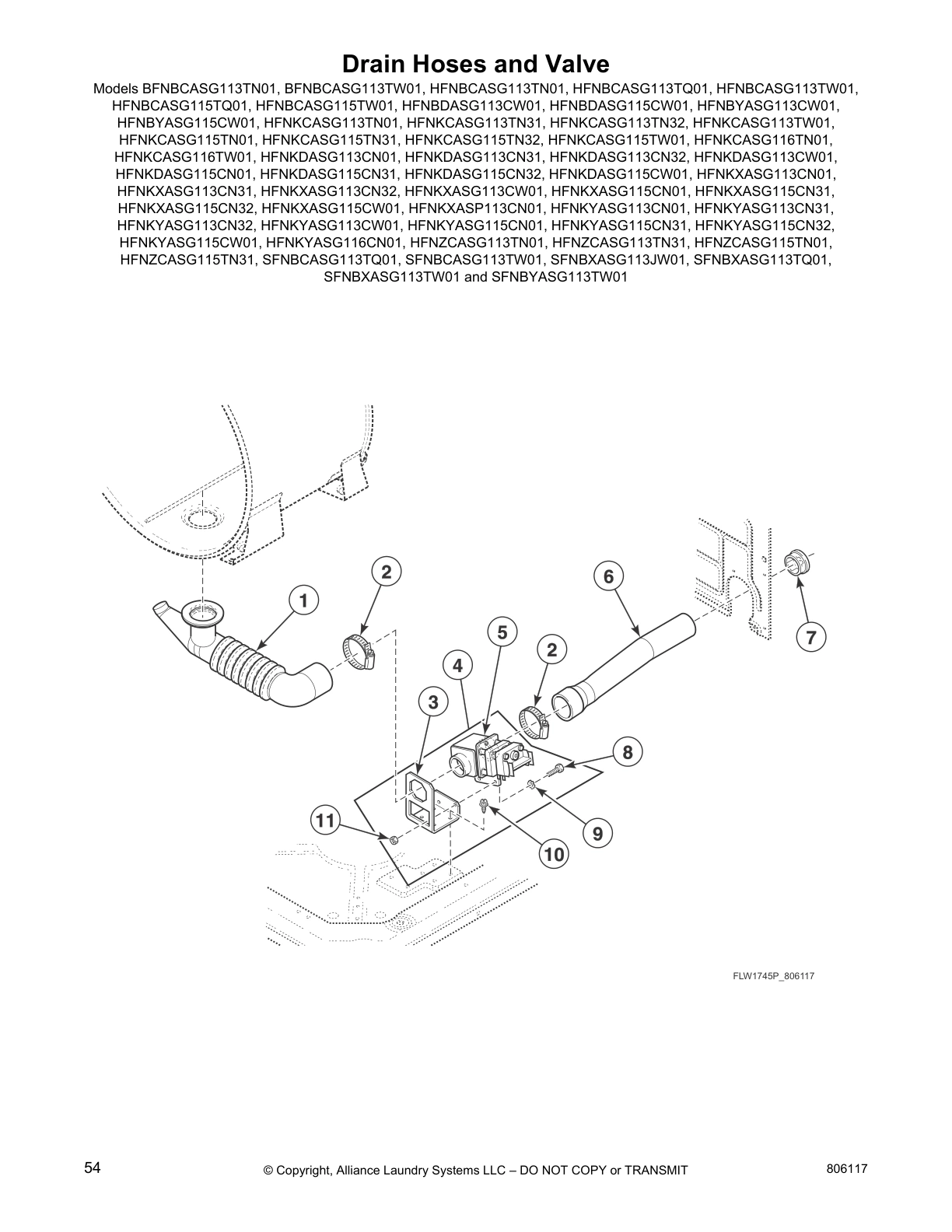

Drain Hoses and Valve

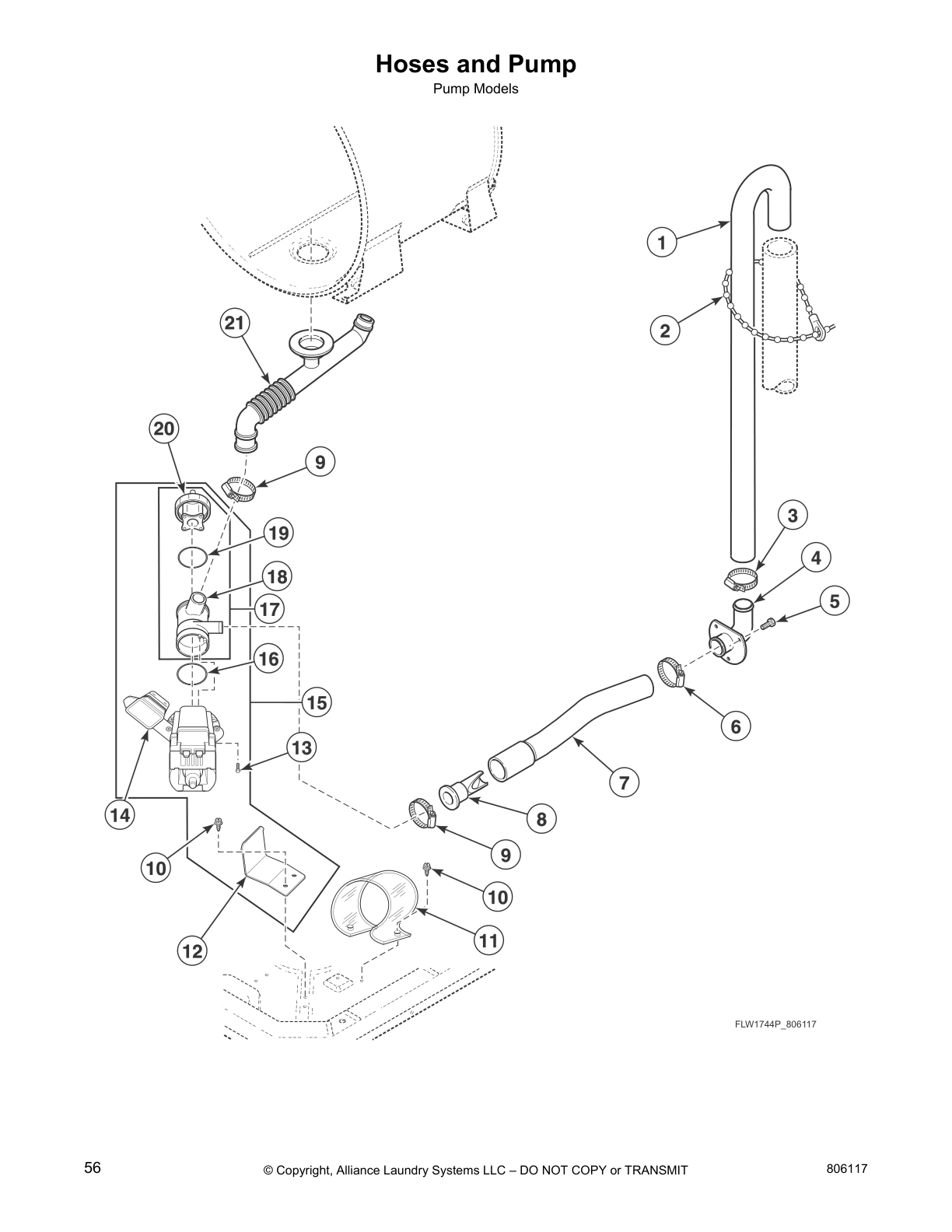

Hoses and Pump

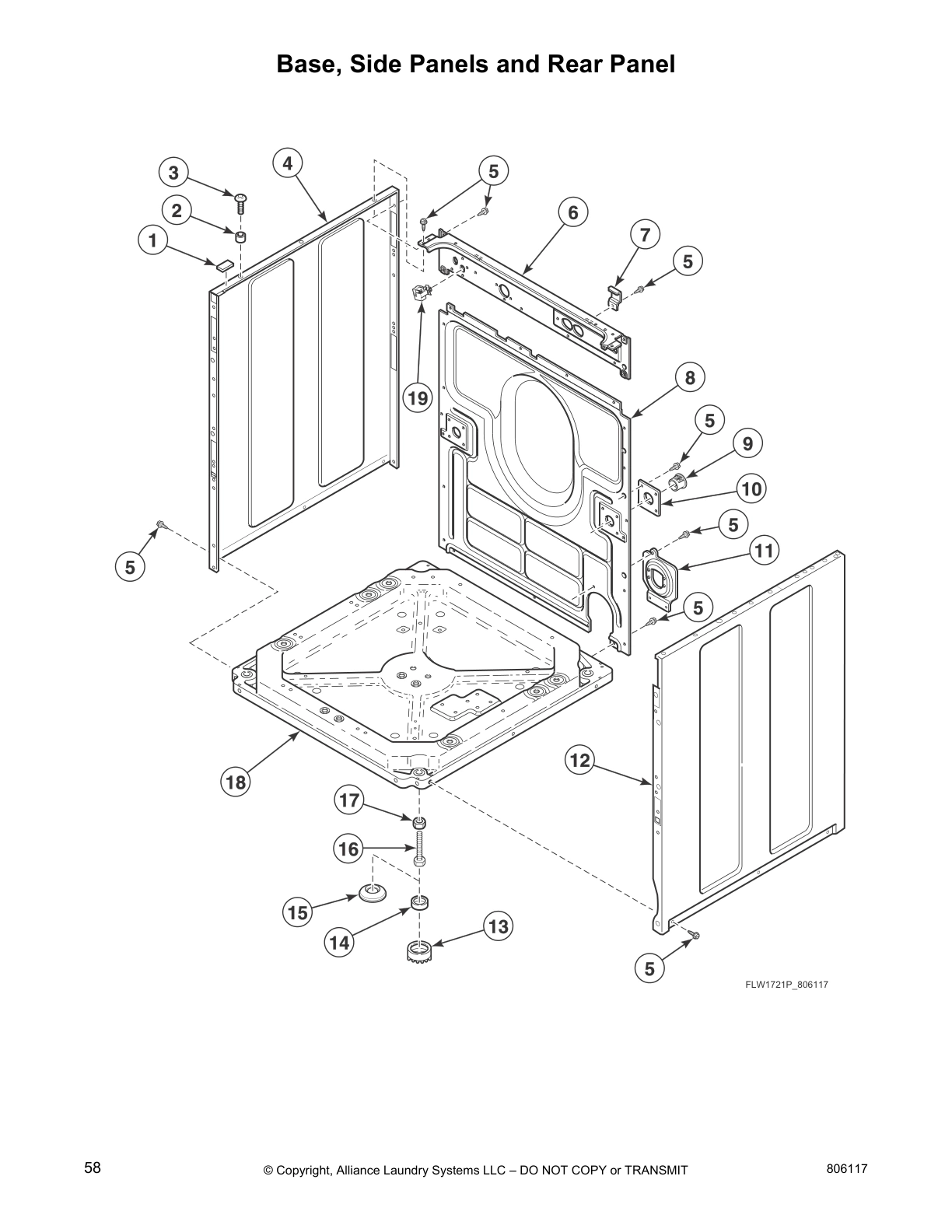

Base, Side Panels and Rear Panel

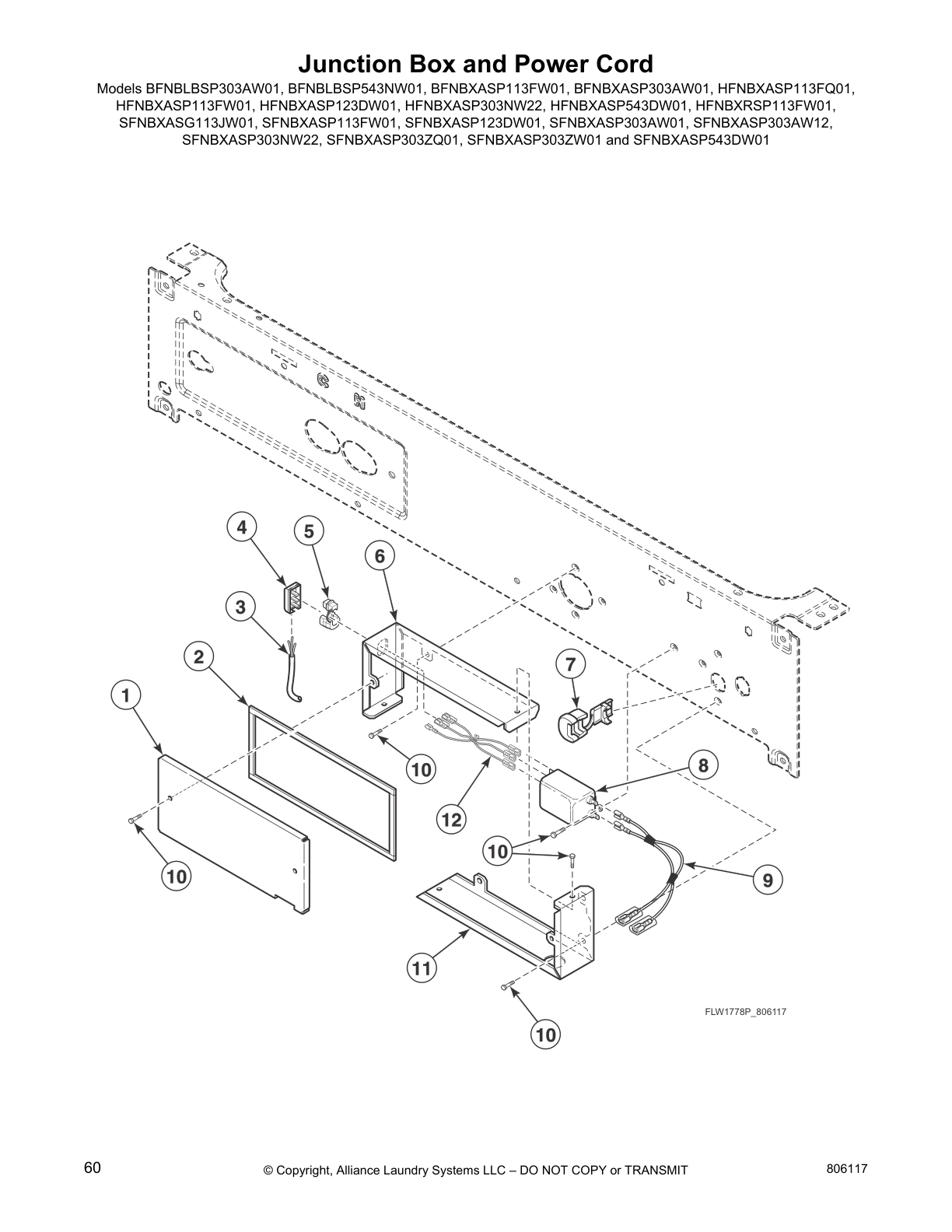

Junction Box and Power Cord
Shipping Materials

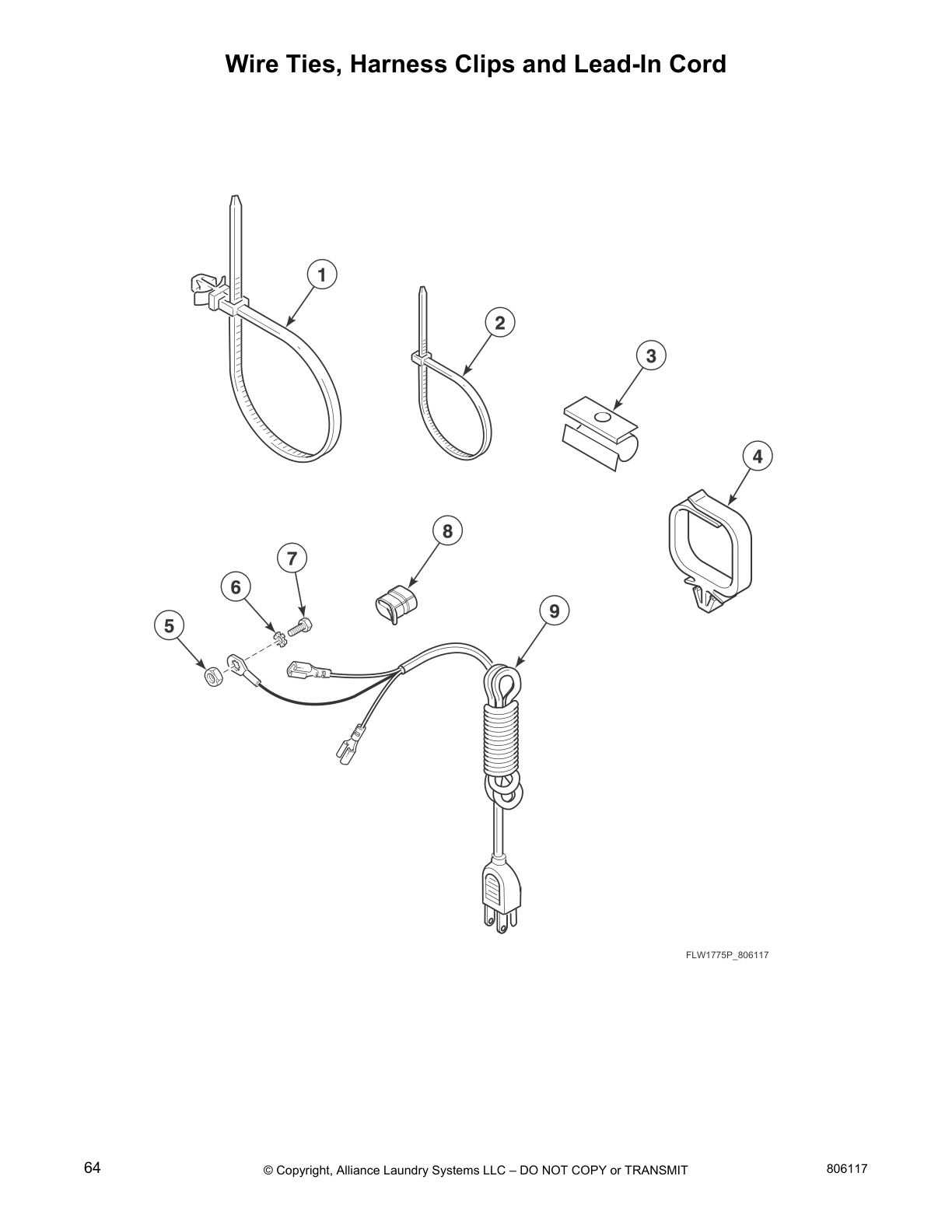

Wire Ties, Harness Clips and Lead-In Cord

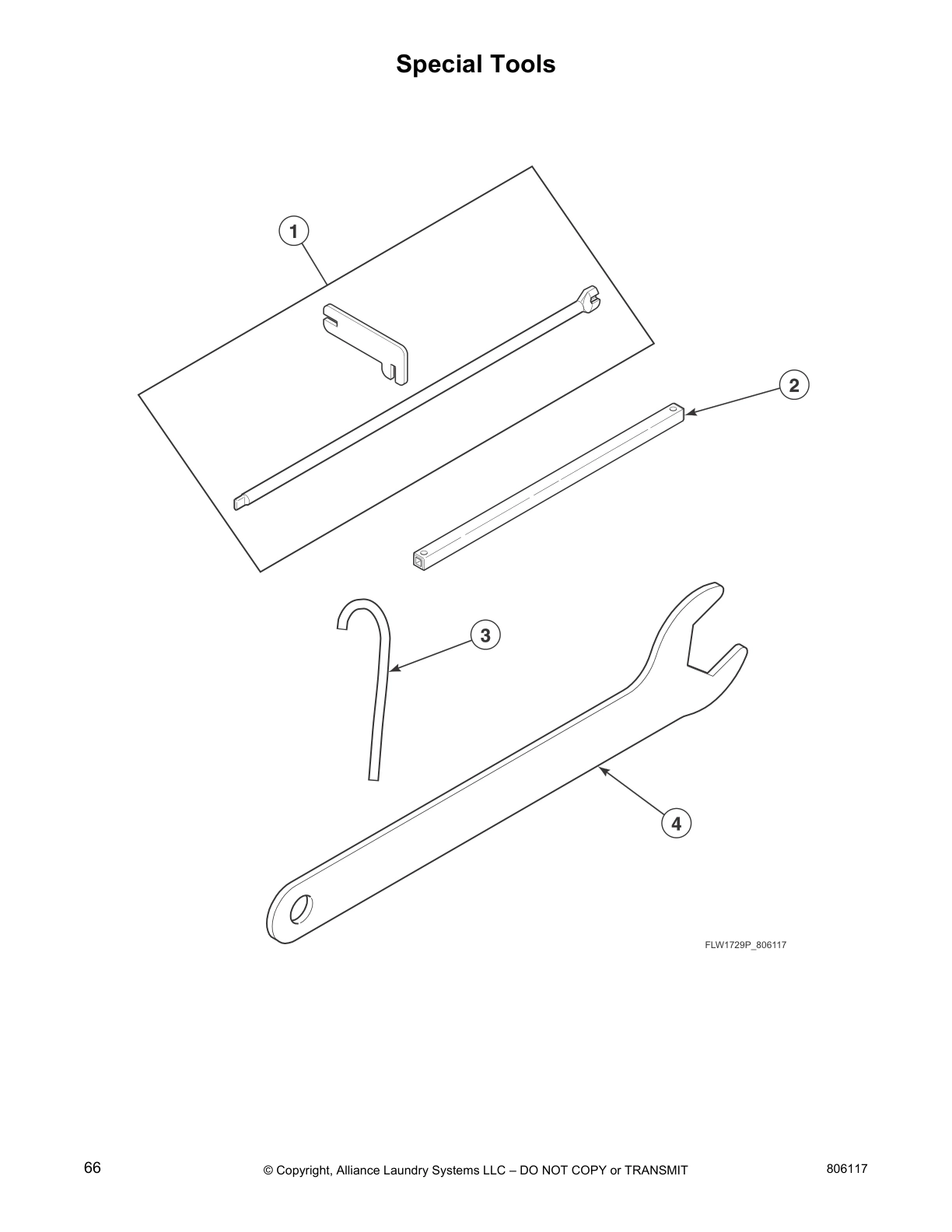

Special Tools
Labels
Wire Harnesses and Wires
Common parts from model Huebsch HFNBYASG115CW01 Washer
5
Caution Label SPQ 801706 Contact Us For Availability
6
Left Hand Thread Label SPQ 804949 Contact Us For Availability
NI
SPQ 54612 No Longer Available
× ![]()
