Model Huebsch HFNBYASG113CW01 Washer – Common Parts & Diagrams

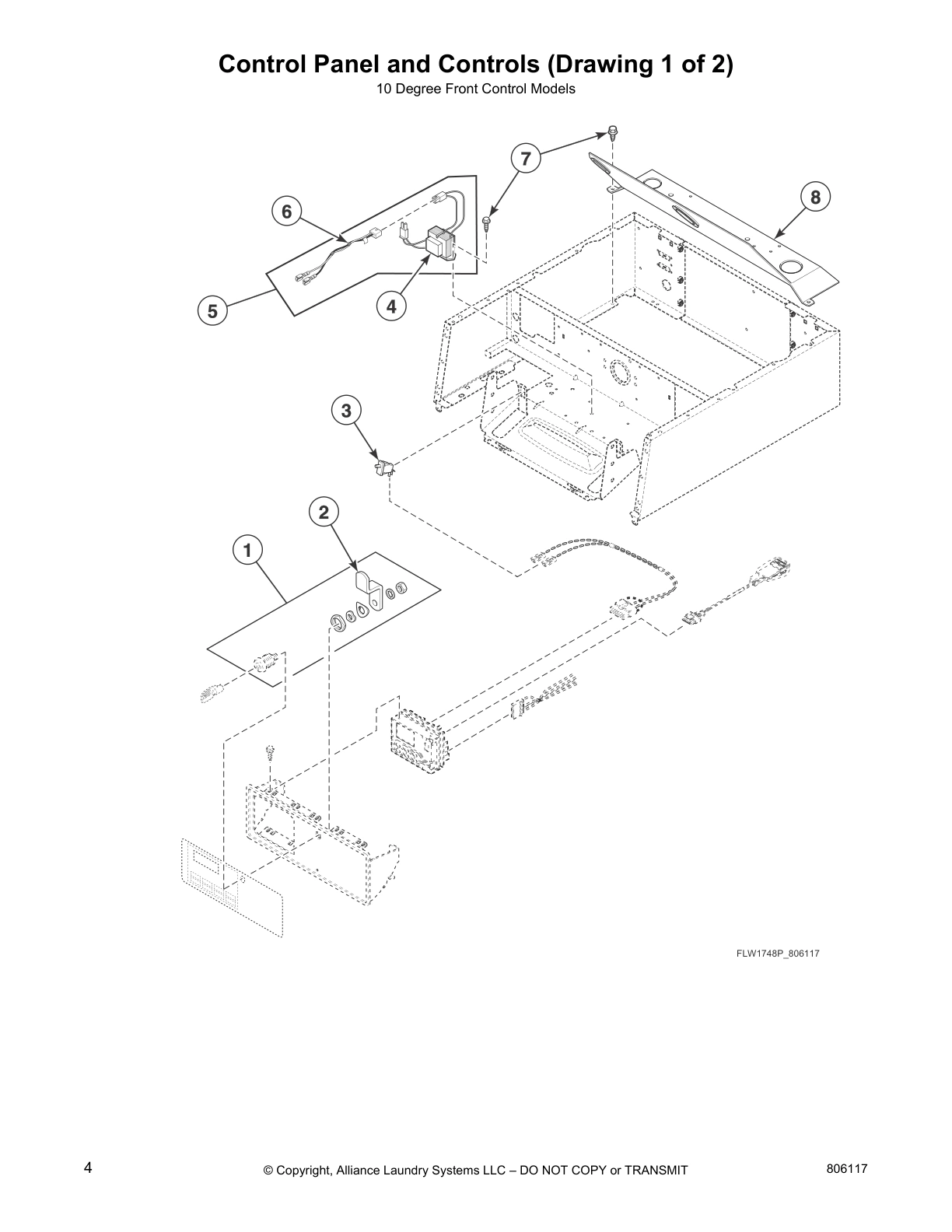

Control Panel and Controls (Drawing 1 of 2)

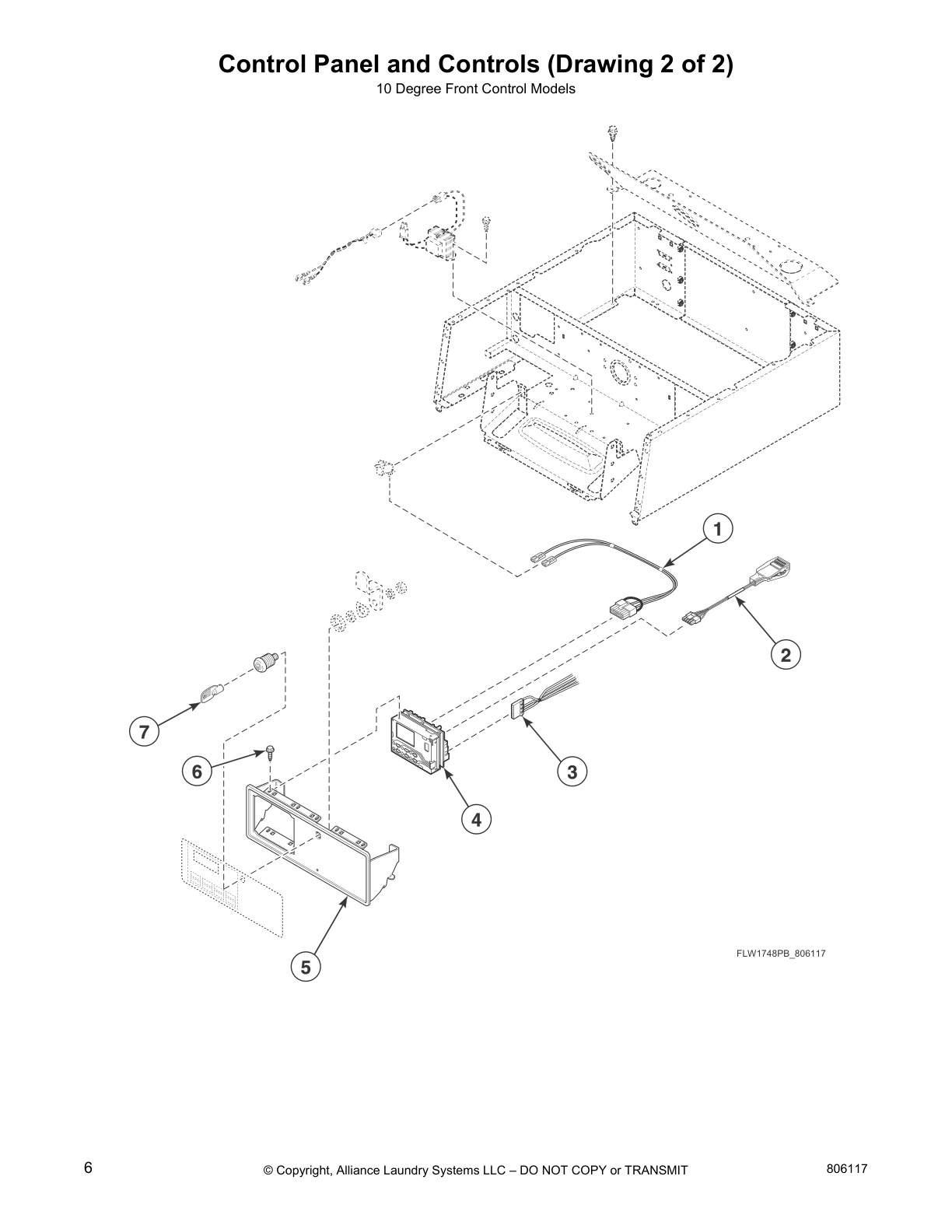

Control Panel and Controls (Drawing 2 of 2)
Control Panel Overlay
Top Assembly
Electrical Access Panel and Filters
Network Board Assembly
Control Cabinet and Meter Case
Non-Electronic Coin Drop Harness
Electronic Coin Drop
Control Cabinet - Front Control Card Reader Ready Models
Control Cabinet - 45 Degree Front Control Models
Coin Drop, Meter Case and Service Door
Meter Case, Service Door and Cabinet Top
Coin Slide and Extension
Control Panel, Control Hood and Controls (Drawing 1 of 3)
Control Panel, Control Hood and Controls (Drawing 2 of 3)
Control Panel, Control Hood and Controls (Drawing 3 of 3)
Front Panel, Door Assembly and Door Seal
Front Panel Assembly
Dispenser Assembly
Mixing Valve, Inlet Hose and Dispenser Hose
Outer Tub, Clamp Ring and Shock Absorbers
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt
Drain Hoses and Valve
Hoses and Pump
Base, Side Panels and Rear Panel
Junction Box and Power Cord
Shipping Materials
Wire Ties, Harness Clips and Lead-In Cord
Special Tools
Labels
Wire Harnesses and Wires
Common parts from model Huebsch HFNBYASG113CW01 Washer
6
Left Hand Thread Label SPQ 804949 Contact Us For Availability
NI
SPQ 54612 No Longer Available
× ![]()
