Model GE HDGNXAGS543DW01 General Electric Model HDGNXAGS543DW01 – Common Parts & Diagrams
Access Panel
Burner Orifice Spuds - For Higher Elevations (Gas Models)

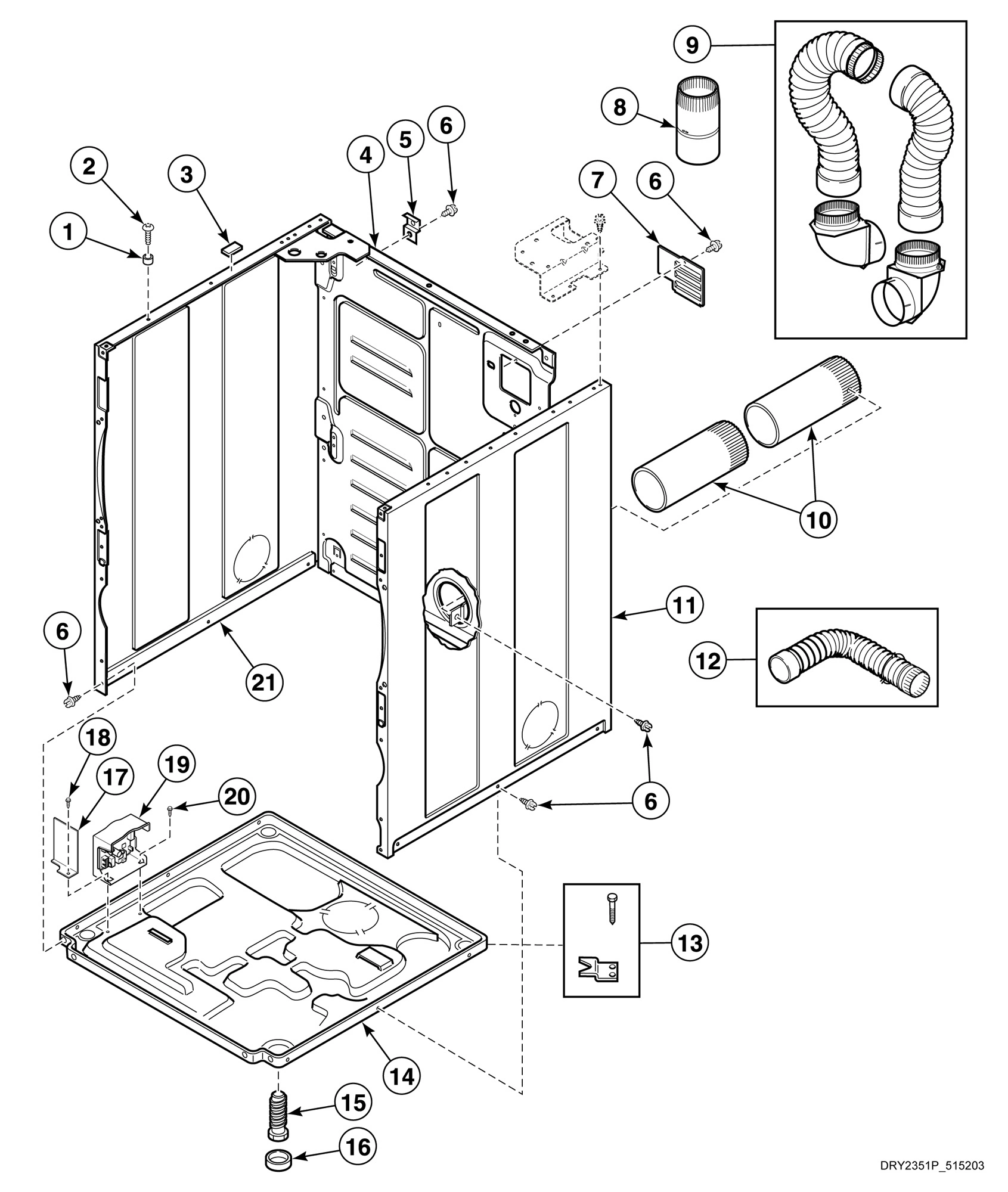

Cabinet, Exhaust Duct and Base

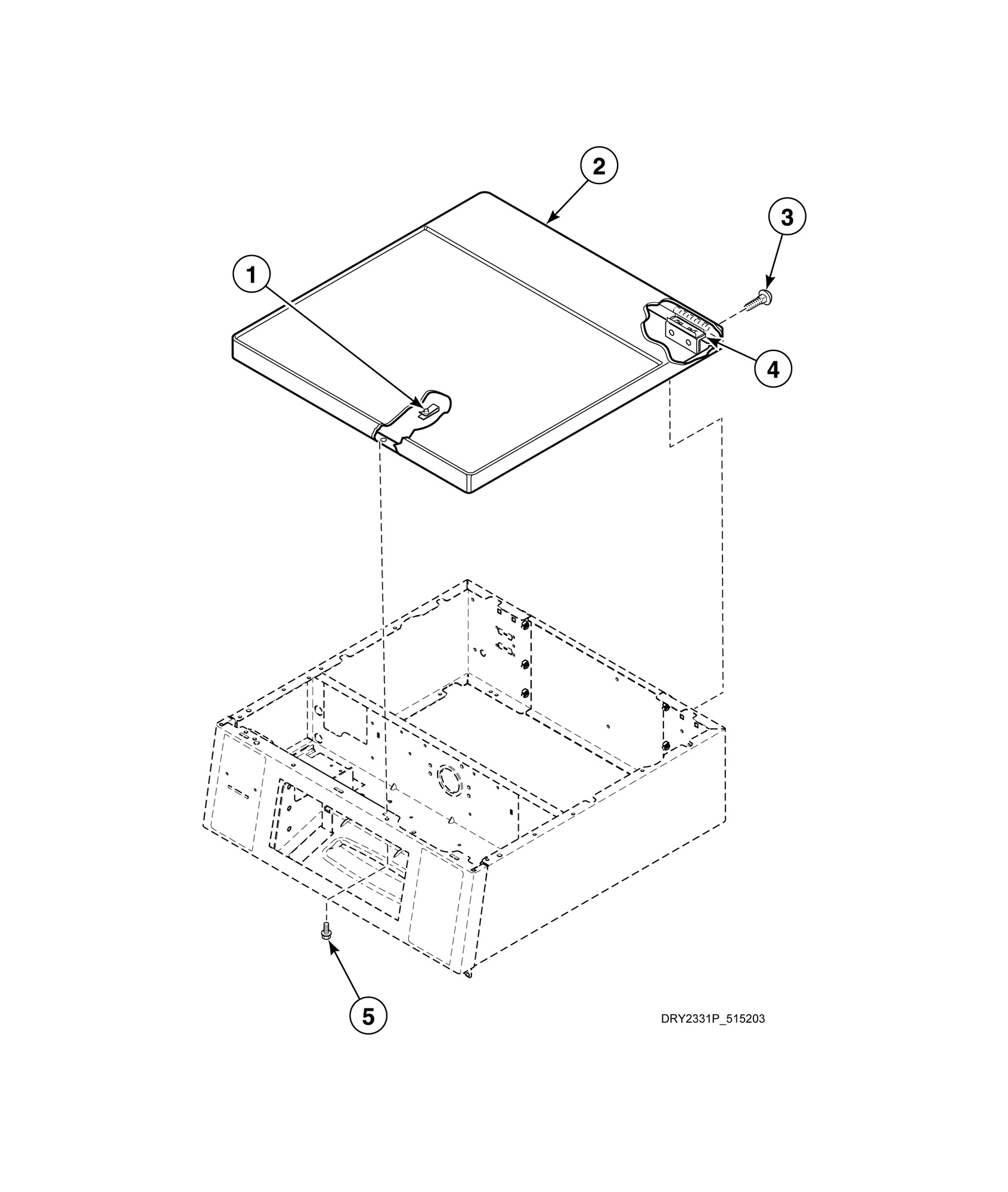

Cabinet Top - 10 Degree Front Control Models

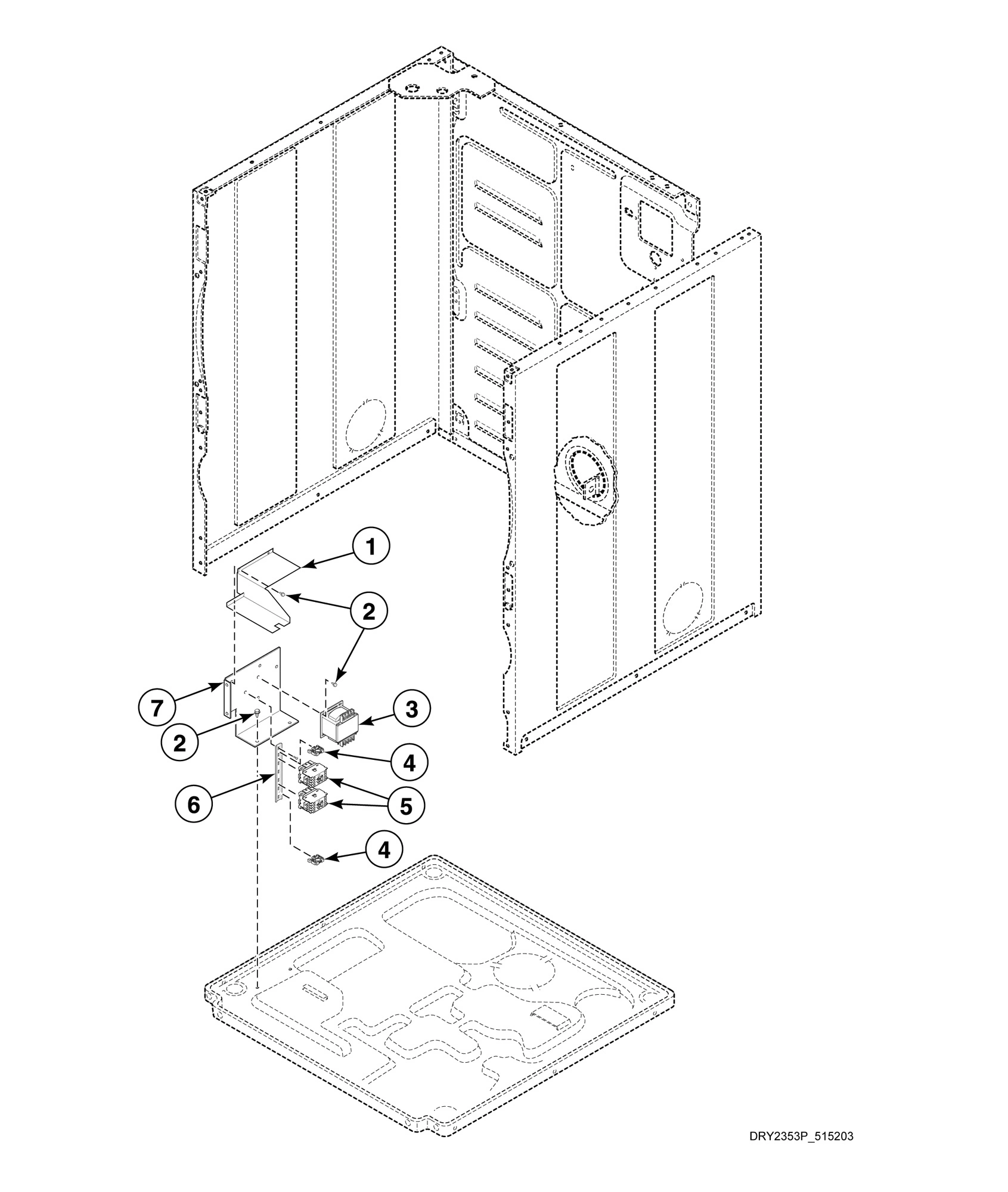

Contactor and Transformer

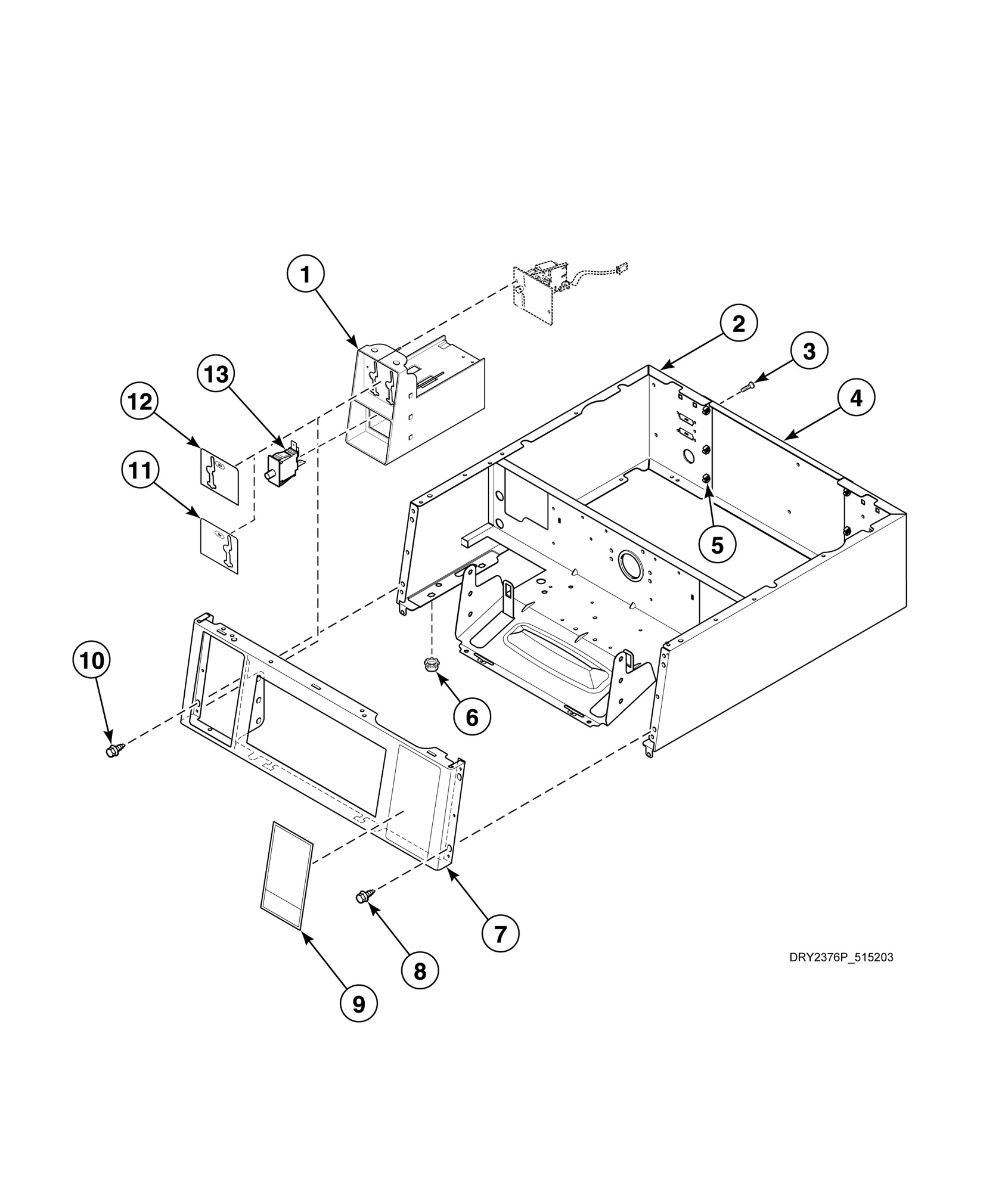

Control Cabinet Controls - 10 Degree Front Control Models (Drawing 1 of 2)

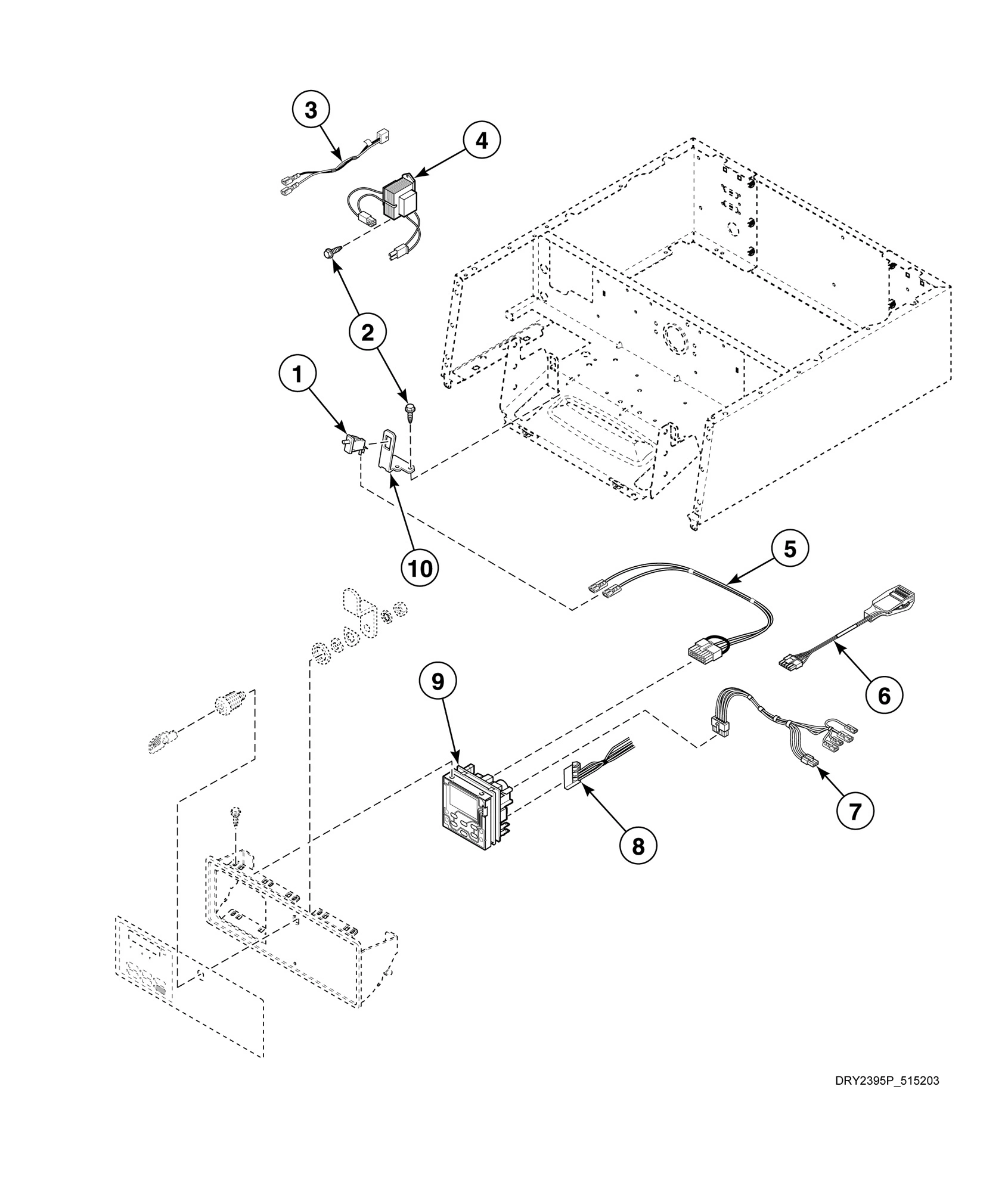

Control Panel and Controls - 10 Degree Front Control Models (Drawing 1 of 2)

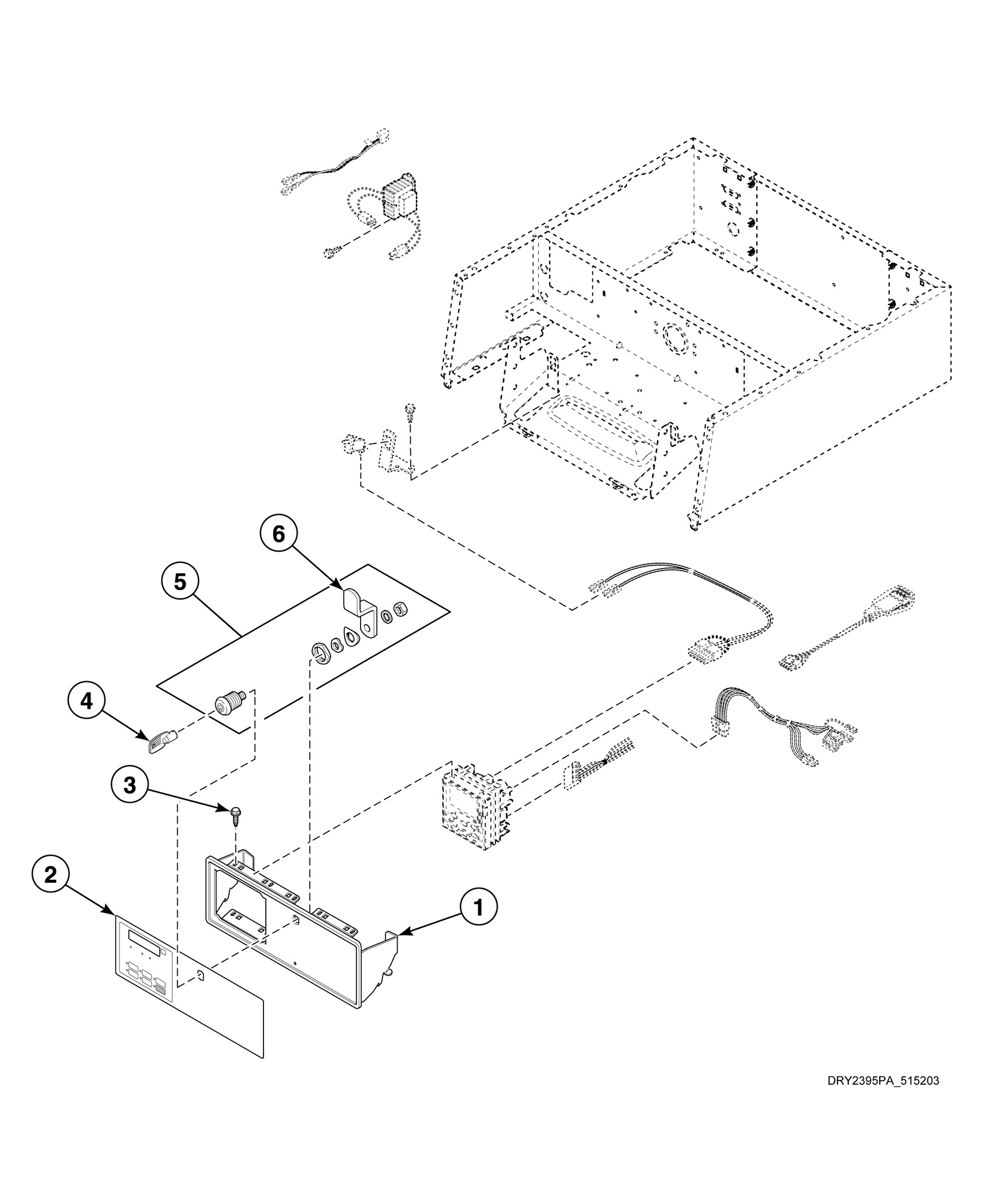

Control Panel and Controls - 10 Degree Front Control Models (Drawing 2 of 2)
Cylinder Assembly

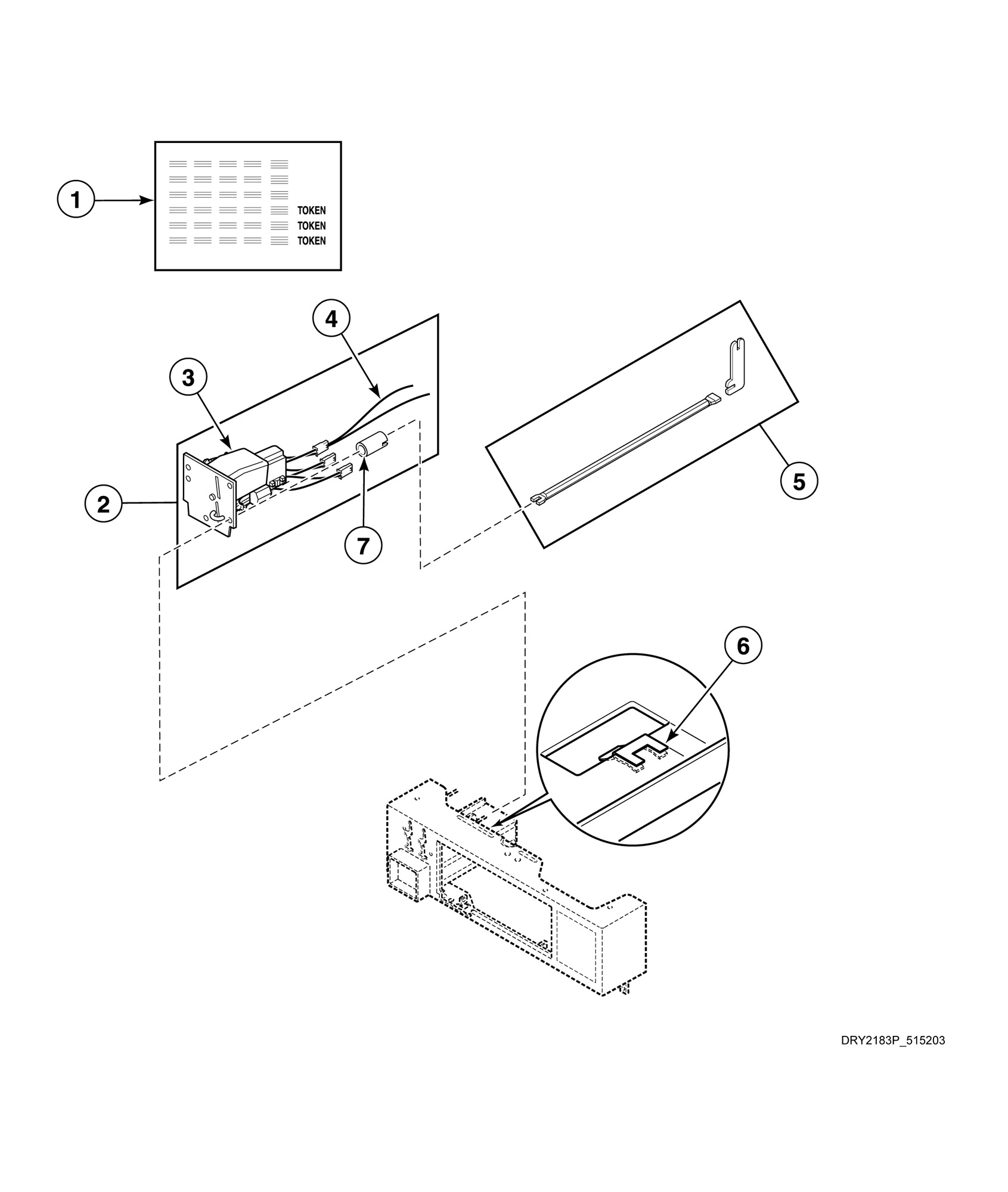

Electronic Coin Drop - Front Control Models
Exhaust Fan and Idler
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Front Panel and Seal

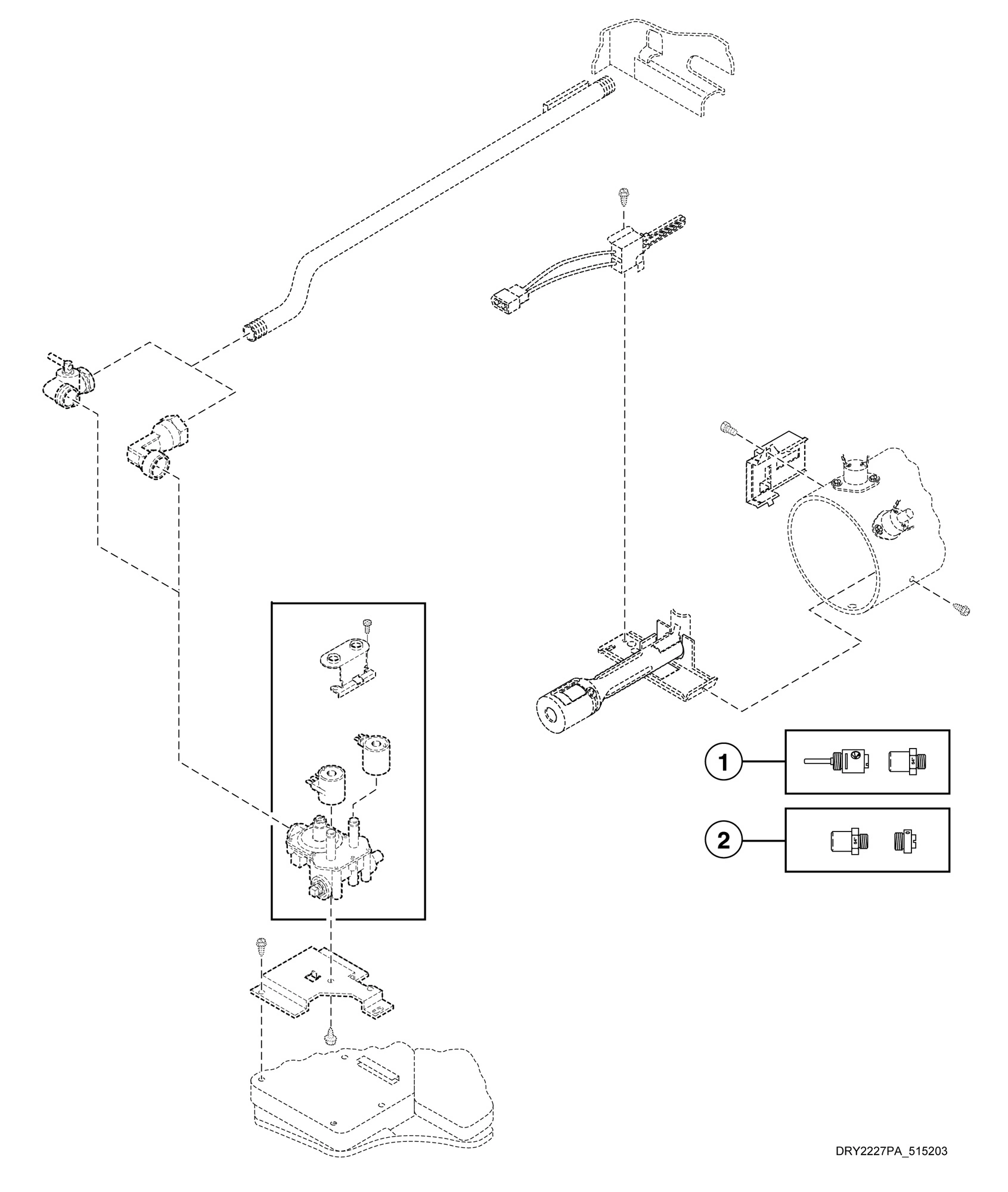

Gas Conversion Kits (Gas Models)

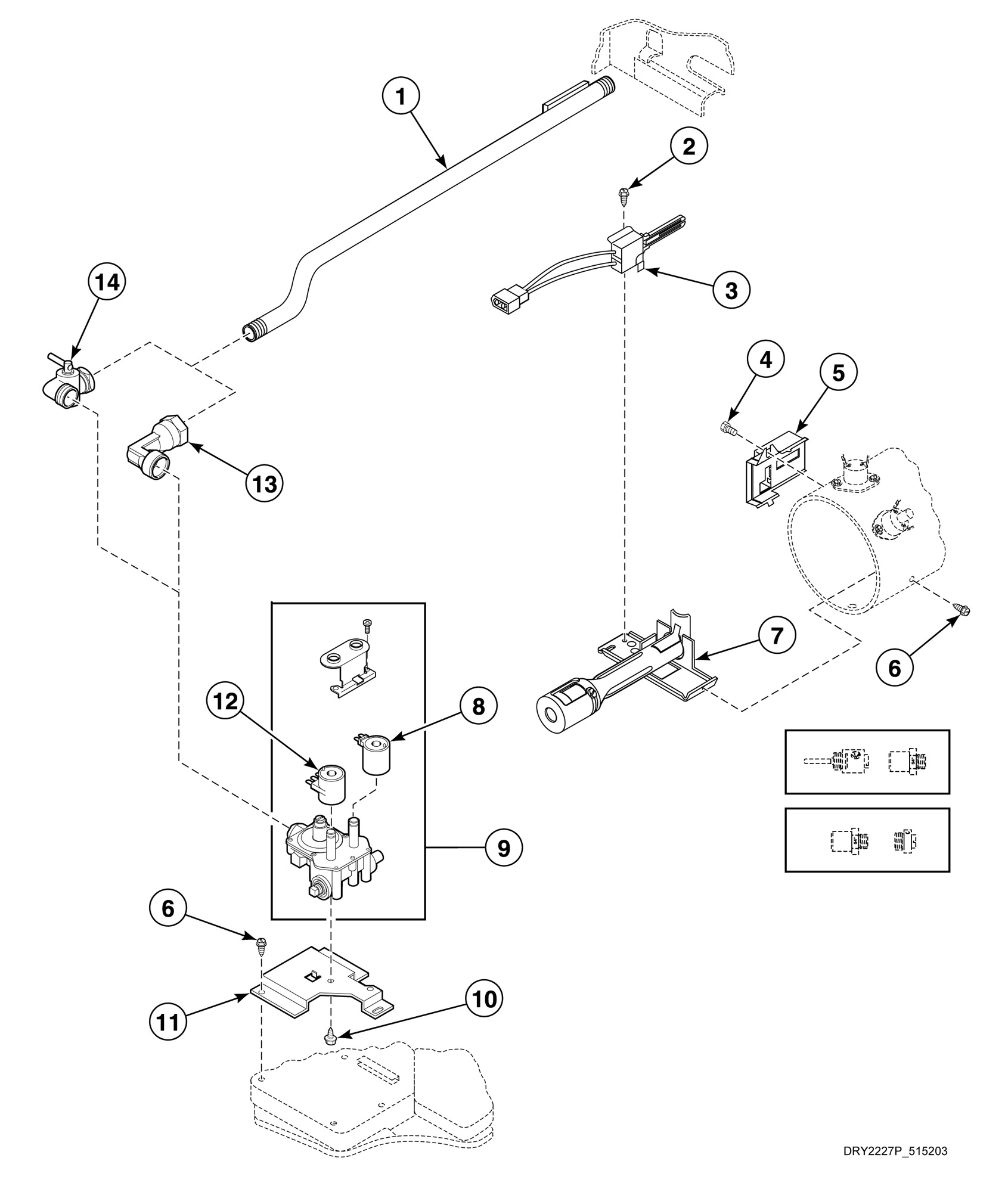

Gas Valve and Igniter (Gas Models)

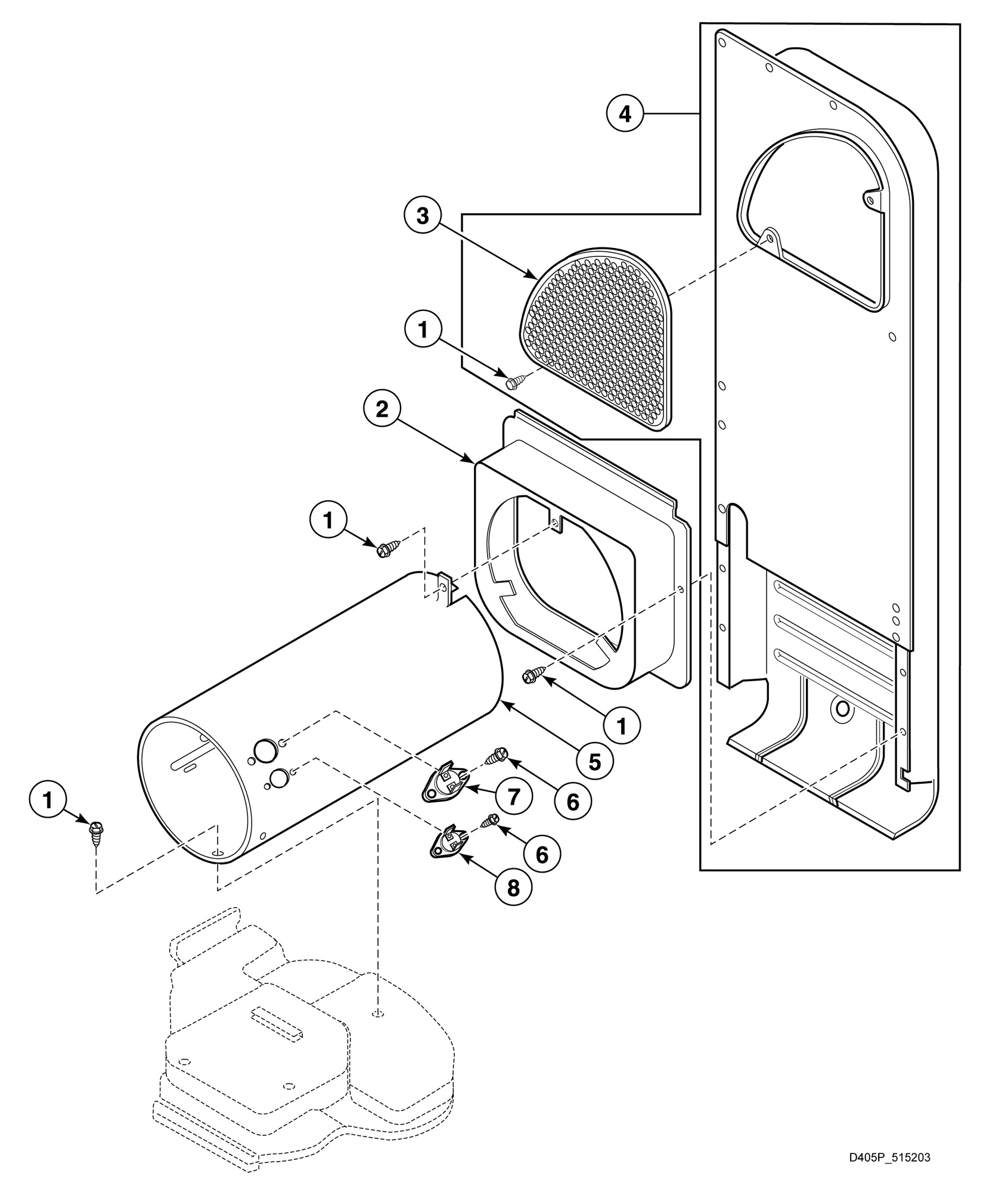

Heater Duct Assembly (Gas Models)

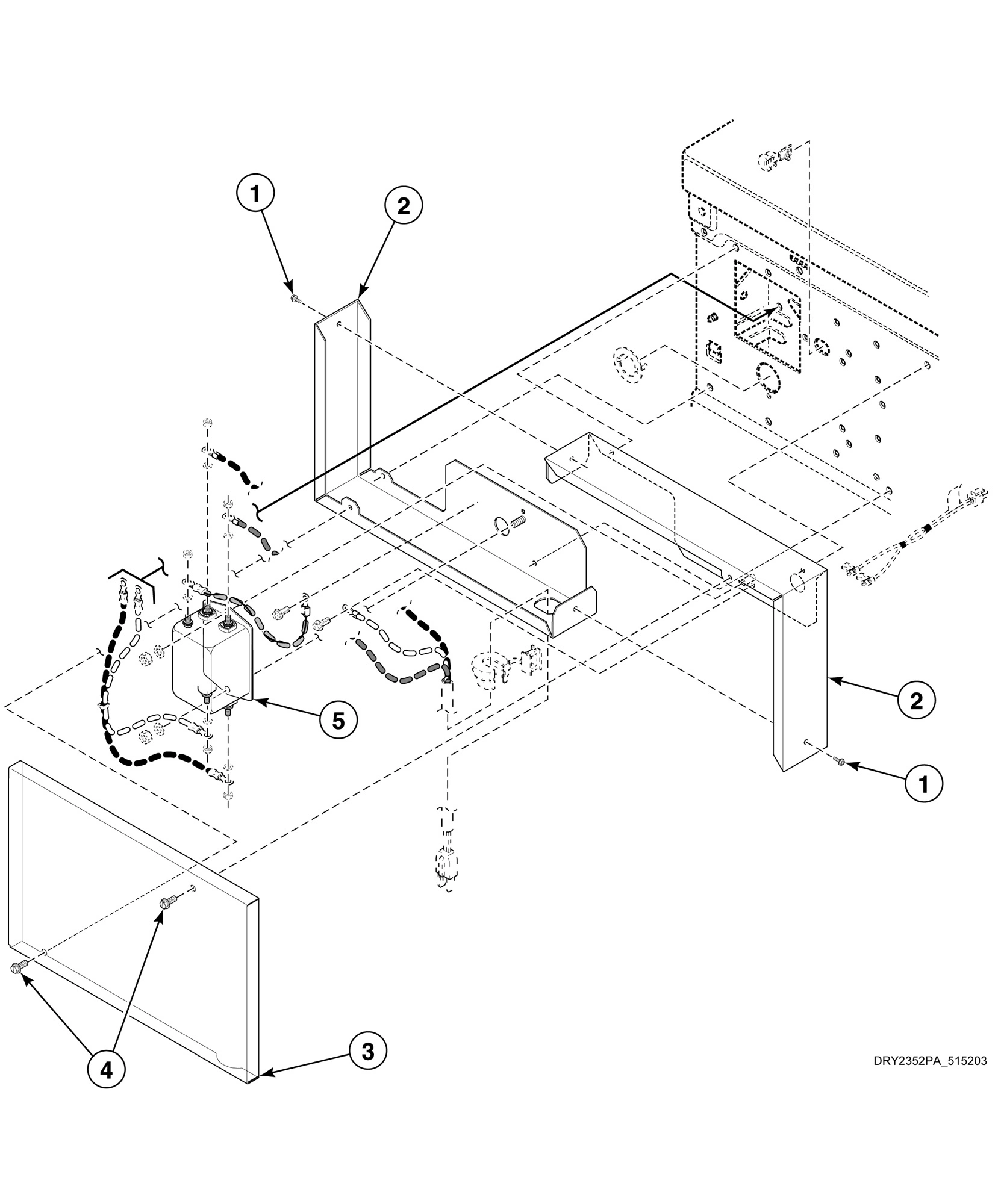

Junction Box

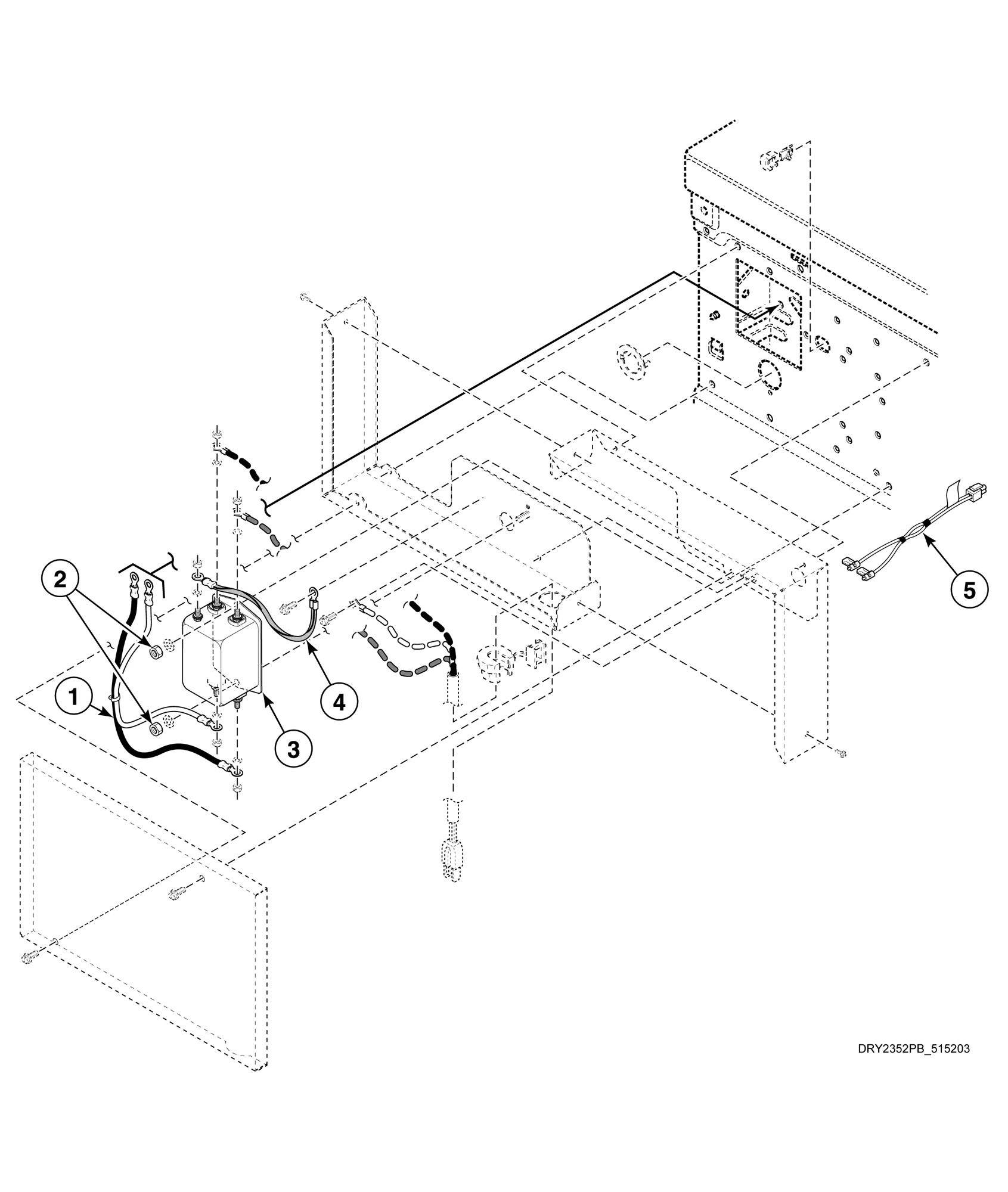

Junction Box Filter and Harnesses
Label Location on Rear of Cabinet
Loading Door without Window
Motor and Belt
Motor Connection Block and Tools

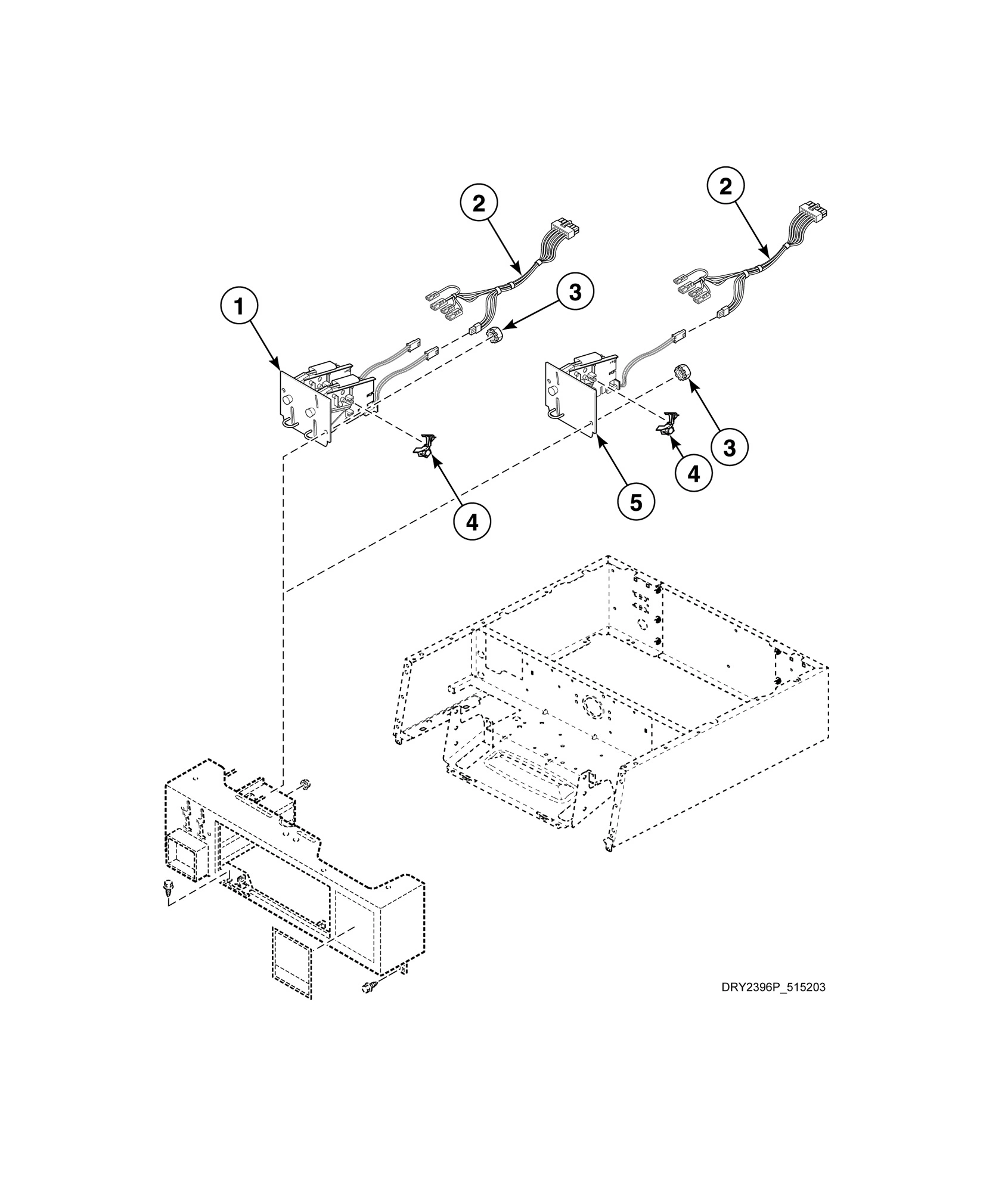

Non-Electronic Coin Drop - Front Control Models
Power Cord
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block and Terminals

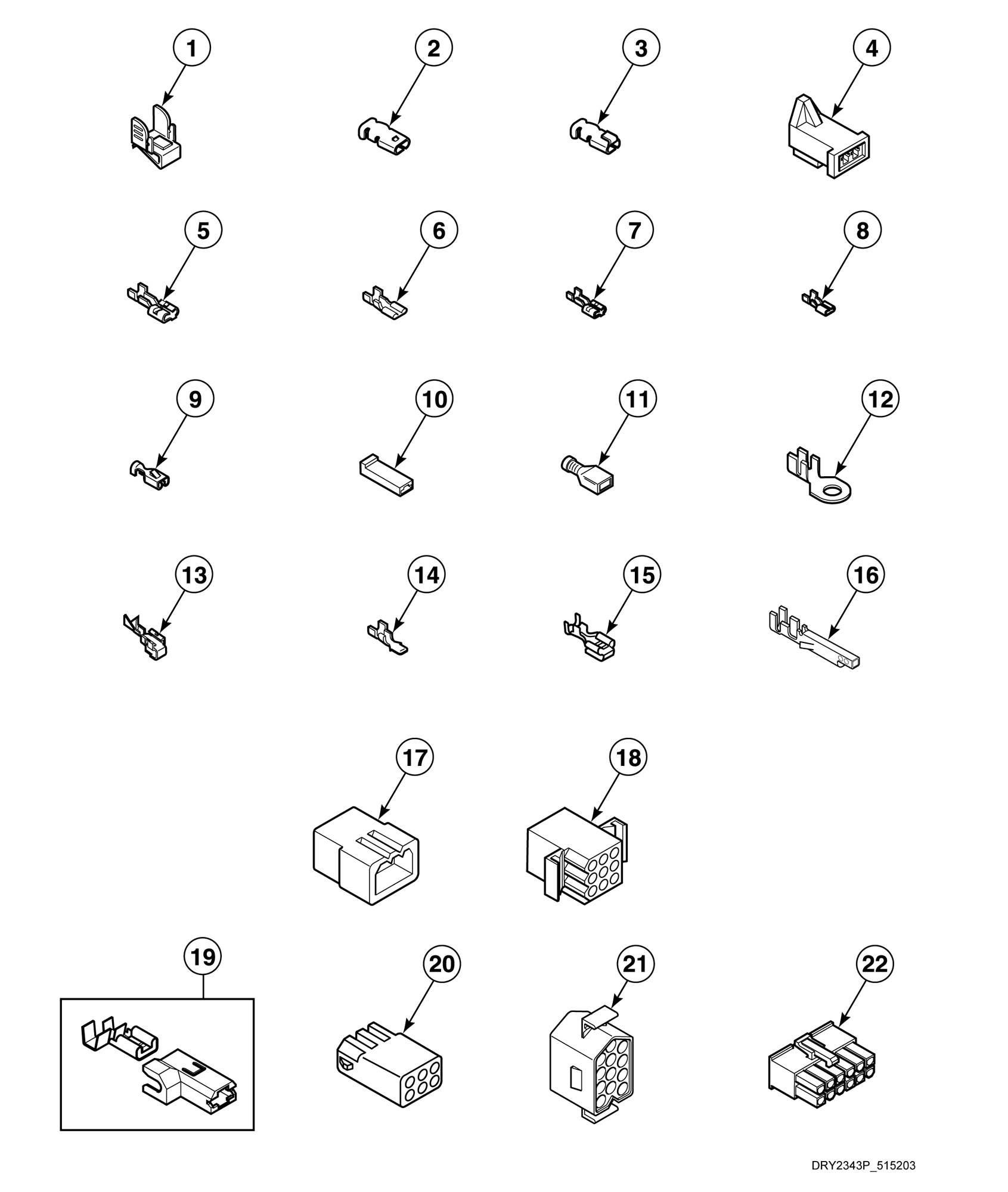

Terminals
Thermistor

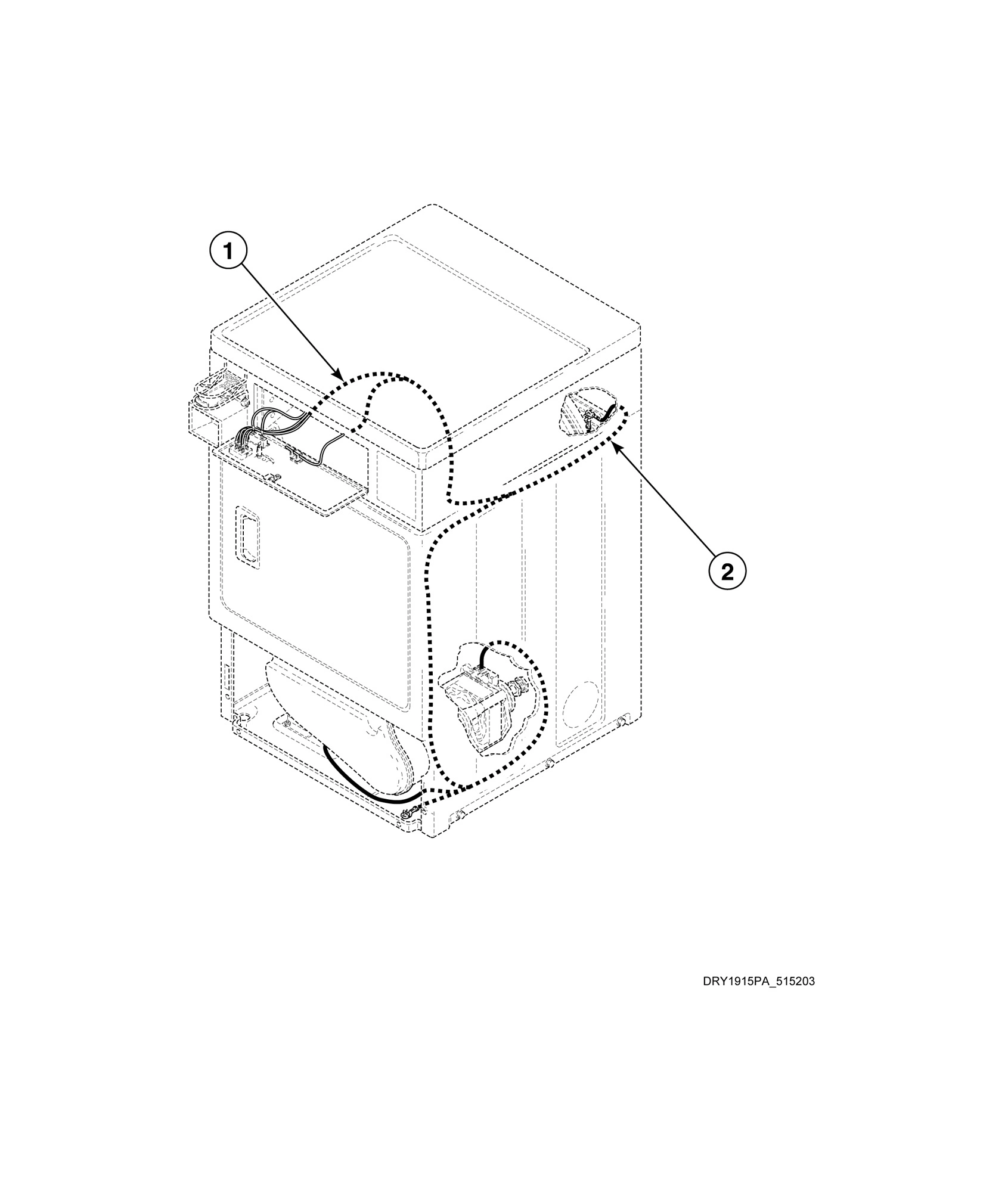

Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)
Common parts from model GE HDGNXAGS543DW01 General Electric Model HDGNXAGS543DW01
1
Warning Label GEN D514226 Contact Us For Availability
1
Panel Locator GEN 56079 Contact Us For Availability
1
Screw Orifice (Comment: 25,000 Btu, 7000-8999 GEN 58719 Contact Us For Availability
1
L.P. Orifice (Comment: 25,000 Btu, 7500-10,99 GEN 58755 Contact Us For Availability
1
N.G. Orifice (Comment: 25,000 Btu, 2000-2999 GEN D503776 Contact Us For Availability
1
N.G. Orifice (Comment: 25,000 Btu, 5500-6999 GEN D503778 Contact Us For Availability
1
N.G. Orifice (Comment: 25,000 Btu, 9000-10,49 GEN D503779 Contact Us For Availability
1
N.G. Orifice (Comment: 25,000 Btu, 10,500 fee GEN D503780 Contact Us For Availability
1
L.P. Orifice (Comment: 25,000 Btu, 11,000 fee GEN D503786 Contact Us For Availability
1
N.G. Orifice (Comment: 25,000 Btu, 3000-5499 GEN D510517 Contact Us For Availability
1
Nut GEN 36020 Contact Us For Availability
1
Transformer Shield GEN D514334 Contact Us For Availability
1
Meter Case Assembly (Comment: White, Requires GEN 804009W Contact Us For Availability
1
Control Panel and Bracket Assembly (Comment: GEN D513777W Contact Us For Availability
1
Cylinder Seal Assembly (Comment: Apply adhesi GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Coin Identification Paper (Comment: For use w GEN 38725 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Unpainted, GEN D510266P Contact Us For Availability
1
Felt Pad GEN D510189 Contact Us For Availability
1
L.P. Conversion Kit (Comment: Used to convert GEN 458P3 Contact Us For Availability
1
Filter Harness GEN D514037 Contact Us For Availability
1
Terminal Block Label GEN D501288 Contact Us For Availability
1
Door Strike Mount GEN D510127 Contact Us For Availability
1
Motor and Pulley Assembly (Comment: 240 Volt/ GEN D505869P Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Coin Drop Assembly (Comment: Australia, .20 a GEN 38467 Contact Us For Availability
1
Coin Drop Assembly (Comment: England, 20 penc GEN 38472 Contact Us For Availability
1
Coin Drop Assembly (Comment: Japan, 100 and 5 GEN 38519 Contact Us For Availability
1
Coin Drop Assembly (Comment: Korea, 100 and 5 GEN 38521 Contact Us For Availability
1
Coin Drop Assembly (Comment: Israel, 1 and 5 GEN 39157 Contact Us For Availability
1
Coin Drop Assembly (Comment: Canada, .25 and GEN 70441602 Contact Us For Availability
1
Coin Drop Assembly (Comment: New Zealand, 1.0 GEN 70482401 Contact Us For Availability
1
Wire Clip (Comment: 1 inch) GEN 687500 Contact Us For Availability
1
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
Screw GEN D502535 Contact Us For Availability
1
Wire Harness Assembly GEN D512422P Contact Us For Availability
2
Door Catch Assembly GEN D510177 Contact Us For Availability
2
Screw GEN 39733 Contact Us For Availability
2
Screw (Comment: Use with stainless steel side GEN D512921 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
NOT ON YOUR MODEL GEN - Contact Us For Availability
2
Top Panel (Comment: White) GEN 803868WP Contact Us For Availability
2
Wrapper Assembly (Comment: White) GEN 804104W Contact Us For Availability
2
Control Overlay GEN D514479 Contact Us For Availability
2
Cylinder Baffle (Comment: White) GEN D510102W Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK099 Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK100 Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK101 Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK103 Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK106 Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK108 Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK109 Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK110 Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK113 Contact Us For Availability
2
Electronic Coin Drop Kit (Comment: Includes i GEN CK115 Contact Us For Availability
2
Electronic Co GEN CK116 Contact Us For Availability
2
GEN CK117 GEN CK117 Contact Us For Availability
2
GEN CK118 GEN CK118 Contact Us For Availability
2
GEN CK120 GEN CK120 Contact Us For Availability
2
GEN CK121 GEN CK121 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Cylinder Glide GEN D513710 Contact Us For Availability
2
Screw GEN D501285 Contact Us For Availability
2
N.G. Conversion Kit (Comment: Used to convert GEN 459P3 Contact Us For Availability
2
Heat Duct Shroud GEN D510101 Contact Us For Availability
2
Nut (Comment: 2 required) GEN 29787 Contact Us For Availability
2
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
2
Door Strike GEN D510181 Contact Us For Availability
2
Motor Mount Clamp GEN D510180 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) 1 GEN 00255 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) o GEN 00256 Contact Us For Availability
2
Harness Assembly (Comment: Coin drop) GEN 802905 Contact Us For Availability
2
Insulated Female Spade Terminal (Comment: (1) GEN 00360 Contact Us For Availability
2
Female Spade Terminal GEN 00189 Contact Us For Availability
2
Thermistor Assembly GEN D510523 Contact Us For Availability
2
Gas Harness GEN D513977 Contact Us For Availability
3
Lint Filter Label GEN D502781 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
Transformer GEN D513763 Contact Us For Availability
3
Screw (Comment: 6 required) GEN 70240301 Contact Us For Availability
3
Screw GEN D501524 Contact Us For Availability
3
Cylinder Assembly (Comment: Galvanized, Inclu GEN D510265WP Contact Us For Availability
3
GEN 70294103P GEN 70294103P Contact Us For Availability
3
GEN 70294104 GEN 70294104 Contact Us For Availability
3
GEN 70294105P GEN 70294105P Contact Us For Availability
3
GEN 70294106 GEN 70294106 Contact Us For Availability
3
GEN 70294107 GEN 70294107 Contact Us For Availability
3
GEN 70294109 GEN 70294109 Contact Us For Availability
3
GEN 70294110 GEN 70294110 Contact Us For Availability
3
GEN 70294111 GEN 70294111 Contact Us For Availability
3
GEN 70294116 GEN 70294116 Contact Us For Availability
3
GEN 70294117 GEN 70294117 Contact Us For Availability
3
GEN 70294120 GEN 70294120 Contact Us For Availability
3
GEN 70294121 GEN 70294121 Contact Us For Availability
3
GEN 70294122 GEN 70294122 Contact Us For Availability
3
Nut GEN 29786 Contact Us For Availability
3
Blower Housing Cover GEN D511970 Contact Us For Availability
3
Glide Kit (Comment: Includes items 2 and 12, GEN RB170003 Contact Us For Availability
3
Lint Filter (Comment: White) GEN D503980W Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
3
Outlet Cover GEN D500820 Contact Us For Availability
3
Outlet Cover (Comment: Black) GEN D515573 Contact Us For Availability
3
Junction Box Cover GEN D514363 Contact Us For Availability
3
Warning Label GEN 44324001 Contact Us For Availability
3
Liner Door Seal GEN D510147P Contact Us For Availability
3
Cylinder Belt GEN D511255P Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
3
Strain Relief GEN 60298 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Galvanized, GEN D511082P Contact Us For Availability
3
Female Pin Terminal GEN 00117 Contact Us For Availability
3
Female Piggyback Terminal GEN 00361 Contact Us For Availability
4
Cabinet Rear Panel GEN D514632P Contact Us For Availability
4
Top Mounting Bracket GEN D504228 Contact Us For Availability
4
Rear Access Panel GEN 803998 Contact Us For Availability
4
Screw (Comment: 2 required) GEN D503661 Contact Us For Availability
4
Key (Comment: 800) GEN 54612 Contact Us For Availability
4
Screw GEN 62588 Contact Us For Availability
4
GEN 201104 GEN 201104 Contact Us For Availability
4
Motor Shield GEN D514602 Contact Us For Availability
4
Cylinder Glide Bracket GEN D510145 Contact Us For Availability
4
Drip Shield GEN D514327 Contact Us For Availability
4
Screw GEN 23222 Contact Us For Availability
4
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
4
Ground Filter Harness GEN D514039 Contact Us For Availability
4
Natural Gas Notice Label GEN D501140 Contact Us For Availability
4
Liner, Seal and Grill Assembly (Comment: Whit GEN D510163WP Contact Us For Availability
4
Motor Pulley (Comment: Use with Motor and Pul GEN D500011 Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
4
Wire Guard (Comment: Anti-stringing security GEN 201595P Contact Us For Availability
4
Lead-In Cord GEN D514061 Contact Us For Availability
4
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
4
3 Circuit Receptacle GEN 23039 Contact Us For Availability
4
2 Circuit Receptacle GEN 56265 Contact Us For Availability
4
2 Circuit Connector GEN 58799 Contact Us For Availability
5
Top Hinge GEN D510136 Contact Us For Availability
5
Screw GEN 23008 Contact Us For Availability
5
Expansion Clip (Comment: 6 required) GEN 70030501 Contact Us For Availability
5
Switch GEN D512973 Contact Us For Availability
5
Lock Kit (Comment: Includes item 4) GEN 27260P Contact Us For Availability
5
GEN CK096 GEN CK096 Contact Us For Availability
5
Blower Housing (Comment: Gray, Includes items GEN D511969LG Contact Us For Availability
5
Blower Housing (Comment: White, Includes item GEN D511969WP Contact Us For Availability
5
Screw GEN 52864 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Sensor GEN D510213 Contact Us For Availability
5
Combustion Duct (Comment: Double thermostat) GEN D510132 Contact Us For Availability
5
Venting Instruction Label GEN D502791 Contact Us For Availability
5
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
5
Ratchet Extension Tool (Comment: 1/4 inch, Fo GEN 310P4 Contact Us For Availability
5
Coin Drop Assembly (Comment: Token, 118-1 mzp GEN 38462P Contact Us For Availability
5
Coin Drop Assembly (Comment: Token, 118-5 mzp GEN 38463 Contact Us For Availability
5
Coin Drop Assembly (Comment: Canada, .25) GEN 38464P Contact Us For Availability
5
Coin Drop Assembly (Comment: Japan, 100 yen) GEN 38475 Contact Us For Availability
5
Coin Drop (Comment: Token 118-16 not availabl GEN 38963P Contact Us For Availability
5
Coin Drop (Comment: U.S., $.25) GEN 70441601P Contact Us For Availability
5
Coin Drop Kit (Comment: Taiwan, 10 NT) GEN CK077 Contact Us For Availability
5
Coin Drop Assembly (Comment: Singapore, Old 1 GEN CK114 Contact Us For Availability
5
Coin Drop Assembly (Comment: Singapore, New 1 GEN CK123 Contact Us For Availability
5
Cylinder Roller GEN D510708P Contact Us For Availability
5
Plug (Comment: 3 circuit) GEN 23040 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Spade Terminal (Comment: 1/4 inch, (1) 22 gau GEN 00245 Contact Us For Availability
6
Access Panel Assembly (Comment: White) GEN D514250WP Contact Us For Availability
6
Nut GEN 44087201 Contact Us For Availability
6
Machine ID Control Assembly (Comment: Model o GEN 203361P Contact Us For Availability
6
Lock Cam GEN 804338 Contact Us For Availability
6
GEN 201572 GEN 201572 Contact Us For Availability
6
Washer GEN 52549 Contact Us For Availability
6
Front Panel Seal GEN D511056 Contact Us For Availability
6
Screw GEN 51782 Contact Us For Availability
6
Exhaust Warning Label GEN D500497 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Extractor Tool (Comment: For use on electric GEN 190P4 Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
7
Screw GEN 33562 Contact Us For Availability
7
Screw (Comment: Optional for added security) GEN 62853 Contact Us For Availability
7
Access Panel Plate GEN D510903 Contact Us For Availability
7
Control Panel (Comment: White) GEN 803962WP Contact Us For Availability
7
Dual Coin Harness Assembly (Comment: Coin dro GEN 202871 Contact Us For Availability
7
Blower Fan Assembly (Comment: Apply anti-seiz GEN D510139P Contact Us For Availability
7
Retaining Ring GEN 23748 Contact Us For Availability
7
Front Panel (Comment: White) GEN D510066WP Contact Us For Availability
7
Burner Assembly GEN D510149P Contact Us For Availability
7
Limit Thermostat (Comment: Black, Auto reset) GEN D510702 Contact Us For Availability
7
20 Amp Notice Label GEN D500496 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
7
Extractor Tool (Comment: For use on gas dryer GEN 128P4 Contact Us For Availability
7
2 Circuit Receptacle GEN 56451 Contact Us For Availability
7
Female Spade Terminal (Comment: 1/4 inch) GEN 00222 Contact Us For Availability
8
Damper (Comment: Use when connecting to a man GEN 58786 Contact Us For Availability
8
Screw (Comment: Use with stainless steel side GEN M405188 Contact Us For Availability
8
Central Pay Harness GEN D511478 Contact Us For Availability
8
Idler Spring GEN D510185 Contact Us For Availability
8
Electrical Shock Label GEN F8211201 Contact Us For Availability
8
Pinched Fingers Label GEN F8211301 Contact Us For Availability
8
Secondary Coil (Comment: 60 Hertz) GEN 58804B Contact Us For Availability
8
Thermostat (Comment: Manual reset) GEN D510703 Contact Us For Availability
8
Warning Label GEN 803260 Contact Us For Availability
8
Dryer Door (Comment: White) GEN D510013WP Contact Us For Availability
8
Torx Bit (Comment: T15 Tamper Resistant Bit) GEN 281P4 Contact Us For Availability
8
Torx Bit (Comment: Use with 62853 Screw on ac GEN 282P4 Contact Us For Availability
8
Torx Bit (Comment: T20 Standard Bit) GEN 292P4 Contact Us For Availability
8
Torx Drive Tool (Comment: T10 Standard Bit) GEN 93501 Contact Us For Availability
8
Washer GEN D504082 Contact Us For Availability
8
2 Circuit Plug GEN 56448 Contact Us For Availability
8
Terminal GEN 00347 Contact Us For Availability
9
Flexible Venting Kit GEN 521P3 Contact Us For Availability
9
Operating Instructions Label GEN D514393 Contact Us For Availability
9
Control Assembly GEN D514138P Contact Us For Availability
9
Shaft GEN 56461P Contact Us For Availability
9
Air Duct Assembly (Comment: White) GEN D510151W Contact Us For Availability
9
Gas Valve Assembly (Comment: 60 Hertz, 25,000 GEN 60353P Contact Us For Availability
9
Door Handle Wedge GEN D510129 Contact Us For Availability
9
Harness Strap GEN 55881 Contact Us For Availability
9
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00115 Contact Us For Availability
10
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
10
Bolt GEN 29651 Contact Us For Availability
10
Audit Switch Bracket GEN 800379 Contact Us For Availability
10
Idler Lever GEN D510133 Contact Us For Availability
10
Screw GEN 56124 Contact Us For Availability
10
Roller Kit (Comment: Includes items 5-9) GEN RB170002 Contact Us For Availability
10
Female Pin Terminal (Comment: 1/8 inch, 10-14 GEN 00128 Contact Us For Availability
10
Female Pin Terminal (Comment: 1/8 inch, 16-18 GEN 00130 Contact Us For Availability
10
Receptacle Housing GEN 90789 Contact Us For Availability
11
Cabinet Side Panel (Comment: White, Right) GEN D510002WP Contact Us For Availability
11
Nut GEN 56156 Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
11
2 Circuit Plug GEN 56266 Contact Us For Availability
11
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
11
Insulated Female Spade Terminal (Comment: 1/4 GEN 00359 Contact Us For Availability
12
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
12
Booster and Holding Coil (Comment: 60 Hertz) GEN 58804A Contact Us For Availability
12
Male Pin Terminal (Comment: .18 insulation di GEN 00127 Contact Us For Availability
12
Male Pin Terminal (Comment: .12 insulation di GEN 00129 Contact Us For Availability
12
Ring Terminal (Comment: (1) 18 gauge wire) GEN 00110 Contact Us For Availability
12
Ring Terminal (Comment: (2) 18 gauge wires or GEN 00111 Contact Us For Availability
12
Ring Terminal (Comment: (2) 18 gauge wires or GEN 00319 Contact Us For Availability
13
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
13
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
13
3 Circuit Connector GEN 58800 Contact Us For Availability
13
Female Spade Terminal (Comment: 1/4 inch, Dou GEN 00114 Contact Us For Availability
14
Dryer Base GEN D514245 Contact Us For Availability
14
Elbow Shut-Off Valve GEN D510205 Contact Us For Availability
14
3 Circuit Receptacle GEN 36170 Contact Us For Availability
14
Male Tab Terminal (Comment: 1/4 inch, (2) 18 GEN 00139 Contact Us For Availability
15
Leveling Leg GEN D510135 Contact Us For Availability
15
Screw GEN D500824 Contact Us For Availability
15
Female Tab Terminal GEN 00344 Contact Us For Availability
16
Rubber Foot GEN D501855 Contact Us For Availability
16
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
16
Terminal GEN 00252 Contact Us For Availability
17
Nut GEN 52566 Contact Us For Availability
17
9 Circuit Plug GEN 23033 Contact Us For Availability
17
6 Circuit Plug GEN 23041 Contact Us For Availability
17
GEN 26302 GEN 26302 Contact Us For Availability
18
Screw GEN D514428 Contact Us For Availability
18
Motor Mount GEN D510060 Contact Us For Availability
18
GEN 26163 GEN 26163 Contact Us For Availability
18
GEN 56855 GEN 56855 Contact Us For Availability
19
Output Control Assembly GEN D513797P Contact Us For Availability
19
GEN 00221 GEN 00221 Contact Us For Availability
20
Screw GEN 804667 Contact Us For Availability
20
GEN 26301 GEN 26301 Contact Us For Availability
20
GEN 26708 GEN 26708 Contact Us For Availability
21
Cabinet Side Panel (Comment: White, Left) GEN D510001WP Contact Us For Availability
21
GEN 54522 GEN 54522 Contact Us For Availability
22
GEN 34596 GEN 34596 Contact Us For Availability
22
GEN D501333 GEN D501333 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Network Retrofit Kit (Comment: Wired) GEN 203328 Contact Us For Availability
NA
USB IR Interface Kit GEN 203346 Contact Us For Availability
NA
Wireless Network Kit (Comment: Through Serial GEN 203889 Contact Us For Availability
NA
Wireless Network Kit (Comment: Starting Seria GEN 204689 Contact Us For Availability
NA
Network Controller Kit (Comment: Wired) GEN NK220 Contact Us For Availability
NA
Ethernet Gateway Kit (Comment: Wireless) GEN NK320 Contact Us For Availability
NA
USB Gateway Kit (Comment: Wireless) GEN NK330 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
Junction Box Seal (Comment: 4 required) GEN D514379P Contact Us For Availability
NA
Screw GEN 20530 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
18 Gauge Wire (Comment: Green/Yellow) GEN 45102 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
