Model Huebsch HDGNERGS113CW01 Dryer – Common Parts & Diagrams

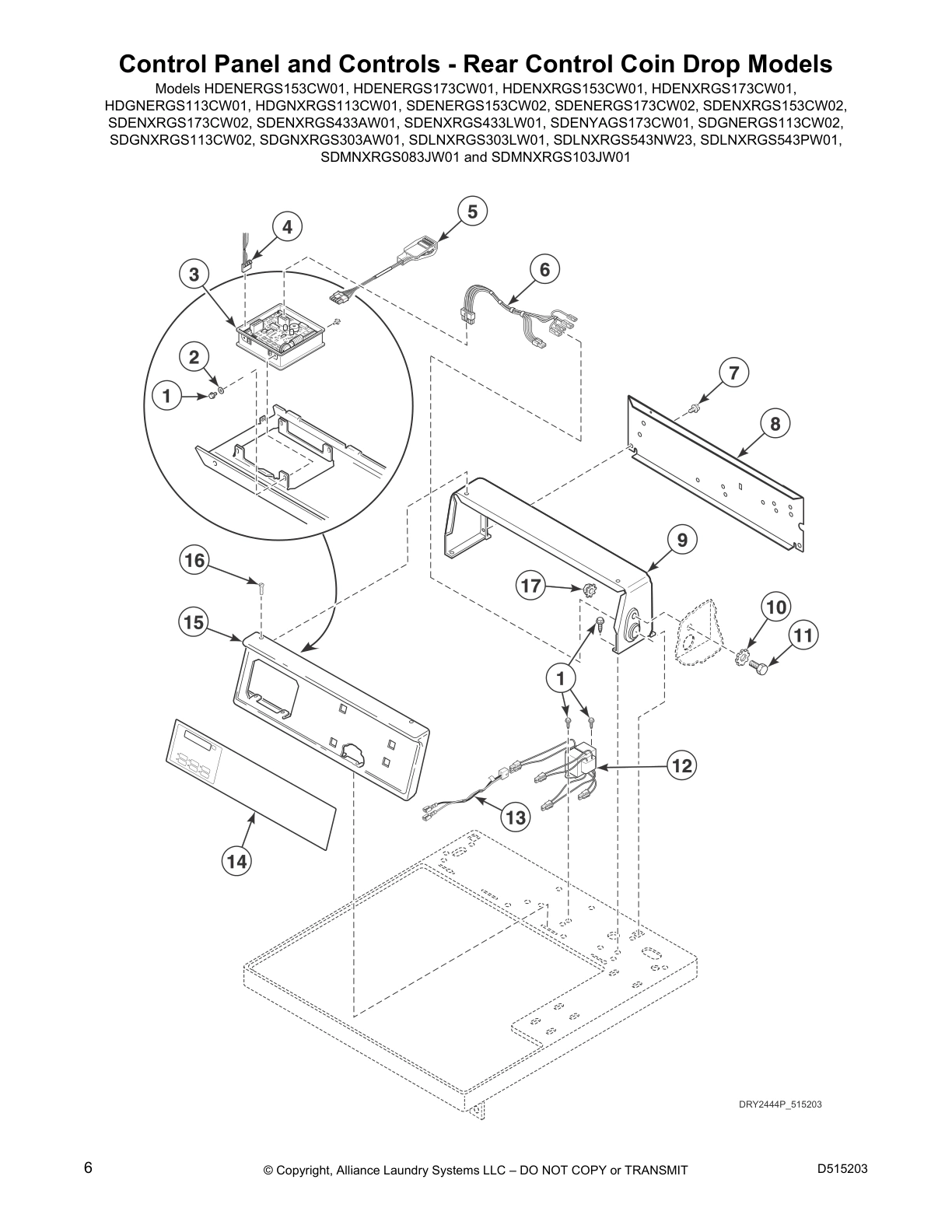

Control Panel and Controls - Rear Control Coin Drop Models

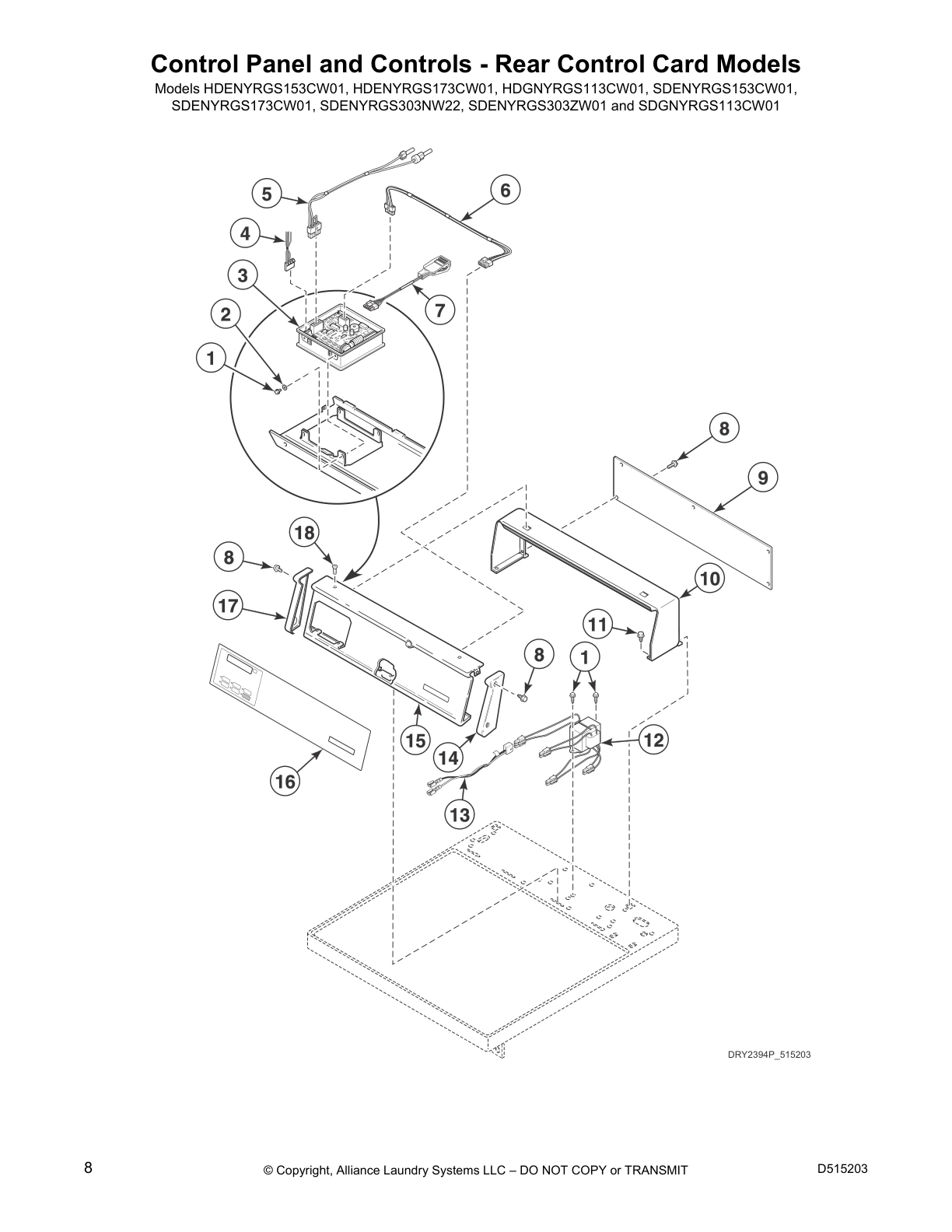

Control Panel and Controls - Rear Control Card Models
Non-Electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)
Non-Electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 2 of 2)
Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)
Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)
Loading Door without Window
Loading Door with Window
Access Panel
Front Panel and Seal
Motor and Belt
Exhaust Fan and Idler
Thermistor
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block
Terminal Block - 3 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly
Gas Valve and Igniter - Through Serial No. 1908000001
Gas Valve and Igniter - Starting Serial No. 1908000001
Gas Valve - Through Serial No. 1908000001
Gas Valve - Starting Serial No. 1908000001
Gas Conversion Kits
Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base
Contactor and Transformer
Ignition Control Module
Power Cord
Junction Box
Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)
Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)
Wire Harnesses and Wires - Rear Control Models
Front Panel And Seal
Cabinet, Exhaust Duct And Base
Access Panel
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Terminal Block And Terminals
Terminals
Burner Orifice Spuds - For Higher Elevations (gas Models)
Cabinet, Exhaust Duct And Base
Terminals
Terminal Block And Terminals
Cylinder Assembly
Access Panel
Terminals
Motor Connection Block And Tools
Control Panel And Controls - Rear Control Coin Drop Models
Meter Case - Rear Control Coin Drop Models
Electronic Coin Drop - Rear Control Models
Control Panel And Controls - Rear Control Coin Drop Models
Power Cord
Control Panel And Controls - Rear Control Coin Drop Models
Meter Case - Rear Control Coin Drop Models
Control Panel And Controls - Rear Control Coin Drop Models
Terminal Block And Terminals
Label Location On Rear Of Cabinet
Cabinet, Exhaust Duct And Base
Control Panel And Controls - Rear Control Coin Drop Models
Label Location On Rear Of Cabinet
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Cabinet, Exhaust Duct And Base
Motor Connection Block And Tools
Non-electronic Coin Drop - Rear Control Models
Control Panel And Controls - Rear Control Coin Drop Models
Motor And Belt
Exhaust Fan And Idler
Motor Connection Block And Tools
Non-electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Burner Orifice Spuds - For Higher Elevations (gas Models)
Gas Conversion Kits (gas Models)
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Gas Valve And Igniter (gas Models)
Motor And Belt
Gas Valve And Igniter (gas Models)
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Control Panel And Controls - Rear Control Coin Drop Models
Non-electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Motor And Belt
Loading Door Without Window
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Access Panel
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Cabinet Top - Rear Control Models
Motor Connection Block And Tools
Label Location On Rear Of Cabinet
Heater Duct Assembly (gas Models)
Exhaust Fan And Idler
Control Panel And Controls - Rear Control Coin Drop Models
Label Location On Rear Of Cabinet
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Label Location On Rear Of Cabinet
Terminals
Cabinet, Exhaust Duct And Base
Thermistor
Control Panel And Controls - Rear Control Coin Drop Models
Access Panel
Label Location On Rear Of Cabinet
Meter Case - Rear Control Coin Drop Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Heater Duct Assembly (gas Models)
Gas Valve And Igniter (gas Models)
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Exhaust Fan And Idler
Control Panel And Controls - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Cabinet, Exhaust Duct And Base
Burner Orifice Spuds - For Higher Elevations (gas Models)
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Terminal Block And Terminals
Rear Bulkhead, Felt Seal And Cylinder Roller
Label Location On Rear Of Cabinet
Cabinet, Exhaust Duct And Base
Loading Door Without Window
Heater Duct Assembly (gas Models)
Exhaust Fan And Idler
Front Panel And Seal
Control Panel And Controls - Rear Control Coin Drop Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Heater Duct Assembly (gas Models)
Cylinder Assembly
Loading Door Without Window
Gas Valve And Igniter (gas Models)
Loading Door Without Window
Heater Duct Assembly (gas Models)
Exhaust Fan And Idler
Cabinet, Exhaust Duct And Base
Exhaust Fan And Idler
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Cabinet Top - Rear Control Models
Loading Door Without Window
Gas Valve And Igniter (gas Models)
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Loading Door Without Window
Access Panel
Motor And Belt
Loading Door Without Window
Gas Valve And Igniter (gas Models)
Exhaust Fan And Idler
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Gas Valve And Igniter (gas Models)
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Gas Valve And Igniter (gas Models)
Exhaust Fan And Idler
Cylinder Assembly
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Burner Orifice Spuds - For Higher Elevations (gas Models)
Thermistor
Heater Duct Assembly (gas Models)
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Cabinet, Exhaust Duct And Base
Loading Door Without Window
Front Panel And Seal
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor And Belt
Control Panel And Controls - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Motor And Belt
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Exhaust Fan And Idler
Wire Harnesses And Wires - Rear Control Models
Cabinet, Exhaust Duct And Base
Meter Case - Rear Control Coin Drop Models
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Cabinet, Exhaust Duct And Base
Wire Harnesses And Wires - Rear Control Models
Control Panel And Controls - Rear Control Coin Drop Models
Cabinet, Exhaust Duct And Base
Access Panel
Cabinet, Exhaust Duct And Base
Control Panel And Controls - Rear Control Coin Drop Models
Exhaust Fan And Idler
Heater Duct Assembly (gas Models)
Control Panel And Controls - Rear Control Coin Drop Models
Front Panel And Seal
Control Panel And Controls - Rear Control Coin Drop Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Gas Valve And Igniter (gas Models)
Power Cord
Non-electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Gas Valve And Igniter (gas Models)
Exhaust Fan And Idler
Control Panel And Controls - Rear Control Coin Drop Models
Common parts from model Huebsch HDGNERGS113CW01 Dryer
7
Screw (comment: Torx Head, Optional For Added SPQ 62853 Contact Us For Availability
NI
SPQ 70441601P SPQ 70441601P Contact Us For Availability
NI
SPQ 70294106 SPQ 70294106 Contact Us For Availability
× ![]()
