Model Huebsch HDGLEFGS111CW01 Dryer – Common Parts & Diagrams

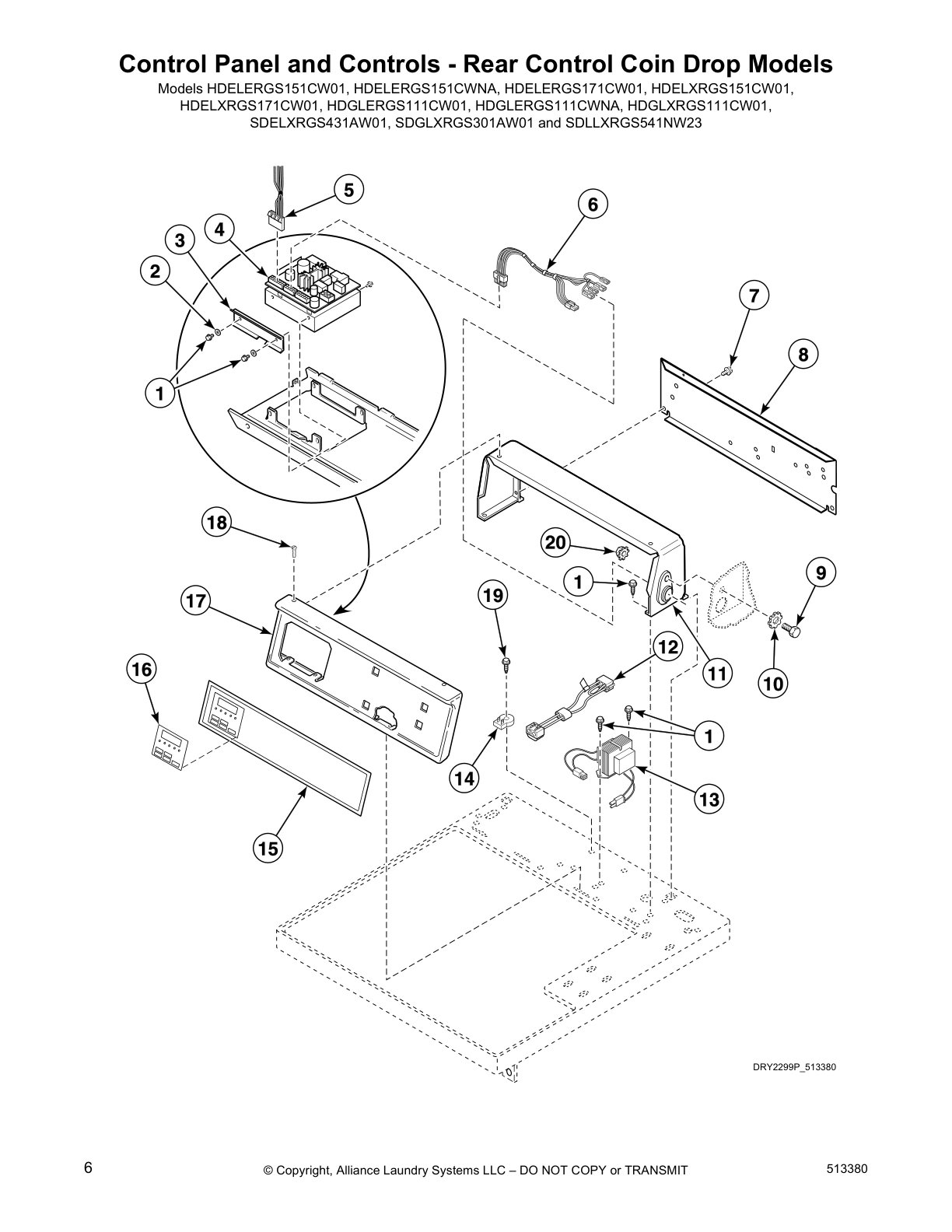

Control Panel and Controls - Rear Control Coin Drop Models

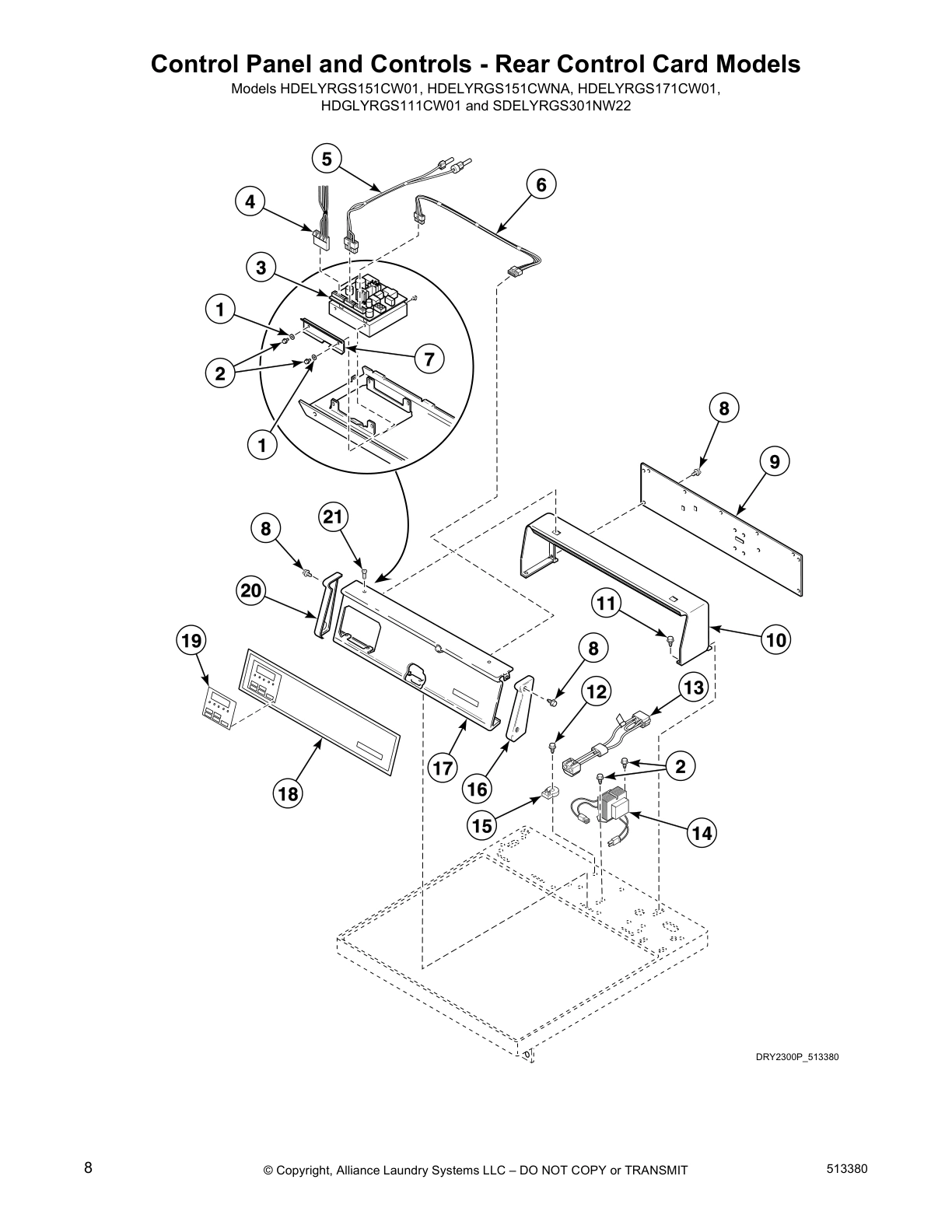

Control Panel and Controls - Rear Control Card Models
Non-Electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Control Panel and Controls - Front Control
Coin Drop and Card Models
Non-Electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Control Cabinet Controls - Front Control Coin Drop Models
Control Cabinet Controls - Front Control
Card Reader Ready Models
Cabinet Top - Front Control Coin Drop and Card Reader Models
Control Cabinet - Front Control Non-Vend Models
Loading Door without Window
Loading Door with Window
Access Panel
Front Panel and Seal
Motor, Exhaust Fan and Belt (Drawing 1 of 2)
Motor, Exhaust Fan and Belt (Drawing 2 of 2)
Thermistor
Front Bulkhead, Air Duct and Felt Seal
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block - Gas and 1 Phase Electric Models
Terminal Block - 3 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Burner Orifice Spuds - For Higher Elevations (Drawing 1 of 2)
Burner Orifice Spuds - For Higher Elevations (Drawing 2 of 2)
Cabinet, Exhaust Duct and Base
Power Cord
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)
Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)
Wire Harnesses and Wires - Front Control Models
Through Serial No. 1303025314
Wire Harnesses and Wires - Front Control Models
Starting Serial No. 1303025315
Wire Harnesses and Wires - Rear Control Models
Through Serial No. 1207
Wire Harnesses and Wires - Rear Control Models
Starting Serial No. 1207
Common parts from model Huebsch HDGLEFGS111CW01 Dryer
SPQ 70441601P No Longer Available
SPQ NK202 SPQ NK202 Contact Us For Availability
SPQ 503776 SPQ 503776 Contact Us For Availability
SPQ 521P3 SPQ 521P3 Contact Us For Availability
SPQ 56451 SPQ 56451 Contact Us For Availability
SPQ 00361 SPQ 00361 Contact Us For Availability
SPQ 00223 SPQ 00223 Contact Us For Availability
SPQ 00245 SPQ 00245 Contact Us For Availability
SPQ 00124 SPQ 00124 Contact Us For Availability
SPQ 00347 SPQ 00347 Contact Us For Availability
SPQ 93501 SPQ 93501 Contact Us For Availability
1
Wire Harness Assembly SPQ 512422P Contact Us For Availability
1
Panel Locator SPQ 56079 Contact Us For Availability
1
Wire Clip SPQ 687500 Contact Us For Availability
1
Screw Orifice SPQ 58719 Contact Us For Availability
1
Screw SPQ 502535 Contact Us For Availability
1
Screw SPQ 20530 Contact Us For Availability
1
Grounding Clip SPQ 00161 Contact Us For Availability
1
10 Position Housing SPQ 500338 Contact Us For Availability
2
Igniter and Bracket Assembly SPQ 51782 Contact Us For Availability
2
Electronic Coin Drop Kit SPQ CK110 Contact Us For Availability
2
Pop Rivet SPQ 23008 Contact Us For Availability
2
Door Handle Wedge SPQ 510129 Contact Us For Availability
2
Strain Relief SPQ 38384 Contact Us For Availability
2
Blower Housing SPQ 31260 Contact Us For Availability
2
Insulated Female Spade Termi SPQ 00127 Contact Us For Availability
2
6 Circuit Plug SPQ 00344 Contact Us For Availability
2
Female Terminal SPQ 00256 Contact Us For Availability
3
Speed Clip SPQ 28835 Contact Us For Availability
3
Hinge SPQ 513534P Contact Us For Availability
3
Blower Fan Assembly SPQ 511969WP Contact Us For Availability
3
2 Circuit Receptacle SPQ 58800 Contact Us For Availability
3
6 Circuit Receptacle SPQ 00189 Contact Us For Availability
3
Terminal Extractor Tool SPQ 00255 Contact Us For Availability
4
Screw SPQ M405188 Contact Us For Availability
4
Burner Assembly SPQ 23222 Contact Us For Availability
4
Plug SPQ 36170 Contact Us For Availability
4
Plug SPQ 00221 Contact Us For Availability
4
Ratchet Extension Tool SPQ 00188 Contact Us For Availability
4
Electronic Harness SPQ 511795P Contact Us For Availability
5
Harness Strap SPQ 00360 Contact Us For Availability
5
Top Mounting Bracket SPQ 29651 Contact Us For Availability
5
Combustion Duct SPQ 510132 Contact Us For Availability
5
Gas Clearance Label SPQ 510001QP Contact Us For Availability
5
10 Circuit Receptacle SPQ 26301 Contact Us For Availability
6
Screw SPQ 36020 Contact Us For Availability
6
Front Panel SPQ 510066WP Contact Us For Availability
6
Motor Hub Ring Kit SPQ 590P3 Contact Us For Availability
6
Damper SPQ 56128 Contact Us For Availability
6
Nut SPQ 504228 Contact Us For Availability
6
SPQ 28447 SPQ 28447 Contact Us For Availability
6
SPQ 00117 SPQ 00117 Contact Us For Availability
7
Torx Bit SPQ 310P4 Contact Us For Availability
7
SPQ 33562 SPQ 33562 Contact Us For Availability
7
SPQ 510066QP SPQ 510066QP Contact Us For Availability
7
SPQ 28448 SPQ 28448 Contact Us For Availability
7
SPQ 56265 SPQ 56265 Contact Us For Availability
8
SPQ 458P3 SPQ 458P3 Contact Us For Availability
8
SPQ 510133 SPQ 510133 Contact Us For Availability
8
SPQ 28449 SPQ 28449 Contact Us For Availability
8
SPQ 23039 SPQ 23039 Contact Us For Availability
8
2 Circuit Connector SPQ 501333 Contact Us For Availability
9
Washer SPQ 52549 Contact Us For Availability
9
SPQ 23040 SPQ 23040 Contact Us For Availability
9
Spade Terminal SPQ 34596 Contact Us For Availability
10
Receptacle Housing SPQ 90789 Contact Us For Availability
12
Screw SPQ 56124 Contact Us For Availability
13
3 Circuit Connector SPQ 56266 Contact Us For Availability
13
Insulated Female Terminal SPQ 00165 Contact Us For Availability
14
Resistor SPQ 802247QP Contact Us For Availability
14
Ring Terminal SPQ 00319 Contact Us For Availability
15
Lock Cam SPQ 54612 Contact Us For Availability
15
Directional Exhaust Kit SPQ 510002QP Contact Us For Availability
15
Female Spade Terminal SPQ 00111 Contact Us For Availability
16
Motor Mount SPQ 510060 Contact Us For Availability
16
Male Tab Terminal SPQ 00110 Contact Us For Availability
17
Audit Switch Bracket SPQ 27260P Contact Us For Availability
17
Dryer Base SPQ 526P3 Contact Us For Availability
18
Female Tab Terminal SPQ 00114 Contact Us For Availability
19
1 Circuit Plug SPQ 00139 Contact Us For Availability
20
Bumper Pad SPQ 512921 Contact Us For Availability
20
9 Circuit Plug SPQ 26302 Contact Us For Availability
21
Control Assembly SPQ 685847 Contact Us For Availability
21
12 Circuit Receptacle SPQ 23041 Contact Us For Availability
23
Insulated Female Flag Terminal SPQ 56855 Contact Us For Availability
24
1 Circuit Receptacle SPQ 26163 Contact Us For Availability
NI
SPQ 56461P SPQ 56461P Contact Us For Availability
NI
Retaining Ring SPQ 23748 Contact Us For Availability
NI
SPQ 62853 SPQ 62853 Contact Us For Availability
NI
Screw SPQ 62588 Contact Us For Availability
NI
SPQ 70441602 SPQ 70441602 Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
NI
Wireless Network Kit SPQ NK220 Contact Us For Availability
NI
SPQ NK320 SPQ NK320 Contact Us For Availability
NI
SPQ NK301 SPQ NK301 Contact Us For Availability
NI
SPQ 510013QP SPQ 510013QP Contact Us For Availability
NI
SPQ 503786 SPQ 503786 Contact Us For Availability
NI
N.G. Orifice SPQ 510517 Contact Us For Availability
NI
SPQ 503779 SPQ 503779 Contact Us For Availability
NI
SPQ 503780 SPQ 503780 Contact Us For Availability
NI
SPQ 511004 SPQ 511004 Contact Us For Availability
NI
SPQ 370P4P SPQ 370P4P Contact Us For Availability
NI
SPQ 00116 SPQ 00116 Contact Us For Availability
NI
SPQ 56448 SPQ 56448 Contact Us For Availability
NI
SPQ 58799 SPQ 58799 Contact Us For Availability
NI
SPQ 00121 SPQ 00121 Contact Us For Availability
NI
SPQ 00156 SPQ 00156 Contact Us For Availability
NI
SPQ 00222 SPQ 00222 Contact Us For Availability
NI
SPQ 00115 SPQ 00115 Contact Us For Availability
NI
Torx Bit SPQ 281P4 Contact Us For Availability
NI
SPQ 292P4 SPQ 292P4 Contact Us For Availability
NI
SPQ 282P4 SPQ 282P4 Contact Us For Availability
× ![]()
