Model Huebsch HDGBXFGS121DW01 Dryer – Common Parts & Diagrams

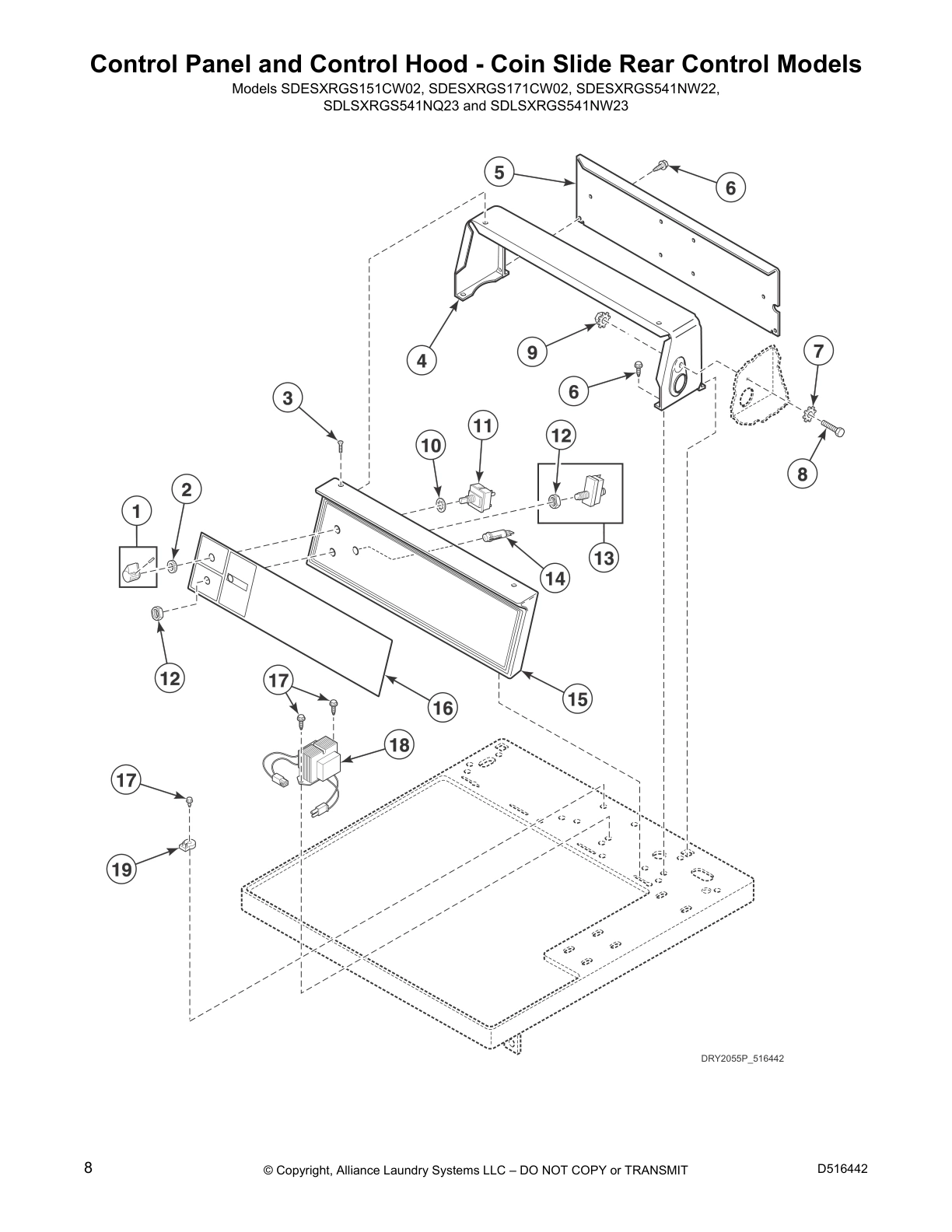

Control Panel and Control Hood - Coin Slide Rear Control Models

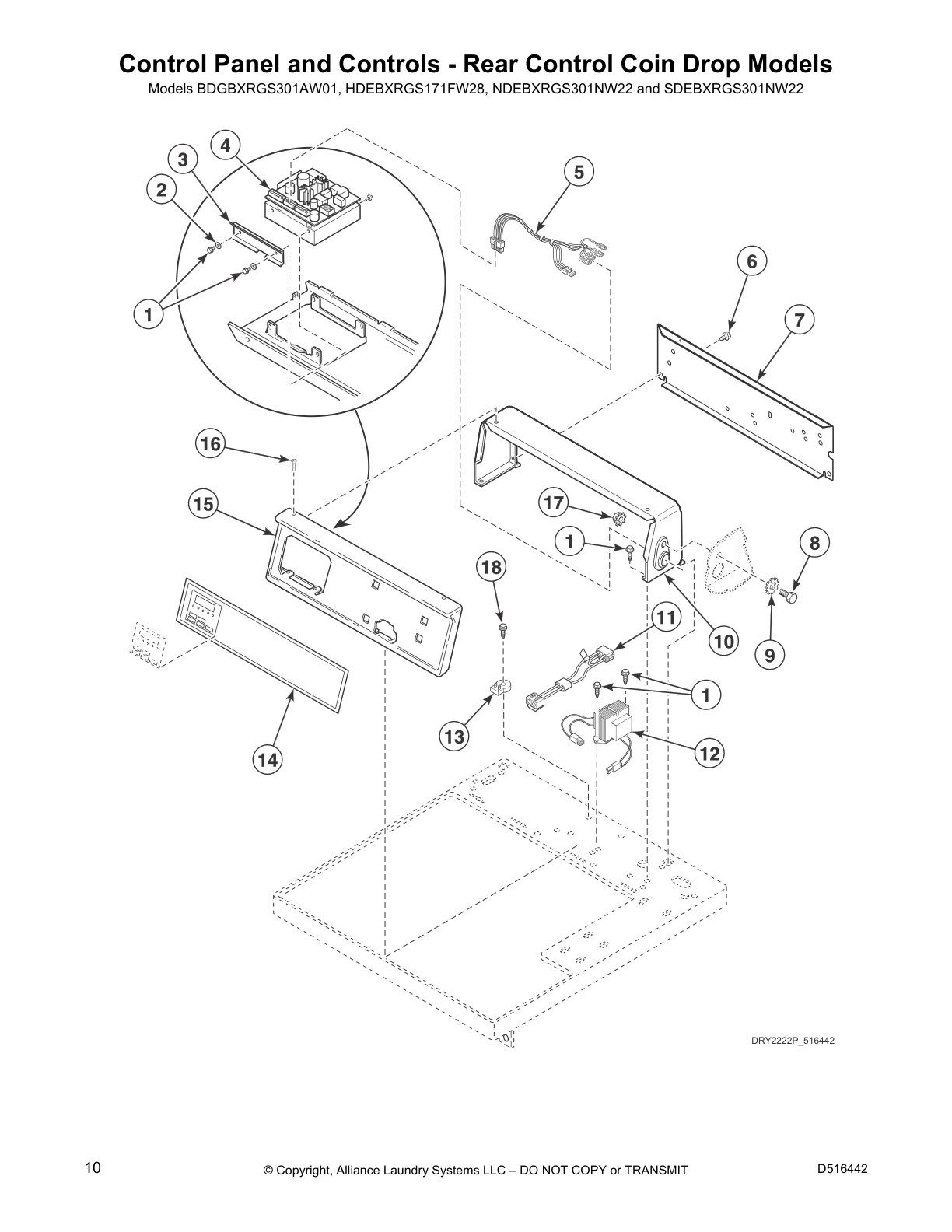

Control Panel and Controls - Rear Control Coin Drop Models
Control, Meter Case and Service Door -
Coin Slide Rear Control Models
Coin Slide Extension Through Serial No. 1211 -
Coin Slide Rear Control Models
Non-Electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Control Panel and Controls - Front Control Coin Drop
and Card Models
Non-Electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Control Cabinet Controls - Front Control Coin Drop Models
Cabinet Top - Front Control Coin Slide Ready, Coin Drop Ready,
Coin Drop Installed and Card Reader Ready Models
Control Cabinet - Front Control Non-Vend Models
Loading Door with Window
Loading Door without Window (Drawing 1 of 2)
Loading Door without Window (Drawing 2 of 2)
Access Panel, Front Panel and Seal
Motor and Belt
Exhaust Fan and Idler Assembly
Thermistor and Thermostat
Front Bulkhead, Air Duct, Felt Seal and Cylinder with Light
Front Bulkhead and Air Duct without Light
Felt Seal and Cylinder without Light
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block - Gas and 1 Phase Electric Models
Terminal Block - 3 Phase Electric Models
Heater Duct Assembly - 3 Phase
Heater Duct and Element Assembly - 1 Phase
Heater Duct Assembly
Gas Valve
Burner Orifice Spuds - For Higher Elevations
Igniter and Gas Conversion Kits
Cabinet, Exhaust Duct and Base
Power Cord
Strain Relief
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Through Serial No. 1401
Wire Harnesses and Wires - Starting Serial No. 1401
Wire Harnesses and Wires - Front Control Models Starting
Serial No. 0904 and Continuing Through Serial No. 1401
Wire Harnesses and Wires - Front Control Models
Starting Serial No. 1401
Wire Harnesses and Wires - Front Control Models Starting
Serial No. 0904 and Continuing Through Serial No. 1303025314
Wire Harnesses and Wires - Front Control Models
Starting Serial No. 13030252315
Wire Harnesses and Wires - Rear Control Models
Through Serial No. 1207
Wire Harnesses and Wires - Rear Control Models
Starting Serial No. 1207 (Drawing 1 of 2)
Wire Harnesses and Wires - Rear Control Models
Starting Serial No. 1207 (Drawing 2 of 2)
Common parts from model Huebsch HDGBXFGS121DW01 Dryer
× ![]()
