Model GE GTW840CSN1WS Washer – Common Parts & Diagrams

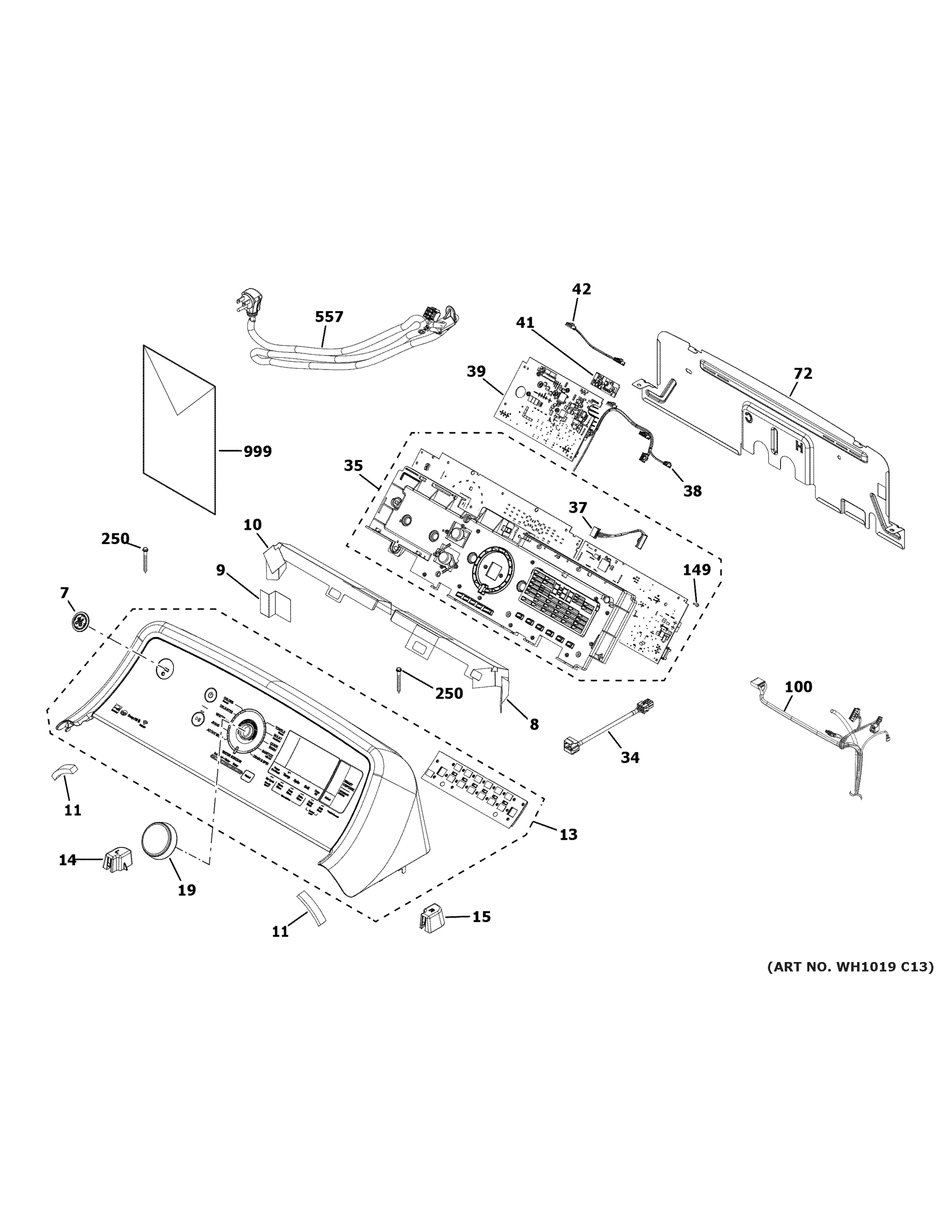

CONTROLS & BACKSPLASH

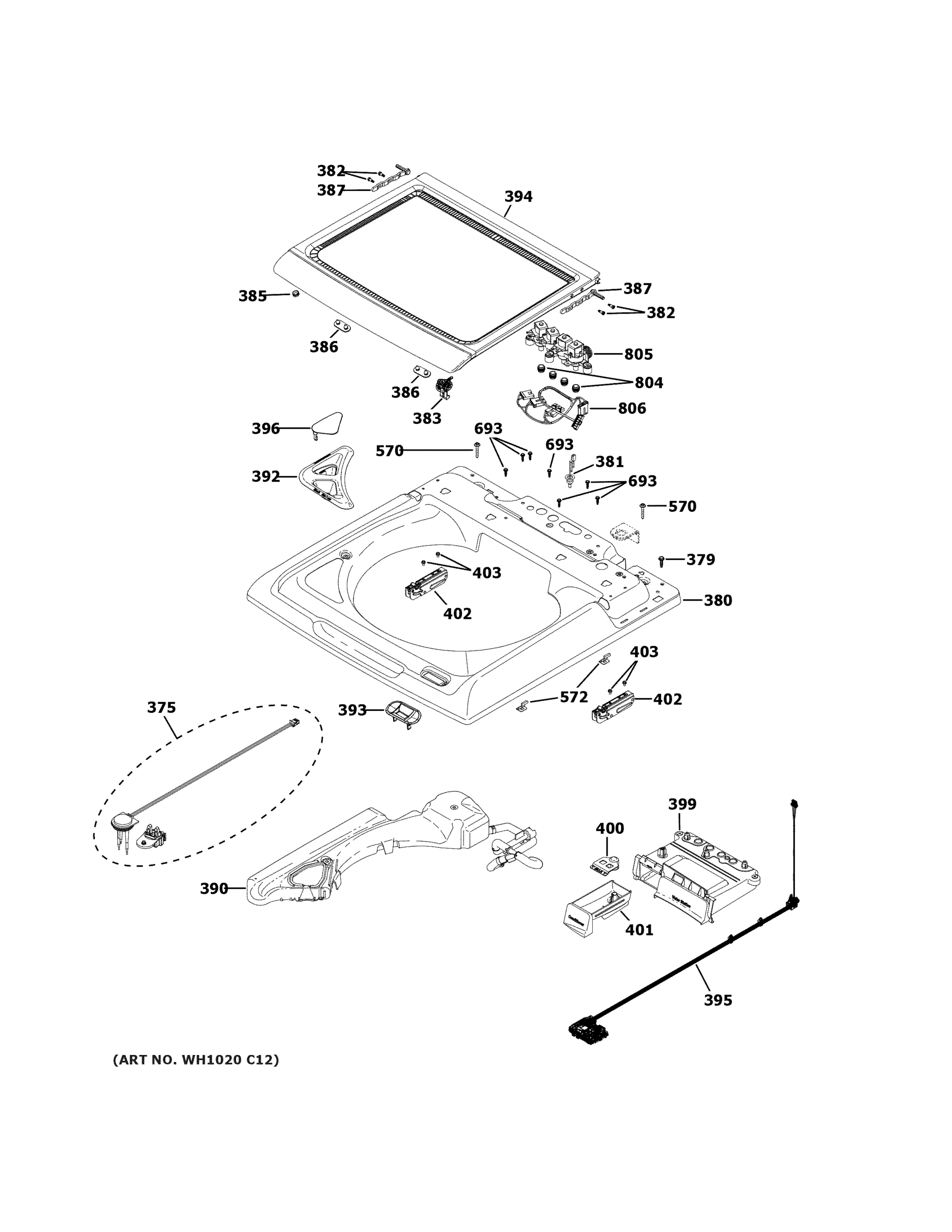

TOP PANEL & LID
TUB & MOTOR
CABINET
Common parts from model GE GTW840CSN1WS Washer
7
GE BADGE GEN WH01X29417 Contact Us For Availability
14
LEFT BACKSPLASH SUPPORT GEN WH16X24095 Contact Us For Availability
15
RIGHT BACKSPLASH SUPPORT GEN WH16X24096 Contact Us For Availability
19
SELECTOR KNOB GEN WH01X28943 Contact Us For Availability
39
INVERTER BOARD GEN WH22X29049 Contact Us For Availability
99
HARNESS WIRE TIE GEN WH01X24190 Contact Us For Availability
102
CONNECTOR BRACKET LEFT GEN WH13X29044 Contact Us For Availability
149
SCREW 8-18 HI/LO 5/8 GEN WR01X10196 Contact Us For Availability
250
SCR 8-18 AB 13/4 S HXW GEN WR01X10634 Contact Us For Availability
303
SCR 1/4-20, 2A SINULOC GEN WH02X24374 Contact Us For Availability
313
WASHER HUB GEN WH02X10364 Contact Us For Availability
314
BELLEVILLE WASHER GEN WH01X26190 Contact Us For Availability
315
NUT HUB GEN WH02X10363 Contact Us For Availability
316
BASKET 5.2 GEN WH21X29067 Contact Us For Availability
319
SCR 1/4-20 TT HXT .485 S GEN WH02X24154 Contact Us For Availability
323
WASHER SPRING GEN WH01X29038 Contact Us For Availability
324
SCREW PLATFORM GEN WH02X10376 Contact Us For Availability
325
MODE SHIFTER GEN WH03X31937 Contact Us For Availability
326
CLUTCH GEN WH03X28951 Contact Us For Availability
327
SPRING CLUTCH GEN WH01X24434 Contact Us For Availability
328
CLIP SPRING COVER GEN WH02X24334 Contact Us For Availability
331
PATCH IMPACT GEN WH01X28114 Contact Us For Availability
333
SCR 10-16 B HXW 3/8 S GEN WH02X10396 Contact Us For Availability
375
LEVEL SENSOR GEN WH04X29157 Contact Us For Availability
379
SCR 10-32 GX HXW 7/16 S GEN WE02X10107 Contact Us For Availability
380
TOP COVER GEN WH44X26696 Contact Us For Availability
381
THERMISTOR GEN WH04X29448 Contact Us For Availability
387
LID LEVER ARM GEN WH01X24111 Contact Us For Availability
390
BULK TANK ASPIRATOR GEN WH42X29069 Contact Us For Availability
392
FUNNEL BEZEL DISPENSE GEN WH47X26777 Contact Us For Availability
394
GLASS FRAME ASM XL LID GEN WH44X26695 Contact Us For Availability
399
SMART DISPENSE BOX GEN WH42X29070 Contact Us For Availability
401
DRAWER FABRIC SOFTENER GEN WH47X26798 Contact Us For Availability
402
LID HINGE GEN WH02X24139 Contact Us For Availability
403
LID HINGE SCREW GEN WH02X24140 Contact Us For Availability
413
BALL JOINT UPPER GEN WH01X26970 Contact Us For Availability
557
POWER CORD GEN WH08X28843 Contact Us For Availability
570
SCR 10-32 GX 1.309 HWX S GEN WH02X24116 Contact Us For Availability
572
LID LOCK HARNESS CLIP GEN WH02X24143 Contact Us For Availability
632
NUT ROTOR GEN WH02X29041 Contact Us For Availability
637
SPEED SENSOR GEN WH03X29043 Contact Us For Availability
649
DRAIN PUMP SEAL GEN WH08X24179 Contact Us For Availability
650
PUMP DRAIN ASM GEN WH23X28418 Contact Us For Availability
658
INTERNAL DRAIN HOSE ASM GEN WH41X24177 Contact Us For Availability
693
SCR 8-16 PLASTITE HXW 5/ GEN WH02X24057 Contact Us For Availability
804
WATER VALVE SEAL GEN WH13X24094 Contact Us For Availability
806
WATER VALVE HARNESS GEN WH08X29860 Contact Us For Availability
824
CLAMP GEN WH01X24494 Contact Us For Availability
826
CLIP ANT-SIP GEN WH1X2725 Contact Us For Availability
× ![]()
