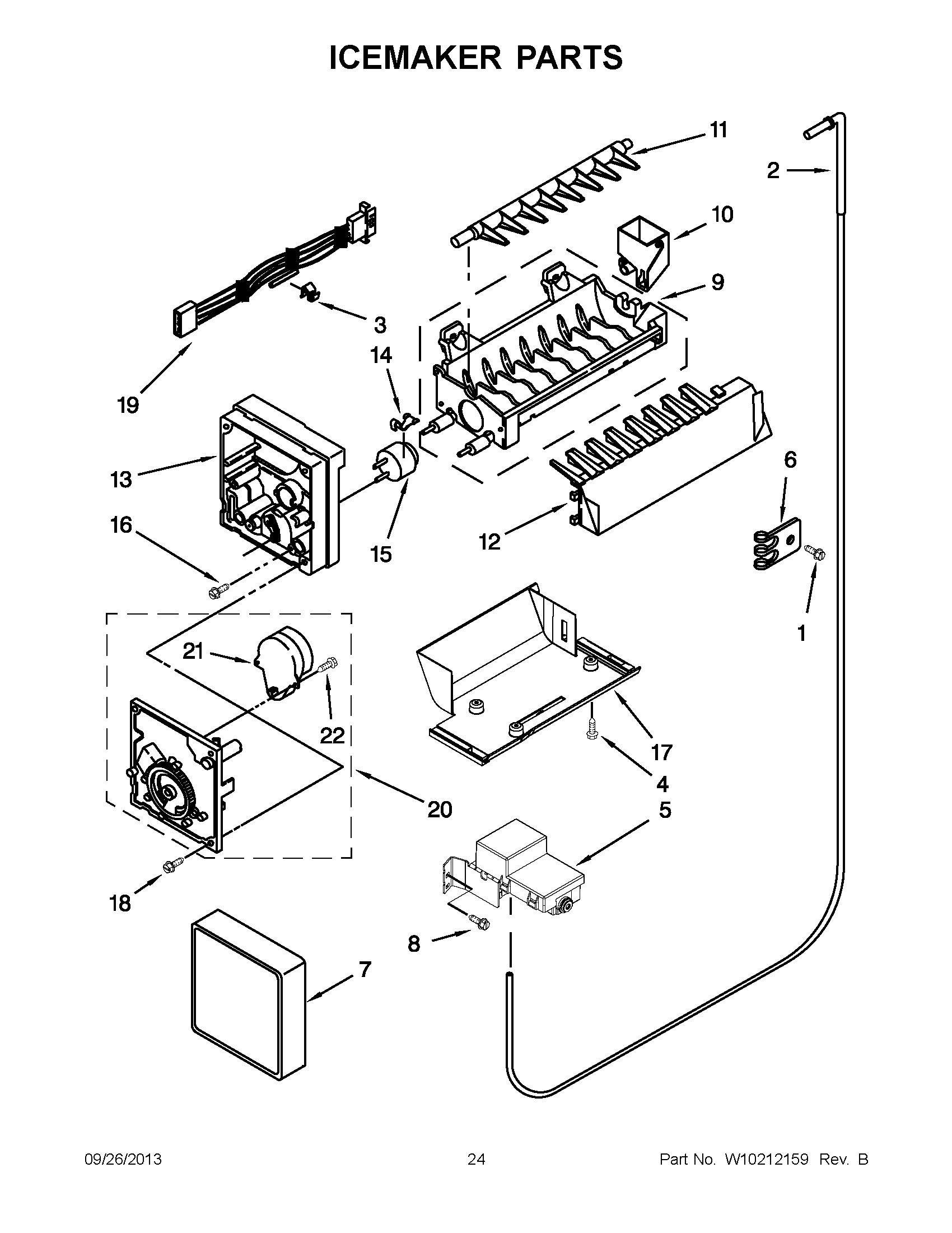

Model Whirlpool GS6NVEXVS01 REFRIGERATOR – Common Parts &amp; Diagrams

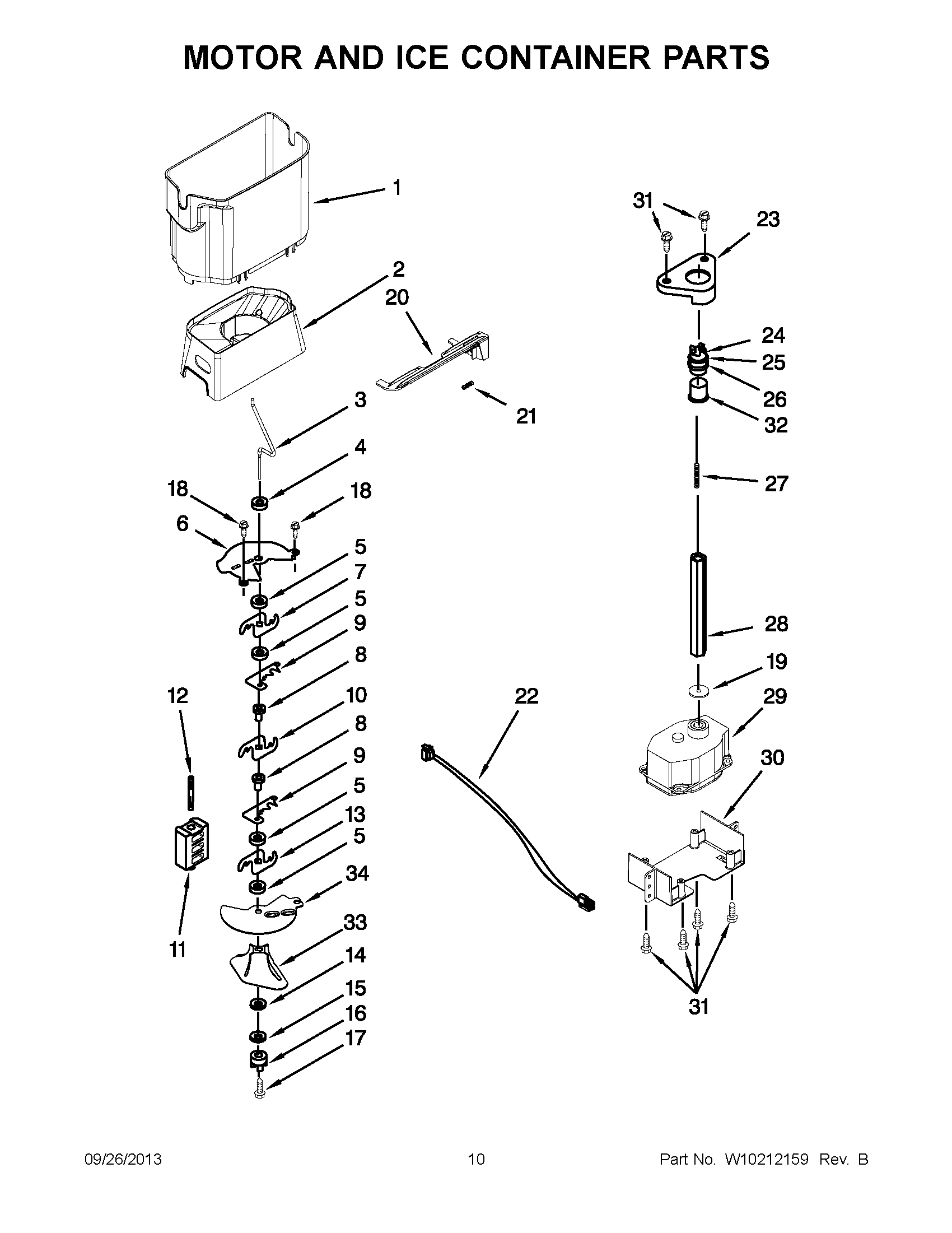

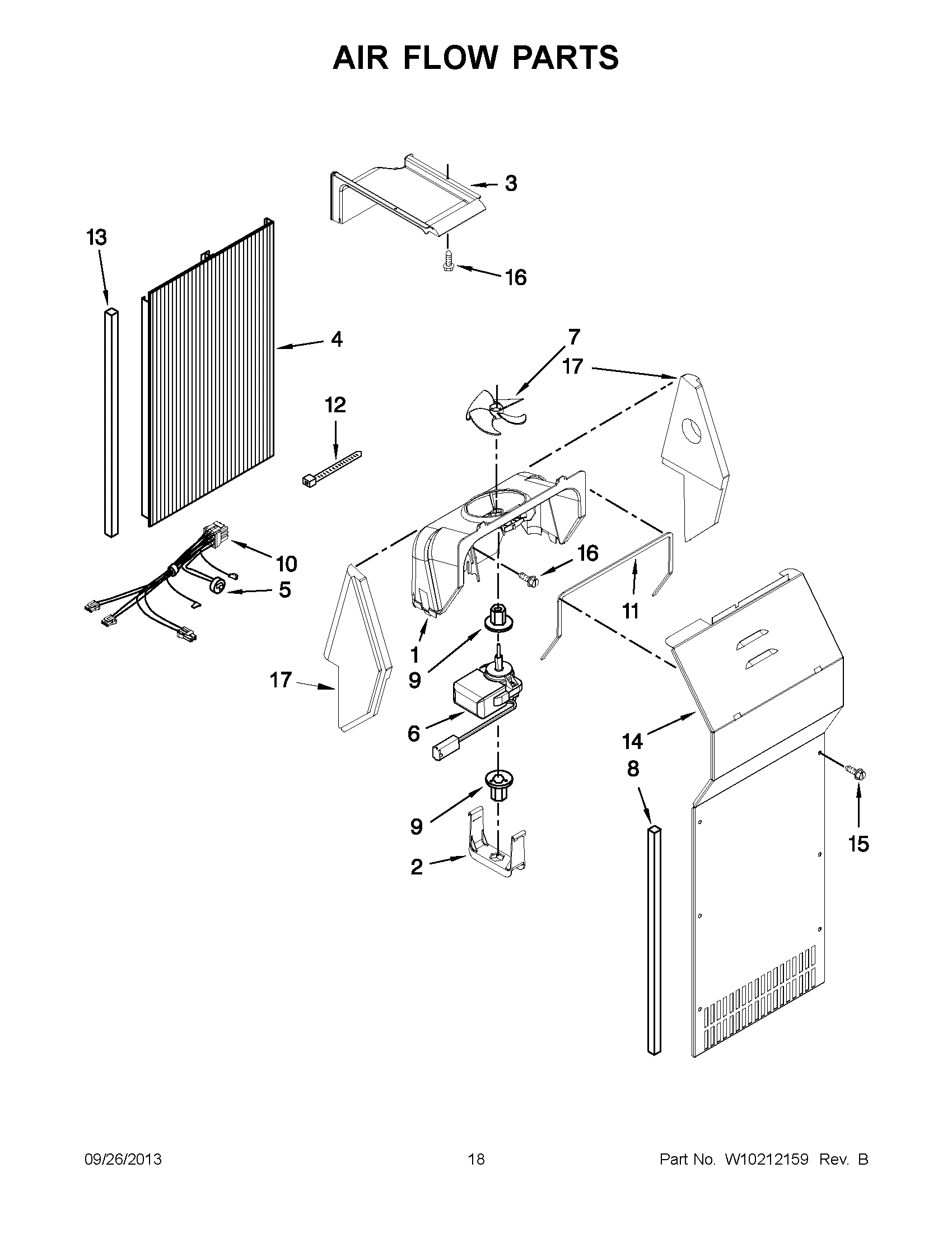

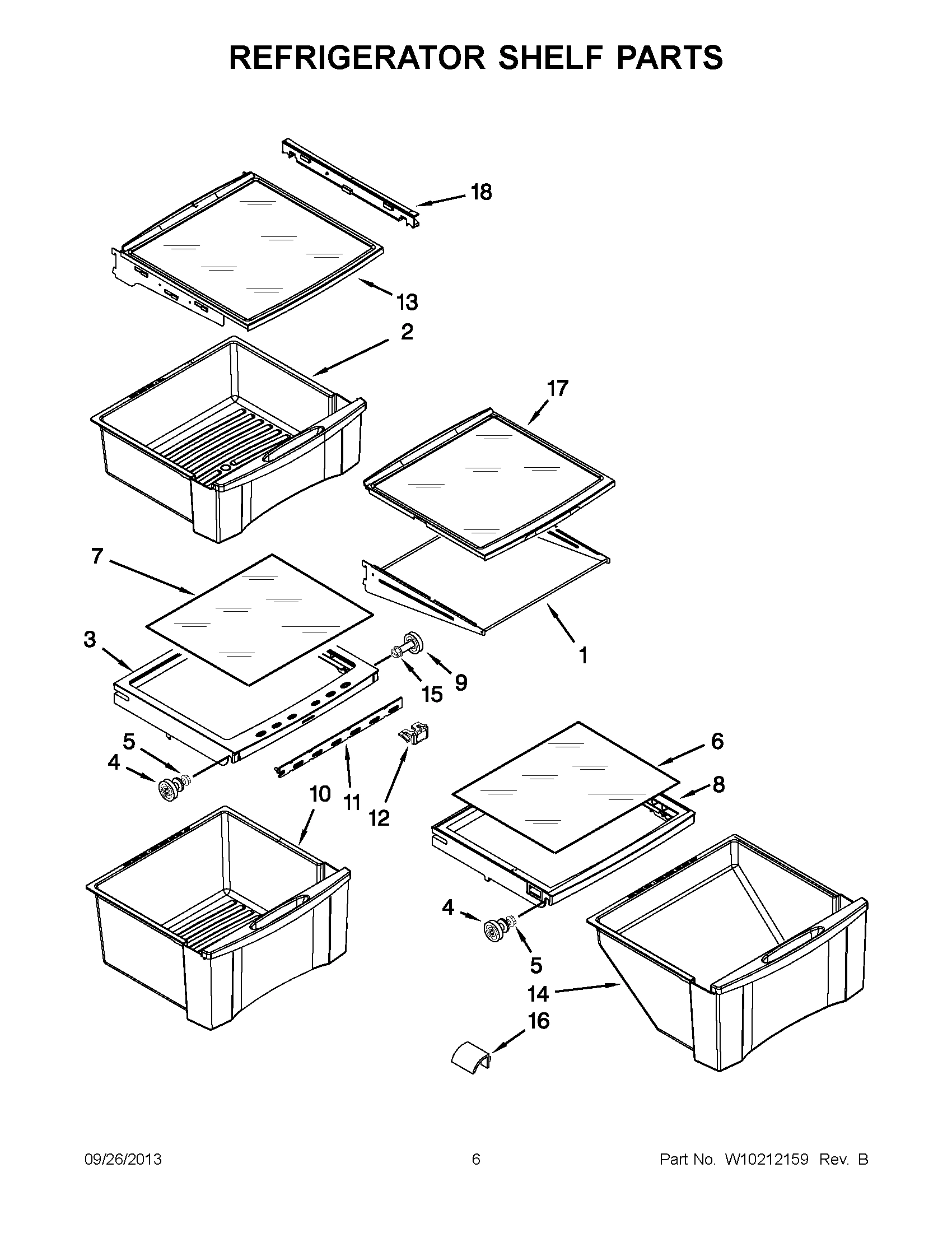

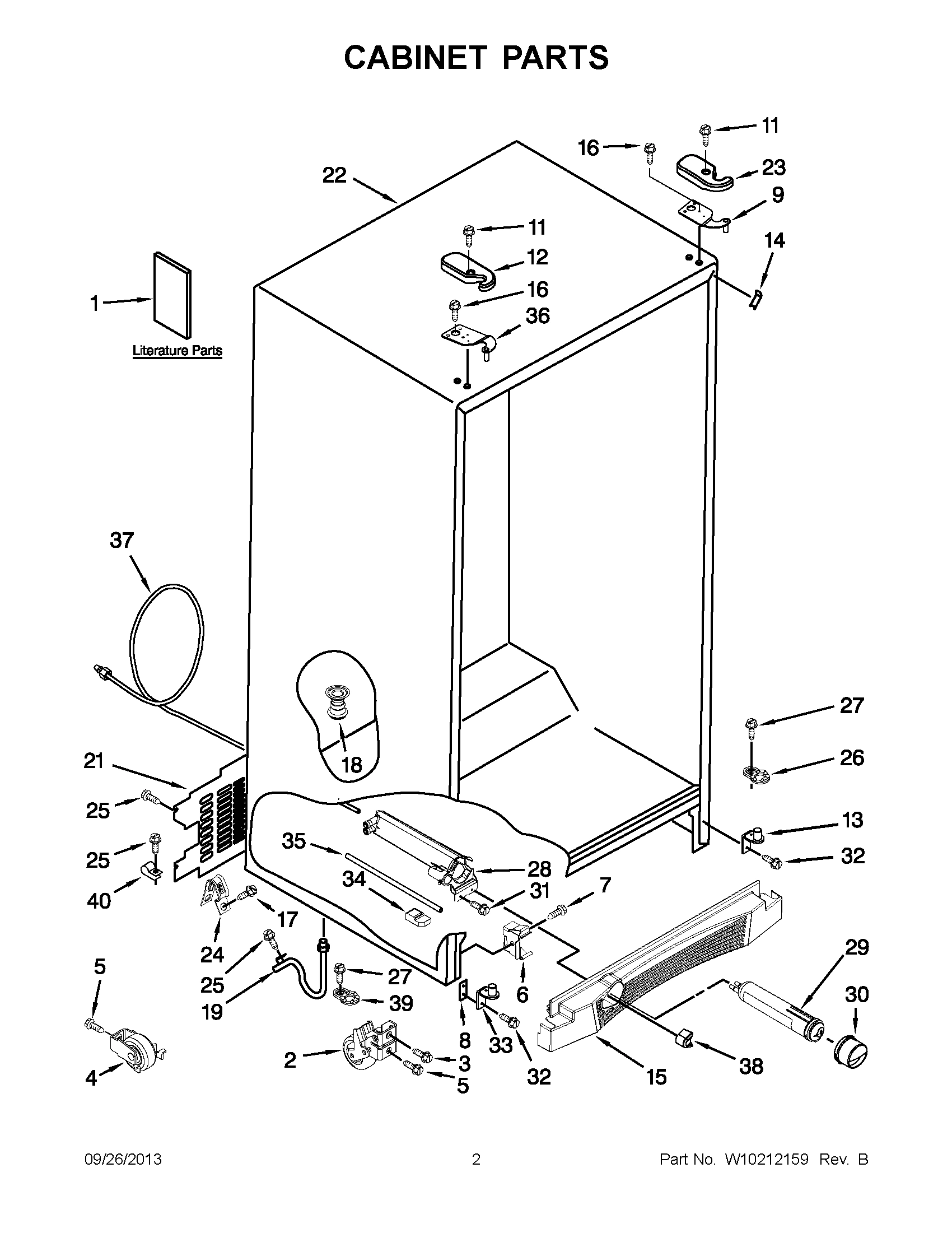

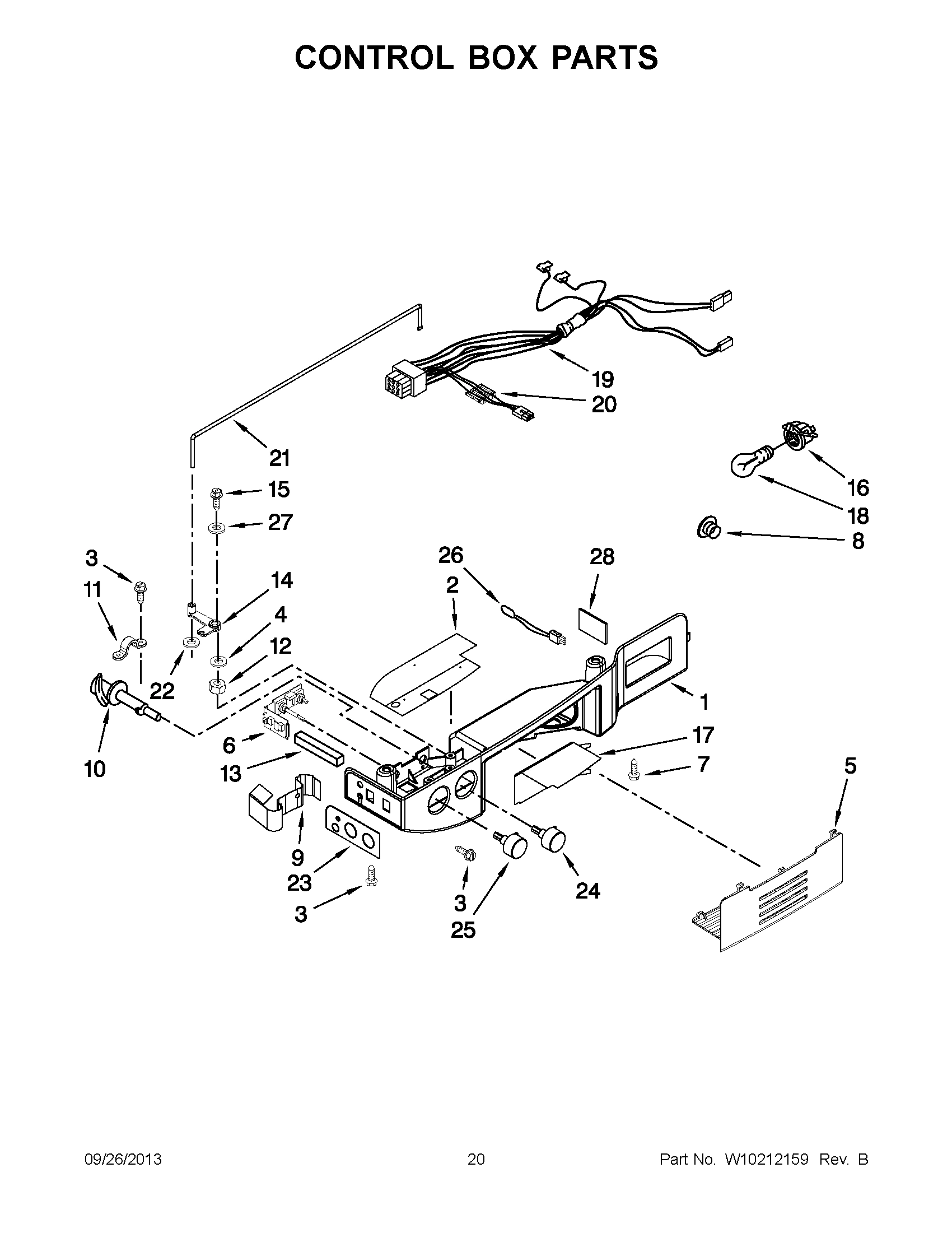

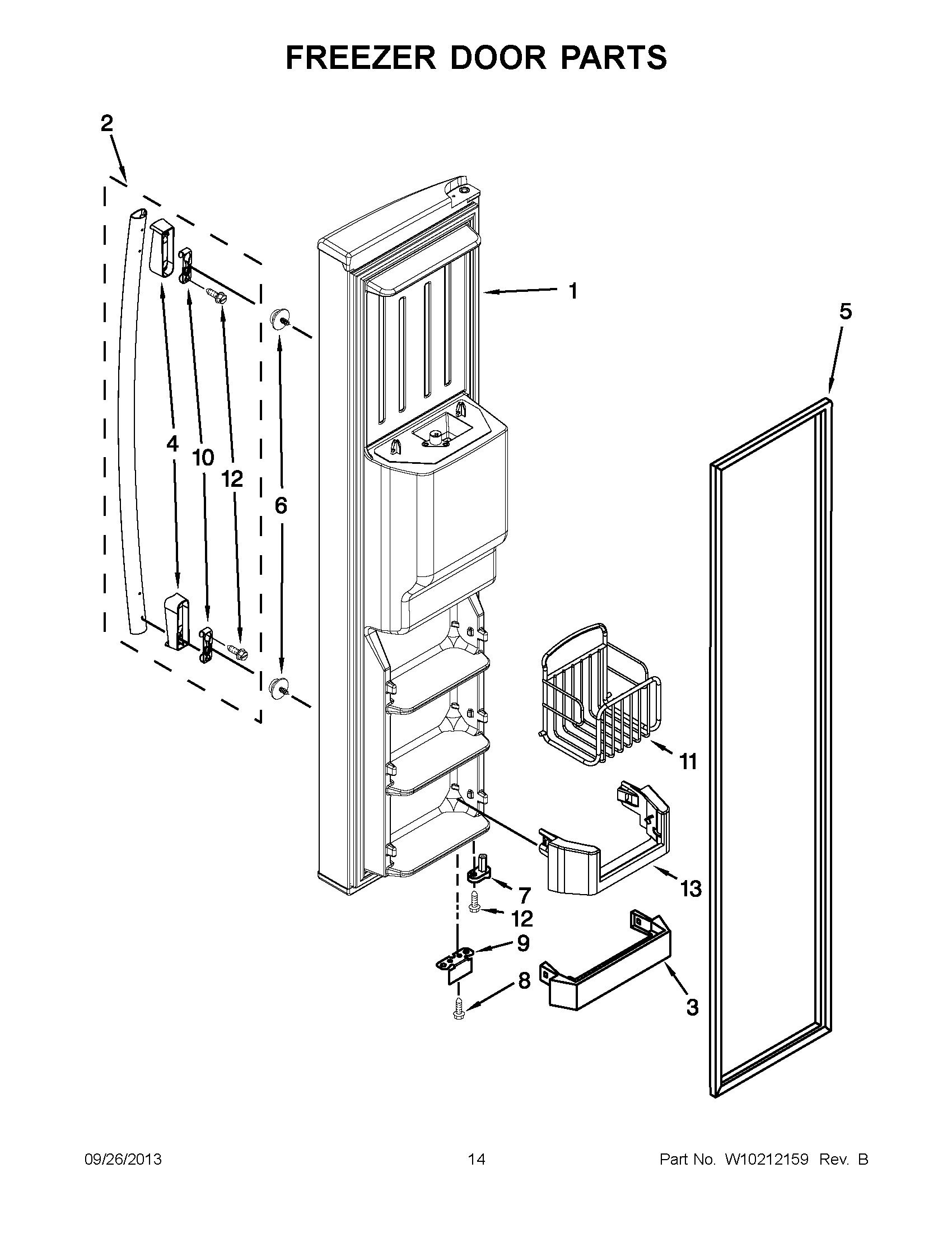

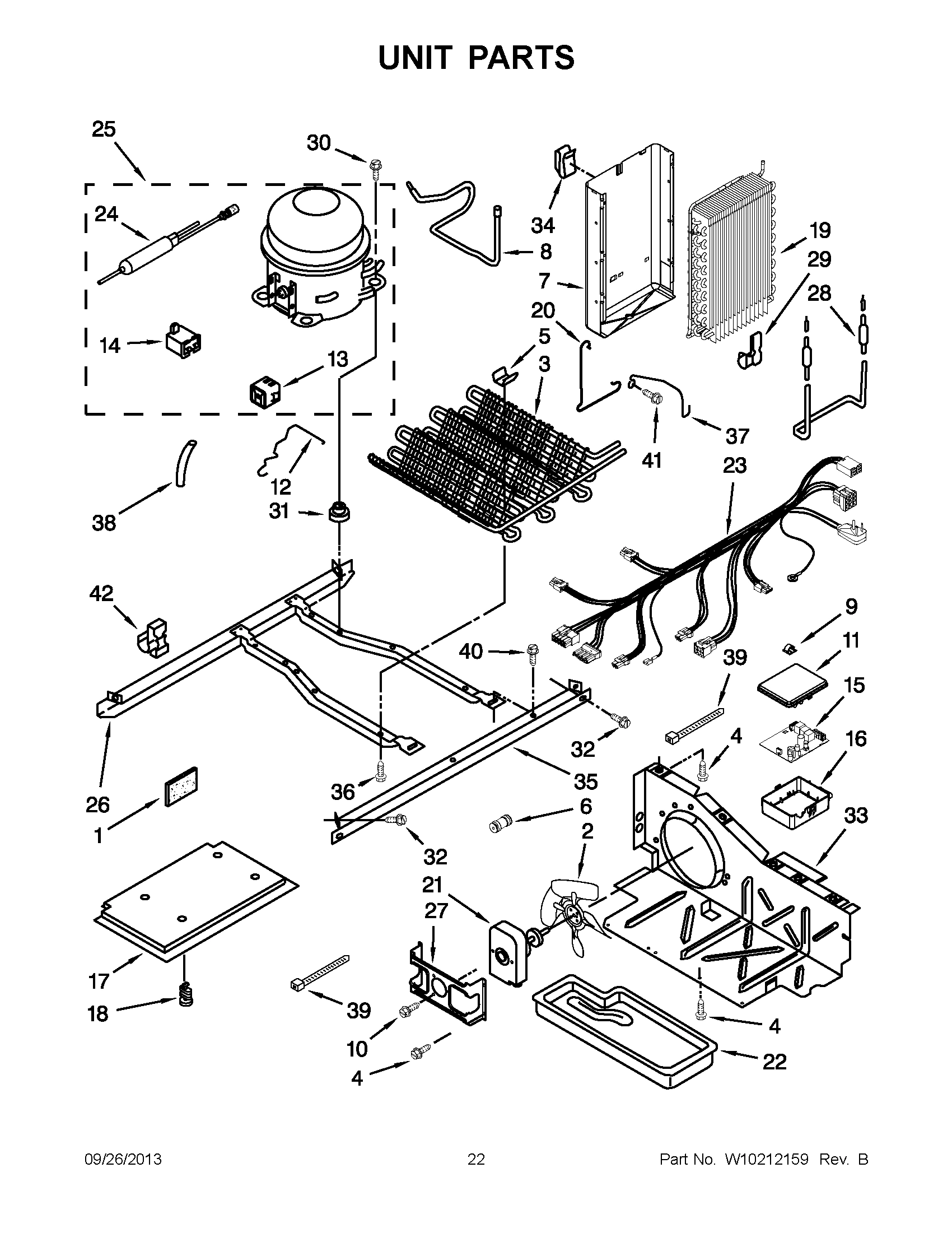

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (WHITE WPL W10169204 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (BLACK WPL W10169205 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (STAIN WPL W10169207 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (STAIN WPL W10169209 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Instruction Sheet, Door Removal WPL 2308394 Contact Us For Availability

1

Owner`s Manual WPL 2318587 Contact Us For Availability

1

Service & Wiring Sheet WPL W10152828 Contact Us For Availability

1

Energy Guide WPL W10194141 Contact Us For Availability

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Roller, Front WPL 2174748 Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE-CONTROL, MEAT PAN WPL 2182757 Contact Us For Availability

3

Cover, Crisper WPL 2223307 Contact Us For Availability

3

BIN, DOOR WPL 2223239K Contact Us For Availability

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $32.74

4

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer, Auger WPL 2258220 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WPW10159839 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10159839 $168.10

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $47.71

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

5

Mat, Bin WPL 2223464K Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $122.13

6

CONTROL, USER-INTERFACE WPL 2304103 Contact Us For Availability

6

SHELF TRACK (RIGHT HAND) WPL 2301289 Contact Us For Availability

6

SHELF TRACK (LEFT HAND) WPL 2301290 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Ladder, Shelf WPL 2319866 Contact Us For Availability

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

8

W10210942A Whirlpool Refrigerator Handle Backorder WPL W10210942A $54.35

8

W10210943A Whirlpool Refrigerator Handle Backorder WPL W10210943A $54.35

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

HANDLE ASSEMBLY (STAINLESS & VCM) WPL W10162865 Contact Us For Availability

9

W10127813 Whirlpool Refrigerator Handle Endca Backorder WPL W10127813 $28.09

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Endcap, Handle (Black) WPL W10127814 Contact Us For Availability

9

ENDCAP, HANDLE (GREY) WPL W10127816 Contact Us For Availability

9

Grille, Slide (Black) WPL 2305213B Contact Us For Availability

9

Grille, Slide (White) WPL 2305213W Contact Us For Availability

10

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

10

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

10

Spigot WPL W10187441 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Separator Assembly (Black) WPL 2305458B Contact Us For Availability

Separator Assembly (White) WPL 2305458W Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $207.20

Bracket, Door Stop (Zinc) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $63.35

WP8533988 Whirlpool Screw Fastener In Stock WPL WP8533988 $3.33

TRIVET WPL 2223334 Contact Us For Availability

Ferrite Bead WPL 2308165 Contact Us For Availability

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

NAMEPLATE, WHIRLPOOL GOLD WPL 2220214 Contact Us For Availability

Grille (Black) WPL 2303494B Contact Us For Availability

Grille (White) WPL 2303494W Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

Box, Control WPL 2255623 Contact Us For Availability

CONTROL, USER-INTERFACE (INCLUDES ITEM 18) WPL 2304170 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.84

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Shelf WPL 2255160 Contact Us For Availability

Pad, Ice & Water (White) WPL 2305247CG Contact Us For Availability

Pad, Ice & Water (Black) WPL 2305247GM Contact Us For Availability

2305219 Whirlpool Refrigerator Cover Backorder WPL 2305219 $30.25

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $13.05

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $5.01

Extension, Drain Fitting WPL 2304937 Contact Us For Availability

SLIDE, ICEMAKER MOUNTING (RIGHT HAND) WPL 2212321 Contact Us For Availability

20

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

20

LED Assembly WPL 2303841 Contact Us For Availability

21

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.98

21

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

Wire Harness, IDI Motor WPL 2187813 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

CABINET (NOT A SERVICABLE PART) WPL NP Contact Us For Availability

Tray, Housing (Black) WPL 2305253B Contact Us For Availability

Tray, Housing (White) WPL 2305253W Contact Us For Availability

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Holder WPL 2212369 Contact Us For Availability

FRONT COVER ASSEMBLY (BLACK) WPL 2321769B Contact Us For Availability

FRONT COVER ASSEMBLY (WHITE) WPL 2321769W Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W10178851 Whirlpool Refrigerator Jumper Wire Backorder WPL W10178851 $85.02

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

NLA:SCREW Backorder WPL WPW10141645 $3.70

KNOB, FREEZER COMPARTMENT WPL 2255992 Contact Us For Availability

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.92

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.21

Cover, Receiver WPL W10173569 Contact Us For Availability

27

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

27

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

27

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

28

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $92.73

28

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $57.79

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

29

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

29

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $122.27

30

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

30

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.09

30

Bracket, Motor WPL 2305208 Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

32

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

32

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

33

2303141 Whirlpool Refrigerator Door Hinge Backorder WPL 2303141 $126.31

33

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

34

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

34

Block, Housing Support WPL 2260519 Contact Us For Availability

35

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

35

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

36

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

37

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

38

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

39

DOOR CLOSER, FREEZER WPL 2223751 Contact Us For Availability

40

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

40

CLAMP, POWER CORD WPL 2305373 Contact Us For Availability

41

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2OZ.BRUSH TOUCH-UP KIT GRA WPL 80051 Contact Us For Availability

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability

Tube, Door WPL 2305228 Contact Us For Availability

Wire Assembly, Freezer Door WPL 2310084 Contact Us For Availability
