Model Whirlpool GS6NBEXRY04 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
03 - REFRIGERATOR SHELF PARTS

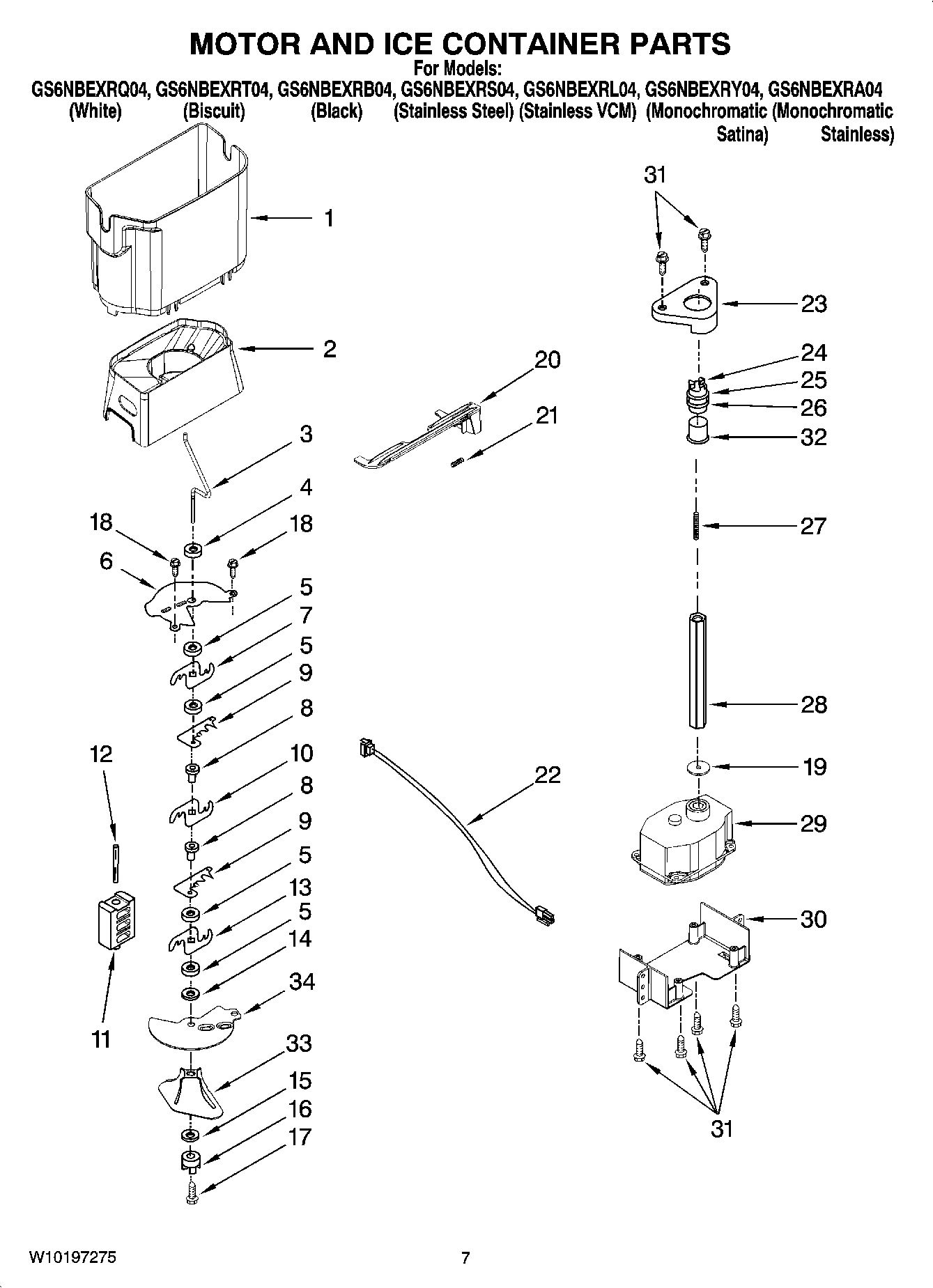

05 - MOTOR AND ICE CONTAINER PARTS
06 - REFRIGERATOR DOOR PARTS

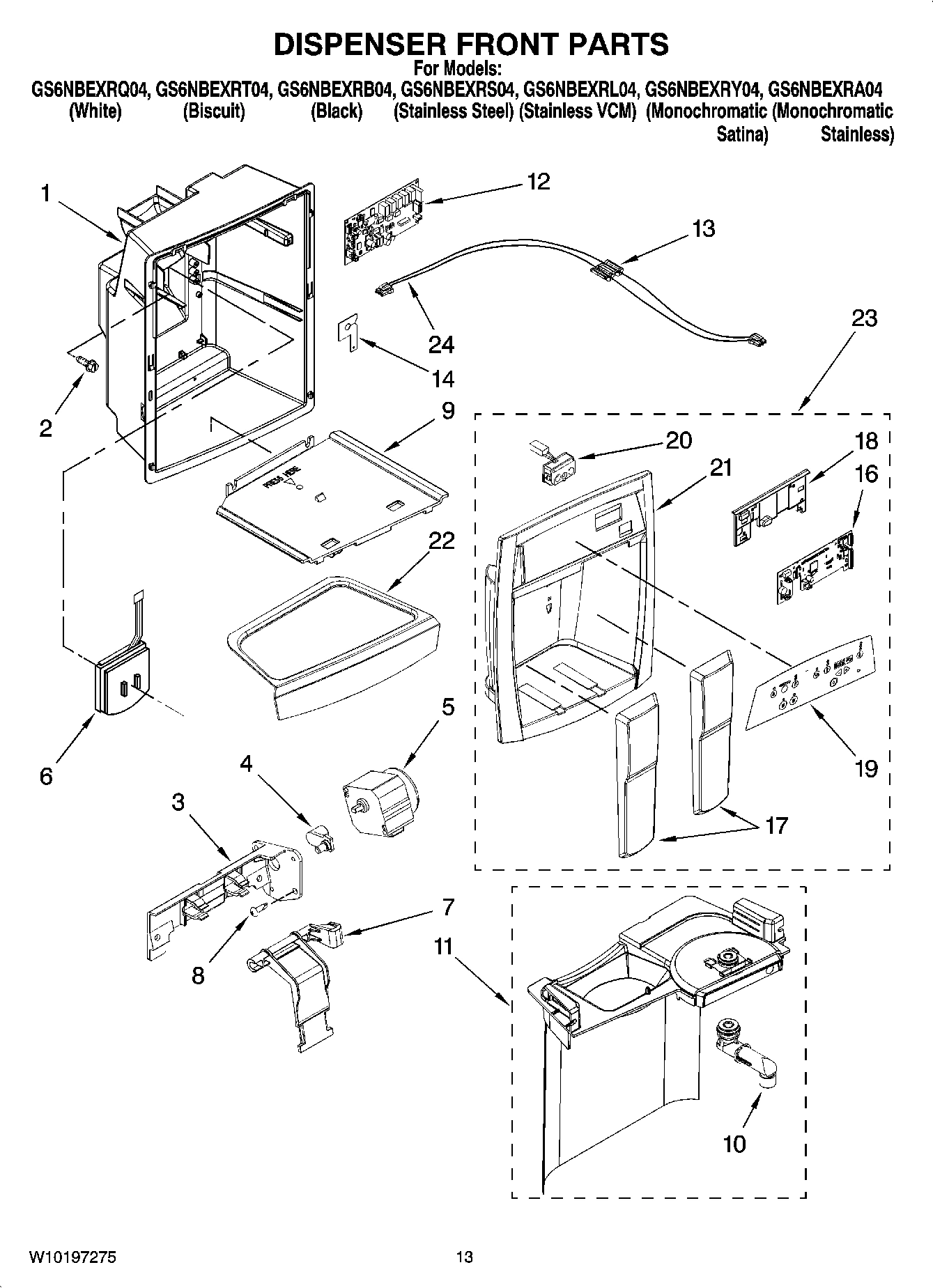

08 - DISPENSER FRONT PARTS

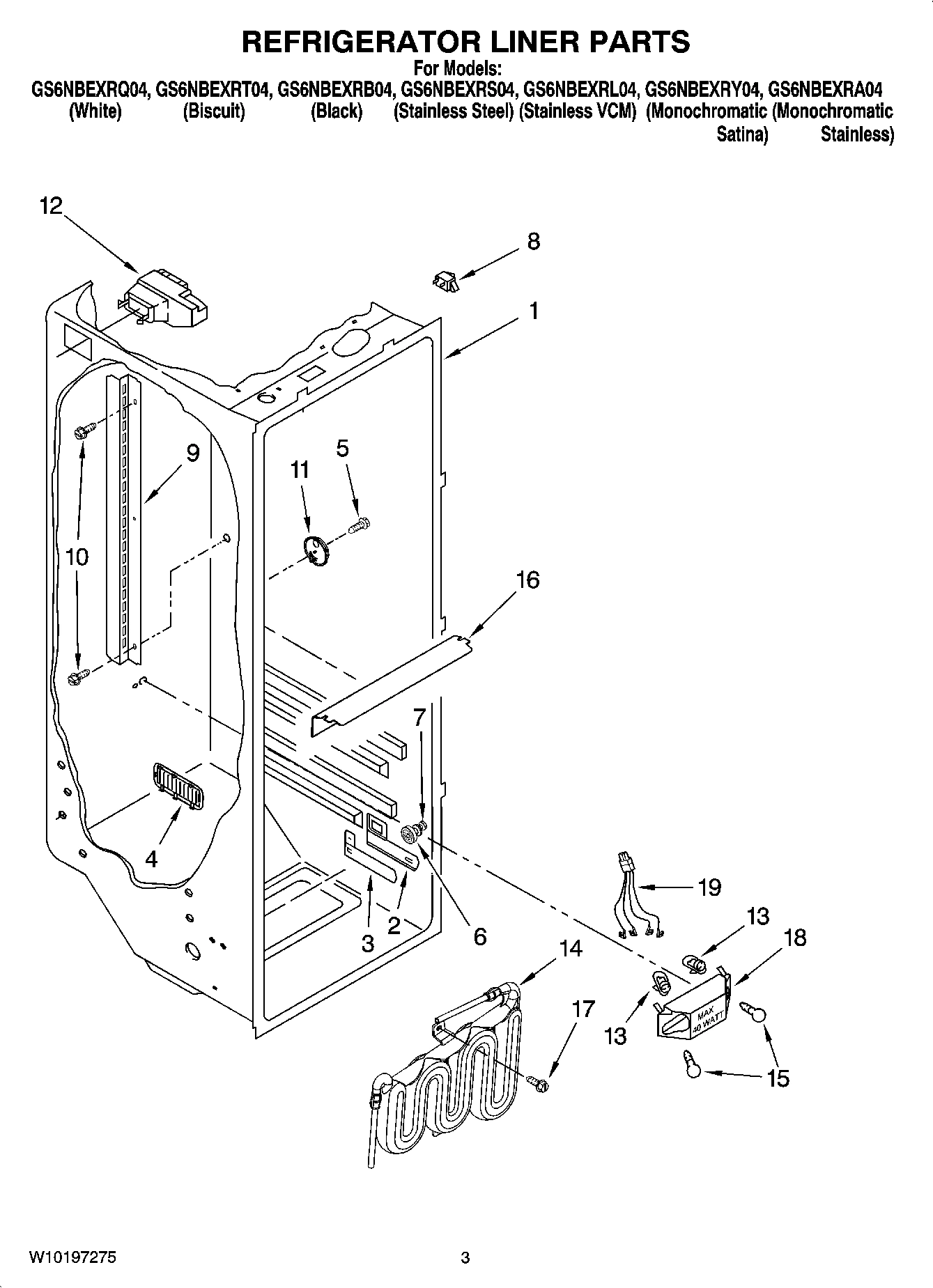

02 - REFRIGERATOR LINER PARTS

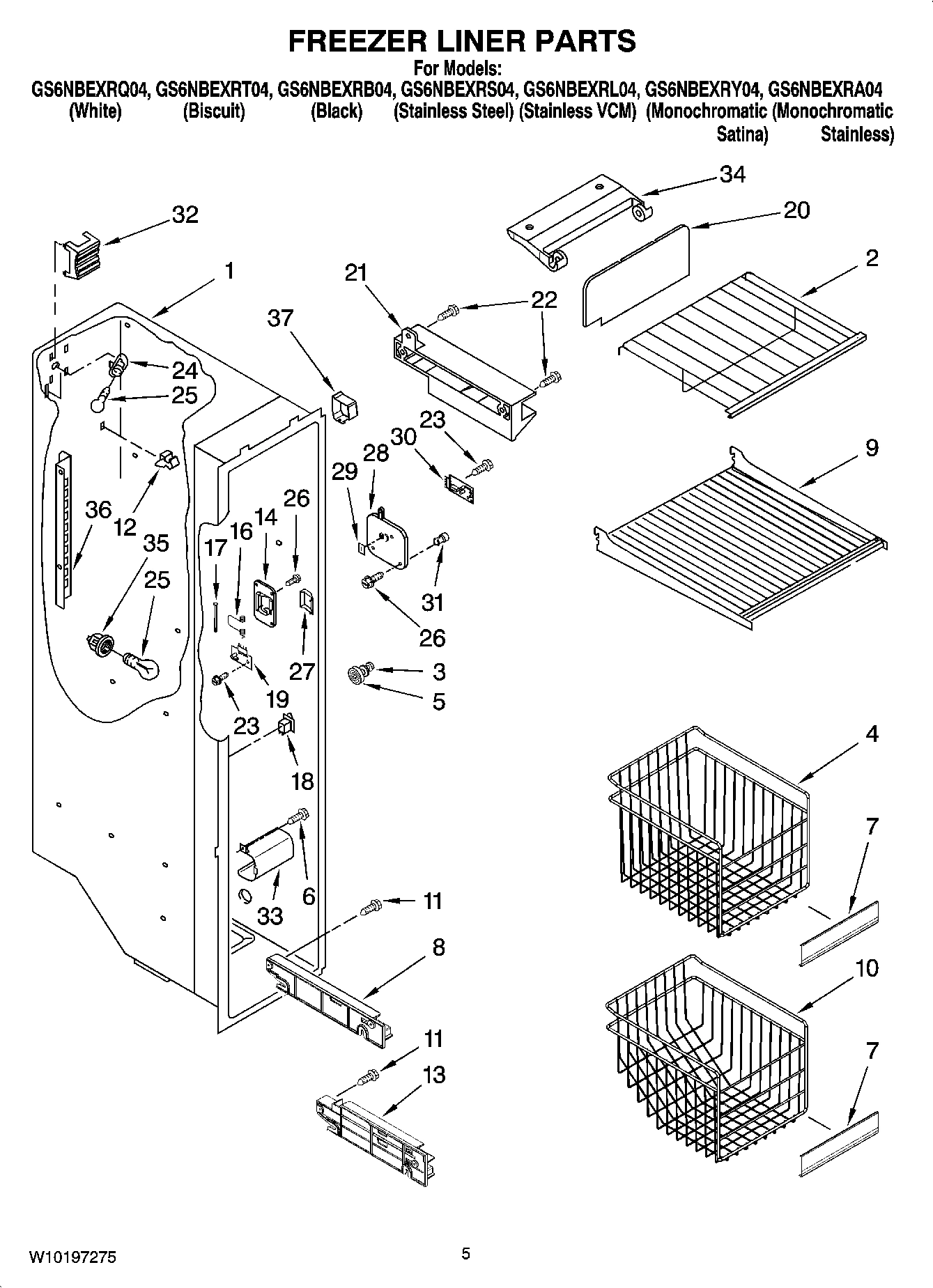

04 - FREEZER LINER PARTS

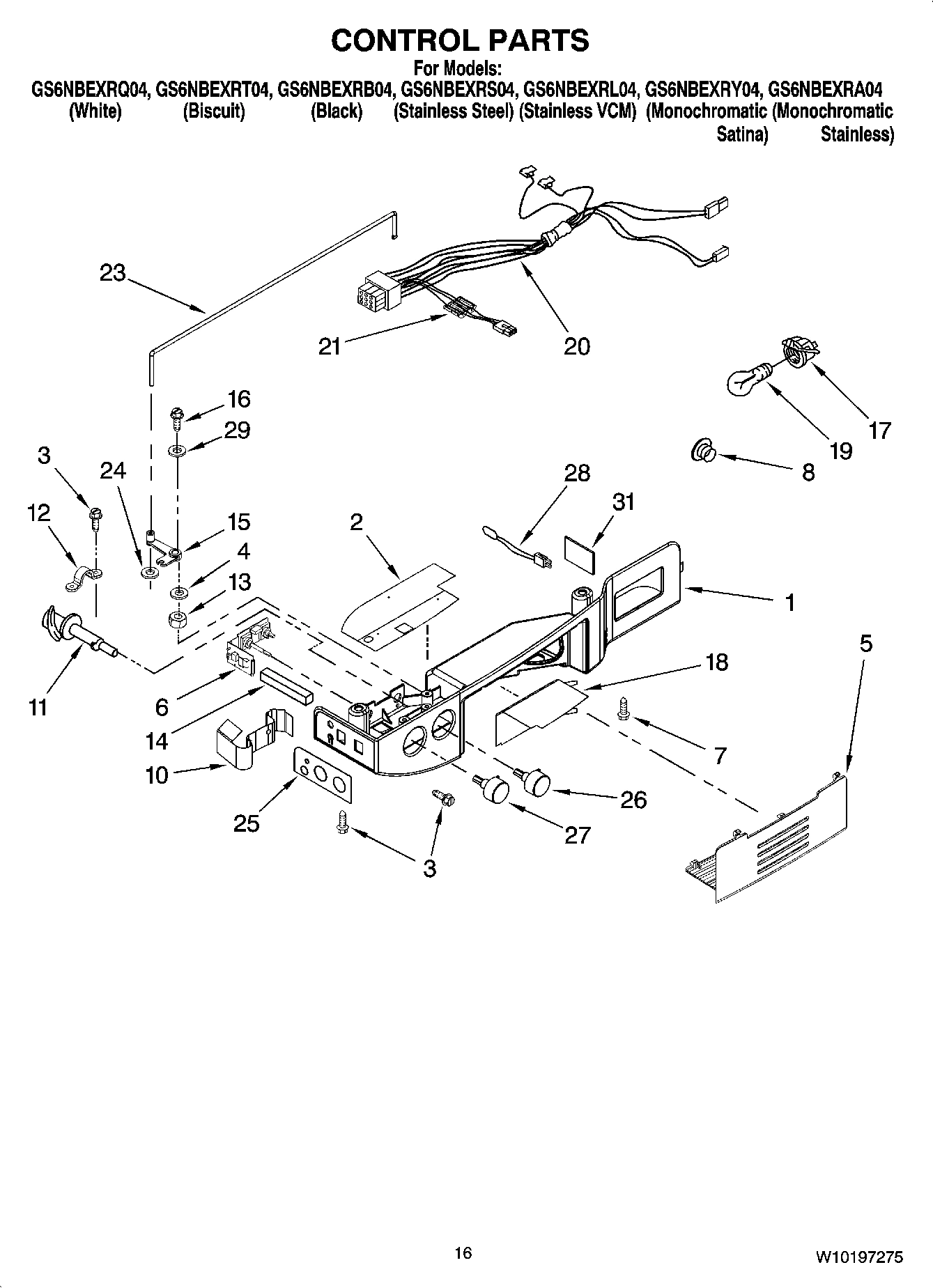

10 - CONTROL PARTS

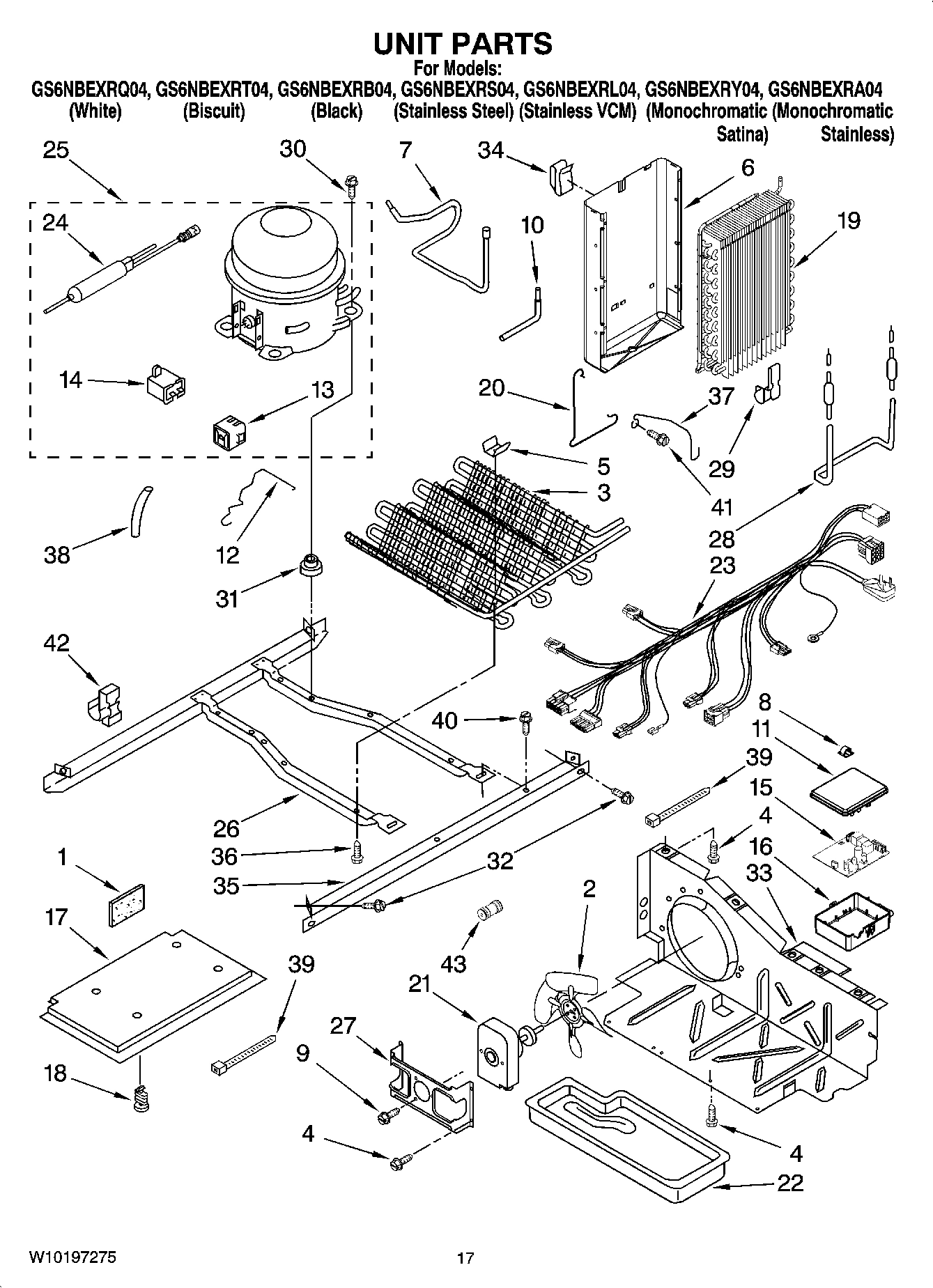

11 - UNIT PARTS

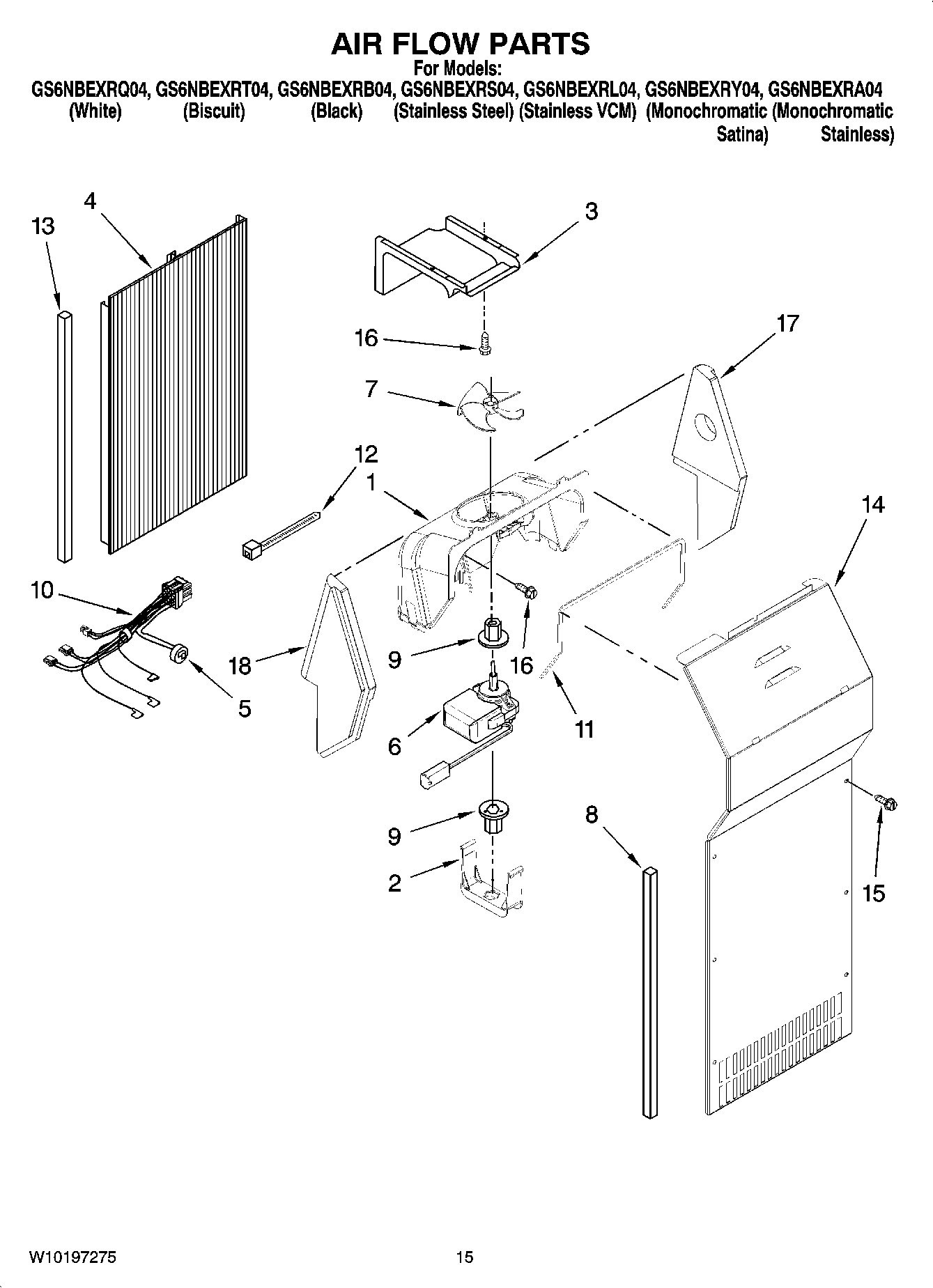

09 - AIR FLOW PARTS

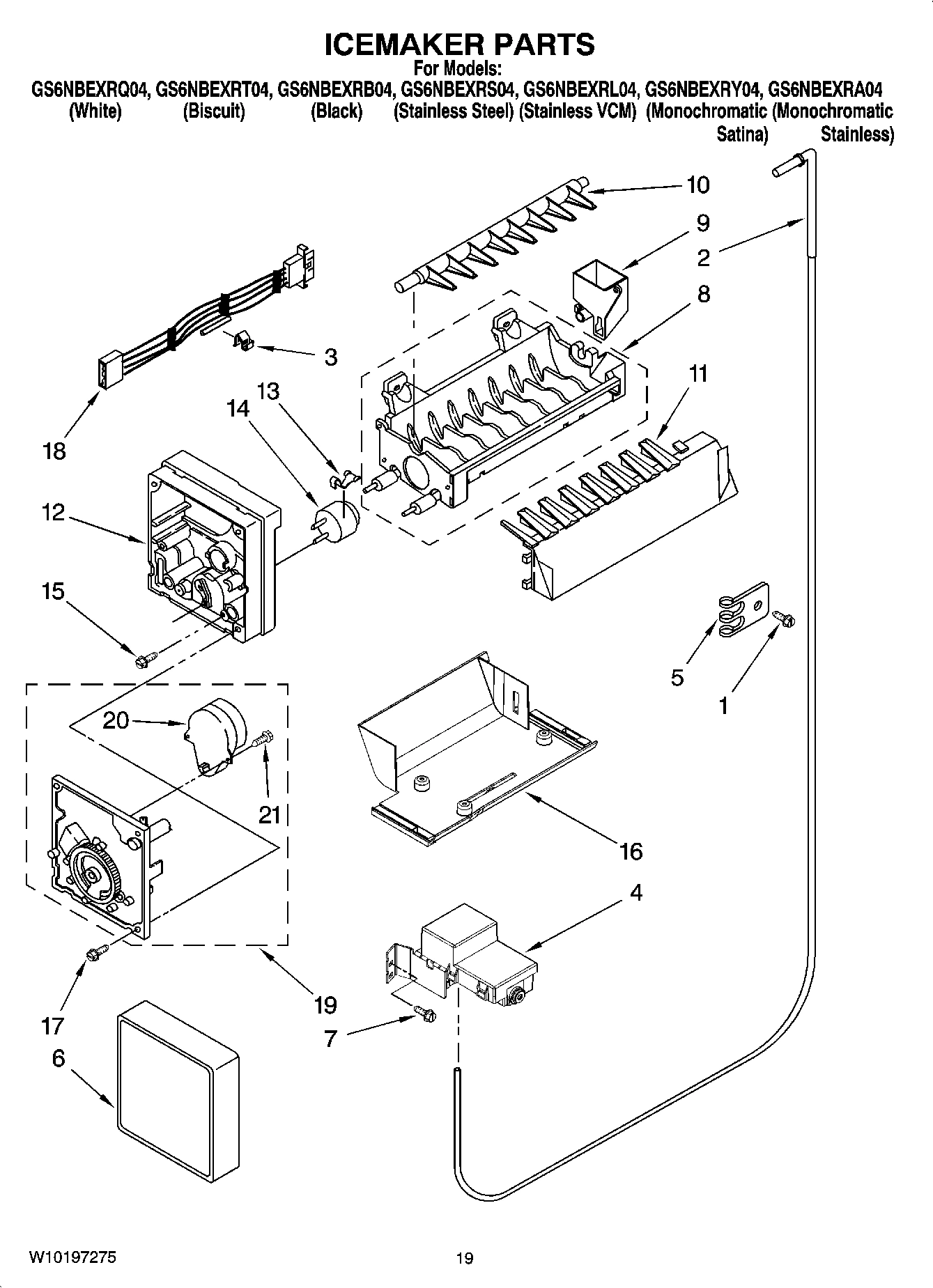

12 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

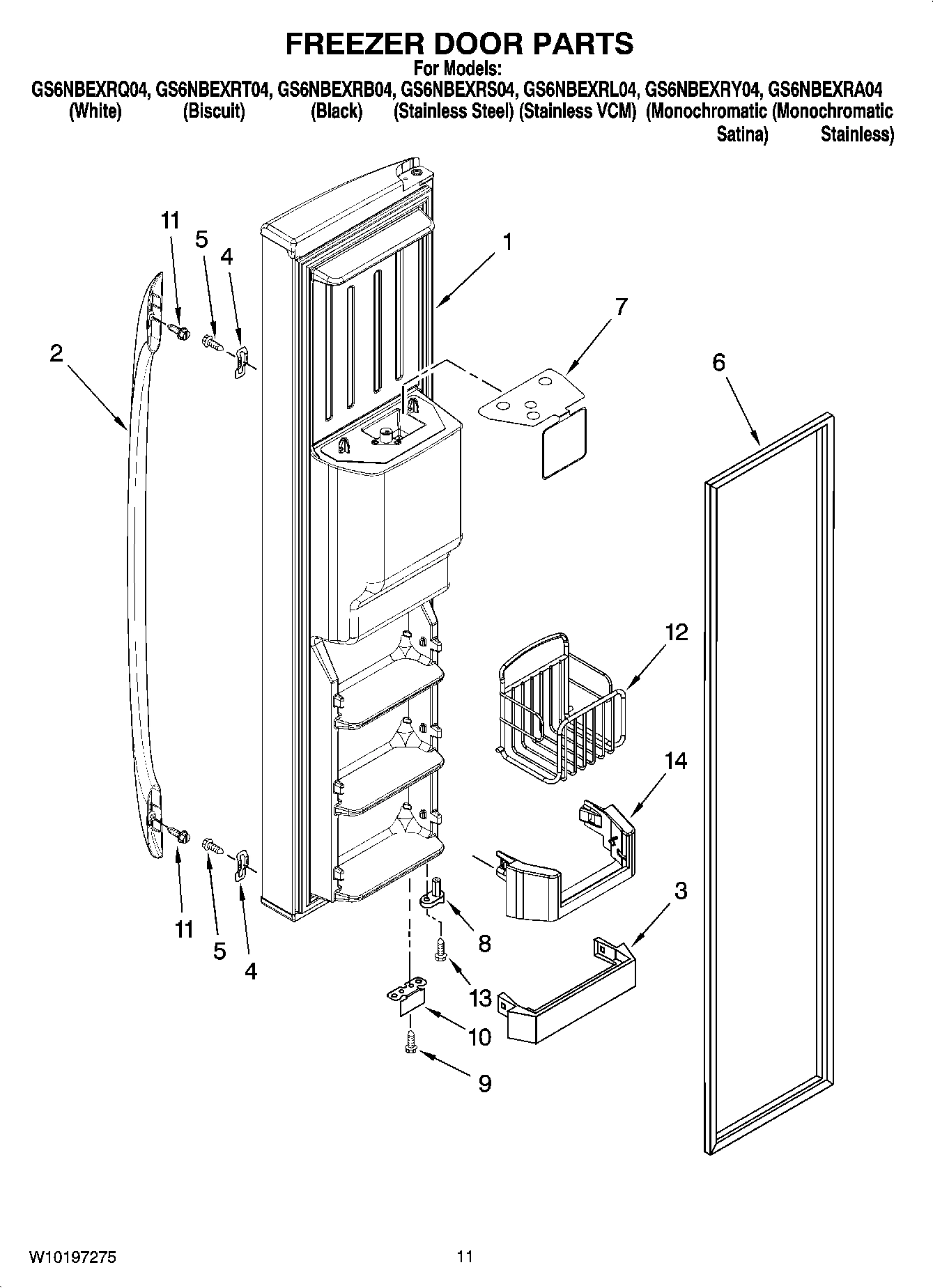

07 - FREEZER DOOR PARTS
Common parts from model Whirlpool GS6NBEXRY04 REFRIGERATOR
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
PAINT, WPL 8171357 Contact Us For Availability
WPL 833938 WPL 833938 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH WPL 350942 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
Following Parts Not Illustrated and Optional WPL ARI71331A3 Contact Us For Availability
REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI71332A1 Contact Us For Availability
CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
WPL 8171358 WPL 8171358 Contact Us For Availability
WPL ARI71333A6 WPL ARI71333A6 Contact Us For Availability
WPL ARI71334A2 WPL ARI71334A2 Contact Us For Availability
WPL ARI71335A4 WPL ARI71335A4 Contact Us For Availability
WPL ARI71336A6 WPL ARI71336A6 Contact Us For Availability
Tube, Water Dispenser WPL 2305228 Contact Us For Availability
Wire Assembly, Freezer Door WPL 2310084 Contact Us For Availability
Following Parts Not Illustrated WPL ARI71329A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI71327A6 Contact Us For Availability
1
Liner (Not A Seviceable Part) WPL ARI71328A4 Contact Us For Availability
1
Control Box WPL 2255222 Contact Us For Availability
1
Freezer Door (Includes 6 And Dispenser Front WPL W10149600 Contact Us For Availability
1
Freezer Door (Includes 6 And Dispenser Front WPL W10149601 Contact Us For Availability
1
Freezer Door (Includes 6 And Dispenser Front WPL W10149602 Contact Us For Availability
1
Freezer Door (Includes 6 And Dispenser Front WPL W10149603 Contact Us For Availability
1
Freezer Door (Includes 6 And Dispenser Front WPL W10149605 Contact Us For Availability
1
Freezer Door (Includes 6 And Dispenser Front WPL W10149638 Contact Us For Availability
1
Freezer Door (Includes 6 And Dispenser Front WPL W10149639 Contact Us For Availability
2
Dairy Door WPL 2255421 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fitting, Water Tube WPL 2303216 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL W10175967 Contact Us For Availability
2
Shelf, Slide Out WPL 2211746K Contact Us For Availability
2
Shield WPL 2261773 Contact Us For Availability
2
Handle (White) WPL W10135837 Contact Us For Availability
2
Handle (Universal Silver) WPL W10135838 Contact Us For Availability
2
Handle (Black) WPL W10135840 Contact Us For Availability
2
Handle (Biscuit) WPL W10135841 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Duct, Upper WPL 2313359 Contact Us For Availability
4
Glass, Meat Cover WPL 2223714 Contact Us For Availability
4
Washer, Auger WPL 2258220 Contact Us For Availability
4
Louver WPL 2257741 Contact Us For Availability
4
Basket, Tall WPL 2301190 Contact Us For Availability
4
Washer WPL 3400972 Contact Us For Availability
4
Air Duct Freezer WPL 2198580 Contact Us For Availability
5
Glass, Cover WPL 2223591 Contact Us For Availability
5
Lens, Light WPL 2255225 Contact Us For Availability
6
Electronic Control WPL 2304103 Contact Us For Availability
6
Heat Shield And Drain Pan WPL 2217194 Contact Us For Availability
7
TUBE, SUCTION WPL 2205765 Contact Us For Availability
7
Trim, Basket WPL 2195905K Contact Us For Availability
7
Safety Barrier WPL 2304895 Contact Us For Availability
8
Shelf Track (Right Side) WPL 2301289 Contact Us For Availability
8
Shelf Track (Left Side) WPL 2301290 Contact Us For Availability
8
Hole Plug WPL 940014 Contact Us For Availability
9
Blade, Fixed WPL 2257020 Contact Us For Availability
9
Shelf Ladder WPL 2319866 Contact Us For Availability
9
Shelf (2) WPL 2205837K Contact Us For Availability
10
Basket, Sloped WPL 2301191 Contact Us For Availability
10
Shield, Electrical (Internal) WPL 2305538 Contact Us For Availability
10
Process Tube WPL 2325479 Contact Us For Availability
10
Bracket, Door Stop (Chrome) WPL 2303113 Contact Us For Availability
10
Bracket, Door Stop (Black) WPL 2303113B Contact Us For Availability
11
SCREW WPL 8533920 Contact Us For Availability
11
Block, Blade WPL 2317239 Contact Us For Availability
11
Separator Assembly (White) WPL 2305458W Contact Us For Availability
11
Door Control Asm WPL 2261601 Contact Us For Availability
11
Cam Assembly WPL 2255226 Contact Us For Availability
11
Cover WPL W10133000 Contact Us For Availability
12
Roll Pin WPL 489229 Contact Us For Availability
12
Bearing Body WPL 2255413 Contact Us For Availability
12
Clip, Retaining WPL 2223314 Contact Us For Availability
12
Basket, Tilt-Out (2) WPL 2304309 Contact Us For Availability
13
Bottom Hinge (RC) WPL W10138965 Contact Us For Availability
13
Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability
13
Shelf Track, Dual (Right Side) WPL 2301293 Contact Us For Availability
13
Shelf Track, Dual (Left Side) WPL 2301294 Contact Us For Availability
13
Nut, Hex WPL 3400971 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2304846 Contact Us For Availability
14
Clip, Wiring WPL 2305447 Contact Us For Availability
14
Foam, Shield WPL 2188928 Contact Us For Availability
14
Cover, Evaporator (Includes 8) WPL 2206314 Contact Us For Availability
14
Trivet, Tilt-Out (2) WPL 2223334 Contact Us For Availability
15
Screw WPL 8533917 Contact Us For Availability
15
Pivot Arm WPL 2255227 Contact Us For Availability
15
Electronic Control WPL 2304078 Contact Us For Availability
16
Control Box WPL 2255623 Contact Us For Availability
16
BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability
16
Electronic Control (User Interface) WPL 2304171 Contact Us For Availability
16
Light Lens WPL 2209769 Contact Us For Availability
16
Screw WPL 627068 Contact Us For Availability
17
Nameplate WPL 2220214 Contact Us For Availability
17
Pad, Ice & Water (For White Model) WPL 2305247CG Contact Us For Availability
17
Pad, Ice & Water (For Black, Stainless, and S WPL 2305247GM Contact Us For Availability
17
Pad, Ice & Water (For Monochromatic Stainless WPL 2305247MG Contact Us For Availability
17
Pad, Ice & Water (For Biscuit Model) WPL 2305247WL Contact Us For Availability
17
Screw WPL 488280 Contact Us For Availability
17
Unit Cover, Bottom WPL 2304899 Contact Us For Availability
18
Bracket, Dual Crisper WPL 2256035 Contact Us For Availability
18
Shield, Heat WPL 2255666 Contact Us For Availability
19
Extension Tube WPL 2304937 Contact Us For Availability
19
Overlay, Front Cover (Not Available Order 23) WPL 2303853W Contact Us For Availability
20
Clip WPL 2161324 Contact Us For Availability
20
LED Assembly WPL 2303841 Contact Us For Availability
20
Control Box Harness (Includes 21) WPL 2187965 Contact Us For Availability
21
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
21
SCREW WPL 489136 Contact Us For Availability
21
Ferrite Bead WPL 2308165 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order 23 WPL 2305252W Contact Us For Availability
22
Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability
22
Tray, Housing (Black) WPL 2305253B Contact Us For Availability
22
Tray, Housing (Biscuit) WPL 2305253T Contact Us For Availability
22
Tray, Housing (Universal Silver) WPL 2305253US Contact Us For Availability
22
Tray, Housing (White) WPL 2305253W Contact Us For Availability
23
Holder WPL 2212369 Contact Us For Availability
23
Front Cover Assembly (Includes Items 16, 17, WPL 2321769B Contact Us For Availability
23
Front Cover Assembly (Includes Items 16, 17, WPL 2321769T Contact Us For Availability
23
WPL 2321769US WPL 2321769US Contact Us For Availability
23
WPL 2321769W WPL 2321769W Contact Us For Availability
23
Connecting Rod WPL 2255228 Contact Us For Availability
23
Harness, Unit WPL 2187817 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
WPL W10178851 WPL W10178851 Contact Us For Availability
25
Escutcheon, Control Box WPL 2255611 Contact Us For Availability
26
Knob, RC WPL 2255232 Contact Us For Availability
26
UNIT MOUNTING FRAME WPL 2304904 Contact Us For Availability
27
Knob, FC WPL 2255992 Contact Us For Availability
28
Cover, Receiver WPL W10173569 Contact Us For Availability
29
Slide, Ice Maker Shut Off WPL 2315398 Contact Us For Availability
29
SPRING, WASHER WPL 489203 Contact Us For Availability
30
Bracket, Motor WPL 2305208 Contact Us For Availability
31
Air Seal, Thermistor WPL 2261265 Contact Us For Availability
32
Light Shield WPL 2198589 Contact Us For Availability
32
Screw WPL 489340 Contact Us For Availability
33
Wiper WPL 2317243 Contact Us For Availability
33
Light Lens WPL 2212340 Contact Us For Availability
34
DIVIDER-CHAMBER WPL 2317250 Contact Us For Availability
34
Clip, Heat WPL 2155547 Contact Us For Availability
35
Unit Mounting Rail WPL 2305374 Contact Us For Availability
36
Ladder (Left Side) WPL 2198609 Contact Us For Availability
36
Ladder (Right Side) WPL 2198610 Contact Us For Availability
37
Guard, Fan WPL 2260517 Contact Us For Availability
38
Button, Water Filter (Apoll WPL 2260503MG Contact Us For Availability
39
WPL 2223751 WPL 2223751 Contact Us For Availability
42
Clip, Wire & Tube WPL W10169512 Contact Us For Availability
× ![]()
