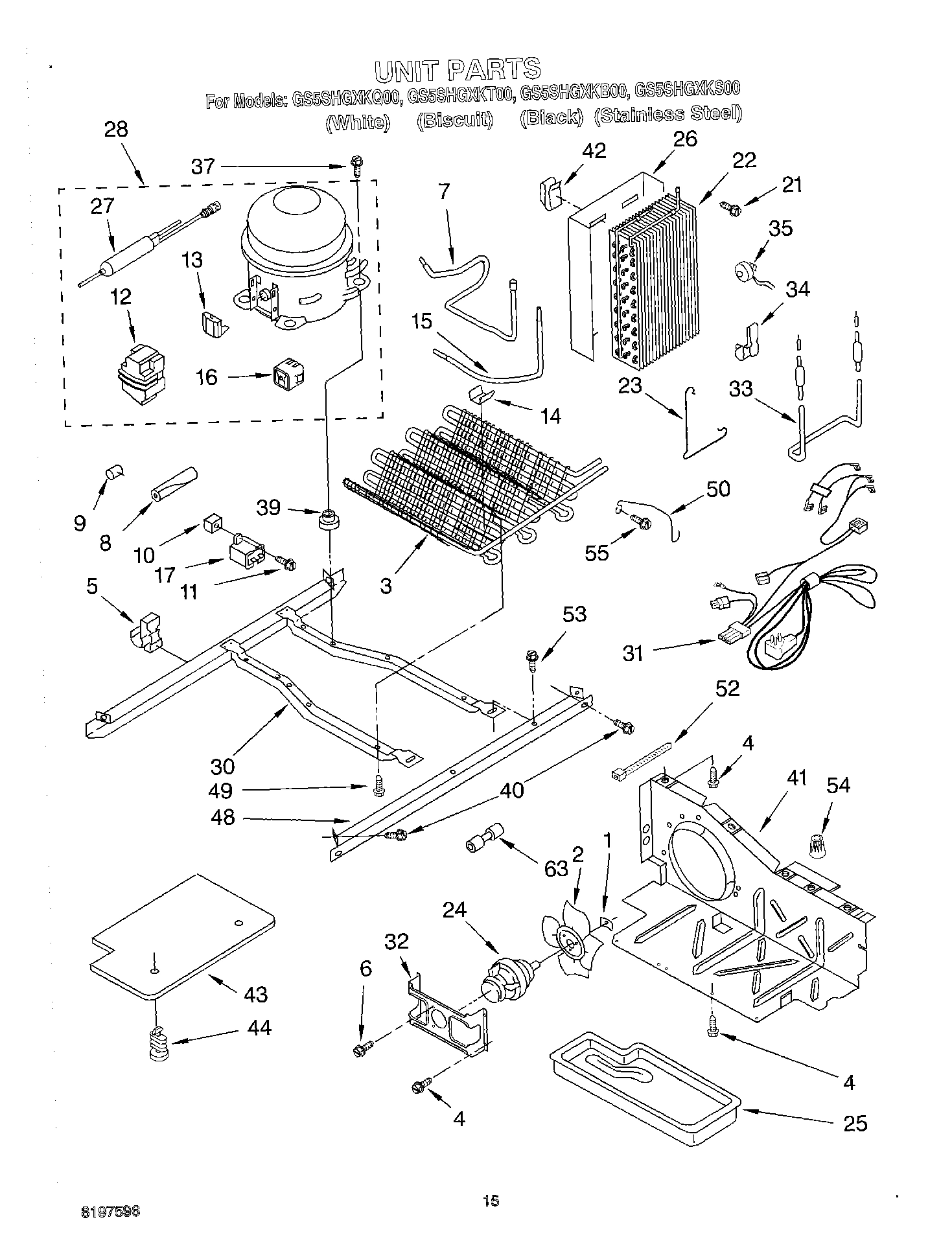

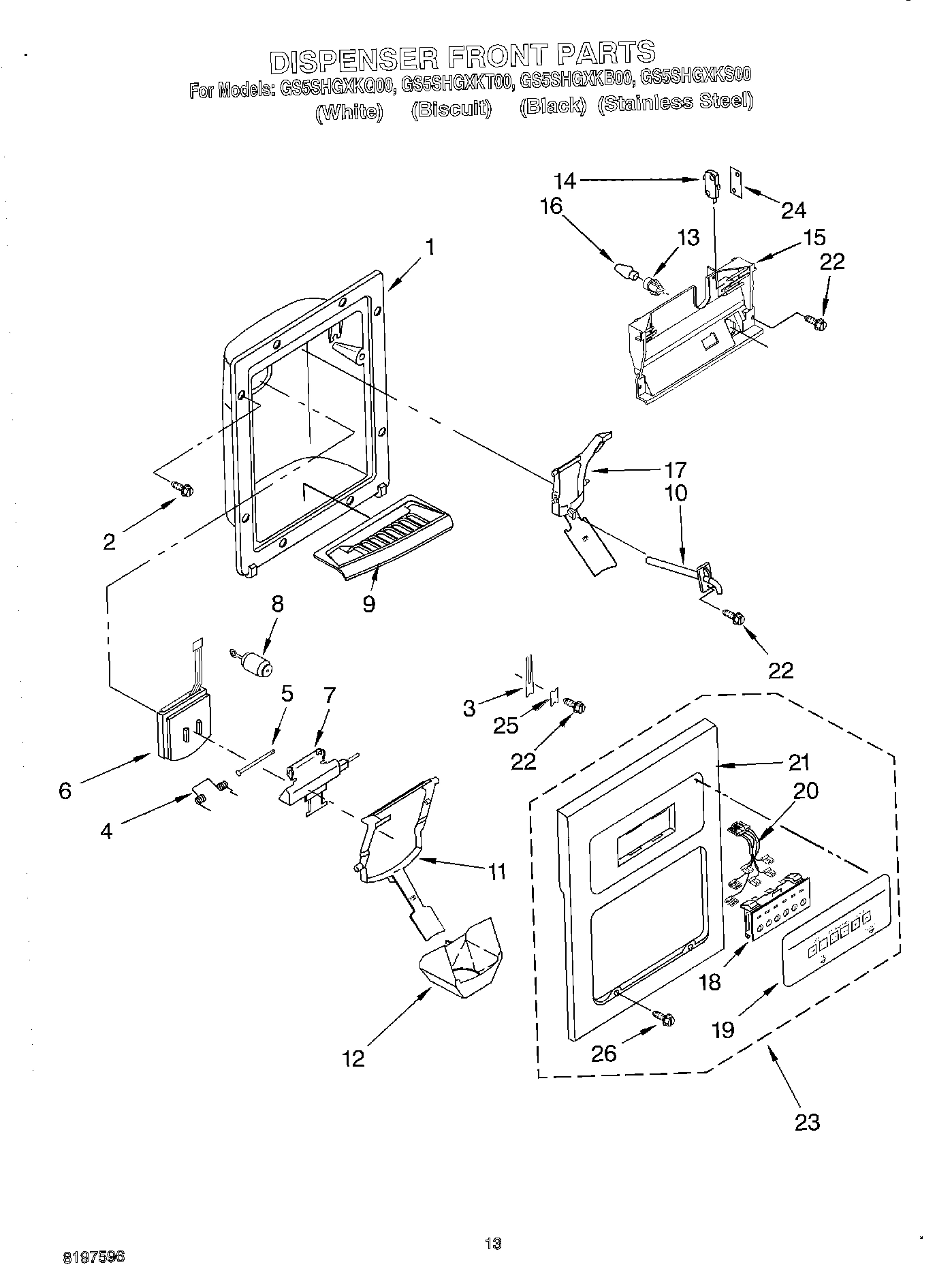

Model Whirlpool GS5SHGXKT00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI70674A9 Contact Us For Availability

1

Control Box WPL 2200137 Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2207042B Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2207042SB Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2207042T Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2207042W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2207003T Contact Us For Availability

2

Handle, Center (White) WPL 2207003W Contact Us For Availability

2

Handle, Center (Black) WPL 2207003B Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

W10822278 Whirlpool Defrost Timer In Stock WPL W10822278 $17.41

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $31.93

6

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $35.96

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

9

Ladder, Shelf WPL 2206273 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $86.75

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $57.59

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Backorder WPL 2179404 $8.47

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

2203561B Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561B $39.49

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $34.13

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

Extension, Bottom (Black) WPL 2207038B Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2207038T Contact Us For Availability

Extension, Bottom (White) WPL 2207038W Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Extension, Top (Black) WPL 2207037B Contact Us For Availability

Extension, Top (Biscuit) WPL 2207037T Contact Us For Availability

Extension, Top (White) WPL 2207037W Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

20

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

20

Control Box Harness WPL 2206514 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Biscuit) WPL 2198468T Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

Escutcheon, Control Box WPL 2212073 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

27

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Stud, Rear WPL 2196207 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

Retainer, Light Lens WPL 2200097 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2206269 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
