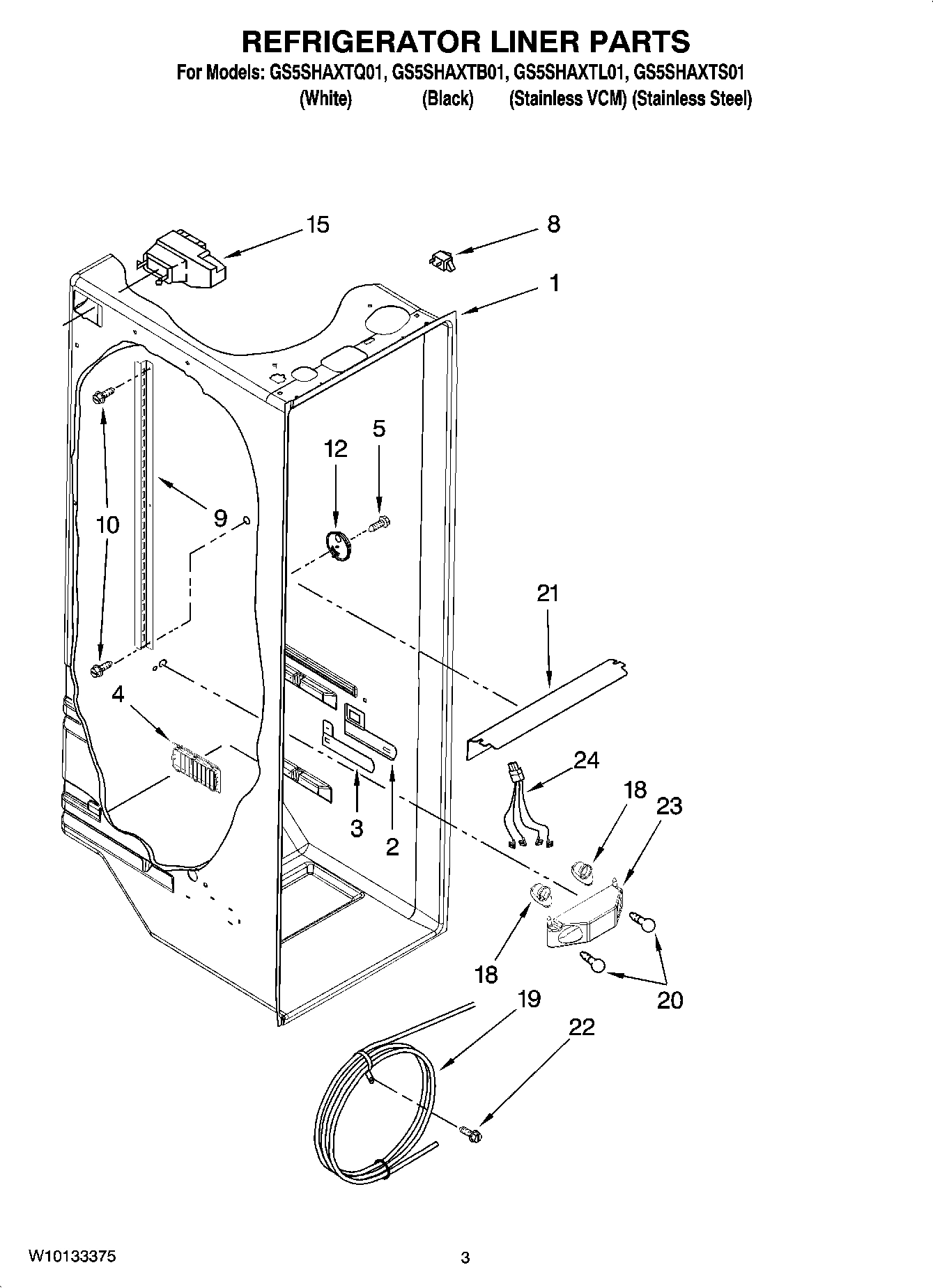

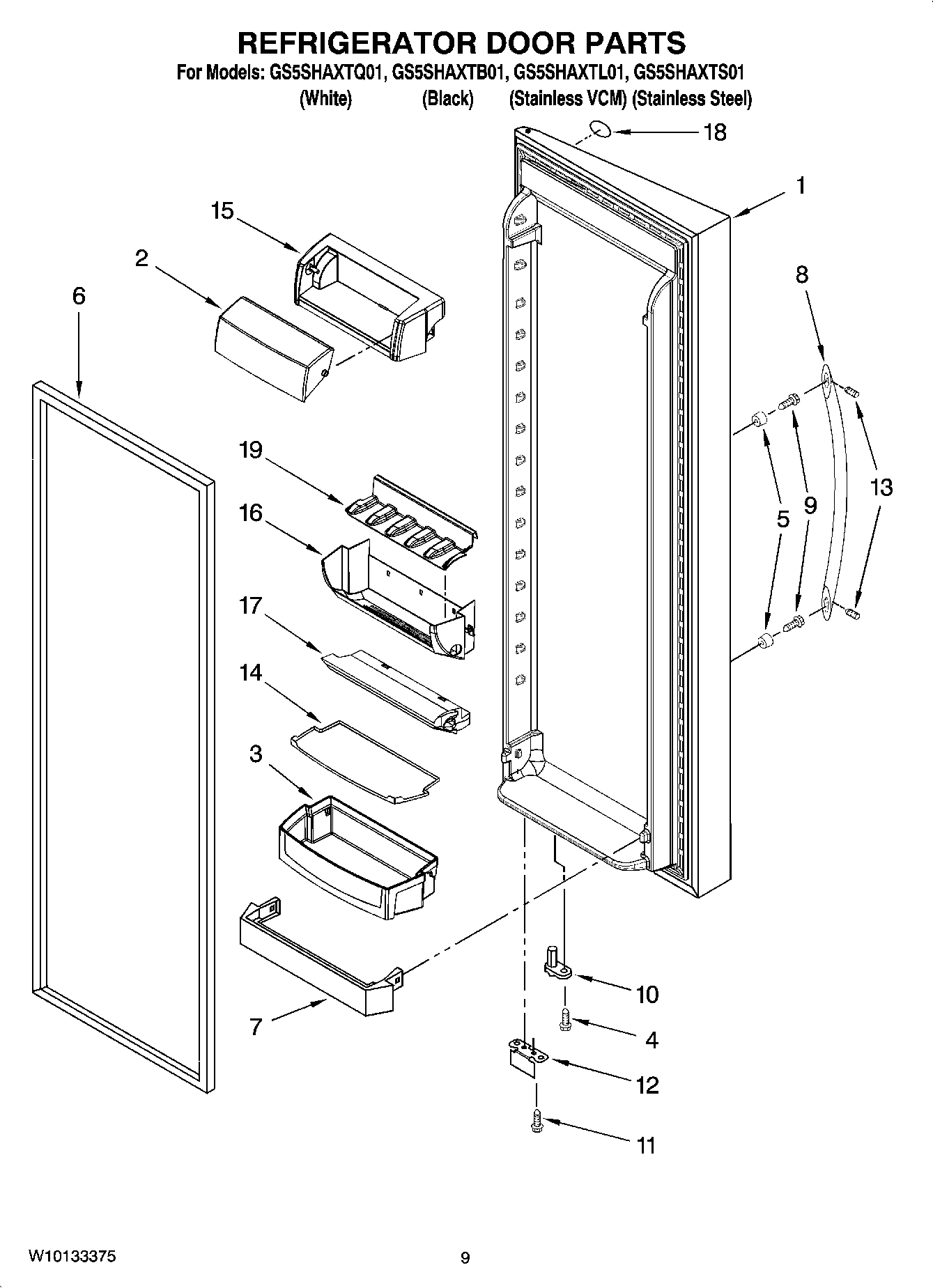

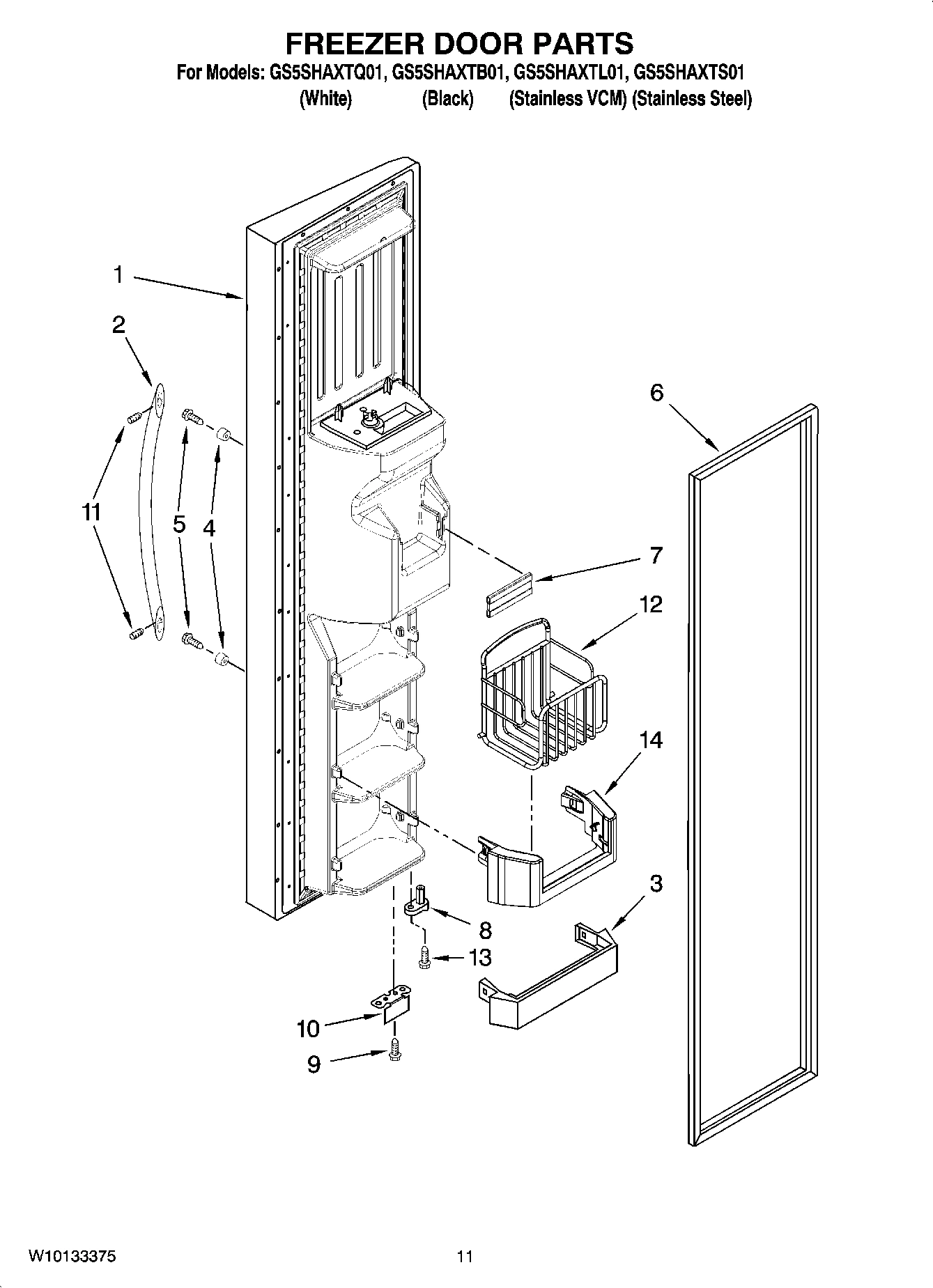

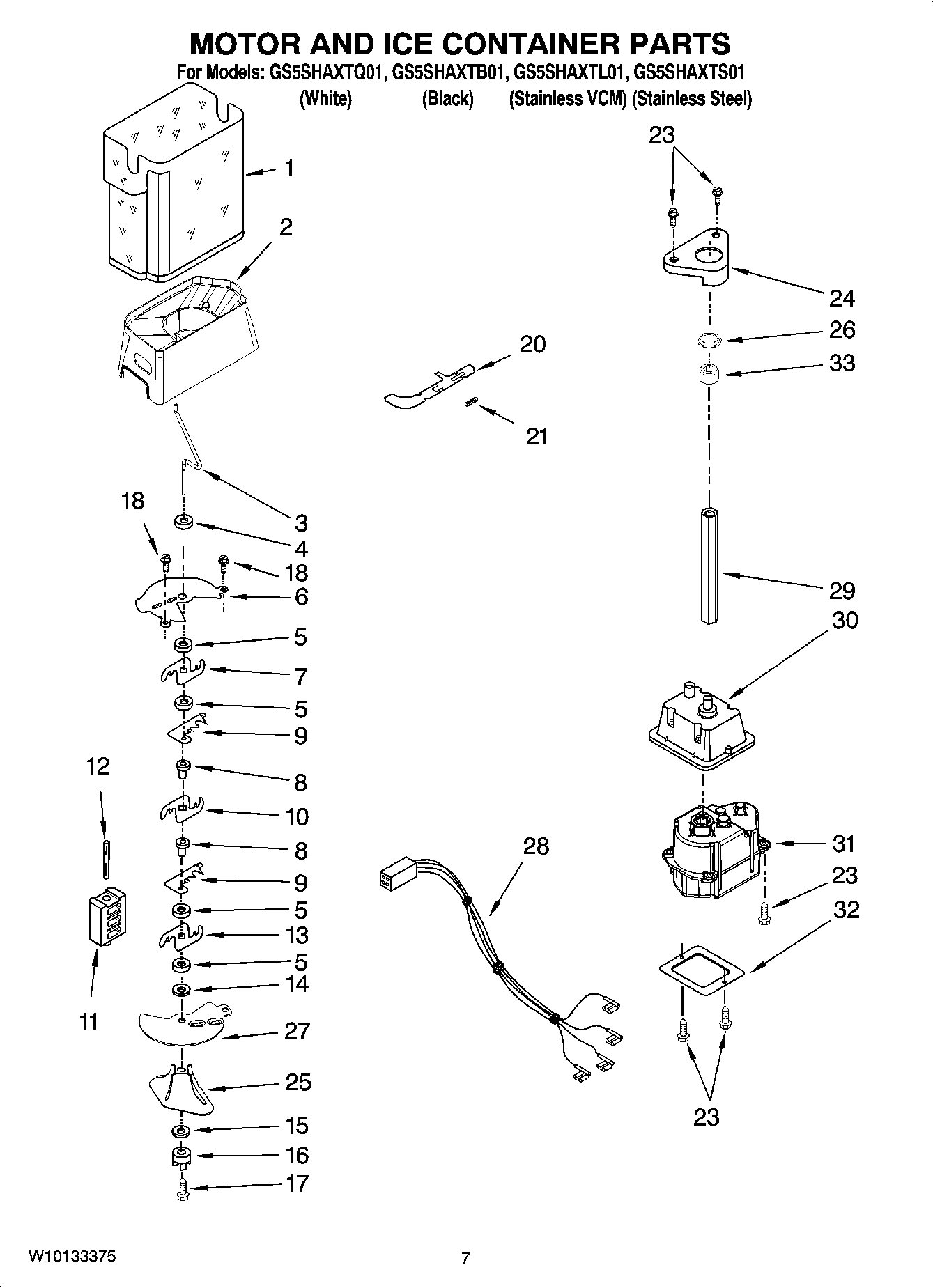

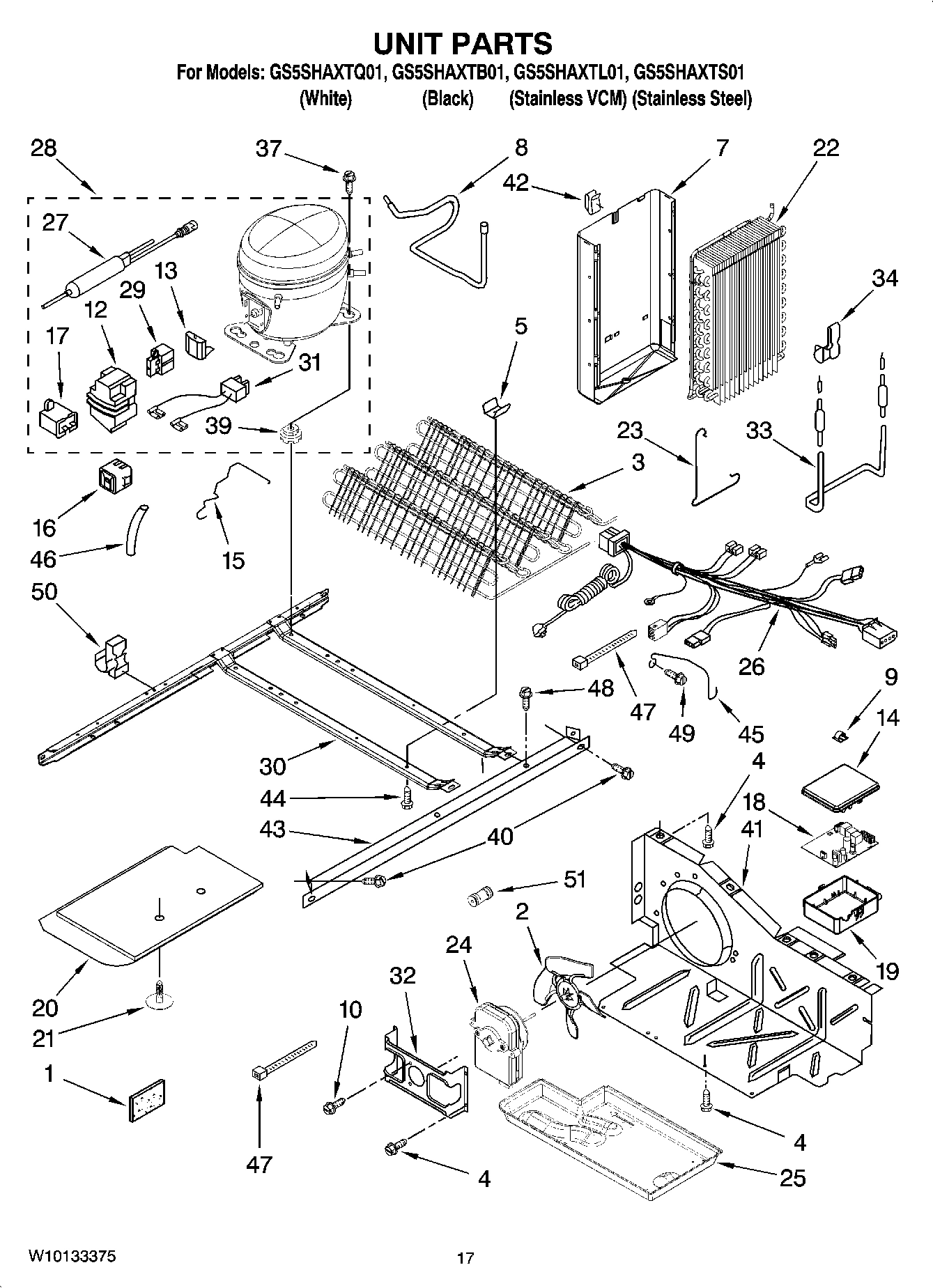

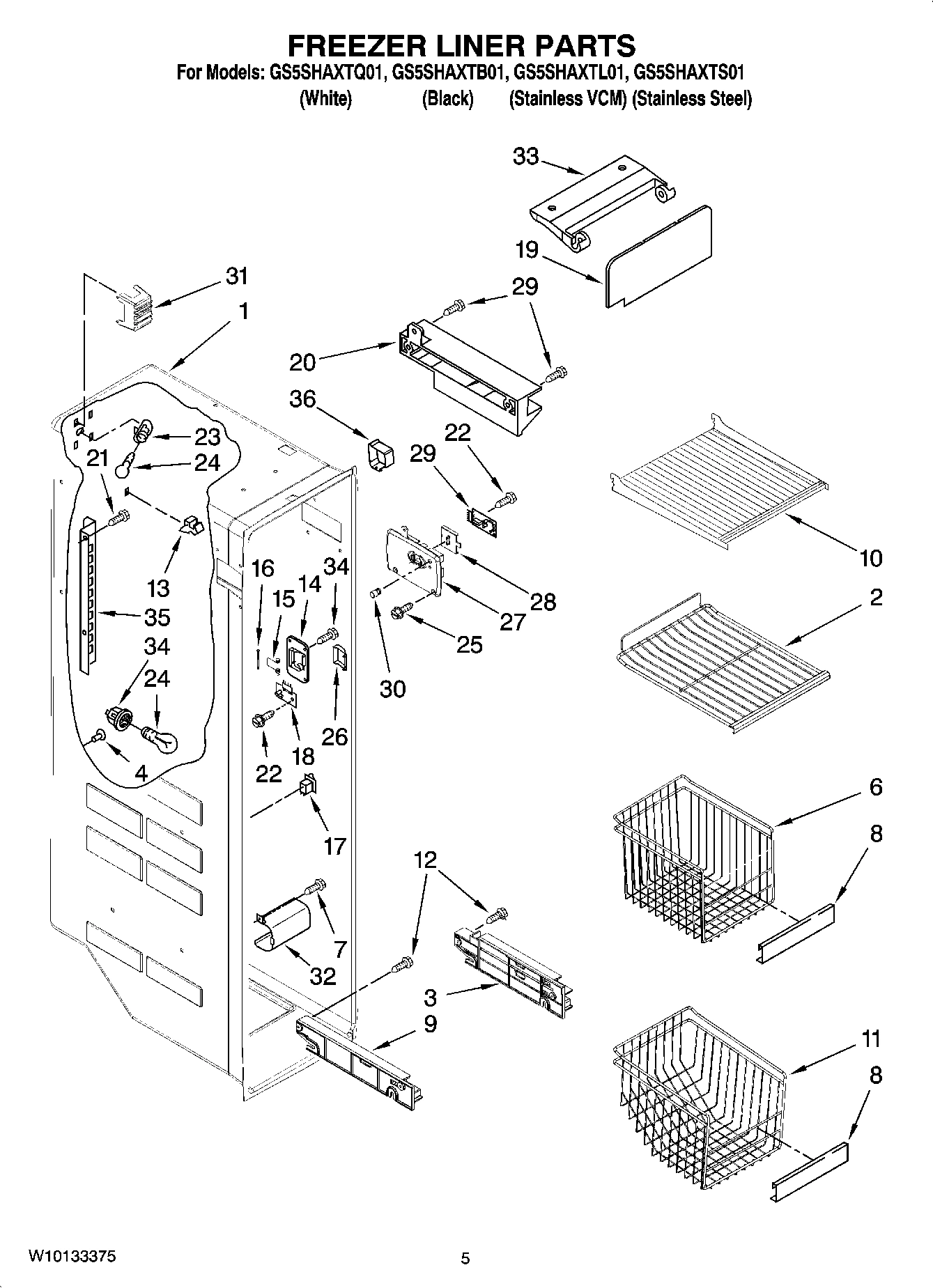

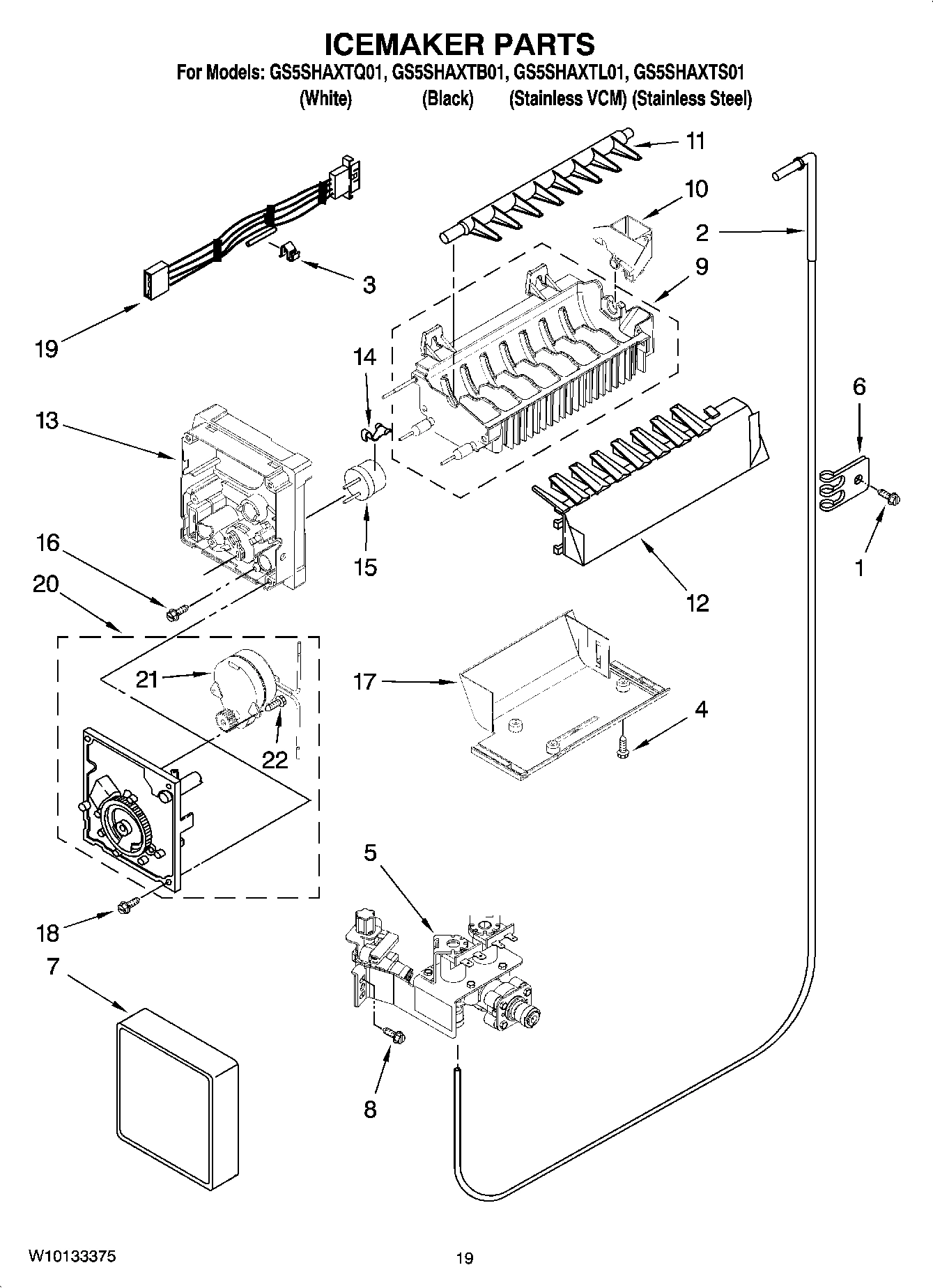

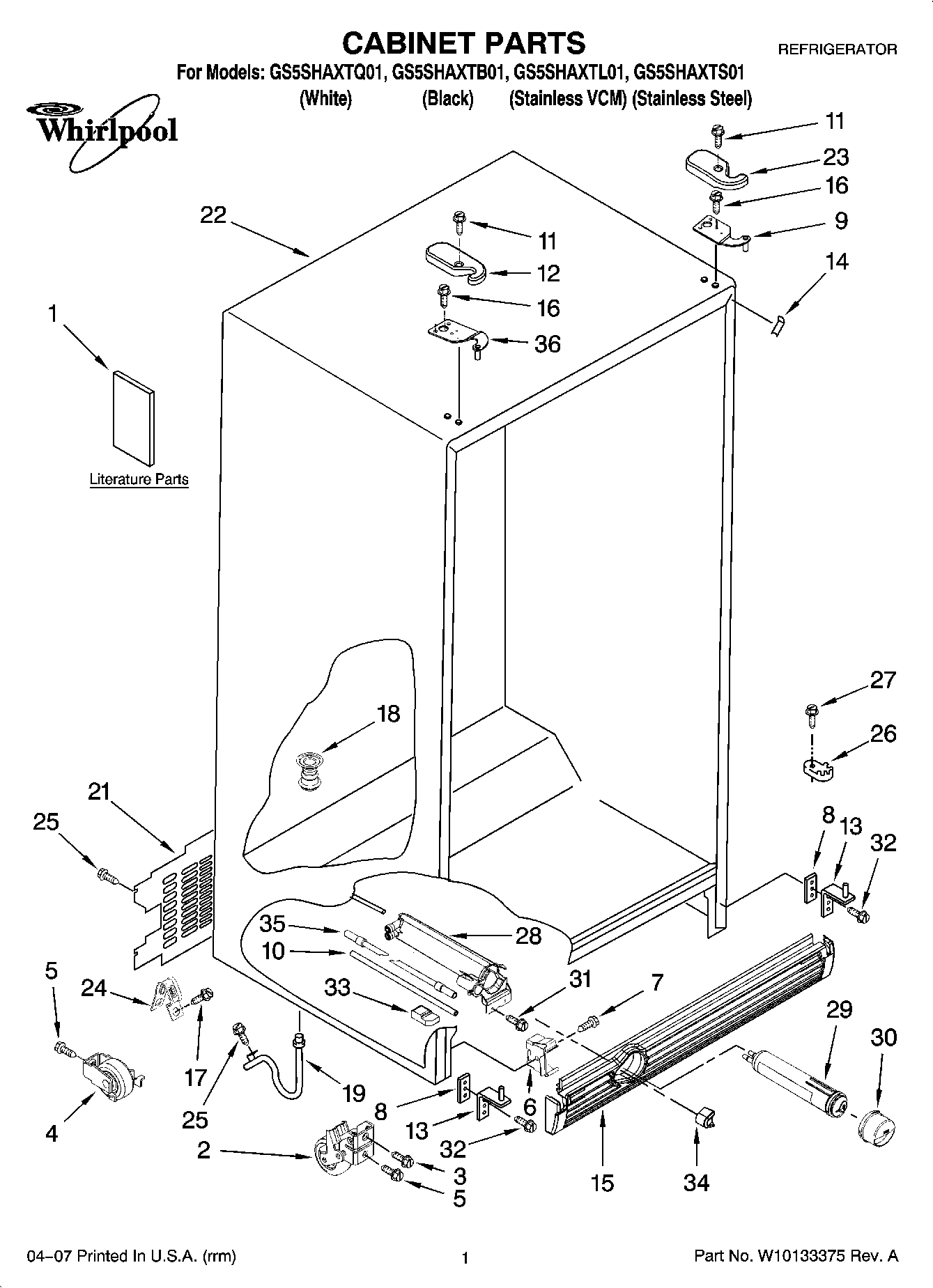

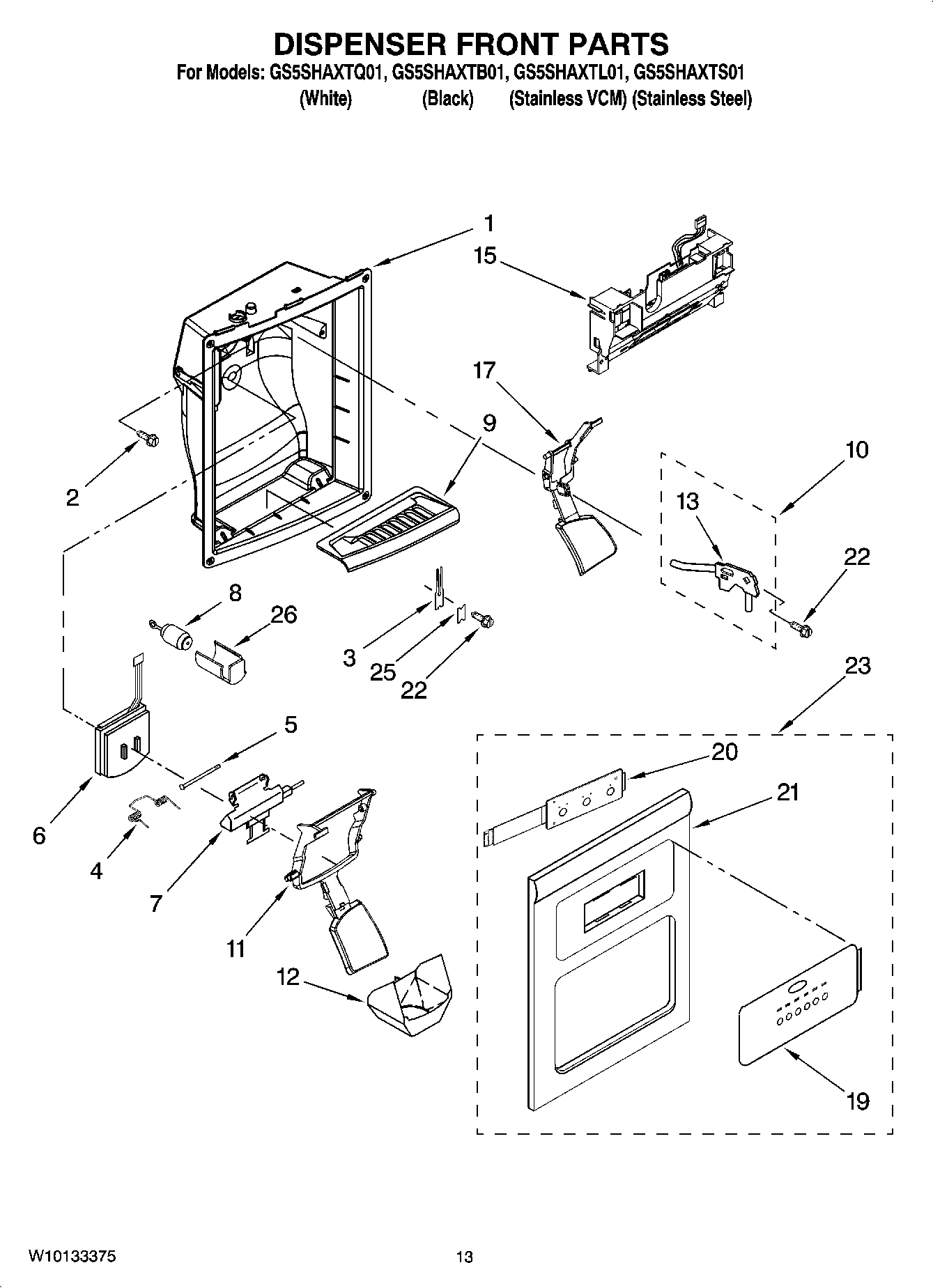

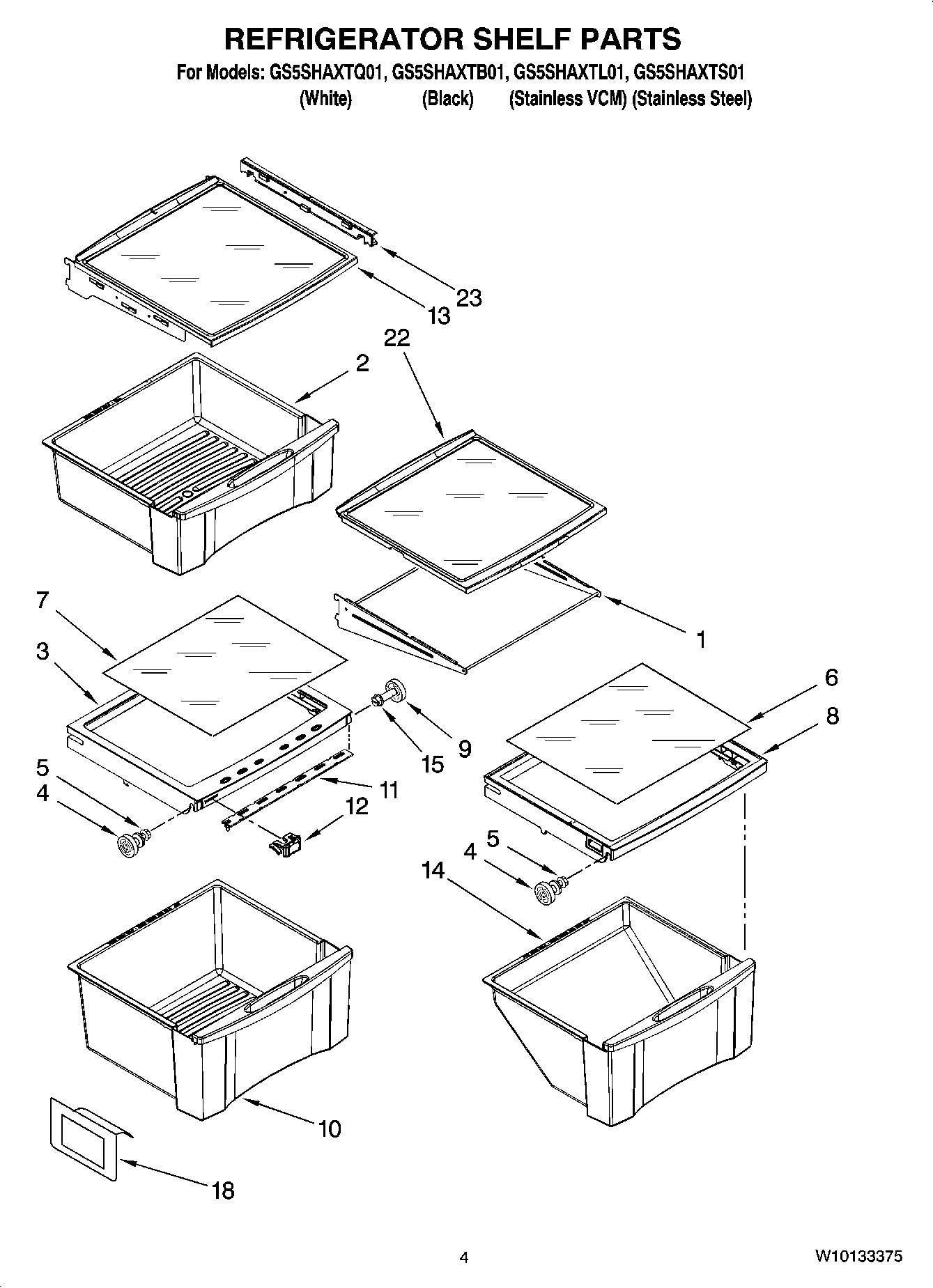

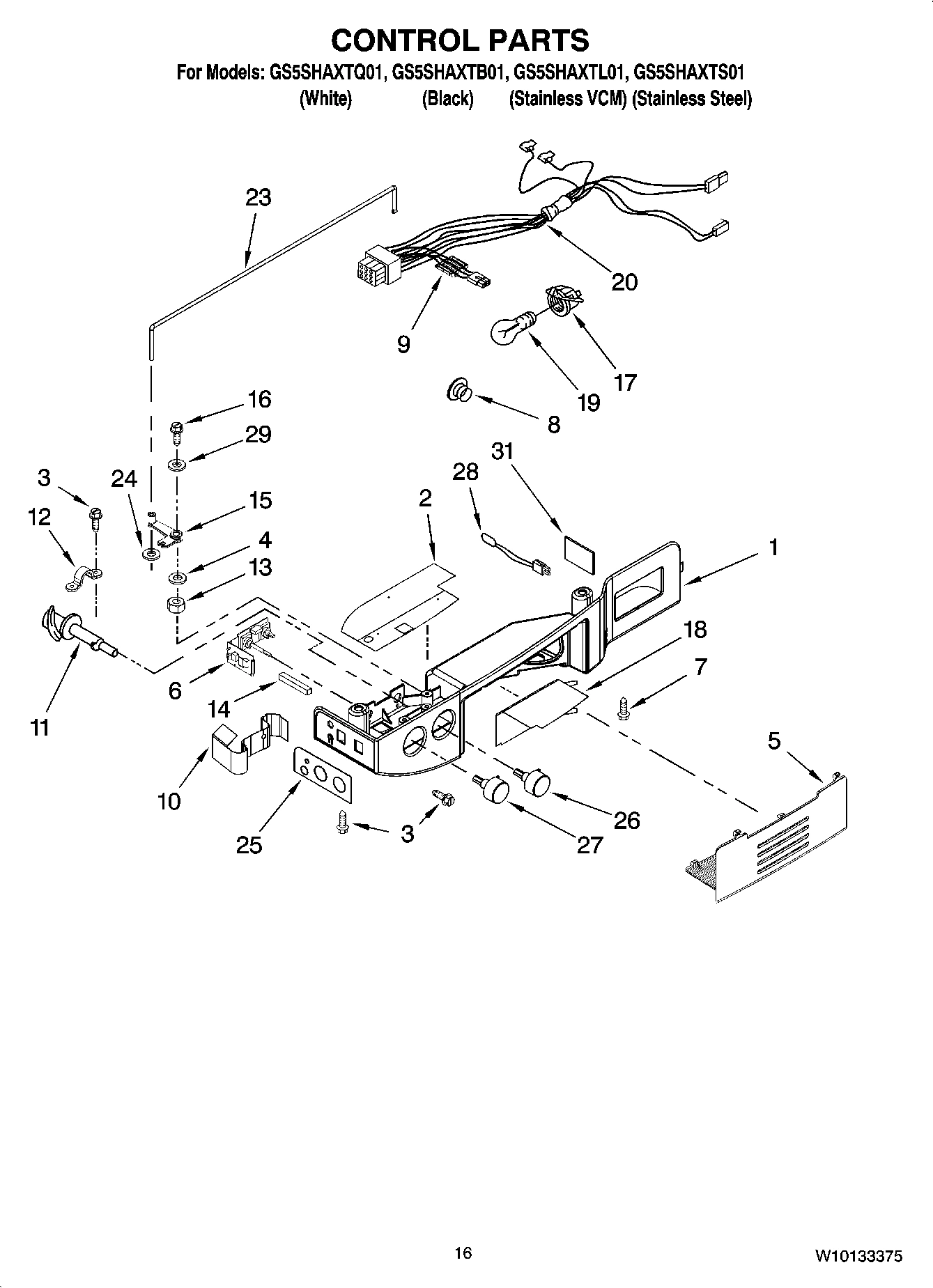

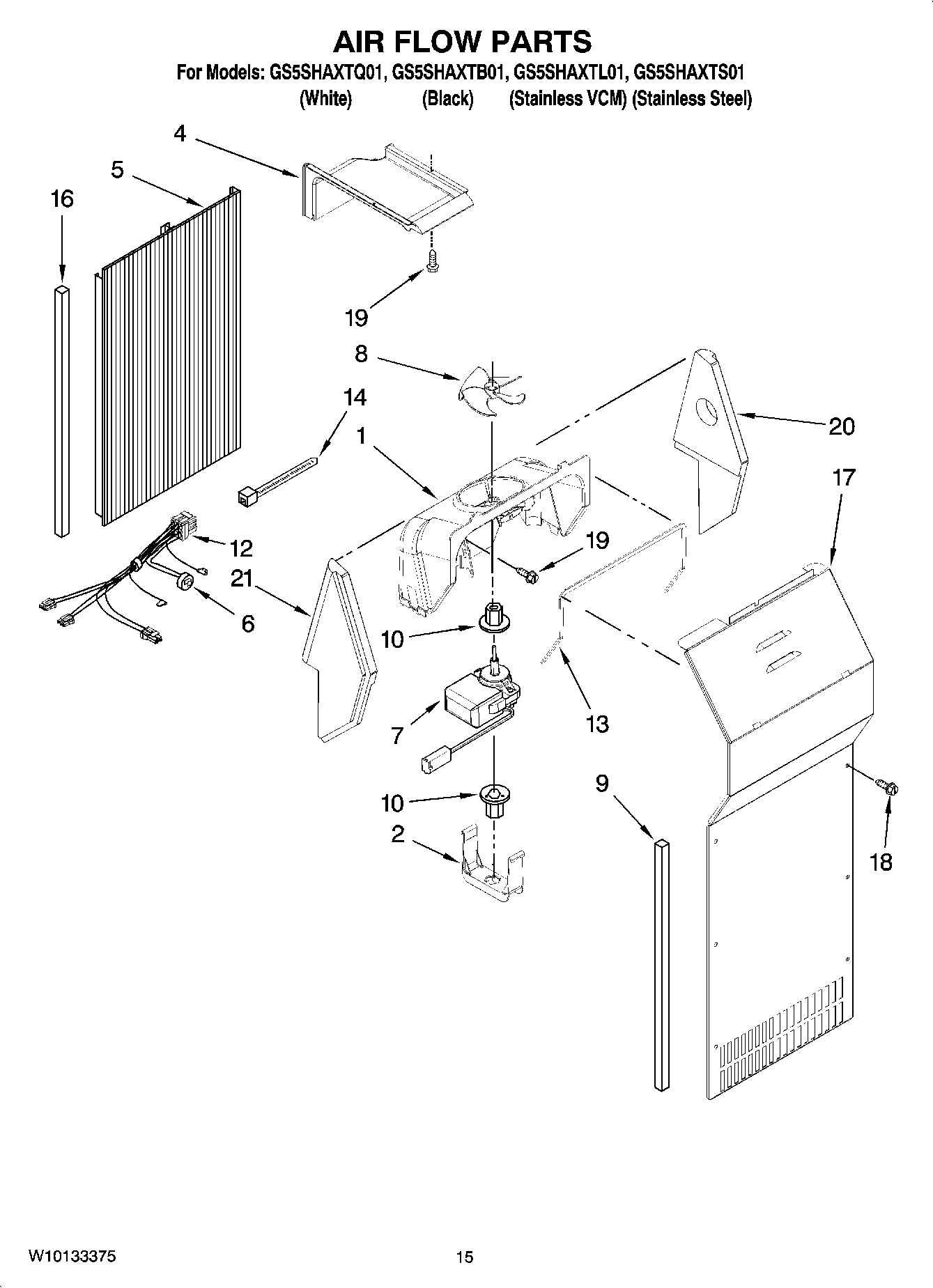

Model Whirlpool GS5SHAXTS01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin In Stock WPL WP2198573 $137.43

1

Liner (Not A Serviceable Part) WPL ARI70640A4 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI70641A2 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $62.32

2

Dairy Door WPL 2255421 Contact Us For Availability

2

Shelf, Slide Out WPL 2211746K Contact Us For Availability

3

2301293 Whirlpool Refrigerator Track Backorder WPL 2301293 $59.04

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $60.45

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Track, Basket-Dual (Left) WPL 2301294 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Electronic Control WPL 2304103 Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Basket, Tall WPL 2301191 Contact Us For Availability

7

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

7

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $131.19

7

Heat Shield And Drain Pan WPL 2217194 Contact Us For Availability

8

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $165.68

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

Trim, Basket WPL 2195905K Contact Us For Availability

9

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

9

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $37.75

9

WPW10190929 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190929 $144.80

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

Shelf Ladder WPL 2319866 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $16.56

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

Shelf (2) WPL 2205837K Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.16

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Basket, Sloped WPL 2301190 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $41.94

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Door Control Asm WPL 2261601 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Cover WPL 2255624 Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $35.08

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $62.54

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $37.73

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W10757851-includeCORE Whirlpool W10757851 Dis Backorder WPL W10757851-includeCORE $203.15

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP3400065 Whirlpool Refrigerator Screw In Stock WPL WP3400065 $2.51

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Nameplate WPL 2220214 Contact Us For Availability

Elec. Control WPL 2304078 Contact Us For Availability

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

Extension Tube WPL 2304937 Contact Us For Availability

Control Box WPL 2255623 Contact Us For Availability

20

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

20

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

20

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Light Lens WPL 2209769 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

Bracket, Dual Crisper WPL 2256035 Contact Us For Availability

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

Fastner, Push-On WPL 489285 Contact Us For Availability

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $55.97

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $15.13

Sleeve, Mechanism Display WPL 2252127 Contact Us For Availability

Harness, Unit WPL 2187947 Contact Us For Availability

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

Knob, FC WPL 2255992 Contact Us For Availability

Cover, Receiver WPL 2255558 Contact Us For Availability

28

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

28

W10139460 Whirlpool Refrigerator Compressor In Stock WPL W10139460 $276.71

28

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

29

Relay (Service Only) WPL 2183454 Contact Us For Availability

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

30

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

31

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

Light Shield WPL 2198589 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

Light Lens WPL 2212340 Contact Us For Availability

33

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

33

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $28.04

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

35

Ladder (Left Side) WPL 2320024 Contact Us For Availability

35

Ladder (Right Side) WPL 2320025 Contact Us For Availability

36

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

44

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

45

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $27.52

46

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

47

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

48

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

49

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

50

W10169512 Whirlpool Clip Backorder WPL W10169512 $27.52

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI70646A1 Contact Us For Availability

WPL ARI70647A3 WPL ARI70647A3 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $89.56

100

WP2317251 Whirlpool Refrigerator Ice Containe In Stock WPL WP2317251 $196.63
