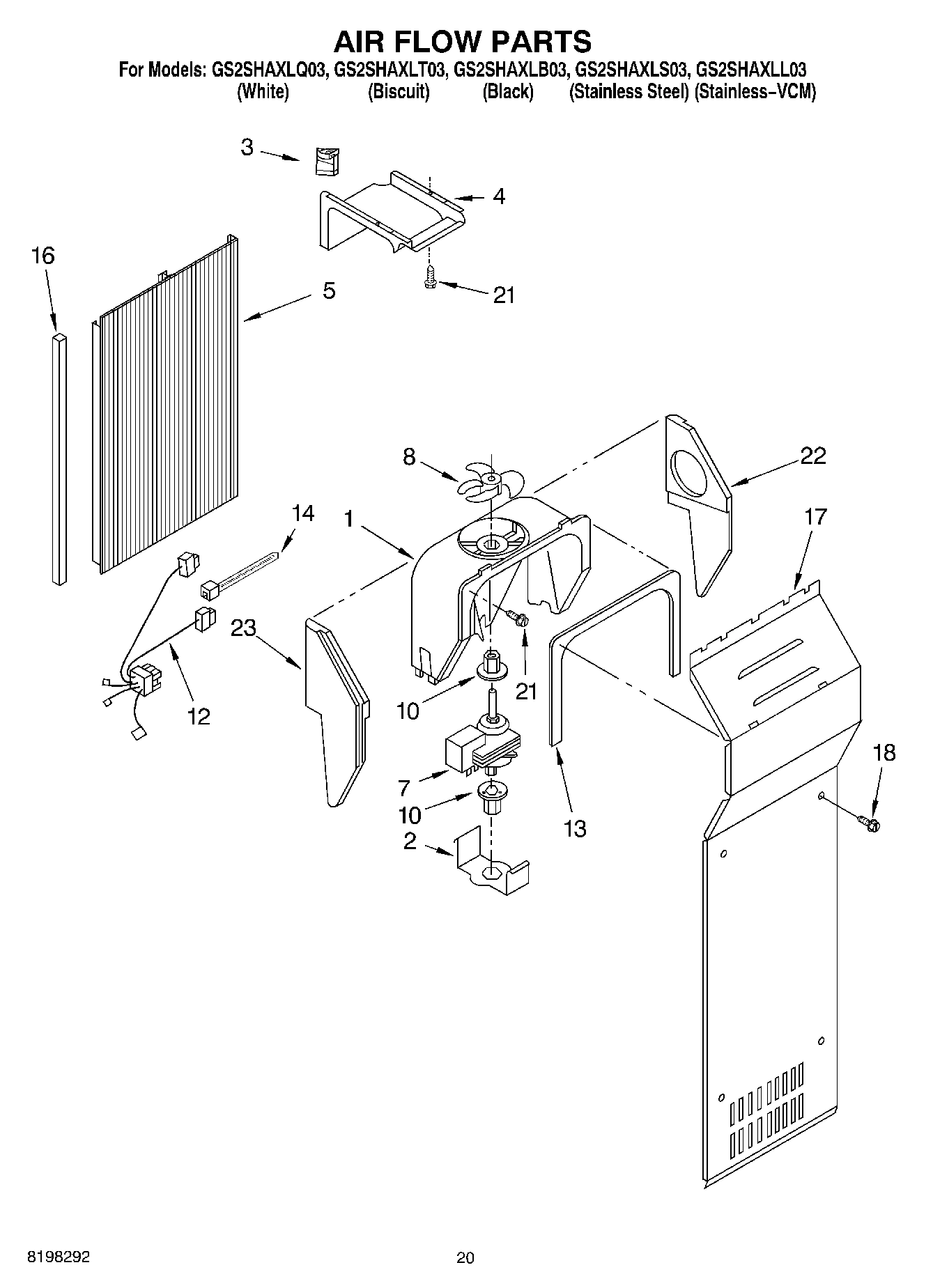

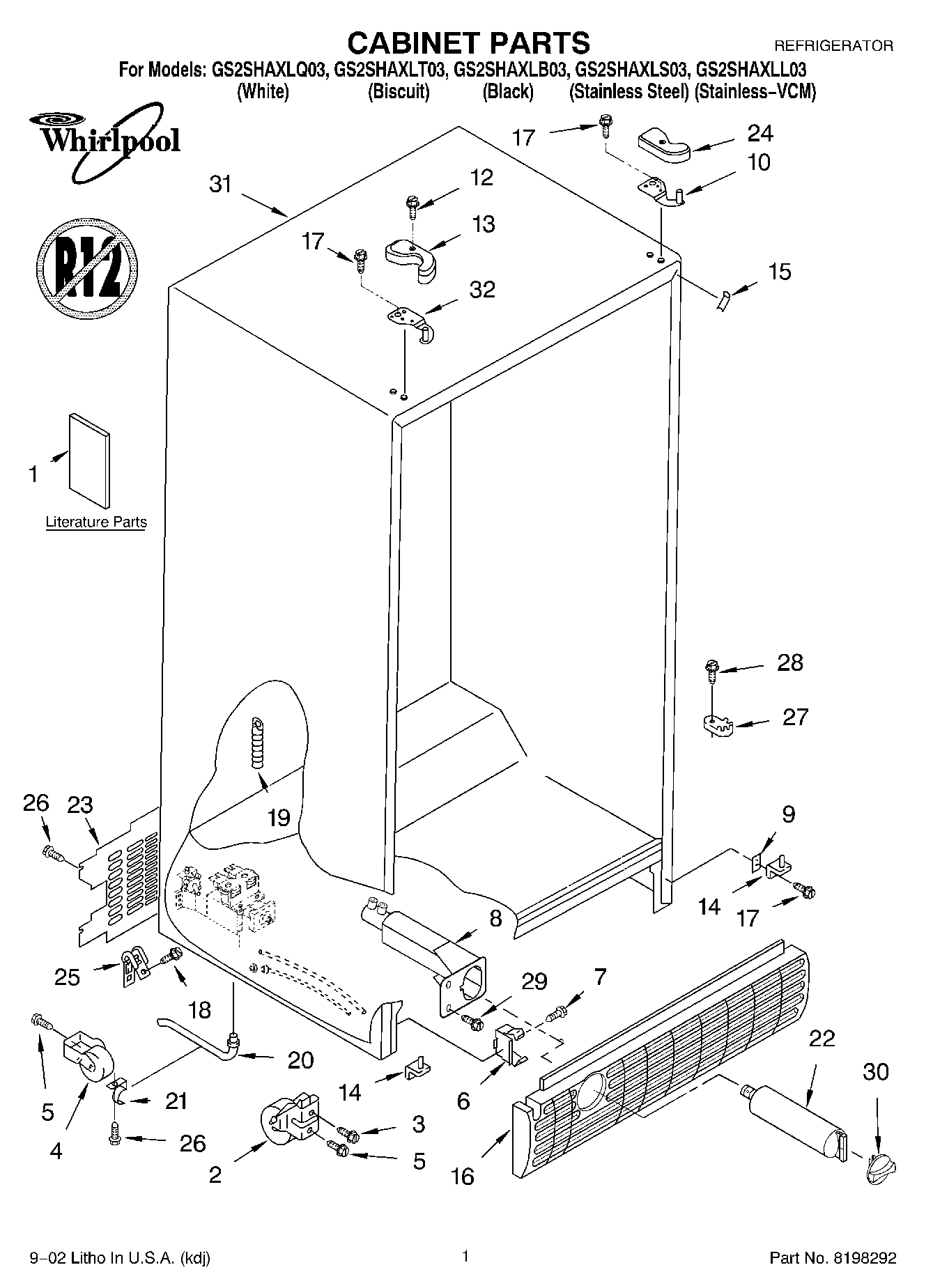

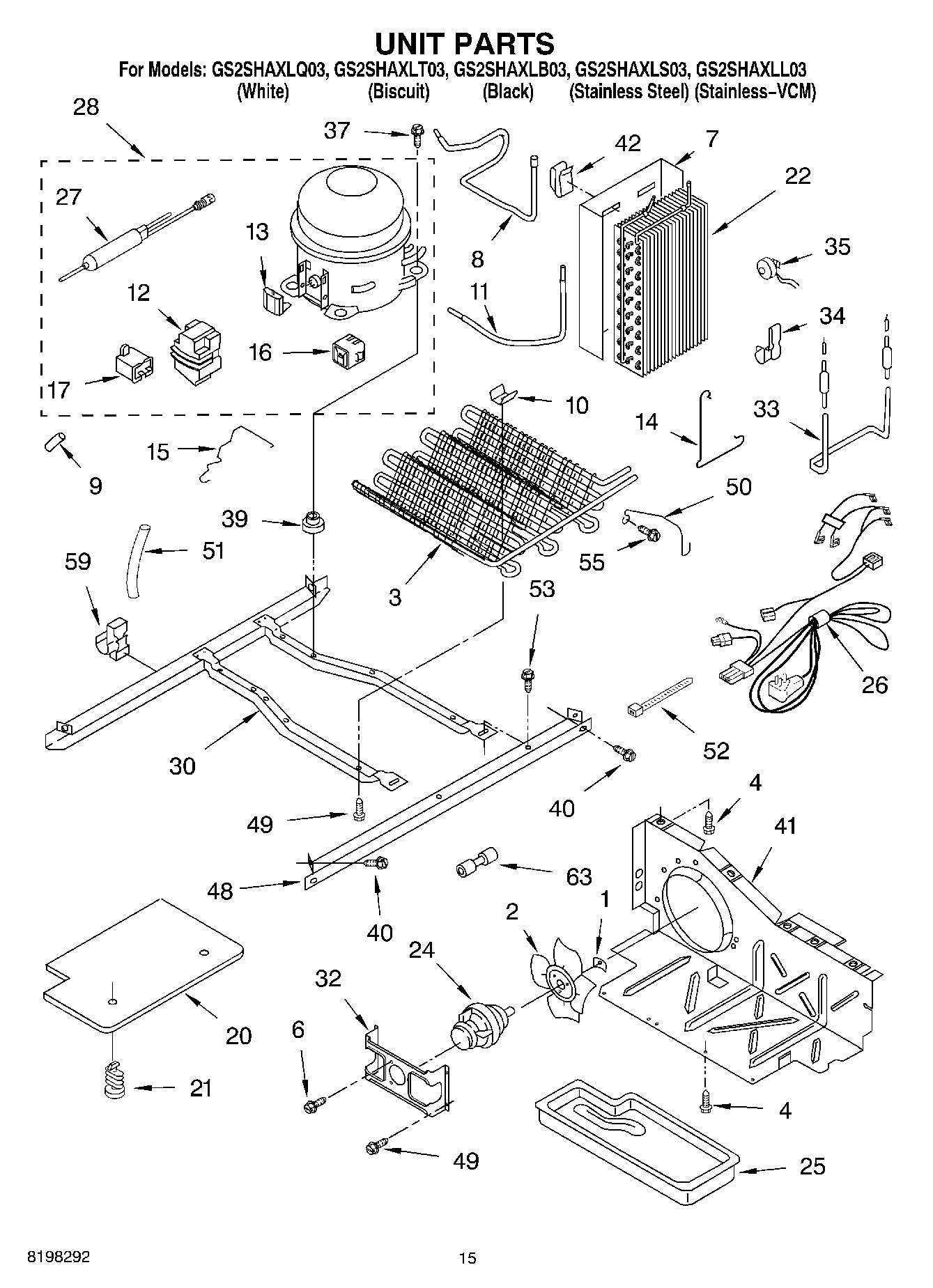

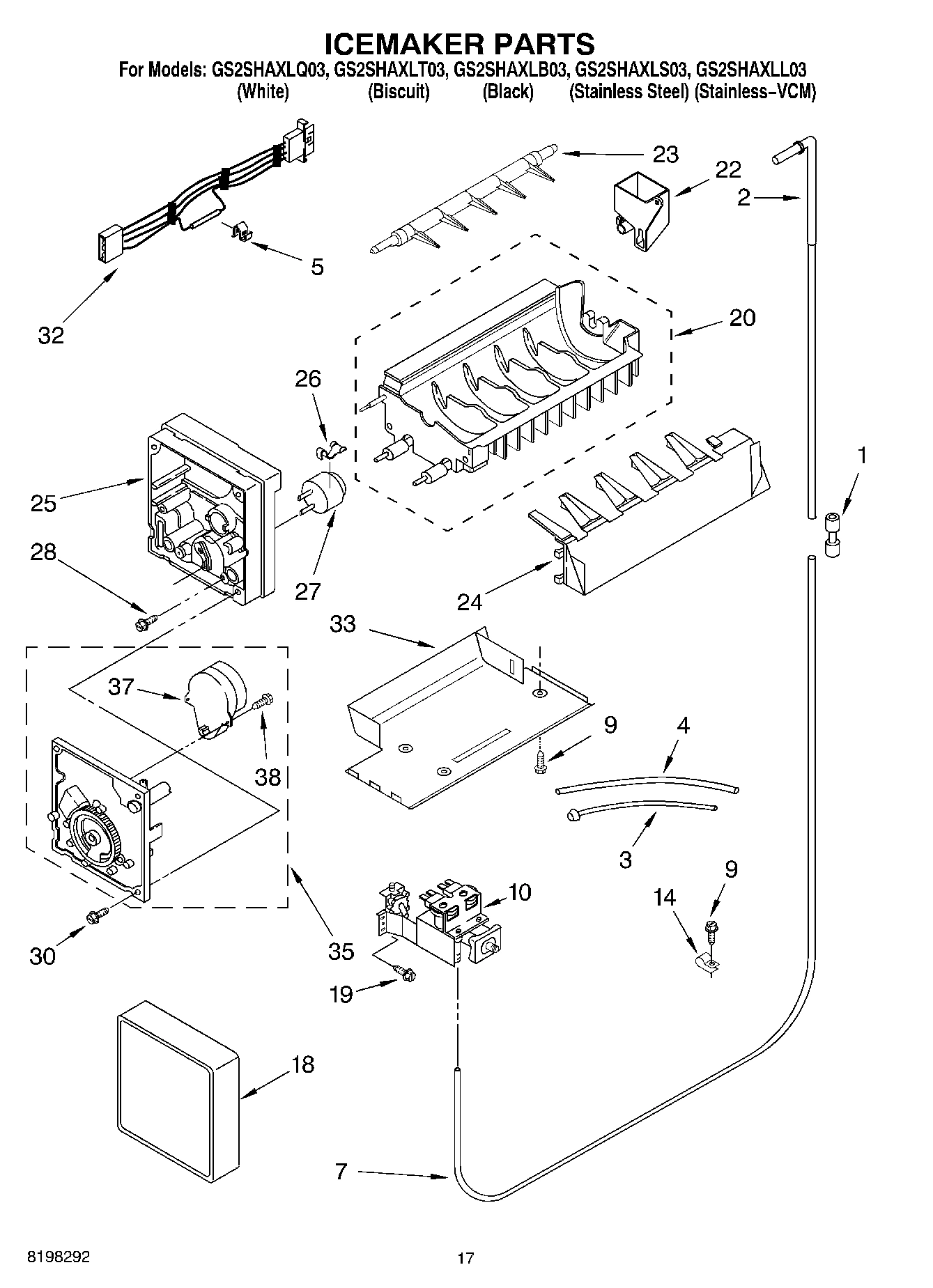

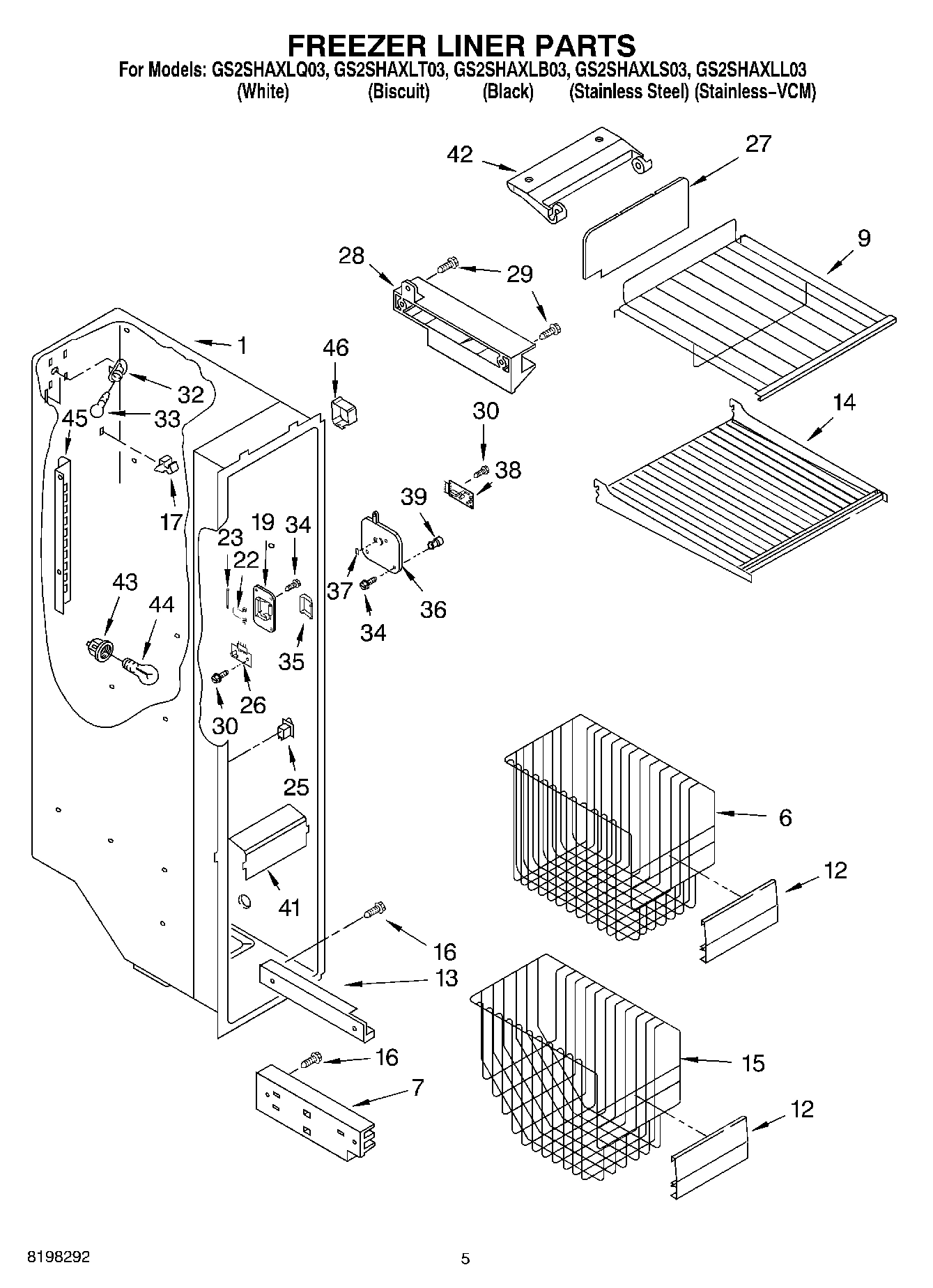

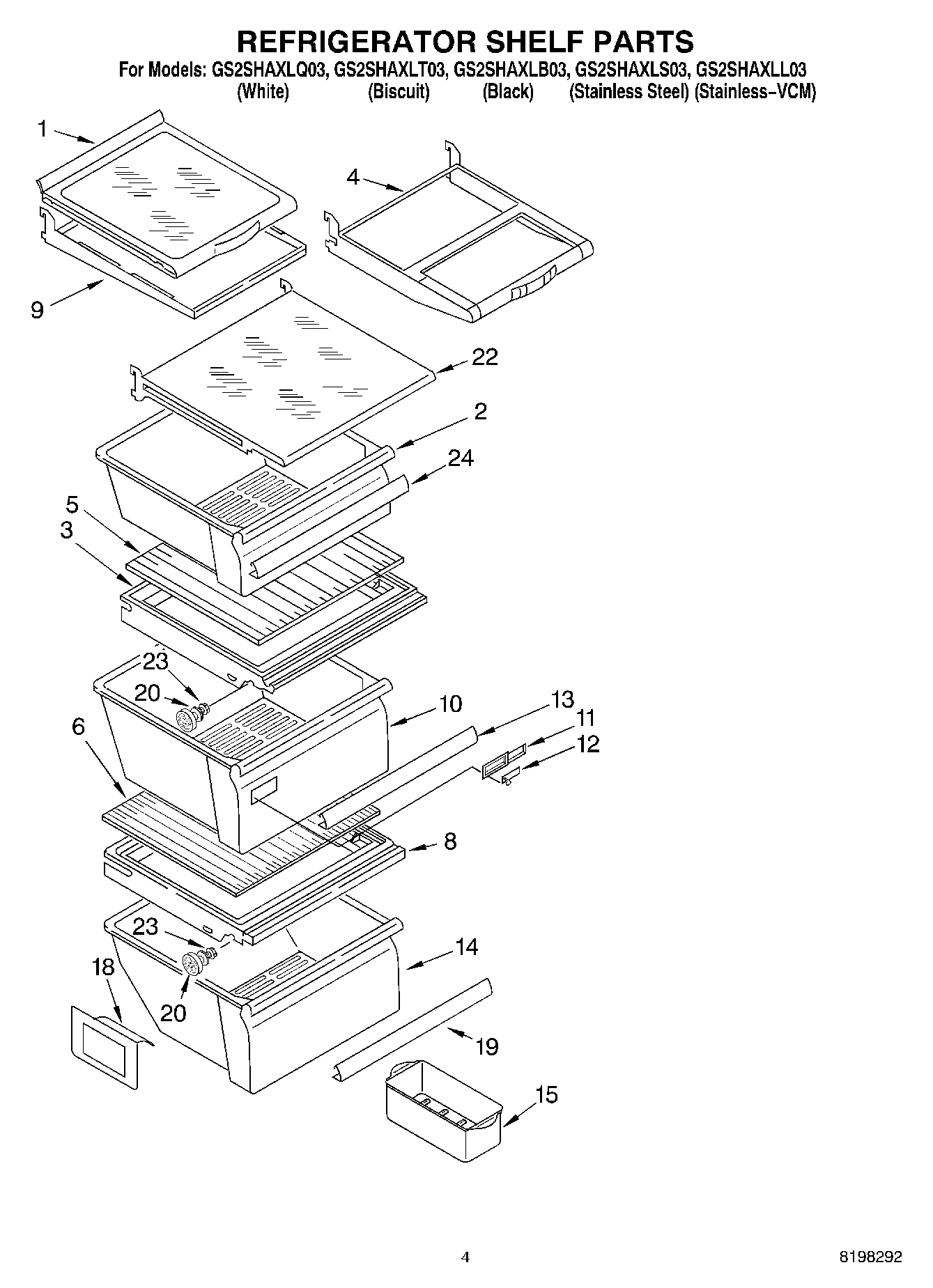

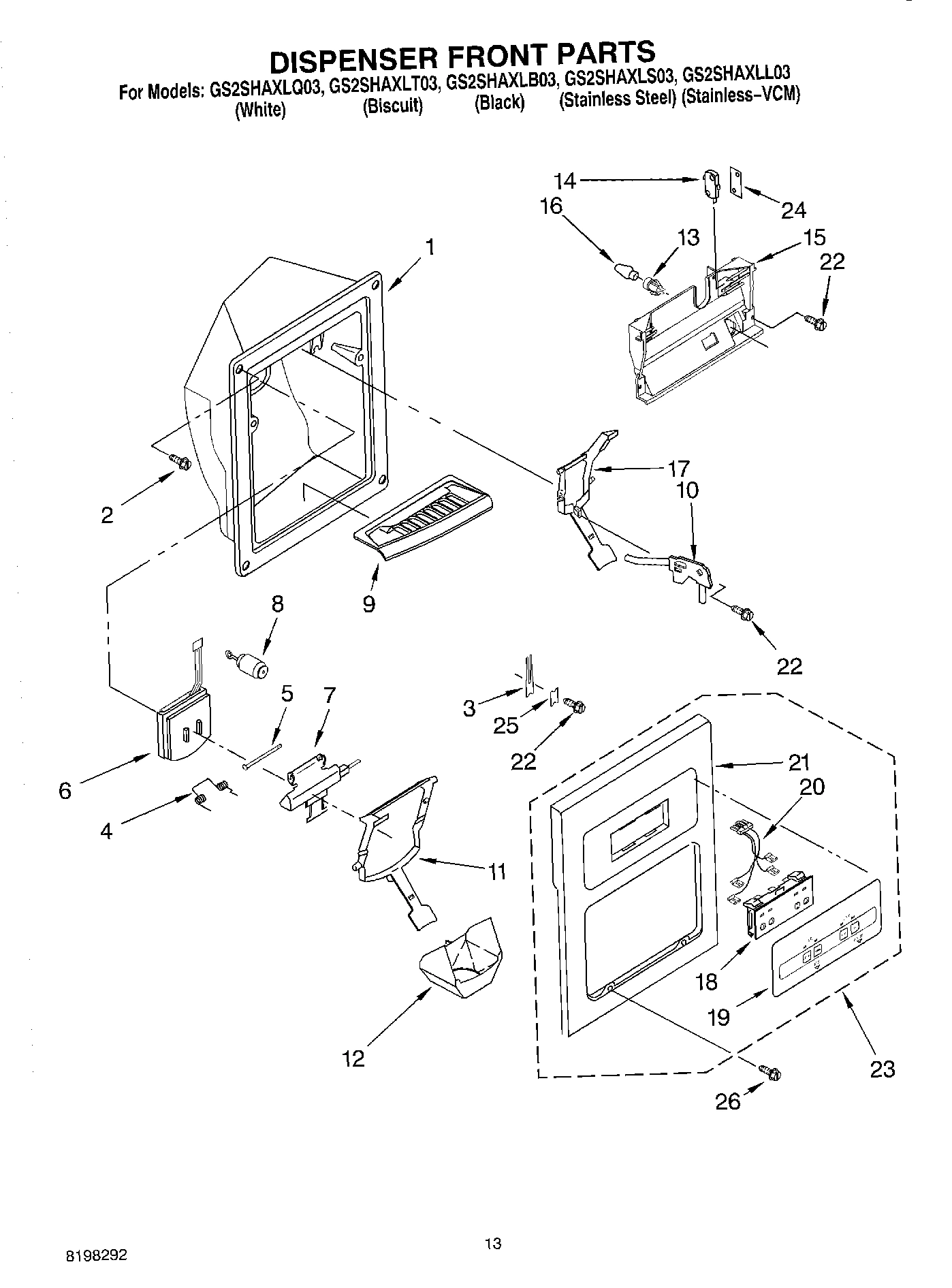

Model Whirlpool GS2SHAXLT03 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $11.80

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

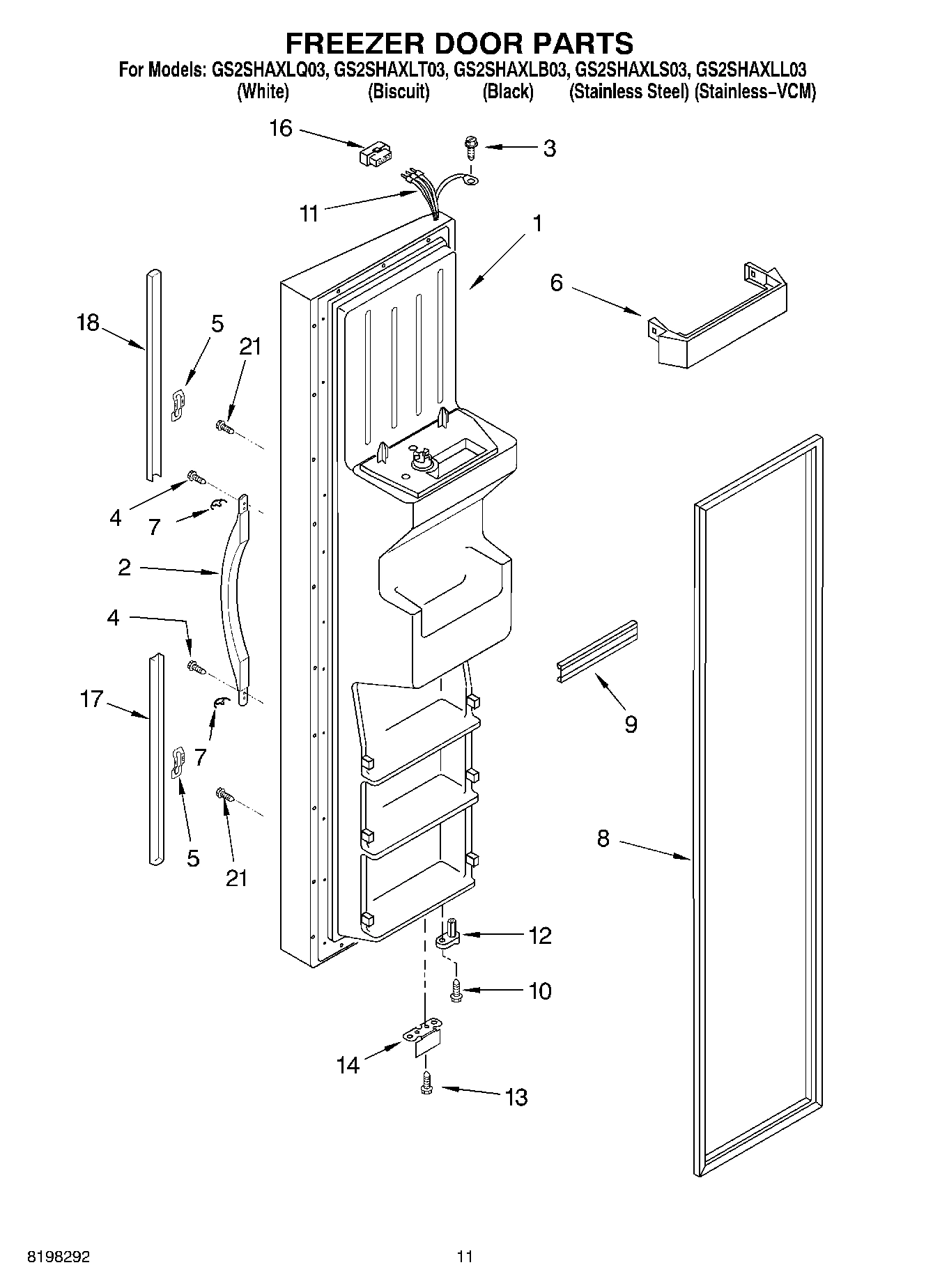

Freezer Door (Includes Item No.8 And Dispense WPL 2220413B Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220413LB Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220413SB Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220413T Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2220413W Contact Us For Availability

1

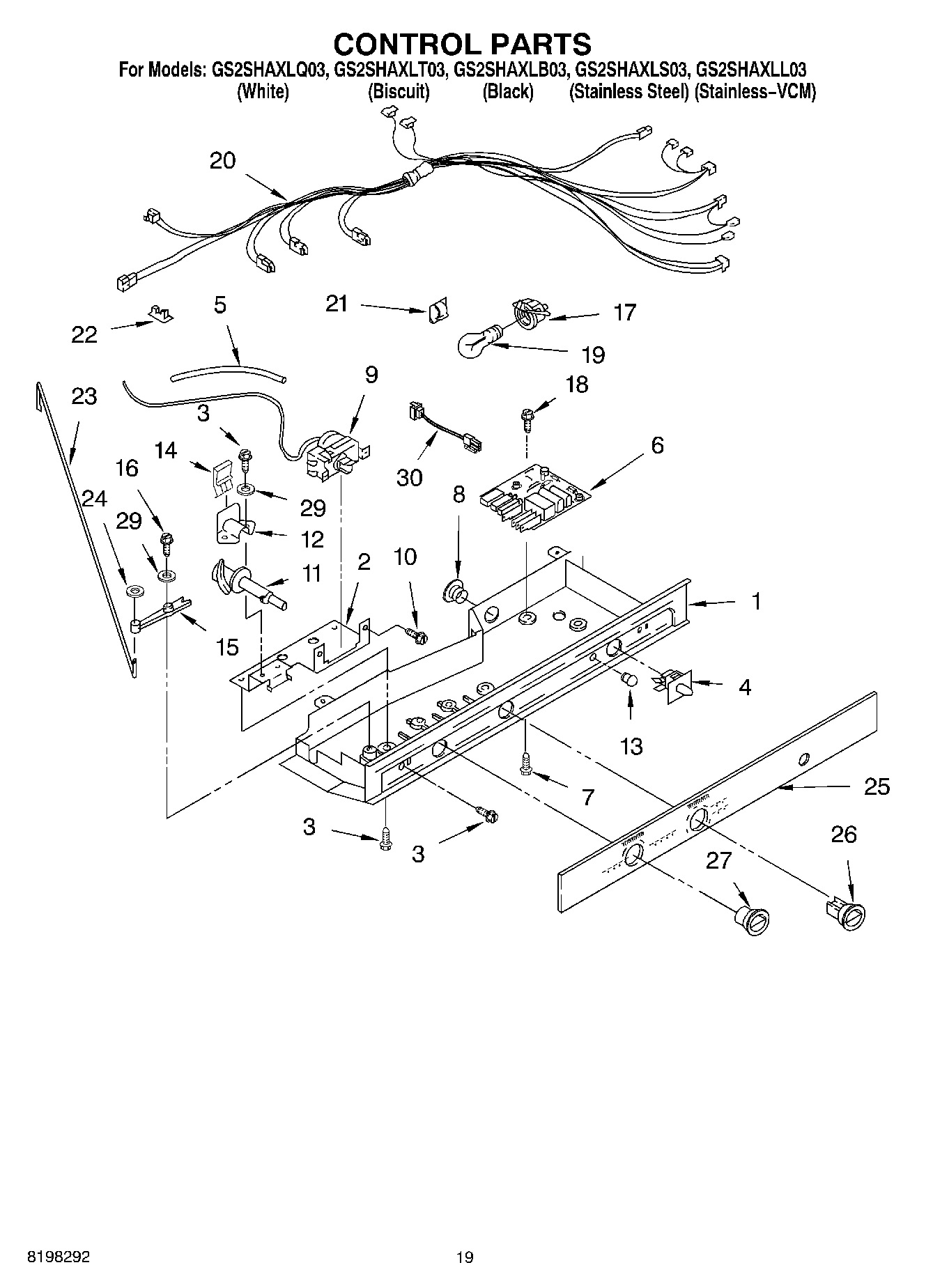

Control Box WPL 2216013 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2217185B Whirlpool Refrigerator Handle Backorder WPL WP2217185B $82.81

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $3.33

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle (Biscuit) WPL 2217185T Contact Us For Availability

2

Handle (White) WPL 2217185W Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

3

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2212313 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2156021 Whirlpool Refrigerator Door Trim Backorder WPL WP2156021 $41.96

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $228.95

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

Jewelry, Handle WPL 2207010SN Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.91

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $140.76

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $46.16

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (Black) WPL 2207048B Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $92.53

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $55.13

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

15

Pivot Arm WPL 1110559 Contact Us For Availability

15

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $35.83

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability

Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability

Cover, Evaporator WPL 2212314 Contact Us For Availability

Trim, Door-Bottom (Black) WPL 2217186B Contact Us For Availability

Trim, Door-Bottom (Biscuit) WPL 2217186T Contact Us For Availability

Trim, Door-Bottom (White) WPL 2217186W Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Trim, Door-Top (Black) WPL 2217191B Contact Us For Availability

Trim, Door-Top (Biscuit) WPL 2217191T Contact Us For Availability

Trim, Door-Top (White) WPL 2217191W Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

19

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $87.84

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $98.08

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

Nameplate WPL 2220214 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

CLIP, WIRING WPL 1115375 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Brush Touch-up Kit (Graphite) WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Container- Crusher Assembly WPL 2212303 Contact Us For Availability

Cleaner, Stainless Steel WPL 2252676 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $40.37

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

Escutcheon, Control Box WPL 2212073 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Knob, Air Control WPL 2197871 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.97

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $94.84

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $49.52

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $55.08

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $24.61

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
