Model Whirlpool GD5RHAXSS00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

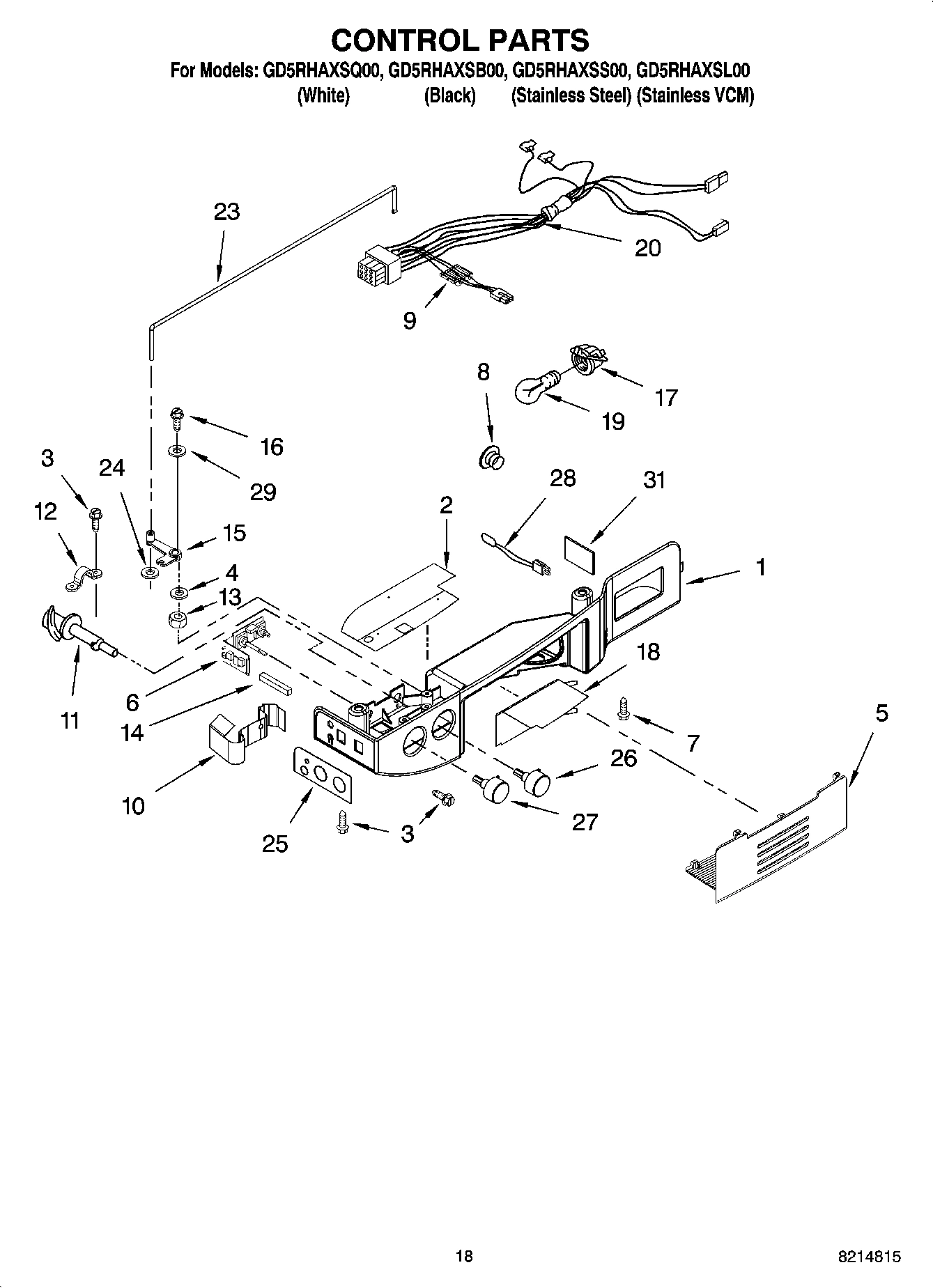

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $137.43

1

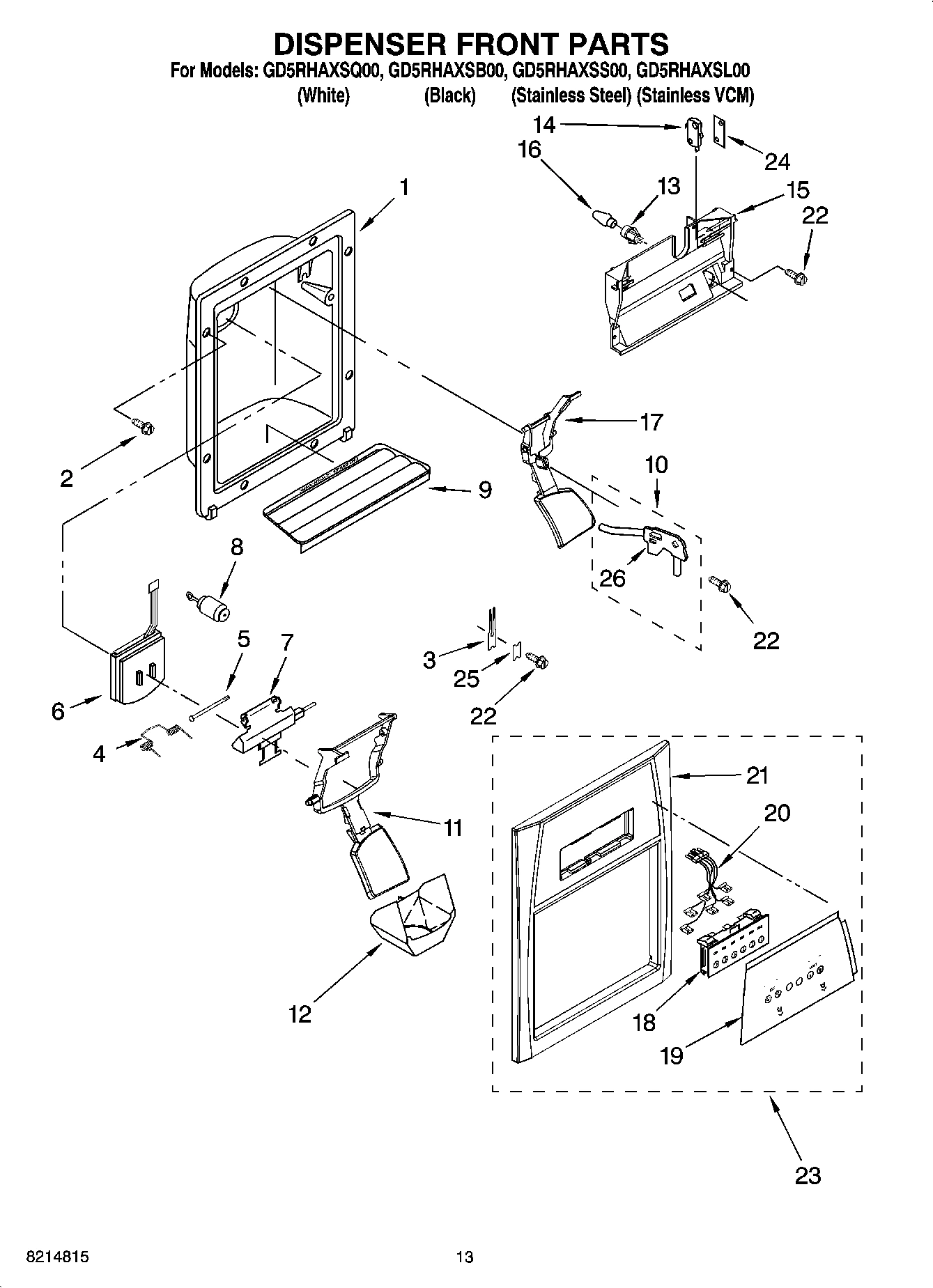

Housing Dispenser (Not Serviced) WPL ARI63802A1 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2315459B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2315459LG Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2315459S Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2315459W Contact Us For Availability

1

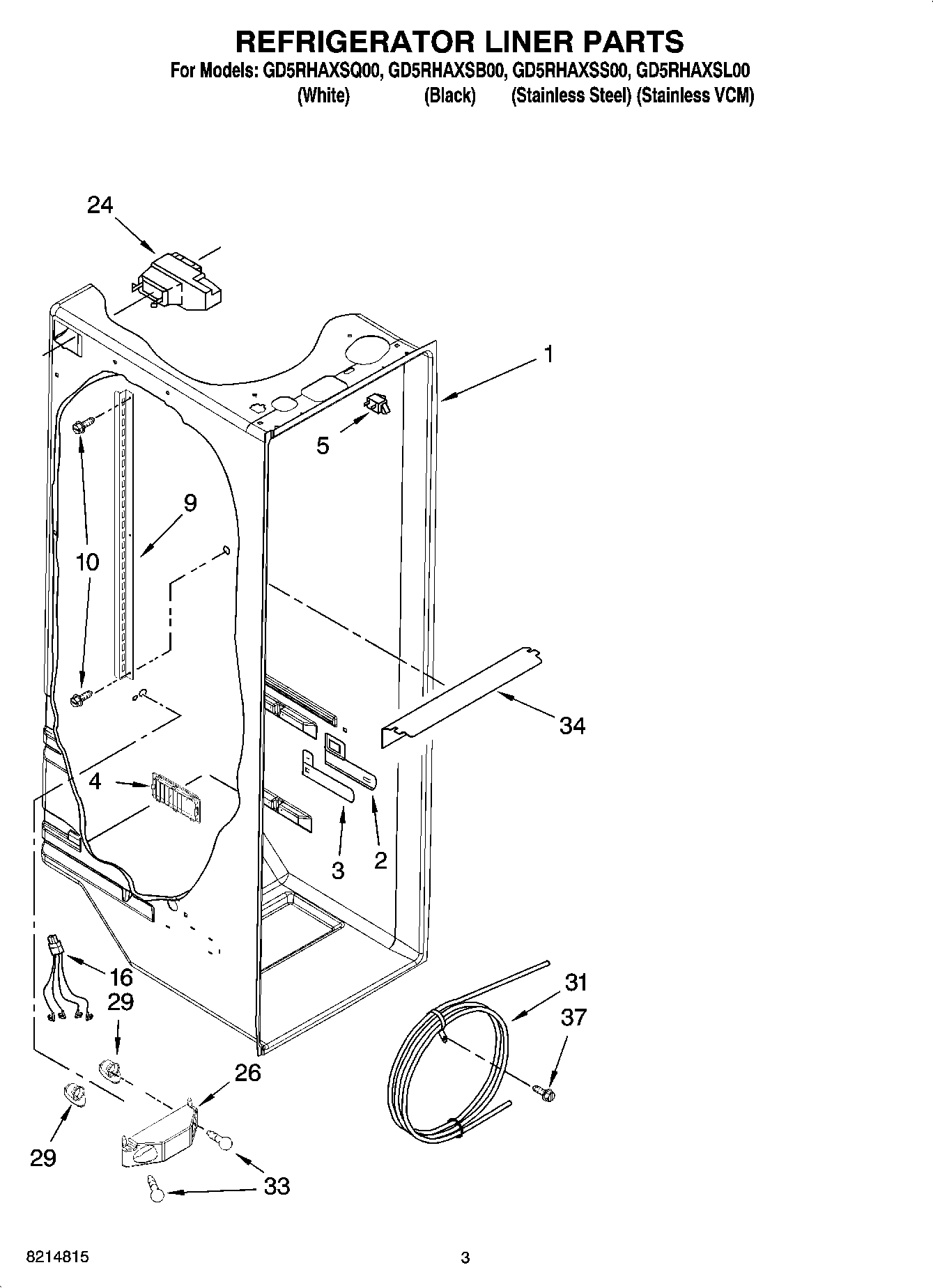

Liner (Not A Serviceable Part) WPL ARI63800A1 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Nameplate WPL 2220214 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Crusher Bin WPL 2255574 Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $33.53

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Cover, Crusher WPL 2255460 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Thimble-Top (For Stainless Steel Model) WPL 2301049 Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $147.90

8

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Ladder, Shelf WPL 2206273 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $55.13

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.16

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

Block, Blade WPL 2198602 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Trivet, Tilt-Out (2) WPL 2223334 Contact Us For Availability

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Slide, Basket (Right Side) WPL 2301289 Contact Us For Availability

Slide, Basket (Left Side) WPL 2301290 Contact Us For Availability

Extension, Top (Black) WPL 2194973B Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Switch Assembly (Not Available Order 23) WPL ARI63803A1 Contact Us For Availability

Safety Barrier WPL 2305474 Contact Us For Availability

19

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $12.96

19

Overlay, Front Cover (Not Available, Order 23 WPL ARI63804A8 Contact Us For Availability

19

Basket, Tilt-Out (2) WPL 2304309 Contact Us For Availability

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $43.79

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $55.82

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Box, Control WPL 2255623 Contact Us For Availability

Latch, Bin WPL 2212371 Contact Us For Availability

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI63805A7 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

W10849998 Whirlpool Glass Shelf Backorder WPL W10849998 $153.01

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2315270W Contact Us For Availability

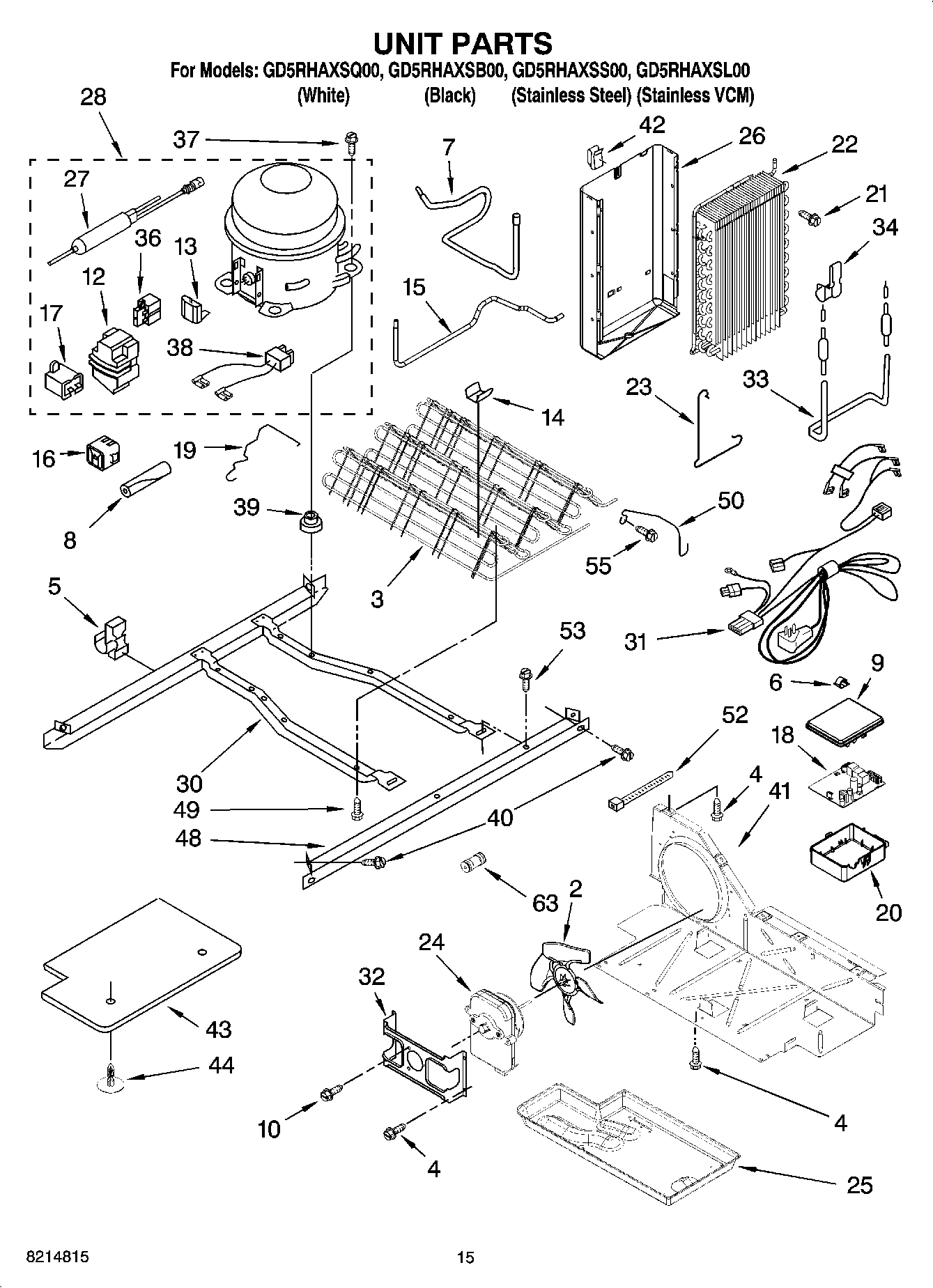

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Knob, FC WPL 2255992 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

31

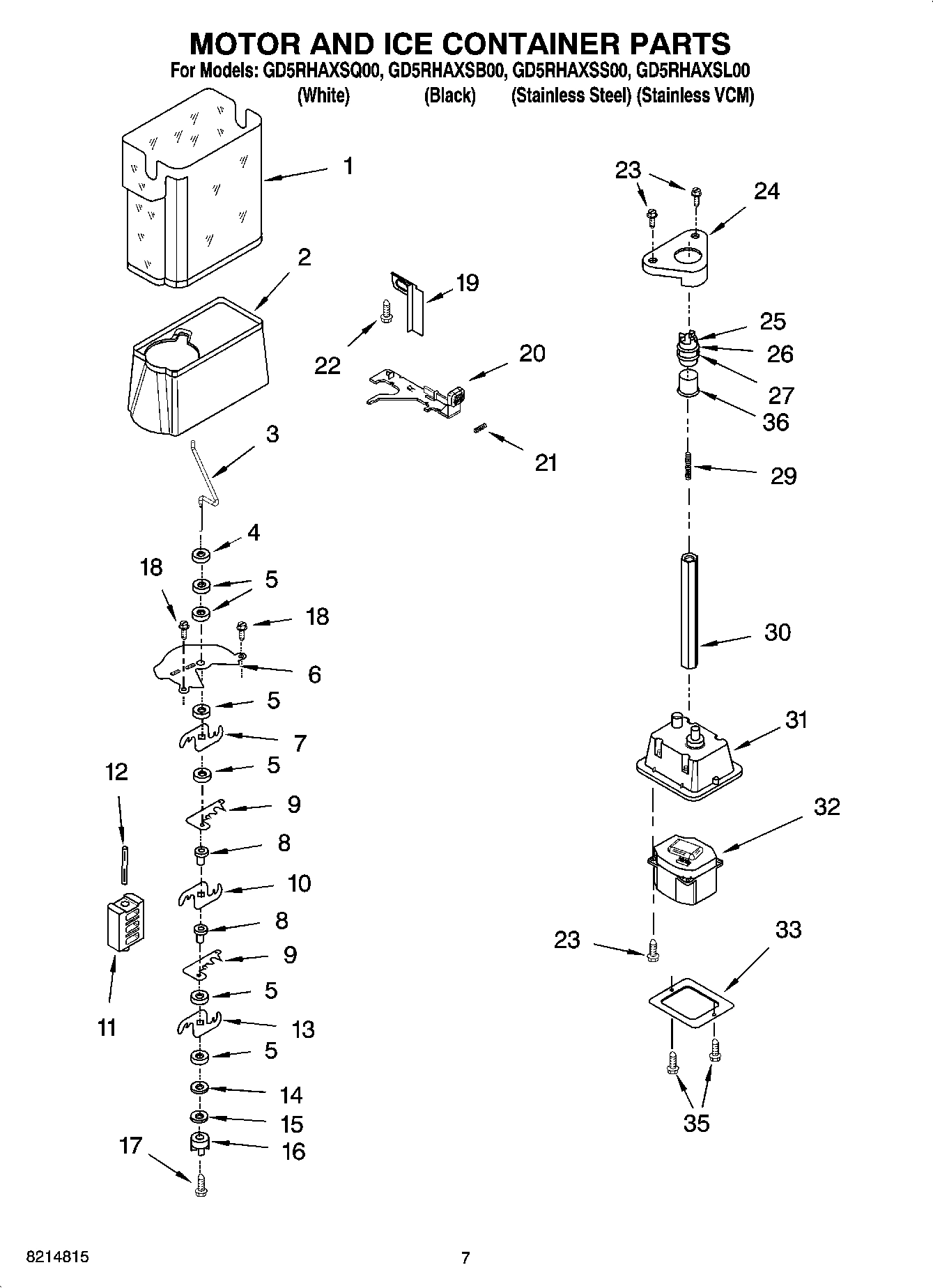

Enclosure, Motor WPL 2256154 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $94.84

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $55.72

33

Cover WPL 2212305 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Light Lens WPL 2209769 Contact Us For Availability

35

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

36

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

40

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

42

Extension Tube WPL 2172932 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

47

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.17

48

Cabinet, (Not A Serviceable Part) WPL ARI63799A5 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

53

NLA:SCREW Backorder WPL WPW10141645 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51

100

WP2258243 Whirlpool Refrigerator Ice Containe Backorder WPL WP2258243 $237.28
