Model Whirlpool GD5NVAXSL01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL ARI63214A3 WPL ARI63214A3 Contact Us For Availability

WPL ARI63215A8 WPL ARI63215A8 Contact Us For Availability

WPL ARI63216A4 WPL ARI63216A4 Contact Us For Availability

WPL ARI63217A1 WPL ARI63217A1 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $48.20

1

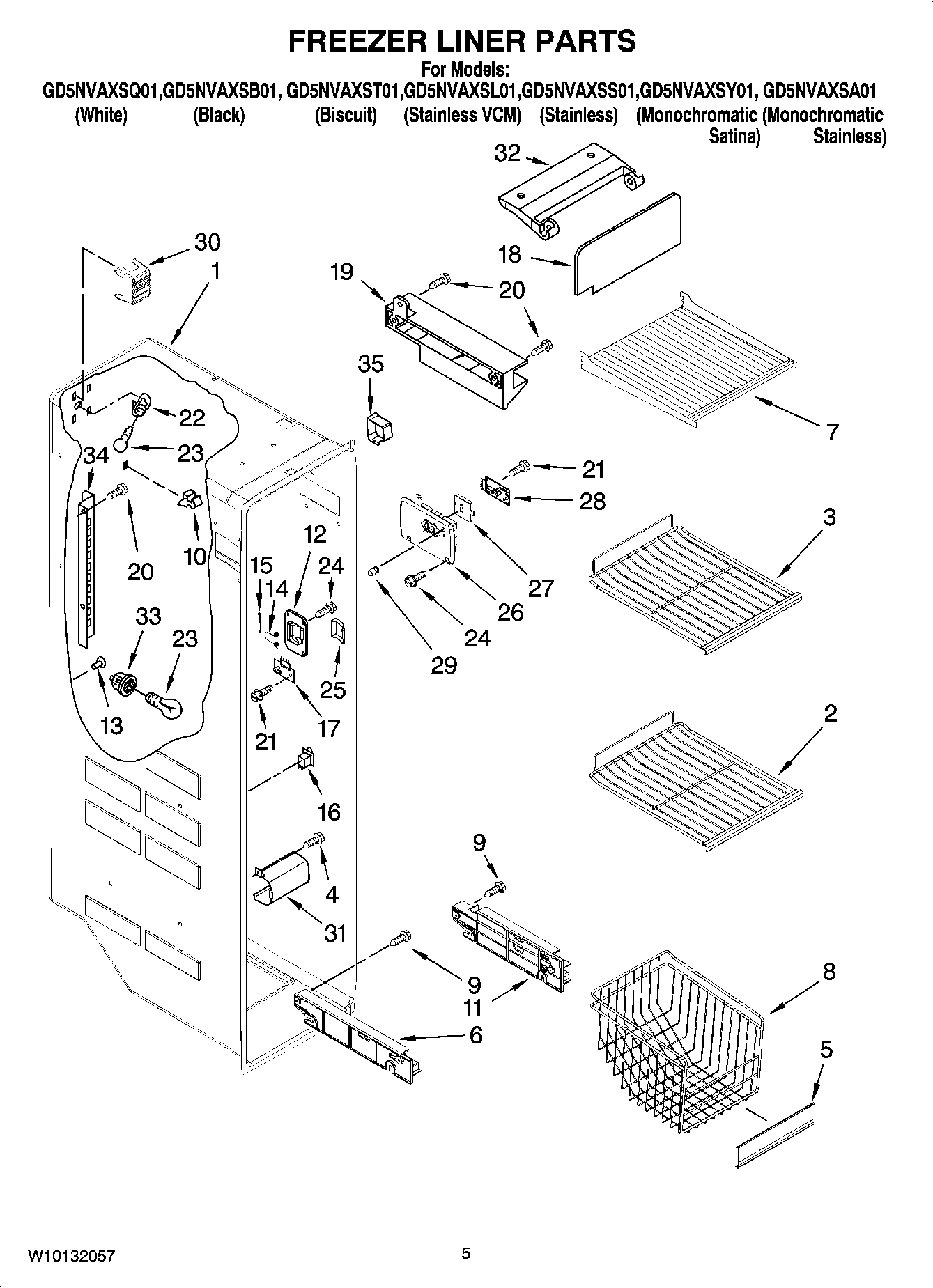

Liner (Not A Seviceable Part) WPL ARI63207A8 Contact Us For Availability

1

Ice Bin WPL 2305336 Contact Us For Availability

1

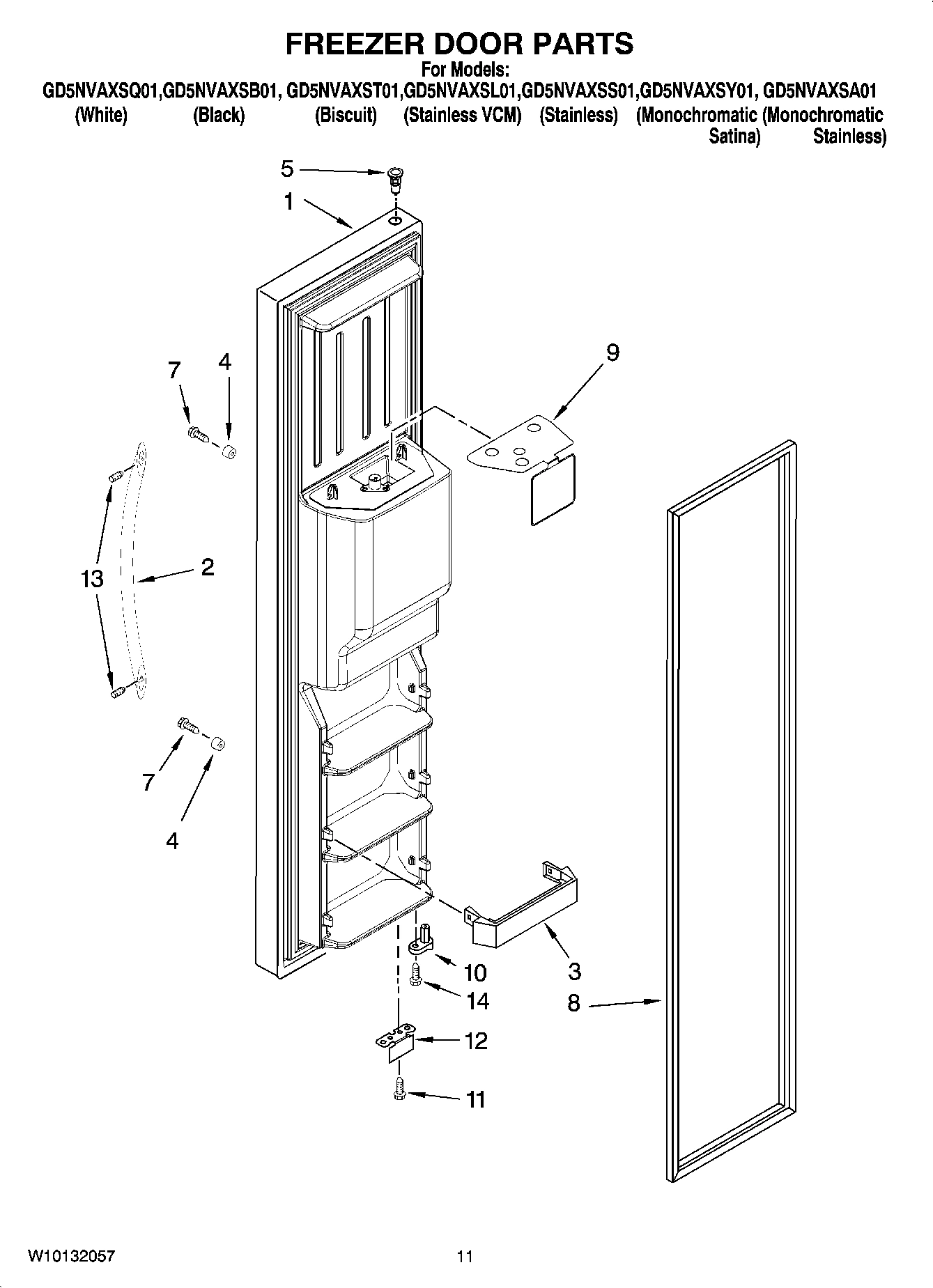

Freezer Door (Includes 8 And Dispenser Front WPL 2318849B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2318849LAP Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2318849LG Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2318849SAP Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2318849SB Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2318849T Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2318849W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

2305219 Whirlpool Refrigerator Cover Backorder WPL 2305219 $30.25

2

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $114.12

2

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $155.75

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

Dairy Door WPL 2255421 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2305206 Contact Us For Availability

2

Shelf, Slide Out (Lower) WPL 2211746K Contact Us For Availability

2

Handle (Includes 13) (Biscuit) WPL 2254600T Contact Us For Availability

2

Handle (Includes 13) (Stainless) WPL 2319729S Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $33.53

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

WPW10317556 Whirlpool Refrigerator Wire Shelf Backorder WPL WPW10317556 $65.16

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $31.92

4

WPW10159839 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10159839 $167.30

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

Air Duct Freezer WPL 2198580 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

5

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

5

Lens, Light WPL 2255225 Contact Us For Availability

5

Trim, Basket WPL 2195905K Contact Us For Availability

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

Electronic Control WPL 2304103 Contact Us For Availability

6

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

6

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Cover, Crusher WPL 2305244 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

7

NLA:SCREW Backorder WPL WPW10141645 $3.70

7

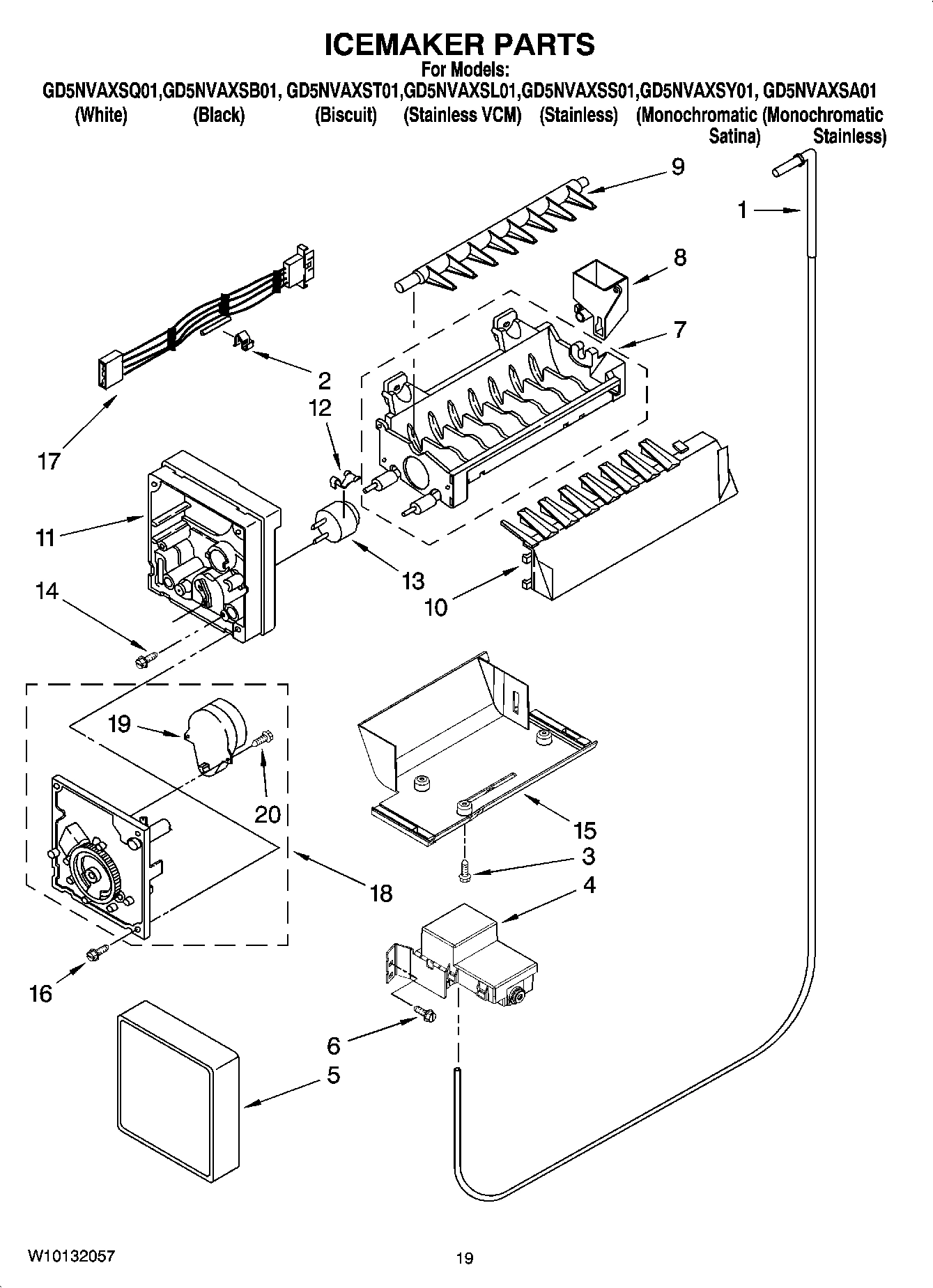

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

7

Shelf Ladder WPL 2319866 Contact Us For Availability

7

Glass, Cover WPL 2223591 Contact Us For Availability

7

Shelf (2) WPL 2205837K Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $147.90

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W10136735 Whirlpool Refrigerator Door Gasket In Stock WPL W10136735 $123.48

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Basket, Sloped WPL 2301191 Contact Us For Availability

9

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

9

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Air Seal, Thermistor WPL 2261265 Contact Us For Availability

9

Safety Barrier WPL 2304895 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $76.51

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $41.94

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $51.17

Shield, Electrical (Internal) WPL 2305538 Contact Us For Availability

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $66.84

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $68.13

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Cam Assembly WPL 2255226 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $206.48

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $62.77

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bearing Body WPL 2255413 Contact Us For Availability

Bracket, Door Stop (White) WPL 2303113 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2303113B Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Nut, Hex WPL 3400971 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Foam, Shield WPL 2188928 Contact Us For Availability

Wire Assembly, Freezer Door WPL 2310084 Contact Us For Availability

Tube, Water Dispenser WPL 2317709 Contact Us For Availability

Following Parts Not Illustrated WPL ARI63208A8 Contact Us For Availability

Cover, Evaporator (Includes 9) WPL 2206314 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Pivot Arm WPL 2255227 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $62.54

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $227.62

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Nameplate WPL 2220214 Contact Us For Availability

Cover Assembly, Electronic Control WPL 2304170 Contact Us For Availability

Shield, Heat WPL 2255666 Contact Us For Availability

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

Extension Tube WPL 2304937 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Control Box WPL 2255623 Contact Us For Availability

20

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

20

Control Box Harness (Includes 21) WPL 2187965 Contact Us For Availability

20

Latch, Bin WPL 2305443 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Ferrite Bead WPL 2308165 Contact Us For Availability

22

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

22

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Holder WPL 2212369 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

Connecting Rod WPL 2255228 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

Fastener, Push-On WPL 489285 Contact Us For Availability

WPL 2187814 WPL 2187814 Contact Us For Availability

25

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

25

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $15.13

25

Escutcheon, Control Box WPL 2255611 Contact Us For Availability

26

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

26

Knob, RC WPL 2255232 Contact Us For Availability

26

Cover, Receiver WPL 2255558 Contact Us For Availability

27

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

27

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

27

Knob, FC WPL 2255992 Contact Us For Availability

28

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

28

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $92.73

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $121.47

30

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $21.77

30

Bracket, Motor WPL 2305208 Contact Us For Availability

30

Light Shield WPL 2198589 Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

31

Light Lens WPL 2212340 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

33

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

34

Ladder (Left Side) WPL 2320024 Contact Us For Availability

34

Ladder (Right Side) WPL 2320025 Contact Us For Availability

35

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

39

WPL 2223751 WPL 2223751 Contact Us For Availability

41

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

45

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

46

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $89.56

100

Ice Container (Complete) WPL 2320329 Contact Us For Availability
