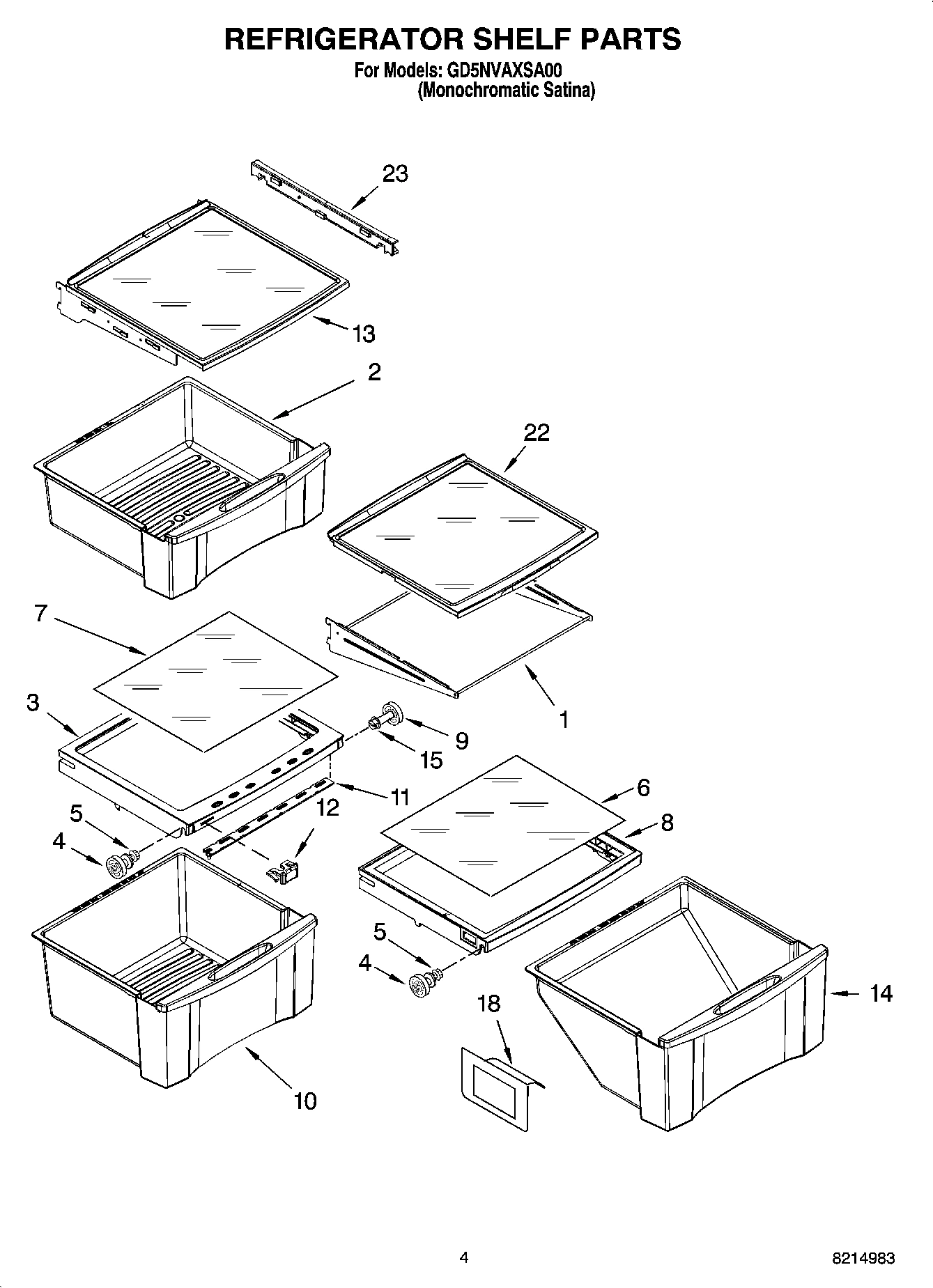

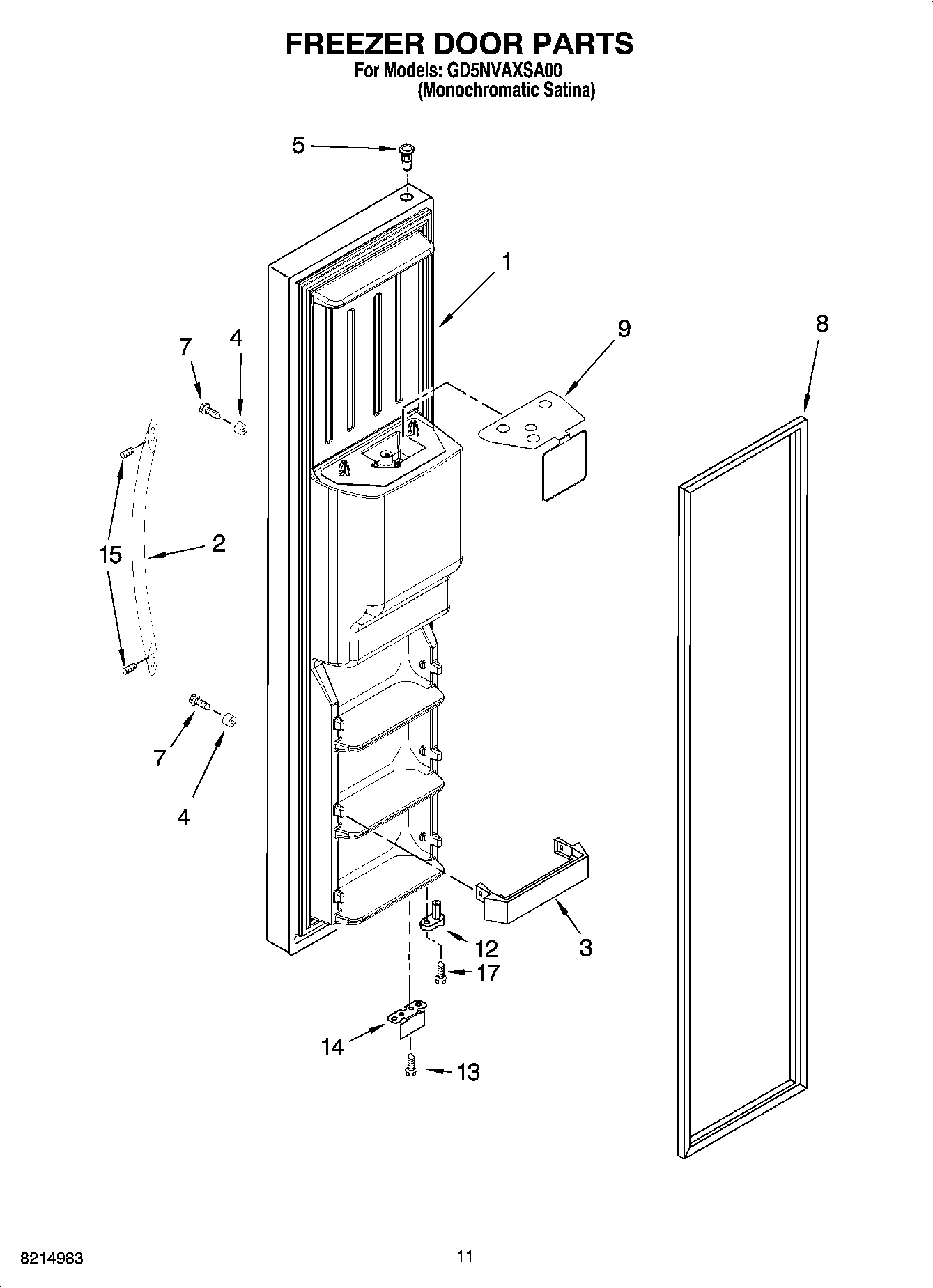

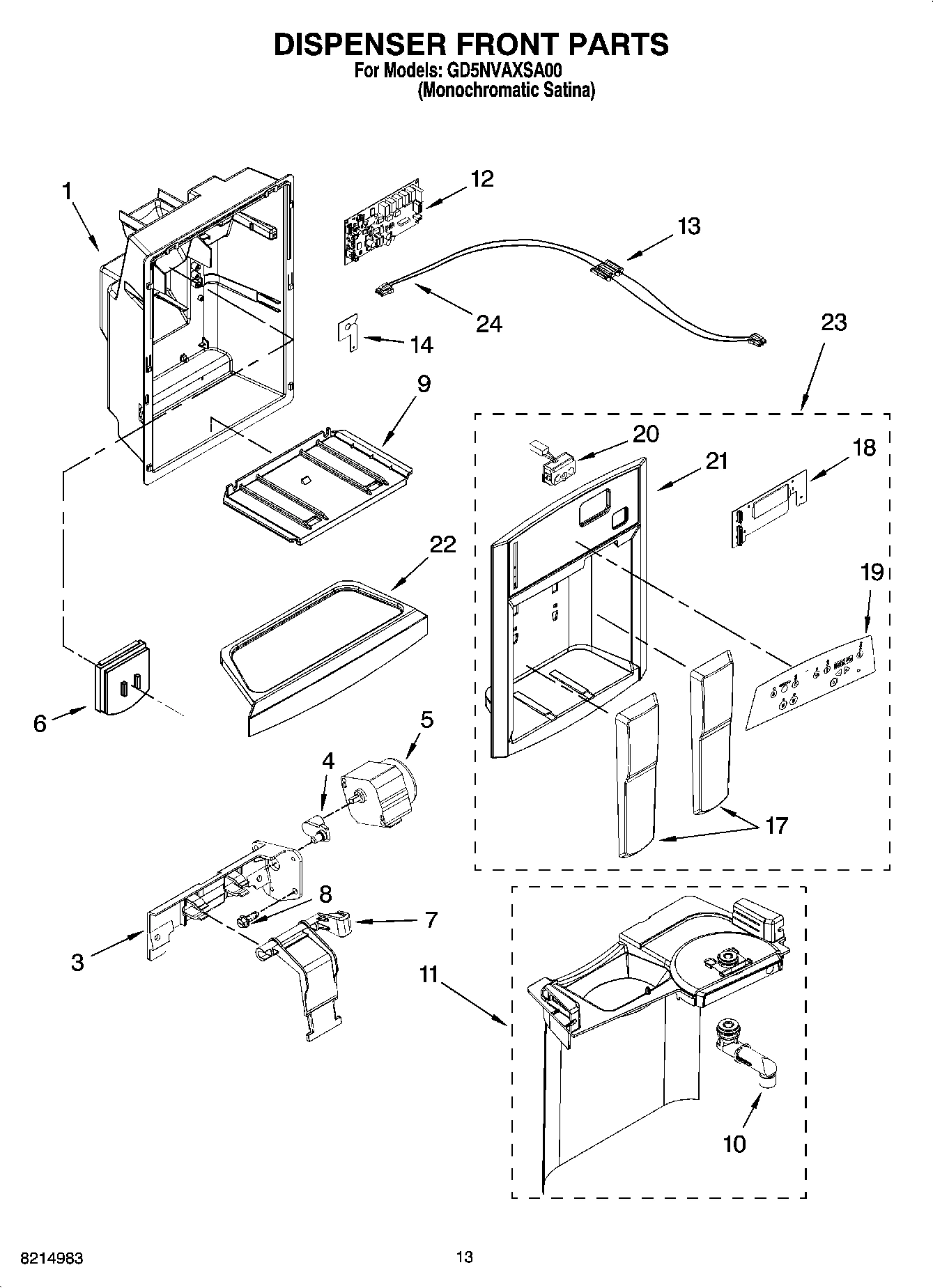

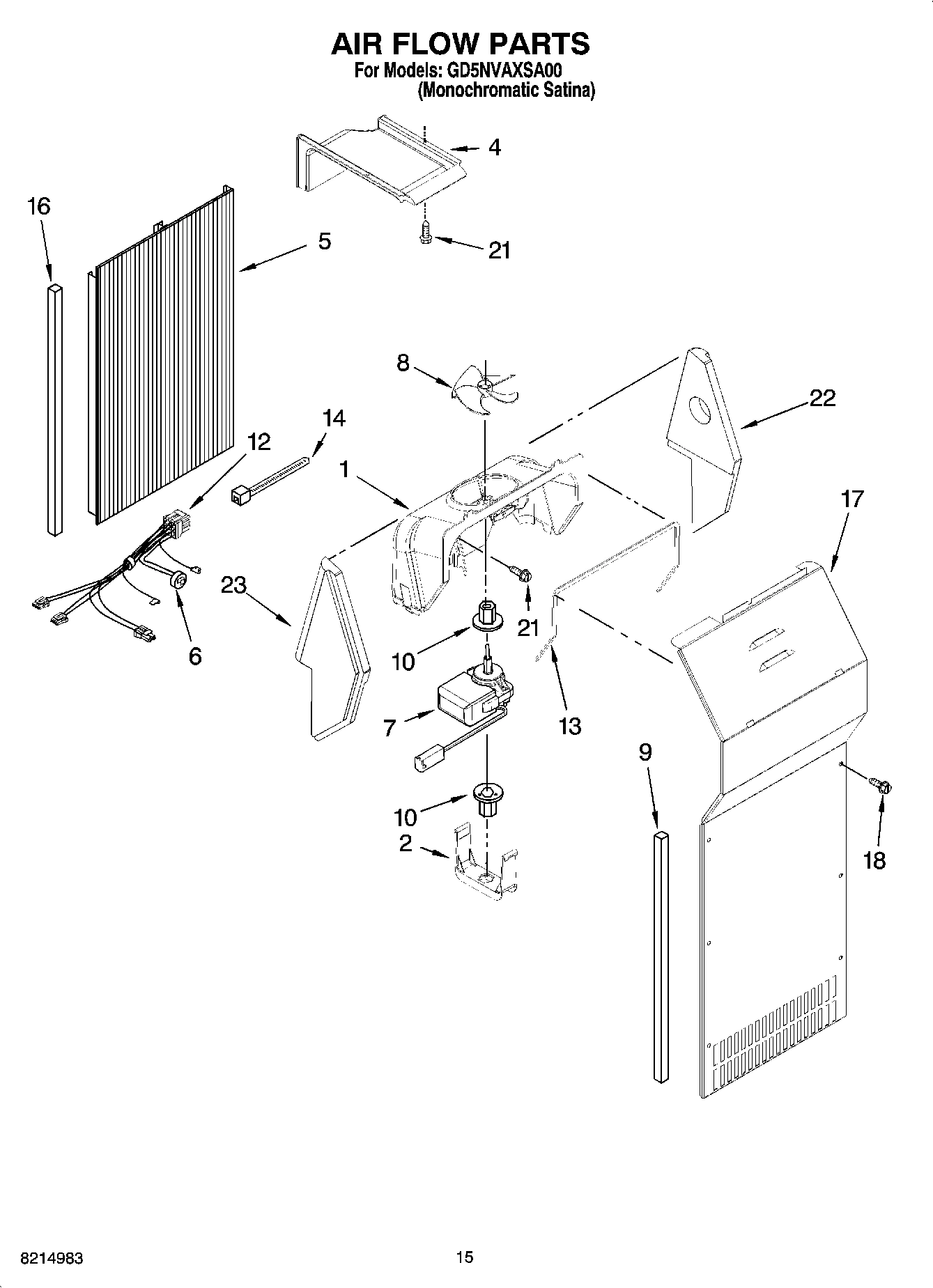

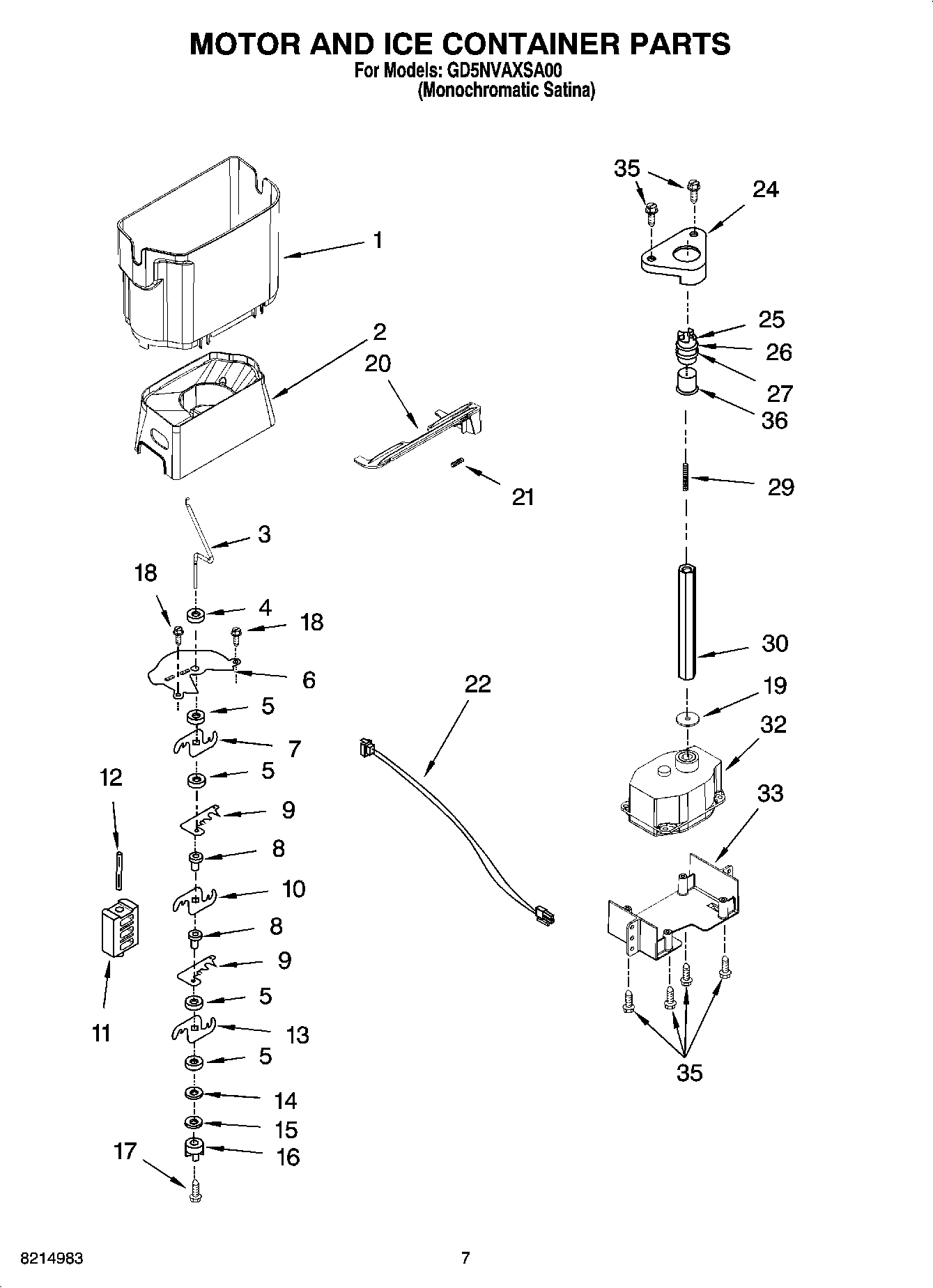

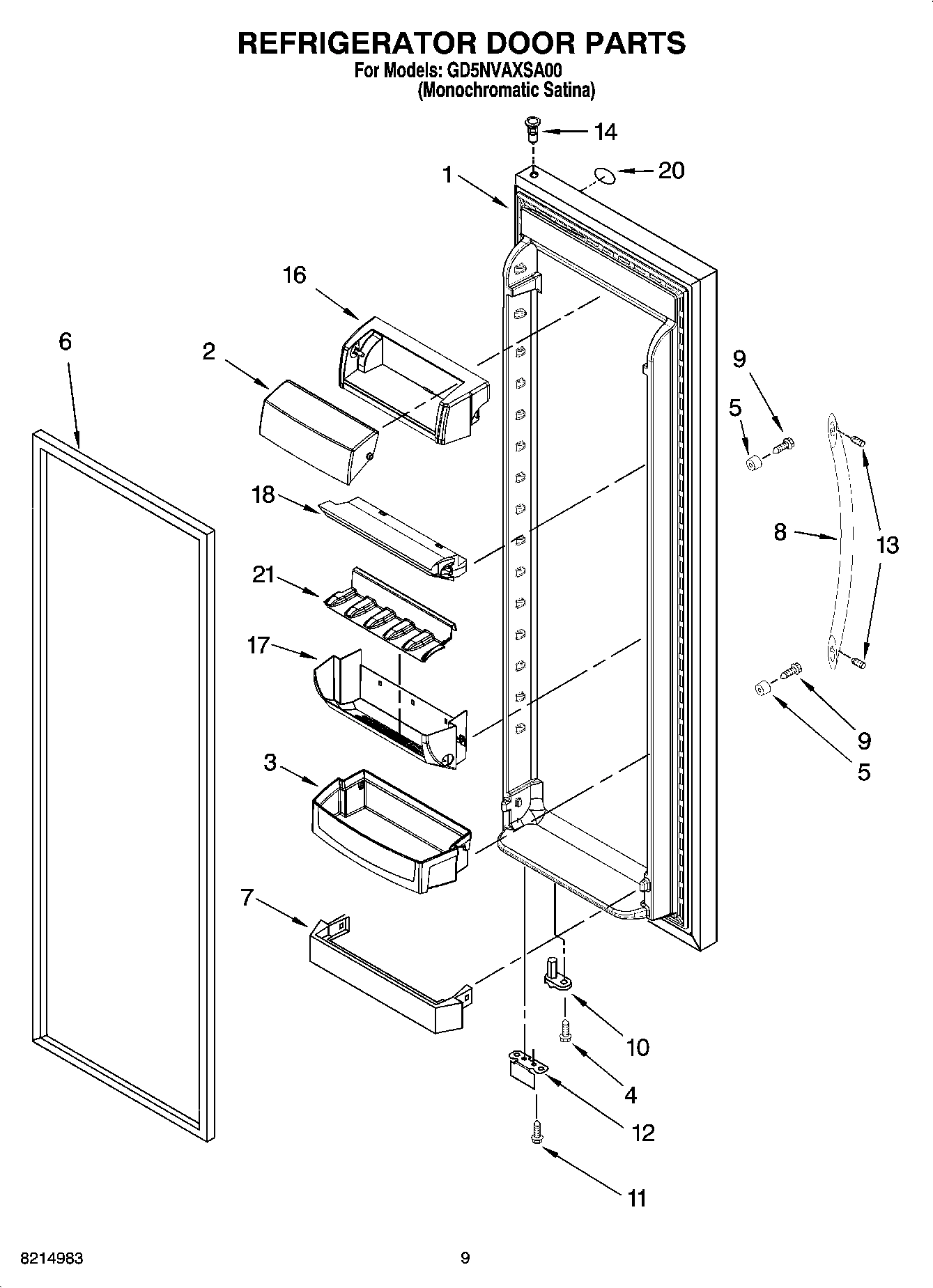

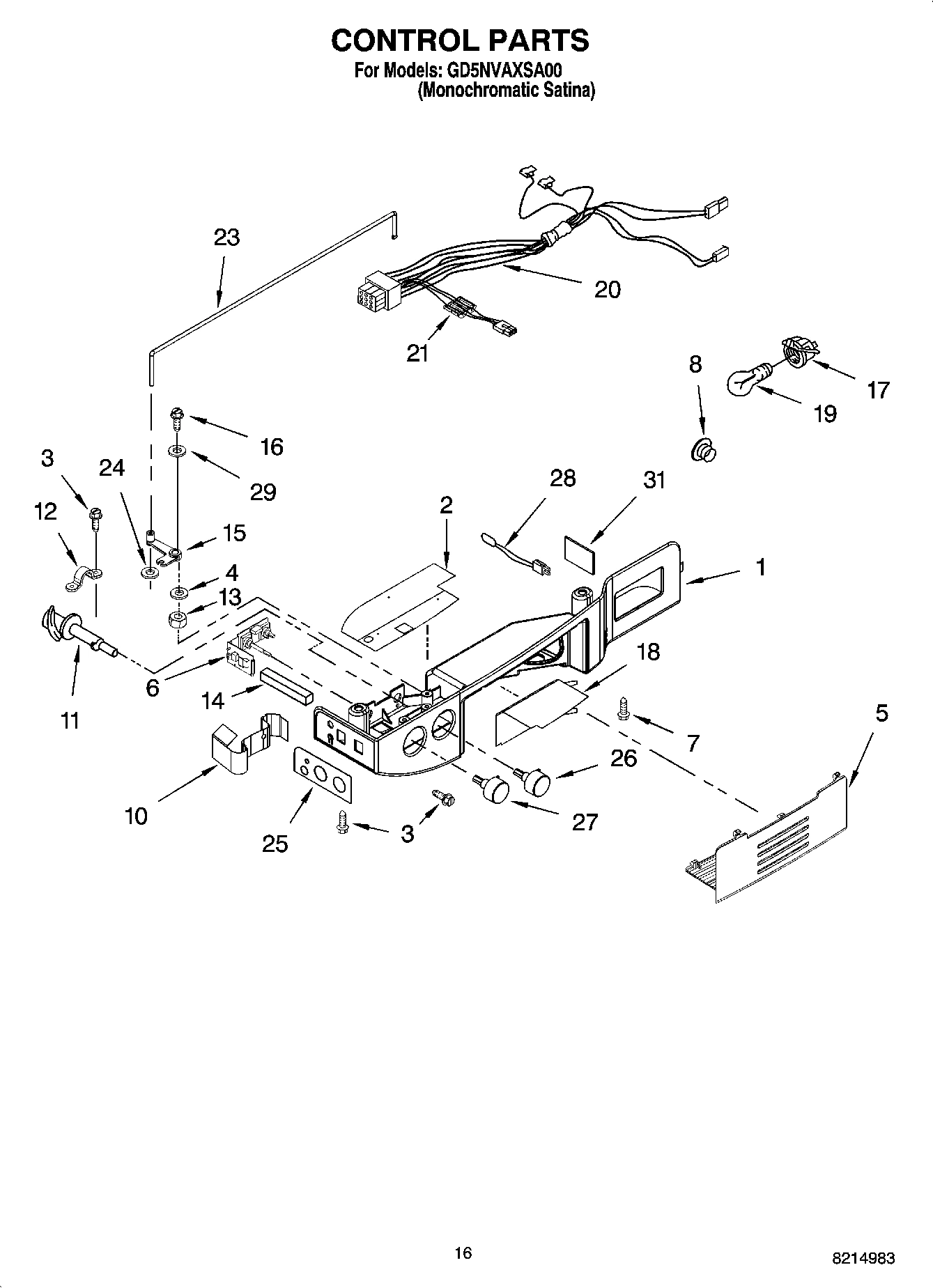

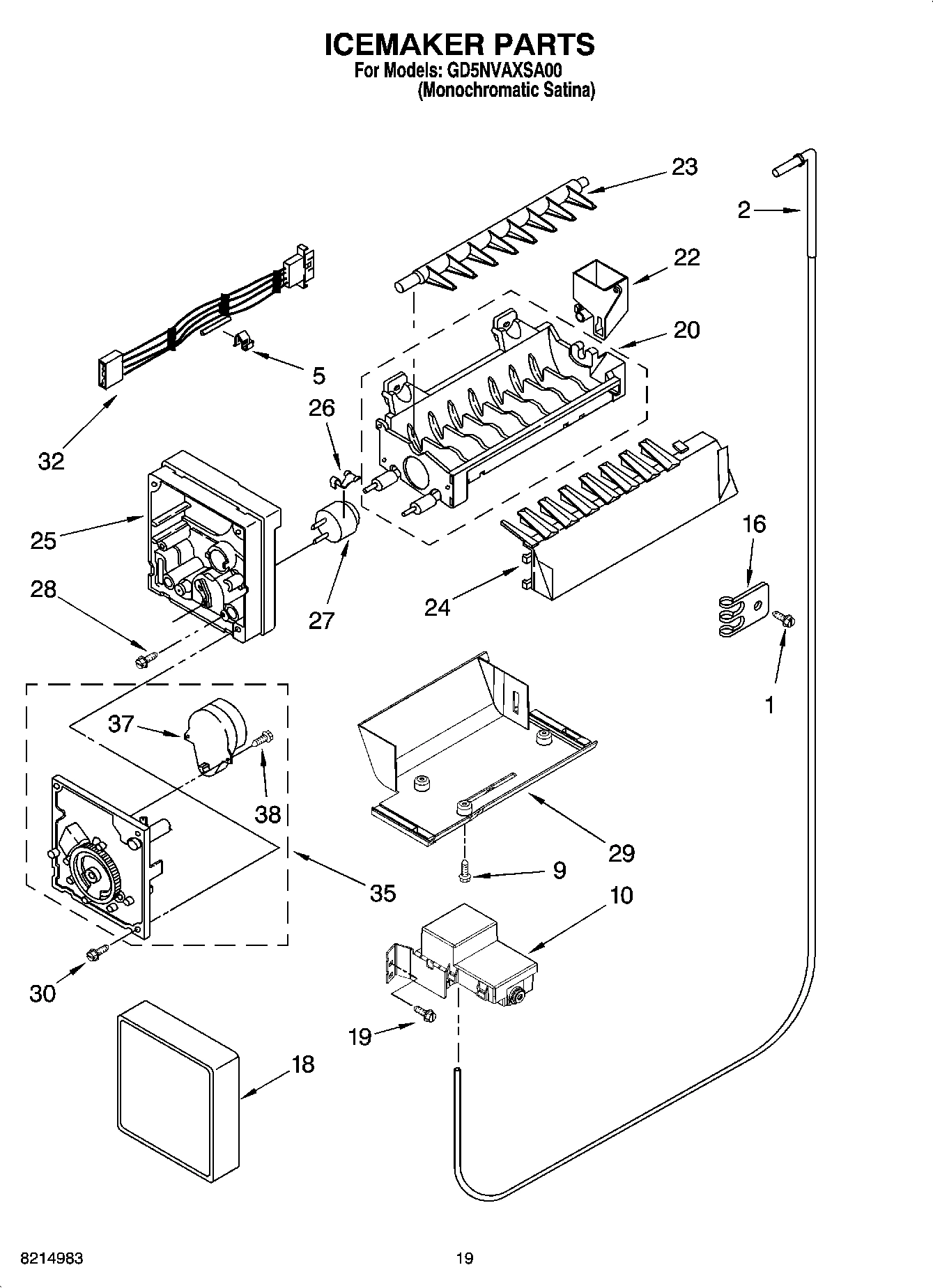

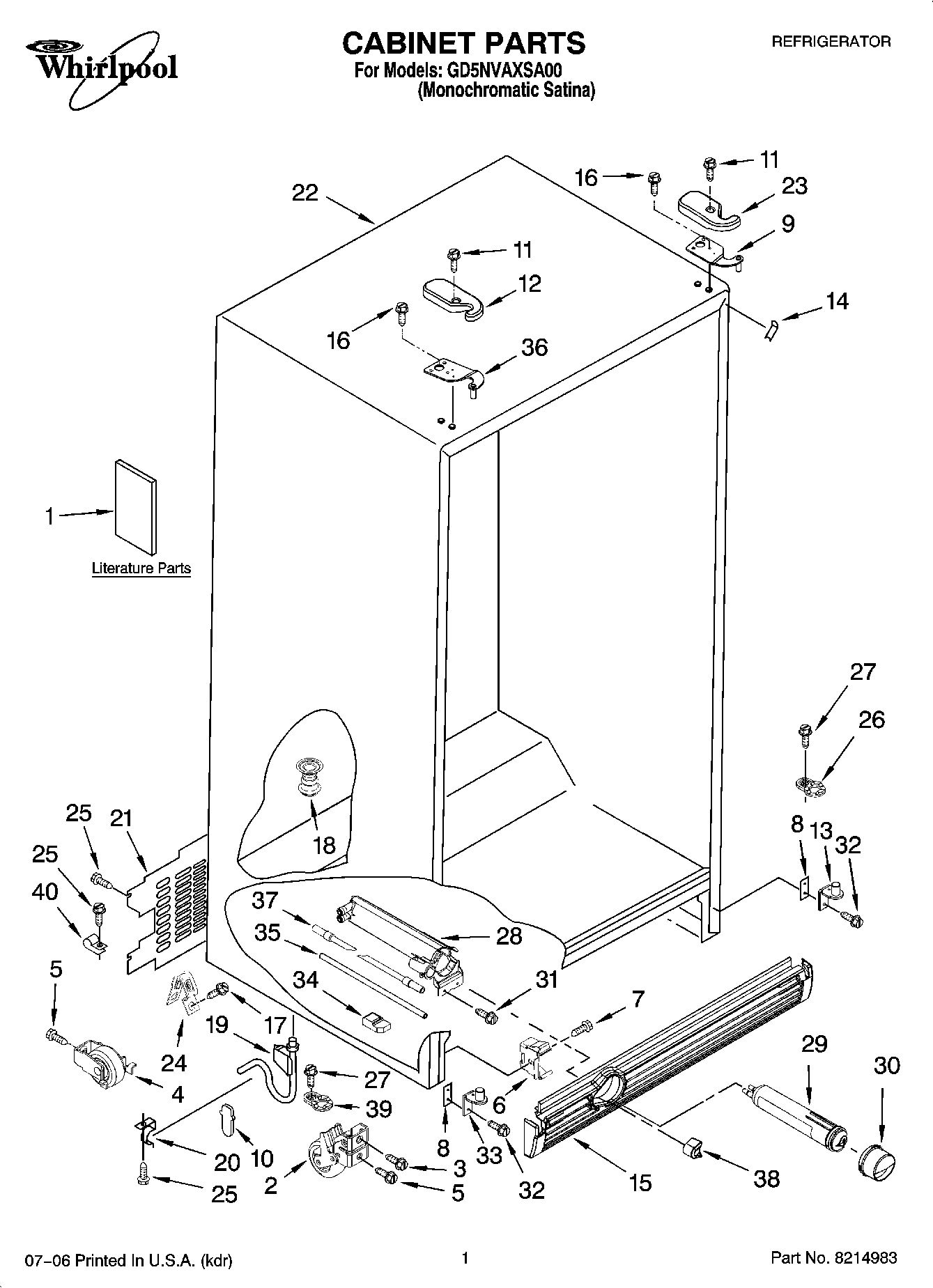

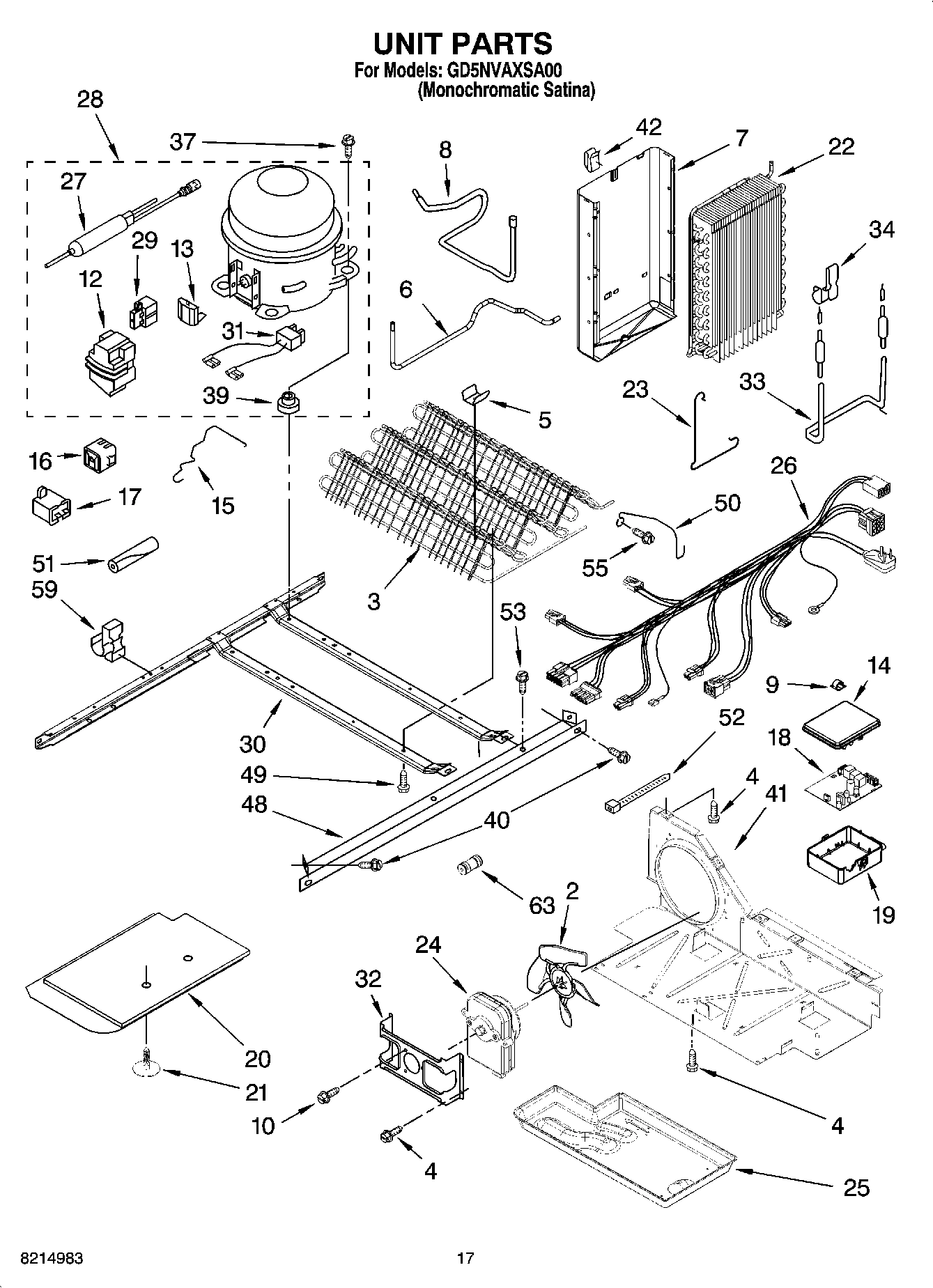

Model Whirlpool GD5NVAXSA00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Gra WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL ARI63099A1 WPL ARI63099A1 Contact Us For Availability

WPL ARI63100A7 WPL ARI63100A7 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Frame Assembly (2) WPL 2223517 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Monochro WPL 2319730LA Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI63093A1 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

Dairy Door WPL 2255421 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2305206 Contact Us For Availability

2

Snack Bin Asm WPL 2223261 Contact Us For Availability

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Cover, Crisper (Includes 11 & 12) WPL 2223307 Contact Us For Availability

3

Door Bin (3) WPL 2223239K Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $31.92

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer, Auger WPL 2258220 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $47.71

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

Electronic Control WPL 2304103 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

7

WP2318736 Whirlpool Refrigerator Door Trim Backorder WPL WP2318736 $43.57

7

Glass, Cover WPL 2223591 Contact Us For Availability

8

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2223242 Whirlpool Refrigerator Cover In Stock WPL WP2223242 $209.82

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Handle (Universal Silver) WPL 2319729S Contact Us For Availability

9

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Ladder WPL 2319866 Contact Us For Availability

9

Grille, Slide (Apollo Gray) WPL 2305413AP Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $51.17

WPW10159839 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10159839 $167.30

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $152.60

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $30.25

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Separator Assembly (Universal Silver) WPL 2305460US Contact Us For Availability

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $76.51

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $206.48

Knob, Humidity Control WPL 2223309 Contact Us For Availability

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Ferrite Bead WPL 2308165 Contact Us For Availability

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Meat Pan Assembly WPL 2223243 Contact Us For Availability

15

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

15

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Door Compartment WPL 2255420 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Cover, Evaporator (Includes 9) WPL 2206314 Contact Us For Availability

Frame, Can Rack WPL 2255422 Contact Us For Availability

Pad, Ice & Water (For Monochromatic Satina Mo WPL 2305247MG Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Cover Assembly, Electronic Control WPL 2304170 Contact Us For Availability

Air Diffuser Asm WPL 2255424 Contact Us For Availability

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $62.77

Control Box WPL 2255623 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI63094A1 Contact Us For Availability

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Nameplate WPL 2220214 Contact Us For Availability

LED Assembly WPL 2317205 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Floor, Can Rack WPL 2255423 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI63095A2 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

Tray, Housing (Universal Silver) WPL 2305408US Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2305422US Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $41.94

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Holder WPL 2212369 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Wire Assembly, User Interface WPL 2187814 Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

27

Knob, FC WPL 2255992 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

30

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $21.77

30

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $92.73

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $121.47

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

33

2303141 Whirlpool Refrigerator Door Hinge Backorder WPL 2303141 $126.31

33

Bracket, Motor WPL 2305208 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Block, Housing Support WPL 2260519 Contact Us For Availability

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $41.91

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

Tube, Filter Inlet WPL 2305220 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Button, Water Filter (Apollo Gray) WPL 2260503AP Contact Us For Availability

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability

40

Clamp, Cord WPL 2305373 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51
