Model GE GCE23LBYBFSS Refrigerator – Common Parts & Diagrams
EVAPORATOR INSTRUCTIONS
FREEZER DOOR

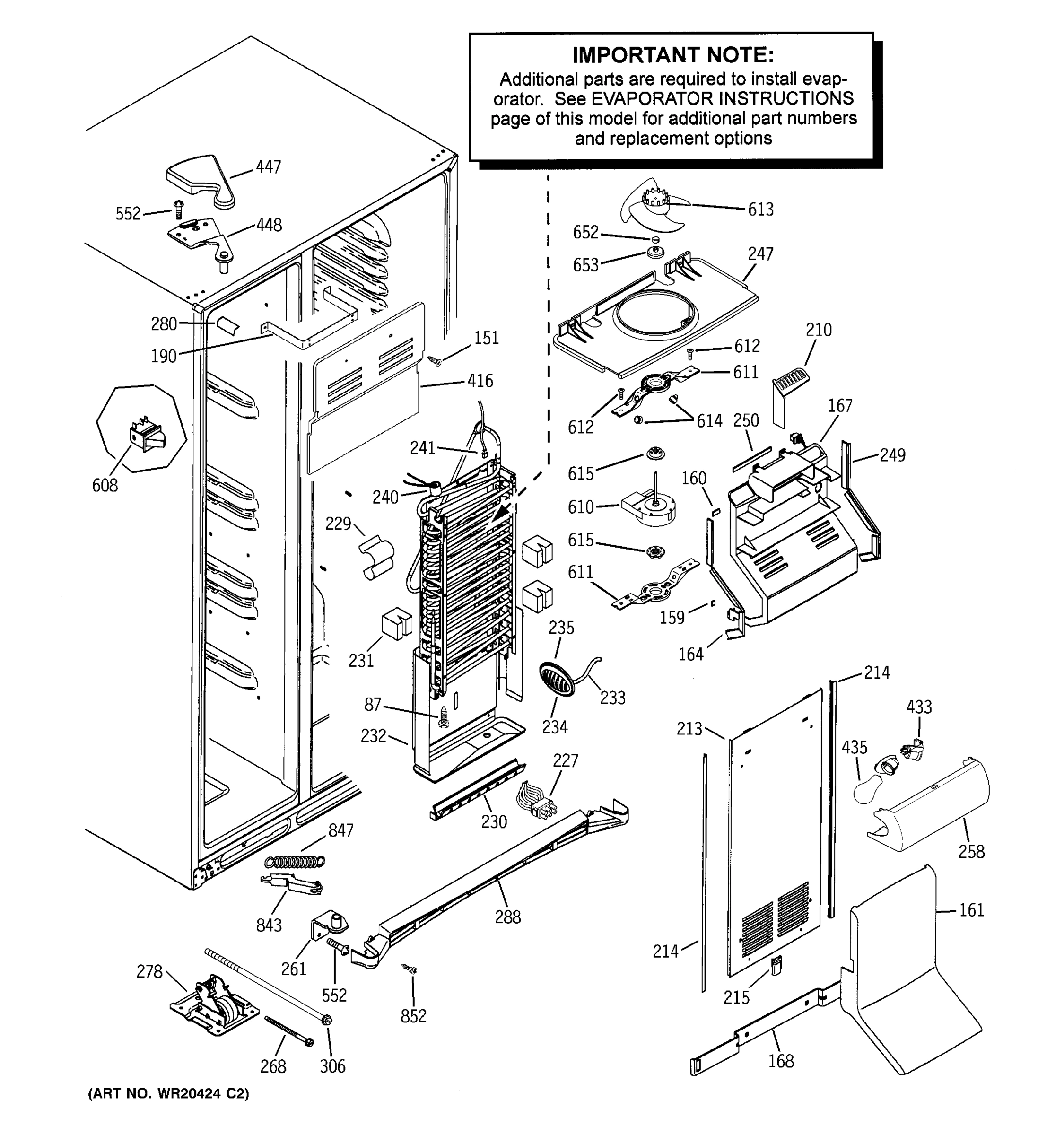

FREEZER SECTION

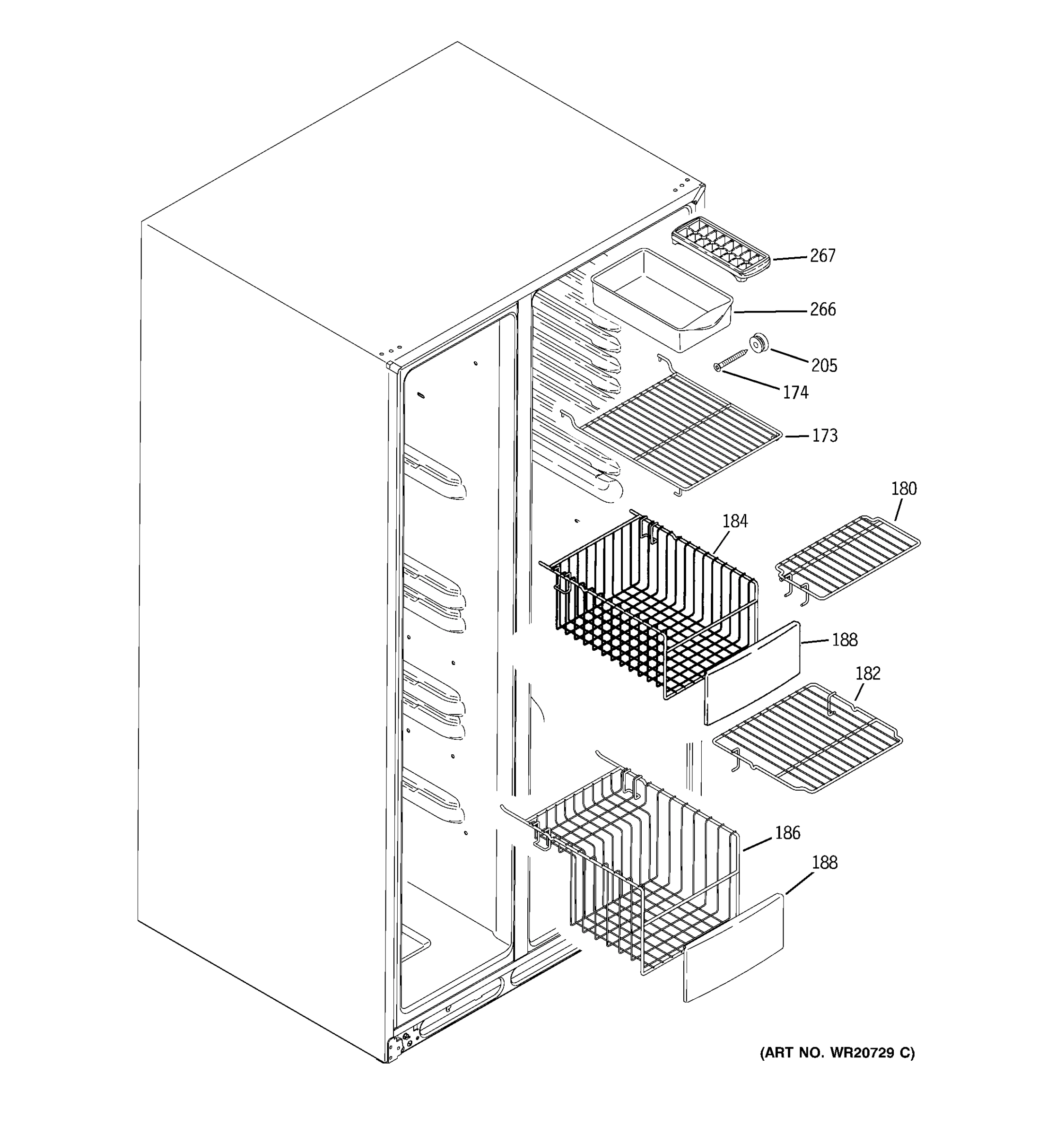

FREEZER SHELVES

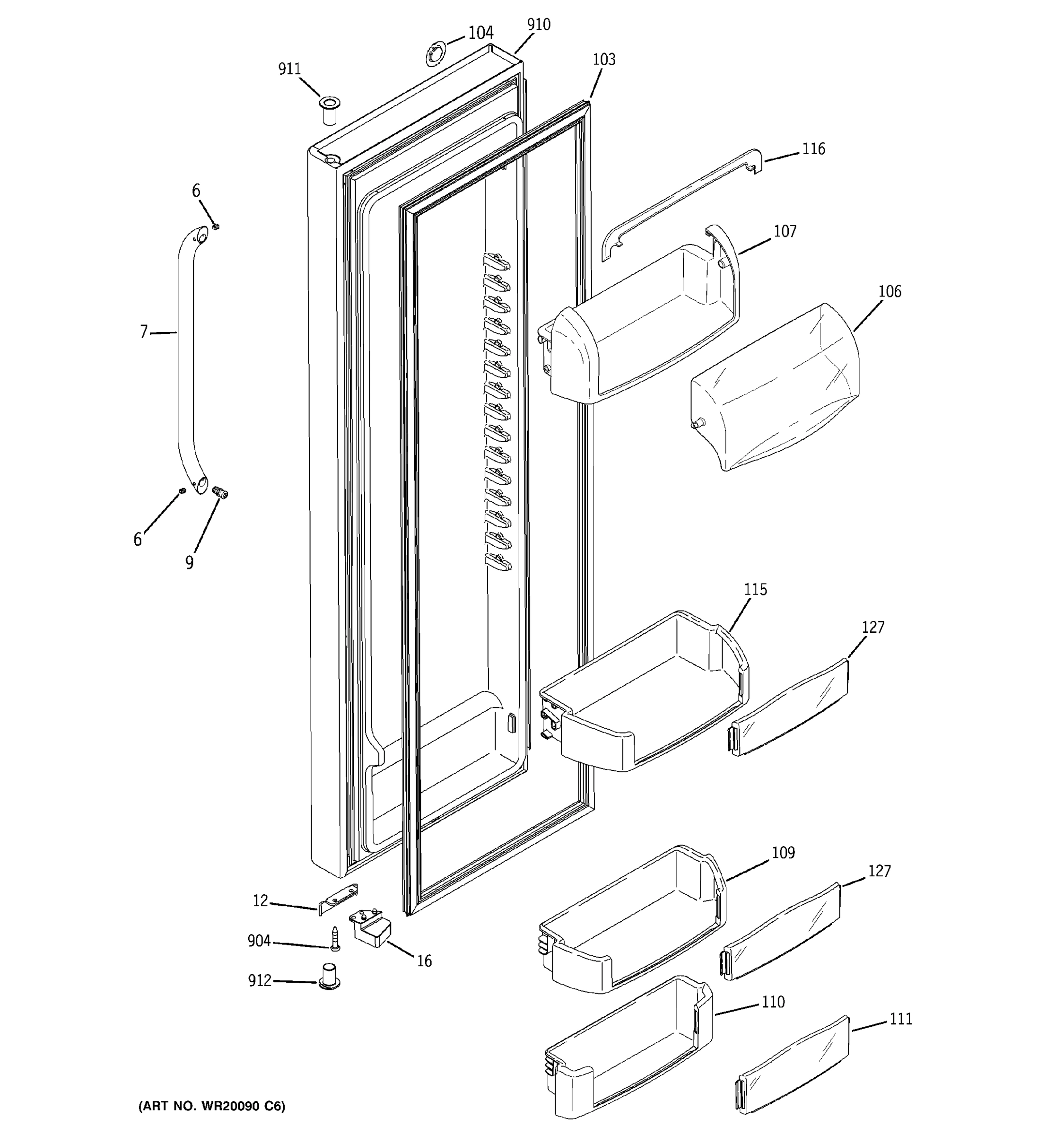

FRESH FOOD DOOR

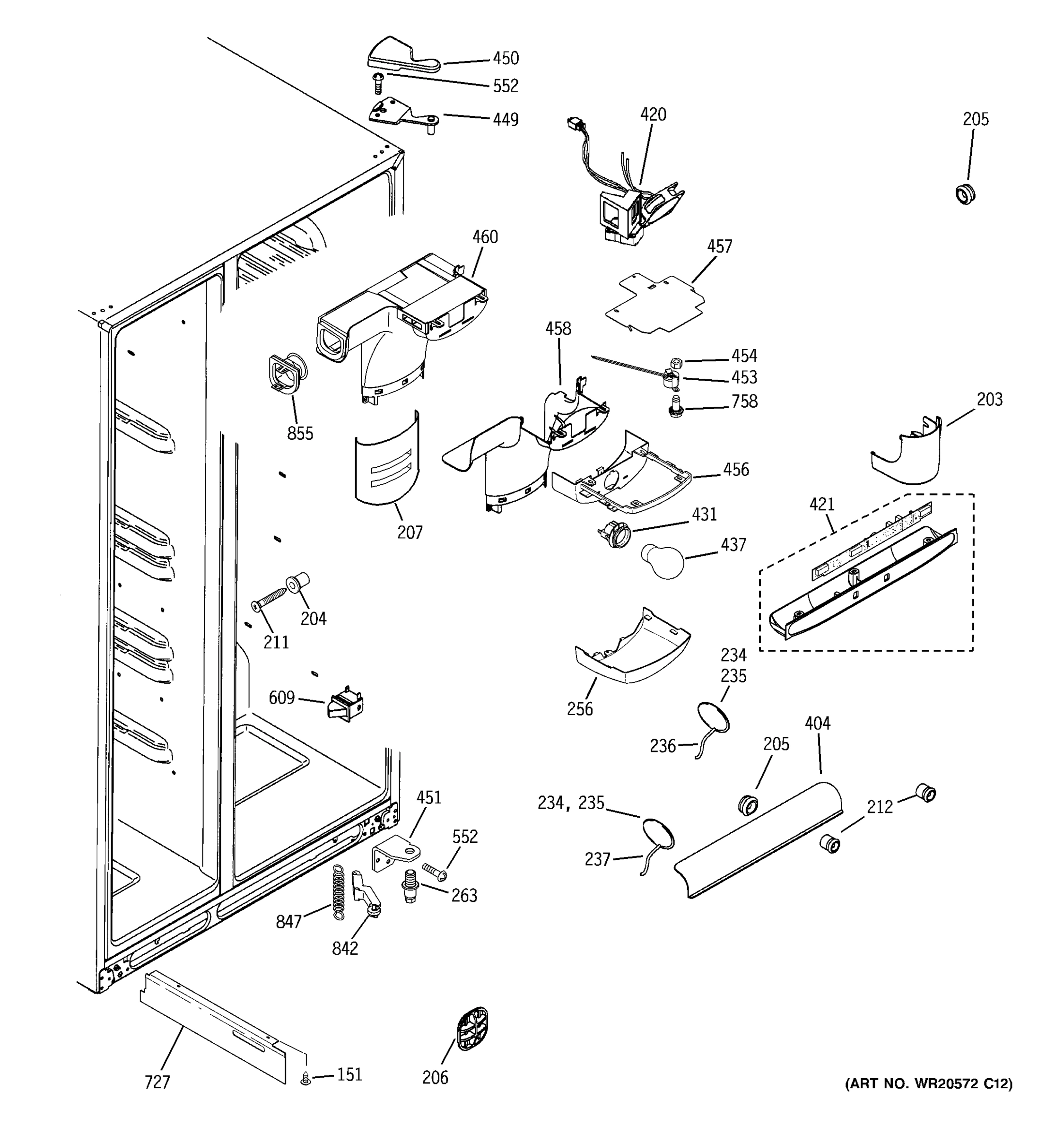

FRESH FOOD SECTION

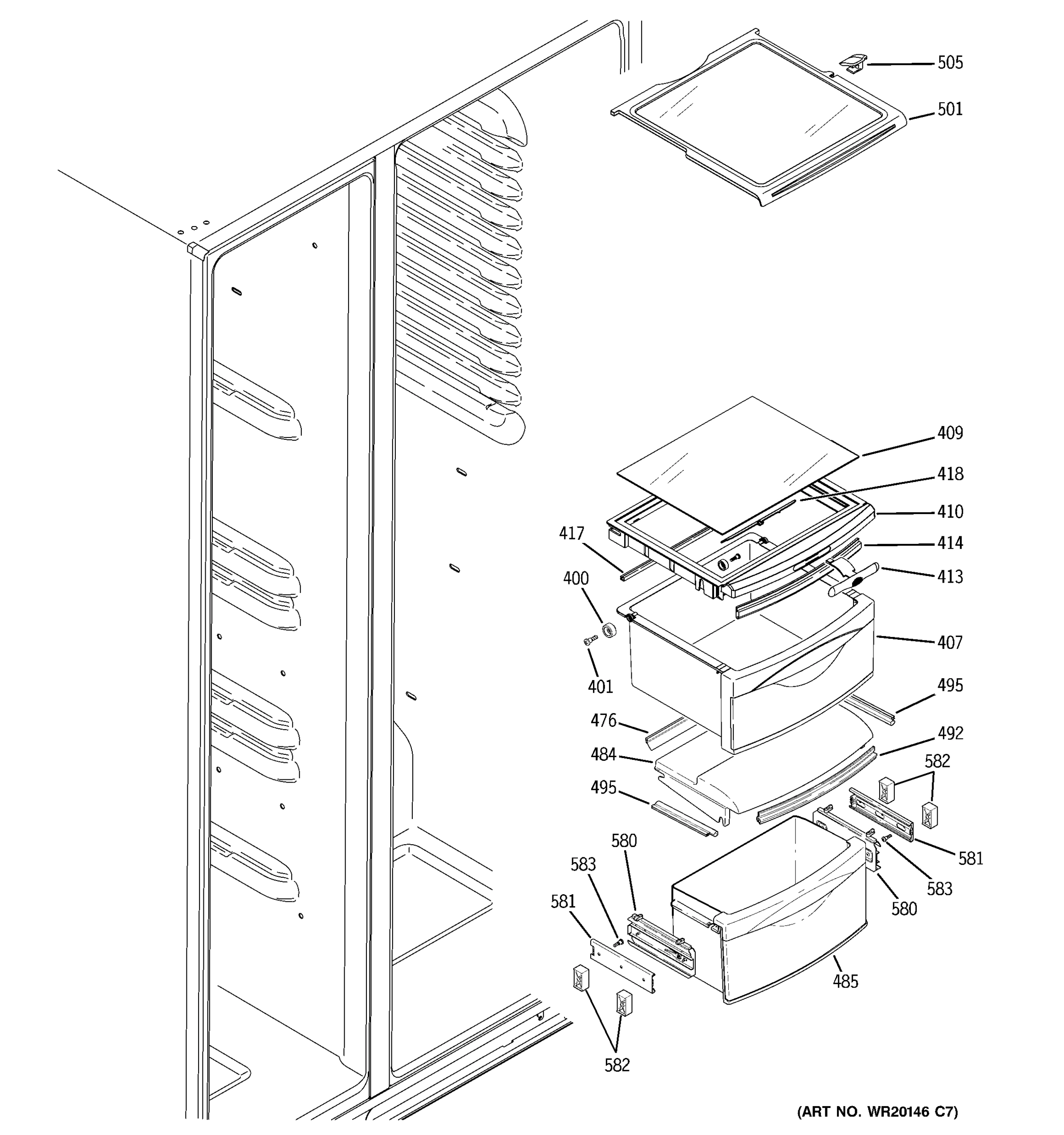

FRESH FOOD SHELVES

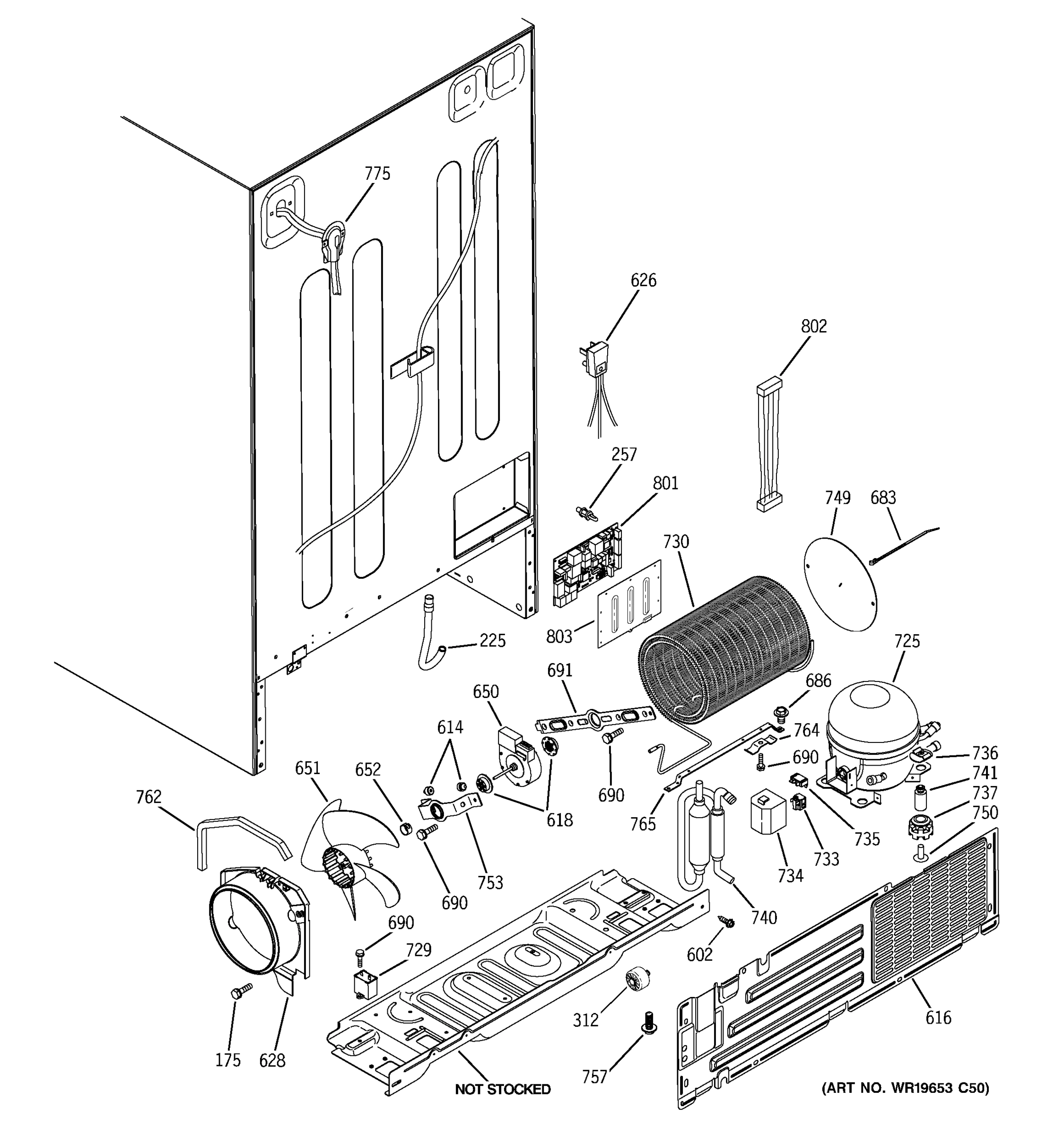

SEALED SYSTEM & MOTHER BOARD
Common parts from model GE GCE23LBYBFSS Refrigerator
6
GEN WR01X10450 GEN WR01X10450 Contact Us For Availability
7
GEN WR12X10855 GEN WR12X10855 Contact Us For Availability
9
GEN WR02X12800 GEN WR02X12800 Contact Us For Availability
14
GEN WR24X10234 GEN WR24X10234 Contact Us For Availability
15
GEN WR02X10780 GEN WR02X10780 Contact Us For Availability
16
GEN WR02X10779 GEN WR02X10779 Contact Us For Availability
103
GEN WR24X10235 GEN WR24X10235 Contact Us For Availability
104
GEN WR04X10168 GEN WR04X10168 Contact Us For Availability
106
GEN WR22X10042 GEN WR22X10042 Contact Us For Availability
107
GEN WR22X10041 GEN WR22X10041 Contact Us For Availability
110
GEN WR71X10297 GEN WR71X10297 Contact Us For Availability
111
GEN WR71X10579 GEN WR71X10579 Contact Us For Availability
116
GEN WR22X10043 GEN WR22X10043 Contact Us For Availability
127
GEN WR71X10761 GEN WR71X10761 Contact Us For Availability
164
GEN WR14X10164 GEN WR14X10164 Contact Us For Availability
167
GEN WR17X11477 GEN WR17X11477 Contact Us For Availability
186
GEN WR21X10063 GEN WR21X10063 Contact Us For Availability
188
GEN WR12X10626 GEN WR12X10626 Contact Us For Availability
204
GEN WR02X12187 GEN WR02X12187 Contact Us For Availability
205
GEN WR02X10678 GEN WR02X10678 Contact Us For Availability
207
GEN WR17X10909 GEN WR17X10909 Contact Us For Availability
211
GEN WR01X10568 GEN WR01X10568 Contact Us For Availability
212
GEN WR02X10689 GEN WR02X10689 Contact Us For Availability
214
GEN WR14X10153 GEN WR14X10153 Contact Us For Availability
225
GEN WR02X11426 GEN WR02X11426 Contact Us For Availability
229
GEN WR02X10552 GEN WR02X10552 Contact Us For Availability
230
GEN WR51X10042 GEN WR51X10042 Contact Us For Availability
232
GEN WR17X10811 GEN WR17X10811 Contact Us For Availability
234
GEN WR02X10647 GEN WR02X10647 Contact Us For Availability
235
GEN WR02X10668 GEN WR02X10668 Contact Us For Availability
240
GEN WR50X10065 GEN WR50X10065 Contact Us For Availability
247
GEN WR17X12642 GEN WR17X12642 Contact Us For Availability
249
GEN WR14X10165 GEN WR14X10165 Contact Us For Availability
257
GEN WR02X10663 GEN WR02X10663 Contact Us For Availability
261
GEN WR13X10168 GEN WR13X10168 Contact Us For Availability
263
GEN WR02X12263 GEN WR02X12263 Contact Us For Availability
266
GEN WR30X10027 GEN WR30X10027 Contact Us For Availability
278
GEN WR02X12274 GEN WR02X12274 Contact Us For Availability
288
GEN WR74X10240 GEN WR74X10240 Contact Us For Availability
306
GEN WR02X12271 GEN WR02X12271 Contact Us For Availability
400
GEN WR01X10209 GEN WR01X10209 Contact Us For Availability
409
GEN WR32X10200 GEN WR32X10200 Contact Us For Availability
414
GEN WR14X10059 GEN WR14X10059 Contact Us For Availability
416
GEN WR17X11652 GEN WR17X11652 Contact Us For Availability
417
GEN WR14X10058 GEN WR14X10058 Contact Us For Availability
418
GEN WR02X10633 GEN WR02X10633 Contact Us For Availability
435
GEN WR02X12207 GEN WR02X12207 Contact Us For Availability
448
GEN WR13X10214 GEN WR13X10214 Contact Us For Availability
449
GEN WR13X10215 GEN WR13X10215 Contact Us For Availability
451
GEN WR13X10167 GEN WR13X10167 Contact Us For Availability
453
GEN WR23X10493 GEN WR23X10493 Contact Us For Availability
476
GEN WR14X10169 GEN WR14X10169 Contact Us For Availability
484
GEN WR32X10446 GEN WR32X10446 Contact Us For Availability
492
GEN WR14X10105 GEN WR14X10105 Contact Us For Availability
495
GEN WR14X10159 GEN WR14X10159 Contact Us For Availability
505
GEN WR02X10662 GEN WR02X10662 Contact Us For Availability
552
GEN WR01X10792 GEN WR01X10792 Contact Us For Availability
580
GEN WR72X10194 GEN WR72X10194 Contact Us For Availability
580
GEN WR72X10193 GEN WR72X10193 Contact Us For Availability
581
GEN WR72X10195 GEN WR72X10195 Contact Us For Availability
582
GEN WR72X10239 GEN WR72X10239 Contact Us For Availability
611
GEN WR17X12635 GEN WR17X12635 Contact Us For Availability
612
GEN WR01X10621 GEN WR01X10621 Contact Us For Availability
614
GEN WR02X10540 GEN WR02X10540 Contact Us For Availability
618
GEN WR02X11331 GEN WR02X11331 Contact Us For Availability
626
GEN WR23X10468 GEN WR23X10468 Contact Us For Availability
628
GEN WR17X12668 GEN WR17X12668 Contact Us For Availability
652
GEN WR02X12149 GEN WR02X12149 Contact Us For Availability
653
GEN WR02X10322 GEN WR02X10322 Contact Us For Availability
729
GEN WR62X10013 GEN WR62X10013 Contact Us For Availability
730
CONDENSER ASM GEN WR84X10022 Contact Us For Availability
757
GEN WR01X10622 GEN WR01X10622 Contact Us For Availability
762
GEN WR14X10053 GEN WR14X10053 Contact Us For Availability
803
GEN WR02X12025 GEN WR02X12025 Contact Us For Availability
842
GEN WR11X10009 GEN WR11X10009 Contact Us For Availability
843
GEN WR11X10010 GEN WR11X10010 Contact Us For Availability
852
GEN WR01X10858 GEN WR01X10858 Contact Us For Availability
855
GEN WR02X13091 GEN WR02X13091 Contact Us For Availability
903
GEN WR01X10234 GEN WR01X10234 Contact Us For Availability
912
GEN WR01X10232 GEN WR01X10232 Contact Us For Availability
× ![]()
