Model Whirlpool GC5SHGXKQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

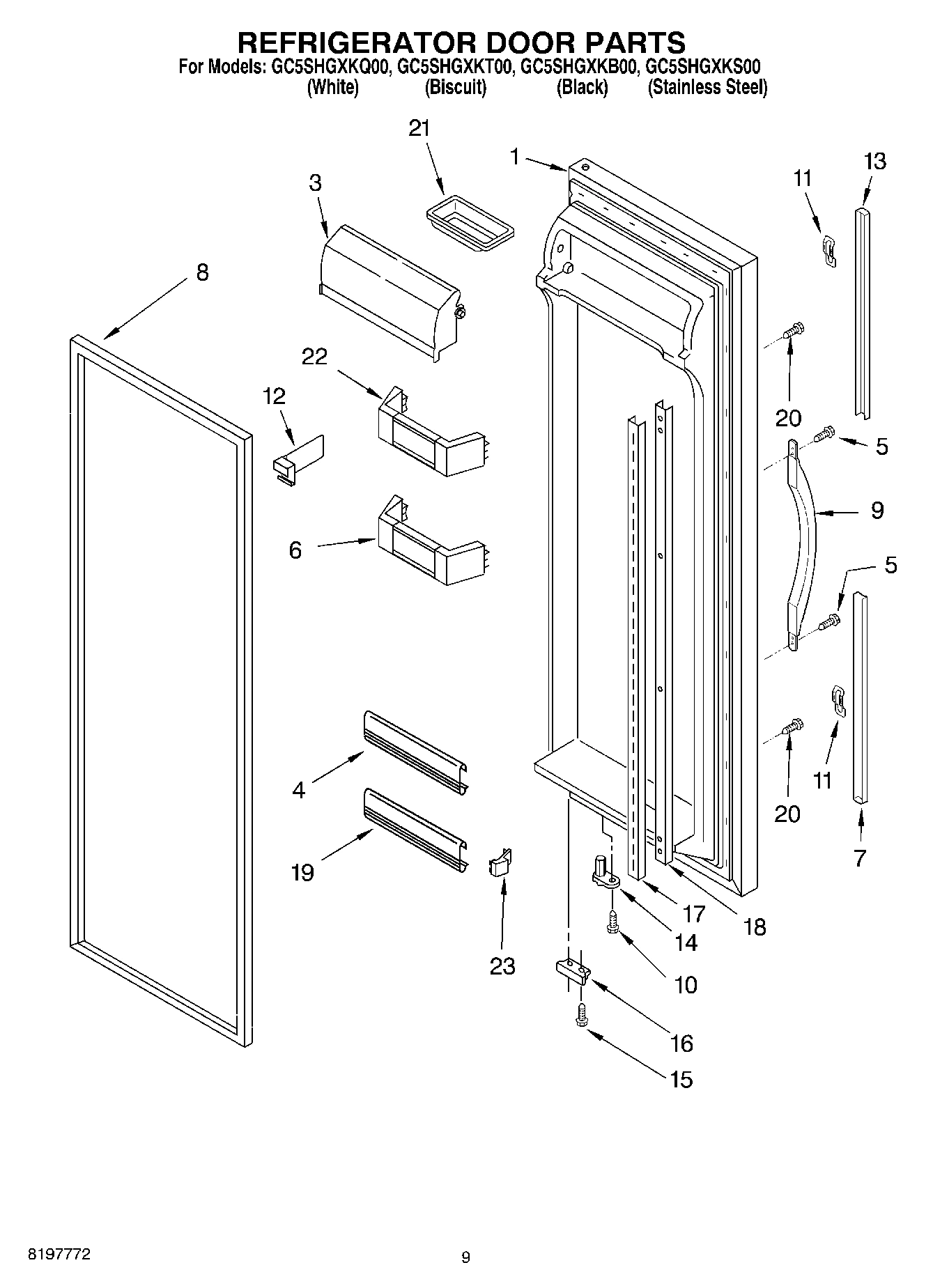

Refrigerator Door (Includes Item 8) (Black) WPL 2210773B Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Biscuit) WPL 2210773T Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (White) WPL 2210773W Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Stainles WPL 2214462S Contact Us For Availability

1

Overlay WPL 2203081 Contact Us For Availability

1

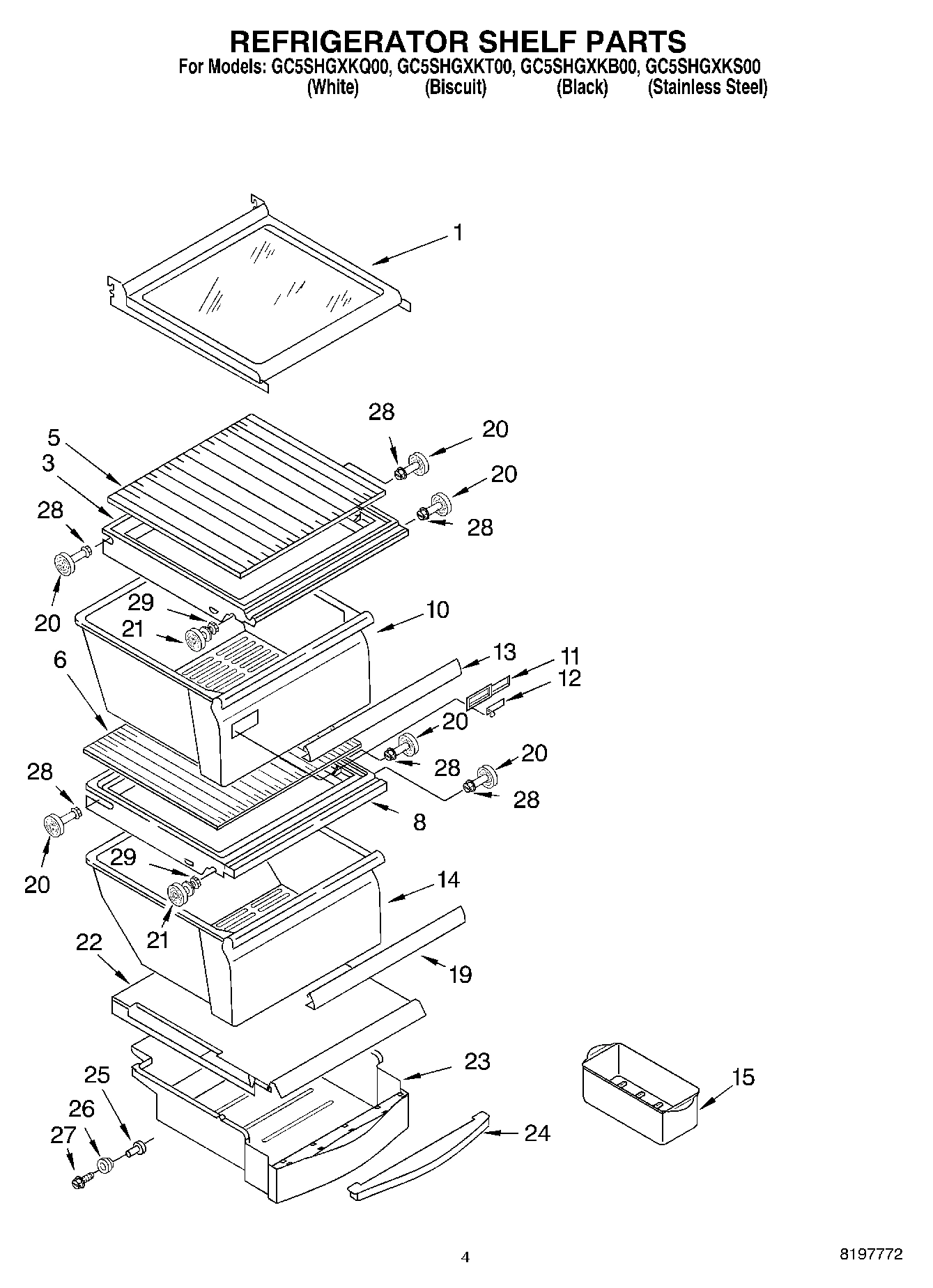

Shelf Assembly Spillguard (3) WPL 2203053 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI60928A8 Contact Us For Availability

1

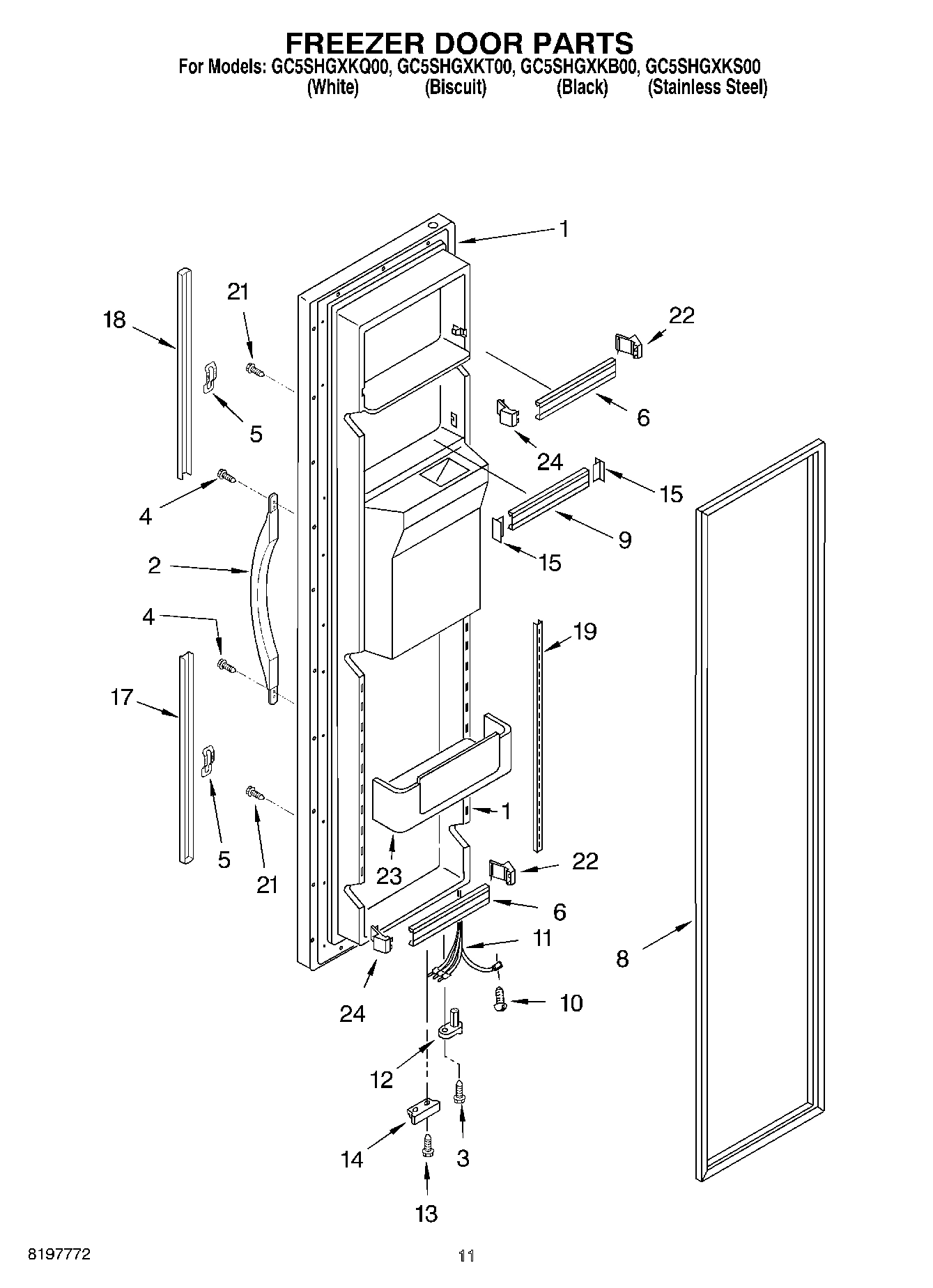

Freezer Door (Includes Item 8 And Dispenser F WPL 2210779B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2210779T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2210779W Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2214464S Contact Us For Availability

2

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Clip, Thermistor WPL 2209204 Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

2

Retainer, Circuit Board WPL 2208141 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

Circuit Board, Interface WPL 2214765 Contact Us For Availability

3

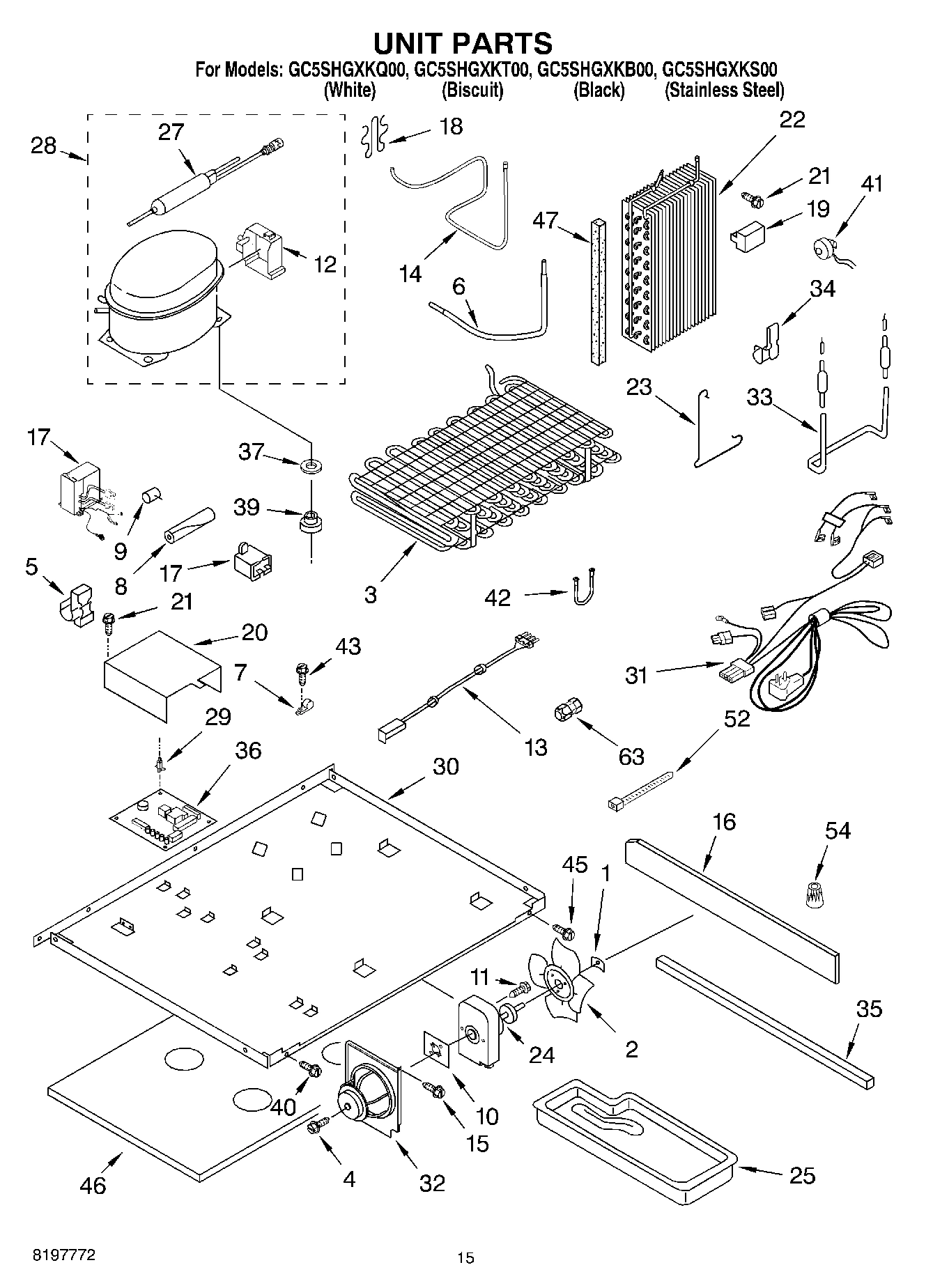

Condenser Assembly WPL 2205983 Contact Us For Availability

3

Air Scoop WPL 2210746 Contact Us For Availability

4

WP2256010 Whirlpool Door Shelf Trim Backorder WPL WP2256010 $34.66

4

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

4

Control Box WPL 2199717 Contact Us For Availability

4

Block, Fan Scroll WPL 2208184 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Eyelet, Roller WPL 2174478 Contact Us For Availability

5

Light Lens WPL 2203108 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

5

Air Baffle WPL 2220782 Contact Us For Availability

5

Air Duct Freezer WPL 2199931 Contact Us For Availability

6

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

6

WP2257017 Whirlpool Refrigerator Cantilever B Backorder WPL WP2257017 $72.36

6

Clip, Grille WPL 2209558 Contact Us For Availability

6

Tube, Condenser to Heat Loop WPL 2214366 Contact Us For Availability

6

Trim, Door Shelf WPL 2199990 Contact Us For Availability

7

8201589 Whirlpool Refrigerator Evaporator Mot In Stock WPL 8201589 $146.85

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

8

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Door Gasket, Magnetic (Service) (Mist Beige) WPL 2209561 Contact Us For Availability

8

Door Gasket, Magnetic (Service) (Black) WPL 2209563 Contact Us For Availability

8

Door Gasket, Magnetic (Service) (Mist Beige) WPL 2209560 Contact Us For Availability

8

Door Gasket, Magnetic (Service) (Black) WPL 2209562 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

9

Grille, Overflow (White) WPL 2180241 Contact Us For Availability

9

Handle, Center (White) WPL 2186649W Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

9

Trim, Door Shelf WPL 2199991 Contact Us For Availability

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $49.98

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $70.03

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Bracket, Insert WPL 2210750 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Wiring Harness, Freezer Door WPL 2187667 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Divider, Bin WPL 2195497 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2214359 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Tube, Water Inlet WPL 2203024 Contact Us For Availability

Wire Assembly WPL 2187427 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $90.28

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bracket, Door Stop (Chrome) WPL 2210774 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2214451 Contact Us For Availability

Tube Suction WPL 2214365 Contact Us For Availability

15

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

15

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

Backorder WPL 2179404 $8.47

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

Extension, Air Baffle WPL 2203020 Contact Us For Availability

Gasket WPL 2210780 Contact Us For Availability

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $226.28

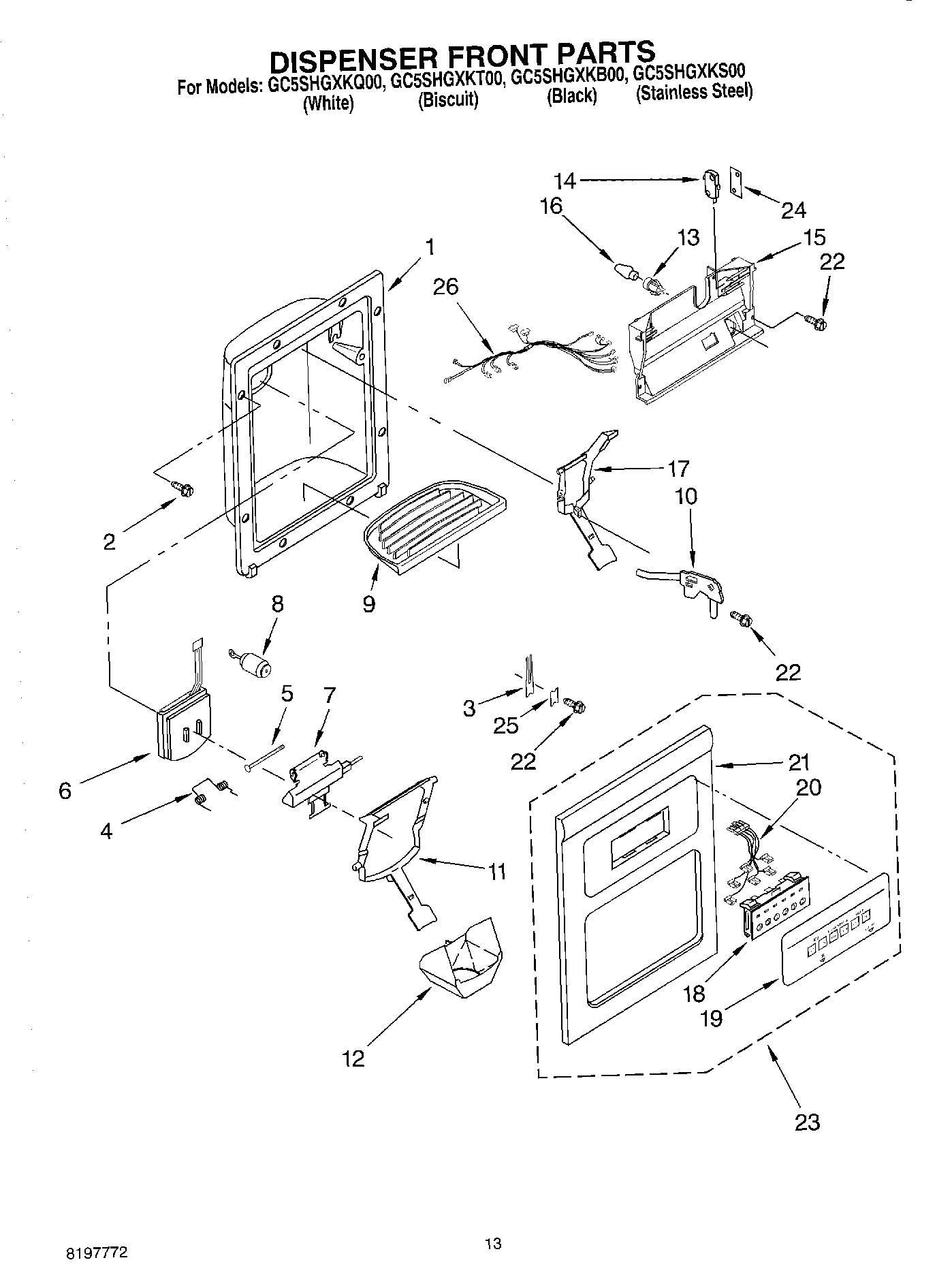

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Extension, Bottom (Black) WPL 2203086B Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2203086T Contact Us For Availability

Extension, Bottom (White) WPL 2203086W Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability

Cover, Evaporator WPL 2203122 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

Extension, Top (Black) WPL 2203085B Contact Us For Availability

Extension, Top (Biscuit) WPL 2203085T Contact Us For Availability

Extension, Top (White) WPL 2203085W Contact Us For Availability

Ladder, Shelf (2) WPL 1113949 Contact Us For Availability

Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Block, Evaporator WPL 2208183 Contact Us For Availability

Ladder, Shelf Assembly (2) WPL 2208147 Contact Us For Availability

Evaporator, Cover Rail (Right) WPL 2199922 Contact Us For Availability

Evaporator, Cover Rail (Left) WPL 2199923 Contact Us For Availability

20

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

20

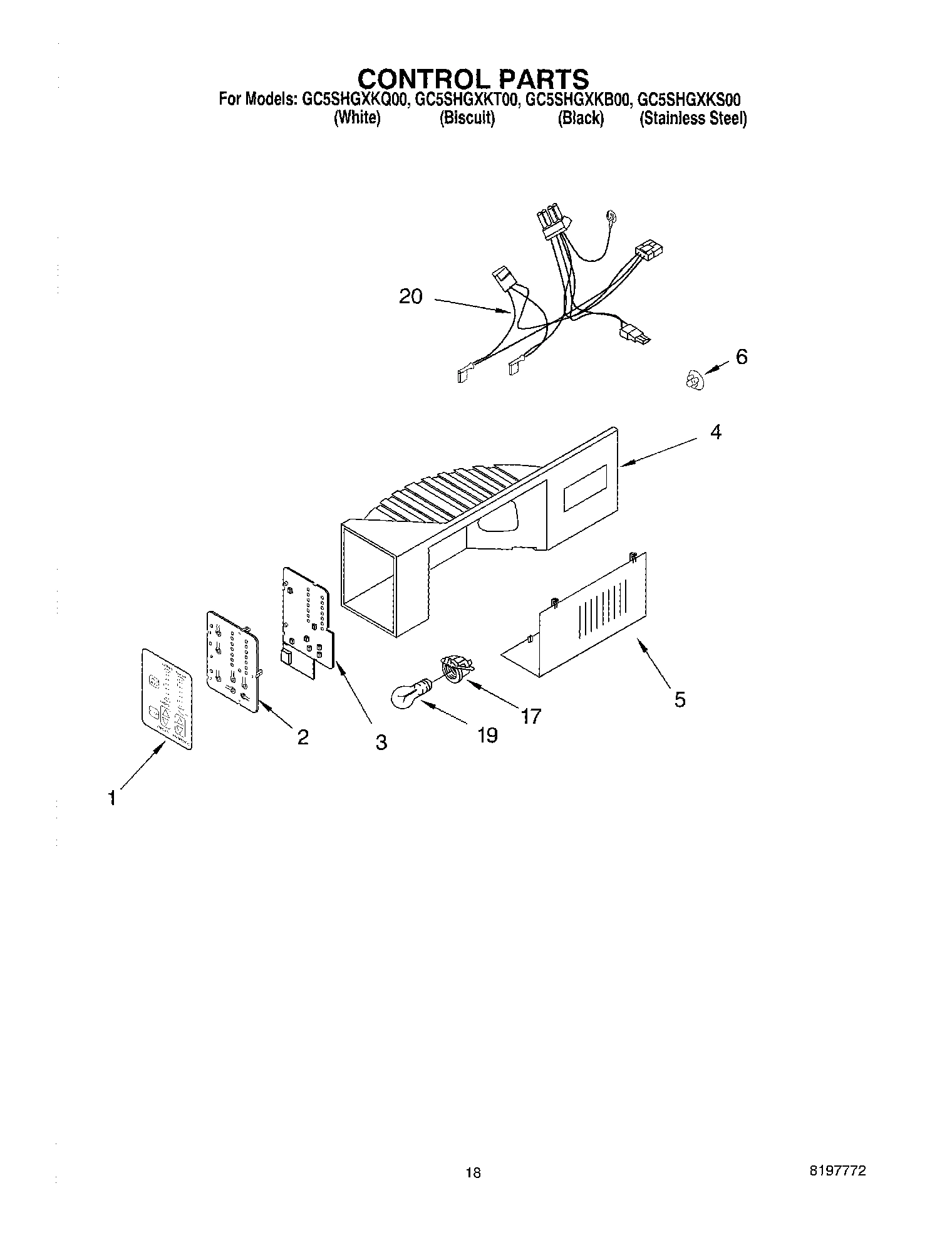

Control Box Harness WPL 2220781 Contact Us For Availability

20

Housing, Control Board WPL 2199929 Contact Us For Availability

21

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

21

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

21

Butter, Dish WPL 2165792 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

WPW10270150 Whirlpool Crisper Drawer Cover Backorder WPL WPW10270150 $211.76

Grille (Black) WPL 2199904B Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

Bin, Door (3) WPL 2199983 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Beverage Pan WPL 2203028 Contact Us For Availability

Bin, Door (2) WPL 2199992 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $165.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $6.79

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $108.46

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Handle, Beverage WPL 2203031 Contact Us For Availability

Air Diffuser Assembly WPL 2214367 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Roller WPL 2188212 Contact Us For Availability

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

28

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $319.55

28

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

Unit Mounting Plate WPL 2210728 Contact Us For Availability

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

Shelf WPL 2199861 Contact Us For Availability

Unit, Harness WPL 2187390 Contact Us For Availability

32

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

32

Fan, Motor Bracket WPL 2208157 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $63.40

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

Board, Control WPL 2221536 Contact Us For Availability

37

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

37

Washer WPL 680975 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

40

Screw WPL 3400515 Contact Us For Availability

41

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

42

Tube, Heat Loop WPL 2199806 Contact Us For Availability

43

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

45

Screw WPL 3400514 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

46

Insulation, Mounting Plate WPL 2214509 Contact Us For Availability

47

Side Support WPL 2203160 Contact Us For Availability

54

Wire Connector WPL 227991 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI60934A9 Contact Us For Availability

and Optional Parts Not Included WPL ARI60935A4 Contact Us For Availability

REFRIGERANT CHARGE 6.25 oz. (R-134A) WPL ARI60936A9 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
