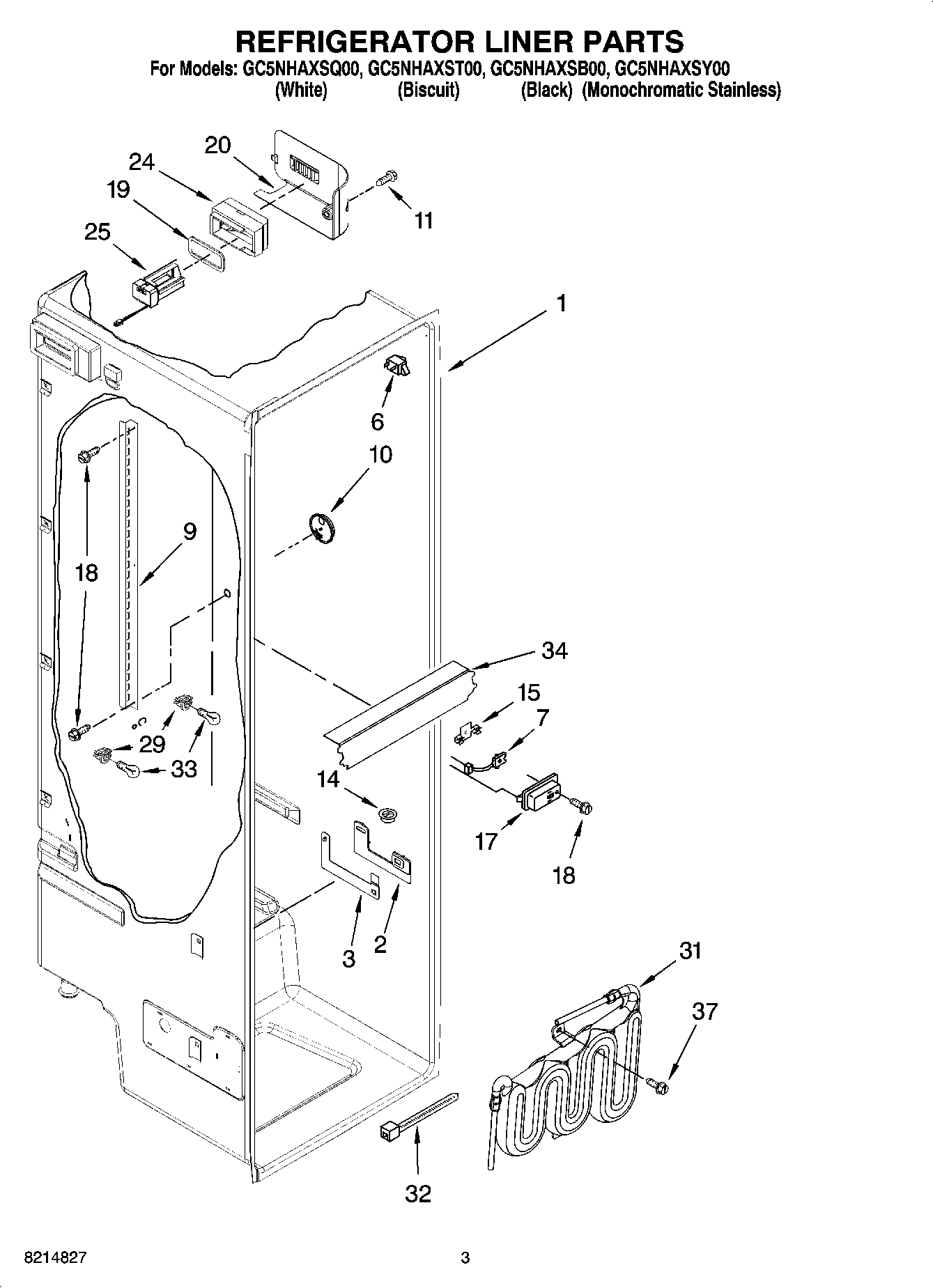

Model Whirlpool GC5NHAXSY00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

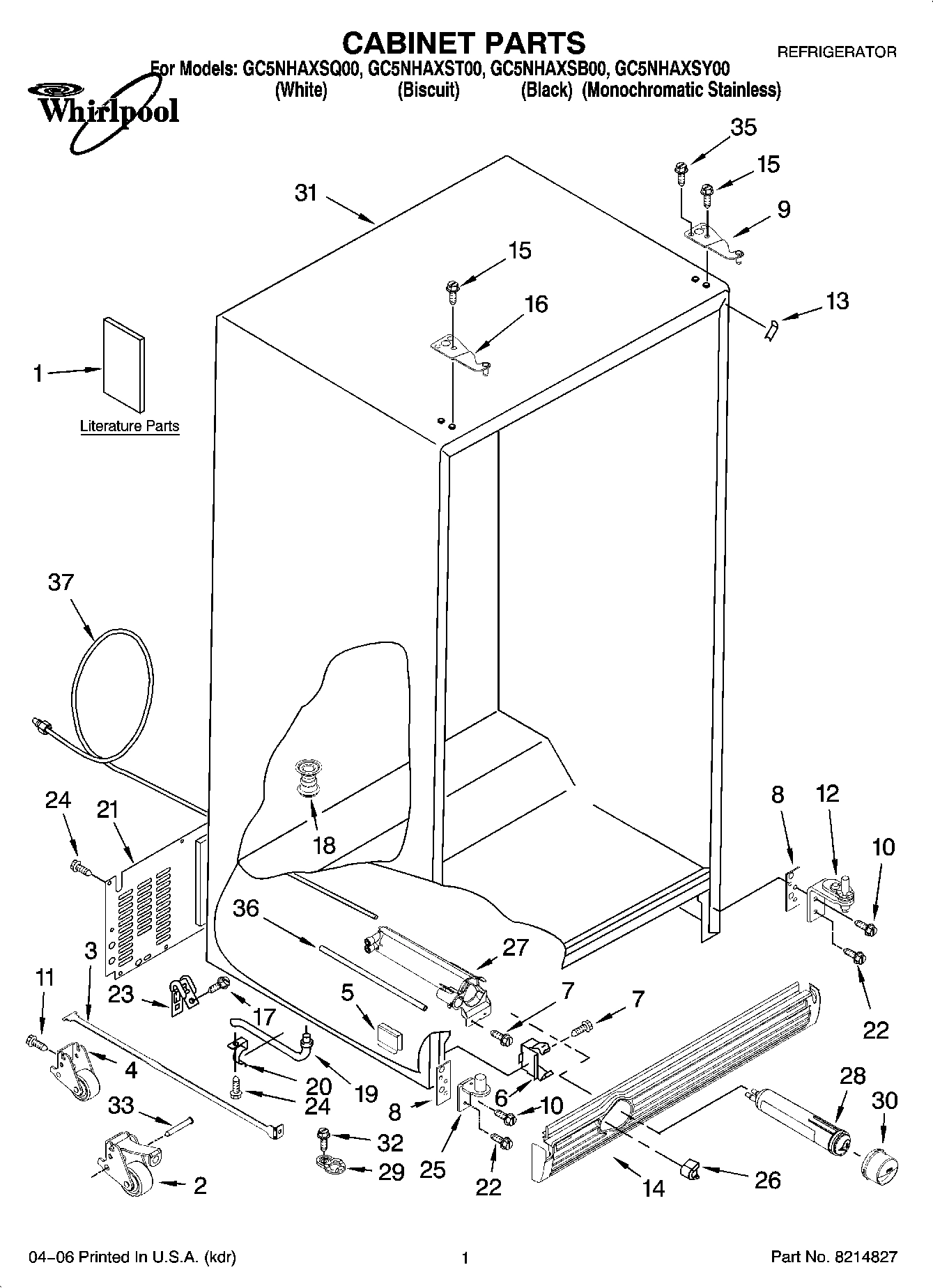

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

1

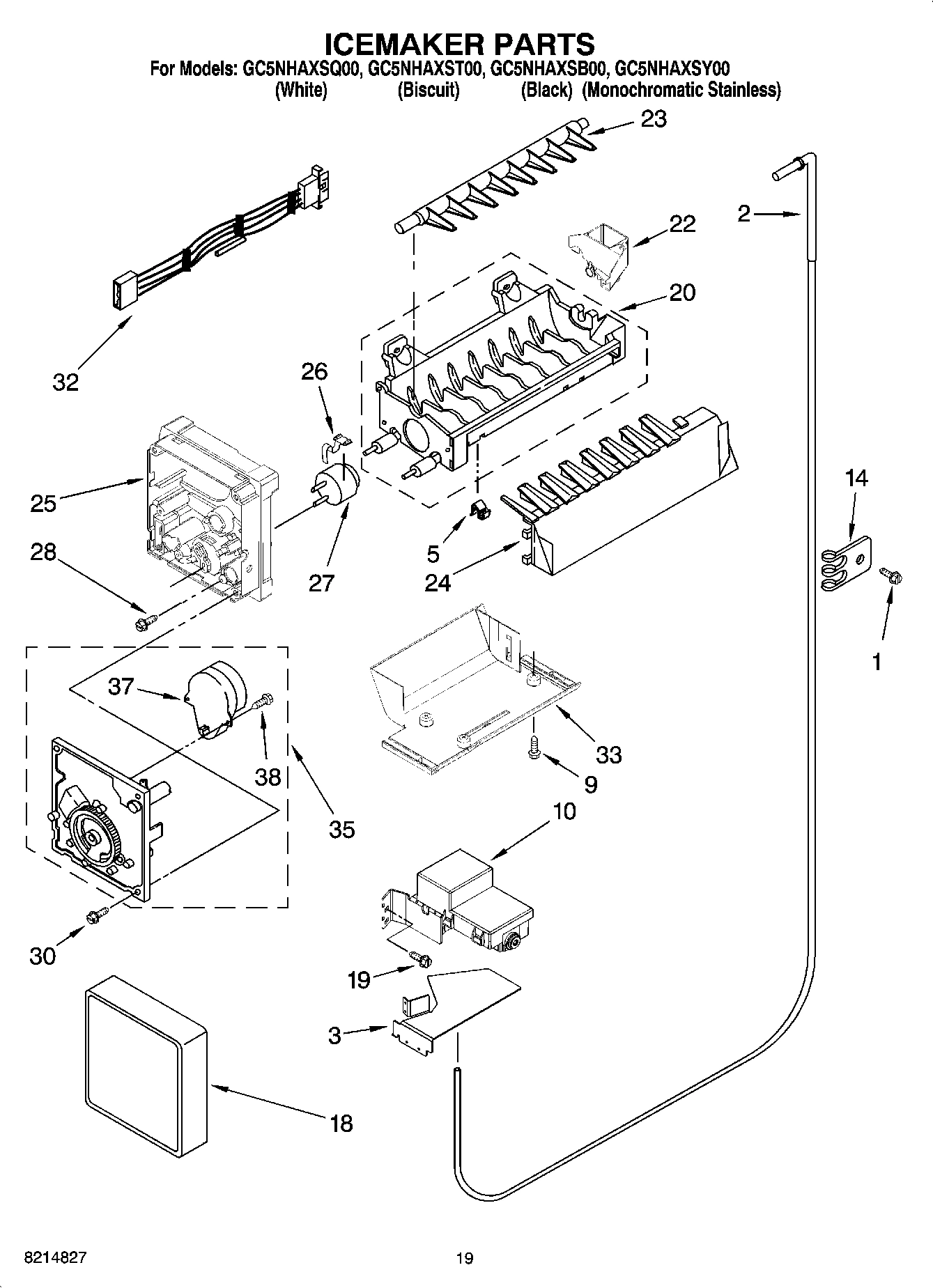

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Service Sheet WPL 2303906 Contact Us For Availability

1

Service Sheet WPL 2303910 Contact Us For Availability

1

Use & Care Guide WPL 2318508 Contact Us For Availability

1

Installation Instructions WPL 2318510 Contact Us For Availability

1

Energy Guide WPL 2318634 Contact Us For Availability

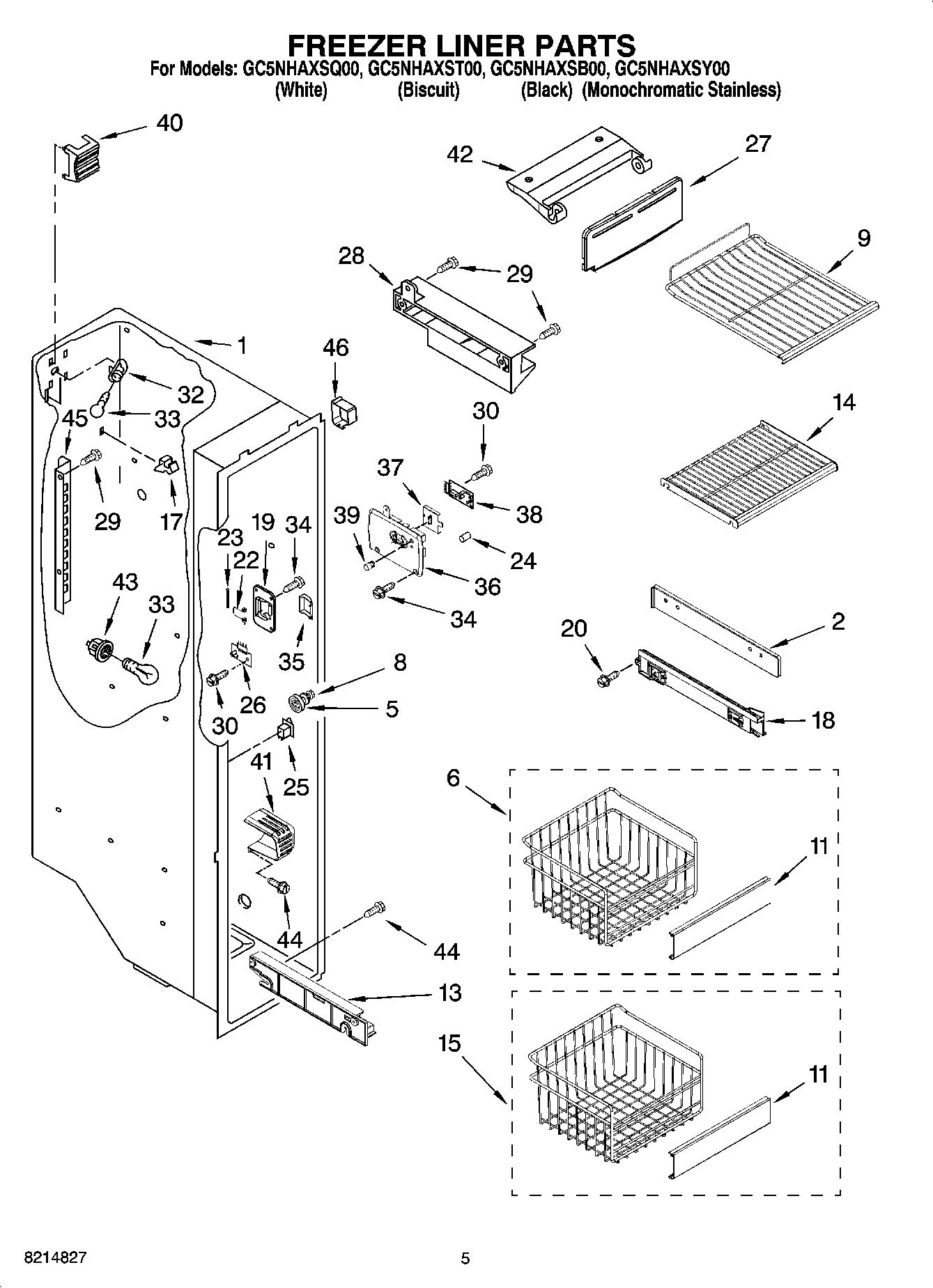

2

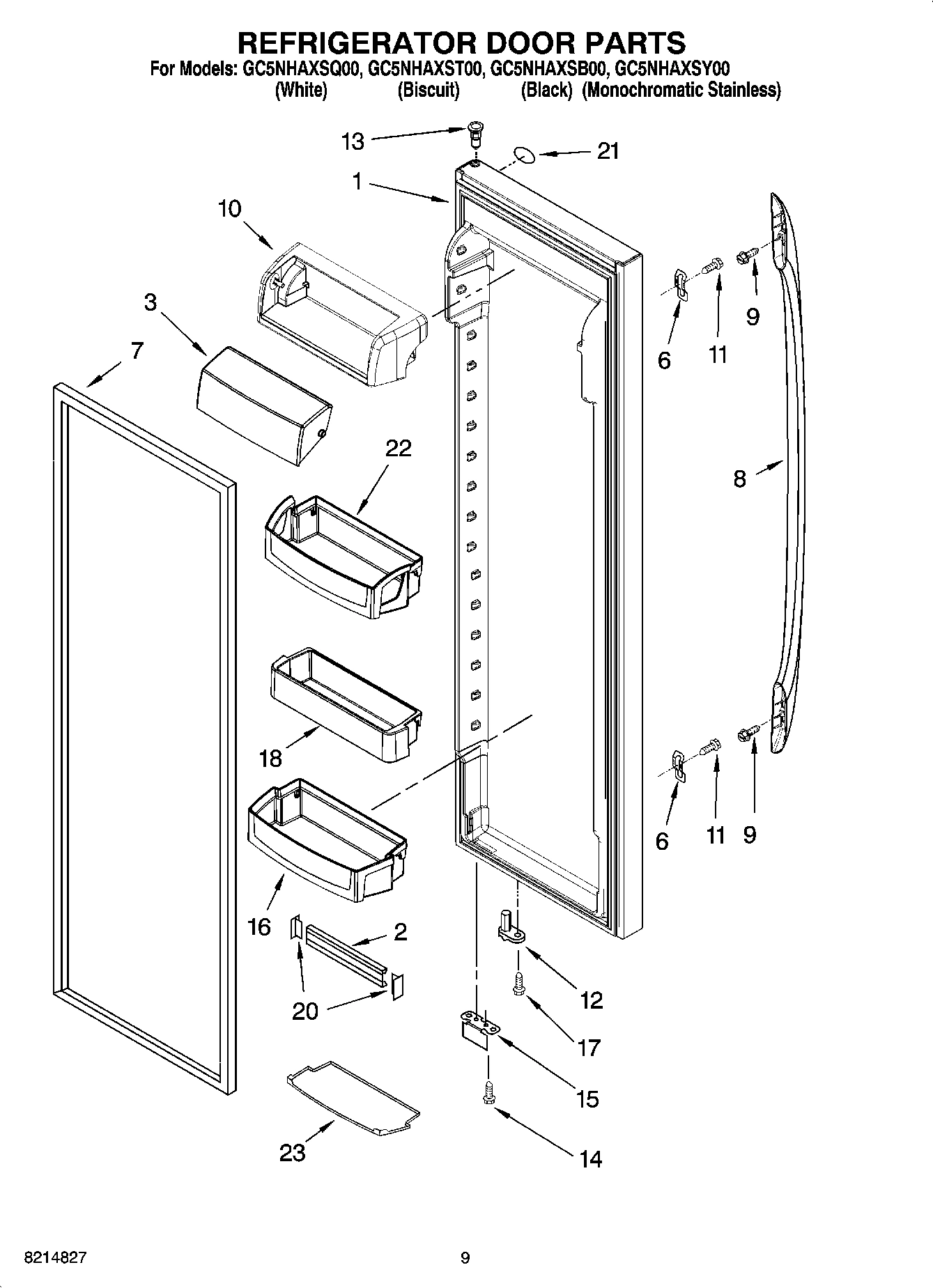

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $37.55

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

2

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

2

Crusher Bin WPL 2305206 Contact Us For Availability

2

Front Roller Asm (Left Side) WPL 2306950 Contact Us For Availability

2

Front Roller Asm (Right Side) WPL 2306951 Contact Us For Availability

2

Button, Humidity WPL 2223309 Contact Us For Availability

3

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $28.80

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $37.95

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Strap, Roller WPL 2223263 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $30.40

4

WPW10173132 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10173132 $26.44

4

Washer WPL 2258220 Contact Us For Availability

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $7.80

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

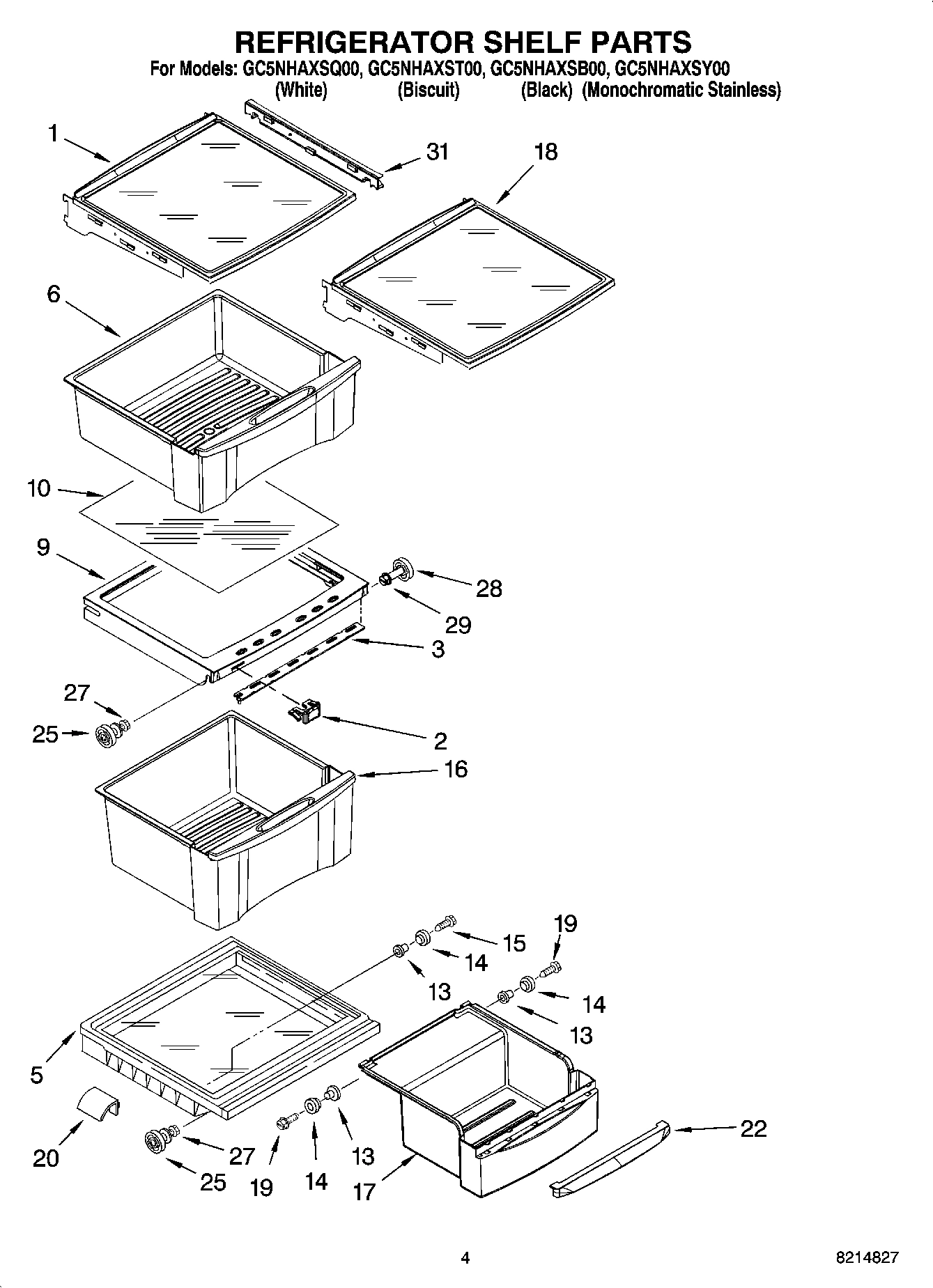

WPW10270150 Whirlpool Crisper Drawer Cover Backorder WPL WPW10270150 $211.76

5

Air Duct Freezer WPL 2223297 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

6

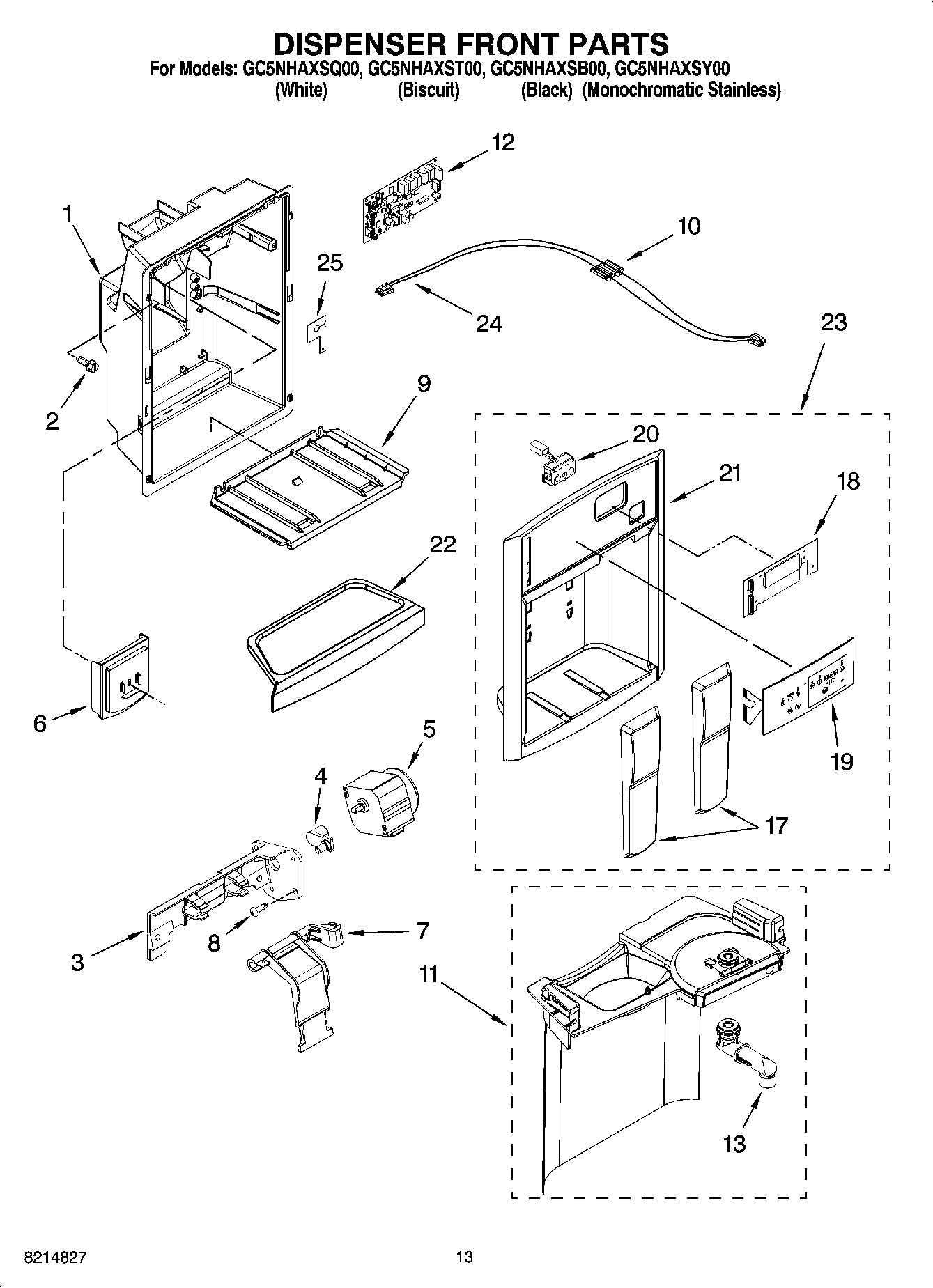

WP2305258 Whirlpool Dispenser Door Assembly Backorder WPL WP2305258 $7.69

6

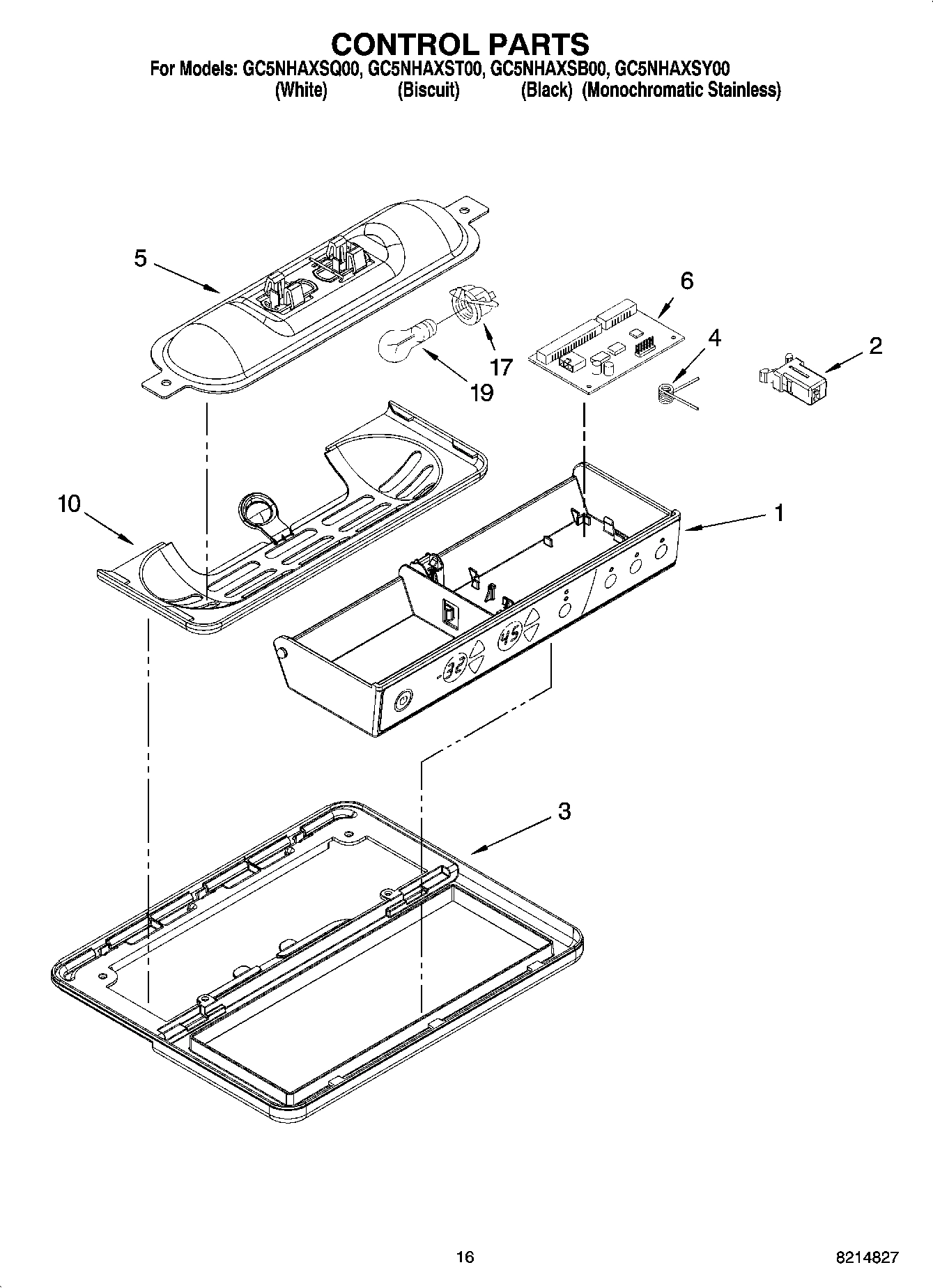

Control Board Asm WPL 2307037 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

6

Snack Pan WPL 2223261 Contact Us For Availability

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $27.69

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $31.71

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

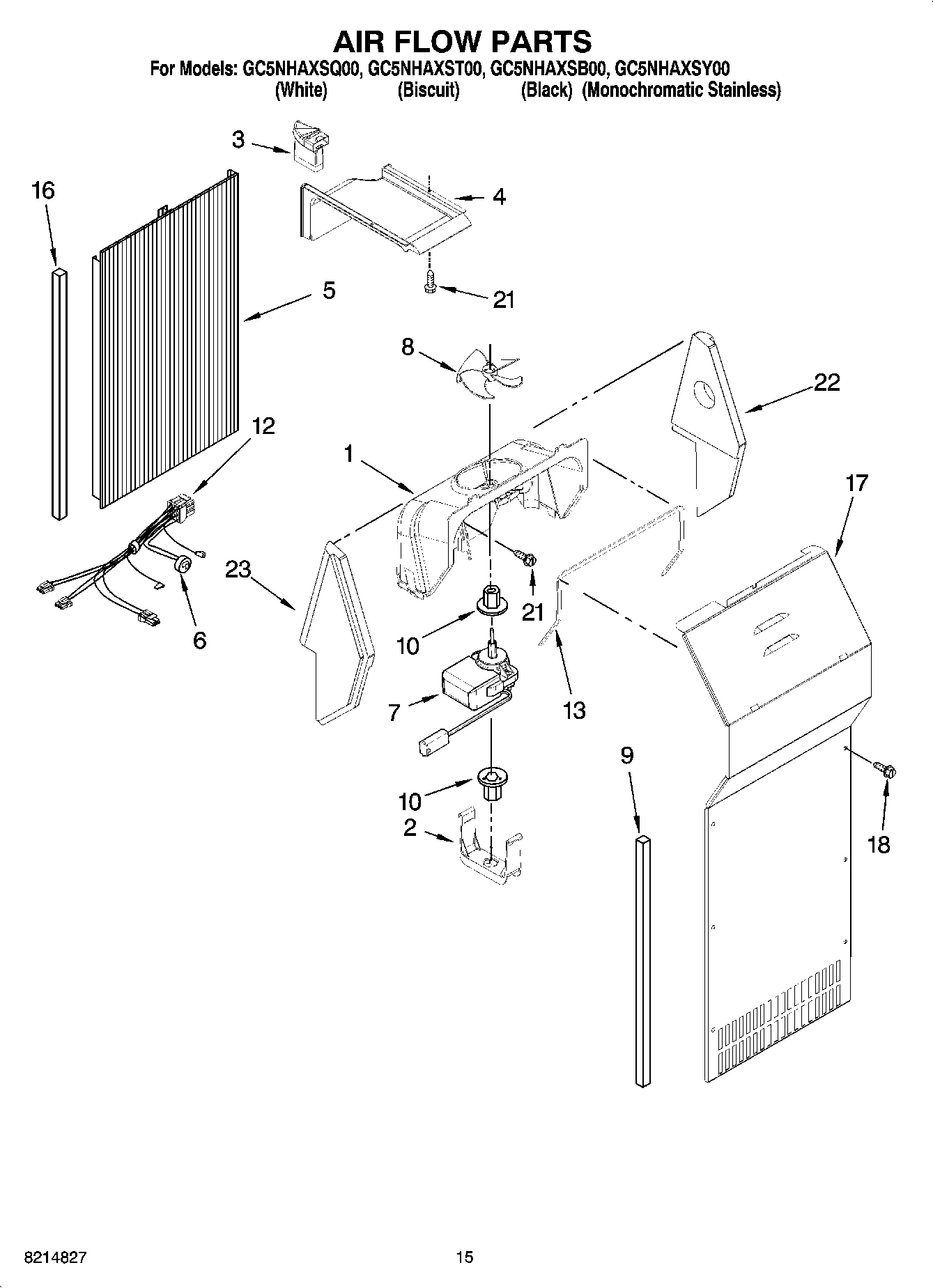

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

9

2307008AP Whirlpool Refrigerator Hinge Backorder WPL 2307008AP $53.91

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $15.96

9

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $44.38

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2 & 3) WPL 2223307 Contact Us For Availability

9

SCREW WPL 8533920 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $52.72

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $124.94

WP2223879 Whirlpool Refrigerator Compressor D Backorder WPL WP2223879 $54.88

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Plate, Mounting WPL 2301979 Contact Us For Availability

W10151272 Whirlpool Refrigerator Screw Backorder WPL W10151272 $9.13

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

Block, Blade WPL 2198602 Contact Us For Availability

Separator Assembly (Universal Silver) WPL 2305460US Contact Us For Availability

Separator Assembly (White) WPL 2305460W Contact Us For Availability

12

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

12

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

12

Hinge Assembly, Bottom-RC WPL 2223520 Contact Us For Availability

2223893AP Whirlpool Refrigerator Filler Backorder WPL 2223893AP $27.05

2223893W Whirlpool Refrigerator Filler Backorder WPL 2223893W $39.24

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $48.73

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (Black) WPL 2223893B Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2223893T Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Grille (Apollo Gray) WPL 2322206AP Contact Us For Availability

Grille (Black) WPL 2322206B Contact Us For Availability

Grille (Biscuit) WPL 2322206T Contact Us For Availability

Grille (White) WPL 2322206W Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

3400108 Whirlpool Refrigerator Screw Backorder WPL 3400108 $9.59

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Clip, Thermistor WPL 2209204 Contact Us For Availability

2307007AP Whirlpool Refrigerator Hinge Backorder WPL 2307007AP $52.83

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $44.38

2307007T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007T $45.27

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $145.34

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $32.79

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $13.10

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Bracket, Door Stop Following Parts Not Illust WPL 2317708 Contact Us For Availability

Pad, Ice & Water (For White Model) WPL 2305247CG Contact Us For Availability

Pad, Ice & Water (For Black Model) WPL 2305247GM Contact Us For Availability

Pad, Ice & Water (For Monochromatic Stainless WPL 2305247MG Contact Us For Availability

Pad, Ice & Water (For Biscuit Model) WPL 2305247WL Contact Us For Availability

Meat Pan (Includes 13, 14, 19 & 22) WPL 2223526 Contact Us For Availability

2301544 Whirlpool Refrigerator Glide Backorder WPL 2301544 $116.07

2301545 Whirlpool Refrigerator Glide Backorder WPL 2301545 $58.23

W10235943 Whirlpool Refrigerator CANT Shelf Backorder WPL W10235943 $143.49

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2224173 Whirlpool Refrigerator Cantilever B In Stock WPL WP2224173 $45.64

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Cover, Electronic Control WPL 2304170 Contact Us For Availability

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI60423A3 Contact Us For Availability

Tube, Extension WPL 2199954 Contact Us For Availability

20

2223487 Whirlpool Refrigerator Deflector Backorder WPL 2223487 $31.66

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

20

LED Assembly WPL 2317205 Contact Us For Availability

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Nameplate WPL 2220214 Contact Us For Availability

Cover, Unit WPL 2223409 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI60424A7 Contact Us For Availability

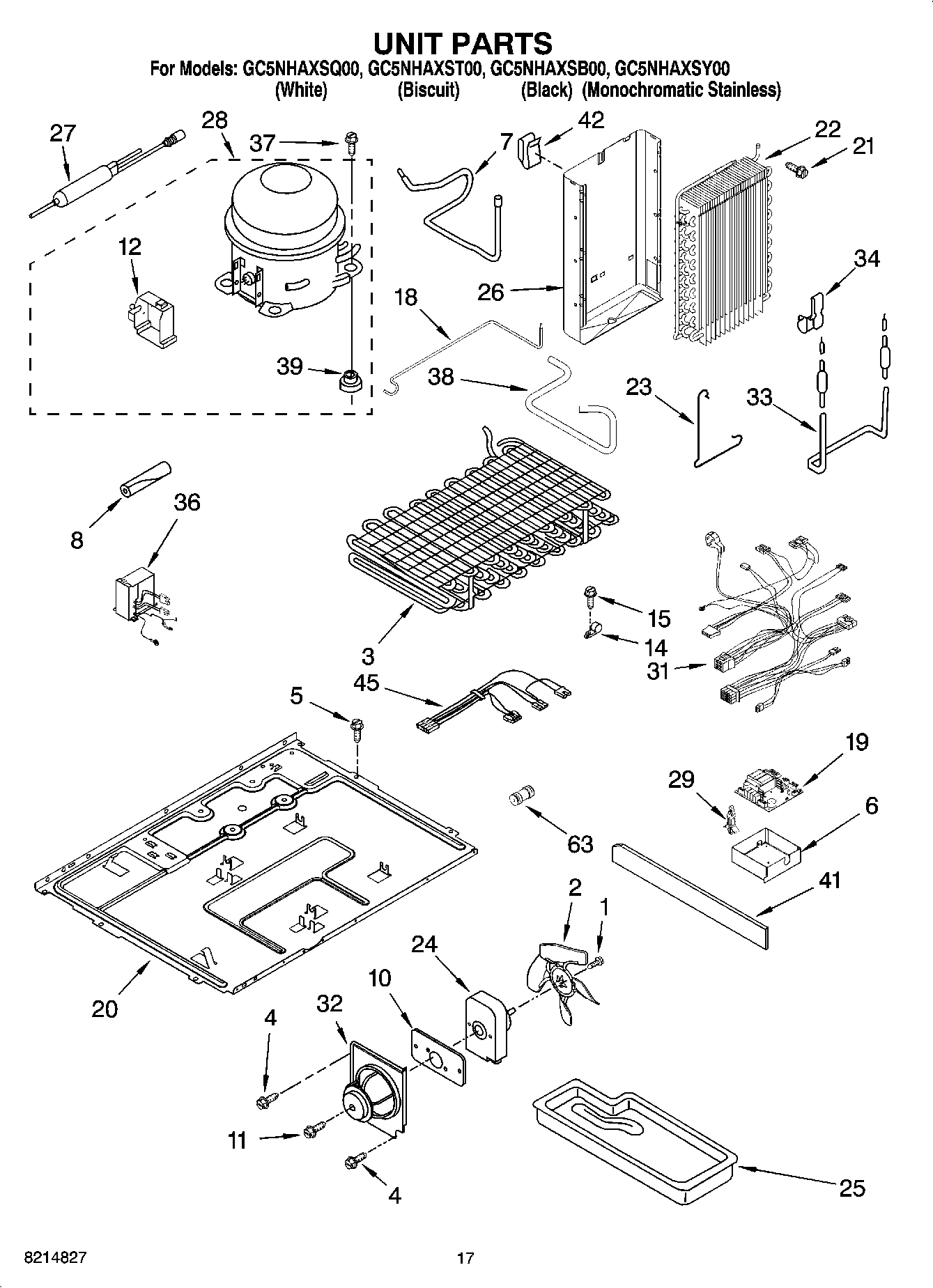

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Handle WPL 2203029 Contact Us For Availability

Tray, Housing (Black) WPL 2305408B Contact Us For Availability

Tray, Housing (Biscuit) WPL 2305408T Contact Us For Availability

Tray, Housing (Universal Silver) WPL 2305408US Contact Us For Availability

Tray, Housing (White) WPL 2305408W Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Front Cover Assembly WPL 2317715W Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2317715B Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2317715T Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2317715US Contact Us For Availability

24

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

24

WPL 2187814 WPL 2187814 Contact Us For Availability

24

Holder WPL 2212369 Contact Us For Availability

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

Hinge Assembly, Bottom-FC (Includes 29 & 32) WPL 2223460 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

Button, Water Filter (Apollo Gray) WPL 2260503AP Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $106.14

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $7.80

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $20.74

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $88.31

WPL 2260518T WPL 2260518T Contact Us For Availability

31

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

31

WP2310122 Whirlpool Refrigerator Wire Harness Backorder WPL WP2310122 $143.57

31

WPL ARI60419A2 WPL ARI60419A2 Contact Us For Availability

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $115.68

32

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $63.40

Bracket, Motor WPL 2305208 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

WPL 2223387 WPL 2223387 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Light Lens WPL 2223663 Contact Us For Availability

35

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

36

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $12.61

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

WPL 2305220 WPL 2305220 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $9.90

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79
