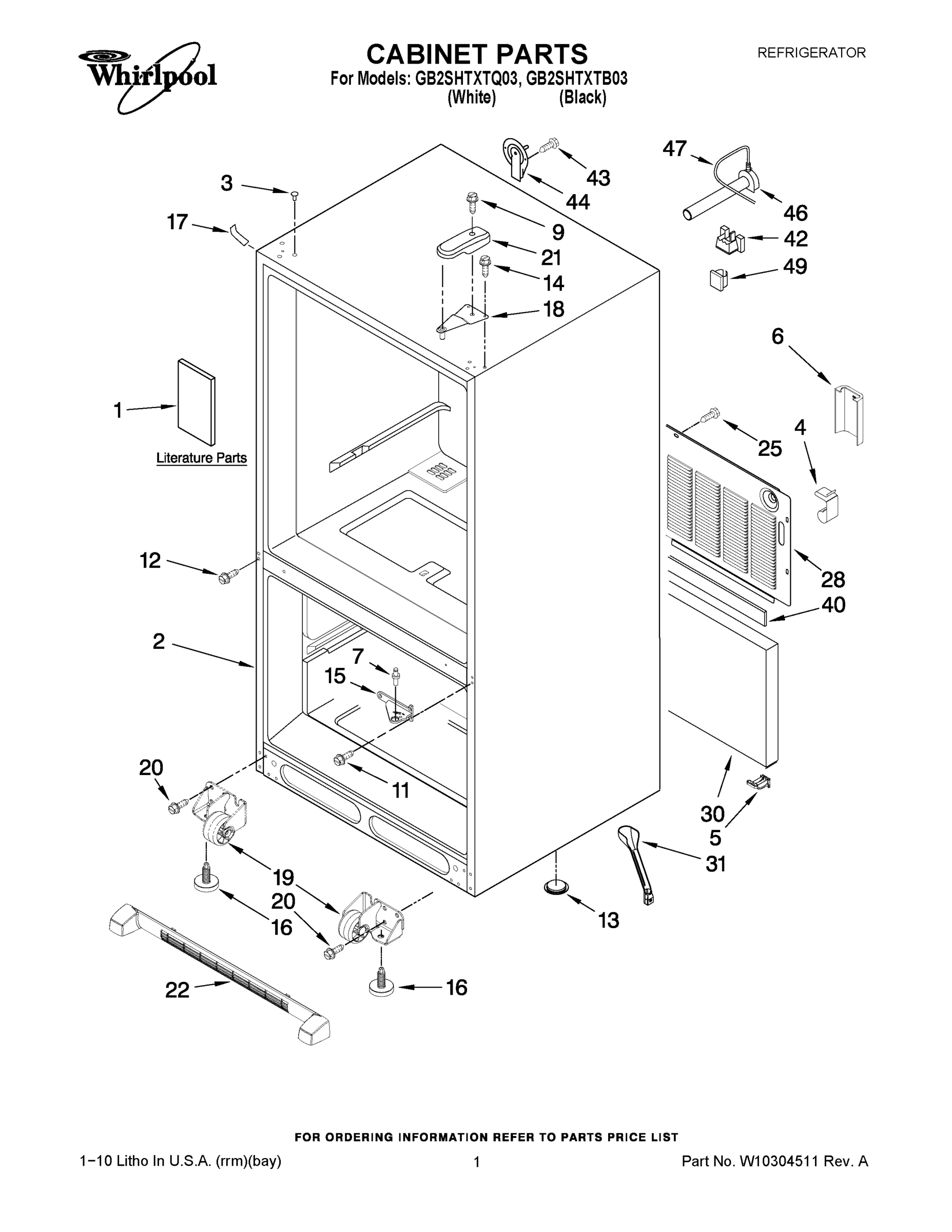

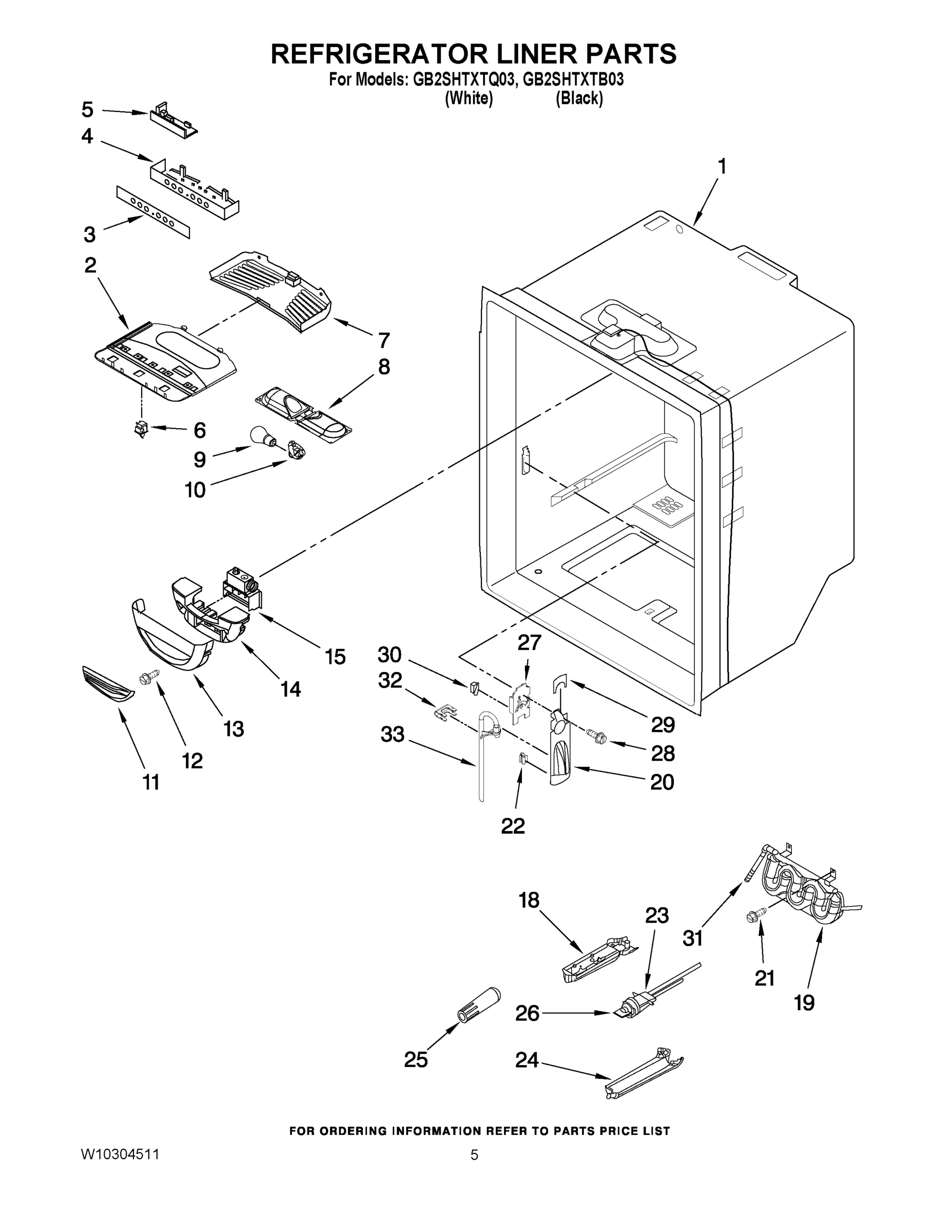

Model Whirlpool GB2SHTXTQ03 REFRIGERATOR – Common Parts &amp; Diagrams

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

W10251969 Whirlpool Refrigerator Ladder Backorder WPL W10251969 $11.51

1

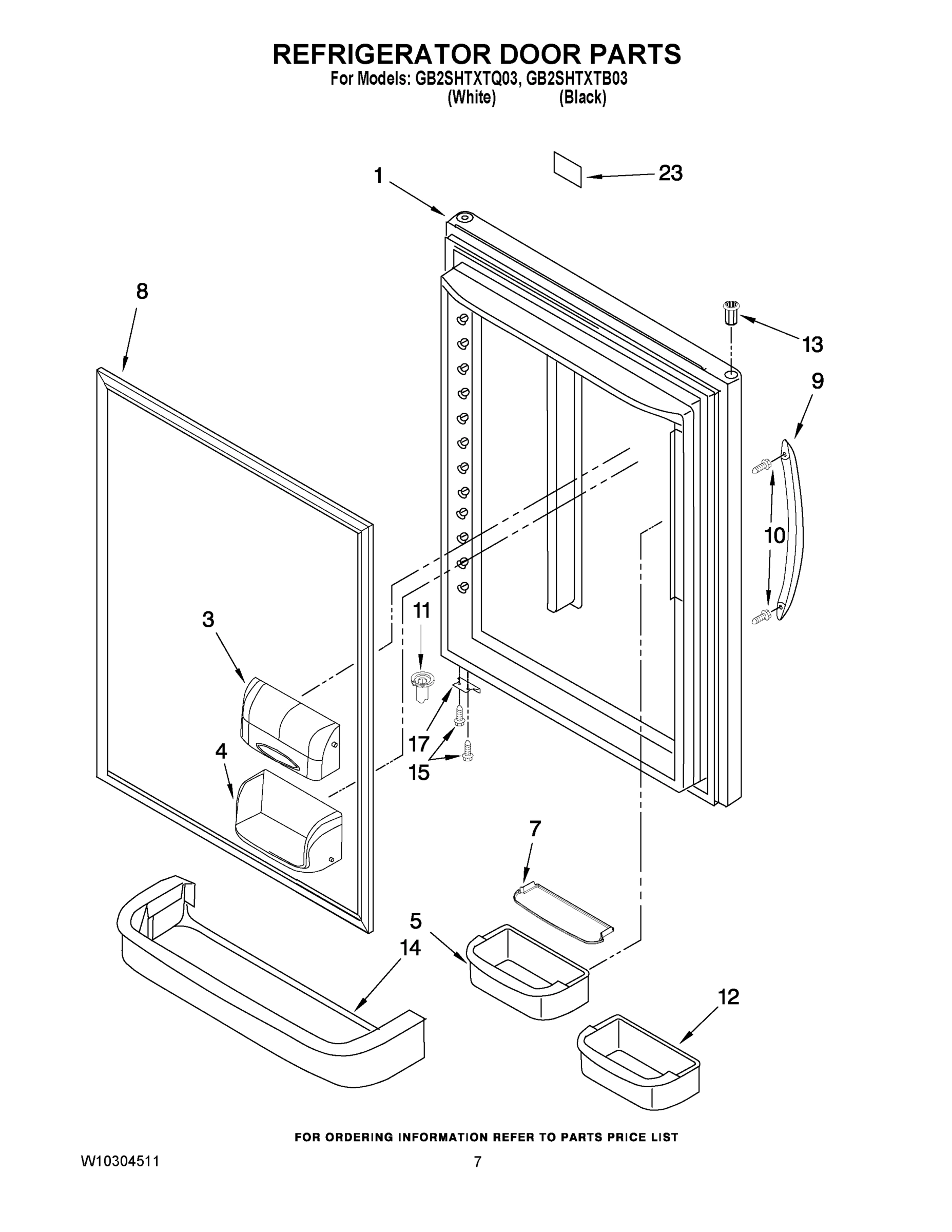

REFRIGERATOR DOOR (W/ INSULATION) (WHITE) WPL 12658533WQ Contact Us For Availability

1

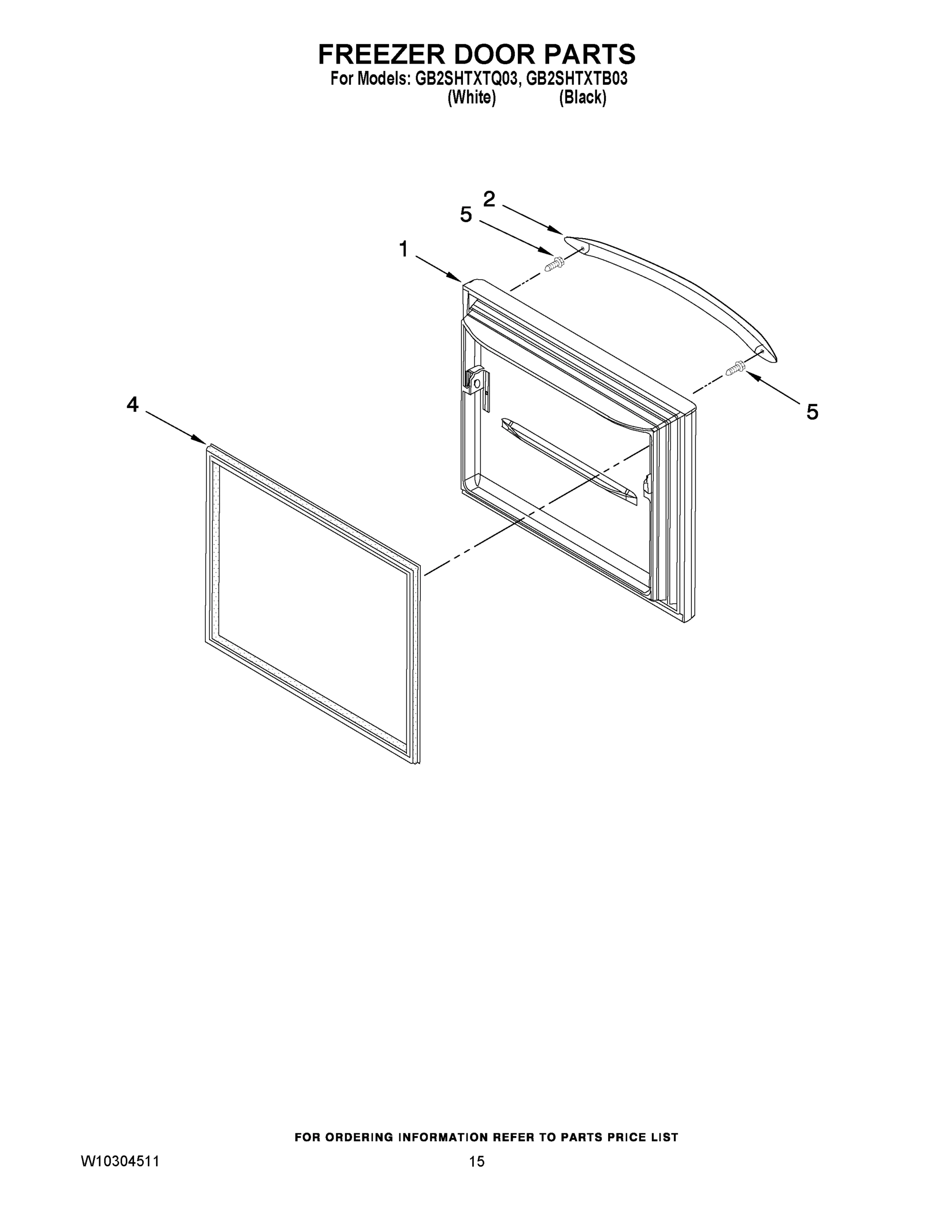

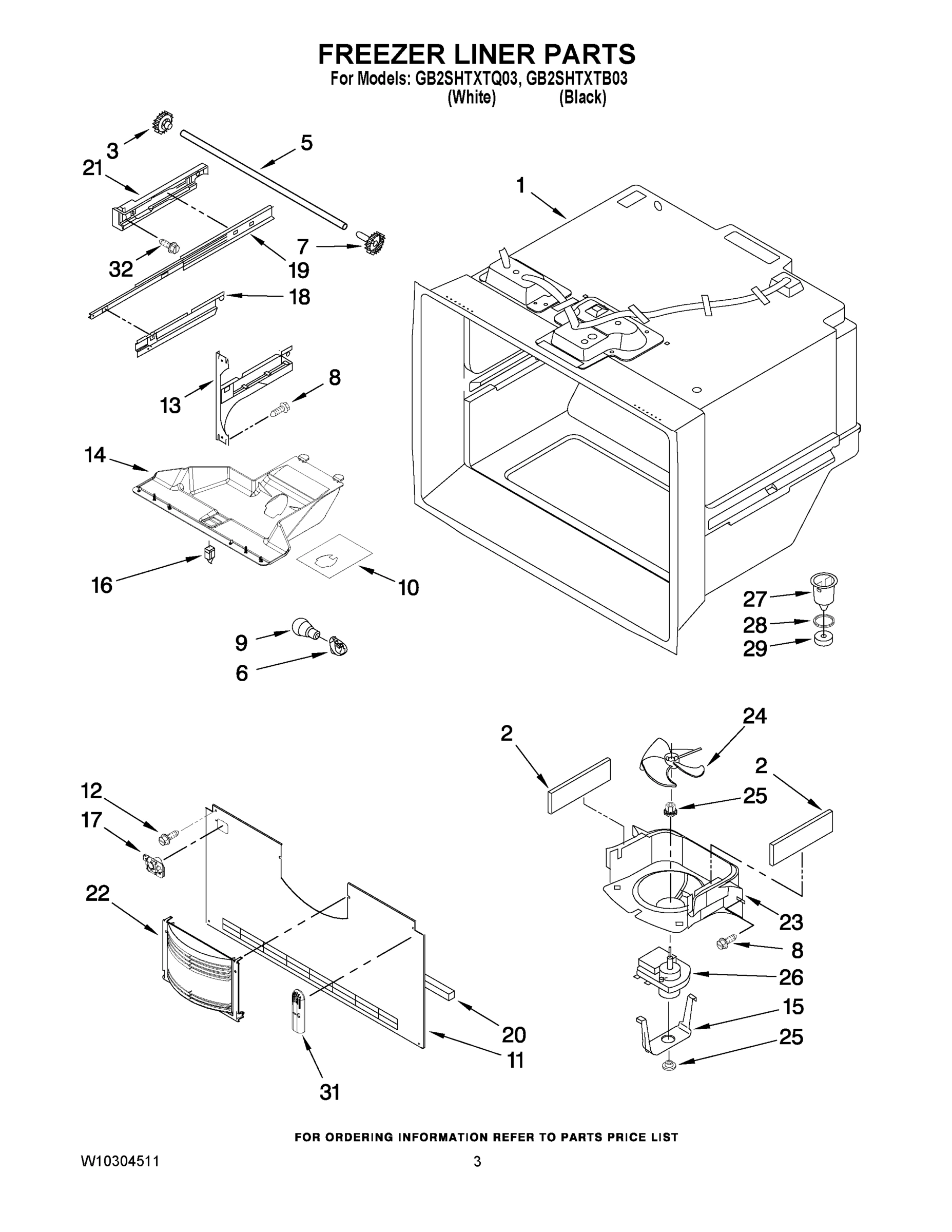

FREEZER DOOR (W/ INSULATION) (BLACK) WPL 13092225BQ Contact Us For Availability

1

FREEZER DOOR (W/ INSULATION) (WHITE) WPL 13092225WQ Contact Us For Availability

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.96

2

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $114.12

2

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $155.75

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.38

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $44.73

4

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $119.64

4

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $131.01

5

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $39.80

5

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $115.68

6

W10208593 Whirlpool Refrigerator Valve Cover In Stock WPL W10208593 $9.24

6

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $52.56

6

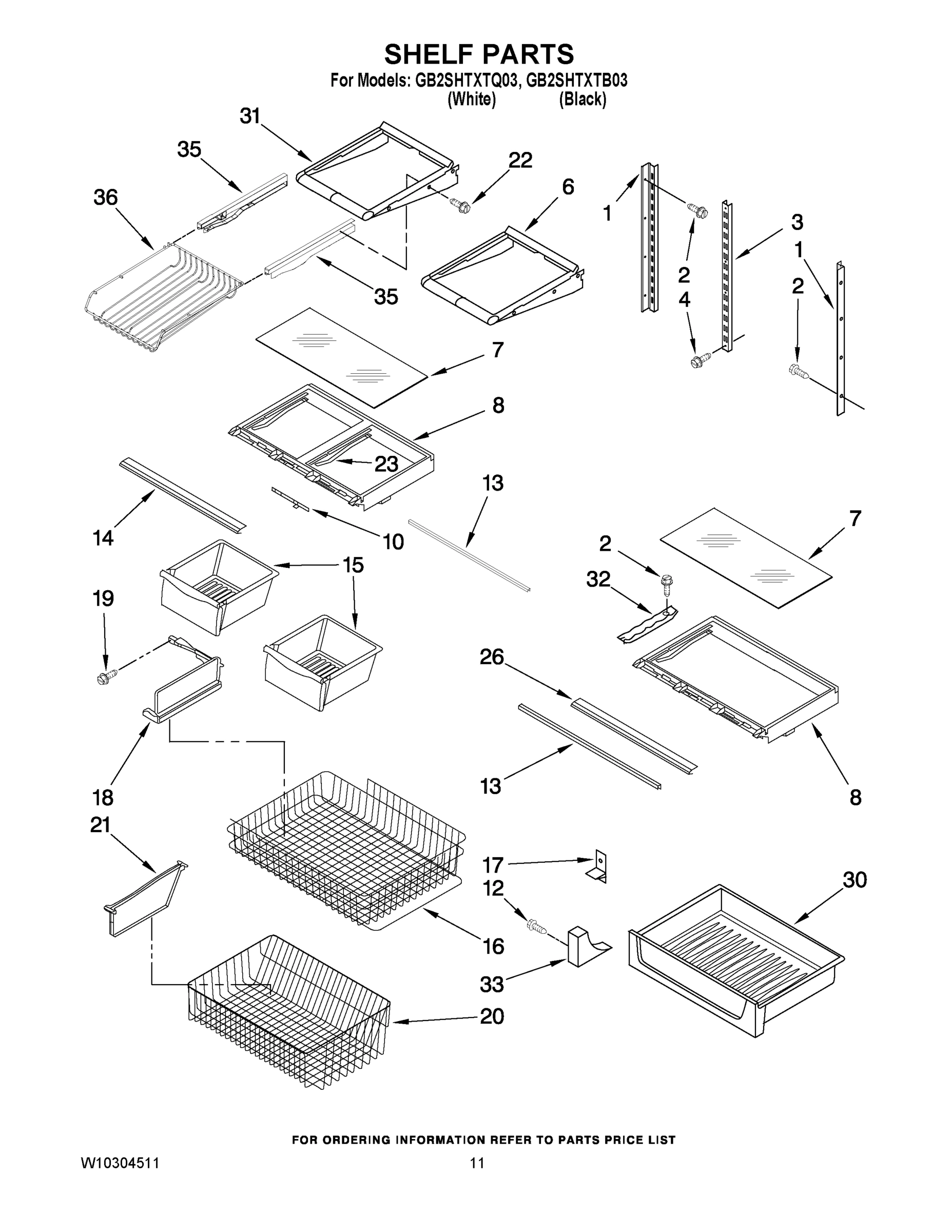

W11402521 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402521 $124.05

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.40

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $127.63

7

MAT (FOR ITEM No.5) WPL 12567307SP Contact Us For Availability

8

W10443313 Whirlpool Door Gasket In Stock WPL W10443313 $127.09

8

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $27.52

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $141.28

8

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $80.04

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $67.69

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.52

SCREW WPL W10290759 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.52

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $109.42

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

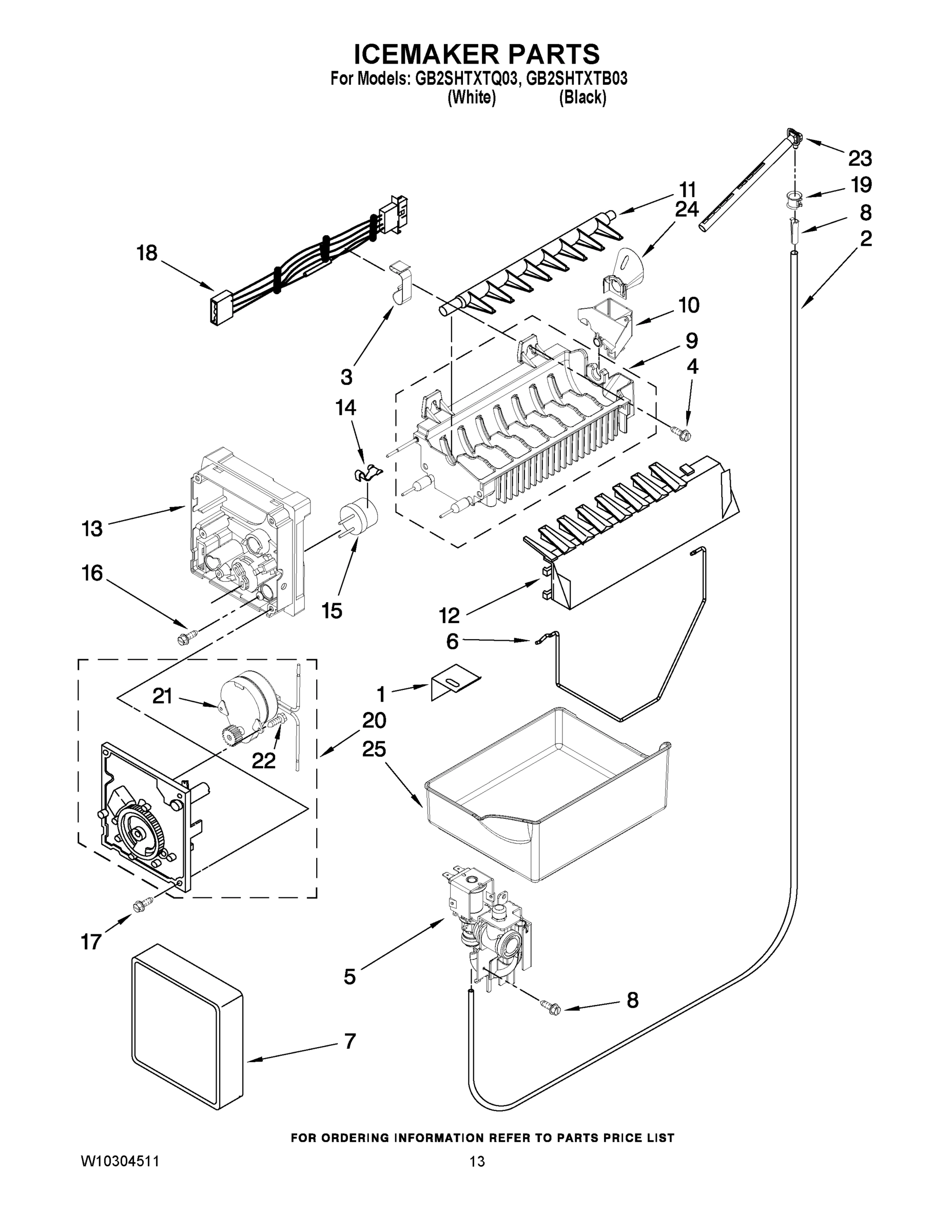

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.52

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.33

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.38

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $44.12

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $44.45

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.30

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $59.75

Backorder WPL W11750607 $19.22

WPW10231482 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231482 $42.88

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $54.90

Retainer, Door WPL 12690502 Contact Us For Availability

W11689473 Whirlpool Door Hinge In Stock WPL W11689473 $26.41

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $49.87

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $95.97

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $93.06

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.68

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

BASKET, FREEZER (UPPER) WPL 12896402 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $11.69

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $8.60

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $7.45

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

DIVIDER, UPPER BASKET WPL 12693802N Contact Us For Availability

19

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $75.69

19

TANK, WATER WPL 12706111 Contact Us For Availability

19

SCREW WPL 12990601N Contact Us For Availability

20

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.10

20

Dispenser WPL 12706909SP Contact Us For Availability

20

BASKET, FREEZER (LOWER) WPL 13016002 Contact Us For Availability

21

DIVIDER, LOWER BASKET WPL 12659608 Contact Us For Availability

21

ADAPTER, SLIDE (LEFT) WPL W10261199 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $40.86

CLIP WPL B8390302SP Contact Us For Availability

W11346623 Whirlpool Refrigerator Water Filter In Stock WPL W11346623 $71.78

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $35.83

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $42.16

Nameplate WPL 2220214 Contact Us For Availability

Dam (Left Side) WPL 12225602 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.82

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $56.24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

25

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $56.07

25

W10121318 Whirlpool Refrigerator Grommet In Stock WPL W10121318 $28.66

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

26

W10656986 Whirlpool Refrigerator Shelf Trim Backorder WPL W10656986 $44.96

26

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $42.05

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $44.47

27

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $31.09

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

28

W10210980 Whirlpool Refrigerator Back Cover Backorder WPL W10210980 $80.45

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

29

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.38

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.52

30

W10328327 Whirlpool Refrigerator Snack Pan Backorder WPL W10328327 $79.91

30

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $29.21

30

INSULATION, SOUND WPL 12820505 Contact Us For Availability

W11556315 Whirlpool Shroud In Stock WPL W11556315 $30.01

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.72

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

SHELF WPL 12463509SP Contact Us For Availability

32

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

32

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

33

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

33

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $4.52

33

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

35

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.70

35

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.70

36

RACK, CAN WPL 12503808SP Contact Us For Availability

40

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

42

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

44

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

47

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $45.71

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $50.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
