Model Whirlpool GB2SHDXTS00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI147489A WPL ARI147489A Contact Us For Availability

WPL ARI147490A WPL ARI147490A Contact Us For Availability

WPL ARI147491A WPL ARI147491A Contact Us For Availability

WPL ARI147492A WPL ARI147492A Contact Us For Availability

1

12658928SQ Whirlpool Refrigerator DOR FIP Backorder WPL 12658928SQ $480.81

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

Refrigerator Door (w/Liner) (Stainless Steel) WPL 12658566S Contact Us For Availability

1

Use & Care Guide WPL 12828178 Contact Us For Availability

1

Energy Tag WPL 12863066 Contact Us For Availability

1

Tech Sheet WPL 8208183 Contact Us For Availability

1

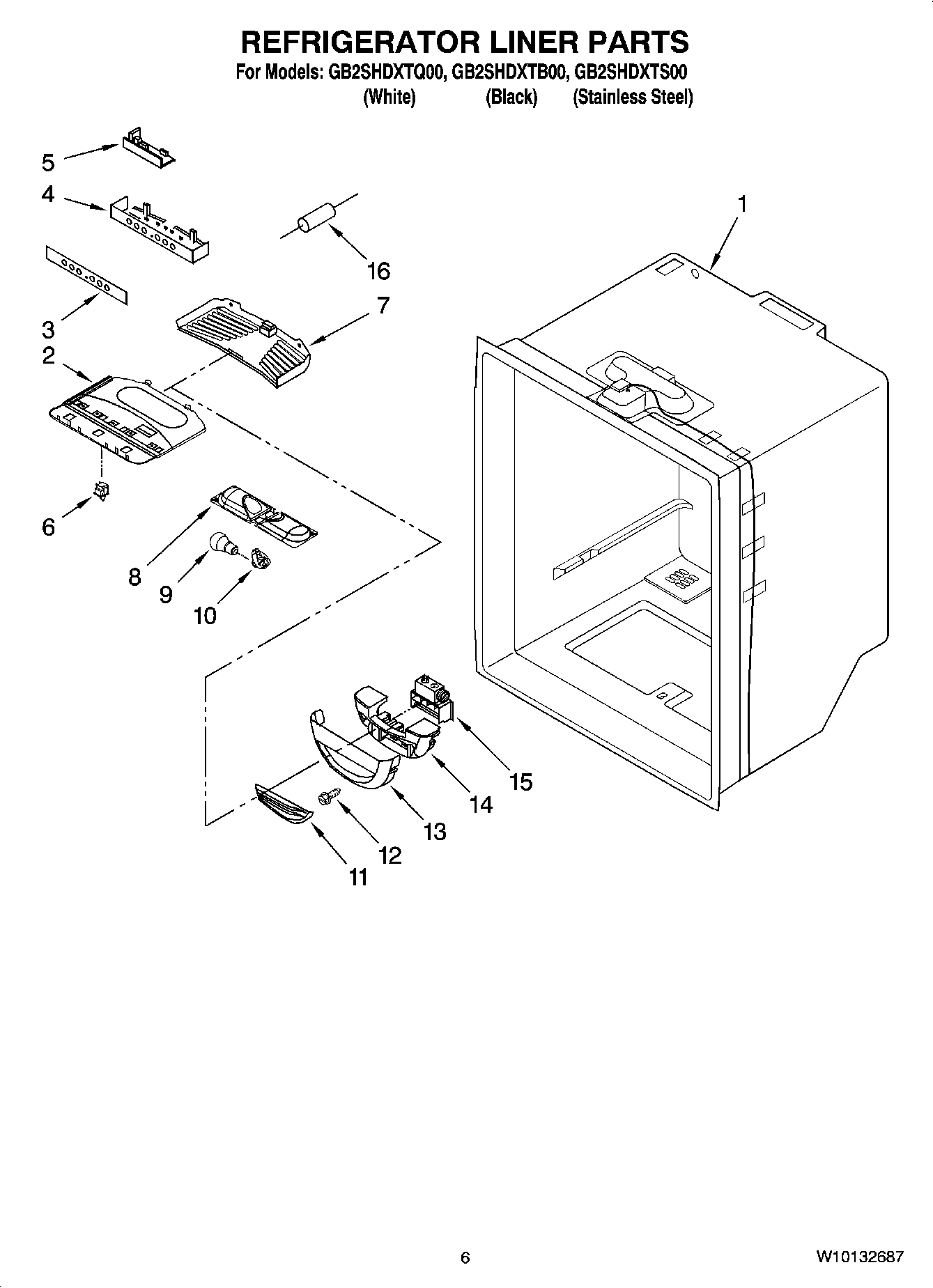

Liner (Not A Seviceable Part) WPL ARI147479A Contact Us For Availability

1

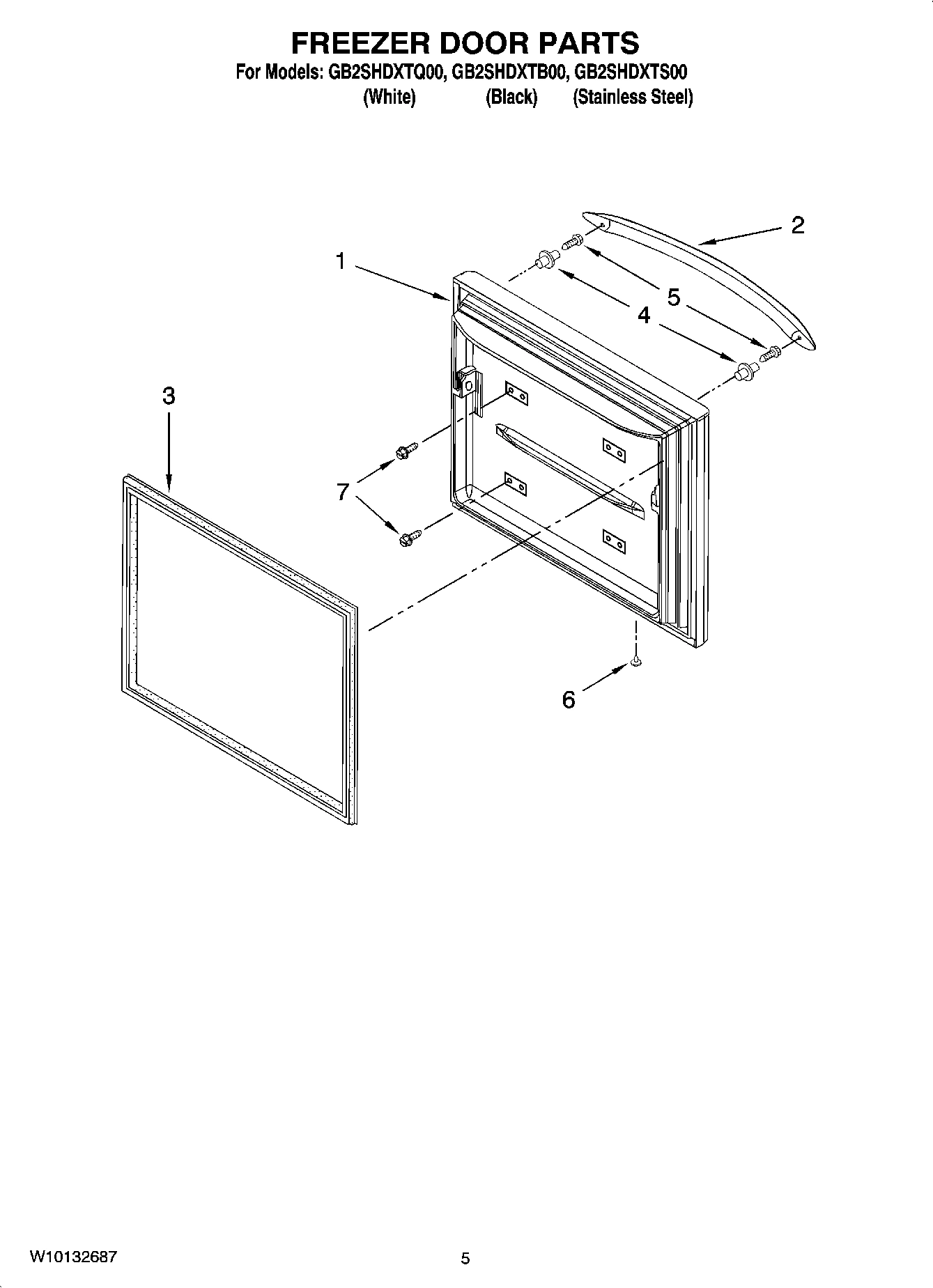

Freezer Door (w/ Insulation) (Black) WPL W10175551 Contact Us For Availability

1

Freezer Door (w/ Insulation) (White) WPL W10175552 Contact Us For Availability

1

Mold & Heater (Not Available, Order 4396418) WPL ARI147485A Contact Us For Availability

1

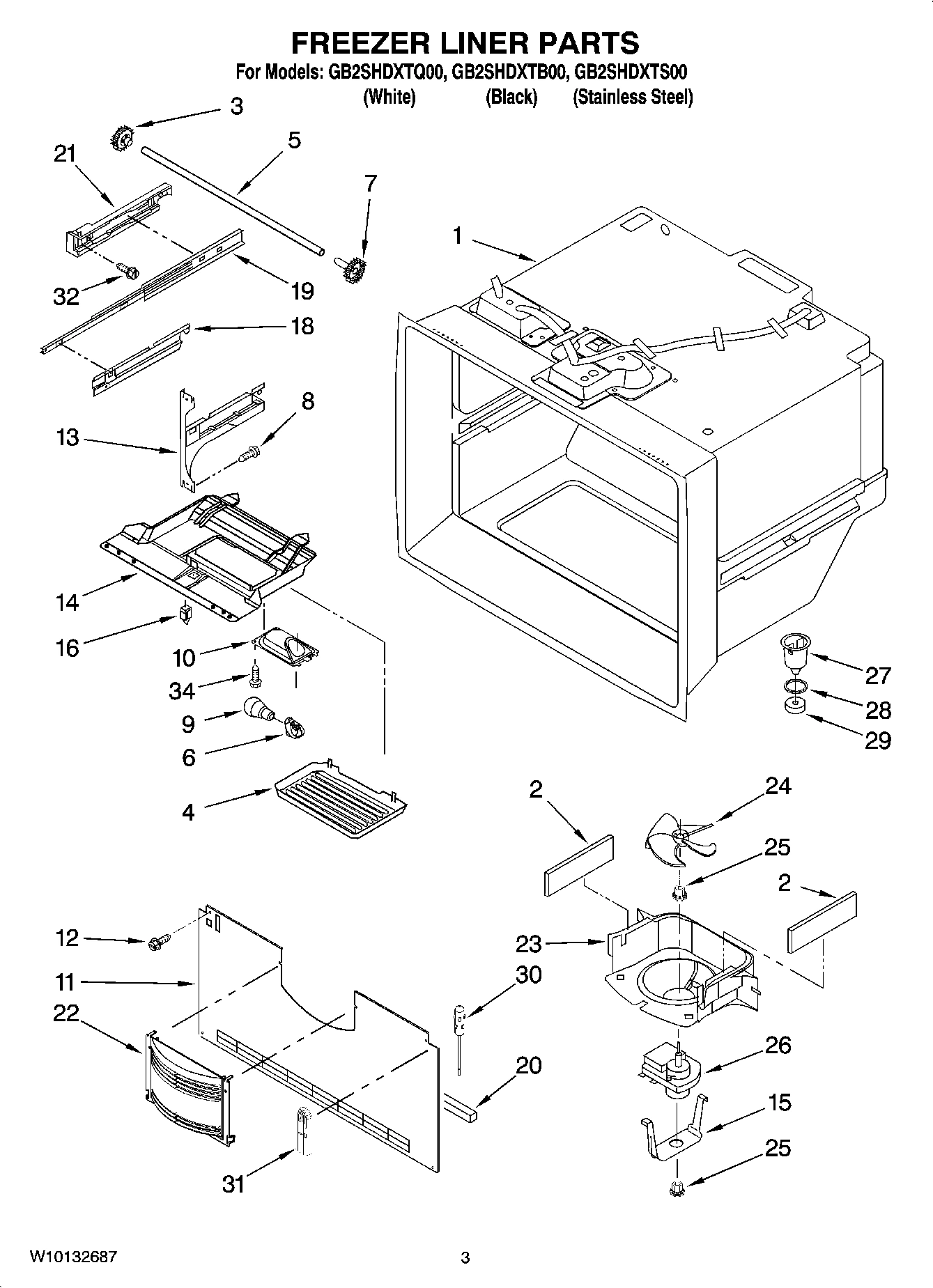

Liner (Not A Serviceable Part) WPL ARI147481A Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $33.18

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $108.69

2

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $148.33

2

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

2

Handle (Stainless Steel) WPL 2319729S Contact Us For Availability

2

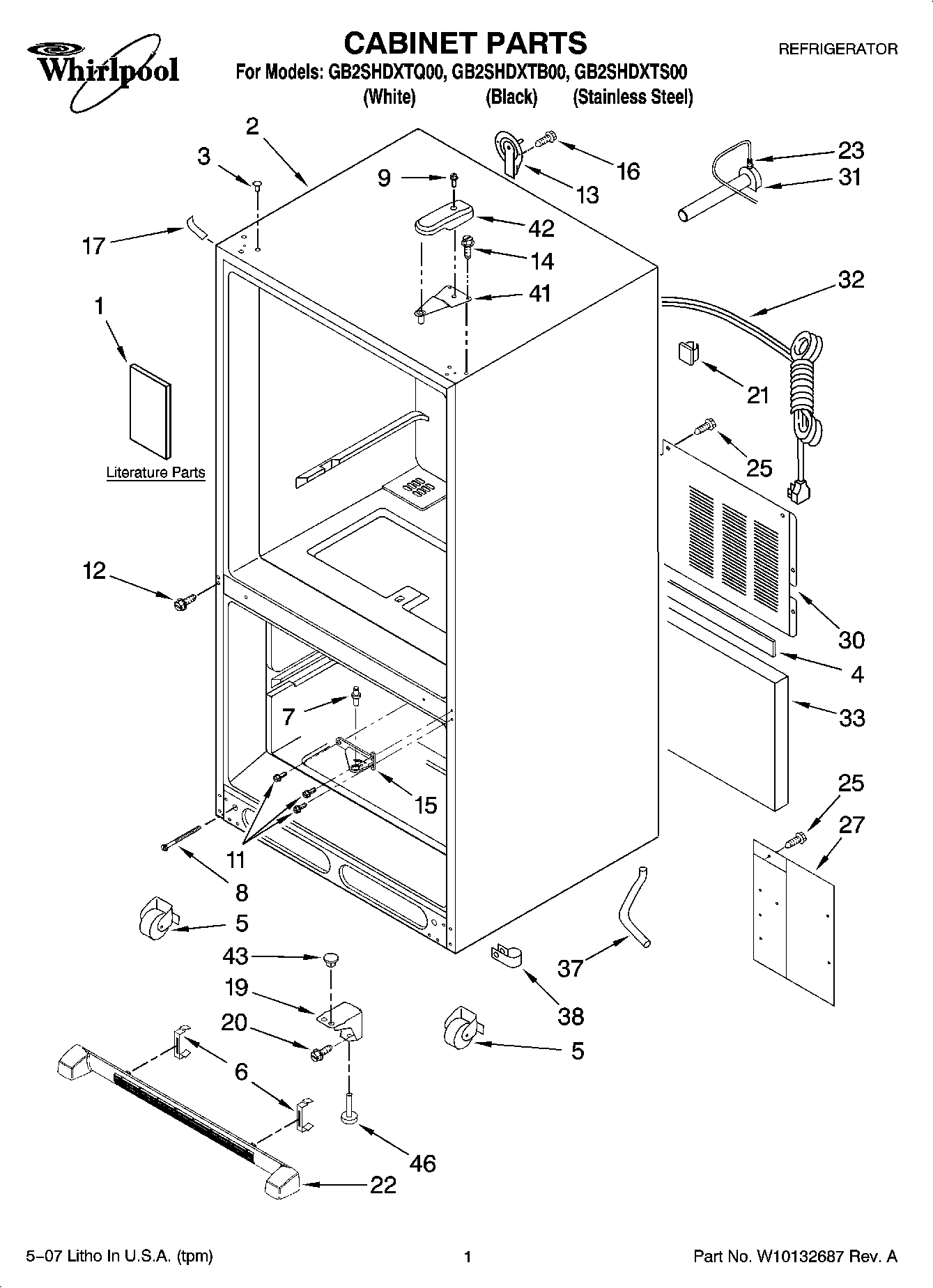

Cabinet (Not A Servicable Part) WPL ARI147477A Contact Us For Availability

2

Bracket, Control and Lights WPL 8208184 Contact Us For Availability

3

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $107.66

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $53.64

3

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

3

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

3

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

3

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $127.04

3

Overlay WPL 8208185 Contact Us For Availability

3

Base WPL 8208371 Contact Us For Availability

4

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $37.00

4

Stud, Handle WPL 8171220 Contact Us For Availability

4

Cover, Light WPL 8208205 Contact Us For Availability

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $37.90

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $41.23

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $118.83

5

Roller Assembly WPL 8170886 Contact Us For Availability

6

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

6

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

6

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.70

6

Clip, Grille WPL 8170869 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.59

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $36.31

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

Harness, Evap Heater WPL 12870501 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $43.32

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $137.86

8

Door Gasket, Magnetic (White) WPL 8171197 Contact Us For Availability

8

Thermostat (Not Available, Order 4396418) WPL ARI147486A Contact Us For Availability

8

Drain Pan WPL 8170911 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

9

Grommet (3) WPL 8171209 Contact Us For Availability

10

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

10

WP67001794 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67001794 $73.96

10

Housing, Frz. Light WPL 8170838 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $82.10

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $27.82

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

Cover, Evaporator WPL 8208235 Contact Us For Availability

Strap WPL 67007052 Contact Us For Availability

12

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

12

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

Bracket, Door (Left) WPL 8171232 Contact Us For Availability

Bracket, Door (Right) WPL 8171233 Contact Us For Availability

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $49.10

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $34.02

WP67003904 Whirlpool Refrigerator Insulation Backorder WPL WP67003904 $2.01

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $31.46

Shelf, Bin (Large) WPL 8170795 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

WP12607103WD Whirlpool Refrigerator Center Hi Backorder WPL WP12607103WD $57.16

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $47.49

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $97.94

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.70

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

W11619328 Whirlpool Wire Harness In Stock WPL W11619328 $46.83

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

Harness, Damper Control WPL 8208197 Contact Us For Availability

Following Parts Not Illustrated WPL ARI147482A Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

Cover, Corner (Biscuit) WPL 8170859 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $138.54

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

NAMEPLATE WPL 8170797 Contact Us For Availability

Hinge Bottom (Black) WPL 8171066 Contact Us For Availability

Hinge Bottom (White) WPL 8171067 Contact Us For Availability

Slide, Drawer WPL 67006607 Contact Us For Availability

Module Assembly (Not Available, Order 4396418 WPL ARI147487A Contact Us For Availability

20

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

20

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $59.33

20

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $66.34

21

Bracket, Slide (Left) WPL 8208215 Contact Us For Availability

21

Bracket, Slide (Right) WPL 8208216 Contact Us For Availability

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $194.96

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

WPW10534161 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534161 $47.67

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $39.08

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

Shroud, Evap.Fan WPL 8171153 Contact Us For Availability

Dam (Left Side) WPL 8171154 Contact Us For Availability

Dam (Right Side) WPL 8171155 Contact Us For Availability

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

24

SCREW WPL 8170943 Contact Us For Availability

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

26

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

26

Harness, Unit WPL 8208233 Contact Us For Availability

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

Cover, Water Valve WPL 8170920 Contact Us For Availability

28

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $344.71

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

29

Clip, Wire WPL 4343984 Contact Us For Availability

30

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

30

Cover, Unit WPL 8170910 Contact Us For Availability

31

W11181718 Whirlpool Refrigerator Water Tube Backorder WPL W11181718 $43.54

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

31

Shroud WPL 12575305 Contact Us For Availability

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $29.43

32

Power Cord WPL 67007121 Contact Us For Availability

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $9.59

Insulation, Sound WPL 8170924 Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Following Parts Not Illustrated WPL ARI147480A Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

36

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $10.76

37

Tube, Drain WPL 8170861 Contact Us For Availability

38

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

39

Grommet (4) WPL 4343845 Contact Us For Availability

40

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

41

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

41

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.18

42

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $27.74

42

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

42

Clip, Evaporator WPL 4344219 Contact Us For Availability

43

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $4.72

43

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $26.21

44

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

46

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

46

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.08

46

Following Parts Not Illustrated WPL ARI147478A Contact Us For Availability

53

Screw WPL 67006573 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tube, Drain WPL 8171240 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI147483A Contact Us For Availability

REFRIGERANT CHARGE 5.00 Ozs. (R-134A) WPL ARI147484A Contact Us For Availability

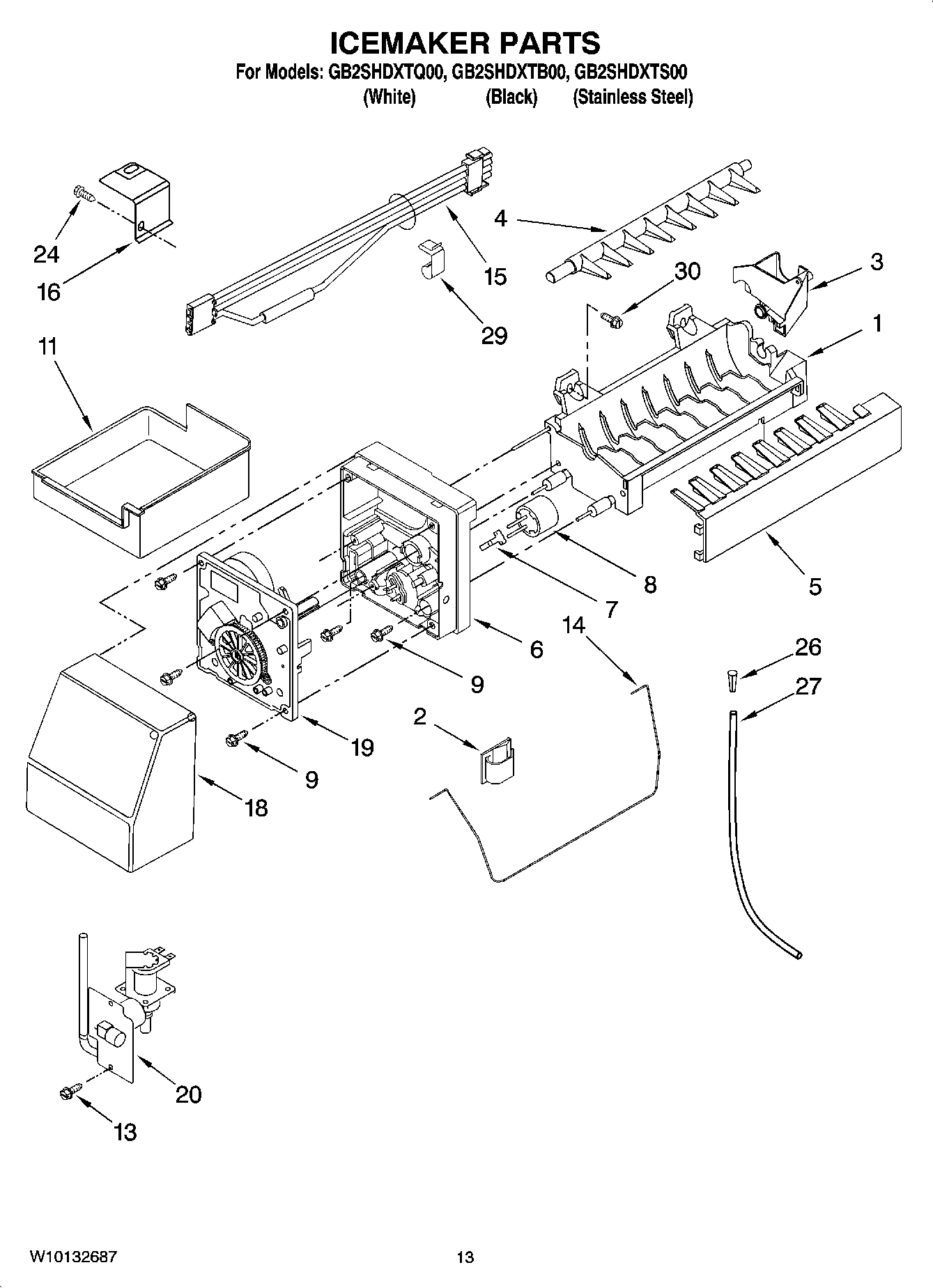

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $68.02

W11033771 Whirlpool Refrigerator Coupling Backorder WPL W11033771 $13.21

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Plug, Button WPL 4344316 Contact Us For Availability

Plug, Hole WPL 4344549 Contact Us For Availability

Note: The Following Parts Are Components of A WPL ARI147488A Contact Us For Availability
