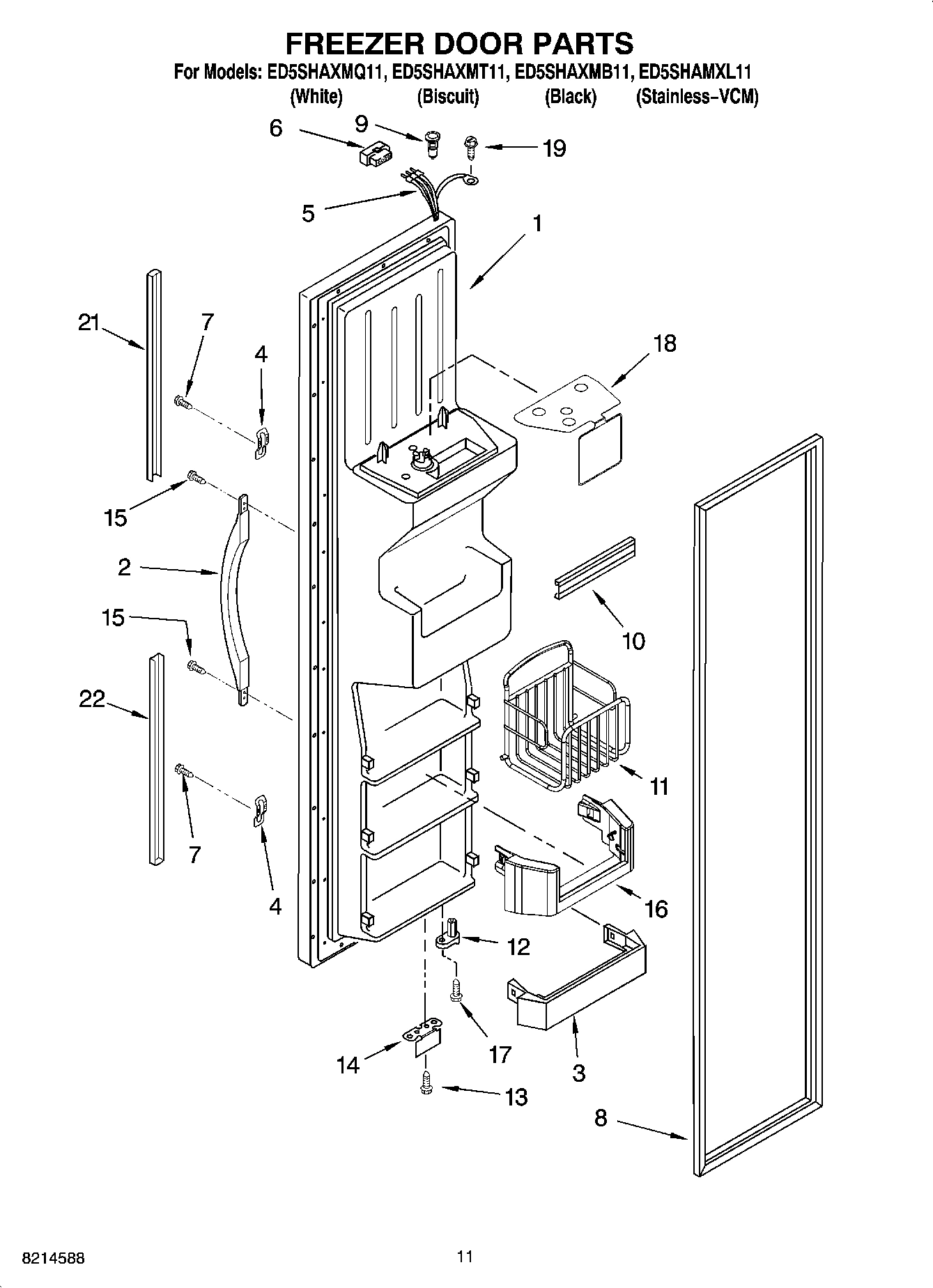

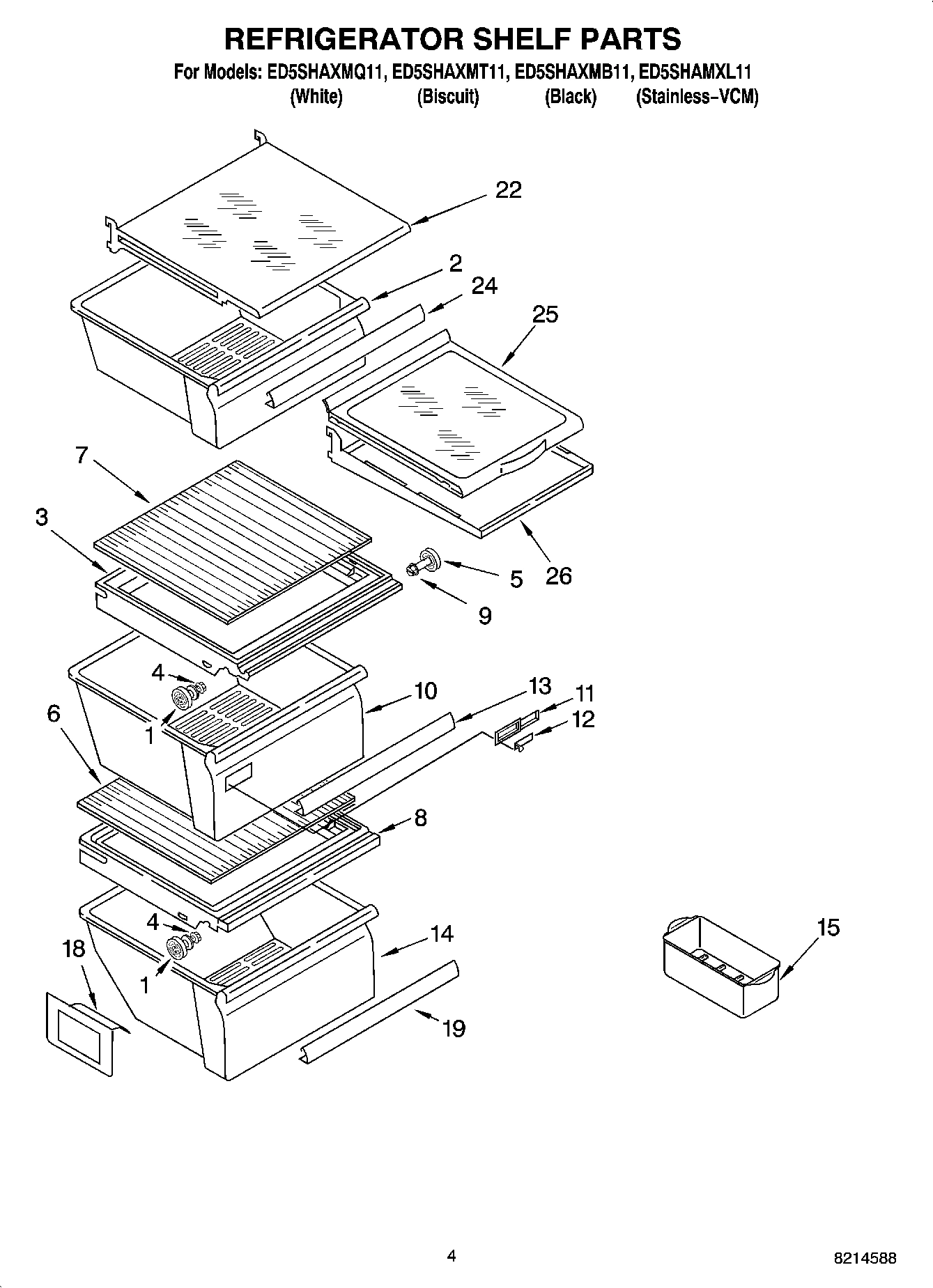

Model Whirlpool ED5SHAMXL11 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

Housing Dispenser (Not Serviced) WPL ARI38084A1 Contact Us For Availability

1

Control Box WPL 2216013 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $53.09

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Cover, Crusher WPL 2255460 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

Handle (White) WPL 2186649W Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $36.29

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

Blade, Fixed WPL 2257020 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Trim, Door-Bottom (White) WPL 2194969W Contact Us For Availability

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $35.90

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

18

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

18

Switch Assembly (Not Avaialble Order 23) WPL ARI38085A3 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI38086A7 Contact Us For Availability

20

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $41.71

20

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $83.66

20

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Front Cover, Housing (Not Available Order 23 WPL ARI38087A1 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $53.75

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2255644B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2255644T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2255644W Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

25

Escutcheon, Control Box WPL 2308384 Contact Us For Availability

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Knob, Air Control WPL 2197871 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $47.93

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79

100

WP2258243 Whirlpool Refrigerator Ice Containe Backorder WPL WP2258243 $248.58
