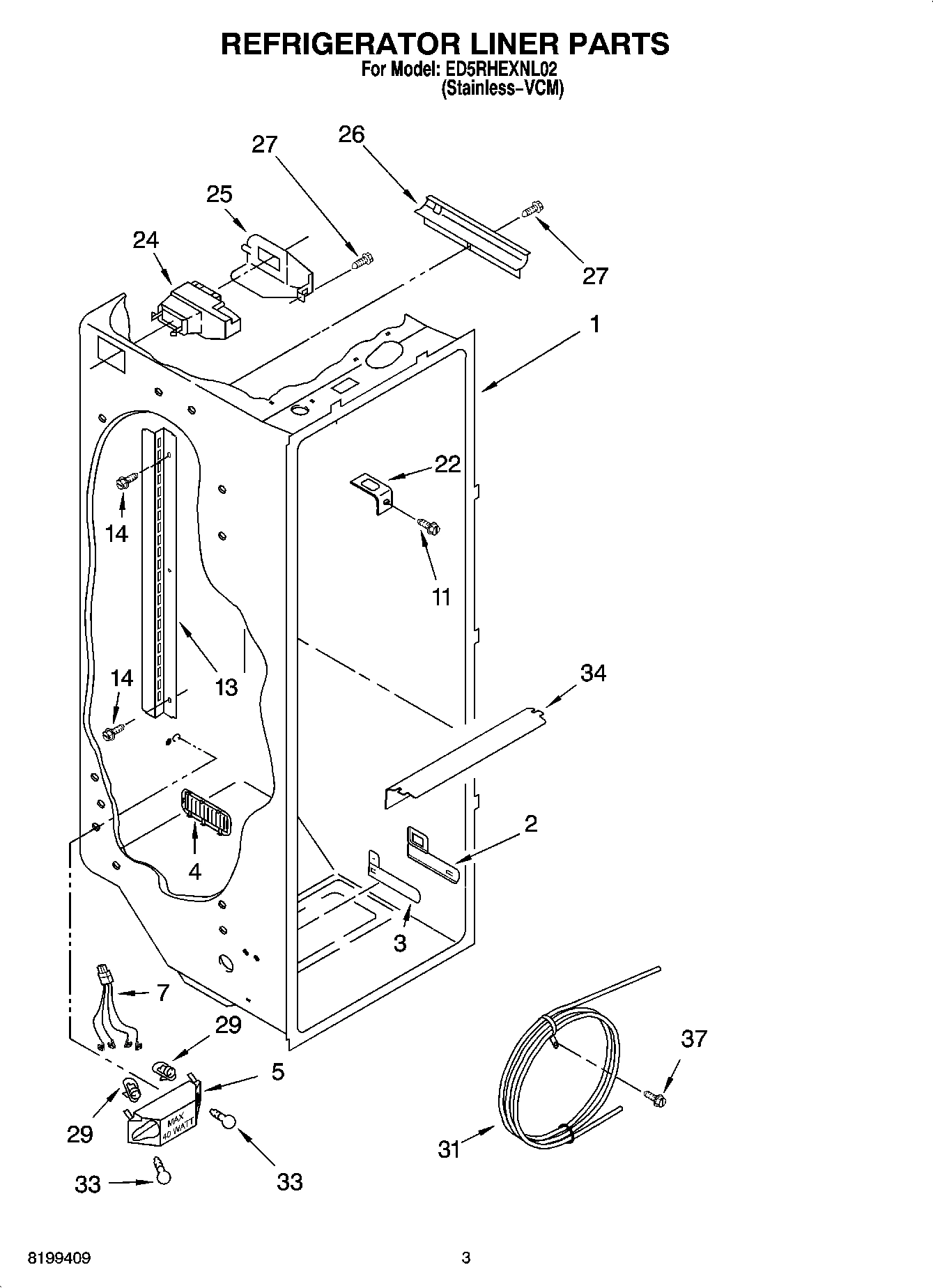

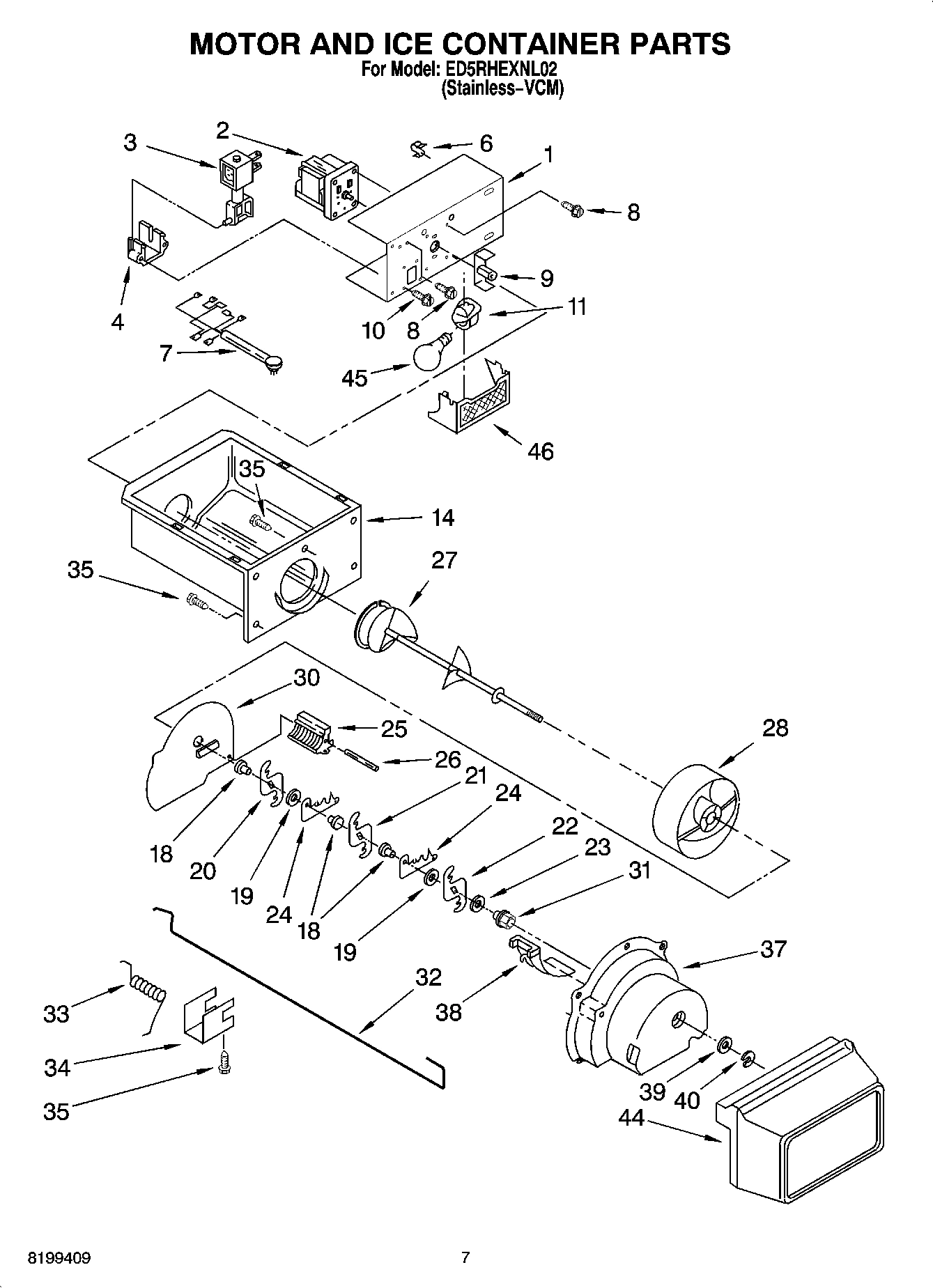

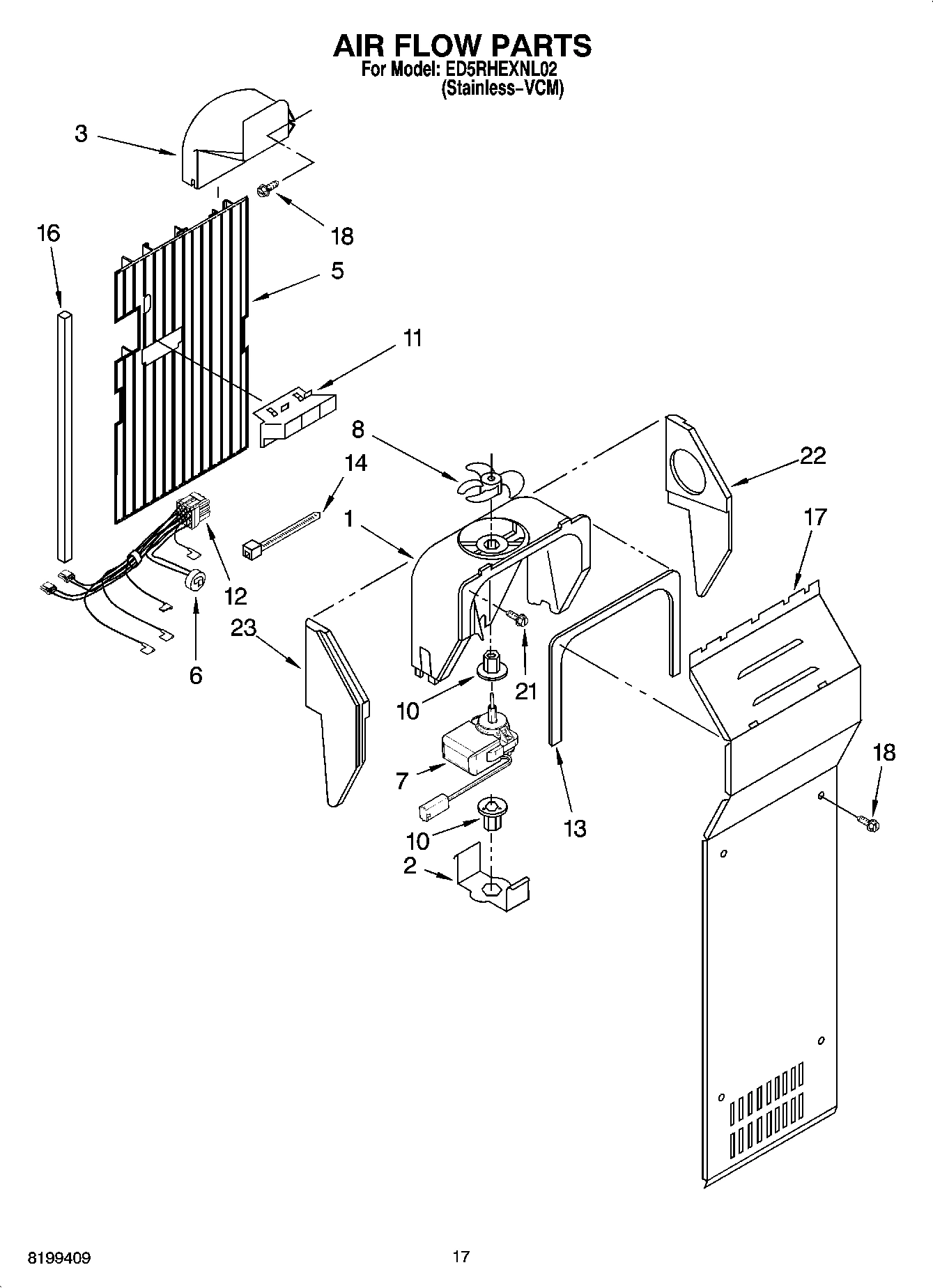

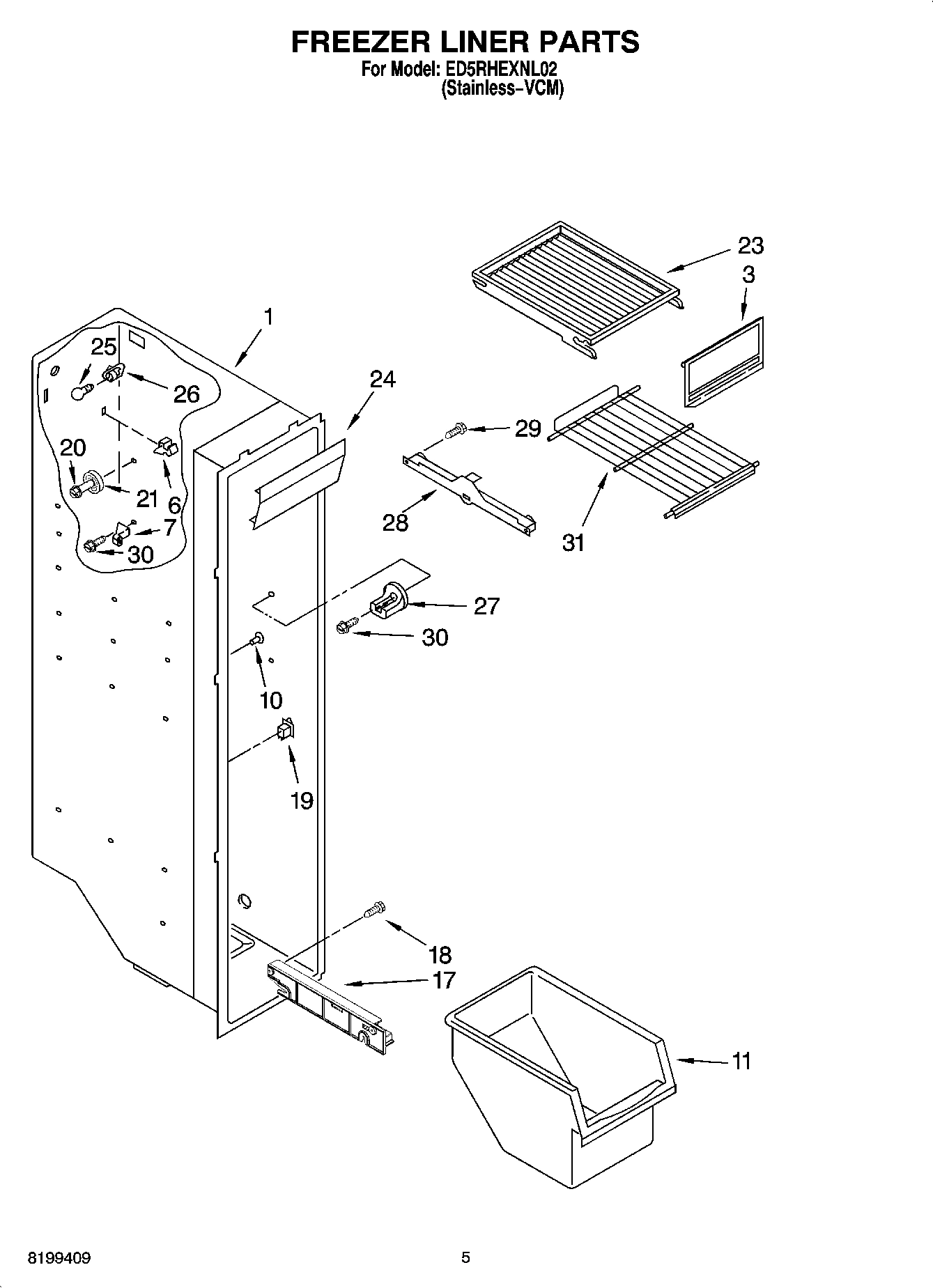

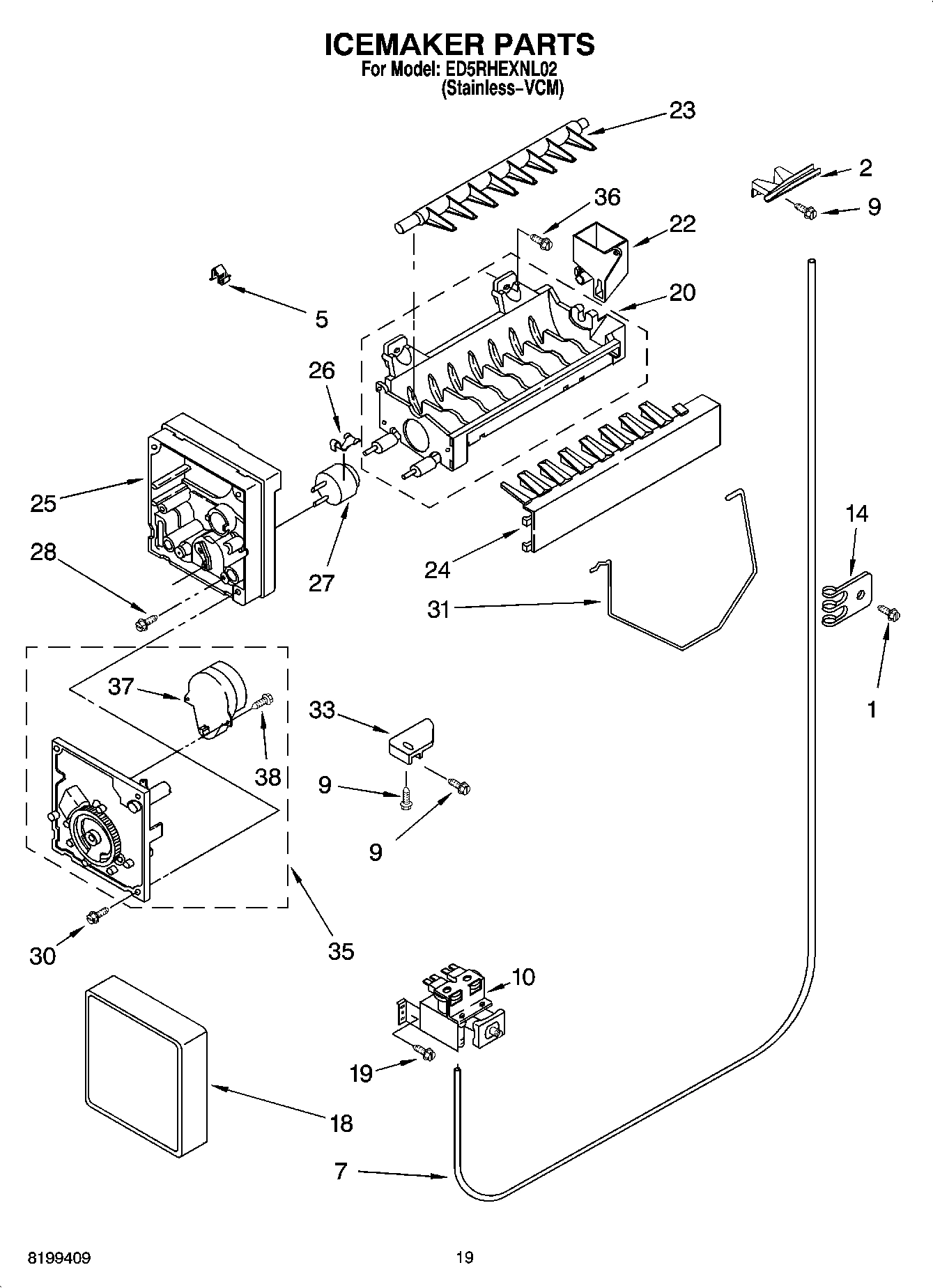

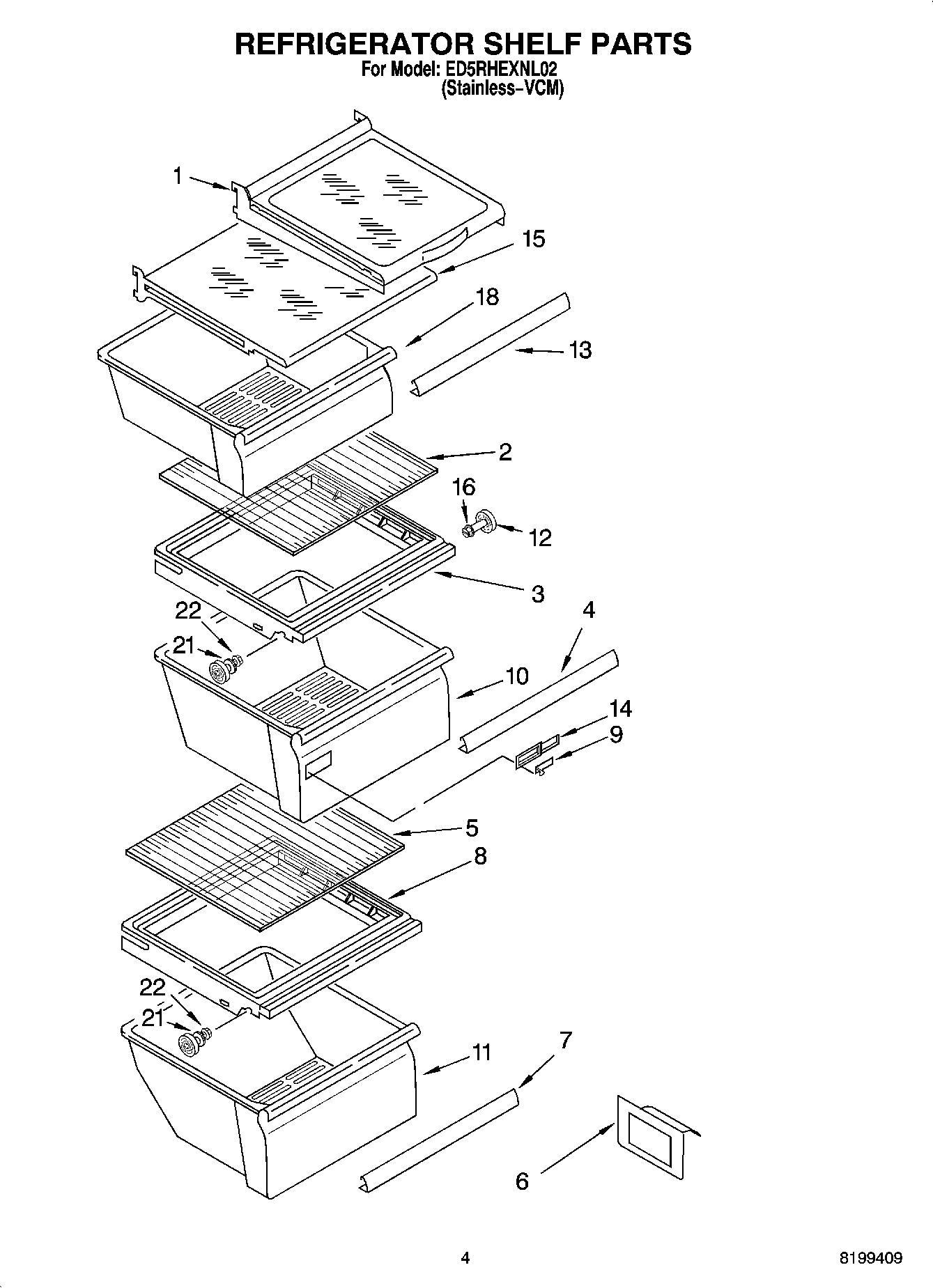

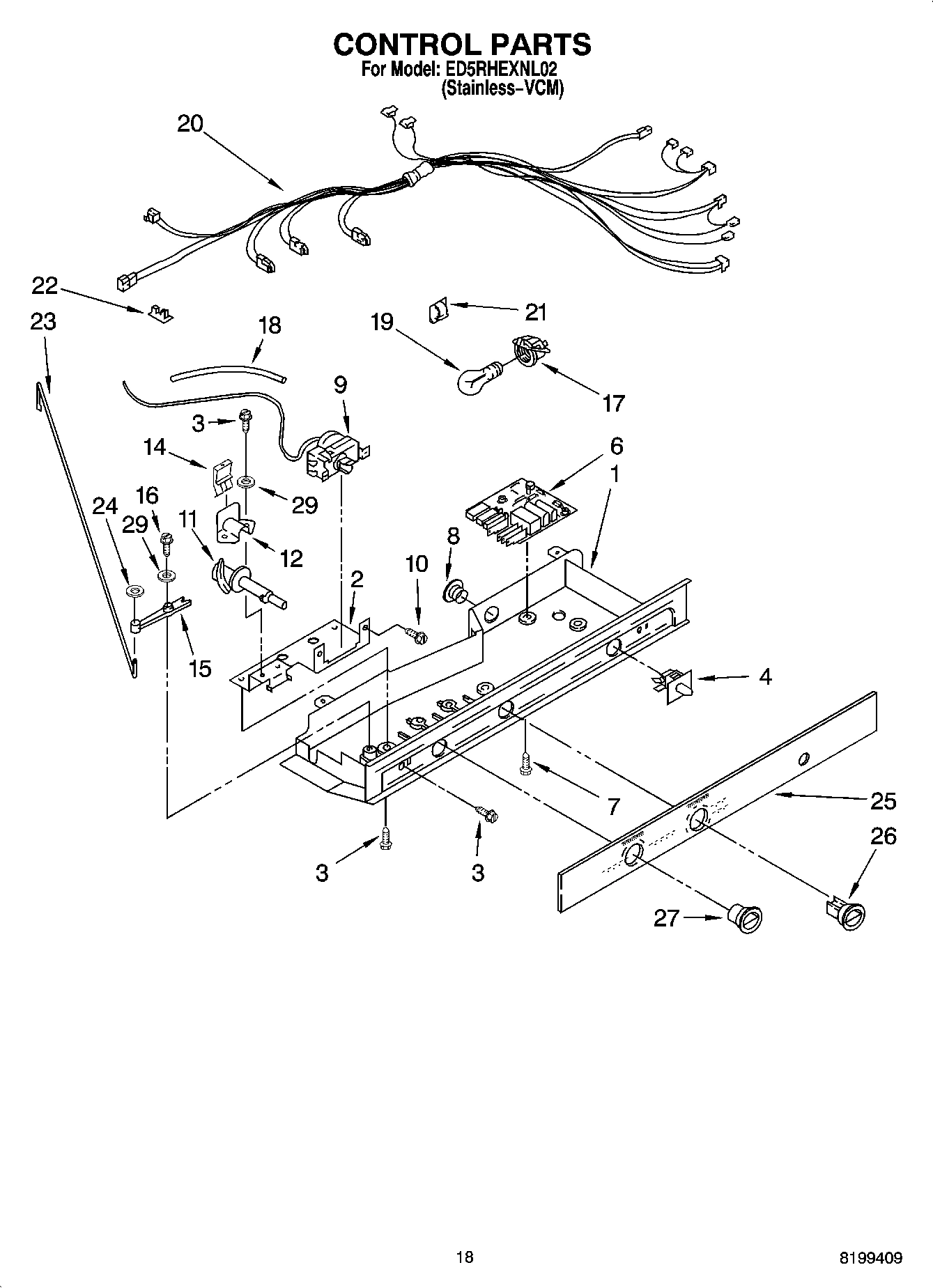

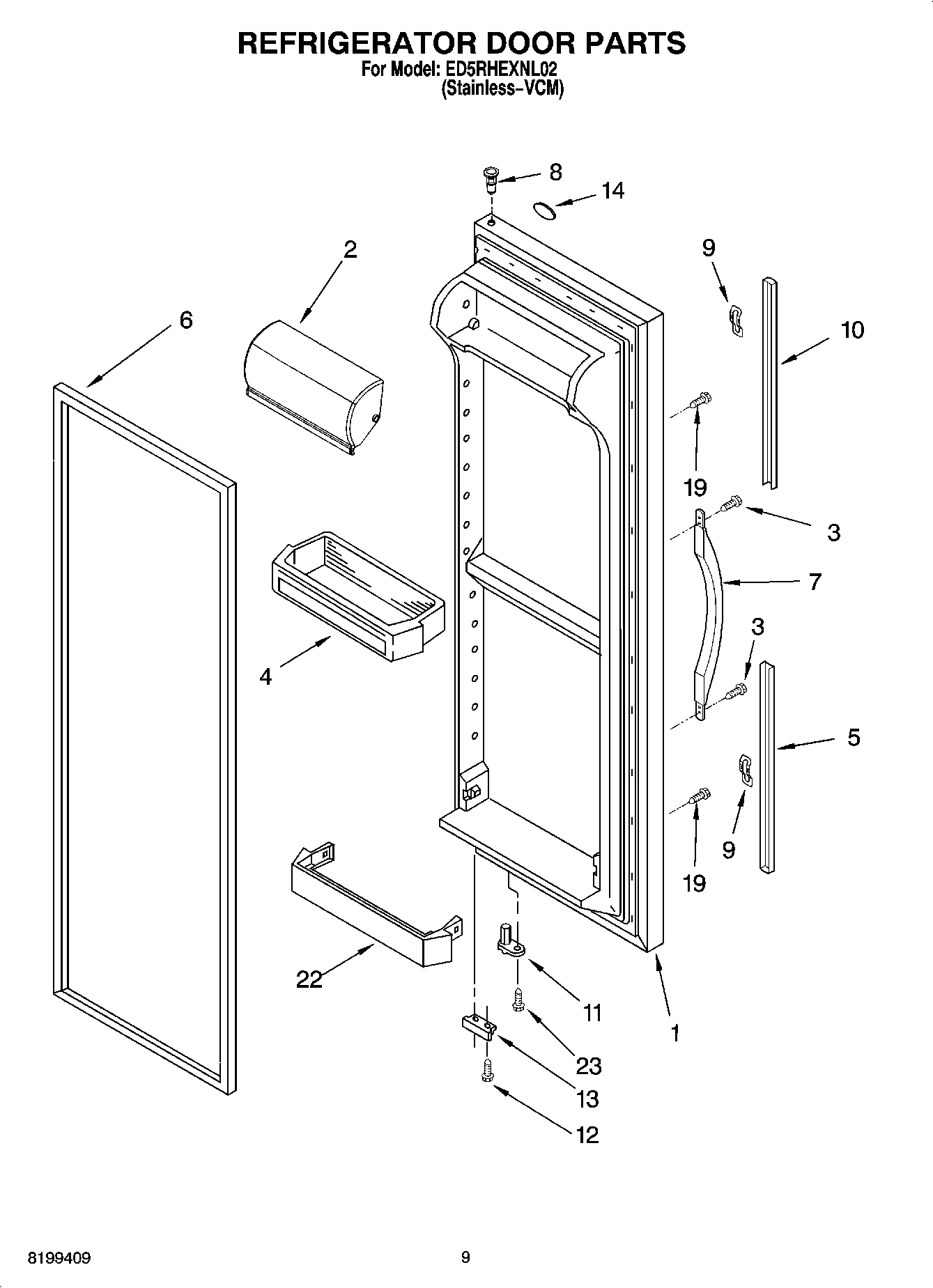

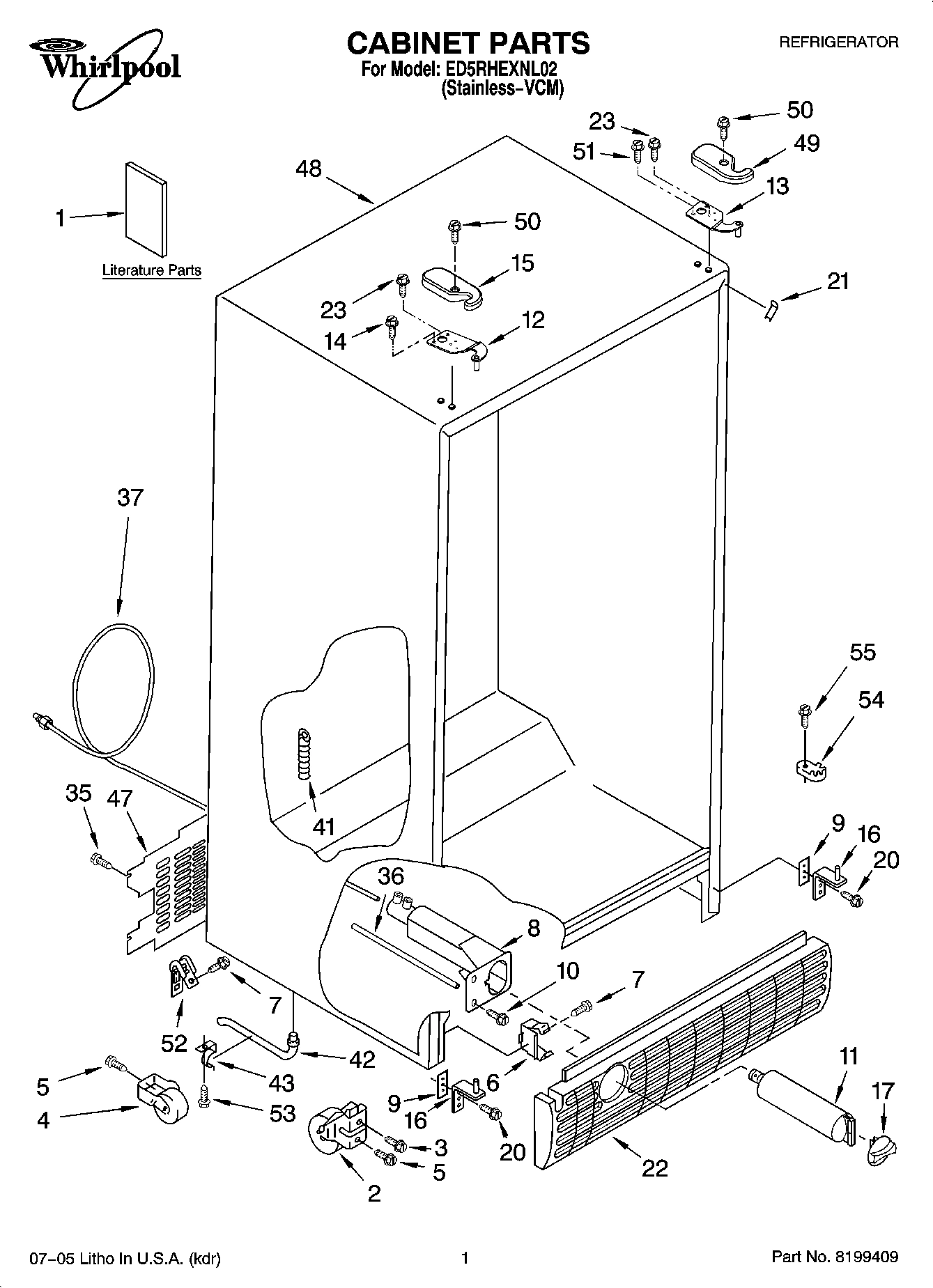

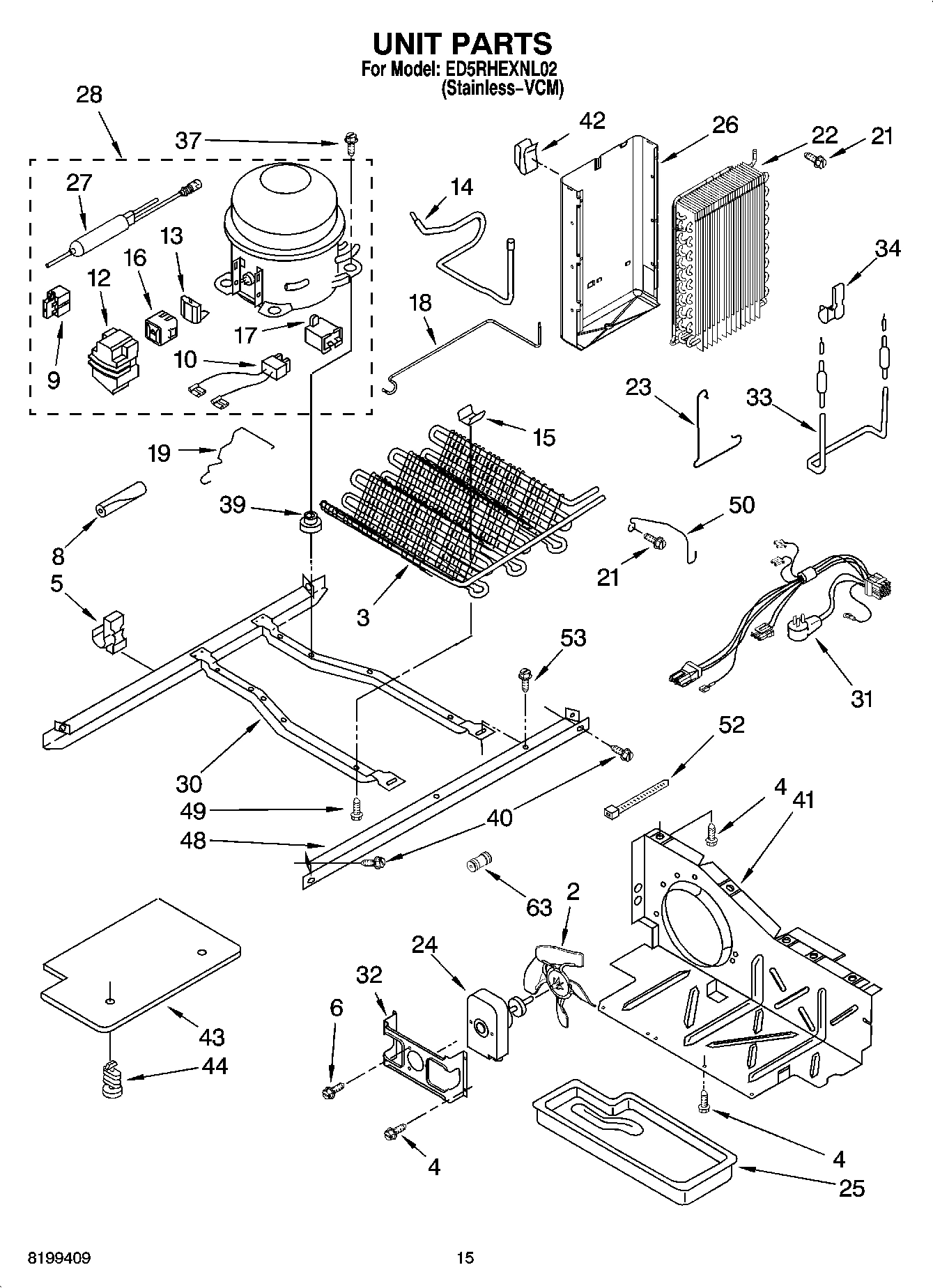

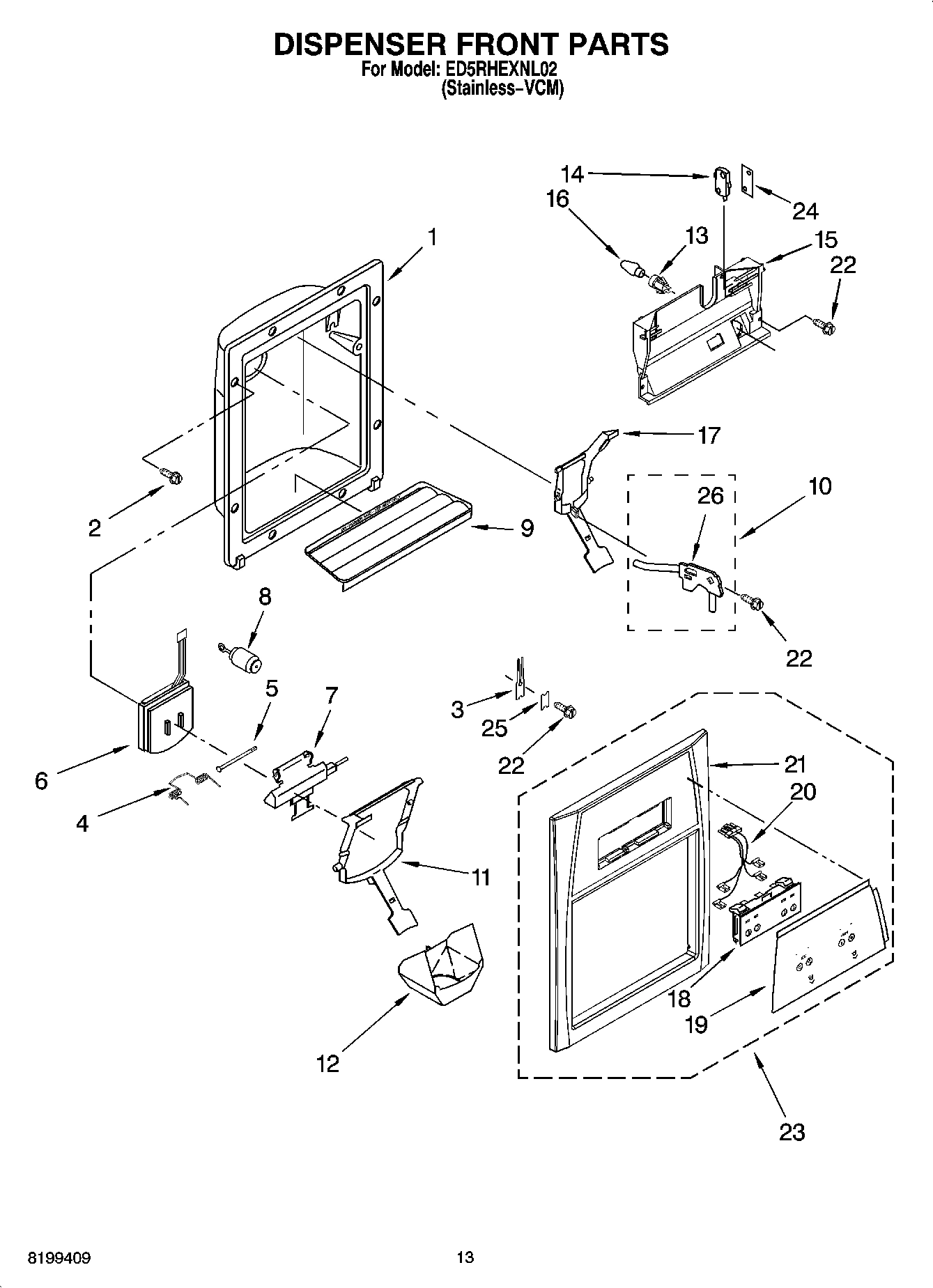

Model Whirlpool ED5RHEXNL02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $183.83

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORA WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI38003A7 WPL ARI38003A7 Contact Us For Availability

WPL ARI38004A3 WPL ARI38004A3 Contact Us For Availability

WPL ARI38005A8 WPL ARI38005A8 Contact Us For Availability

WPL ARI38006A7 WPL ARI38006A7 Contact Us For Availability

WPL ARI38007A3 WPL ARI38007A3 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

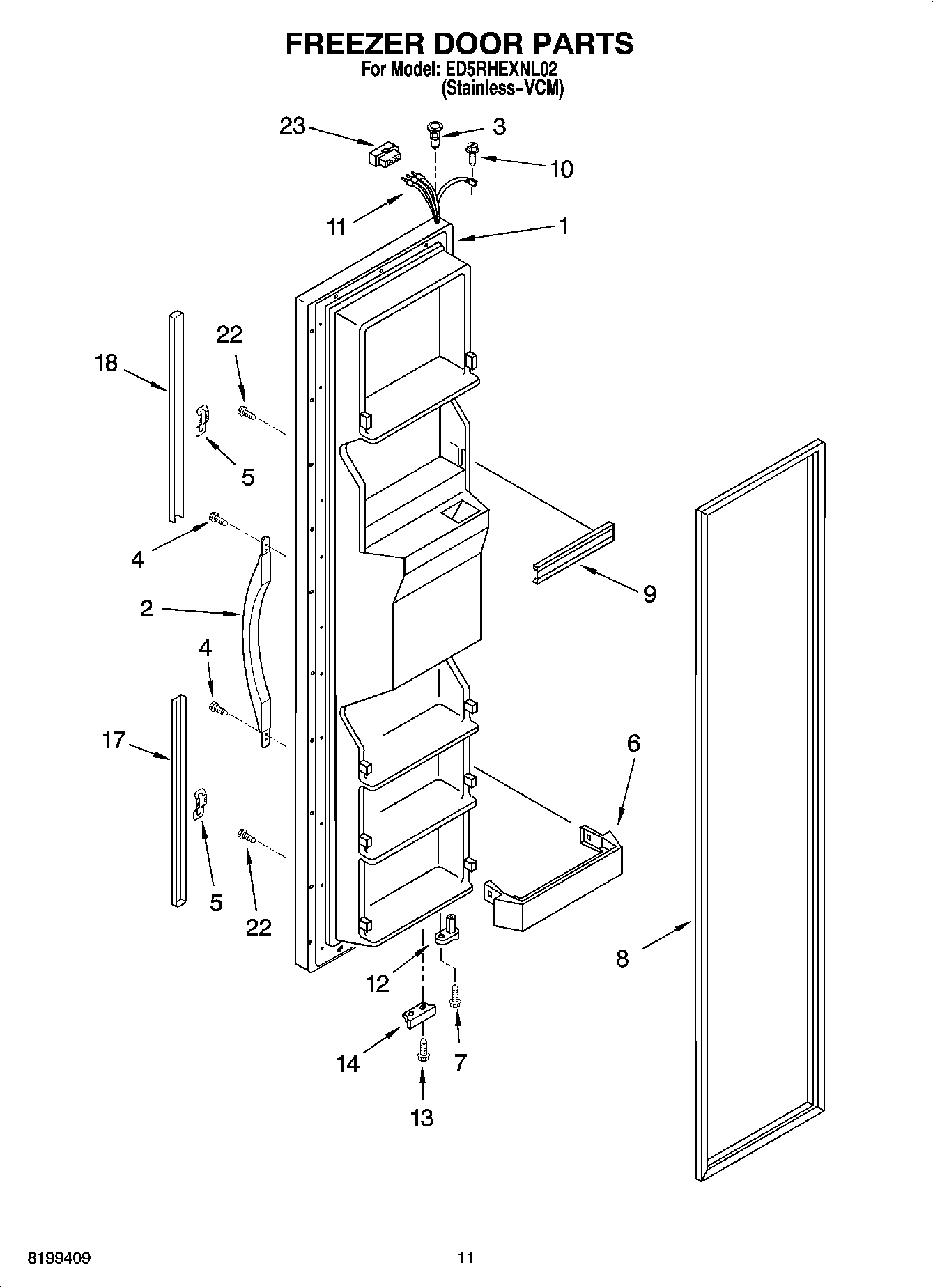

Freezer Door (Includes Item 8 And Dispenser F WPL 2305923LG Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $33.53

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $119.53

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Handle, Center (Black) WPL 2186649B Contact Us For Availability

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $147.90

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $81.31

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $91.10

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $59.81

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $80.36

TUBE, SUCTION WPL 2205765 Contact Us For Availability

15

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

15

Pivot Arm WPL 1110559 Contact Us For Availability

15

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

16

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

17

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

17

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $55.82

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Extension, Handle (Black) WPL 2194973B Contact Us For Availability

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Knob, Air Control WPL 2197871 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Shelf (2) WPL 2174268K Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

50

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
