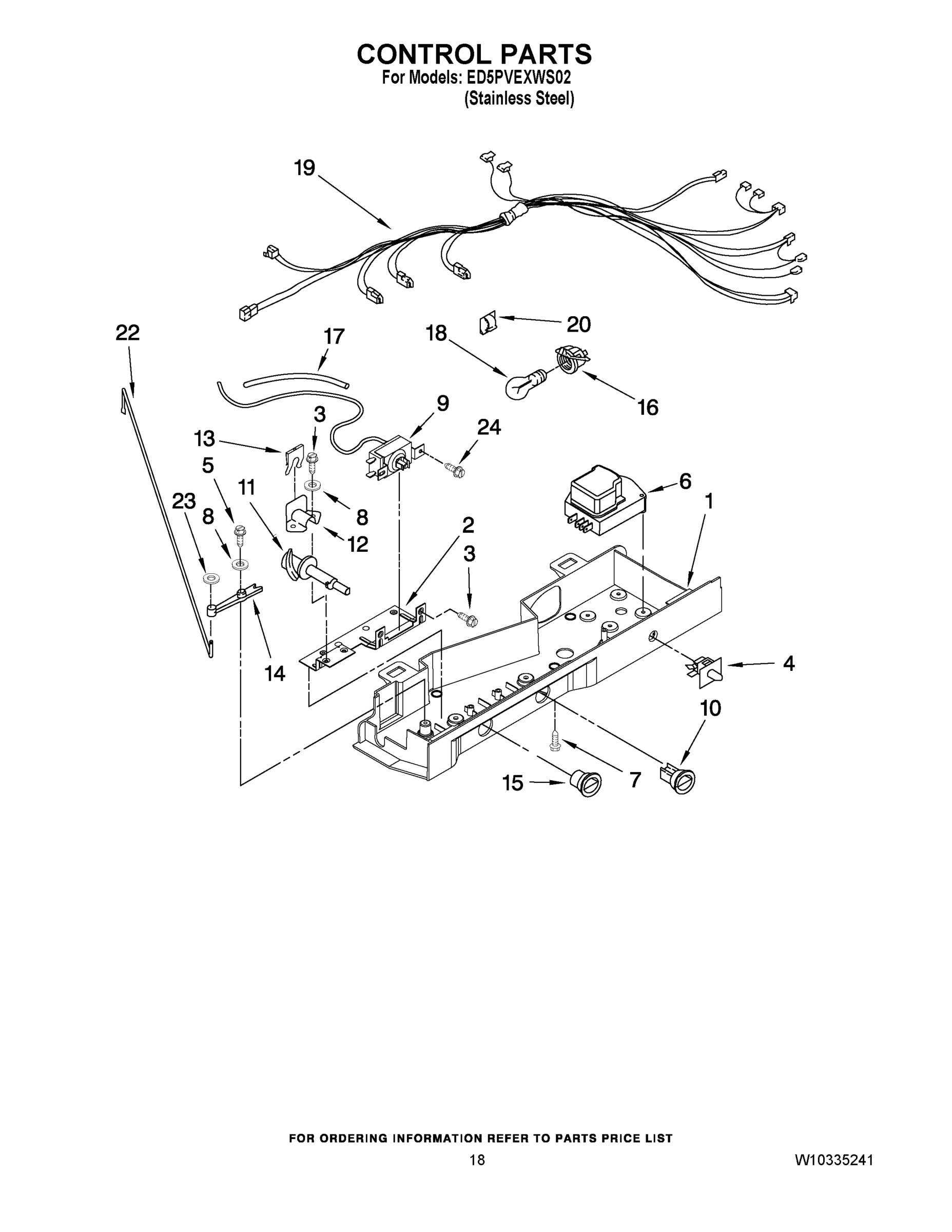

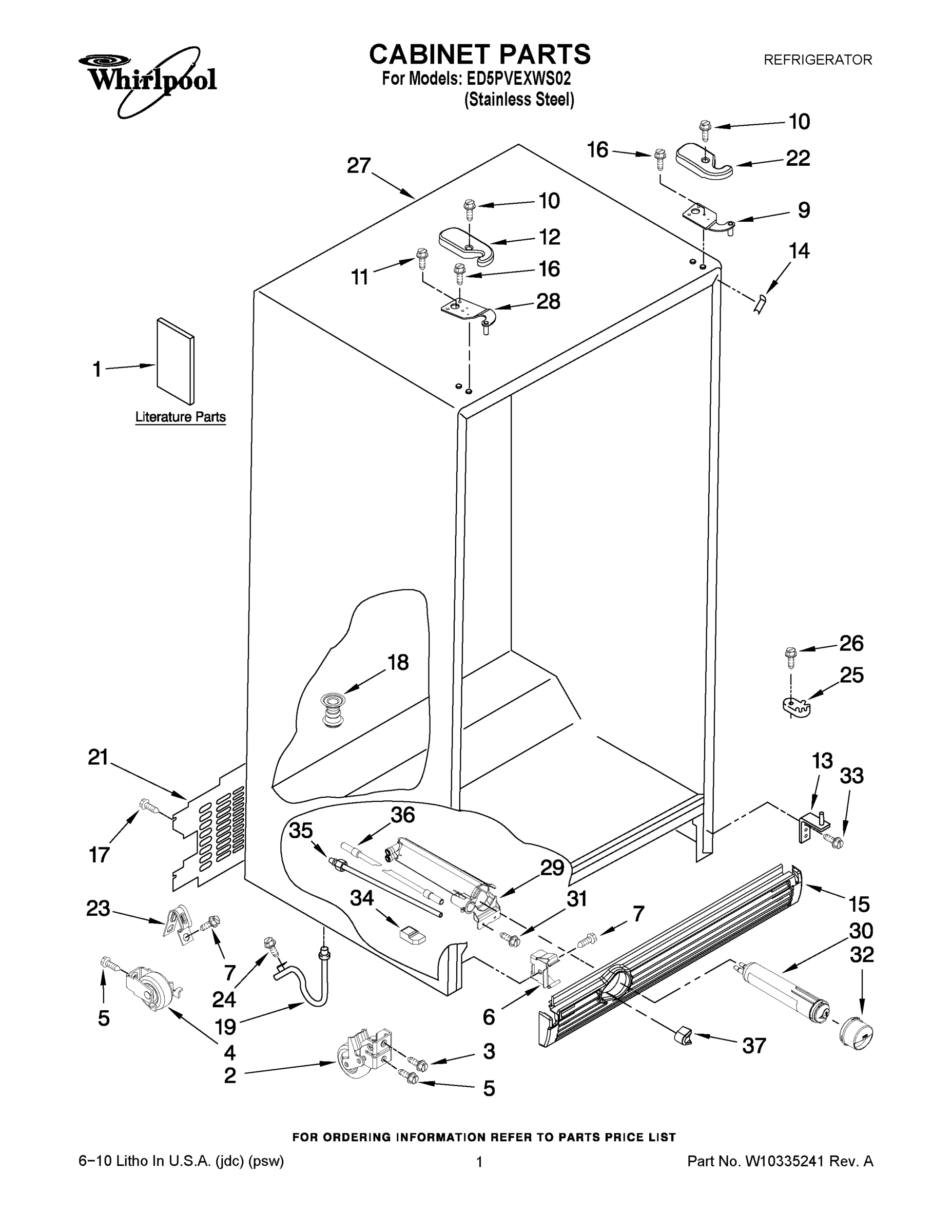

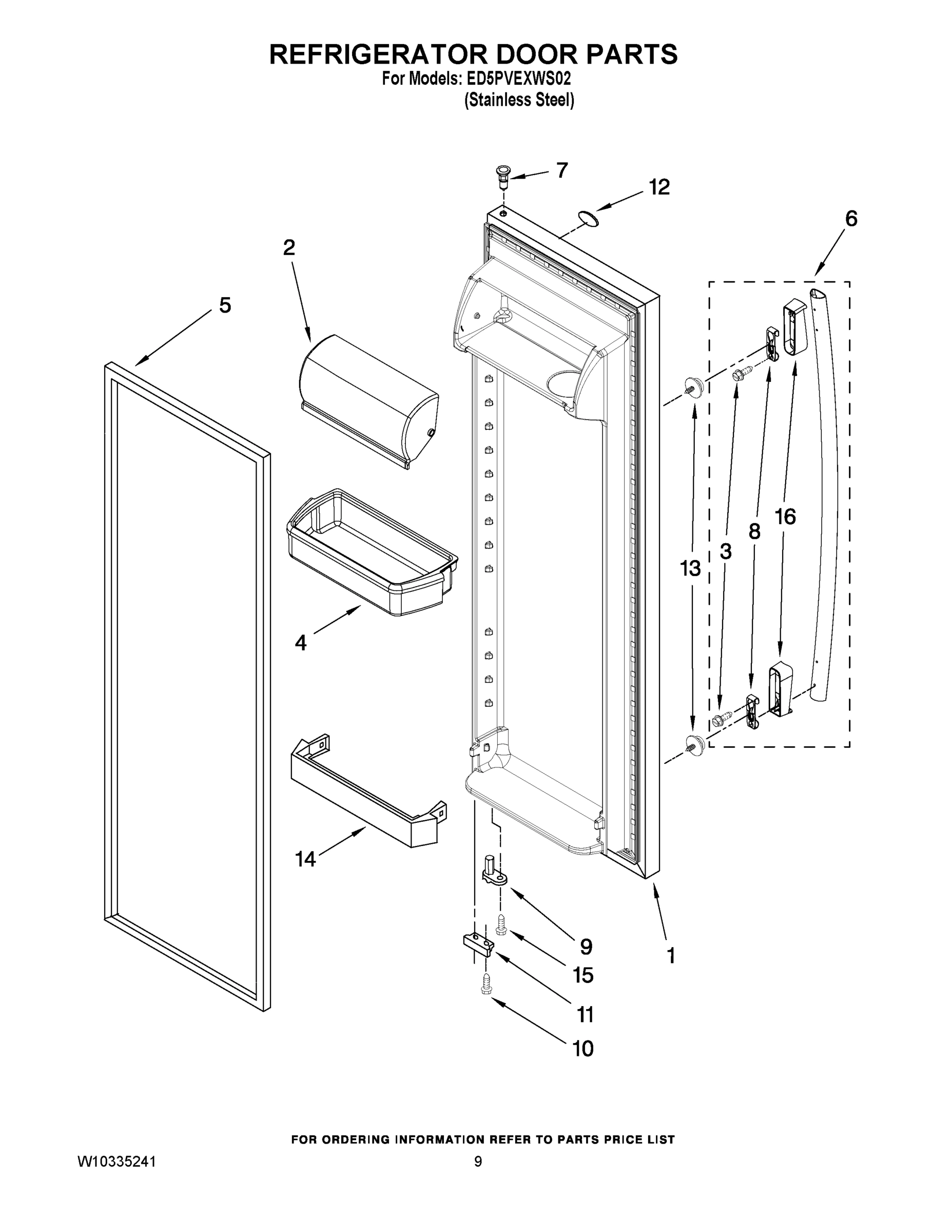

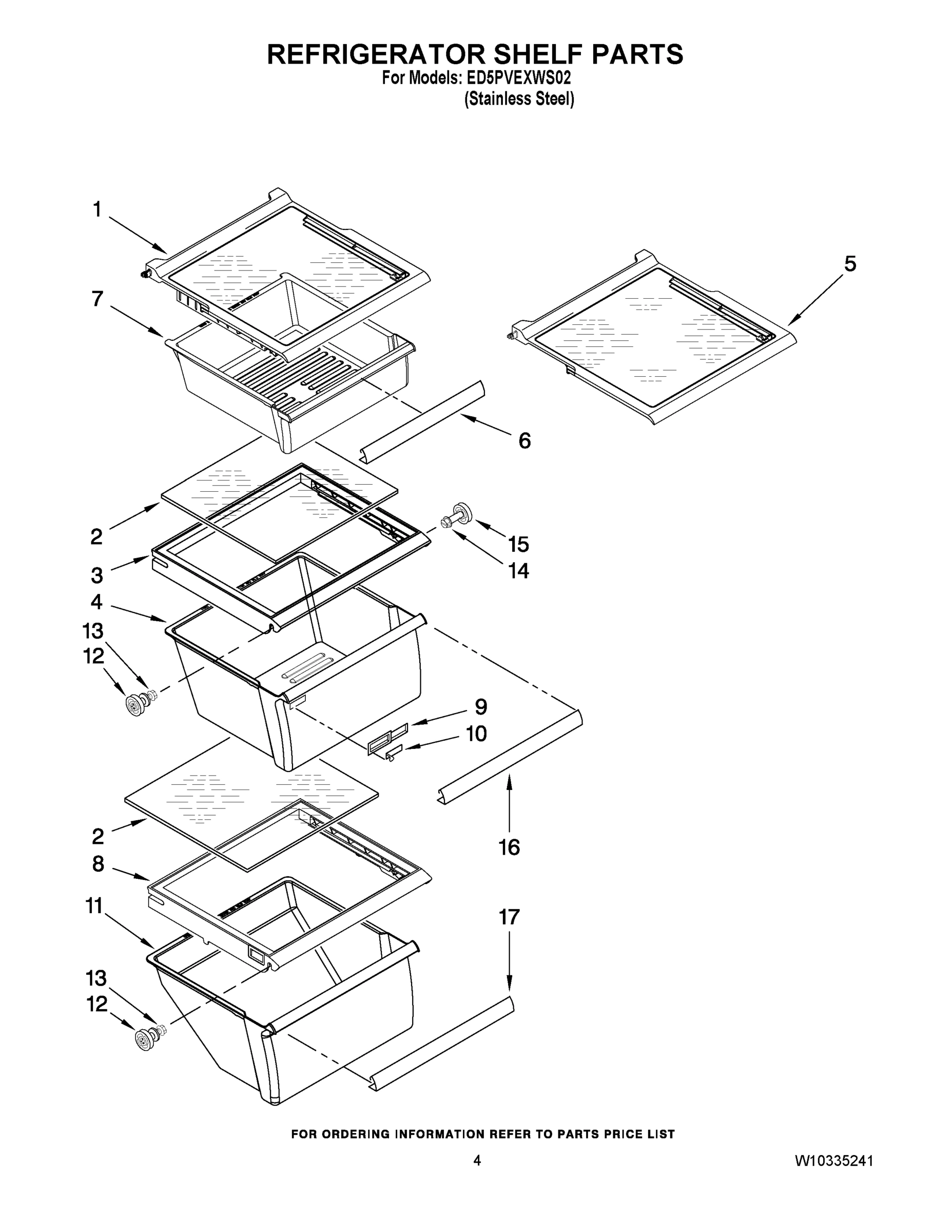

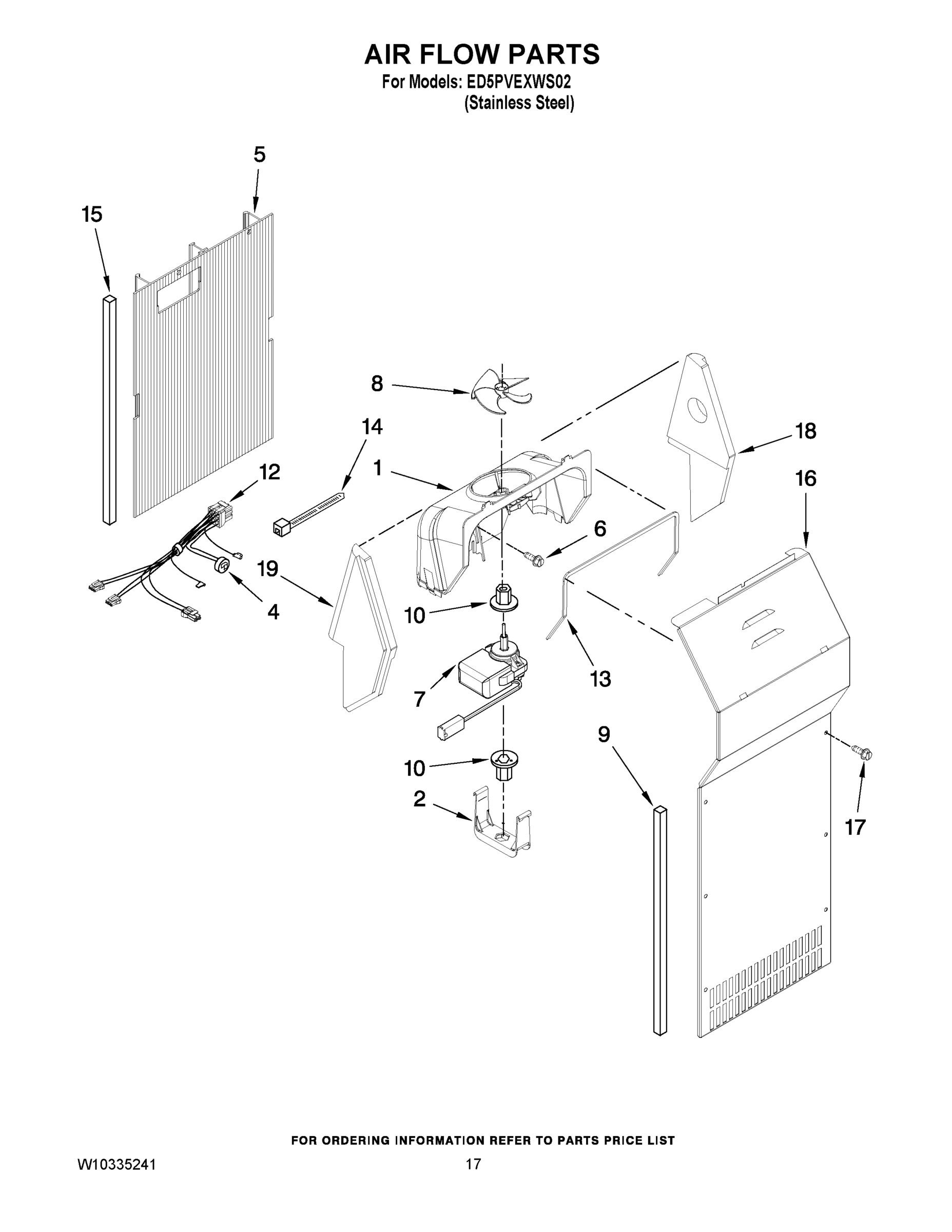

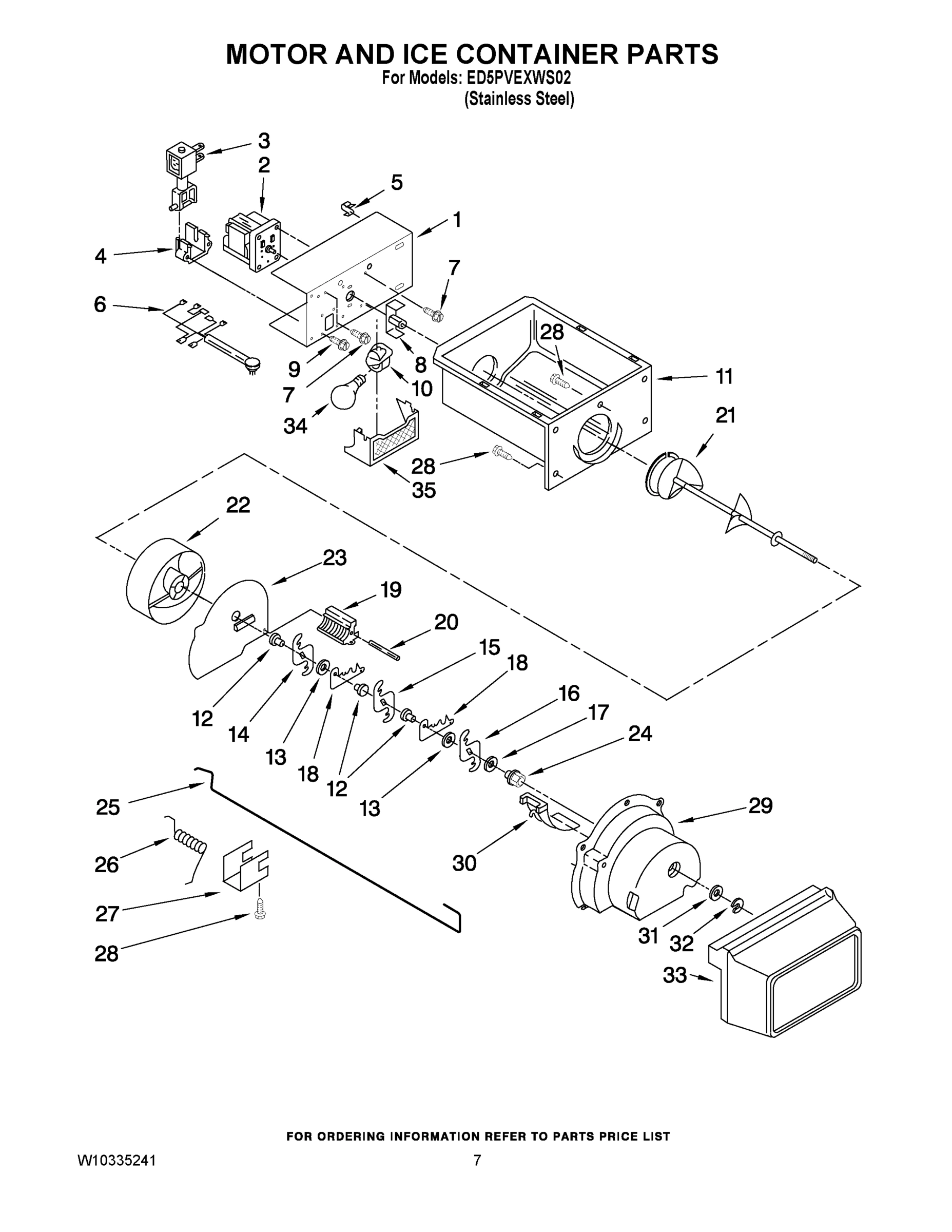

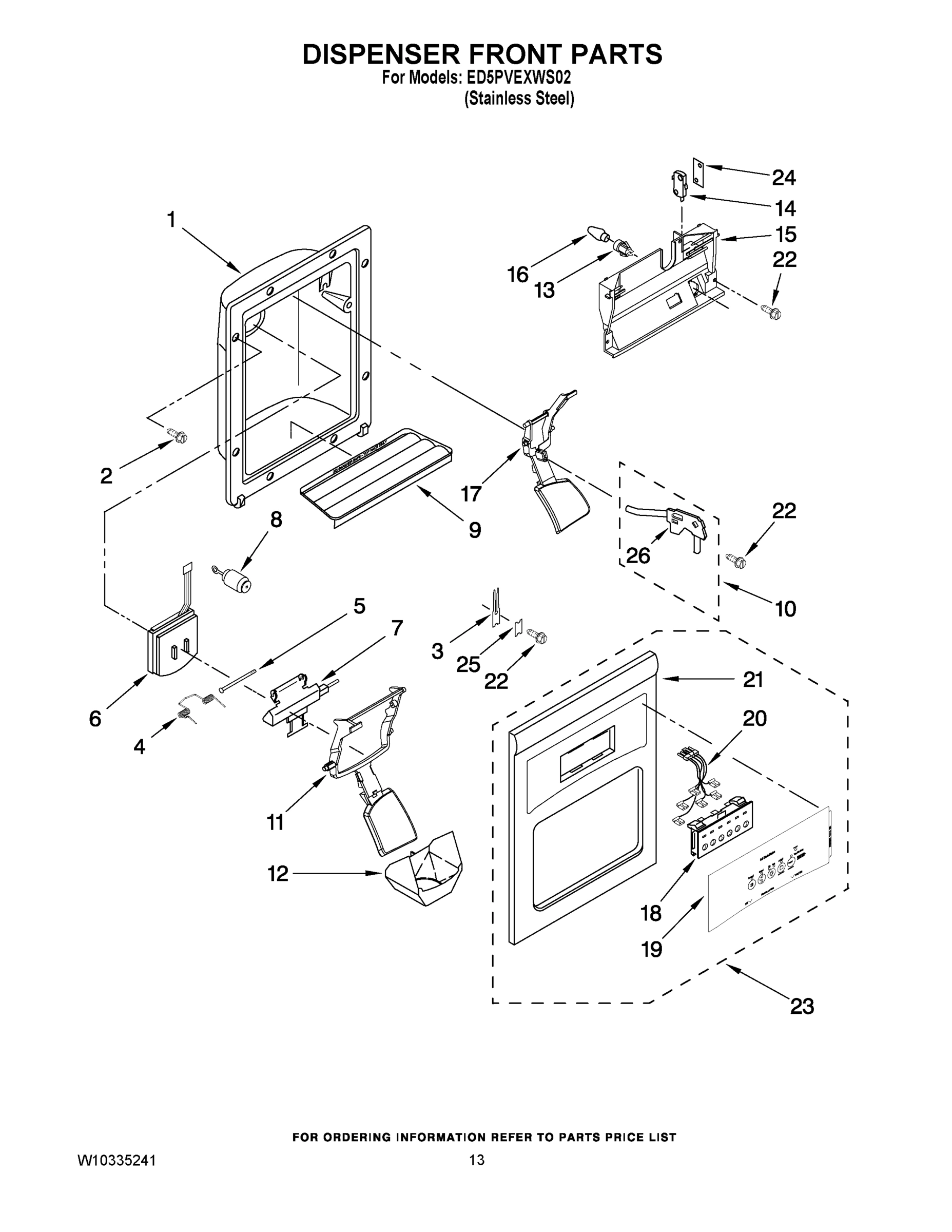

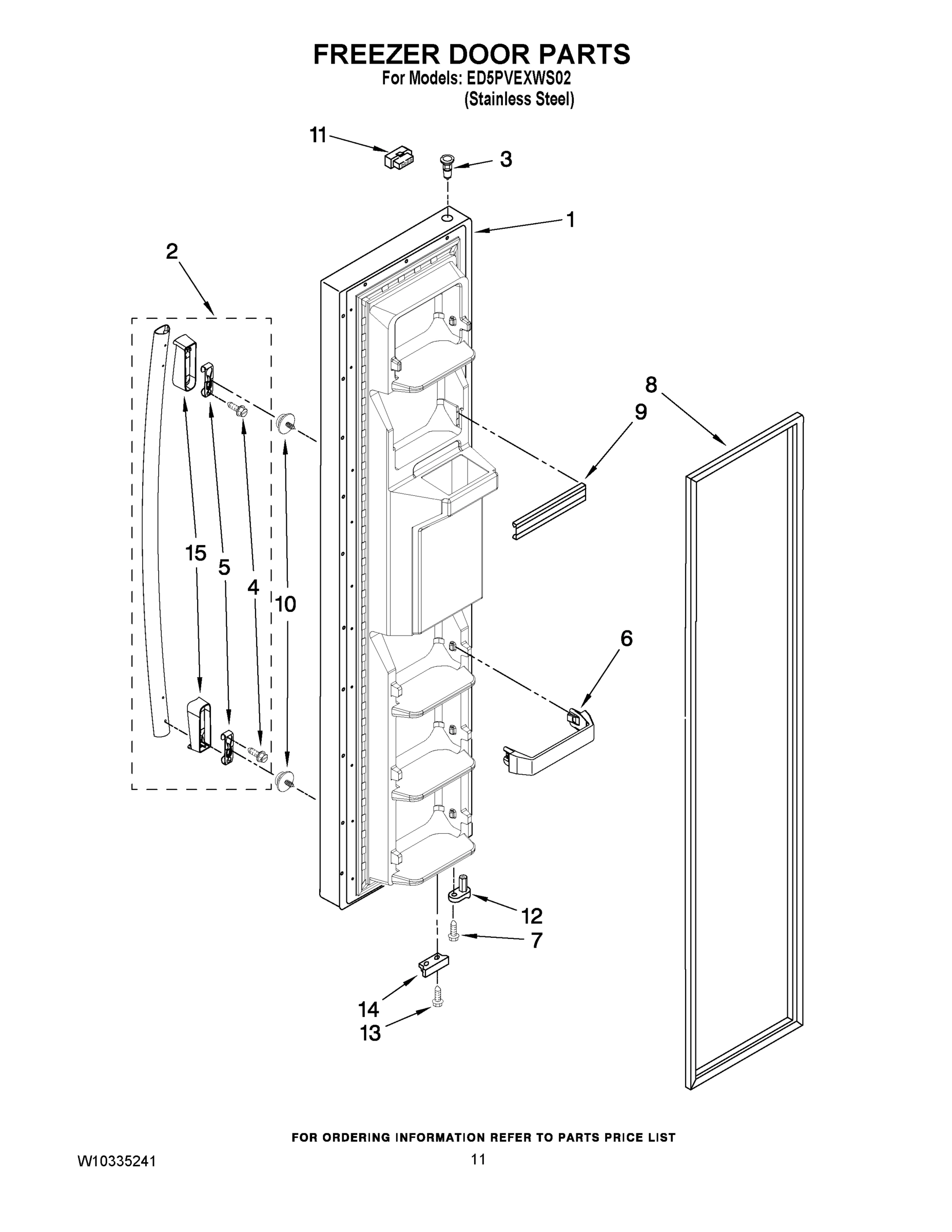

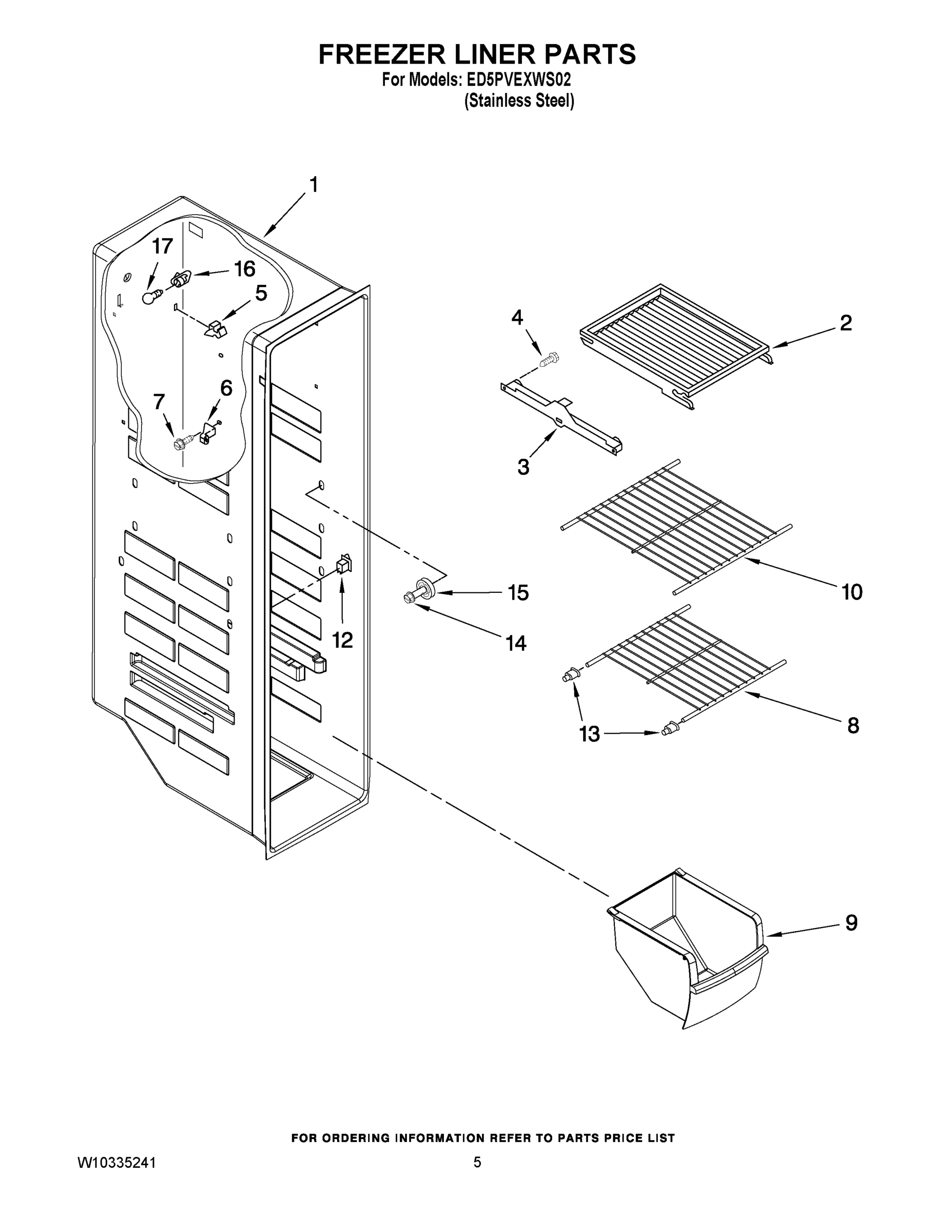

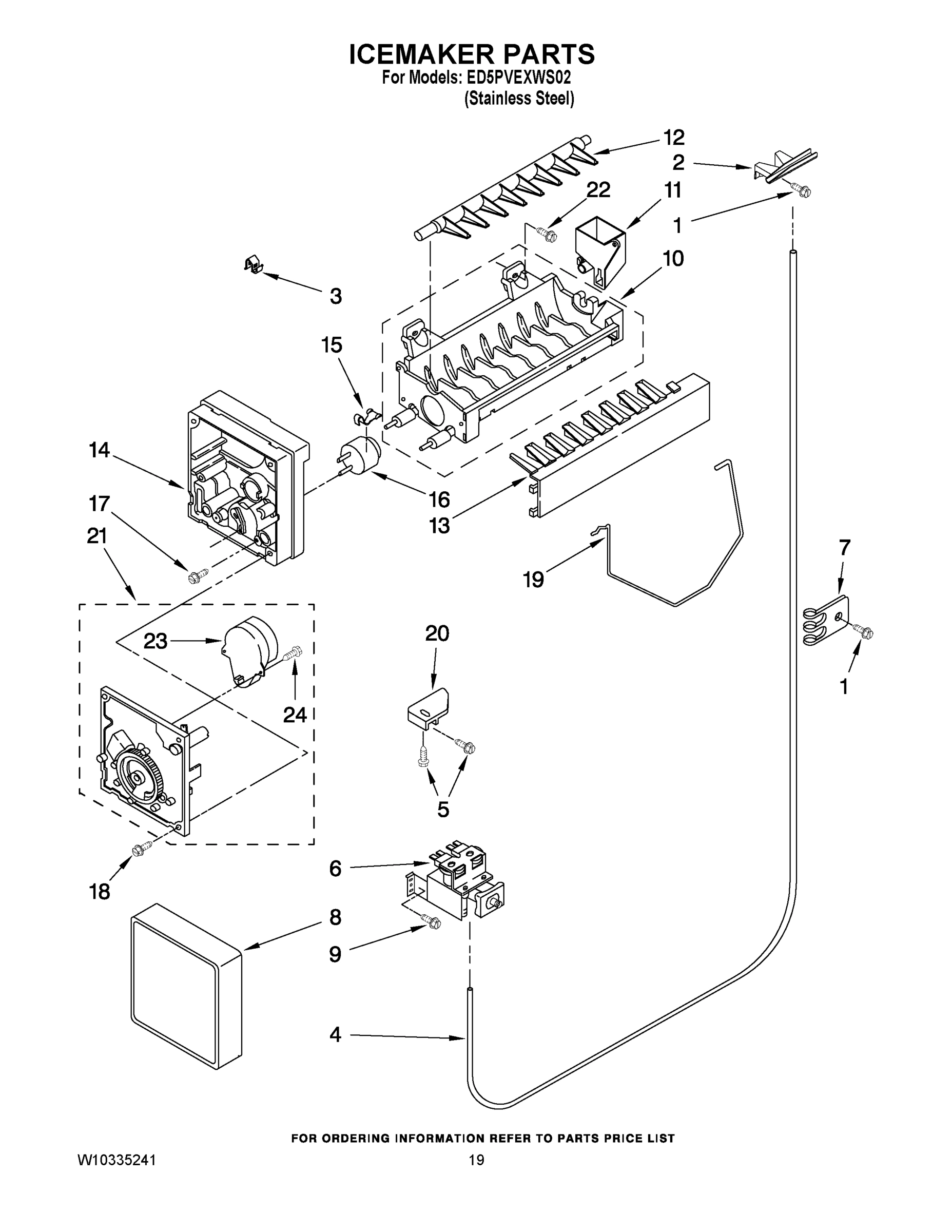

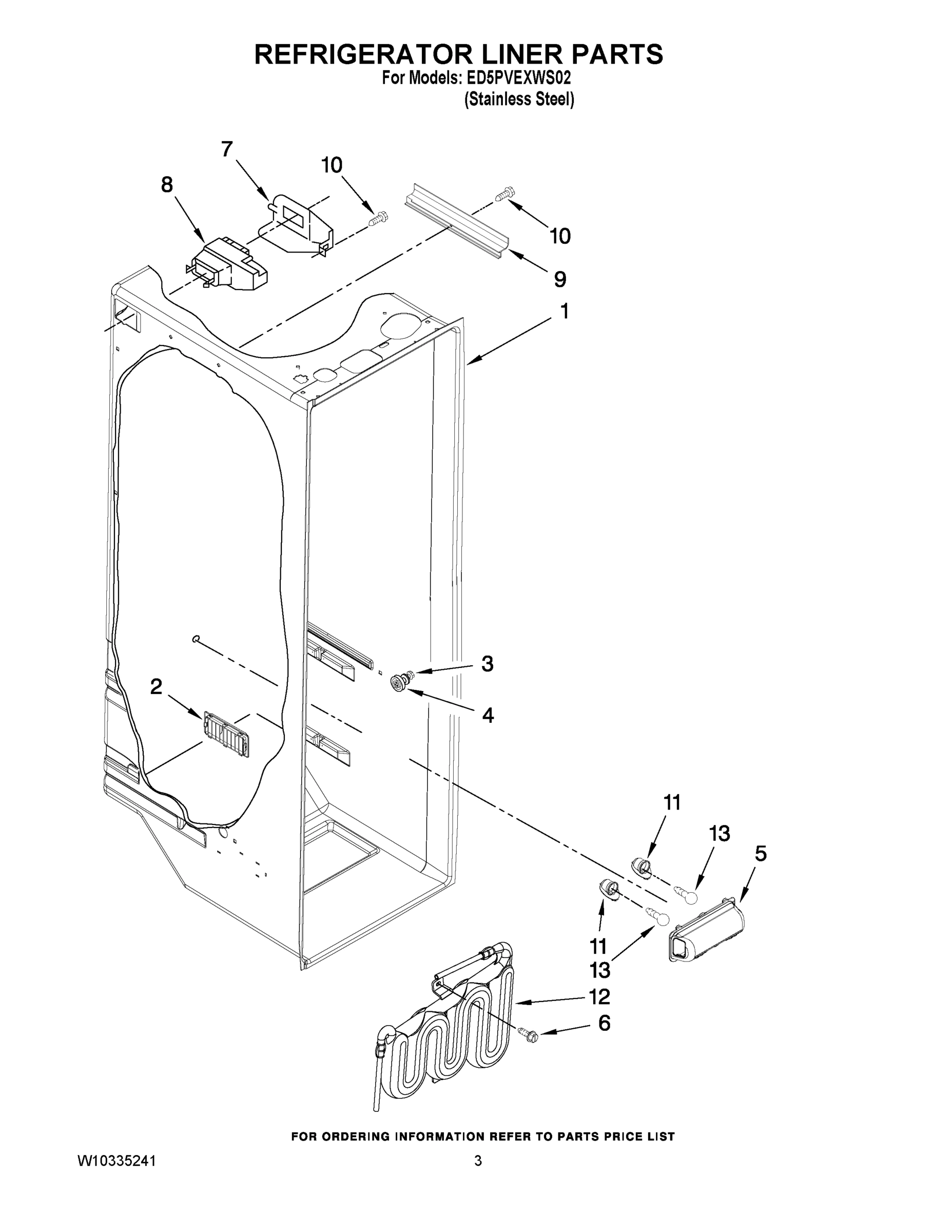

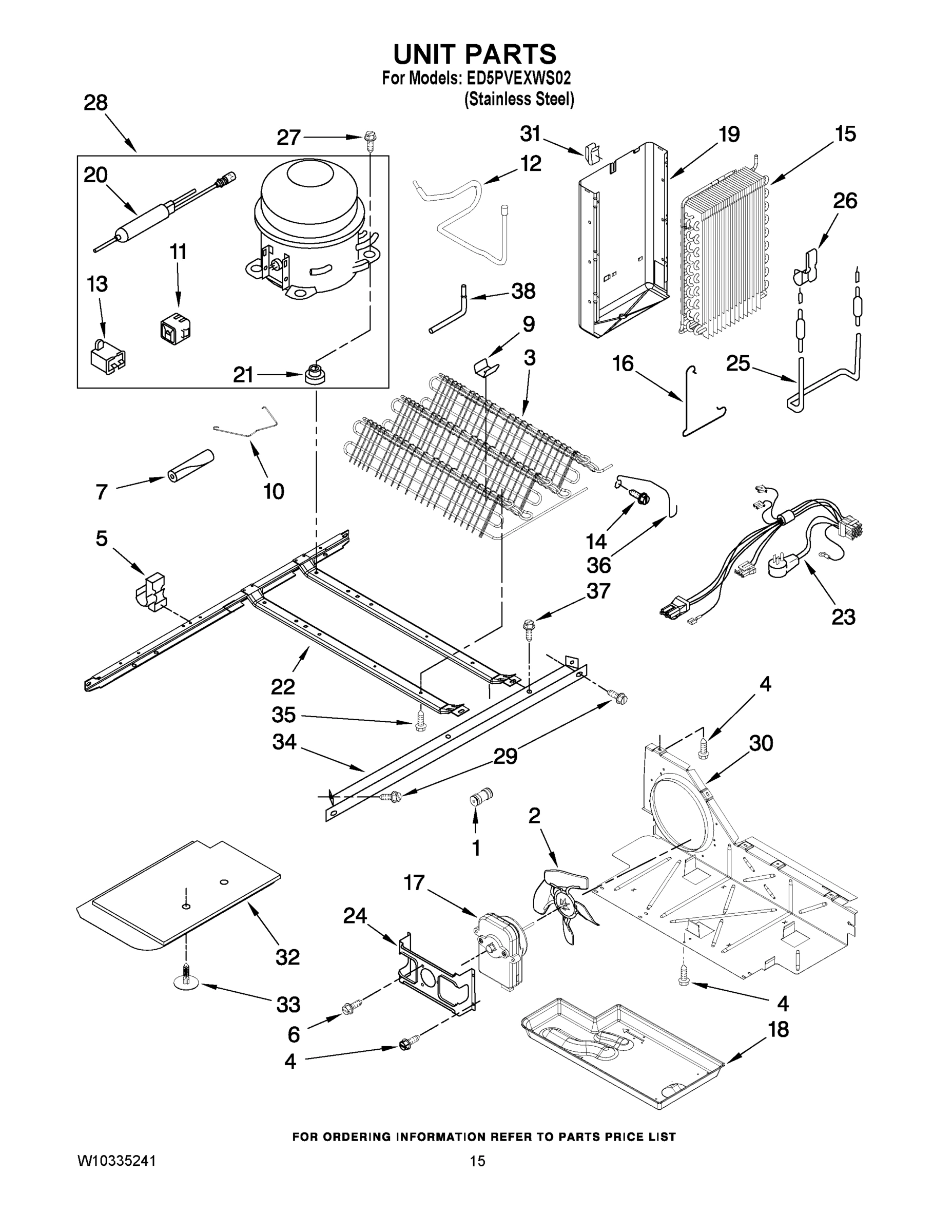

Model Whirlpool ED5PVEXWS02 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $119.79

1

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

1

BRACKET, MOTOR WPL W10284485 Contact Us For Availability

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

3

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $143.17

6

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $39.51

7

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

8

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

8

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

9

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

9

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

9

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

SHELF, WIRE WPL 2174268 Contact Us For Availability

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $67.68

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11084324 Whirlpool Refrigerator Wire Harness Backorder WPL W11084324 $42.66

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

CUP, SHELF MOUNT WPL 2196207 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Pivot Arm WPL 1110559 Contact Us For Availability

2311615 Whirlpool Refrigerator Knob In Stock WPL 2311615 $32.26

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Screw WPL W10191952 Contact Us For Availability

16

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

16

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

16

COVER, EVAPORATOR (INCLUDES No.9) WPL 2203841 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

19

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

19

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

19

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

20

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

22

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

22

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

22

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

23

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

23

Fastener, Push-On WPL 489285 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Clip WPL 2161324 Contact Us For Availability

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

28

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

29

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

30

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

33

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

35

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

100

WPW10190965 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190965 $70.55

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
