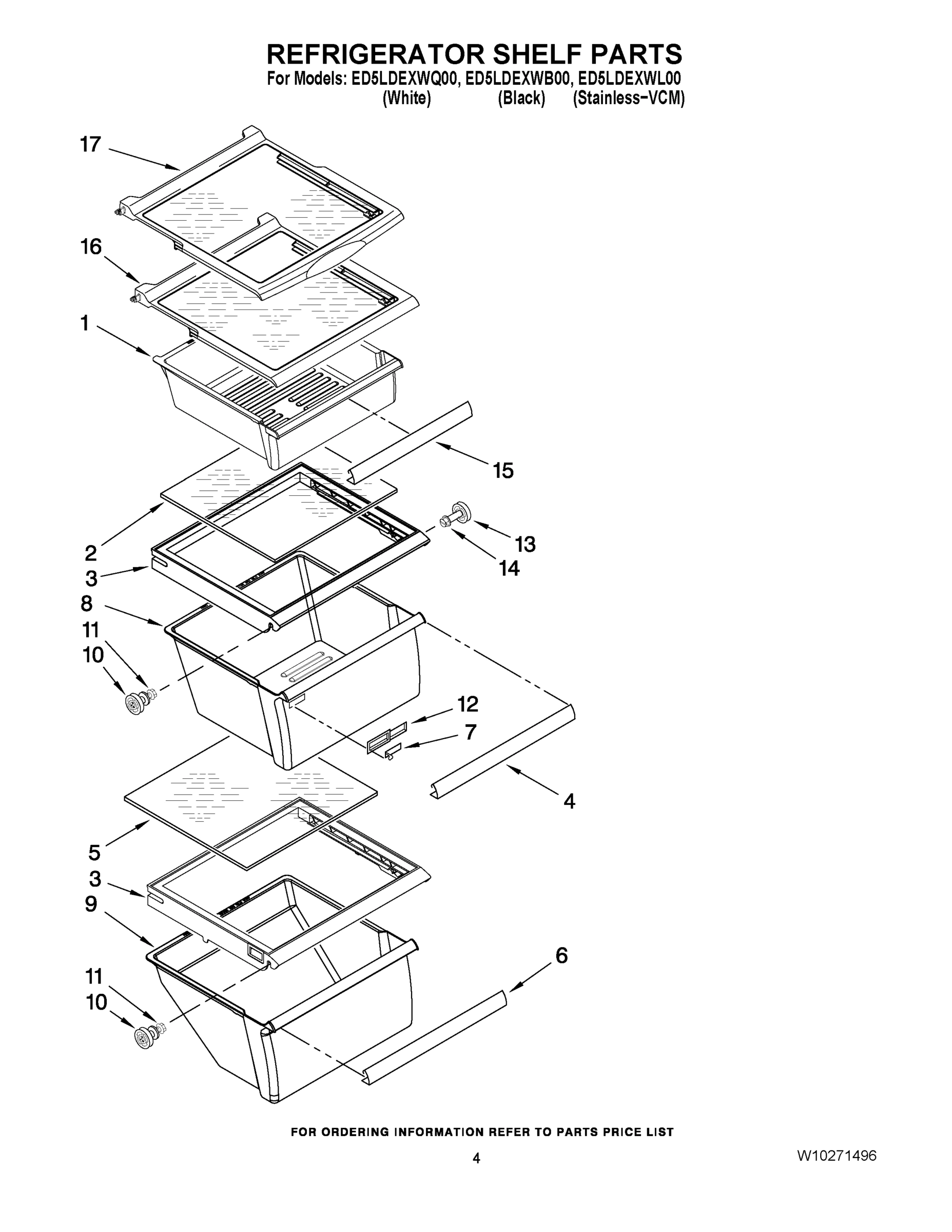

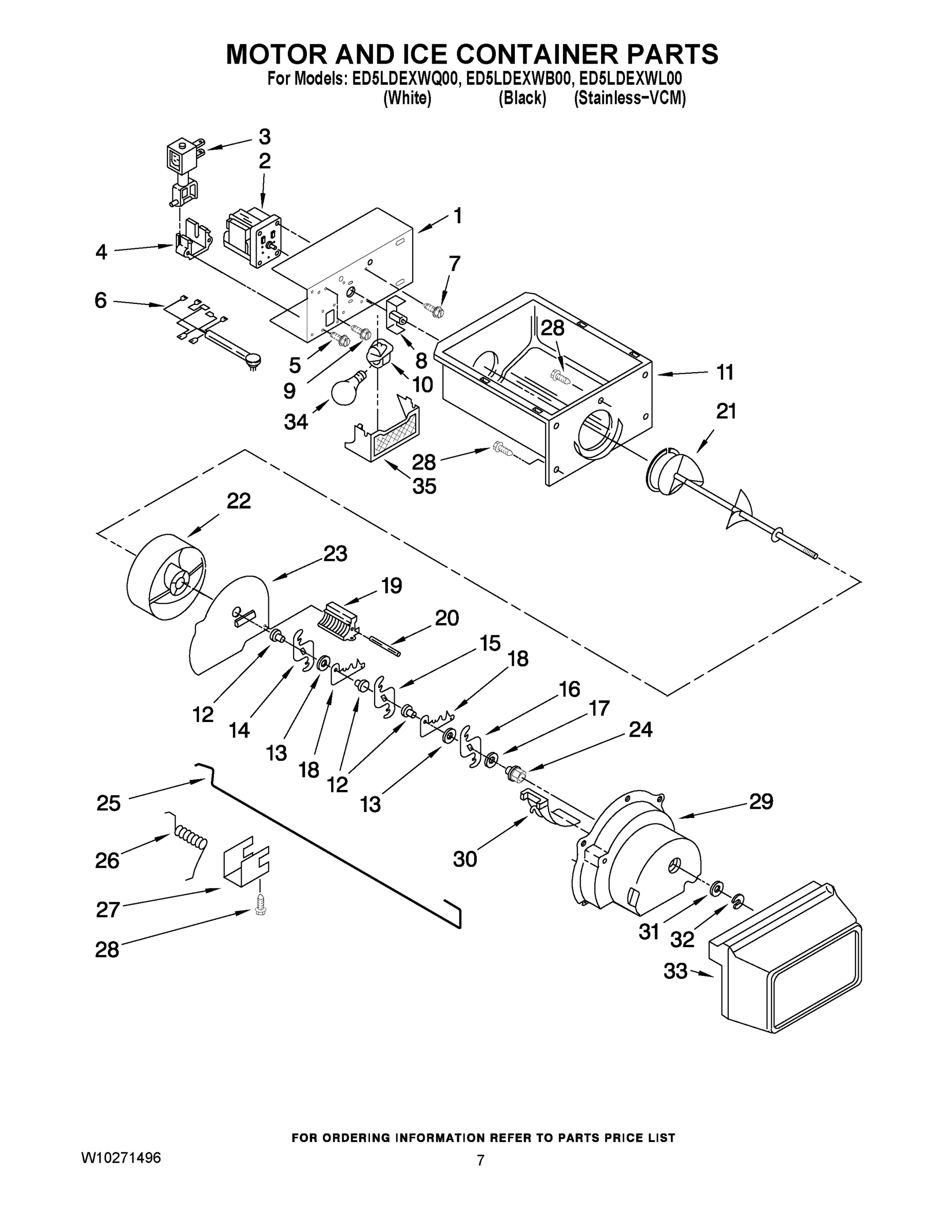

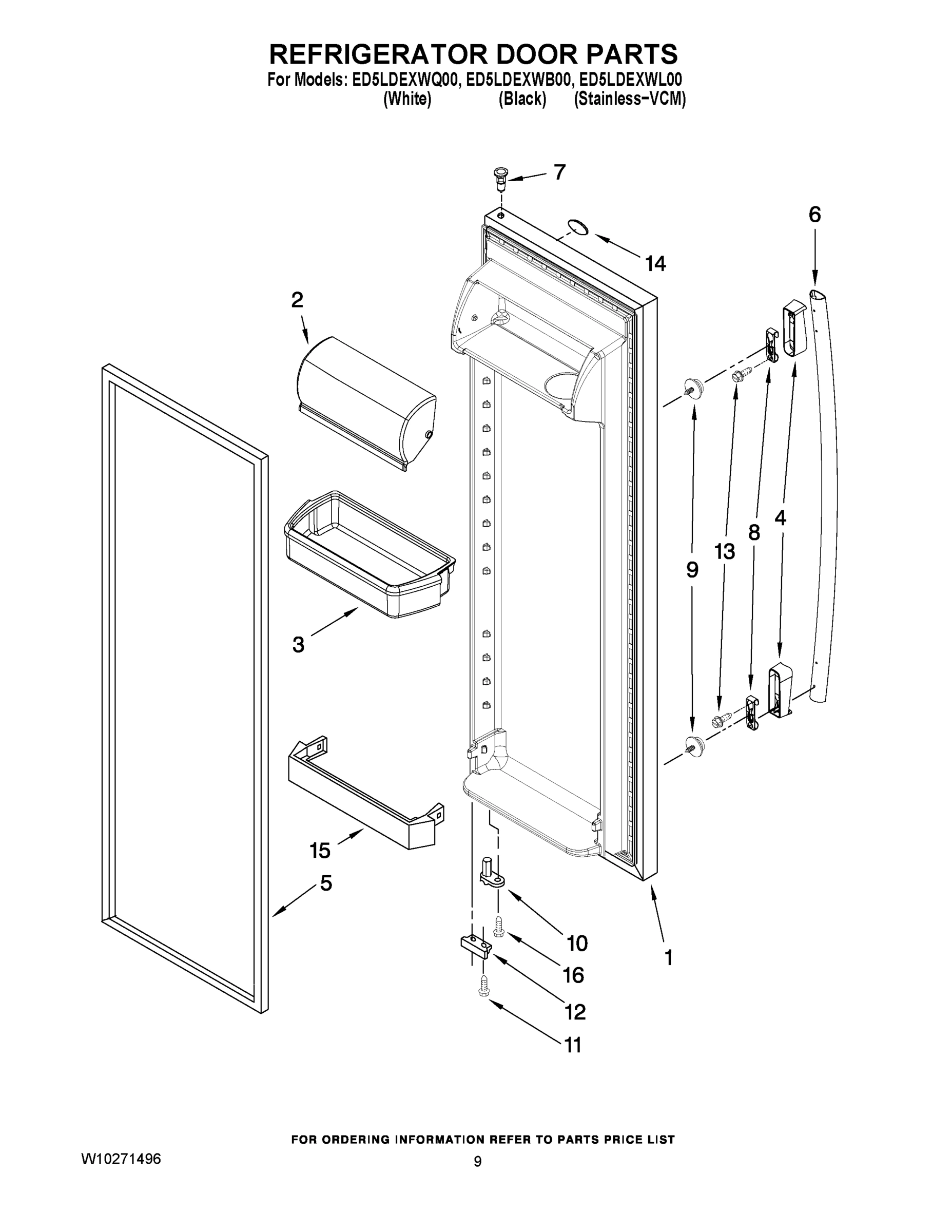

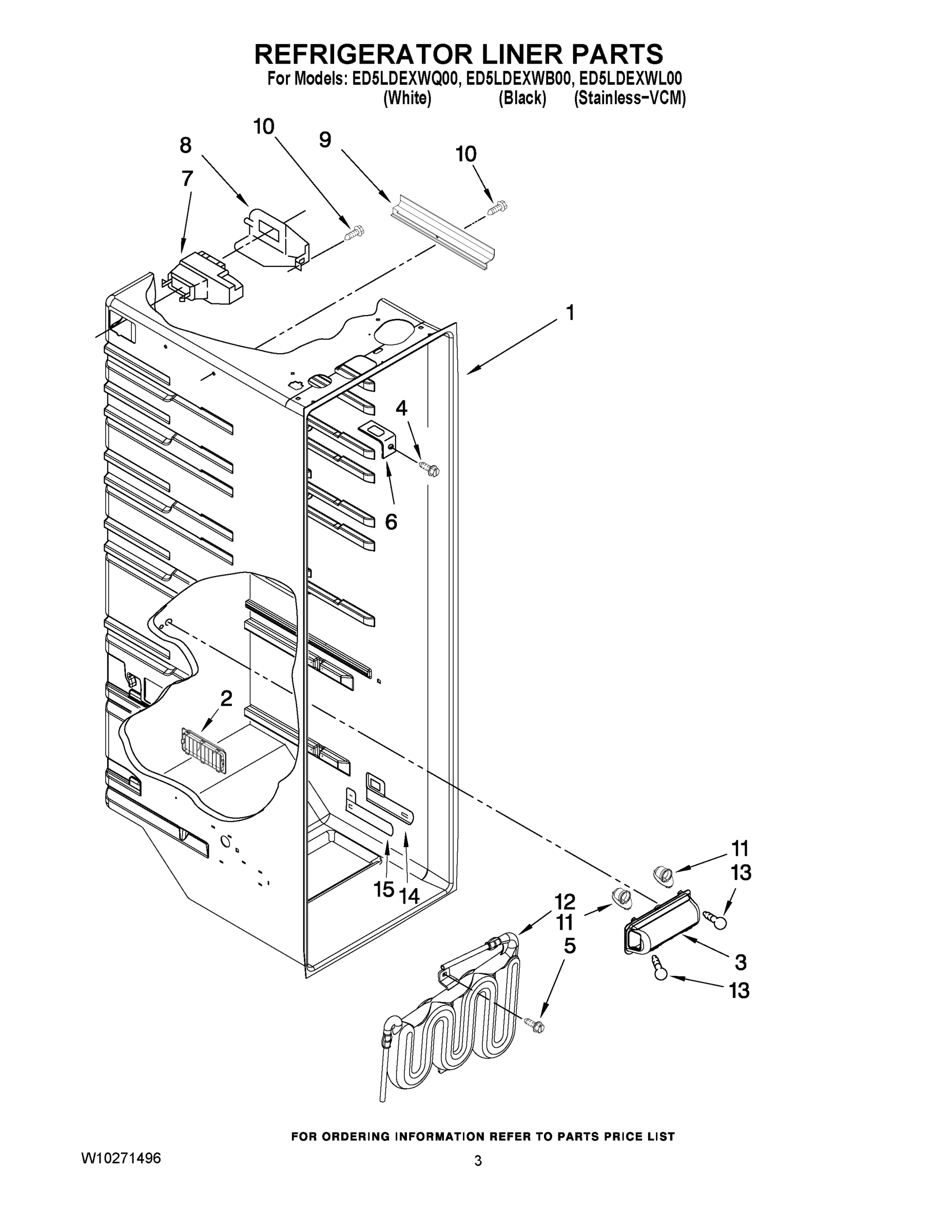

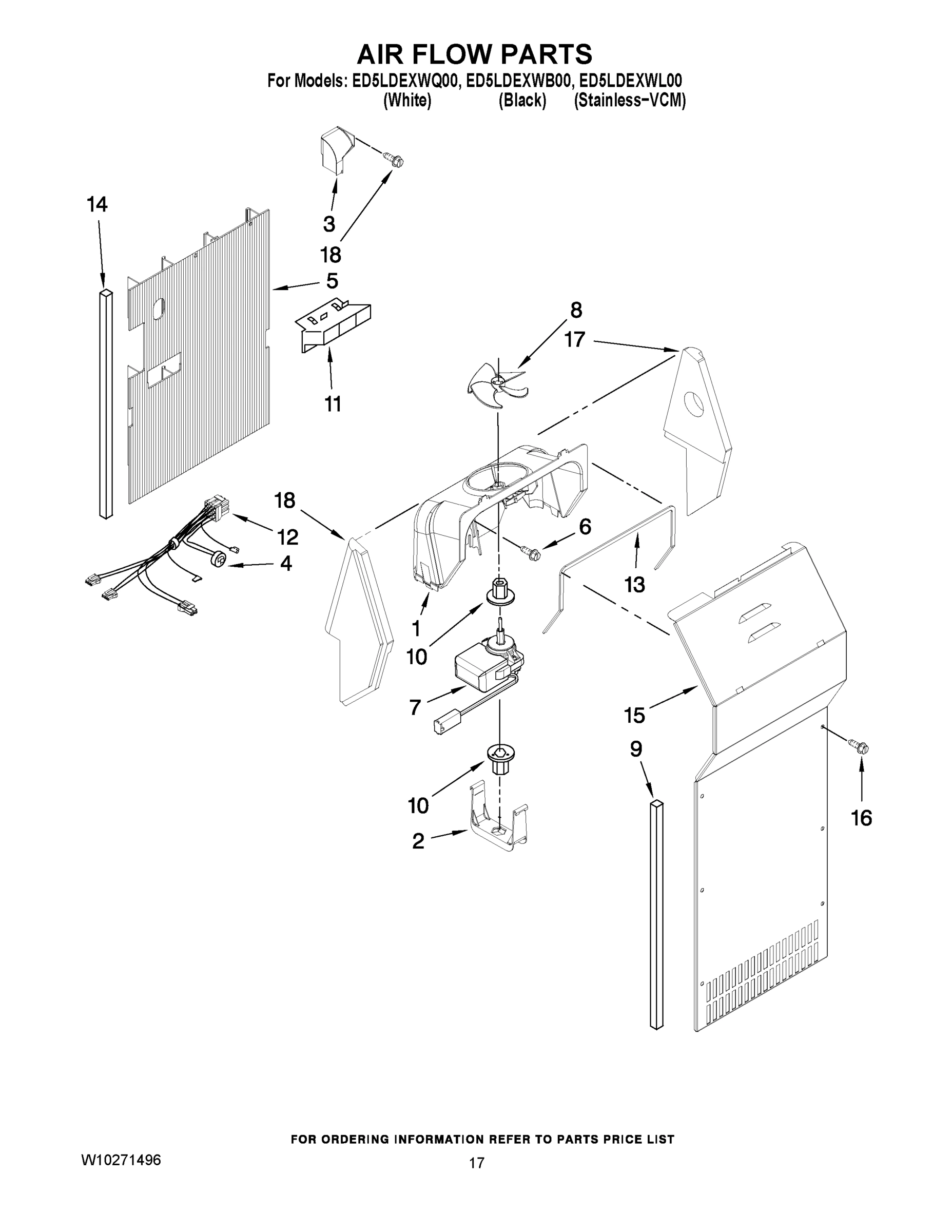

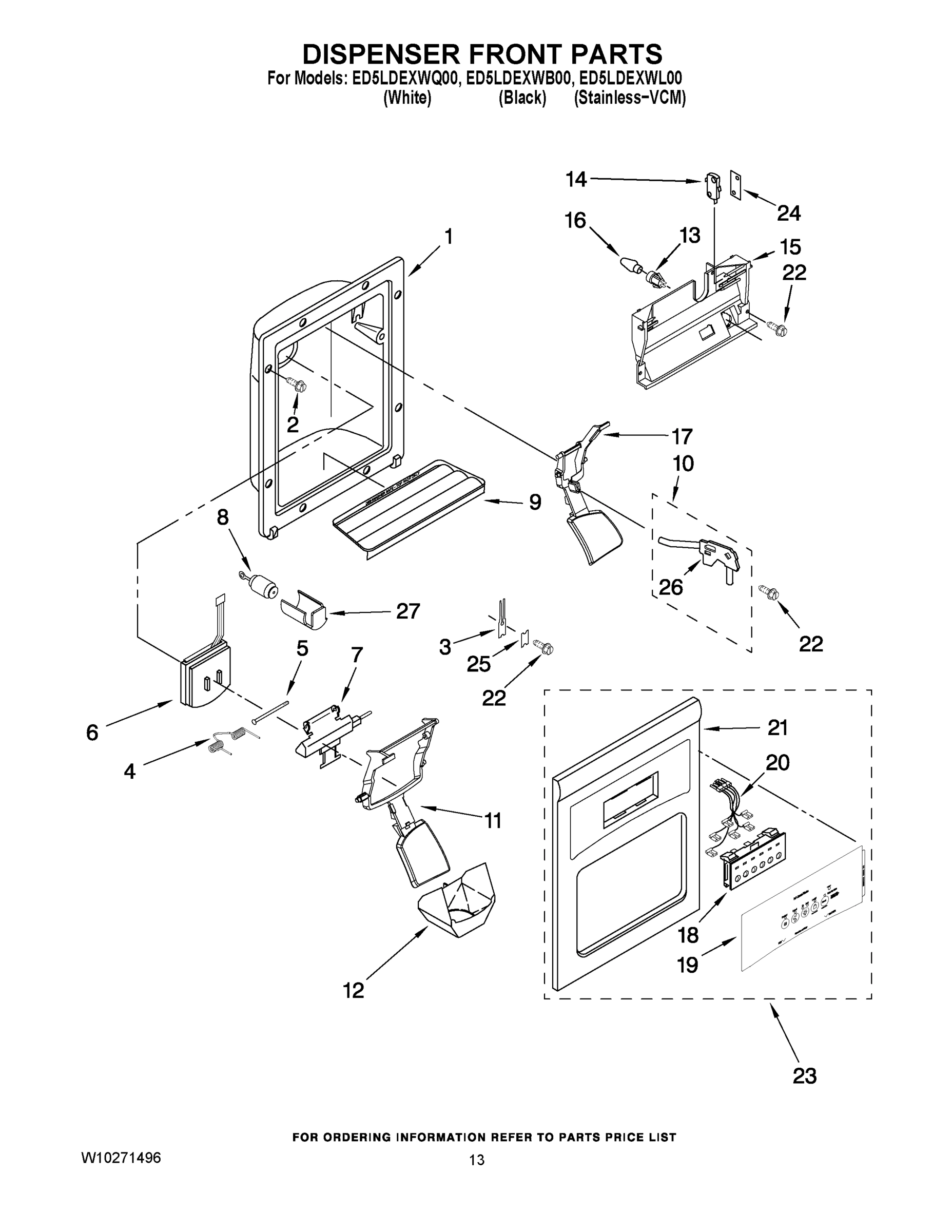

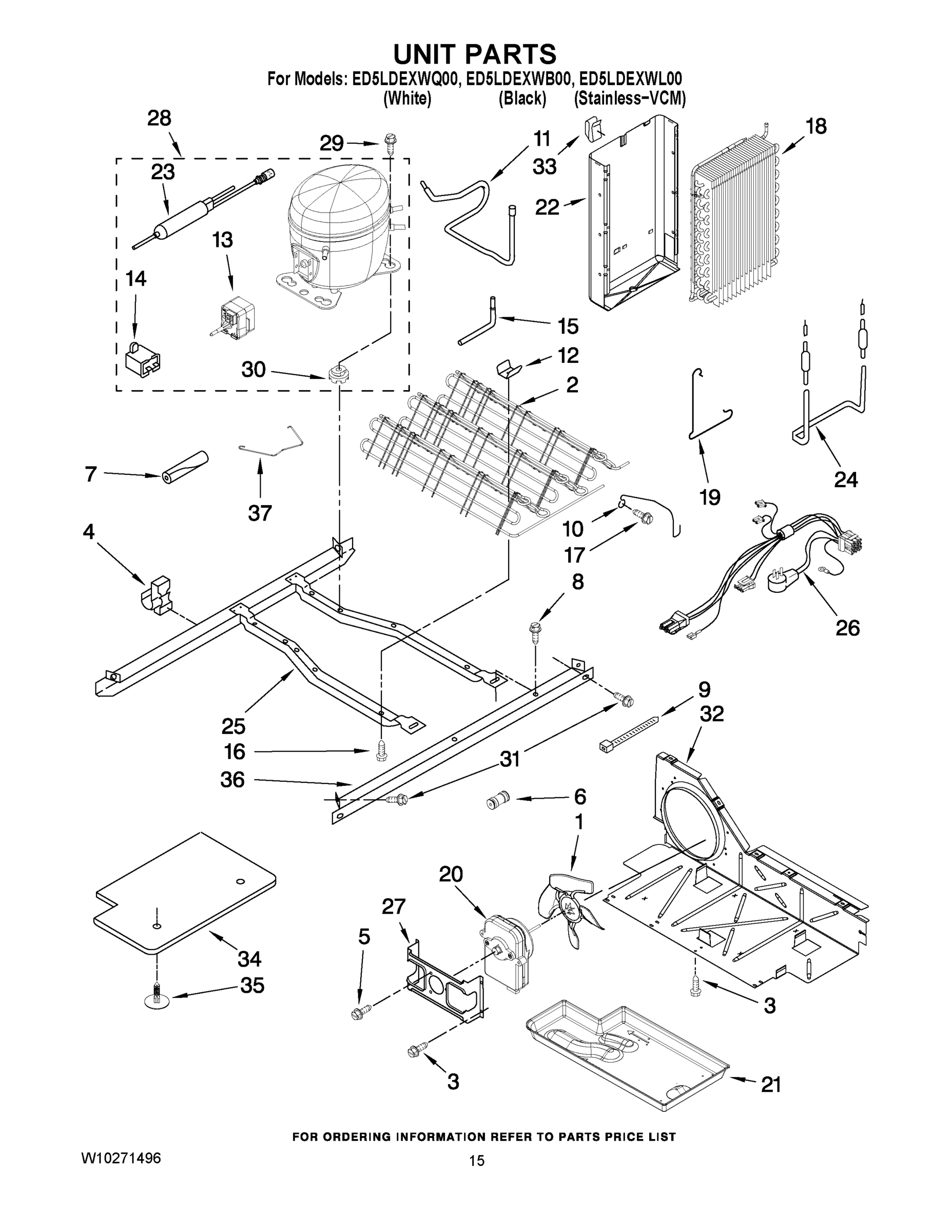

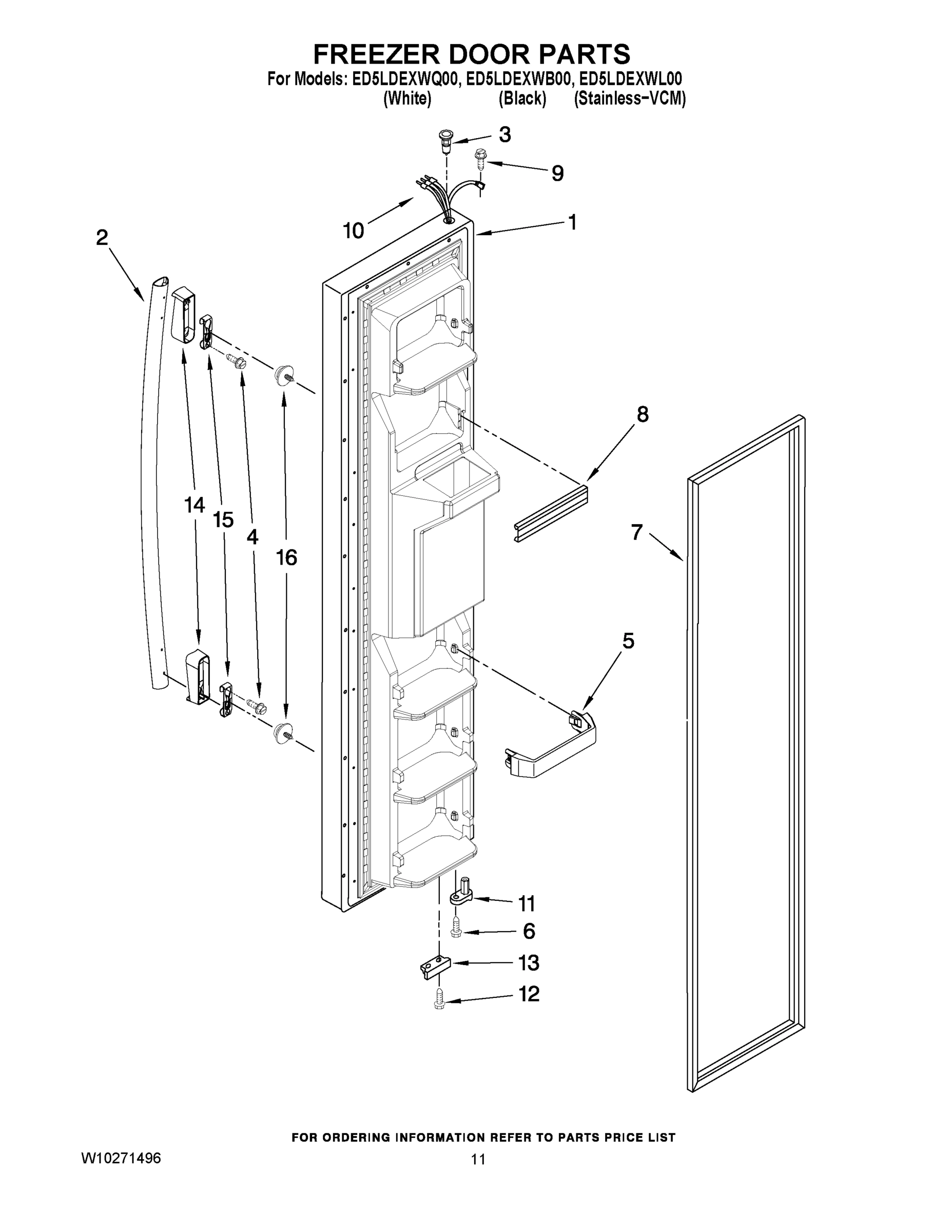

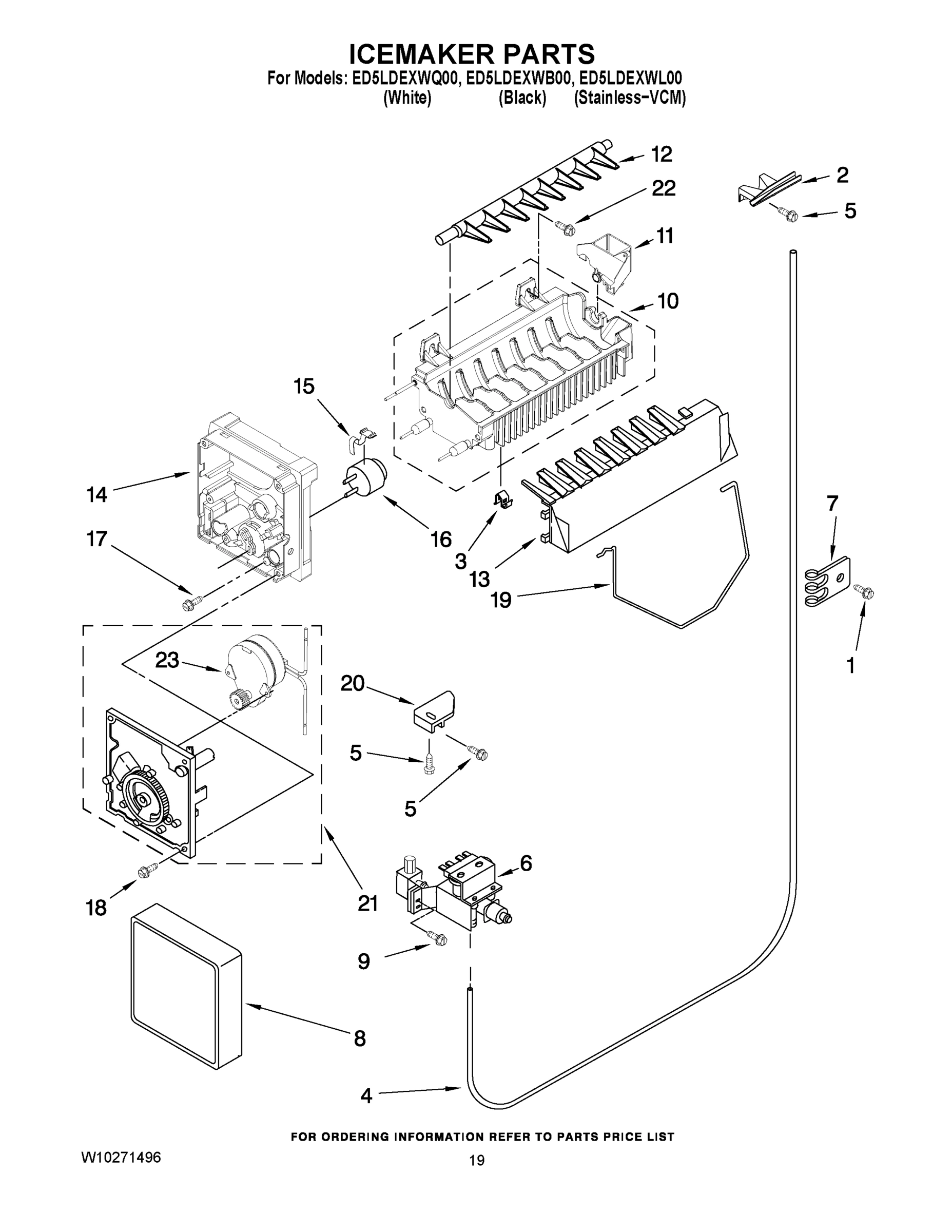

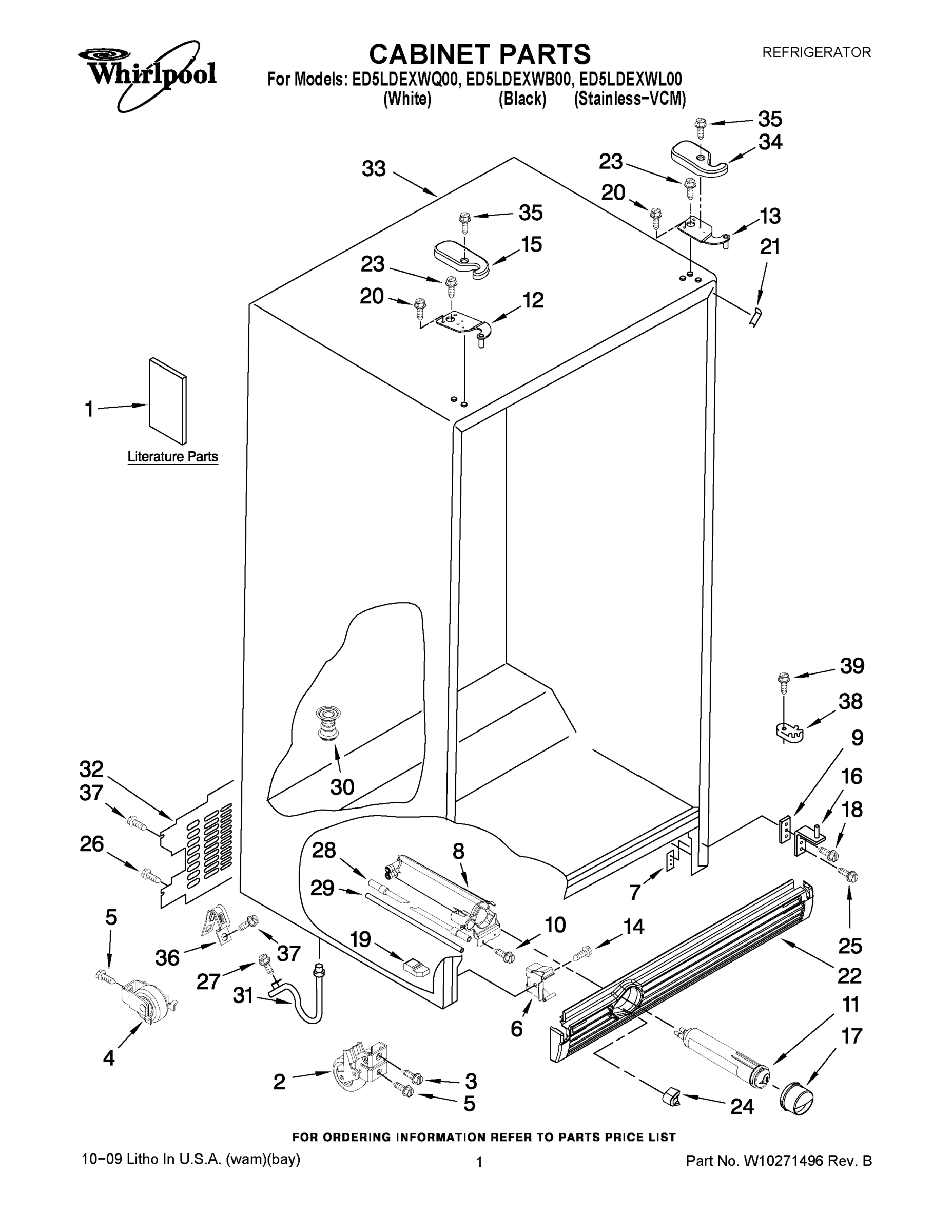

Model Whirlpool ED5LDEXWB00 REFRIGERATOR – Common Parts &amp; Diagrams

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $32.87

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $54.30

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $37.62

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $28.79

6

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $51.73

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

7

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

7

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

8

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

8

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

9

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $34.13

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.38

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11225843 Whirlpool Refrigerator Wire Harness Backorder WPL W11225843 $61.67

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $67.53

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $43.04

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Pivot Arm WPL 1110559 Contact Us For Availability

Cover, Evaporator WPL W10194476 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $32.50

18

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

18

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

18

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

19

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

19

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

19

Clamp WPL 2161324 Contact Us For Availability

20

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

20

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

21

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

21

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

21

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $53.71

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

FRONT COVER ASSEMBLY (INCLUDES ITEMS 18, 19, WPL W10231631 Contact Us For Availability

MOTOR (NOT SERVICED, ORDER No.21) WPL NP Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

W10196321 Whirlpool Refrigerator Frame Backorder WPL W10196321 $174.55

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

26

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $132.65

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $353.02

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

31

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

32

Air Baffle WPL W10163483 Contact Us For Availability

33

Clip, Heat Shield WPL 2155547 Contact Us For Availability

34

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

34

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

34

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

35

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

35

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

36

WPW10196323 Whirlpool Refrigerator Rail Assem Backorder WPL WPW10196323 $51.83

37

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

39

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

100

WPW10190965 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190965 $54.18

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
