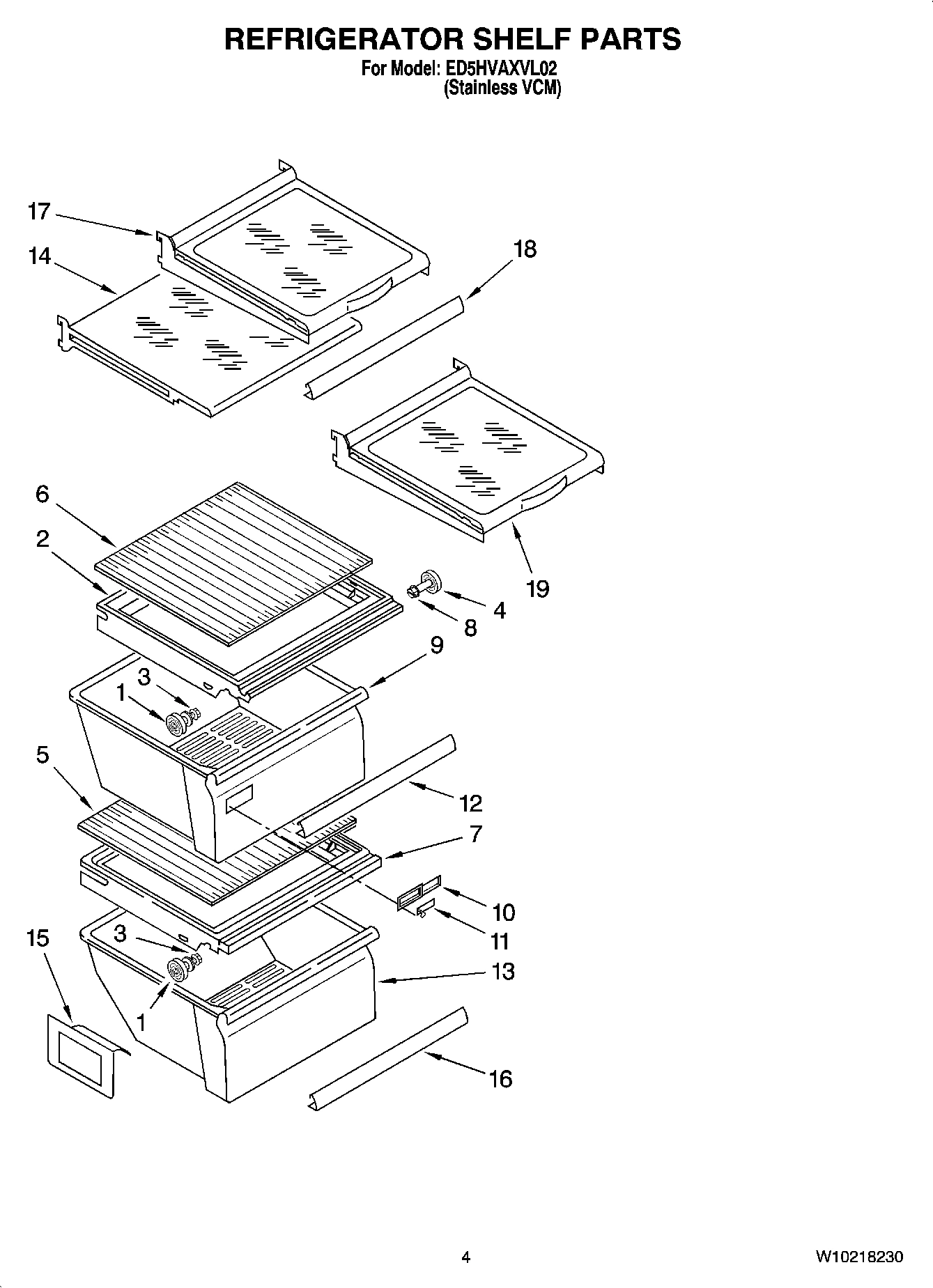

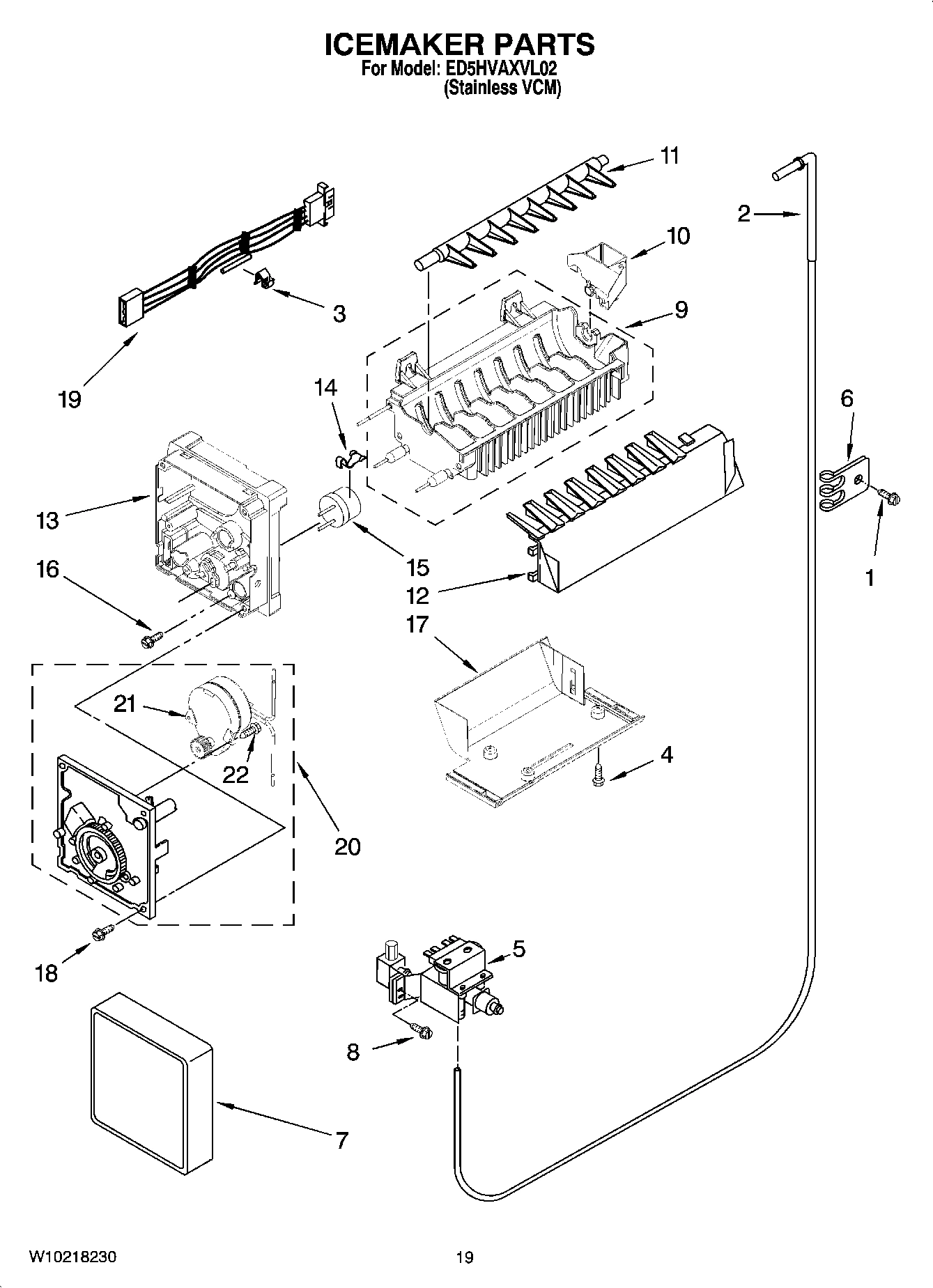

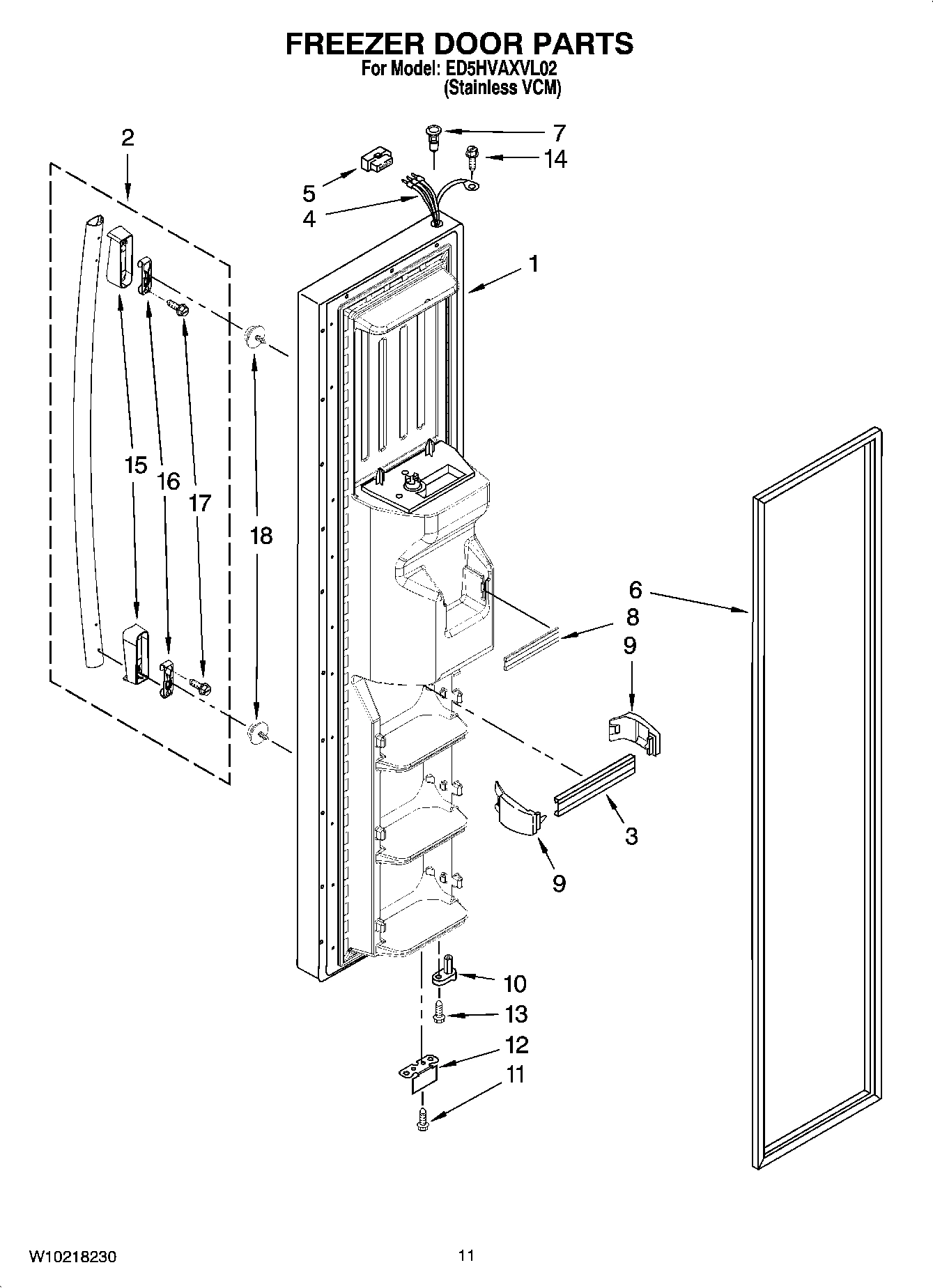

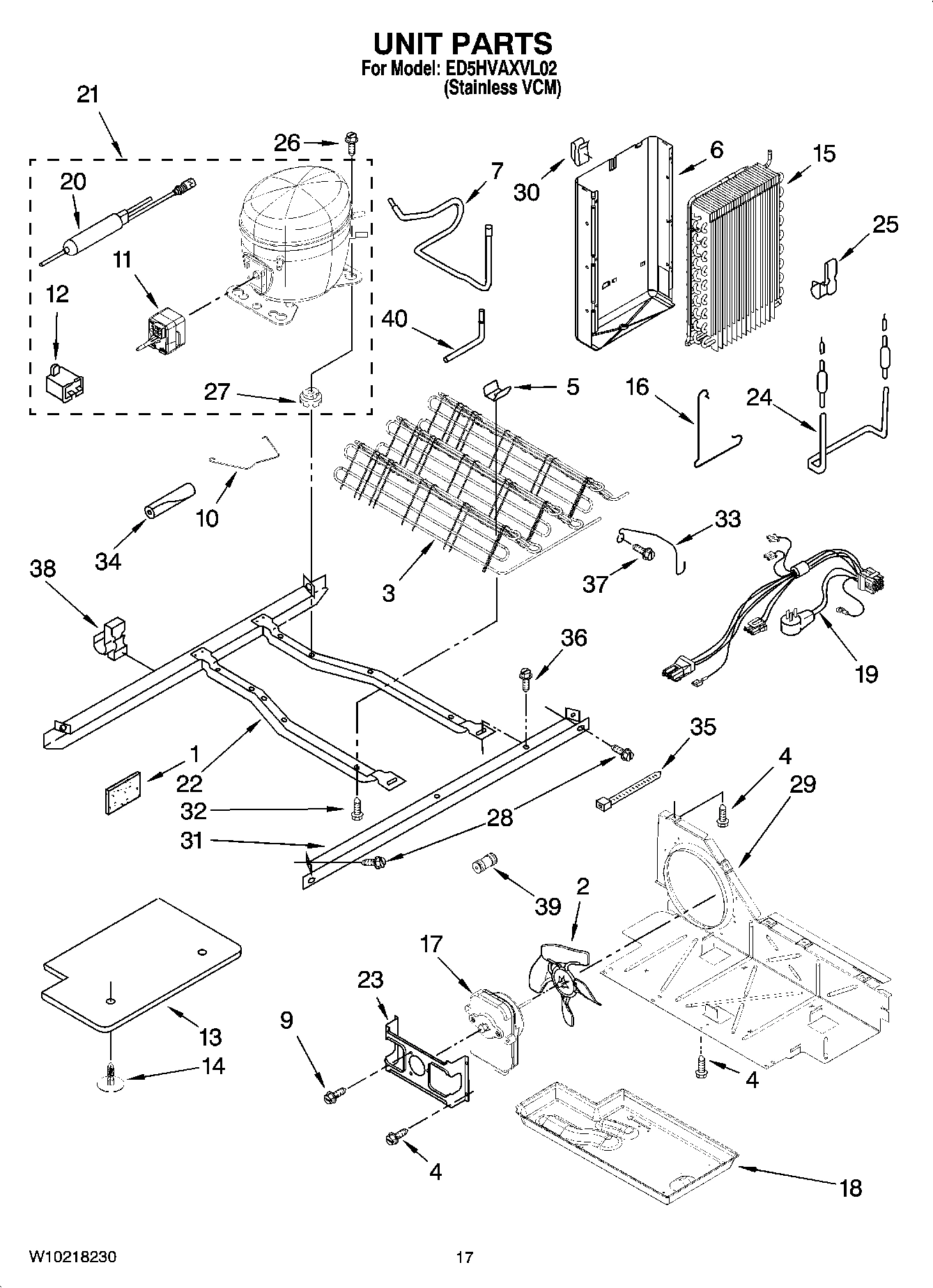

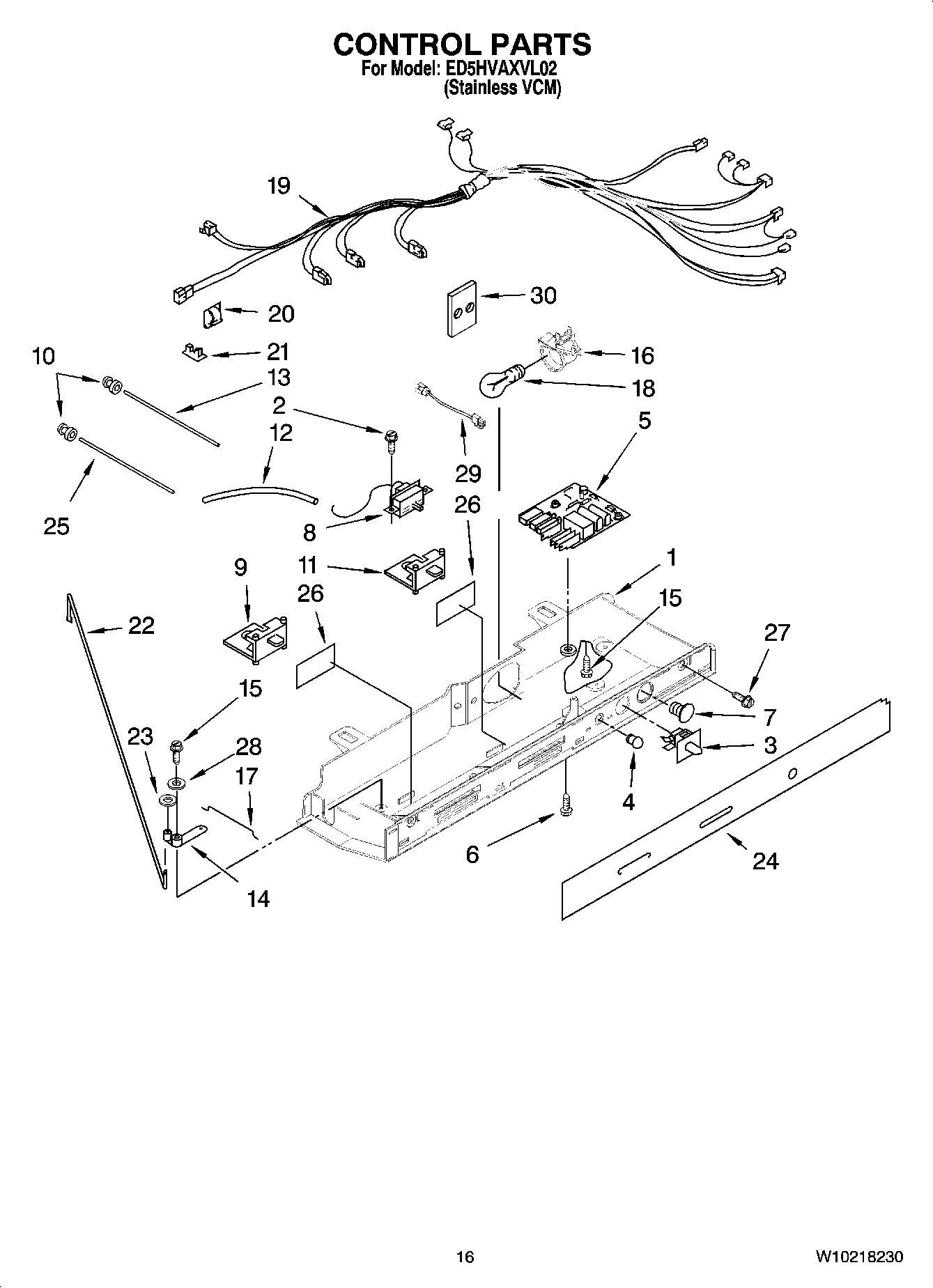

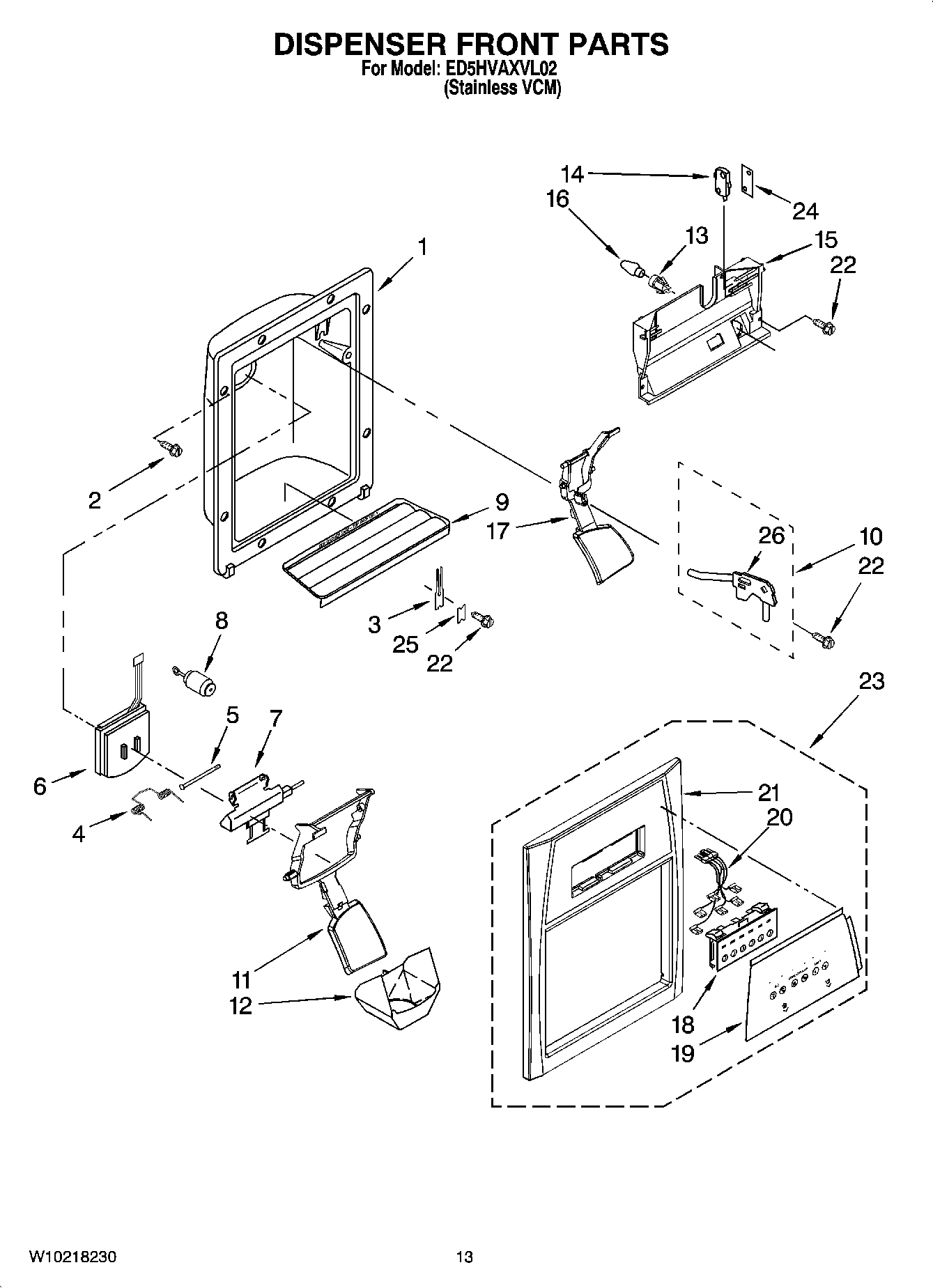

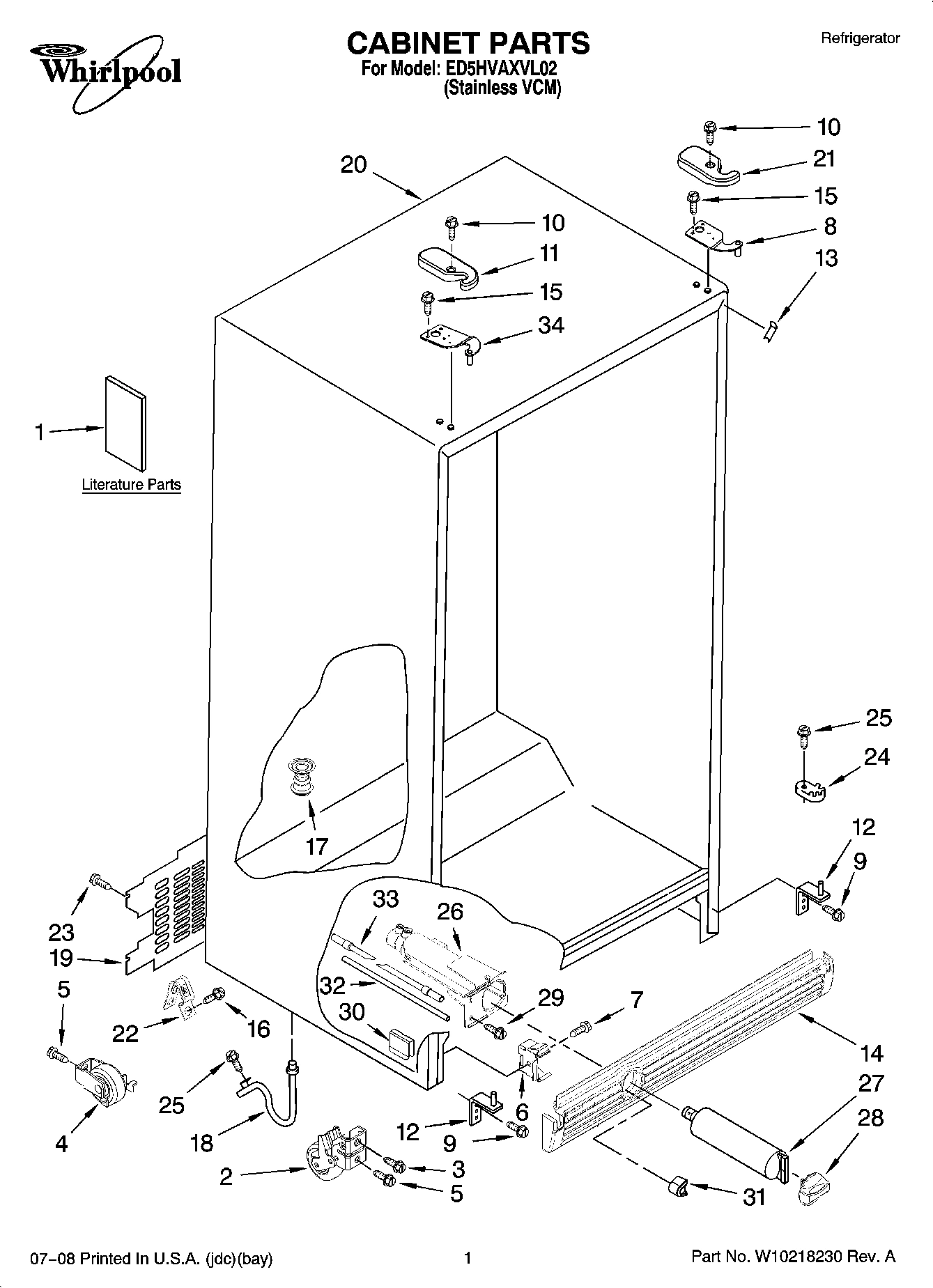

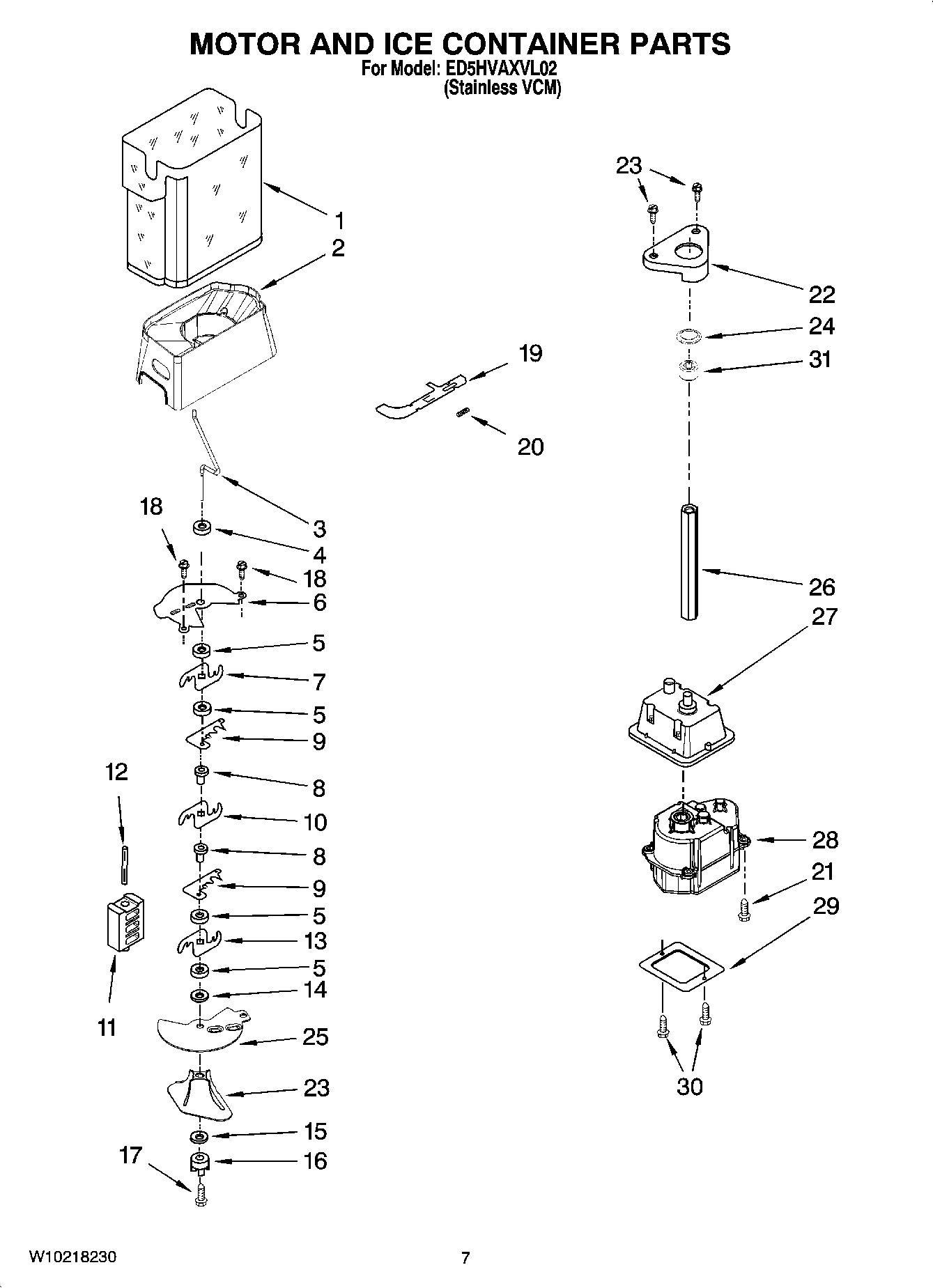

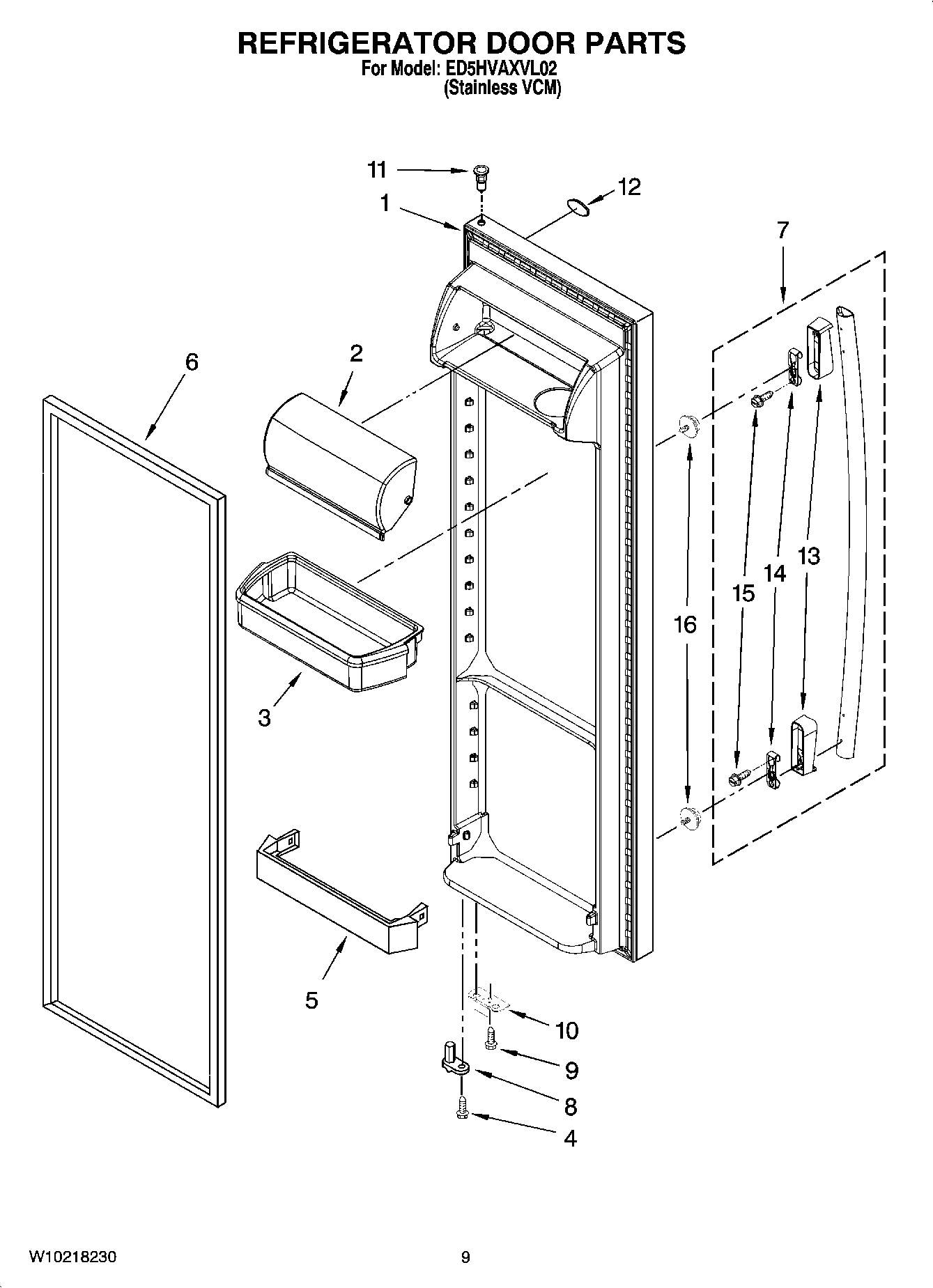

Model Whirlpool ED5HVAXVL02 Refrigerator – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $15.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

WPL ARI35389A4 WPL ARI35389A4 Contact Us For Availability

WPL ARI35390A2 WPL ARI35390A2 Contact Us For Availability

WPL ARI35391A7 WPL ARI35391A7 Contact Us For Availability

1

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $138.23

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

3

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $34.93

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $61.42

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $55.13

4

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

4

Washer WPL 2258220 Contact Us For Availability

5

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

5

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

W10210786 Whirlpool Refrigerator Tube Backorder WPL W10210786 $33.31

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

7

Shelf Ladder WPL 2319866 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

8

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

9

Blade, Fixed WPL 2257020 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $32.15

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.49

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $42.77

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Light Bar (RC) WPL 2179920 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.54

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

Clip WPL 2161324 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

Extension Tube WPL 2304937 Contact Us For Availability

19

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

19

Latch, Bin WPL 2317277 Contact Us For Availability

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

21

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

21

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

22

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

W10144418 Whirlpool Refrigerator Front Cover Backorder WPL W10144418 $189.24

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

26

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $57.79

27

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

27

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

29

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

30

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

30

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

32

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

33

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

34

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

37

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

38

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

39

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

40

W10274306 Whirlpool Refrigerator Tube Backorder WPL W10274306 $8.88

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51

100

WP2317251 Whirlpool Refrigerator Ice Containe In Stock WPL WP2317251 $196.63
