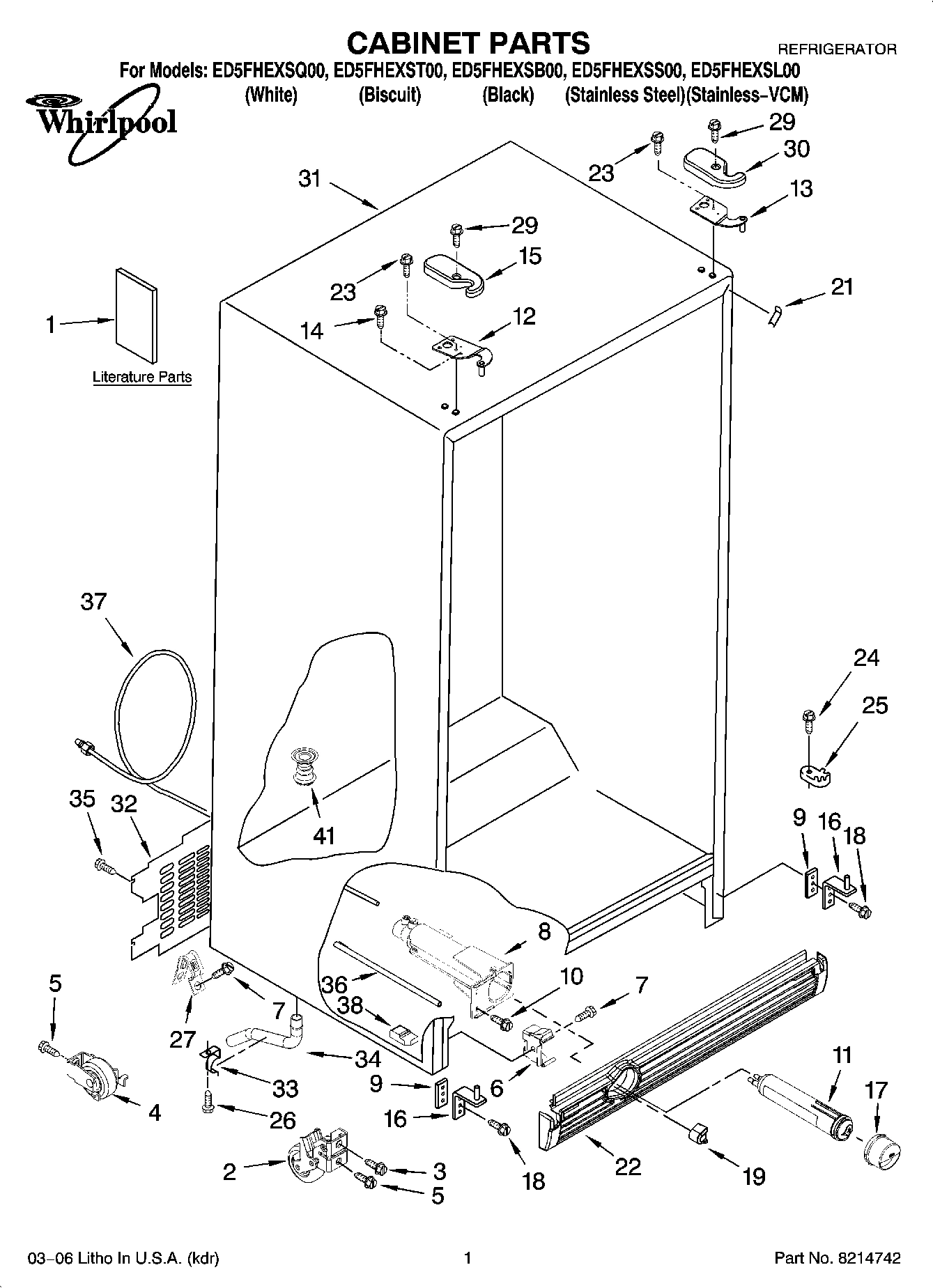

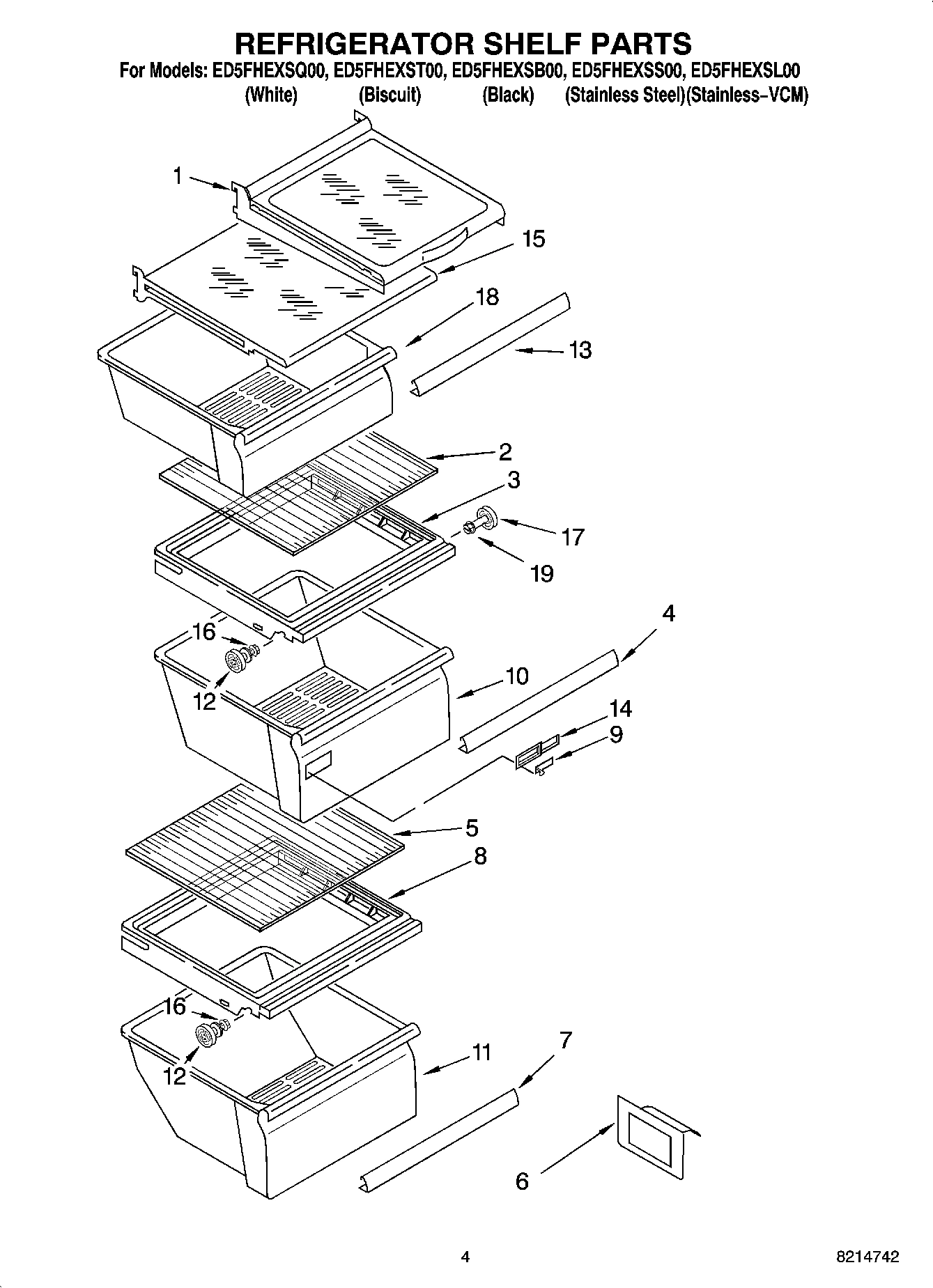

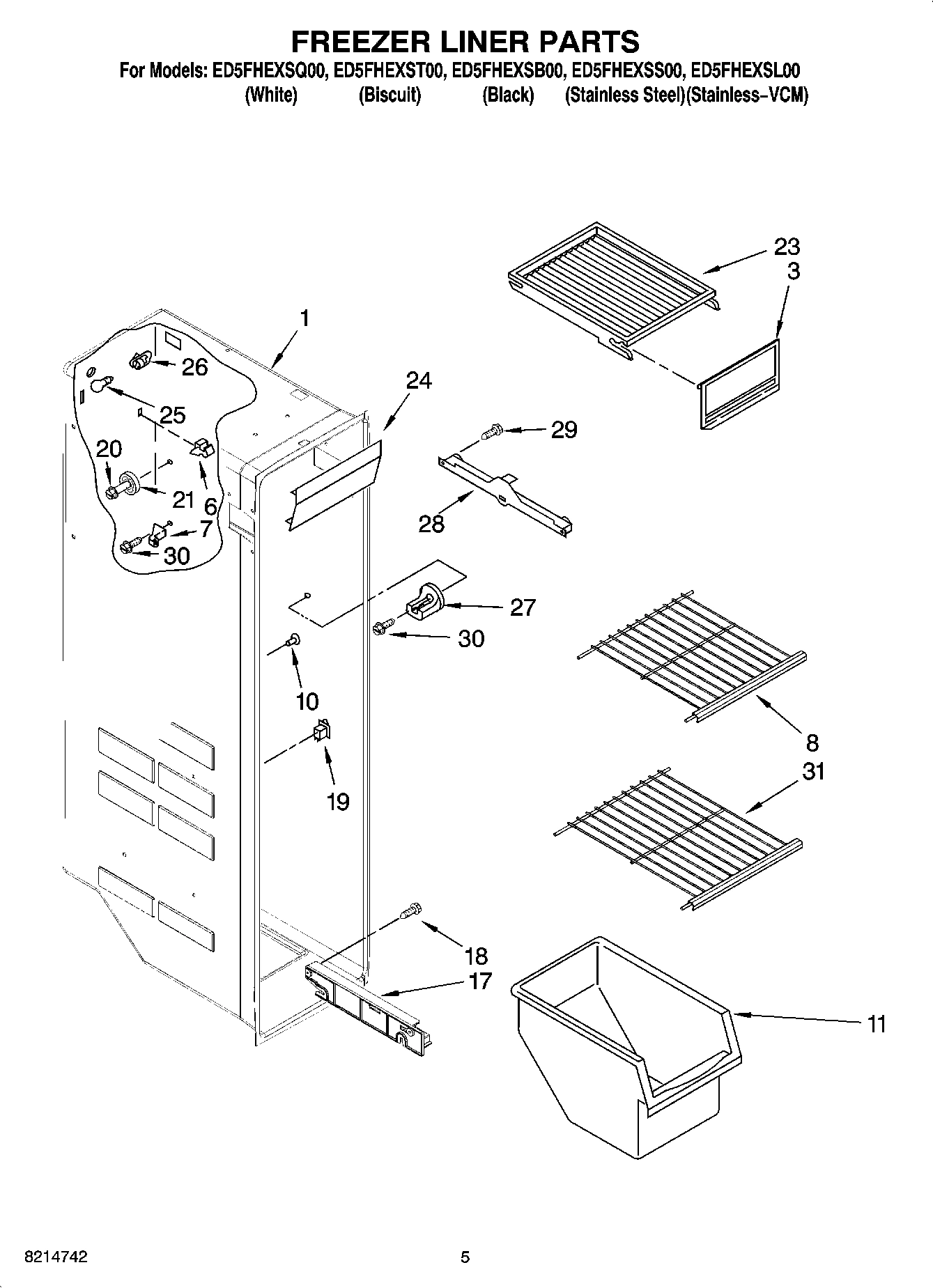

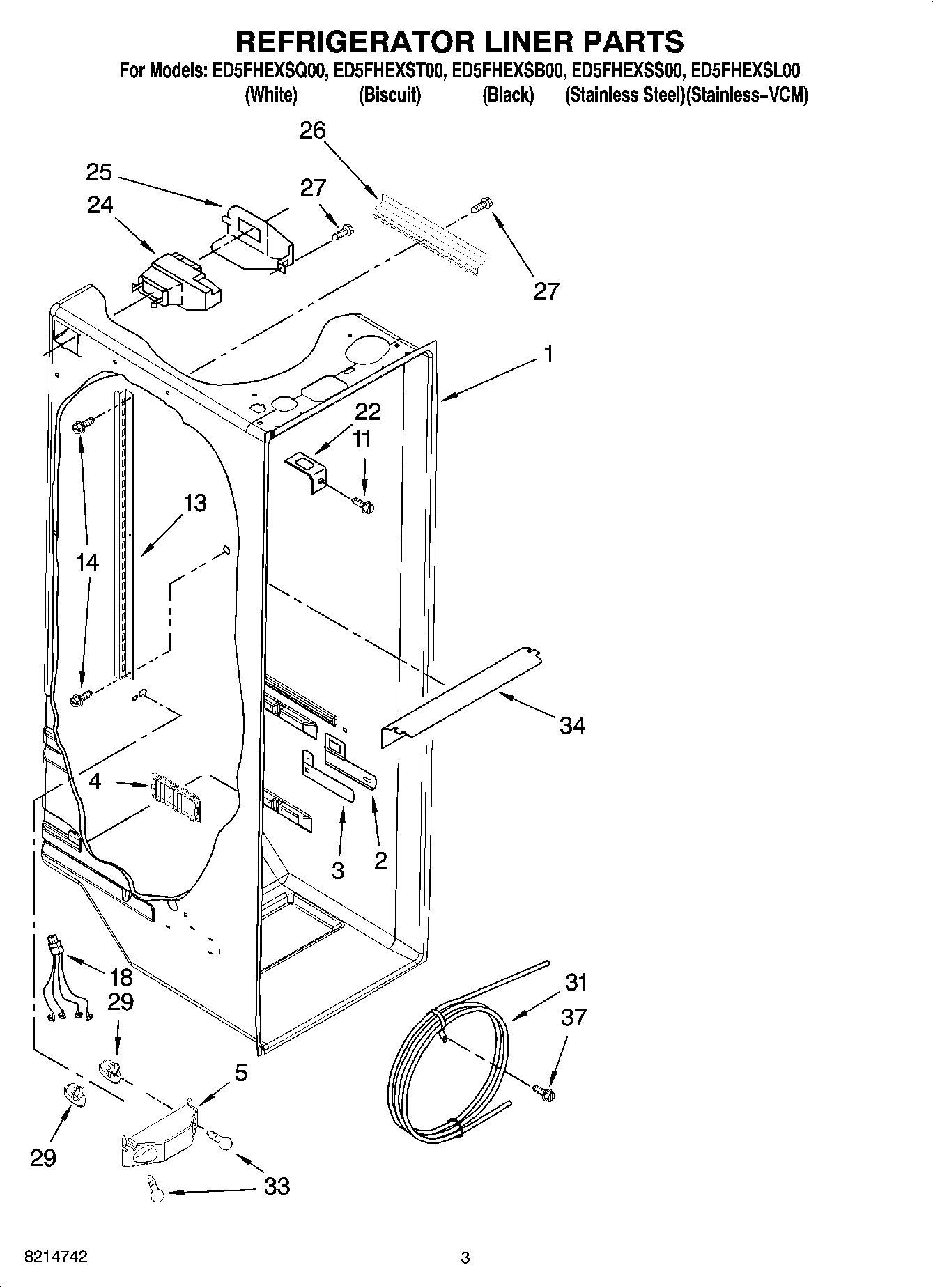

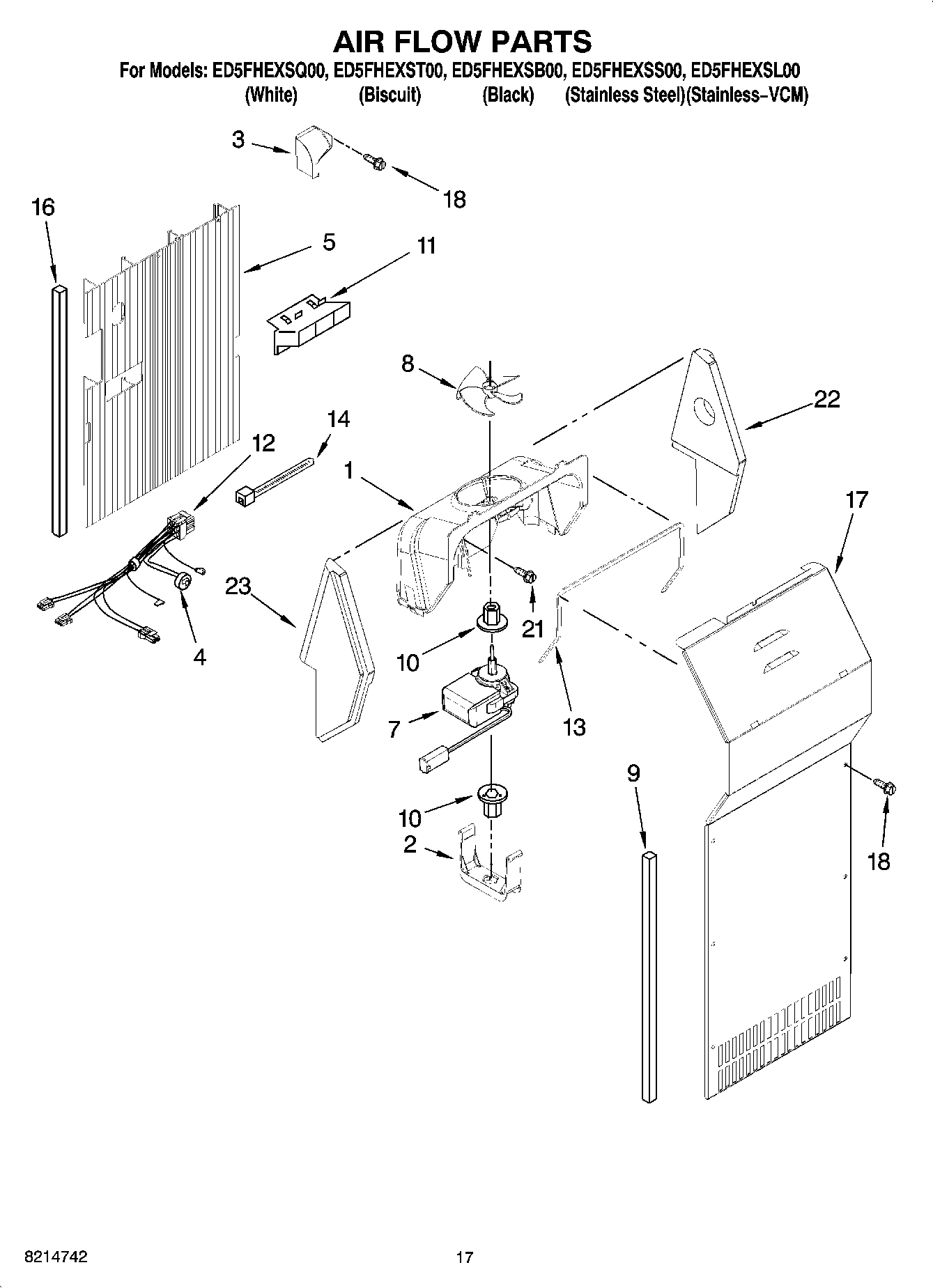

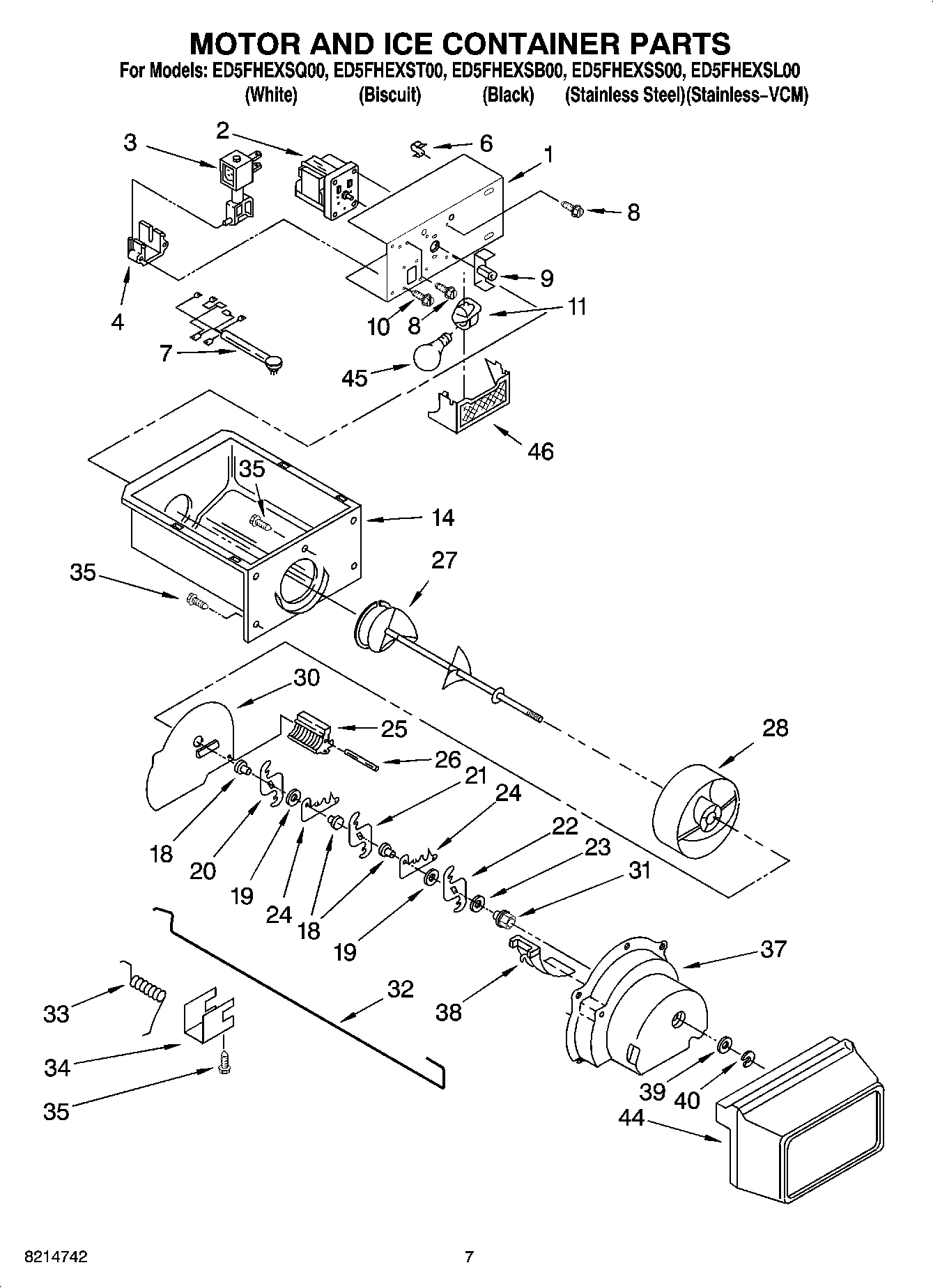

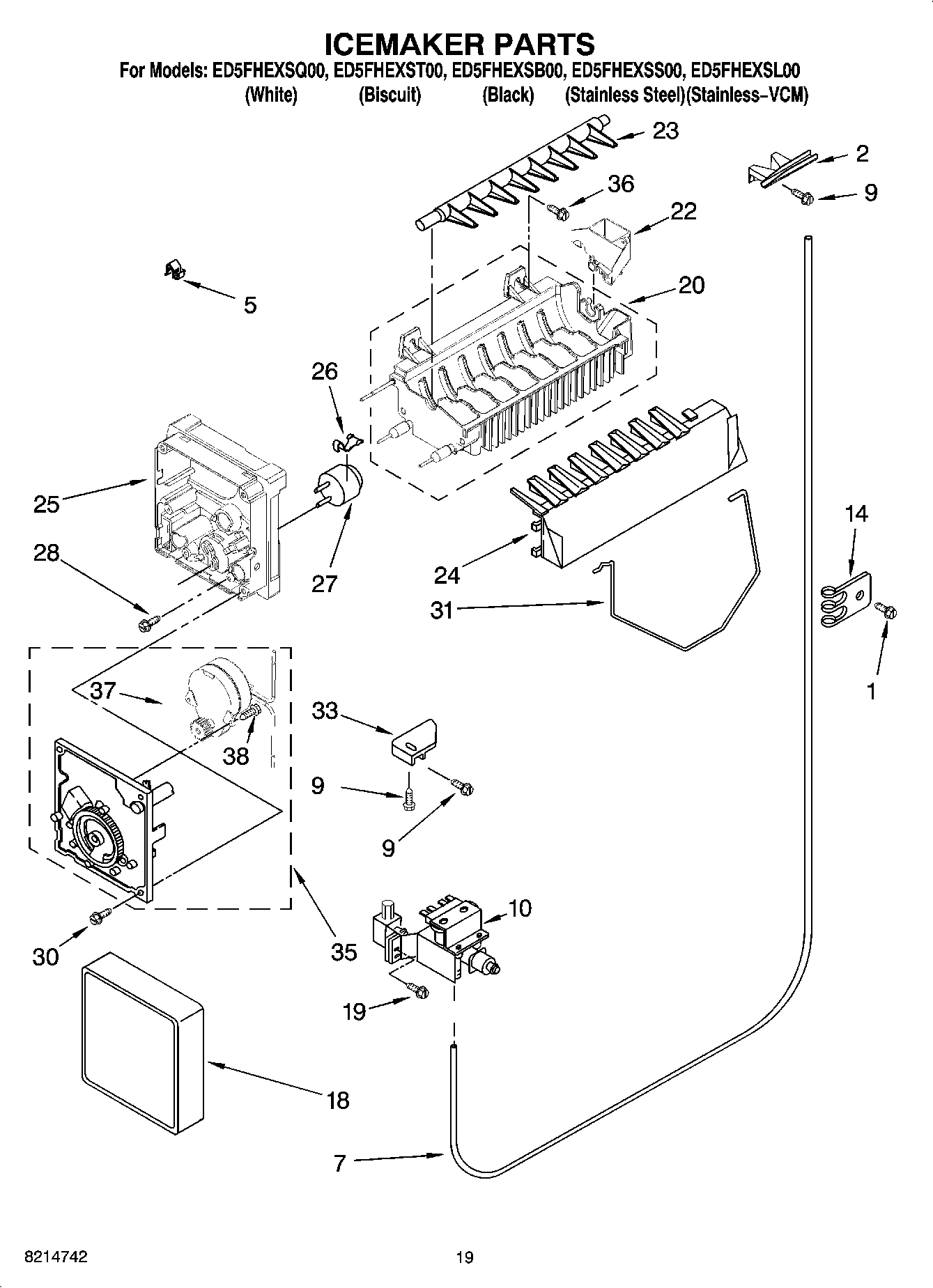

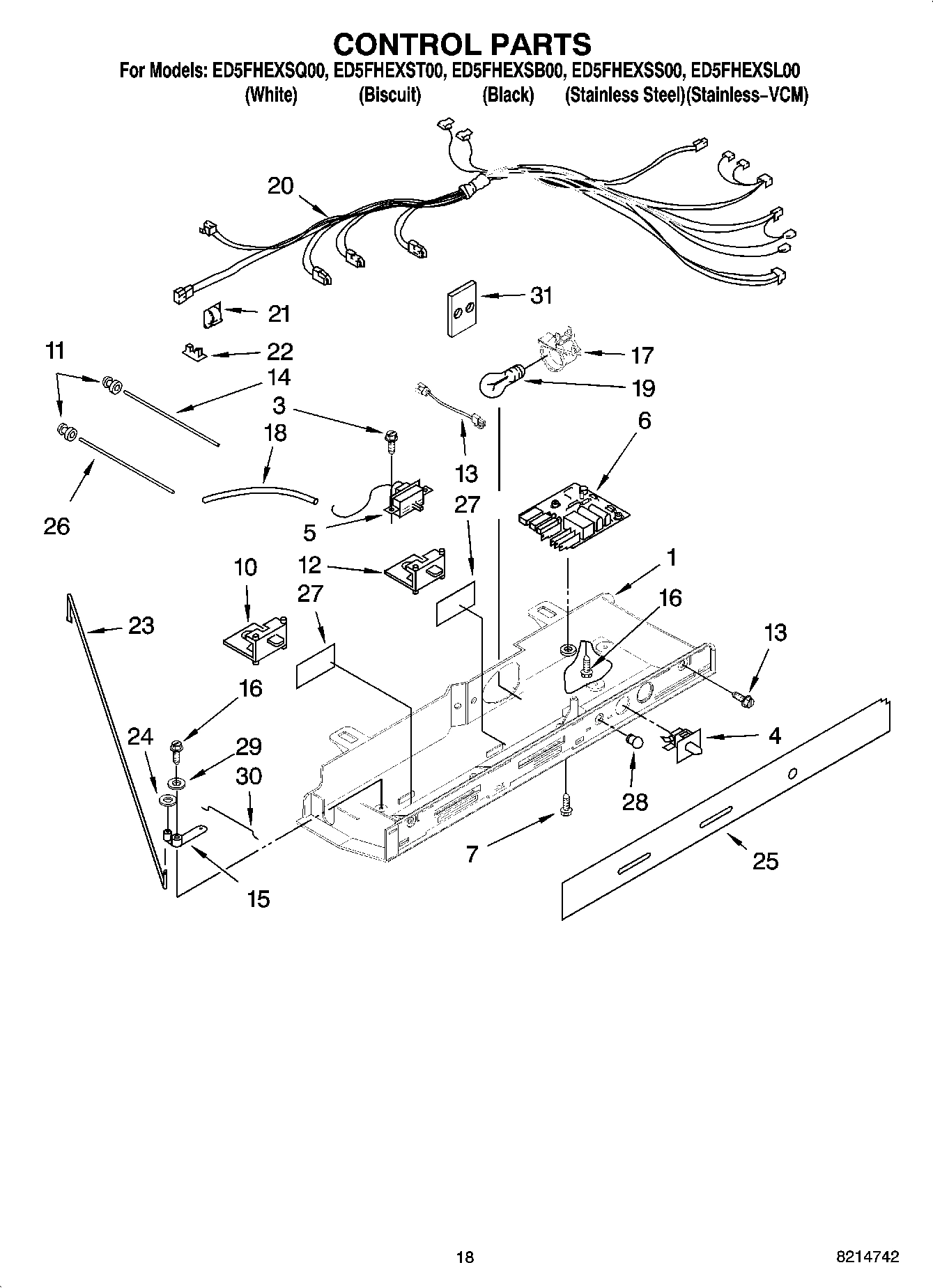

Model Whirlpool ED5FHEXSQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Liner (Not A Serviceable Part) WPL ARI33825A5 Contact Us For Availability

1

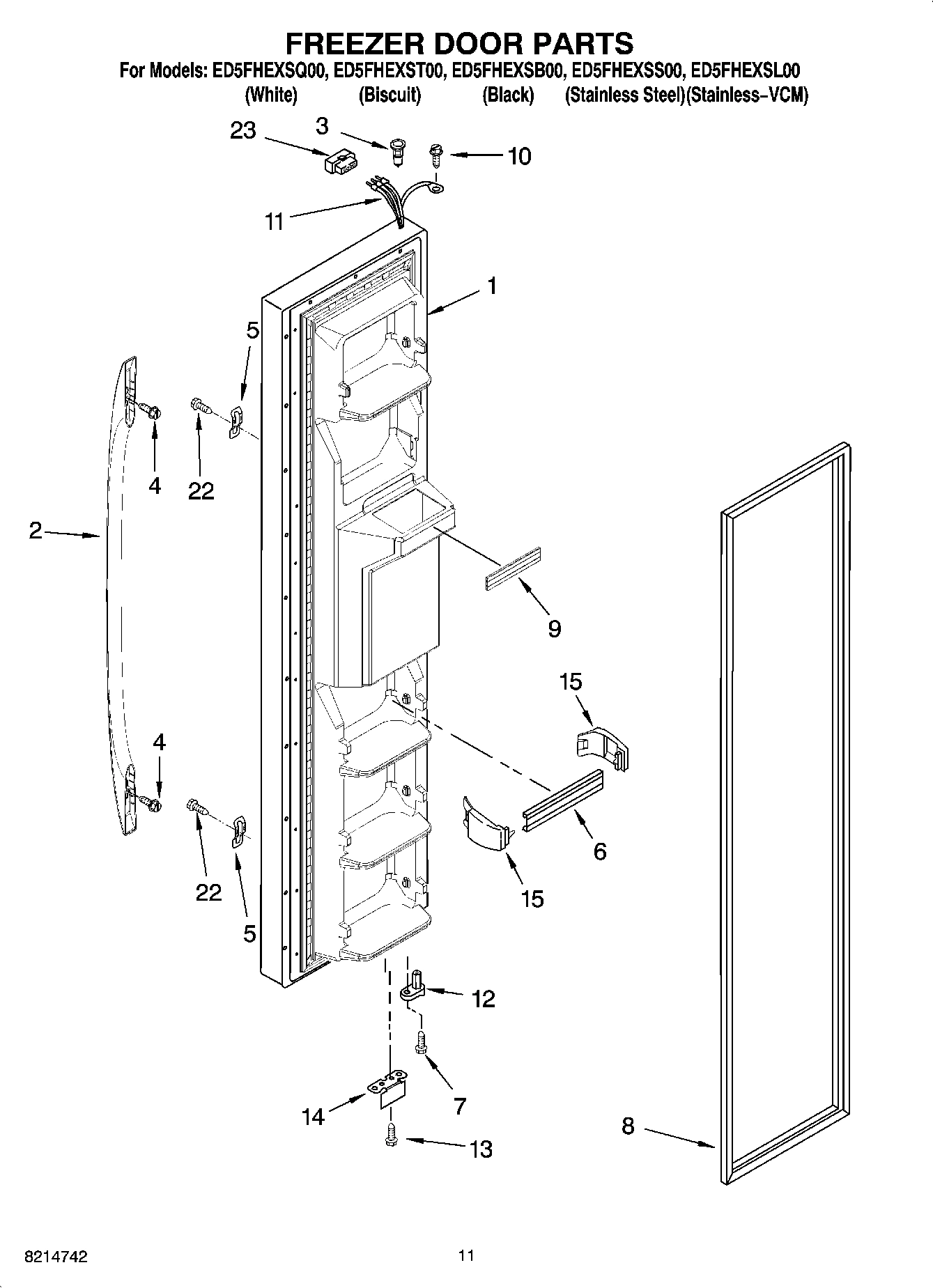

Freezer Door (Includes Item 8 And Dispenser F WPL 2315206B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2315206LG Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2315206S Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2315206T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2315206W Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI33827A5 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W10187086 Whirlpool Refrigerator Handle Backorder WPL W10187086 $233.11

2

W10187087 Whirlpool Refrigerator Handle Backorder WPL W10187087 $238.78

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (White) WPL 2313345W Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $101.23

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

SCREW WPL 8533920 Contact Us For Availability

3

Thimble, Top (For Stainless Model) WPL 2301049 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $33.21

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2257741 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $34.93

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $148.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.92

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $91.10

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.98

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

Shelf Ladder WPL 2206273 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

Light Bar (RC) Control WPL 2179920 Contact Us For Availability

TUBE, SUCTION WPL 2205765 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

End Cap (8) WPL 2195917 Contact Us For Availability

16

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.66

17

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

17

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

17

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

Switch Assembly (Not Available Order 23) WPL ARI33828A9 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI33829A9 Contact Us For Availability

20

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI33830A4 Contact Us For Availability

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $61.29

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $78.41

Grille (Biscuit) WPL 2260500T Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2315251B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2315251T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2315251W Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Spacer, Switch (2) WPL 625834 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.21

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

NLA:SCREW Backorder WPL WPW10141645 $3.70

27

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

27

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

27

Stud, Rear WPL 2196207 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

29

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

Hinge Cover, 2203408W White (Biscuit) WPL 2203408T Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

Shelf (2) WPL 2174268K Contact Us For Availability

Cabinet, (Not A Serviceable Part) WPL ARI33824A8 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.94

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.98

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

34

Light Lens WPL 2209769 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

36

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

37

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

37

Screw (2) WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

Block, Housing Support WPL 2260519 Contact Us For Availability

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
