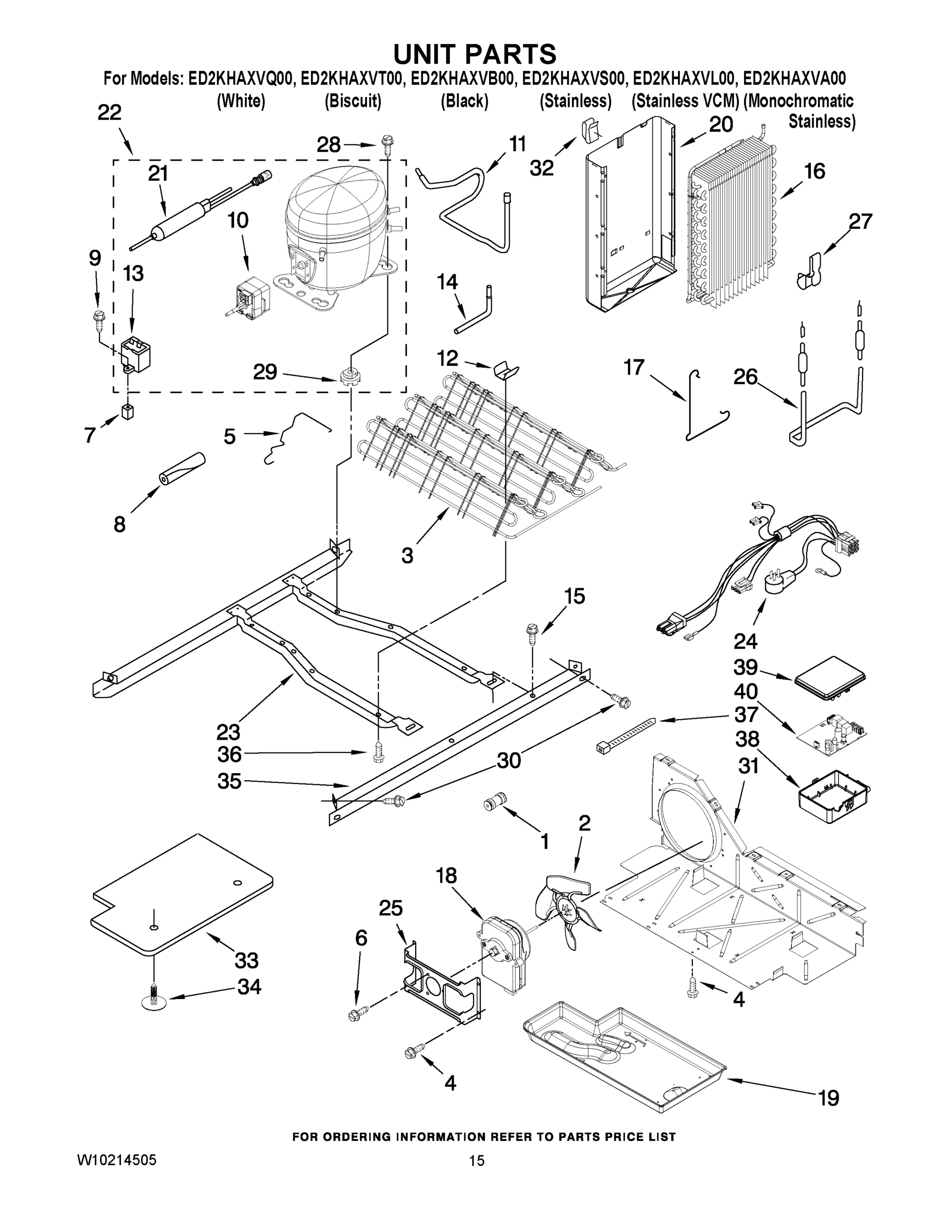

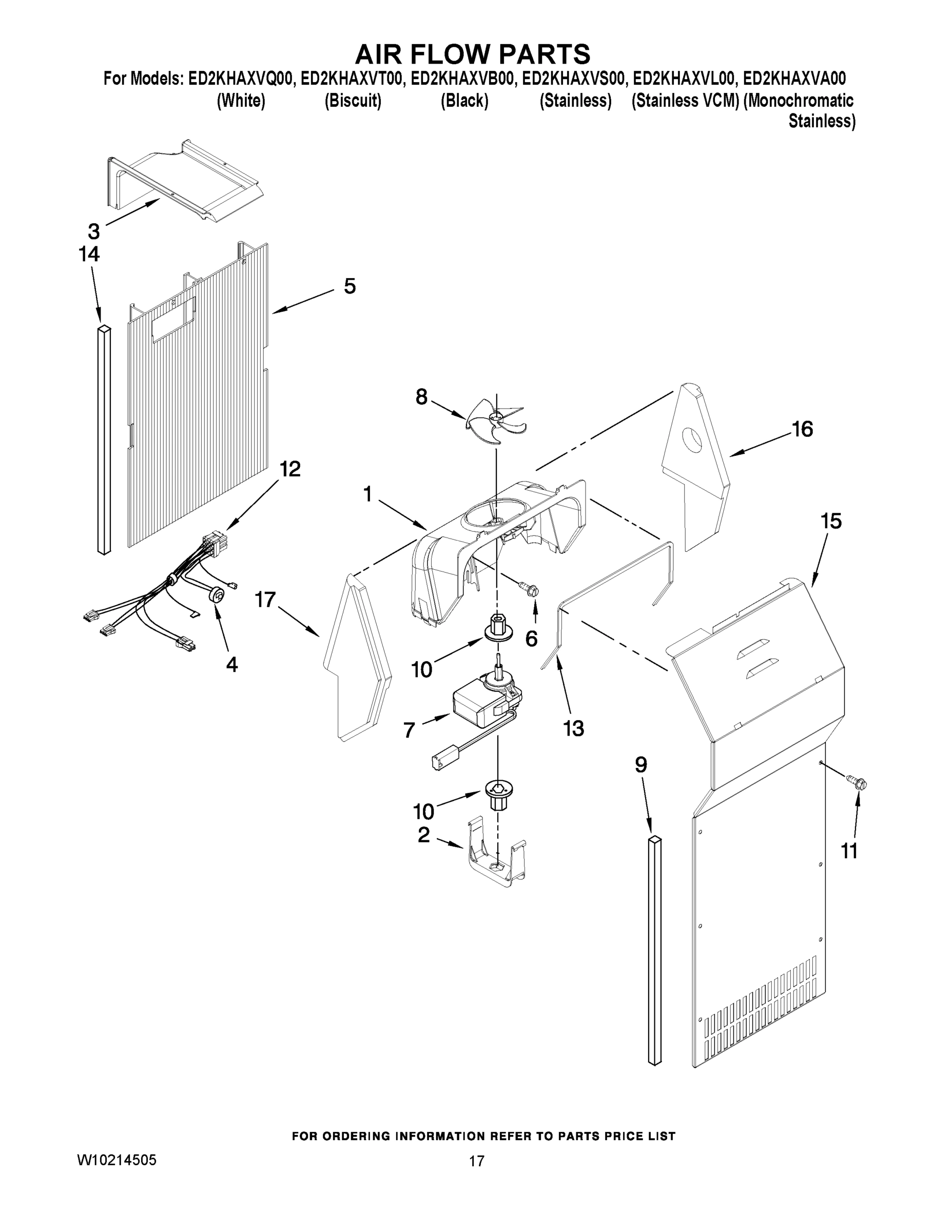

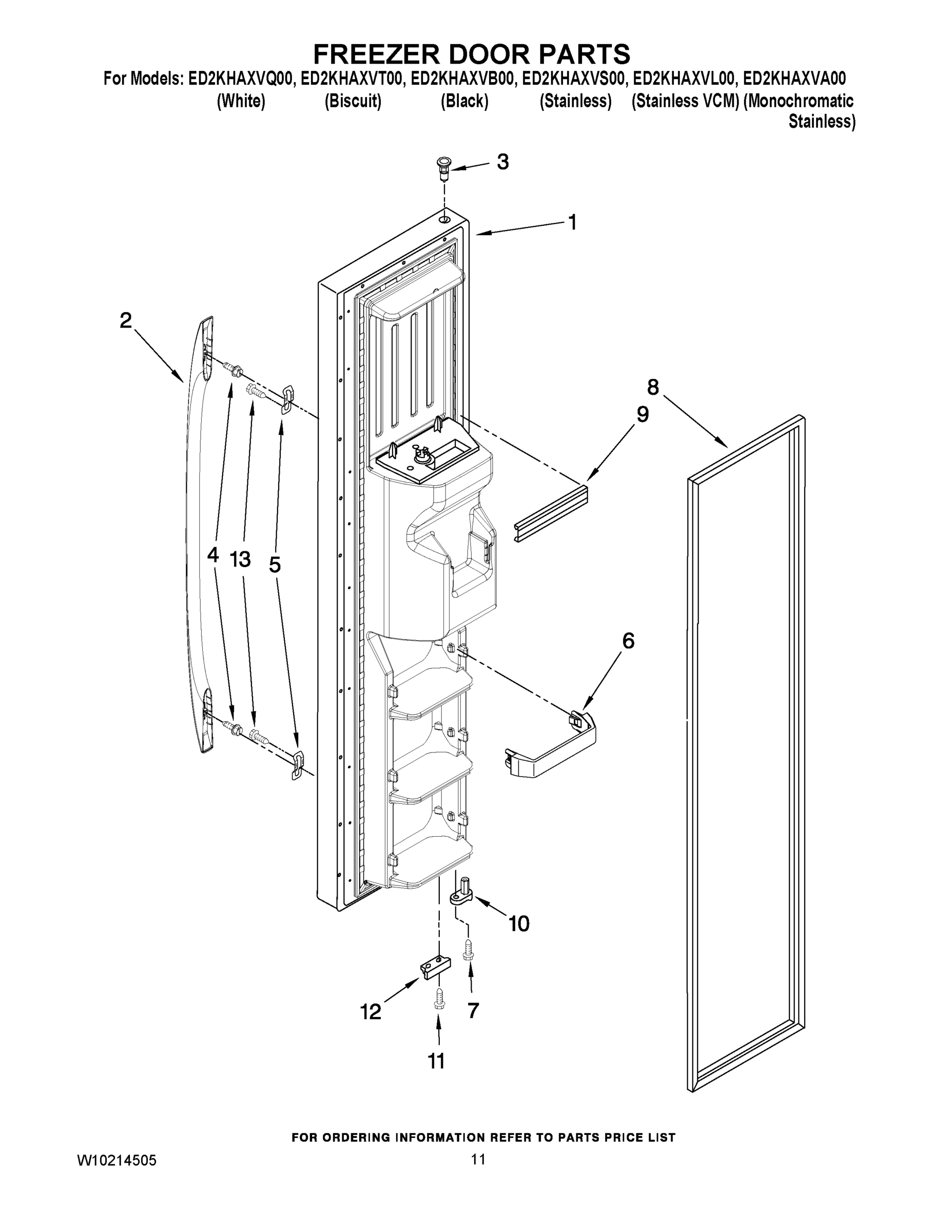

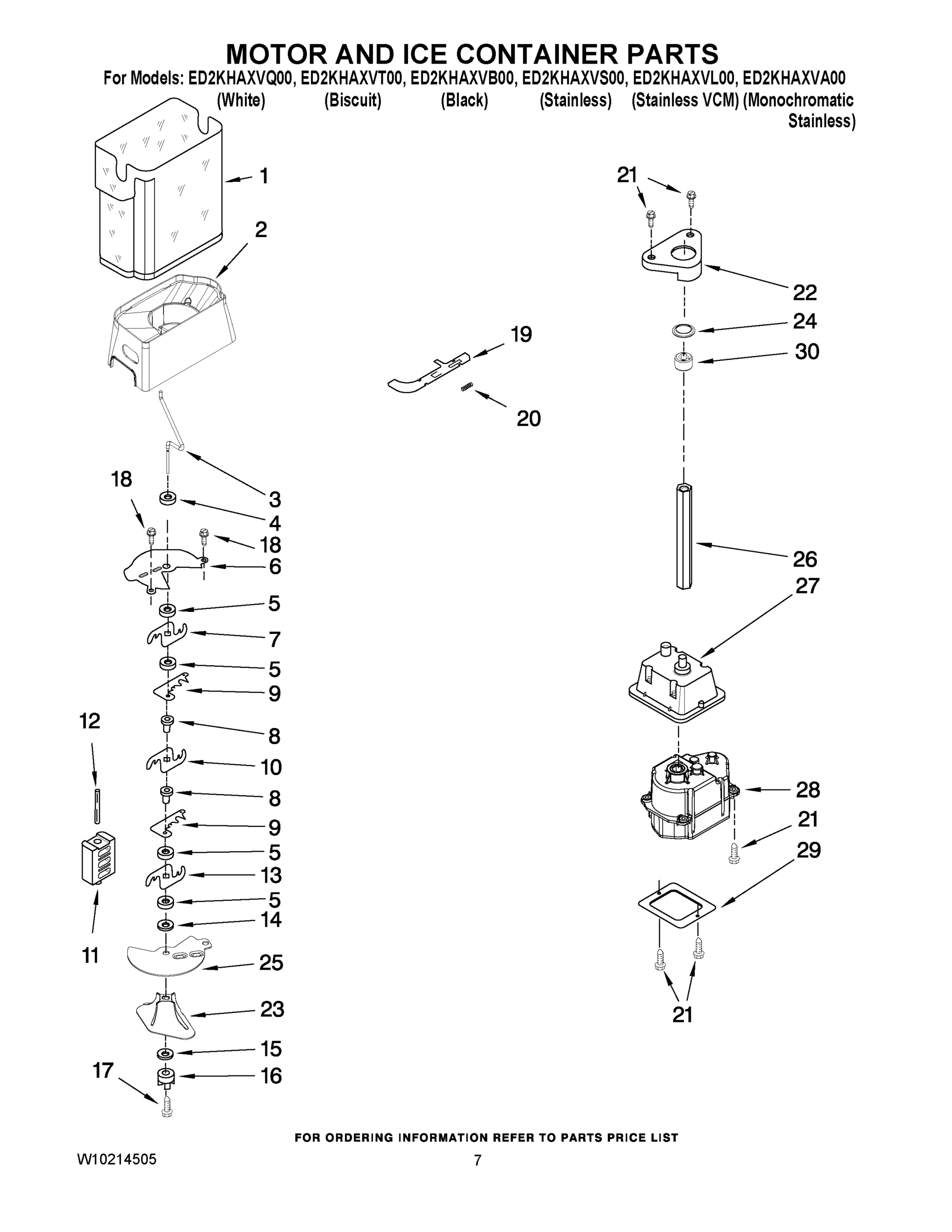

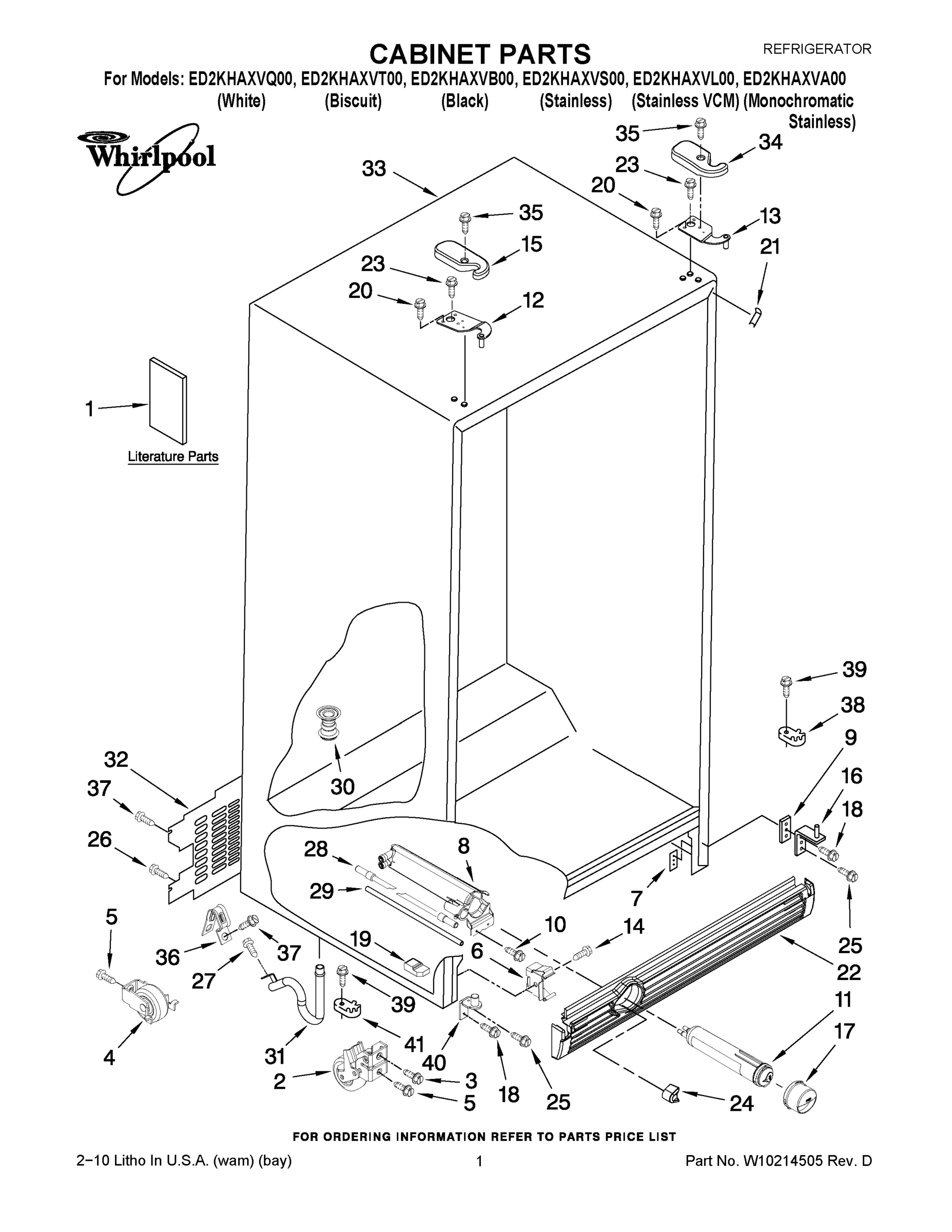

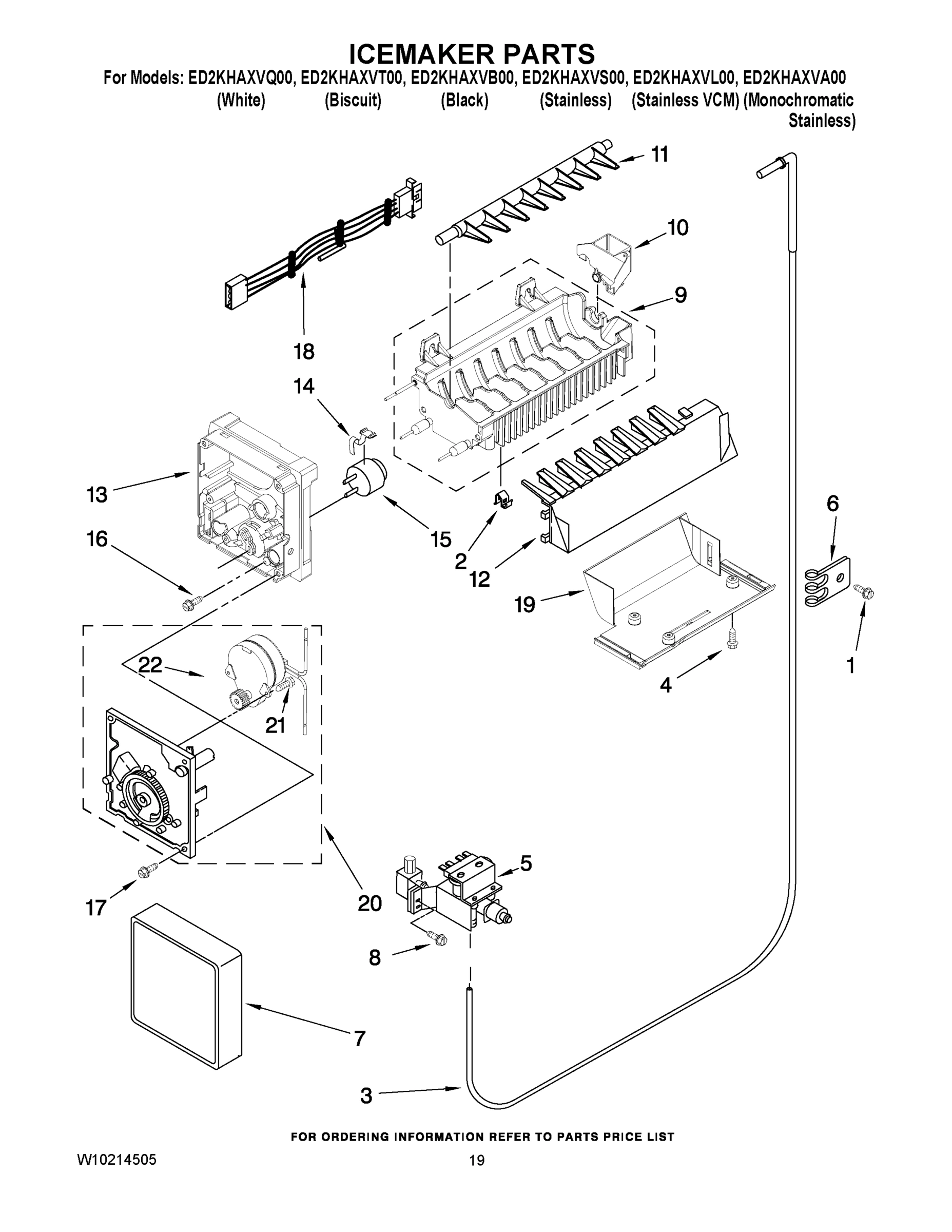

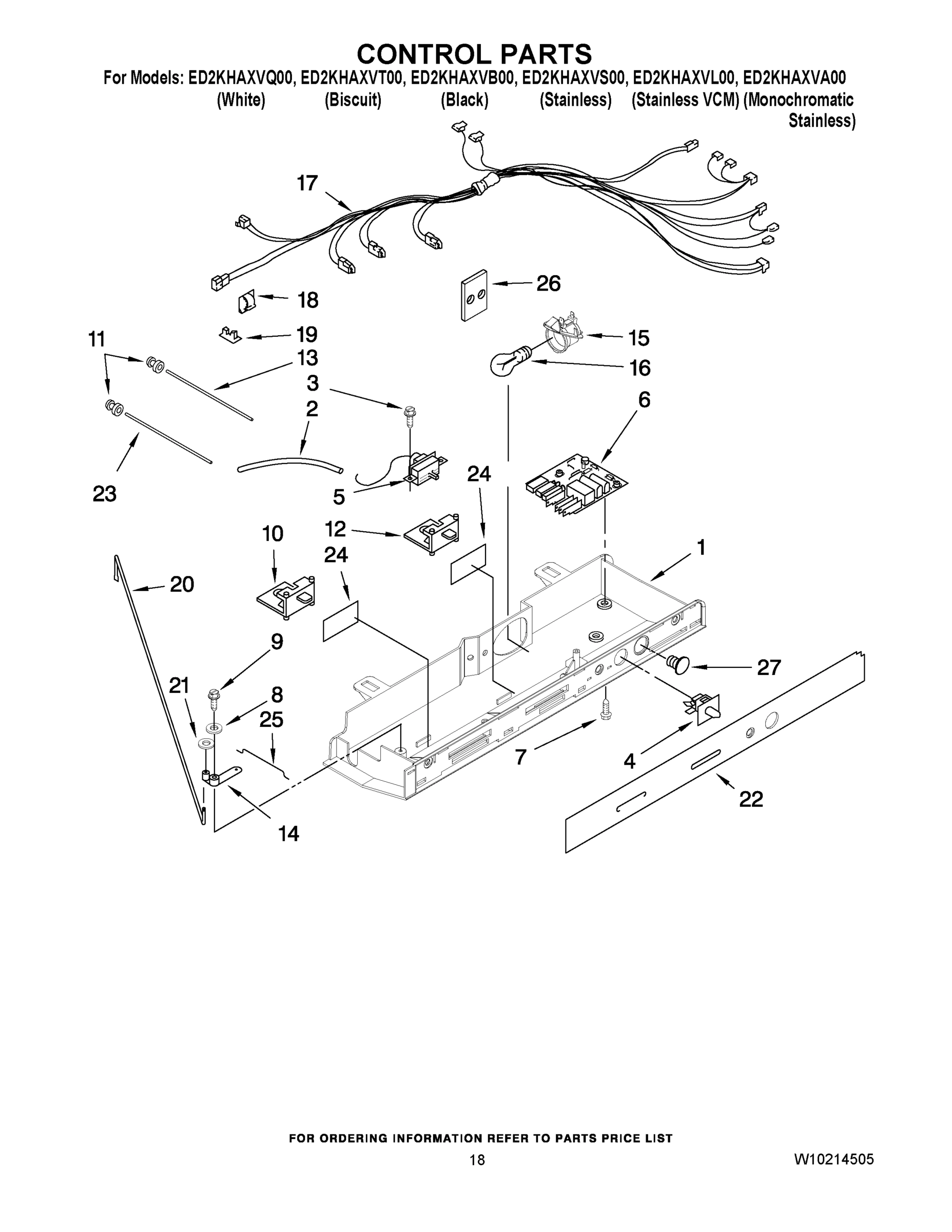

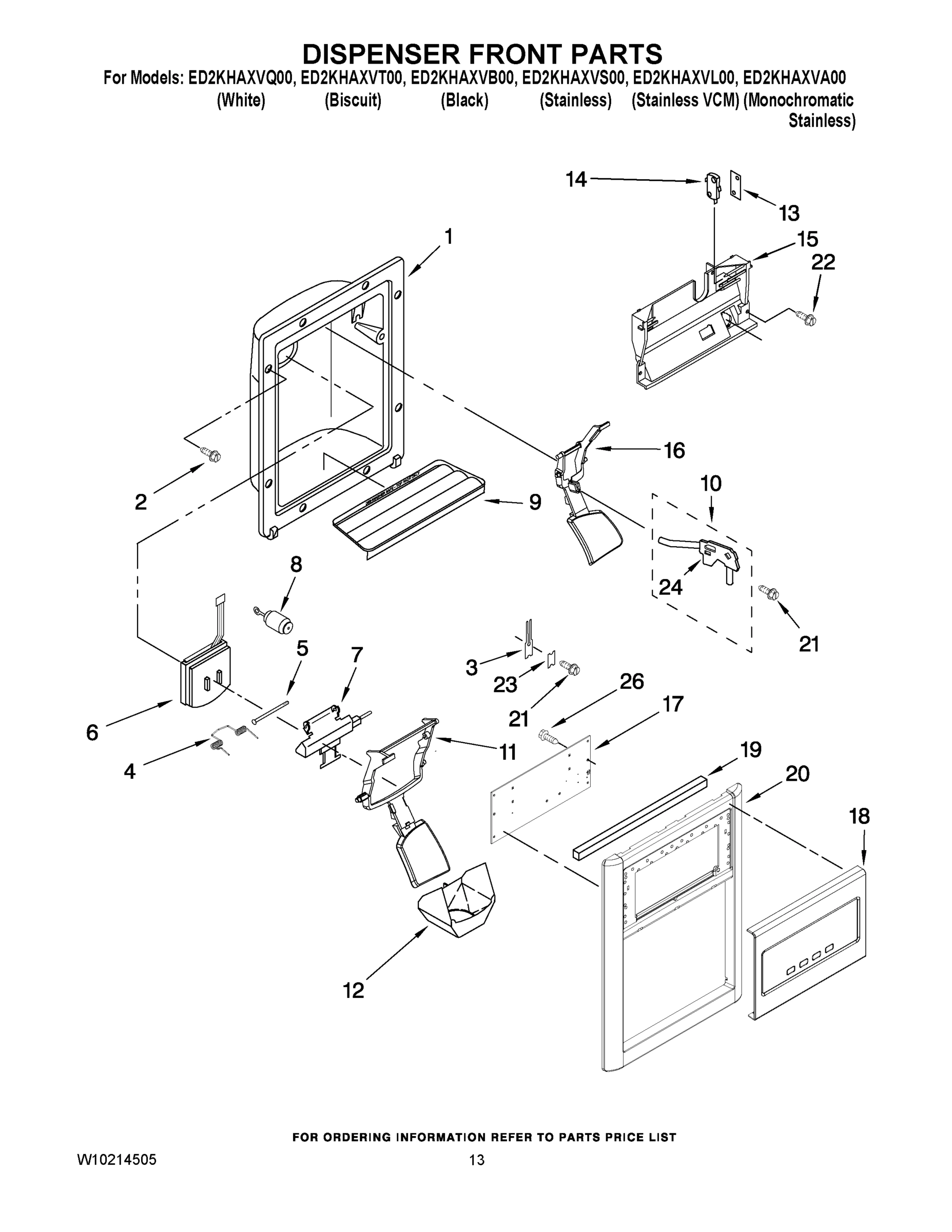

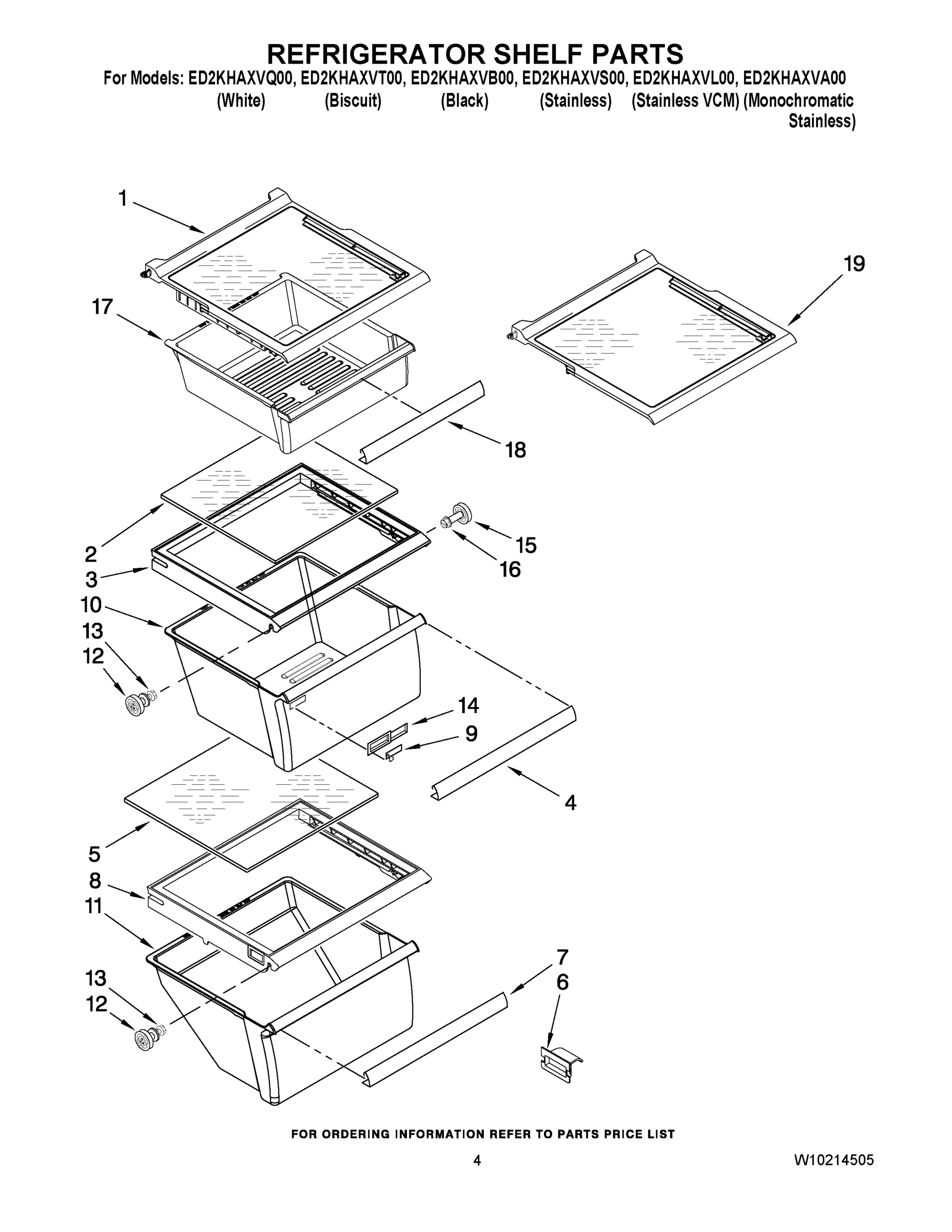

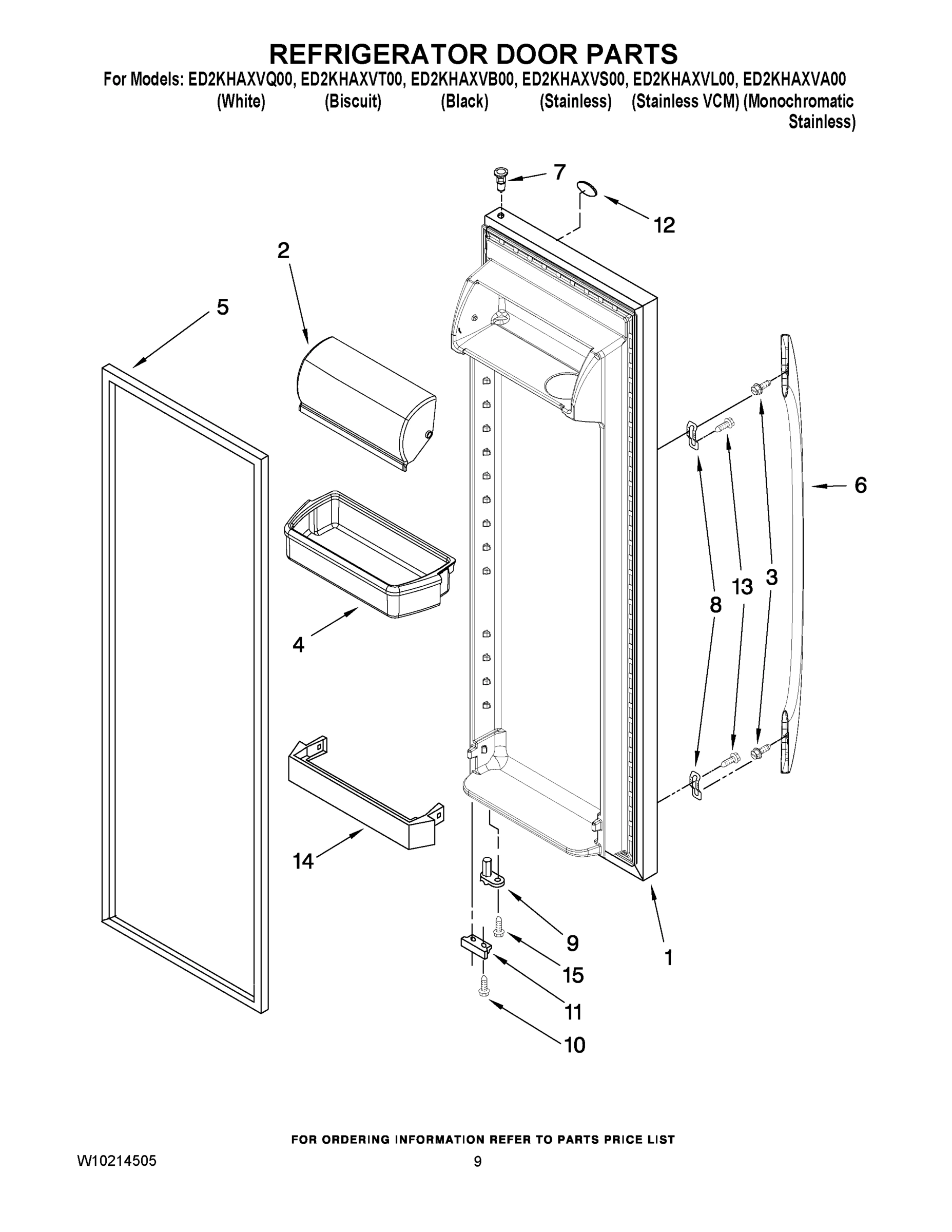

Model Whirlpool ED2KHAXVQ00 REFRIGERATOR – Common Parts &amp; Diagrams

1

Ice Bin WPL 2317246 Contact Us For Availability

1

Energy Label WPL 2326836 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

1

Use & Care Guide WPL W10167096 Contact Us For Availability

1

Instruction Sheet, Door Removal WPL W10180407 Contact Us For Availability

1

Service & Wiring Sheet WPL W10180857 Contact Us For Availability

1

Control Box WPL 2181738 Contact Us For Availability

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

Slide, Ice Maker WPL 2212321 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL W10176384 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10180062 Whirlpool Refrigerator Ice Door Backorder WPL W10180062 $40.10

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WPW10140630 Whirlpool Refrigerator Fitting Backorder WPL WPW10140630 $44.49

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

8

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

8

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $57.79

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $58.93

9

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $98.08

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

W10152855 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152855 $35.56

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $59.15

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $36.65

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $76.51

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Hinge Cover, FC (White) WPL W10138581 Contact Us For Availability

HINGE COVER, FC (BLACK) WPL W10138582 Contact Us For Availability

Hinge Cover, FC (Biscuit) WPL W10138583 Contact Us For Availability

Hinge Cover, FC (Apollo Gray) WPL W10138584 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10152860 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152860 $34.31

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.54

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

2310533 Whirlpool Refrigerator Wire Harness Backorder WPL 2310533 $121.88

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.09

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

CONTROL BOARD, LCD WPL 2321748 Contact Us For Availability

Cap, Water Filter (Biscuit) WPL 2260502T Contact Us For Availability

18

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

18

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

19

2317274 Whirlpool Refrigerator Bin Latch Backorder WPL 2317274 $33.01

19

Block, Housing Support WPL 2260519 Contact Us For Availability

19

CLIP, WIRING WPL 1115375 Contact Us For Availability

20

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $47.56

20

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W10851579 Whirlpool Refrigerator Filler Backorder WPL W10851579 $3.70

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $4.52

Fastener, Push-On WPL 489391 Contact Us For Availability

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

Grille (White) WPL W10184869 Contact Us For Availability

Grille (Black) WPL W10184880 Contact Us For Availability

Grille (Biscuit) WPL W10184881 Contact Us For Availability

Grille (Midnight Grey) WPL W10184882 Contact Us For Availability

Front Cover, Control Box WPL 2311429 Contact Us For Availability

23

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

23

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

23

Light Bar (FC) WPL 2179921 Contact Us For Availability

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Window WPL 2175513 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

26

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

26

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

Enclosure, Motor WPL 2322488 Contact Us For Availability

Clip (2) WPL 2161324 Contact Us For Availability

28

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

29

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

30

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

31

Extension Tube WPL 2304937 Contact Us For Availability

32

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $68.58

33

CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

Hinge Cover, RC (White) WPL W10138576 Contact Us For Availability

HINGE COVER, RC WPL W10138577 Contact Us For Availability

WPL W10138578 WPL W10138578 Contact Us For Availability

WPL W10138579 WPL W10138579 Contact Us For Availability

35

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

36

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

36

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

37

NLA:SCREW Backorder WPL WPW10141645 $3.70

38

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.21

39

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

40

WPL 2323833 WPL 2323833 Contact Us For Availability

41

WPL 2223751 WPL 2223751 Contact Us For Availability

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $85.90

100

Ice Container (Complete) WPL W10204457 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability
